This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Tacoma.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Tacoma
operations. Every Tacoma owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Tacoma
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
126906_CVR.indd 27/20/12 10:45 PM
Page 3 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

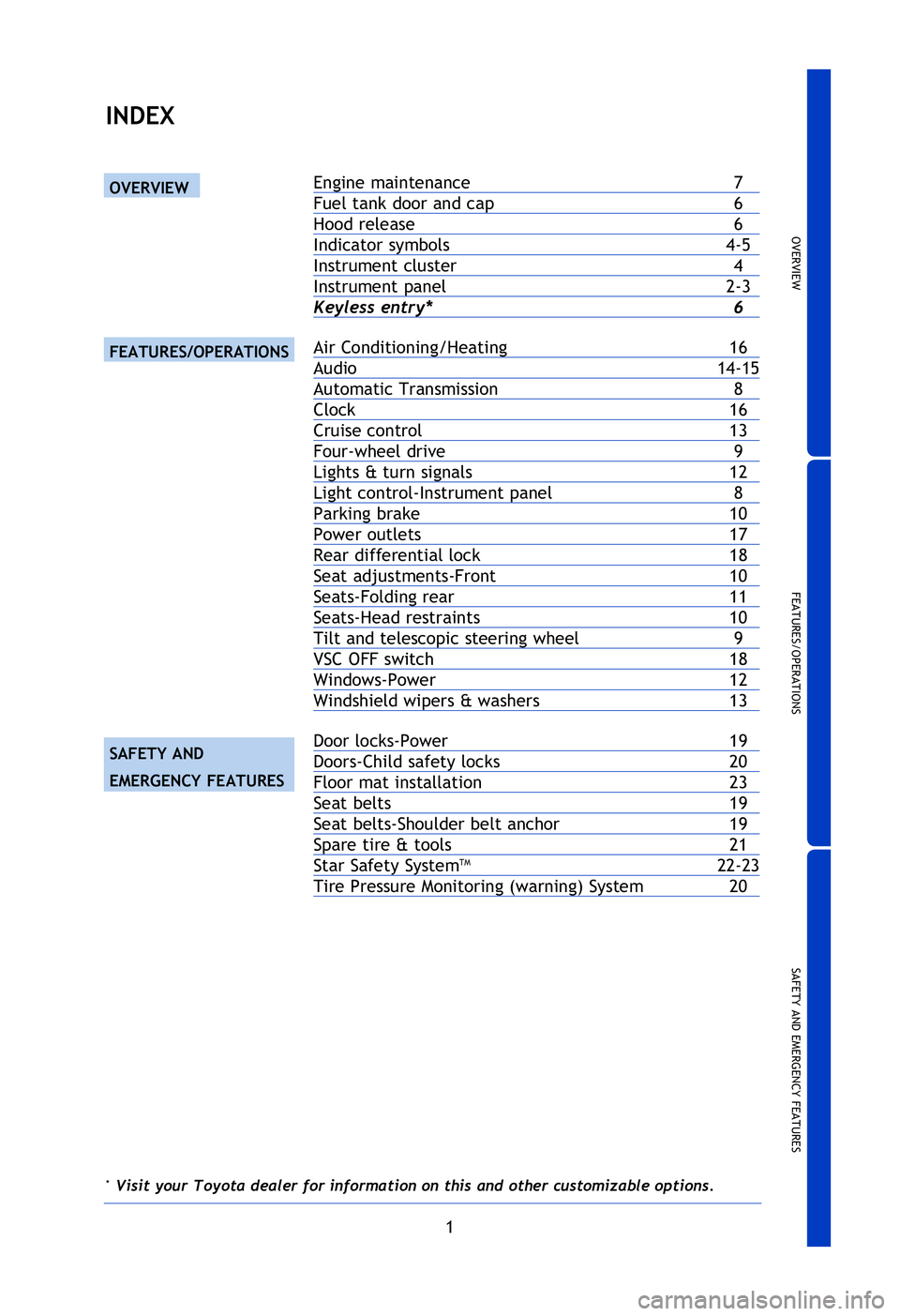

1
2013
TacomaINDEX
Engine maintenance 7
Fuel tank door and cap 6
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Air Conditioning/Heating 16
Audio 14-15
Automatic Transmission 8
Clock 16
Cruise control 13
Four-wheel drive 9
Lights & turn signals 12
Light control-Instrument panel 8
Parking brake 10
Power outlets 17
Rear differential lock 18
Seat adjustments-Front 10
Seats-Folding rear 11
Seats-Head restraints 10
Tilt and telescopic steering wheel 9
VSC OFF switch 18
Windows-Power 12
Windshield wipers & washers 13
Door locks-Power 19
Doors-Child safety locks 20
Floor mat installation 23
Seat belts 19
Seat belts-Shoulder belt anchor 19
Spare tire & tools 21
Star Safety System
TM 22-23
Tire Pressure Monitoring (warning) System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
* Visit your Toyota dealer for information on this and other customizable \
options.
126906_GUTS.indd 17/20/12 10:48 PM
Page 4 of 28
2
OVERVIEW
Volume control buttons1,4
Telephone controls1,4
Voice command button1,4
“MODE” button1,4
“ ” buttons1,4
Two-wheel/Four-wheel drive selector1
Emergency flasher button
Display audio system1,4
Clock
Theft deterrent system/Engine immobilizer indicator1
Front passenger seat belt reminder
Front passenger occupant classification indicator or front passenger airbag
ON/OFF indicator
1
Parking brake lever2
Ignition switch
Windshield wiper and washer controls
Air Conditioning controls
12V DC Power outlets
Seat heater switches
1
AUX or AUX/USB1 port
“A-TRAC” (Active traction control system) switch1
Cruise control1
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Parking brake pedal
3
Front fog light switch1
Rear differential lock switch1
120V AC Power outlet ON/OFF switch1
Instrument panel light control
Headlight and turn signal controls
“RSCA OFF” (Roll Sensing Curtain shield Airbags OFF) switch
1
“DAC” (Downhill Assist Control) button1 or clutch start cancel switch1
Vehicle Stability Control OFF switch
Power rearview mirror control switches1
1 If equipped2 Manual Transmission only3 Automatic Transmission only4 For details, refer to “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.

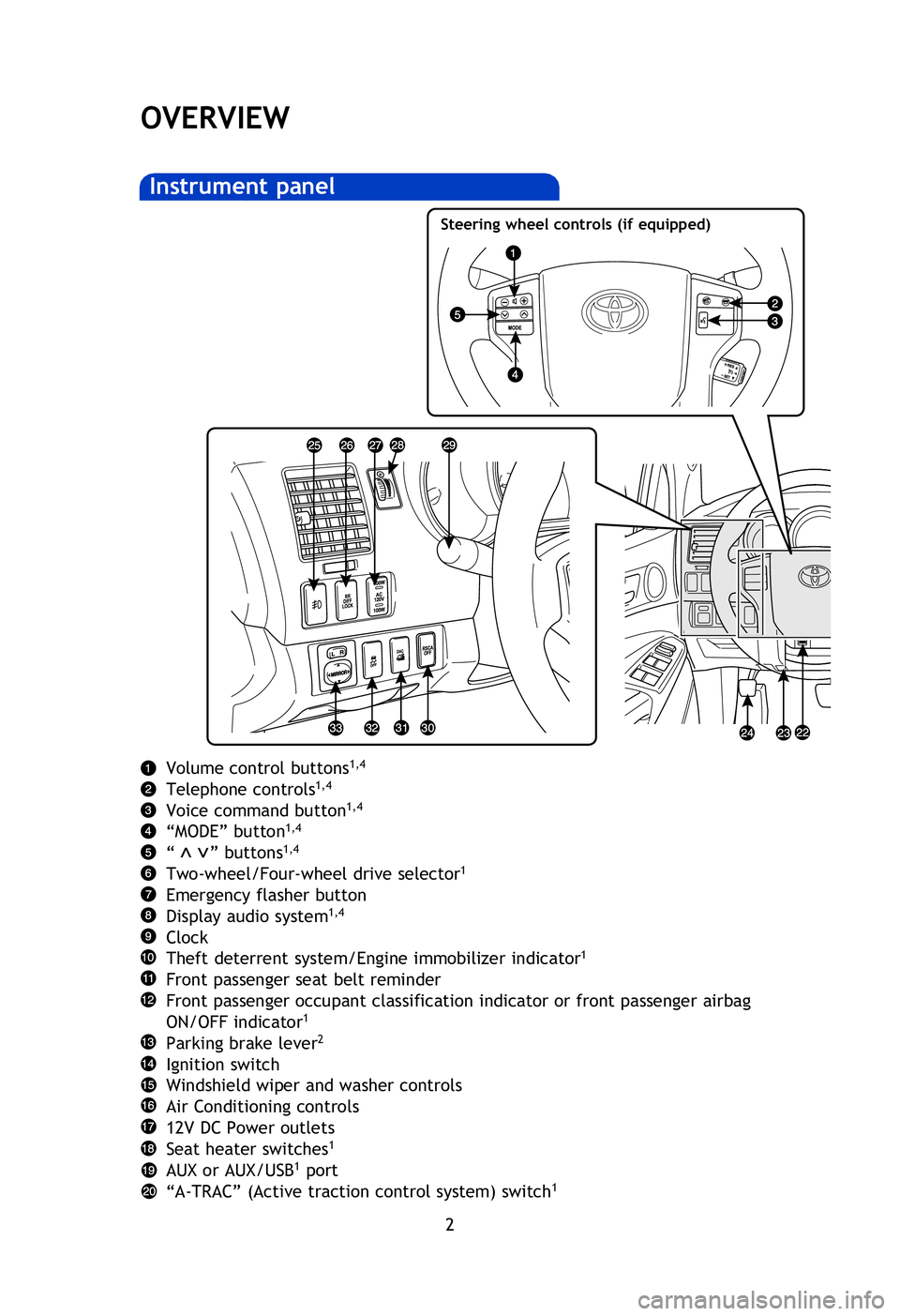

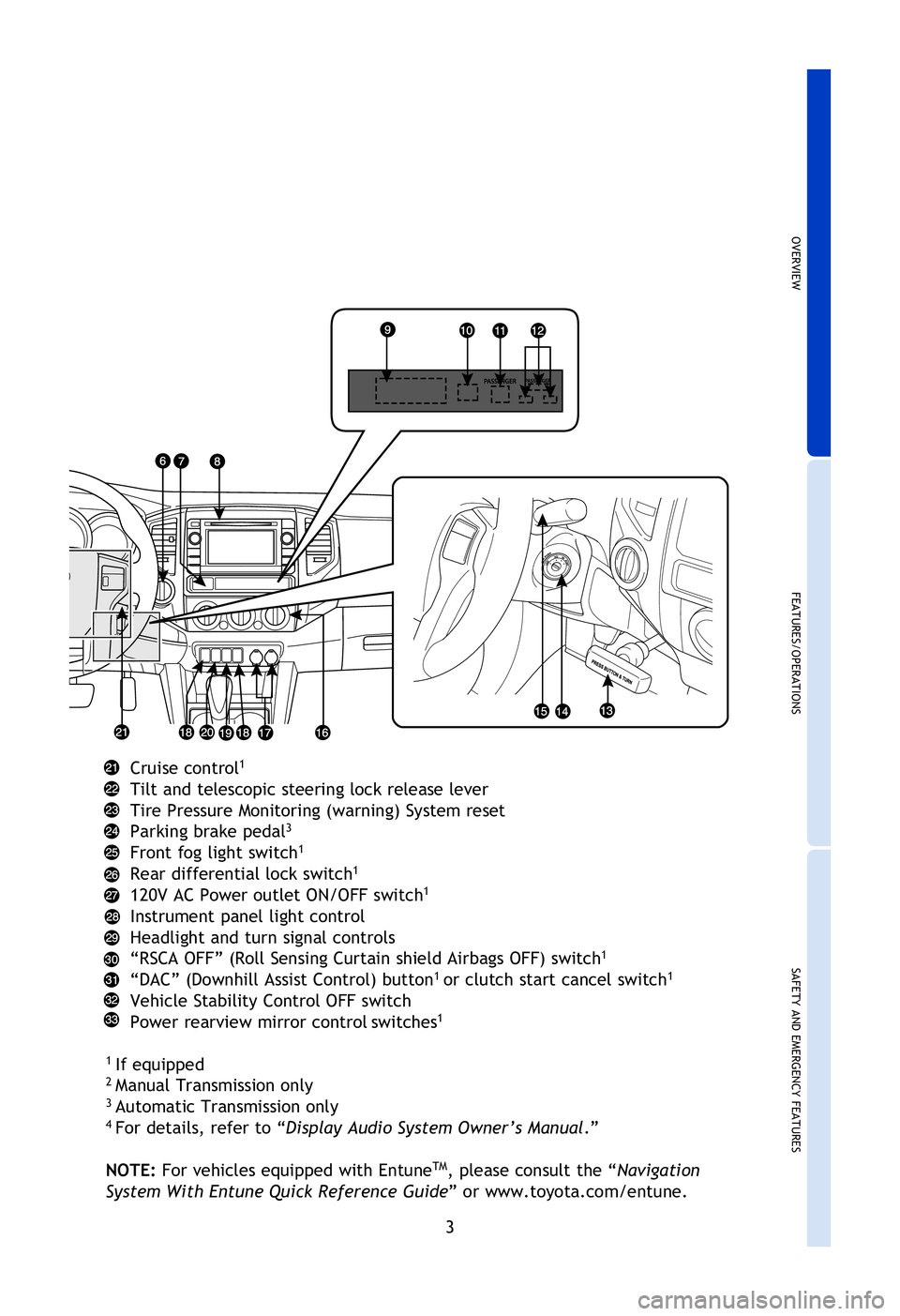

Instrument panel
Steering wheel controls (if equipped)
>>
126906_GUTS.indd 27/20/12 10:49 PM
Page 5 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Volume control buttons1,4
Telephone controls1,4
Voice command button1,4
“MODE” button1,4
“ ” buttons1,4
Two-wheel/Four-wheel drive selector1
Emergency flasher button
Display audio system1,4
Clock
Theft deterrent system/Engine immobilizer indicator1
Front passenger seat belt reminder
Front passenger occupant classification indicator or front passenger airbag
ON/OFF indicator
1
Parking brake lever2
Ignition switch
Windshield wiper and washer controls
Air Conditioning controls
12V DC Power outlets
Seat heater switches
1
AUX or AUX/USB1 port
“A-TRAC” (Active traction control system) switch1
Cruise control1
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Parking brake pedal
3
Front fog light switch1
Rear differential lock switch1
120V AC Power outlet ON/OFF switch1
Instrument panel light control
Headlight and turn signal controls
“RSCA OFF” (Roll Sensing Curtain shield Airbags OFF) switch
1
“DAC” (Downhill Assist Control) button1 or clutch start cancel switch1
Vehicle Stability Control OFF switch
Power rearview mirror control switches1
1
If equipped2 Manual Transmission only3 Automatic Transmission only4 For details, refer to “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
126906_GUTS.indd 37/20/12 10:49 PM
Page 6 of 28
4
OVERVIEW
Tachometer
Speedometer
Odometer and two trip meters
Service indicator and reminder
Engine coolant temperature
Fuel gauge
Odometer/trip meter and trip meter reset button
Gear shift position indicator (if equipped)

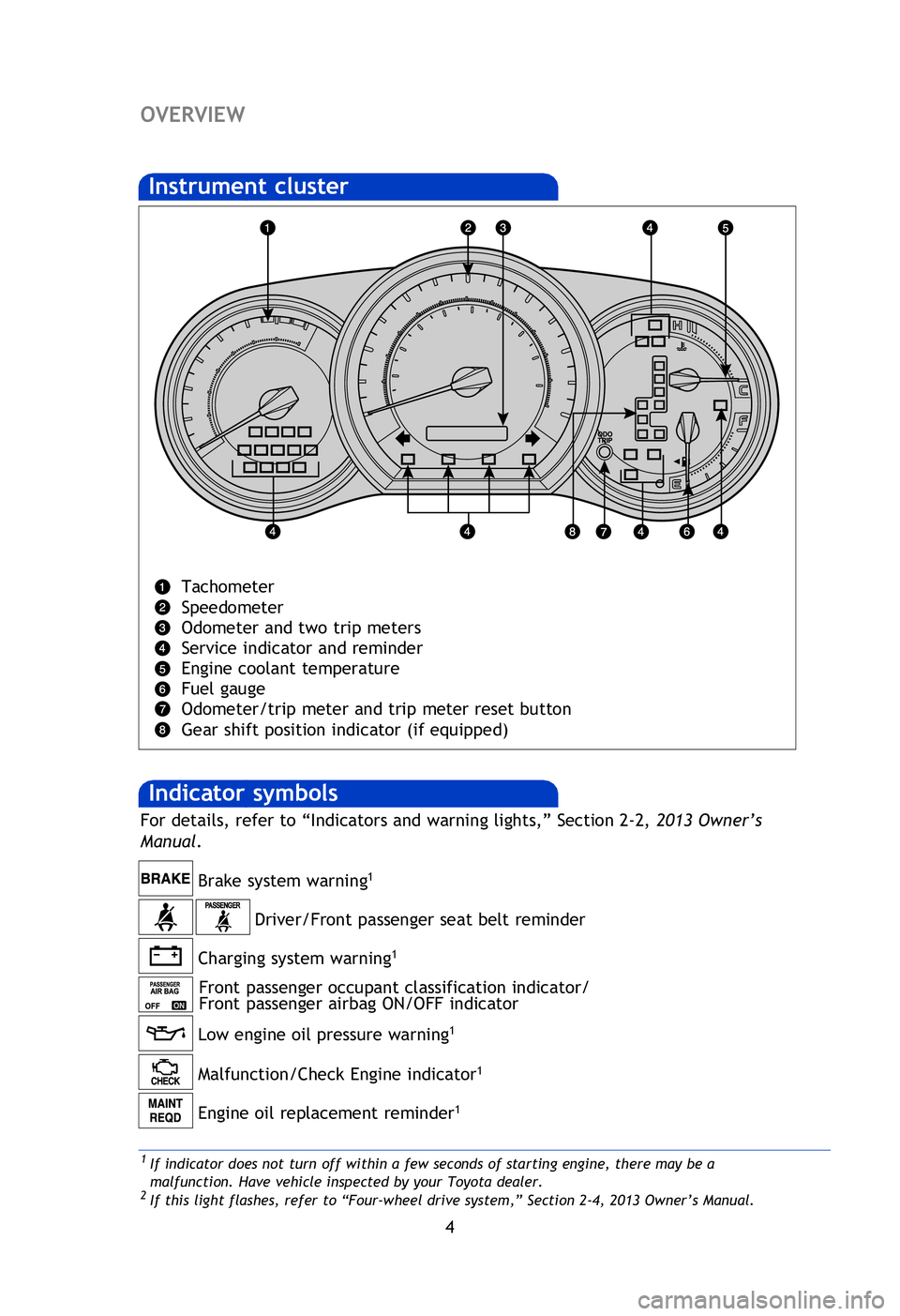

Instrument cluster
Driver/Front passenger seat belt reminder
Charging system warning
1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Front passenger occupant classification indicator/
Front passenger airbag ON/OFF indicator
Indicator symbols
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2013 Owner’s Manual.
3 If this light flashes, refer to “Rear differential lock system,” Section 2-4, 2013 Owner’s Manual.4 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
126906_GUTS.indd 47/20/12 10:49 PM
Page 7 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

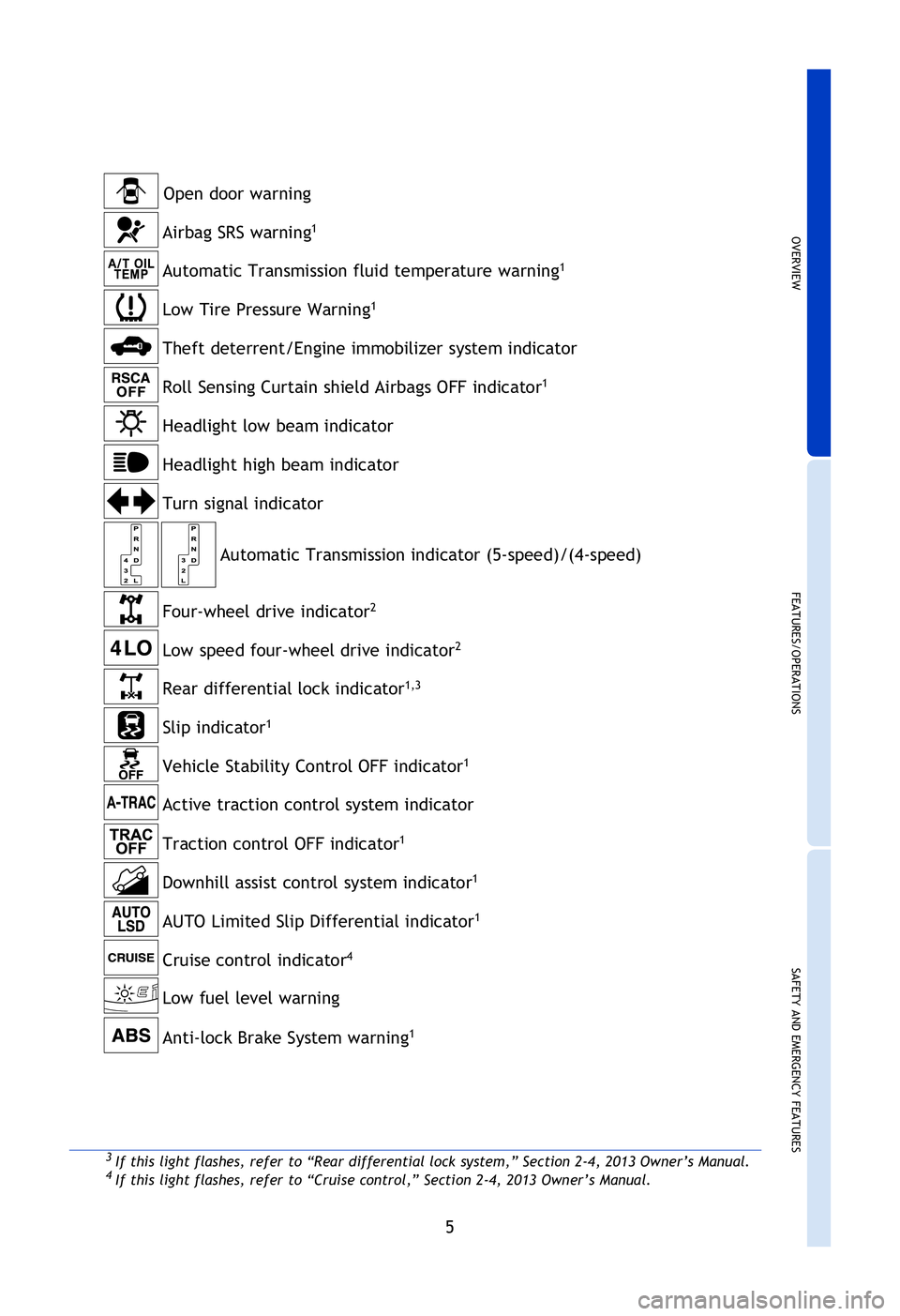

Open door warningAutomatic Transmission indicator (5-speed)/(4-speed)
Low fuel level warning
Headlight low beam indicator
Headlight high beam indicator
Turn signal indicator
Four-wheel drive indicator
2
Low speed four-wheel drive indicator2
Rear differential lock indicator1,3
Slip indicator1
Vehicle Stability Control OFF indicator1
Downhill assist control system indicator1
AUTO Limited Slip Differential indicator1
Cruise control indicator4
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Airbag SRS warning1
Roll Sensing Curtain shield Airbags OFF indicator1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2013 Owner’s Manual.
3 If this light flashes, refer to “Rear differential lock system,” Section 2-4, 2013 Owner’s Manual.4 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Active traction control system indicator
Anti-lock Brake System warning
1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
Traction control OFF indicator1
126906_GUTS.indd 57/20/12 10:49 PM
Page 8 of 28

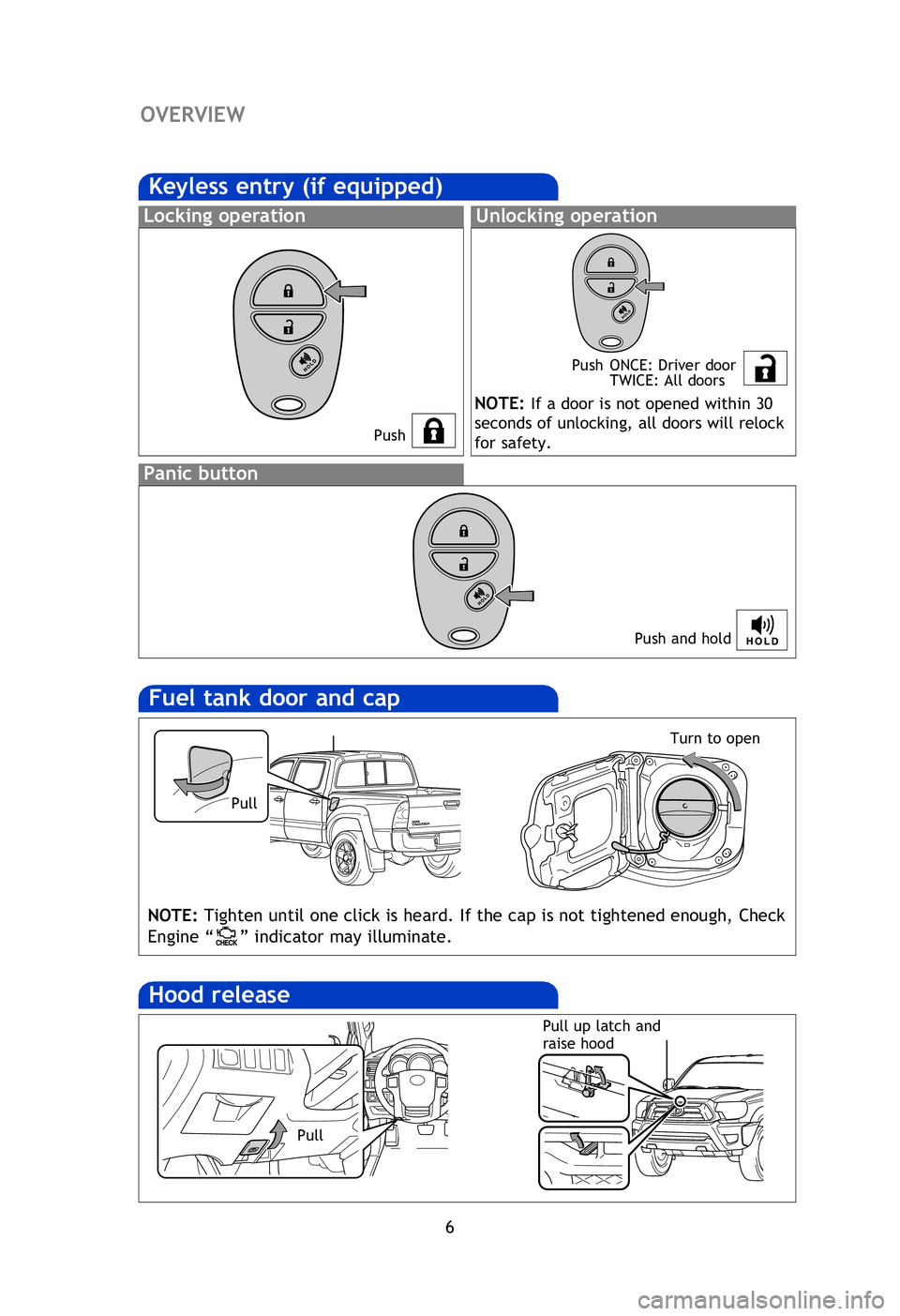

6
OVERVIEW
Fuel tank door and cap
Hood release
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Pull up latch and
raise hood Turn to open
Keyless entry (if equipped)
Pull
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”

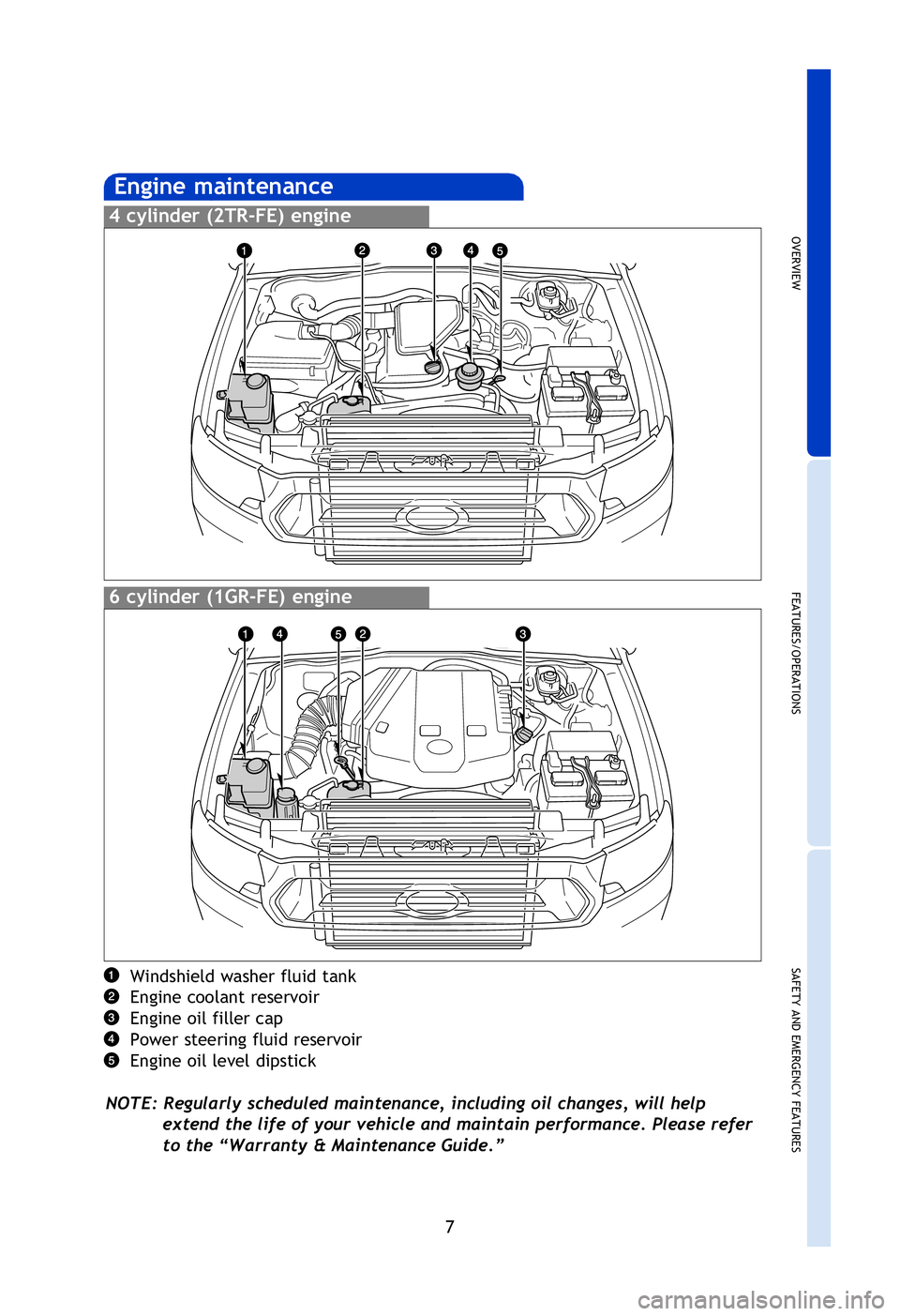

Engine maintenance
4 cylinder (2TR-FE) engine
6 cylinder (1GR-FE) engine
Panic button
Push and hold
Push Push
ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
NOTE: If a door is not opened within 30
seconds of unlocking, all doors will relock
for safety.
Pull
126906_GUTS.indd 67/20/12 10:49 PM
Page 9 of 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Turn to open
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
4 cylinder (2TR-FE) engine
6 cylinder (1GR-FE) engine
Unlocking operation
NOTE: If a door is not opened within 30
seconds of unlocking, all doors will relock
for safety.
126906_GUTS.indd 77/20/12 10:49 PM
Page 10 of 28
8
FEATURES/OPERATIONS

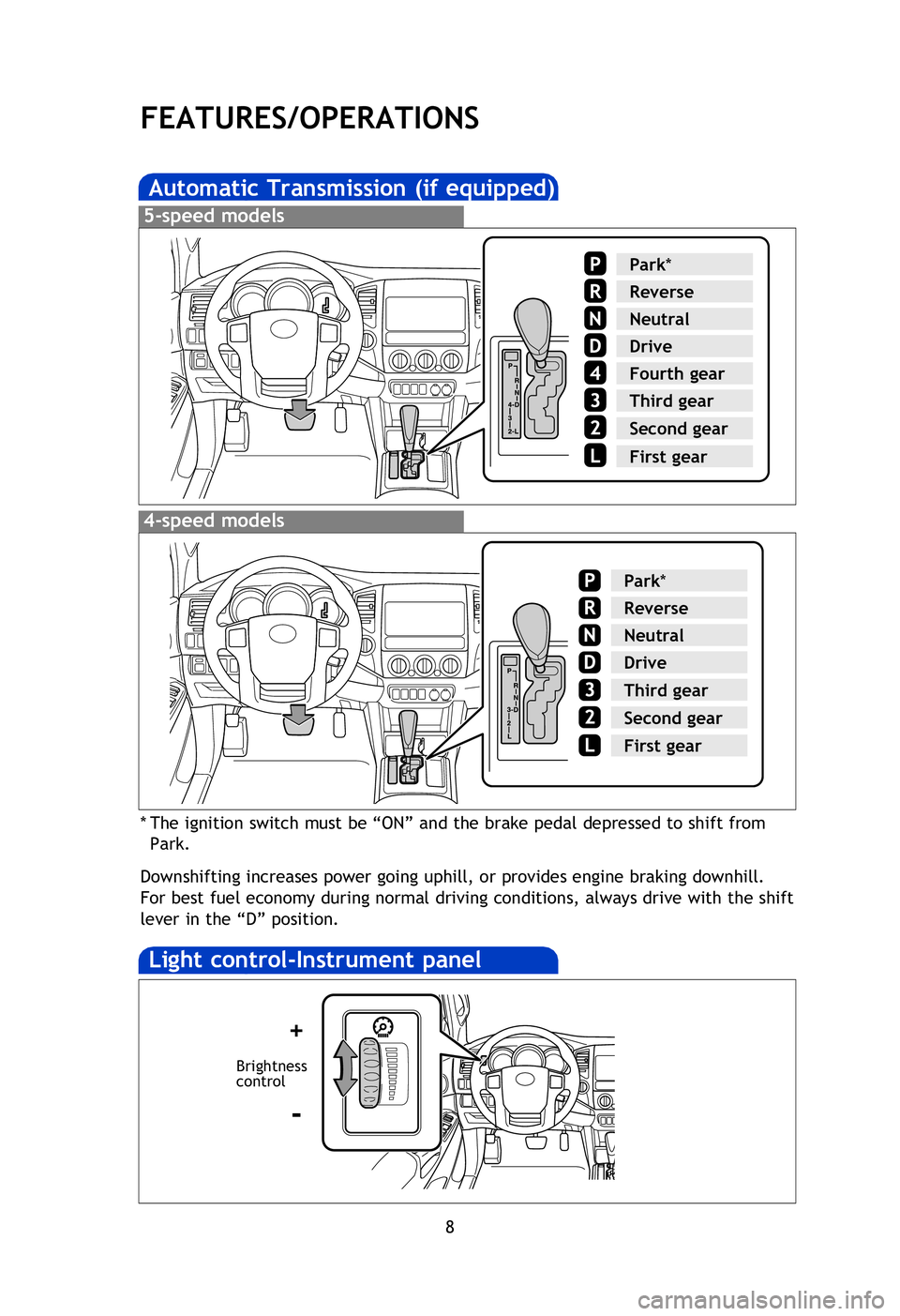

Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
5-speed models
4-speed models
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Light control-Instrument panel
Brightness
control
-
+
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Four-wheel drive (if equipped)
For best fuel economy and performance under normal driving conditions, keep in
“H2” position.
126906_GUTS.indd 87/20/12 10:49 PM
