2-2. Gauges and meters
2
When driving
■
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 151)*1,2Slip indicator
( P. 188, 190, 199)
Headlight high beam
indicator ( P. 163)*1VSC OFF indicator
(P. 190, 200, 201)
(U.S.A.)
Headlight indicator
( P. 162)*1TRAC OFF indicator
(P. 200, 201)
(Canada)
Tail light indicator
( P. 162)*1
(if equipped)
Downhill assist control
system indicator
(P. 195)
(if equipped)
Security indicator
( P. 82)*1,5RSCA OFF indicator
(P. 100)
(5-speed
automatic
transmission
vehicles)
Shift position and shift
range indicators
(P. 144)(if equipped)
Active traction control
system indicator
( P. 188)
*1AUTO LSD indicator
(P. 190)
(4-speed
automatic
transmission vehicles)
Shift position and shift
range indicators
(P. 144)(4WD models)
Four-wheel drive
indicator ( P. 184)
(4WD models)
4LO indicator ( P. 184)
(if equipped)
Cruise control indicator
(P. 172)*1
(if equipped)
Rear differential lock
indicator ( P. 192)
163
2-3. Operating the lights and wipers
2
When driving
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.

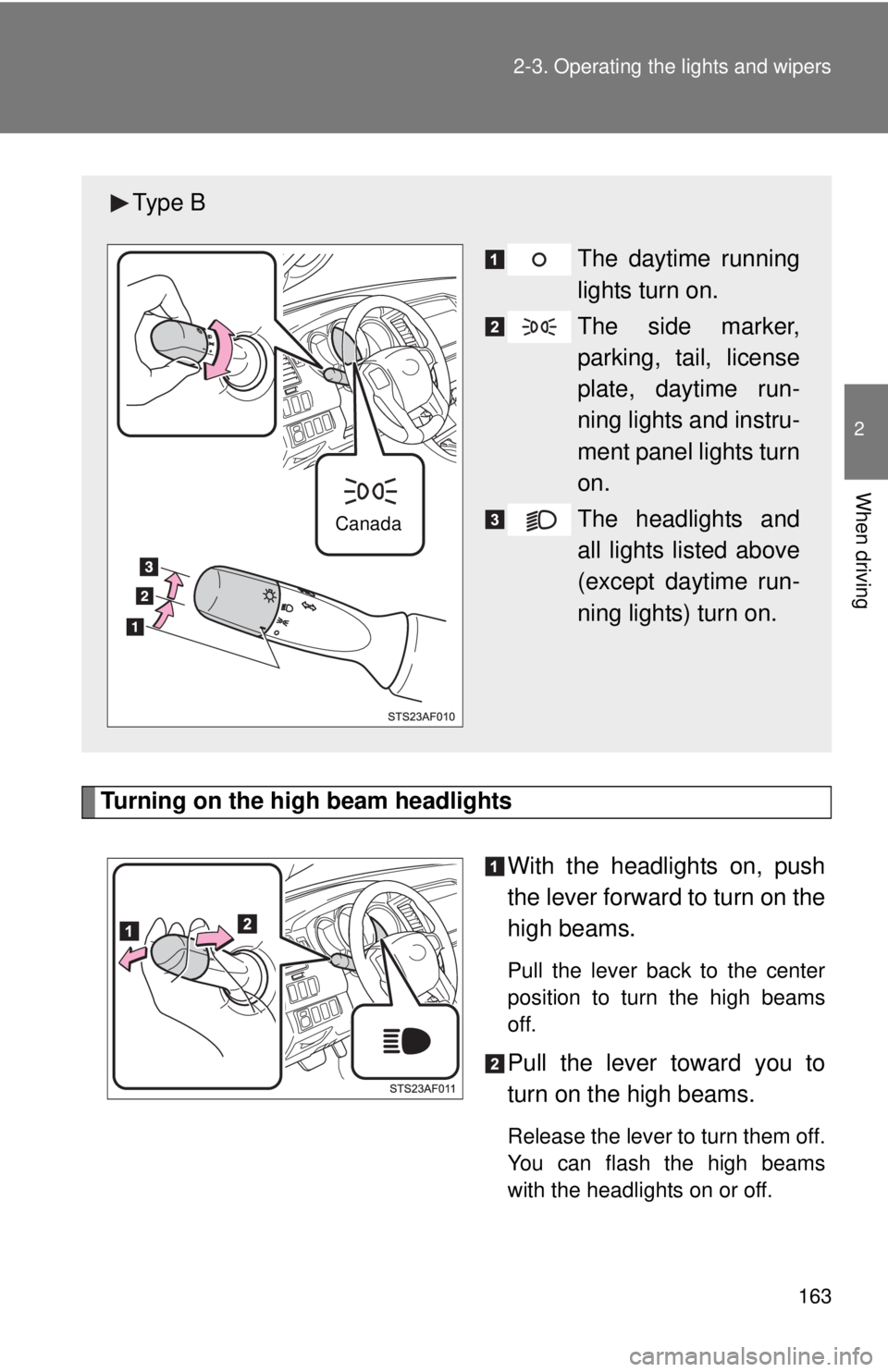

Ty p e B The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and instru-
ment panel lights turn
on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
Canada
376 4-3. Do-it-yourself maintenance
FuseAmpereCircuit
1 A/C 10 A Air conditioning system
2 TOWING TAIL 30 A Trailer lights (tail lights)
3 FOG FR 15 A Front fog lights
4 STOP 10 A Stop lights, high mounted stop-
light, vehicle stability control sys-
tem, anti-lock brake system, shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, towing lights
5 TOWING BRK 30 A Trailer brake controller
6 EFI 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
7 S/HTR NO.2 30 A Seat heaters
8 OBD 7.5 A On-board diagnosis system
9 BATT CHG 30 A Trailer sub battery
10 AIR PMP HTR 10 A AI system
11 TOWING 30 A Towing lights
12 TURN & HAZ 15 A Turn signal lights, emergency
flashers, meter and gauge
13 RADIO NO.2 30 A Audio system
14 H-LP RH-LO 10 A Right-hand headlight (low beam),
front fog lights
15 H-LP LH-LO 10 A Left-hand headlight (low beam)
16 H-LP RH-HI 10 A Right-hand headlight (high beam)
17 H-LP LH-HI 10 A Left-hand headlight (high beam),
meter and gauge
18 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
