oil capacity TOYOTA TACOMA 2013 Owners Manual (in English)

454 6-1. Specifications
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
Oil capacity
(Drain and refill - reference
*)
Without filter
With filter 2.7 L 4-cylinder (2TR-FE) engine
5.4 qt. (5.1 L, 4.5 Imp.qt.)
4.0 L V6 (1GR-FE) engine
2WD models except PreRunner:
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4WD models and PreRunner:
5.2 qt. (4.9 L, 4.3 Imp.qt.)
2.7 L 4-cylinder (2TR-FE) engine
6.1 qt. (5.8 L, 5.1 Imp.qt.)
4.0 L V6 (1GR-FE) engine
2WD models except PreRunner:
4.8 qt. (4.5 L, 4.0 Imp.qt.)
4WD models and PreRunner:
5.5 qt. (5.2 L, 4.6 Imp.qt.)

458 6-1. Specifications
Electrical system
Differential
*:Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.
Battery
Open voltage at
68F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage checked 20 minutes after the key
is removed with all the lights turned off)
Charging rates 5 A max.
Oil capacity
Front
(4WD models)1.59 qt. (1.50 L, 1.32 Imp.qt.)
Rear 2WD models except PreRunner
3.66 qt. (3.46 L, 3.04 Imp.qt.)
4WD models and PreRunner
3.12 qt. (2.95 L, 2.60 Imp.qt.)
Oil type and viscosity *Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

460 6-1. Specifications
Manual transmission
Clutch
Transfer (4WD models)
Gear oil capacity (Reference)2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine 2WD models
2.7 qt. (2.6 L, 2.3 Imp.qt.)
4WD models
2.3 qt. (2.2 L, 1.9 Imp.qt.)
1.9 qt. (1.8 L, 1.6 Imp.qt.)
Gear oil type Gear oil API GL-4 or GL-5
Recommended gear oil viscosity SAE 75W-90
Clutch free play0.2  0.6 in. (5 15 mm)
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Oil capacity1.1 qt. (1.0 L, 0.9 Imp.qt.)
Oil typeGear oil API GL-4 or GL-5
Recommended oil viscosity SAE 75W-90

475
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation,
or excessive loading, either
separately or in combination, can cause heat buildup and possible
tire failure.

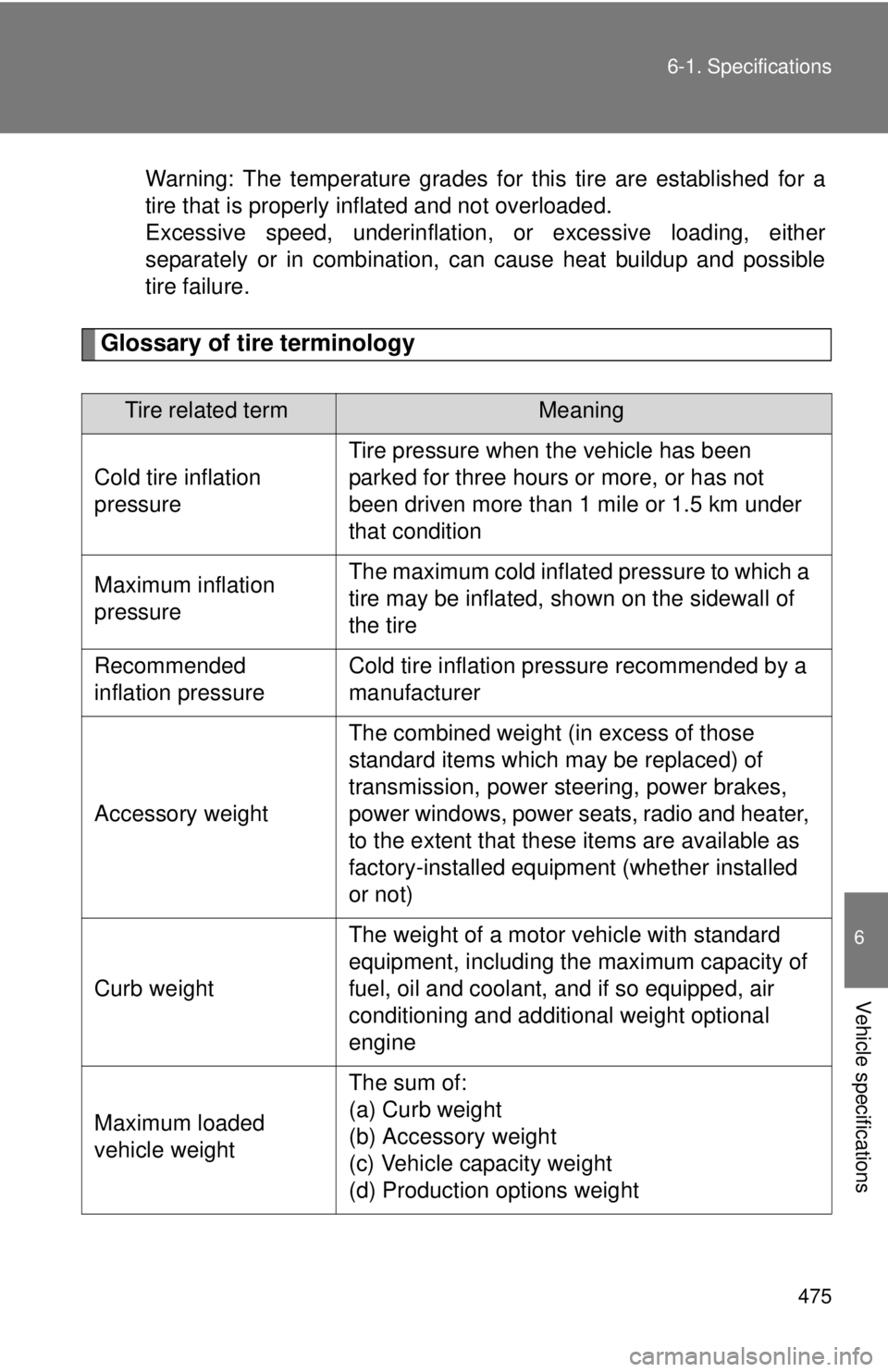

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
transmission, power steering, power brakes,
power windows, power seats, radio and heater,
to the extent that these items are available as
factory-installed equipment (whether installed
or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

514 Alphabetical index
DrivingBreak-in tips .......................... 132
Correct posture .......................85
Driving assist systems........... 198
Procedures ............................ 130
Winter driving tips.................. 217
Emergency, in case of Blown fuse............................. 372
If the engine will not start ...... 430
If the shift lever cannot be shifted from P...................... 431
If the vehicle battery is
discharged .......................... 433
If the warning buzzer sounds ................................ 403
If the warning light turns on ... 403
If you have a flat tire ............. 413
If you lose your keys ............. 432
If you think something is wrong .................................. 401
If the vehicle becomes
stuck ................................... 440
If your vehicle has to be stopped in an emergency ... 442
If your vehicle needs to be towed .................................. 395
If your vehicle overheats ....... 437
Emergency flashers Switch.................................... 394
Engine
Compartment ........................ 334
Engine switch ........................ 141
Exhaust gas .......................... 137
Hood...................................... 332
How to start the engine ......... 141
Identification number ............. 451
If the engine will not start ...... 430
Ignition switch........................ 141
Immobilizer system .................82
Overheating........................... 437
Warning light ......................... 404 Engine coolant
Capacity ................................ 457
Checking ............................... 340
Preparing and checking before winter ....................... 217
Temperature gauge .............. 155
Engine coolan t temperature
gauge ...................................... 155
Engine immobilizer system ...... 82
Engine oil Capacity ................................ 454
Checking ............................... 336
Preparing and checking before winter ....................... 217
Warning light ......................... 404
Engine switch........................... 141
Event data recorder ................... 27
Floor mat .................................. 287
Fluid Brake..................................... 342
Washer.................................. 348
Fog lights Replacing light bulbs ............. 385
Switch ................................... 165
Wattage................................. 466
Four-wheel drive system Front-wheel drive control
switch.................................. 184
Front fog lights Replacing light bulbs ............. 385
Switch ................................... 165
Wattage................................. 466
Front passenger occupant
classification system ............ 101
Front passenger’s seat belt reminder light ........................ 406
Front passenger’s seat belt warning buzzer ...................... 406
Front seats
Adjustment .............................. 47
E
F

516 Alphabetical index
JackPositioning the jack ............... 420
Vehicle-equipped jack ........... 413
Jack handle .............................. 418
Keyless entry..............................34
Keys Engine switch ........................ 141
If you lose your keys ............. 432
Ignition switch........................ 141
Keyless entry...........................34
Key number .............................32
Keys ........................................32
Reminder buzzer ................... 409
Wireless remote control ..........34
Wireless remote control battery ................................. 370
License plate lights Replacing light bulbs ............. 390
Switch.................................... 162
Wattage ................................. 466
Light bulbs Replacing .............................. 382
Wattage ................................. 466
Lights Automatic light off system ..... 164
Emergency flashers switch ... 394
Fog light switch ..................... 165
Hazard light switch ................394
Headlights switch .................. 162
Instrument panel light control dial .......................... 156
Interior light switch ................260
Replacing light bulbs ............. 382
Turn signal lights switch ........ 151
Wattage ................................. 466 Limited slip differential ........... 190
Load capacity ........... 210, 215, 447
Lock steering column................ 67
Luggage storage box .............. 294
Luggage compartment
features .................................. 289
Maintenance Do-it-yourself maintenance ....................... 328
General maintenance............ 324
Maintenance data ................. 446
Maintenance requirements ... 322
Reset the maintenance data..................................... 323
Vehicle exterior ..................... 316
Vehicle interior ...................... 319
Malfunction indicator lamp ..... 404
Manual air conditioning system .................................... 244
Manual transmission ............... 148
Meter Instrument panel light control ................................. 156
Meters ................................... 155
Mirrors Inside rear view mirror ............ 68
Side mirrors............................. 73
Vanity mirrors ........................ 270
Noise from under vehicle .......... 25
Odometer .................................. 156
Off-road precautions Driving ................................... 207
Vehicle .................................. 205
Oil Engine oil .............................. 336
Warning light ................. 404, 406
Opener Fuel door ................................. 79
Hood ..................................... 332J
K
L
M
N
O

519
Alphabetical index
Window lock switch ................ 76
Wiper and washer ................ 166
Tachometer .............................. 155
Tailgate Removing the tailgate............. 42
Tailgate................................... 42
Tail lights Replacing light bulbs .... 388, 391
Switch ................................... 162
Wattage ................................ 466
Theft deterrent system Engine immobilizer system..... 82
Tire inflation pressure ............ 462
Tire information Glossary ............................... 475
Size ...................................... 472
Tire identification number ..... 471
Uniform tire quality
grading ............................... 473
Tires Chains .................................. 218
Checking .............................. 350
If you have a flat tire ............. 413
Identification number ............ 471
Inflation pressure .................. 462
Inflation pressure sensor ...... 351
Information ........................... 470
Replacing ............................. 413
Rotating tires ........................ 350
Size ...................................... 462
Snow tires............................. 354
Spare tire .............................. 413
Tire pressure warning
reset switch ........................ 351
Tire pressure warning system........................ 350, 410
Warning light ........................ 406
Tools......................................... 413
Total load capacity .................. 215 Towing
Bumper towing ......................231
Dinghy towing........................242
Emergency towing.................395
Fifth wheel trailer ...................229
Trailer towing.........................221
Traction control system ..........198
TRAC .........................................198
Trip meter .................................156
Turn signal lights Lever .....................................151
Replacing light
bulbs ...........................387, 388
Switch....................................151
Wattage .................................466
Vanity mirrors...........................270
Vehicle control and operation data recording ........26
Vehicle data recordings ............26
Vehicle identification number ...................................451
Vehicle stability control...........198
VSC............................................198
Warning buzzers Key reminder .........................409
Brake system ........................403
Seat belt reminder .................406
Warning lights
ABS .......................................404
Airbag system .......................404
Anti-lock brake system ..........404
Automatic transmission fluid temperature ................. 404
Brake system ........................403
Charging system .... ...............404
Driver’s seat belt ...................406
Electronic engine control system ................................404
Engine oil replacement..........406
T
V
W

520 Alphabetical index
Front passenger occupantclassification system ........... 404
Front passenger’s seat belt ...................................... 406
Low brake fluid ...................... 403
Low engine oil pressure ........ 404
Low fuel level ........................ 406
Low tire inflation pressure ..... 406
Malfunction indicator lamp .... 404
Open door ............................. 406
Seat belt ................................ 406
Seat belt pretensioner
system ................................ 404
SRS ....................................... 404
SRS airbag system ............... 404
Tire pressure ......................... 406
Tire pressure warning
system ................................ 406
VSC/TRAC ............................ 404
Washer
Checking ............................... 348
Preparing and checking before winter ....................... 217
Switch.................................... 166
Washing and waxing ............... 316
Weight Cargo capacity ...................... 210
Cargo weight rating ............... 503
Gross axle weight rating........ 505
Gross combination weight rating ................................... 226
Gross vehicle weight
rating ................................... 505
Load limits ............................. 215
Trailer weight rating....... 226, 449
Vehicle capacity weight ......... 447
Weight ................................... 447
Wheels ...................................... 364
Window glasses ................. 76, 78
Window lock switch ...................76 Windows
Power windows ....................... 76
Washer.................................. 166
Windshield wipers ................... 166
Wireless remote control Replacing the battery ............ 370
Wireless remote control .......... 34
Winter driving tips ................... 217

524
GAS STATION INFORMATION
Auxiliary catch leverP. 332Fuel filler doorP. 7 9
Tire inflation pressure
P. 462
Hood lock release lever P. 3 3 2
Fuel tank capacity
(Reference) 21.1 gal. (80.0 L, 17.6 Imp.gal.)
Fuel typeUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 4 6 2
Engine oil capacity
(Drain and refill
-reference) P. 4 5 4
Engine oil type
P. 454
