TOYOTA TACOMA 2015 Accessories, Audio & Navigation (in English)

21

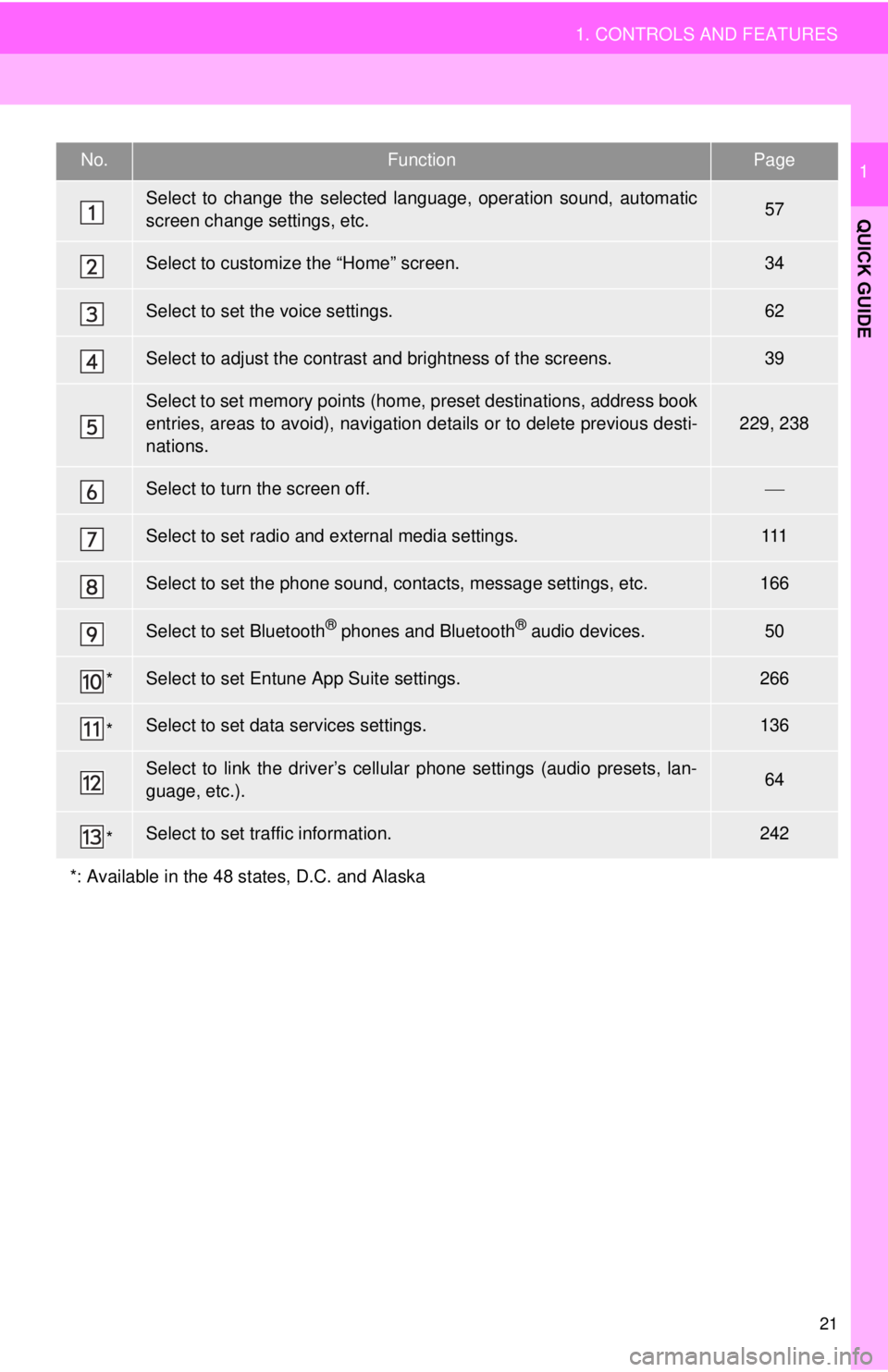

1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.57
Select to customize the “Home” screen.34
Select to set the voice settings.62
Select to adjust the contrast and brightness of the screens.39
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
229, 238
Select to turn the screen off.
Select to set radio and external media settings.111
Select to set the phone sound, contacts, message settings, etc.166
Select to set Bluetooth® phones and Bluetooth® audio devices.50
*Select to set Entune App Suite settings.266
*Select to set data services settings.136
Select to link the driver’s cellular phone settings (audio presets, lan-
guage, etc.).64
*Select to set traffic information.242
*: Available in the 48 states, D.C. and Alaska

22
2. NAVIGATION OPERATION
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
There are different kinds of meth-
ods to search for your home.
(
P.202)
*:Entune Premium Audio only
1
2
3
4
5
6
1$9,*$7,2123(5$7,21

23
2. NAVIGATION OPERATION
QUICK GUIDE
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.230
 Editing the name, location, phone num-
ber and icon
P.230
 Setting home as the destination
P.205
7
8

24
2. NAVIGATION OPERATION
2. REGISTERING PRESET DESTINATIONS*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select one of the preset destina-
tion buttons.
Select “Yes”.
There are different kinds of meth-
ods to search for a destination.
(
P.202)
Select “Enter ”.
Select “OK”.
Registration of preset destinations is
complete.
 Registering preset destinations in a dif-
ferent way
P.231
 Editing the name, location, phone num-
ber and icon
P.232
 Setting preset destinations as the desti-
nation
P.205
*:Entune Premium Audio only
1
2
3
4
5
6
7
8

25
2. NAVIGATION OPERATION
QUICK GUIDE
1
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
There are different kinds of meth-
ods to search for a destination.
(P.202) Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended ( P.215)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*:Entune Premium Audio only
1
2
3
4
5
6

26
2. NAVIGATION OPERATION
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”.Select “OK”.
Selecting routes other than the one recom-
mended ( P.215)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*:Entune Premium Audio only
1
2
3
4
5

27
QUICK GUIDE
1
3. FUNCTION INDEX
1. FUNCTION INDEX*
Map
 Route guidance
Displaying mapsPage
Viewing the map screen186
Displaying the current position189
Viewing the current position vicinity map193
Changing the scale189
Changing the map orientation190
Displaying Points of Interest195
Displaying the estimated travel/arrival time to the destination219
Selecting the map mode191
Displaying traffic information199
Searching for destinationsPage
Searching for the destination204
Changing the selected search area205
Before starting or during route guidancePage
Starting route guide215
Editing the route225
Viewing the entire route map220
Address bookPage
Registering address book entries233
Marking icons on the map234
Pausing guidance218
Adjusting route guidance volume62
Deleting the destination226
*:Entune Premium Audio only

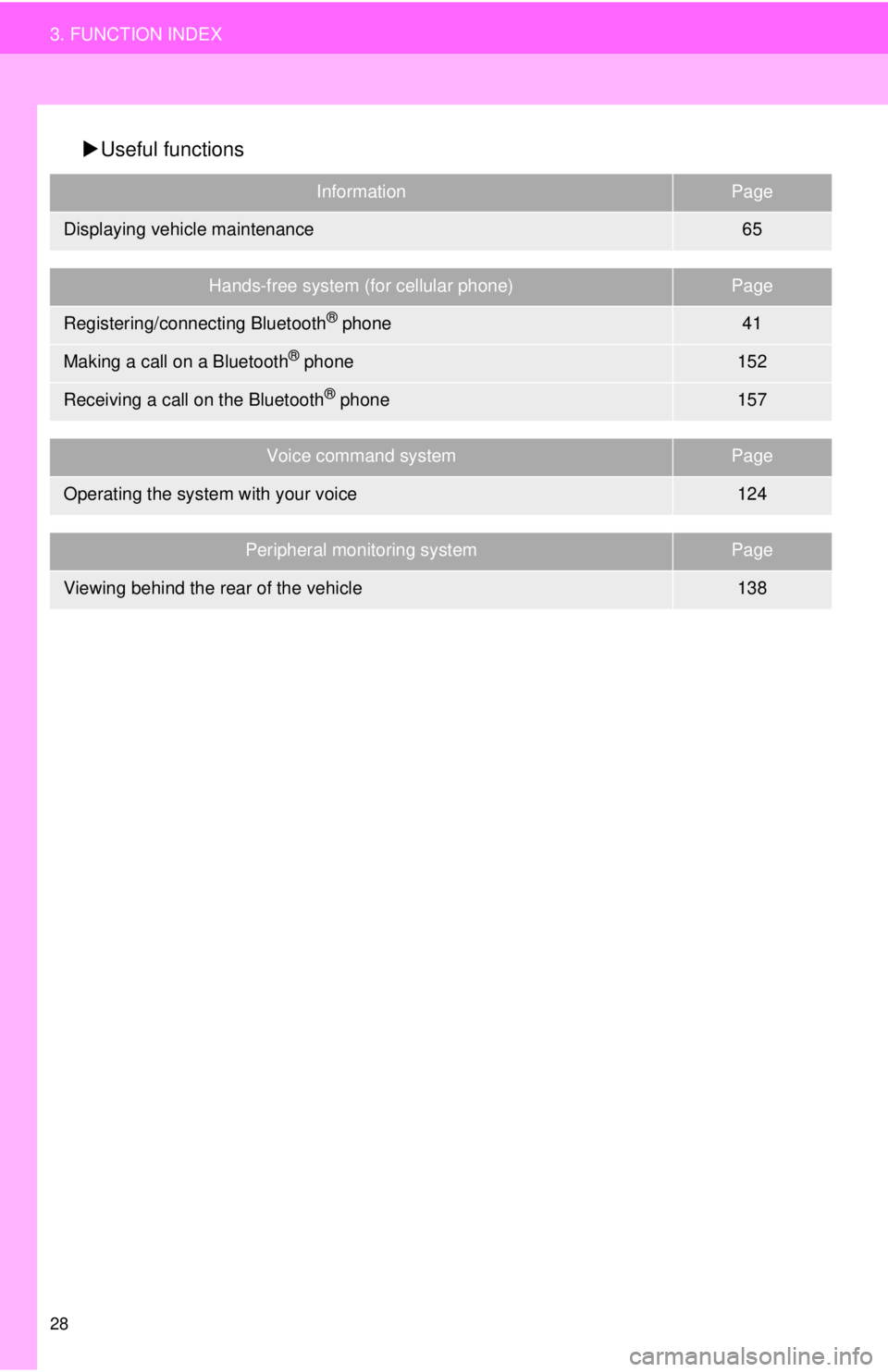

28
3. FUNCTION INDEX
Useful functions
InformationPage
Displaying vehicle maintenance65
Hands-free system (for cellular phone)Page
Registering/connecting Bluetooth® phone41
Making a call on a Bluetooth® phone152
Receiving a call on the Bluetooth® phone157
Voice command systemPage
Operating the system with your voice124
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle138

2
29
1
2
3
4
5
6
7
8
9

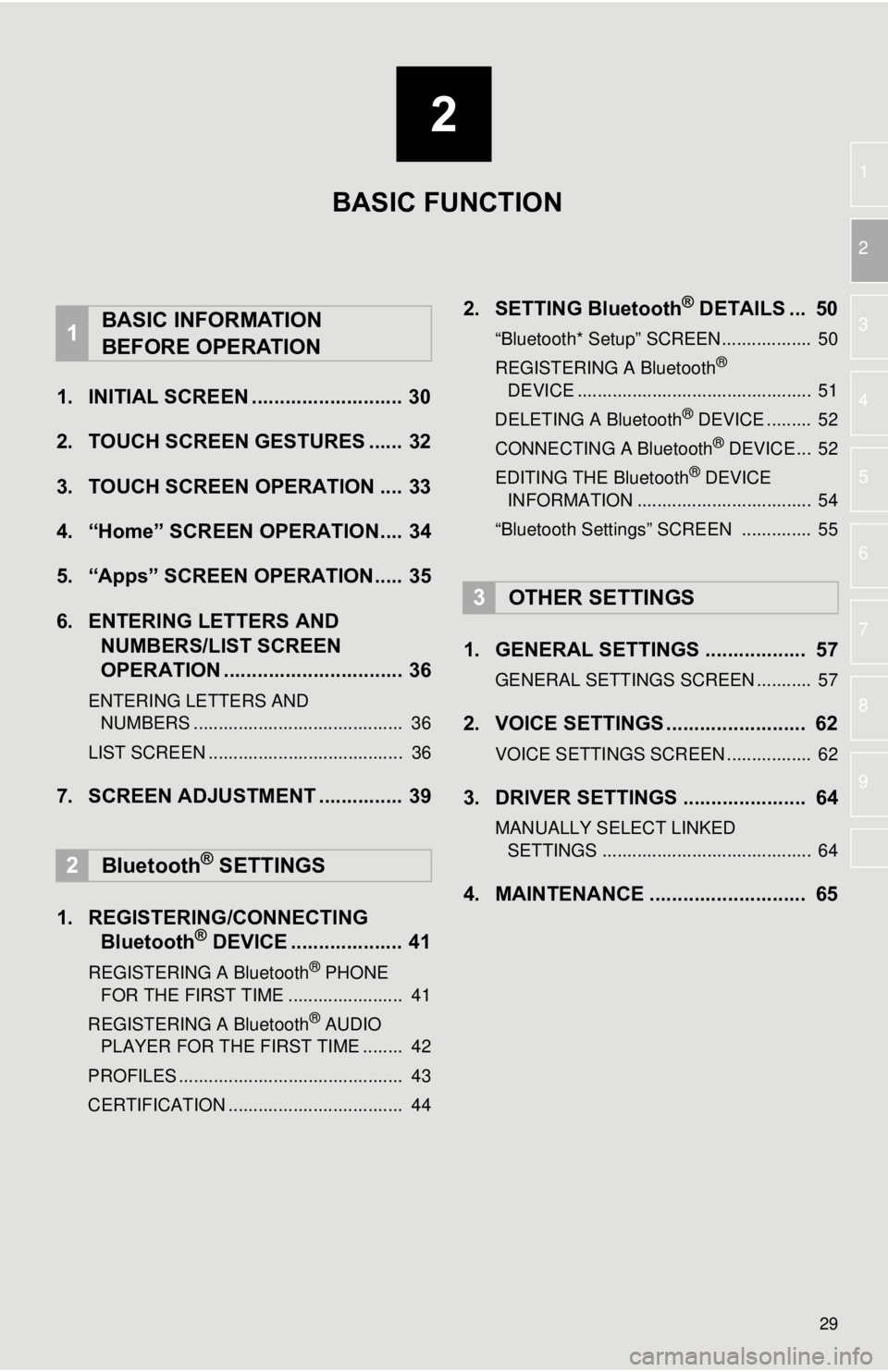

1. INITIAL SCREEN ........................... 30
2. TOUCH SCREEN GESTURES ...... 32
3. TOUCH SCREEN OPERATION .... 33
4. “Home” SCREEN OPERATION.... 34
5. “Apps” SCREEN OPERATION..... 35
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION ................................ 36
ENTERING LETTERS AND
NUMBERS .......................................... 36
LIST SCREEN ....................................... 36
7. SCREEN ADJUSTMENT ............... 39
1. REGISTERING/CONNECTING Bluetooth
® DEVICE .................... 41
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME ....................... 41
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ........ 42
PROFILES ............................................. 43
CERTIFICATION ................................... 44
2. SETTING Bluetooth® DETAILS ... 50
“Bluetooth* Setup” SCREEN.................. 50
REGISTERING A Bluetooth®
DEVICE ............................................... 51
DELETING A Bluetooth
® DEVICE ......... 52
CONNECTING A Bluetooth® DEVICE ... 52
EDITING THE Bluetooth® DEVICE
INFORMATION ................................... 54
“Bluetooth Settings” SCREEN .............. 55
1. GENERAL SETTINGS .................. 57
GENERAL SETTINGS SCREEN ........... 57
2. VOICE SETTINGS ......................... 62
VOICE SETTINGS SCREEN ................. 62
3. DRIVER SETTINGS ...................... 64
MANUALLY SELECT LINKED SETTINGS .......................................... 64
4. MAINTENANCE ............................ 65
1BASIC INFORMATION
BEFORE OPERATION
2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION

30
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in the “ACC”
or “ON” position, the initial screen will
be displayed and the system will begin
operating.
After a few seconds, the “Caution” screen
will be displayed.
 After about 5 seconds, the “Caution”
screen automatically switches to the next
screen. (Select “Continue” or press the
“HOME” button to display the “Home”
screen.)
 Images shown on the initial screen can
be changed to suit individual prefer-
ences. ( P.60)
CAUTION
● When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
MAINTENANCE INFORMATION
(ENTUNE PREMIUM AUDIO)
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the navigation
system is turned on.
 The screen goes off if the screen is not
operated for several seconds.
 To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again” .
 To register maintenance information:
P. 6 5
 If is selected, the registered
phone number can be called.
