TOYOTA TACOMA 2016 Owners Manual (in English)

3816-1. Using the air conditioning system
6
Interior features
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the
windshield effectively.
●If you turn off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the vehicle
interior effectively.
●Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
●In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
●Recirculated air mode is selected as a default mode when the engine switch
is in the “ON” position (vehicles without a smart key system) or IGNITION
ON mode (vehicles with a smart key system).
●It is possible to switch to outside air mode at any time by pressing .
■When the outside temperature falls to nearly 32F (0C)
The dehumidification function may not operate even when is selected.

3826-1. Using the air conditioning system
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■Air conditioning filter
P. 478
WARNING
■To prevent the windshield from fogging up
●Do not use
during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■To prevent burns
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
●Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers to
defog.

3836-1. Using the air conditioning system
6
Interior features

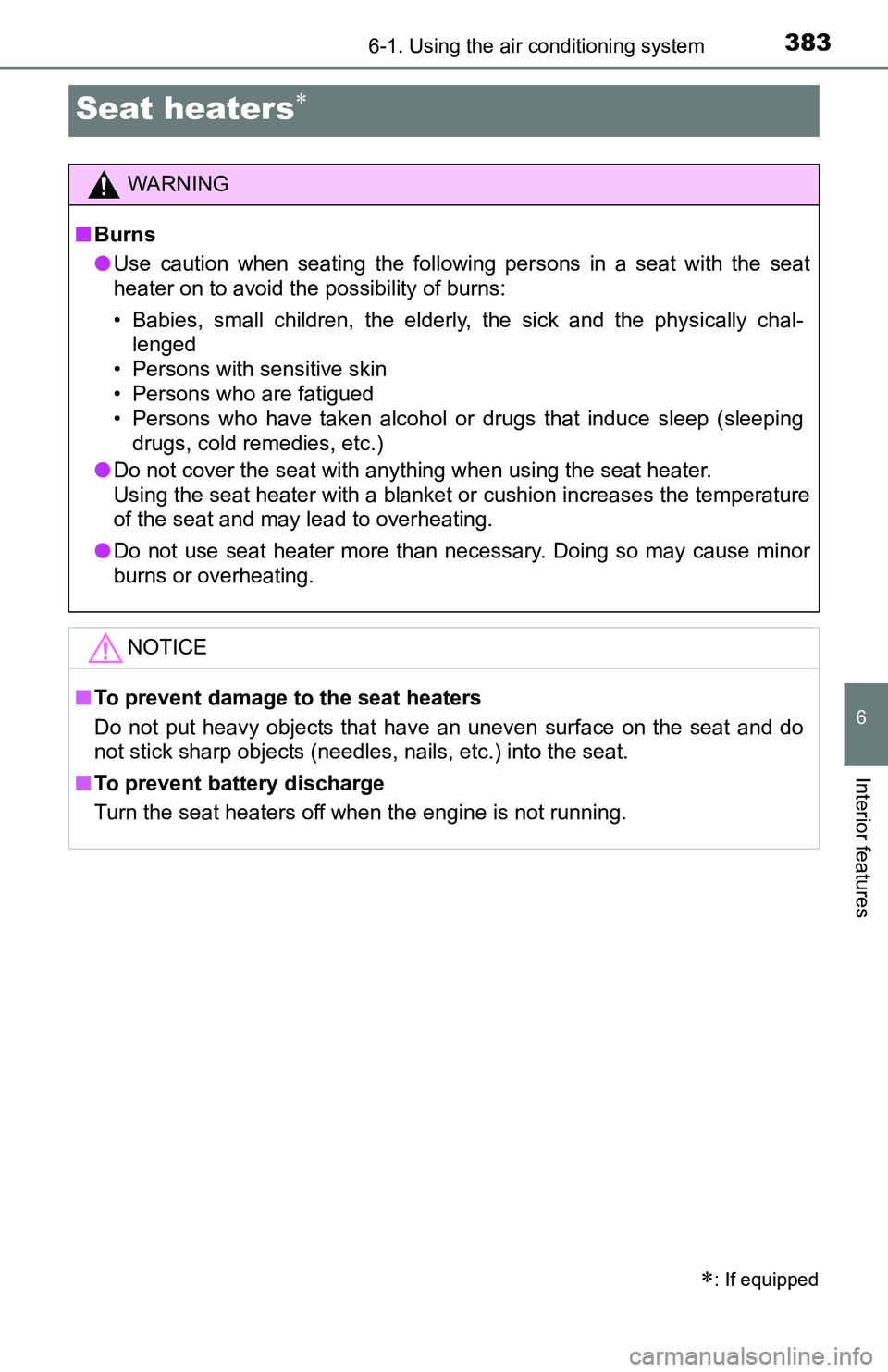

Seat heaters
: If equipped
WARNING
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
●Do not use seat heater more than necessary. Doing so may cause minor
burns or overheating.
NOTICE
■To prevent damage to the seat heaters
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the seat heaters off when the engine is not running.

3846-1. Using the air conditioning system

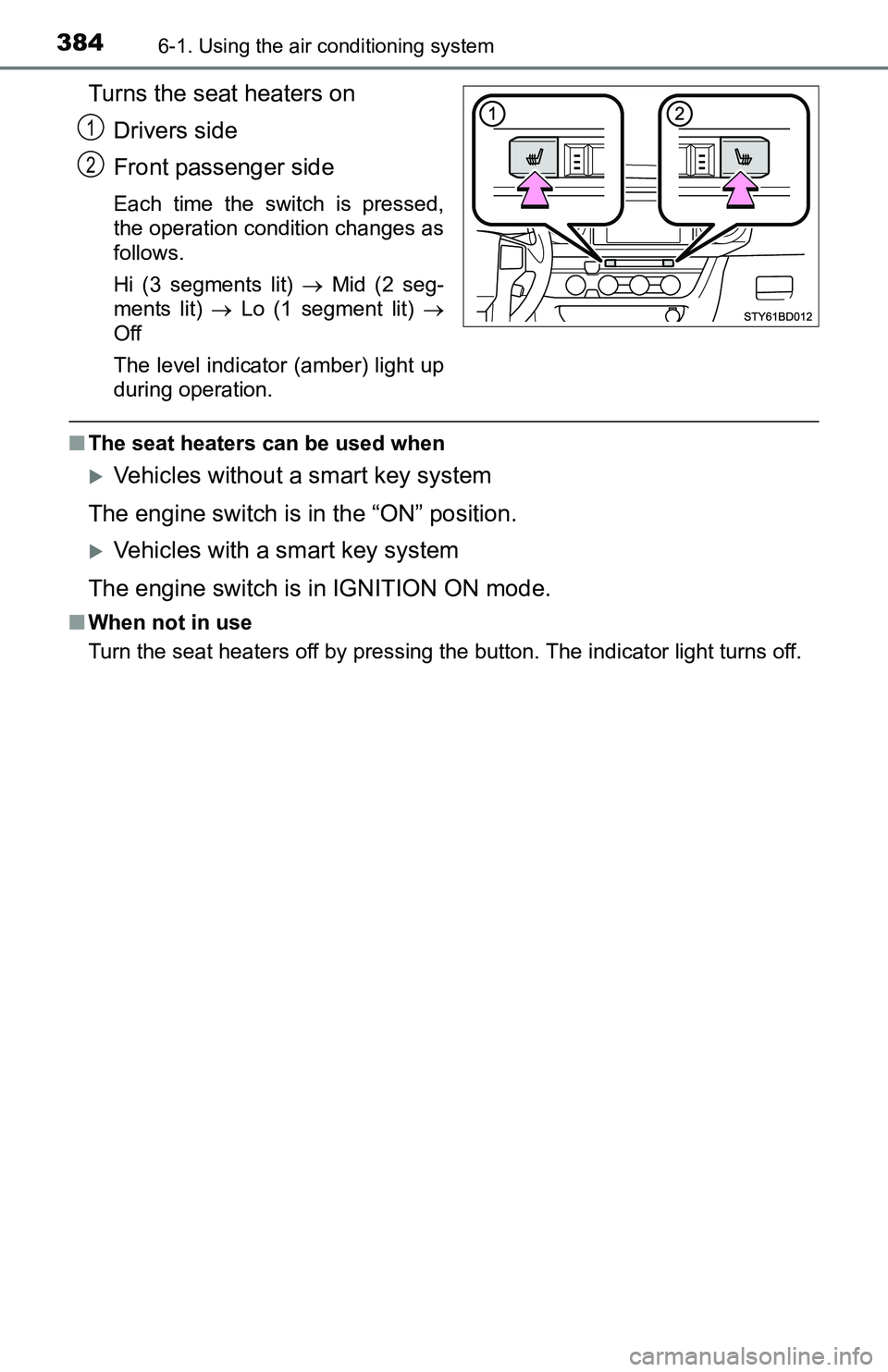

Turns the seat heaters on
Drivers side
Front passenger side
Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)  Mid (2 seg-
ments lit)  Lo (1 segment lit) 
Off
The level indicator (amber) light up
during operation.
■The seat heaters can be used when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■When not in use
Turn the seat heaters off by pressing the button. The indicator light turns off.
1
2

3856-2. Using the interior lights
6
Interior features

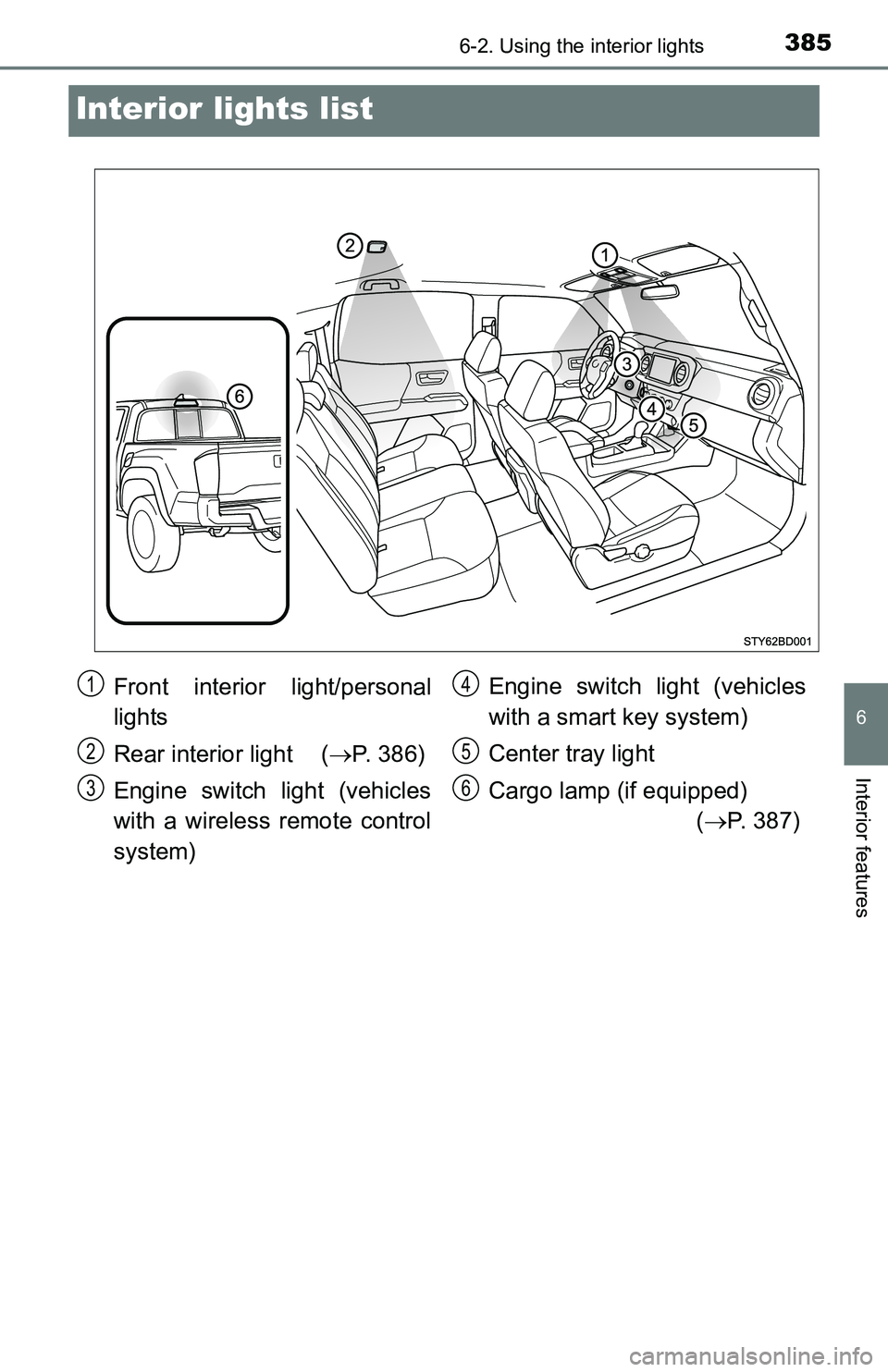

Interior lights list
Front interior light/personal
lights
Rear interior light (P. 386)
Engine switch light (vehicles
with a wireless remote control
system)Engine switch light (vehicles
with a smart key system)
Center tray light
Cargo lamp (if equipped)
(P. 387)1
2
3
4
5
6

3866-2. Using the interior lights
■Front
Off
Door position
The personal/interior lights
come on when a door is
opened. They turn off when the
doors are closed.
On
■Rear
Door position
The personal/interior lights
come on when a door is
opened. They turn off when the
doors are closed.
On
On/off
Interior light
1
2
3
1
2
Front personal lights

3876-2. Using the interior lights
6
Interior features
Off
Door position
The cargo lamp comes on when a
door is opened. They turn off when
the doors are closed.
On
■Illuminated entry system
Vehicles without a smart key system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with a smart key system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
■To prevent battery discharge
If the following lights remain on when the door is not fully closed and the main
switch is in the door position, the lights will go off automatically after 20 min-
utes:
●Front personal lights
●Interior lights
●Cargo lamp (if equipped)
■Customization that can be configured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 592)
Cargo lamp main switch (if equipped)
1
2
3

3886-3. Using the storage features

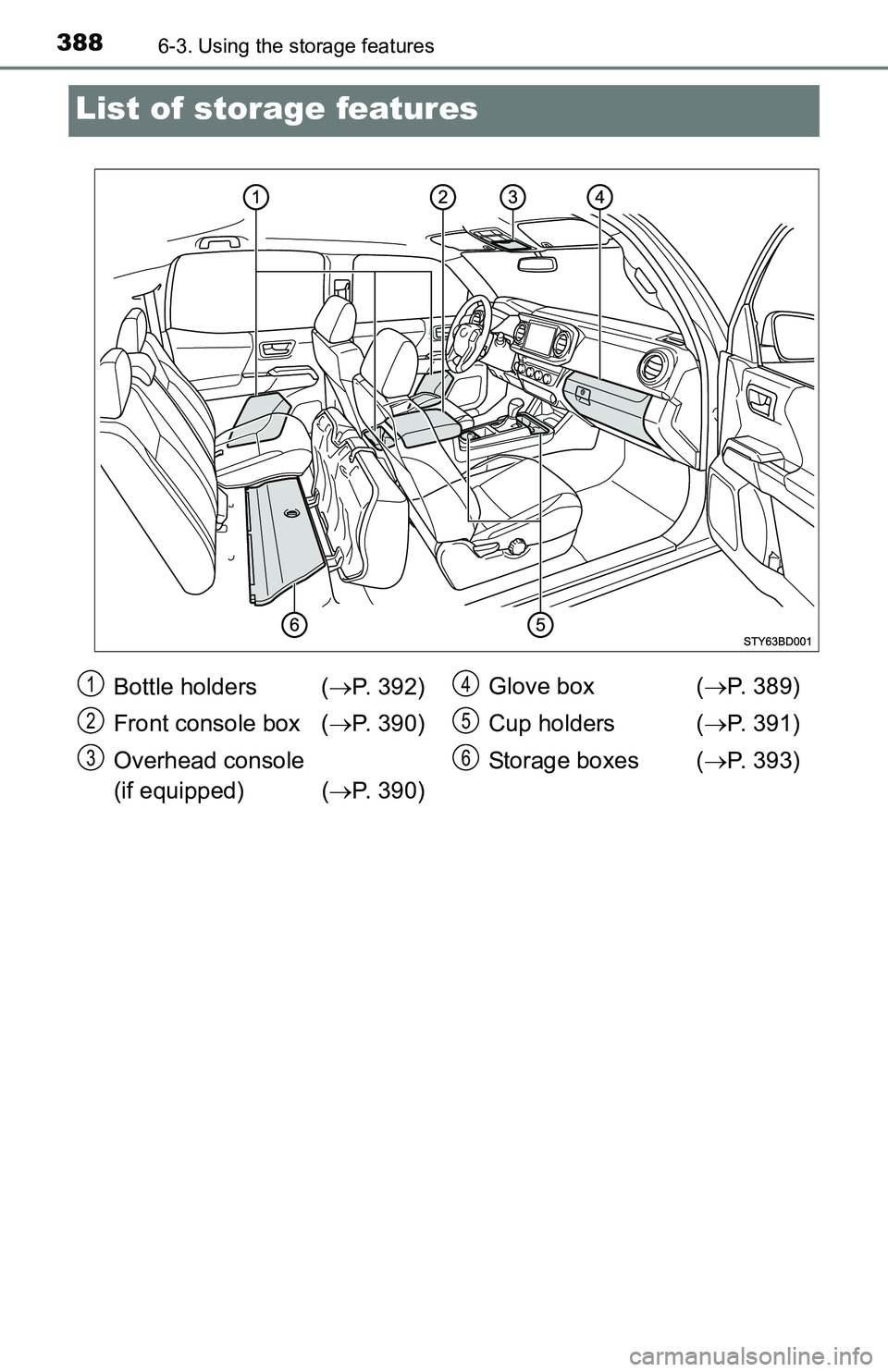

List of storage features
Bottle holders (P. 392)
Front console box (P. 390)
Overhead console
(if equipped) (P. 390)Glove box (P. 389)
Cup holders (P. 391)
Storage boxes (P. 393)1
2
3
4
5
6

3896-3. Using the storage features
6
Interior features
Open (pull the lever up)
Lock
Unlock
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
●Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
■When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
Glove box
1
2
3

3906-3. Using the storage features
Lift the lid while pulling up the
knob to release the lock.
■Passing a cable from the console box
The overhead console is useful for temporarily storing sunglasses and
similar small items.
Press the lid.
Front console box
Overhead console (if equipped)
WARNING
■Items unsuitable for storing
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the overhead console to open and the items inside
may fall out, resulting in an accident.
