TOYOTA TACOMA 2016 Owners Manual (in English)

5919-1. Specifications
9
Vehicle specifications
*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities

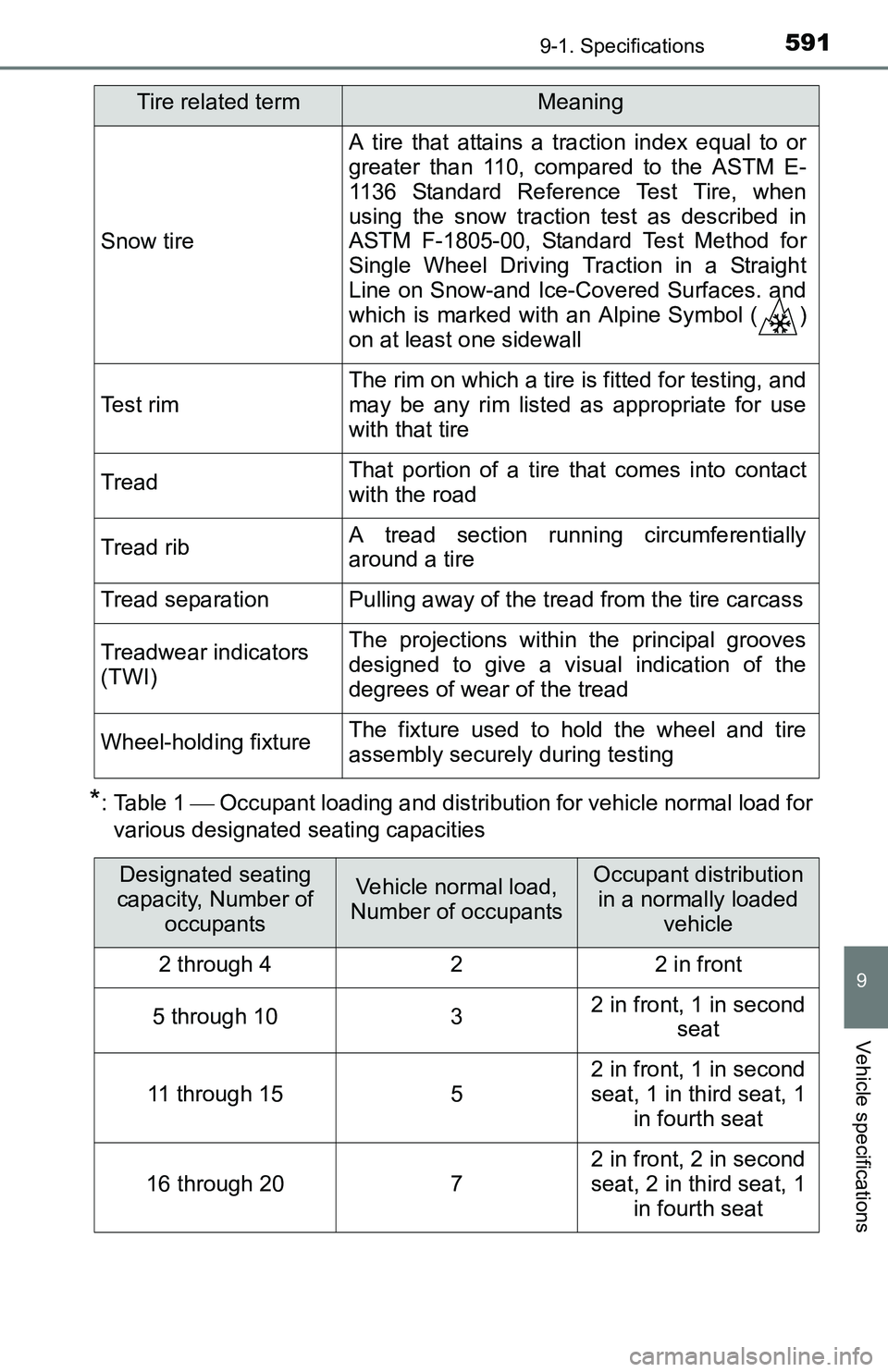

Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Designated seating
capacity, Number of
occupantsVehicle normal load,
Number of occupantsOccupant distribution
in a normally loaded
vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

5929-2. Customization

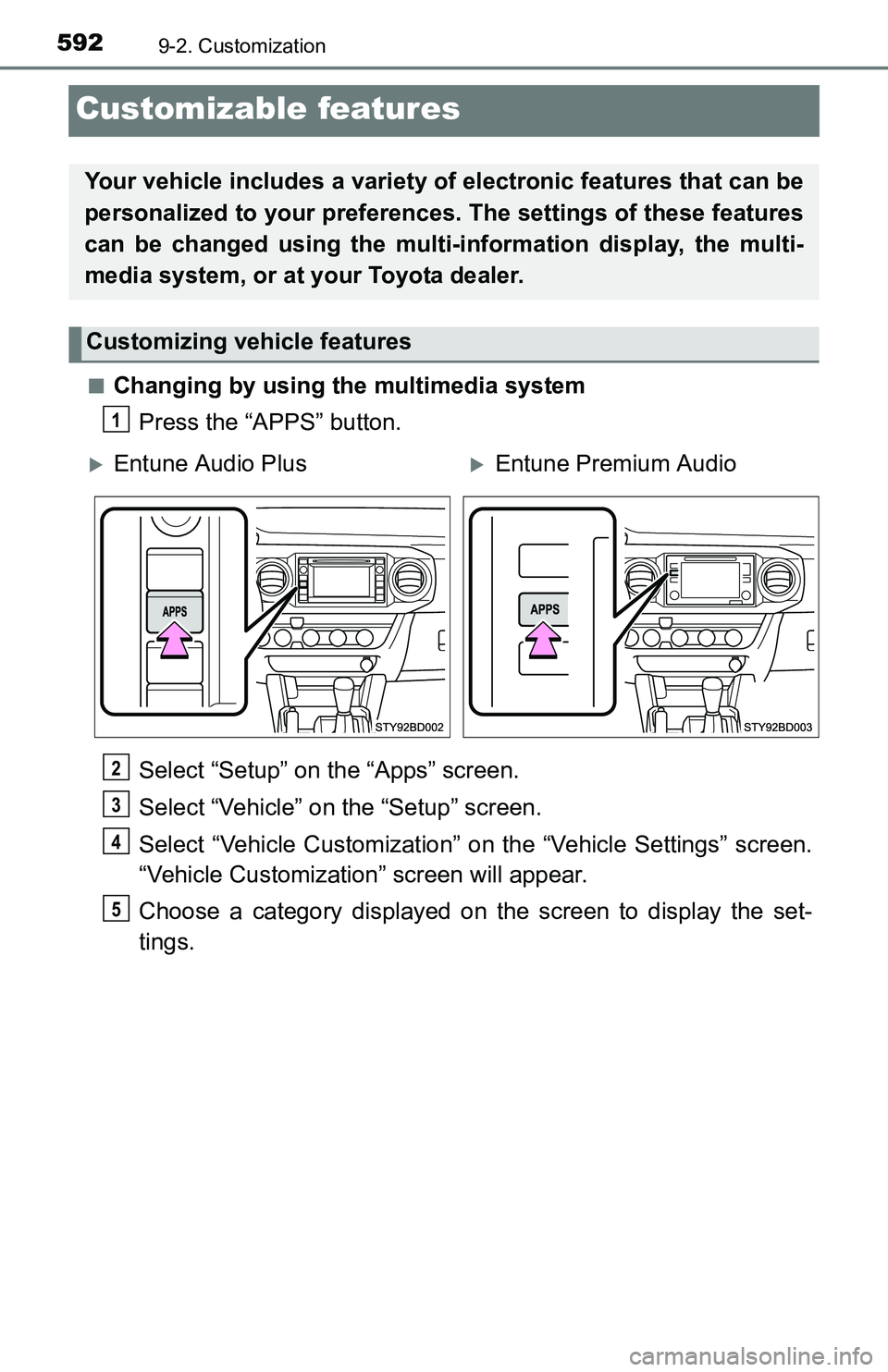

Customizable features
■Changing by using the multimedia system
Press the “APPS” button.
Select “Setup” on the “Apps” screen.
Select “Vehicle” on the “Setup” screen.
Select “Vehicle Customization” on the “Vehicle Settings” screen.
“Vehicle Customization” screen will appear.
Choose a category displayed on the screen to display the set-
tings.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, the multi-
media system, or at your Toyota dealer.
Customizing vehicle features
1
Entune Audio PlusEntune Premium Audio
2
3
4
5

5939-2. Customization
9
Vehicle specifications

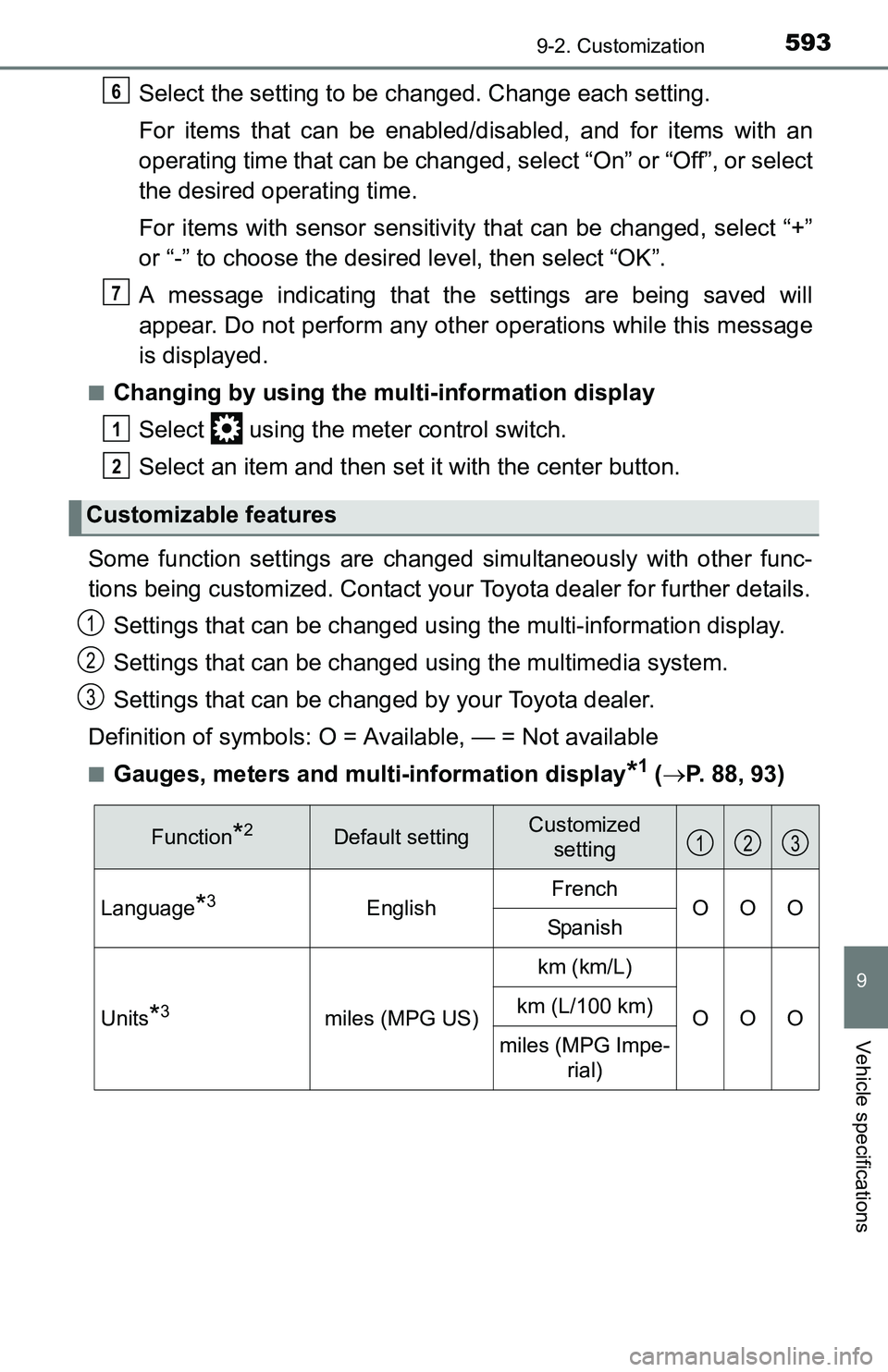

Select the setting to be changed. Change each setting.
For items that can be enabled/disabled, and for items with an
operating time that can be changed, select “On” or “Off”, or select
the desired operating time.
For items with sensor sensitivity that can be changed, select “+”
or “-” to choose the desired level, then select “OK”.
A message indicating that the settings are being saved will
appear. Do not perform any other operations while this message
is displayed.
■Changing by using the multi-information display
Select using the meter control switch.
Select an item and then set it with the center button.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.
Settings that can be changed using the multi-information display.
Settings that can be changed using the multimedia system.
Settings that can be changed by your Toyota dealer.
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display*1 (P. 88, 93)
Customizable features
6
7
1
2
1
2
3
Function*2Default settingCustomized
setting
Language*3EnglishFrenchOOOSpani sh
Units*3miles (MPG US)
km (km/L)
OOOkm (L/100 km)
miles (MPG Impe-
rial)
123

5949-2. Customization
*1: Vehicles with a multi-information display
*2: For details about each function: P. 9 6
*3: The default setting varies according to country.
*4: Speed limit display may not be available for some regions.
*5: For U.S.A. only
Drive information 1
Digital speedom-
eter
6 of the following
items: P. 9 4
O—O
Distance to empty
Drive information 2
Average fuel
economy (after
reset)
O—O
Current fuel econ-
omy
Drive information 3
Trip distance
(after reset)
O—O
Trip elapsed time
Pop-up displayOnOffO—O
Accent colorLight blue
Blue
OOOOrange
Ye l l o w
Speed limit display*4
On with the speed
limit caution indi-
cator (yellow)
enabledOn with the speed
limit caution indi-
cator (yellow) not
enabled
O—O
Off
Maintenance sys-
tem initialization
*5OffOnO—O
Function*2Default settingCustomized
setting123

5959-2. Customization
9
Vehicle specifications

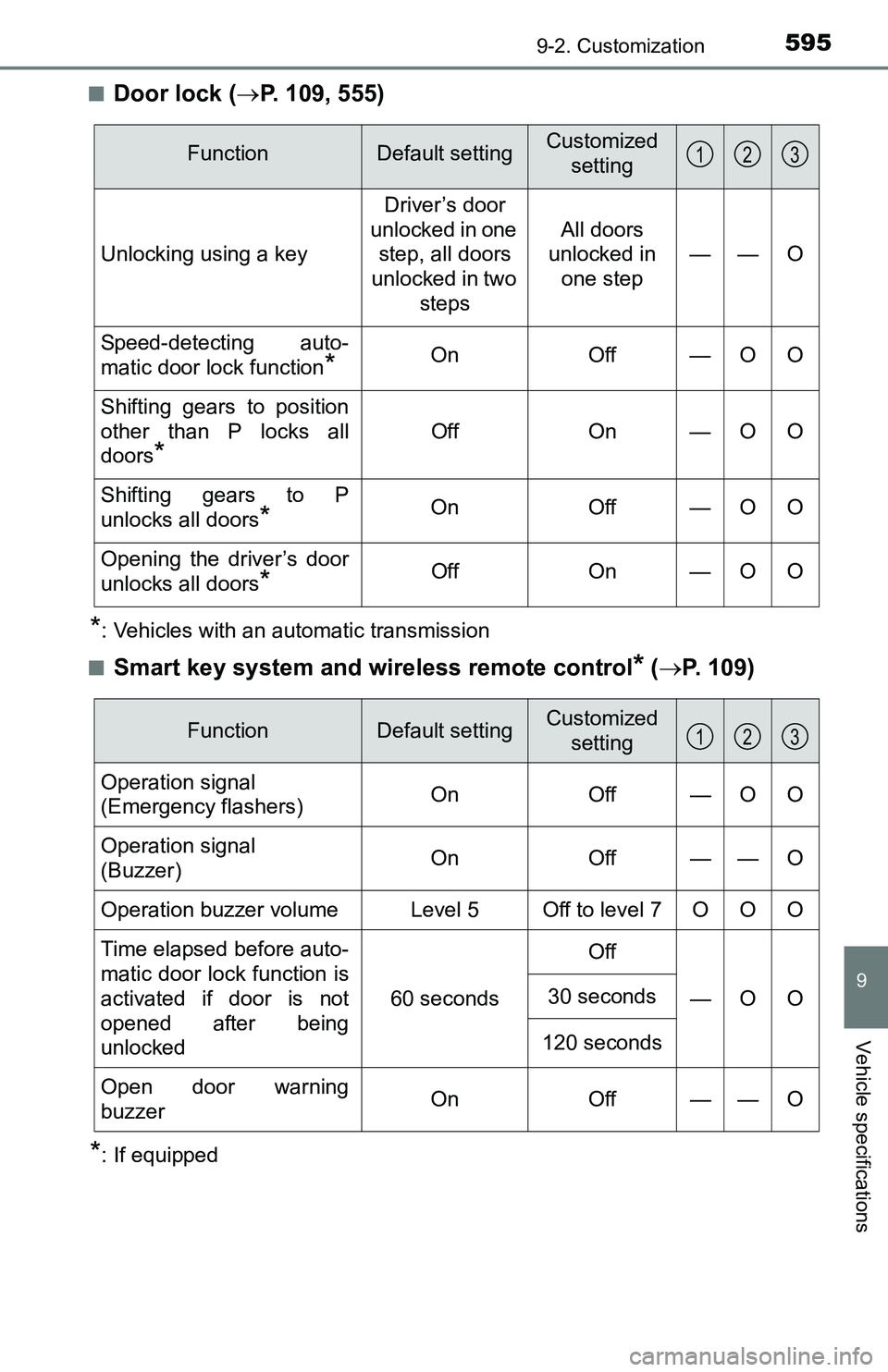

■Door lock (P. 109, 555)
*: Vehicles with an automatic transmission
■
Smart key system and wireless remote control* (P. 109)
*: If equipped
FunctionDefault settingCustomized
setting
Unlocking using a keyDriver’s door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in
one step—— O
Speed-detecting auto-
matic door lock function
*On Off — O O
Shifting gears to position
other than P locks all
doors
*
Off On — O O
Shifting gears to P
unlocks all doors
*On Off — O O
Opening the driver’s door
unlocks all doors
*Off On — O O
123
FunctionDefault settingCustomized
setting
Operation signal
(Emergency flashers) On Off — O O
Operation signal
(Buzzer)On Off — — O
Operation buzzer volume Level 5 Off to level 7 O O O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked60 secondsOff
—O O
30 seconds
120 seconds
Open door warning
buzzerOnOff — —O
123

5969-2. Customization

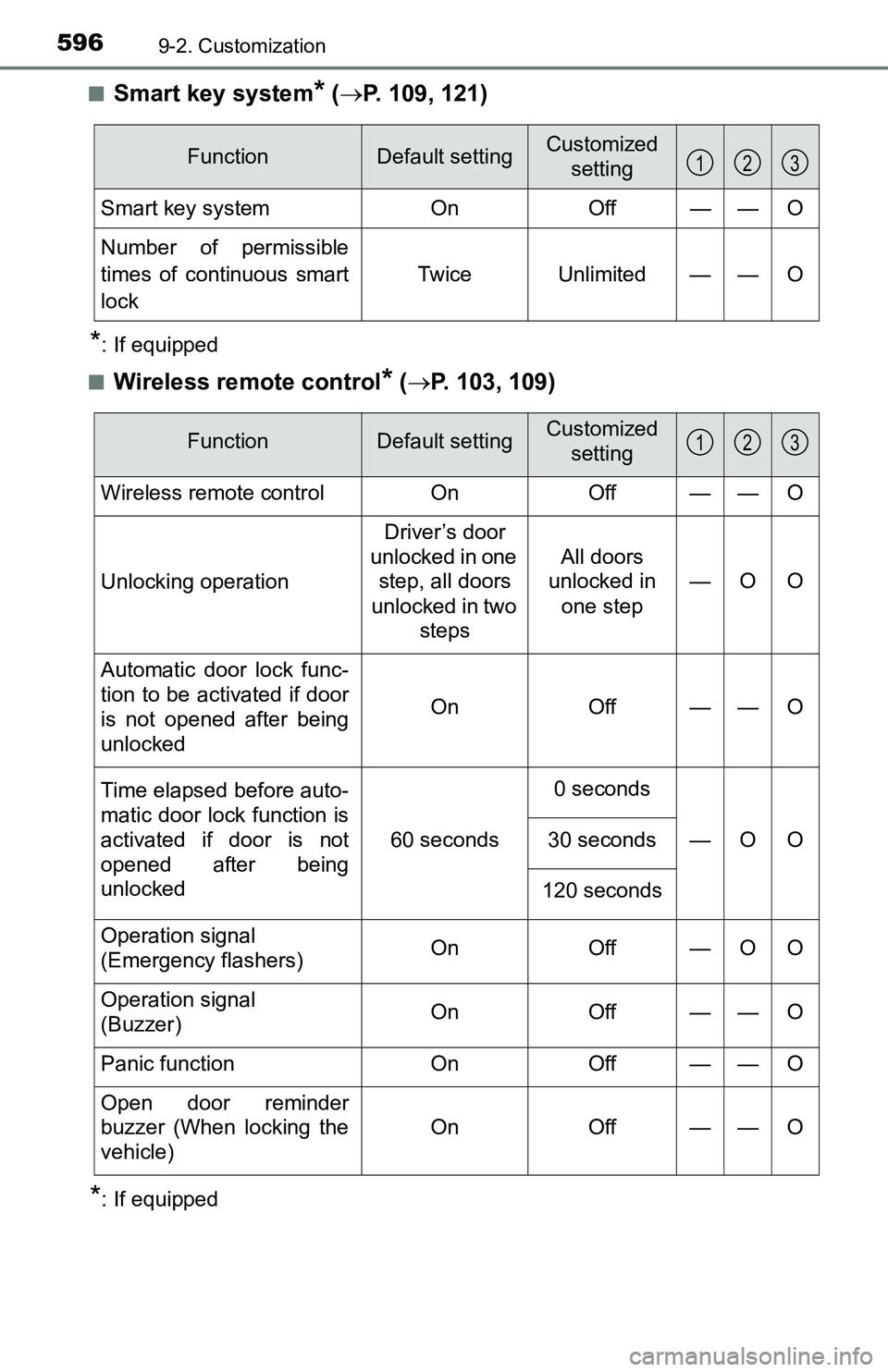

■Smart key system* (P. 109, 121)
*: If equipped
■
Wireless remote control* (P. 103, 109)
*: If equipped
FunctionDefault settingCustomized
setting
Smart key systemOnOff——O
Number of permissible
times of continuous smart
lockTwice Unlimited — — O
123
FunctionDefault settingCustomized
setting
Wireless remote control On Off — — O
Unlocking operationDriver’s door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in
one step—O O
Automatic door lock func-
tion to be activated if door
is not opened after being
unlockedOn Off — — O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked60 seconds0 seconds
—O O 30 seconds
120 seconds
Operation signal
(Emergency flashers)On Off — O O
Operation signal
(Buzzer)On Off — — O
Panic function On Off — — O
Open door reminder
buzzer (When locking the
vehicle)On Off — — O
123

5979-2. Customization
9
Vehicle specifications
■Automatic light off system* (P. 203)
*: If equipped
■
Illumination (P. 385)
*: Vehicles with a smart key system
■
Intuitive parking assist* (P. 220)
*: If equipped
FunctionDefault settingCustomized
setting
Light sensor sensitivity Level 3 Level 1 to 5 — O O
Time elapsed before
headlights automatically
turn off after doors are
closed30 seconds0 seconds
—O O 60 seconds
90 seconds
123
FunctionDefault settingCustomized
setting
Time elapsed before lights
turn off15 seconds7.5 seconds
—O O
30 seconds
Operation after the engine
is offOn Off — — O
Operation when the doors
are unlockedOn Off — — O
Operation when you
approach the vehicle with
the electronic key on your
person
*
On Off — — O
123
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensorFar Near — O O
Buzzer Volume Level 3 Level 1 to 5 — O O
Display settingAll sensors
displayedDisplay off — O O
123

5989-2. Customization

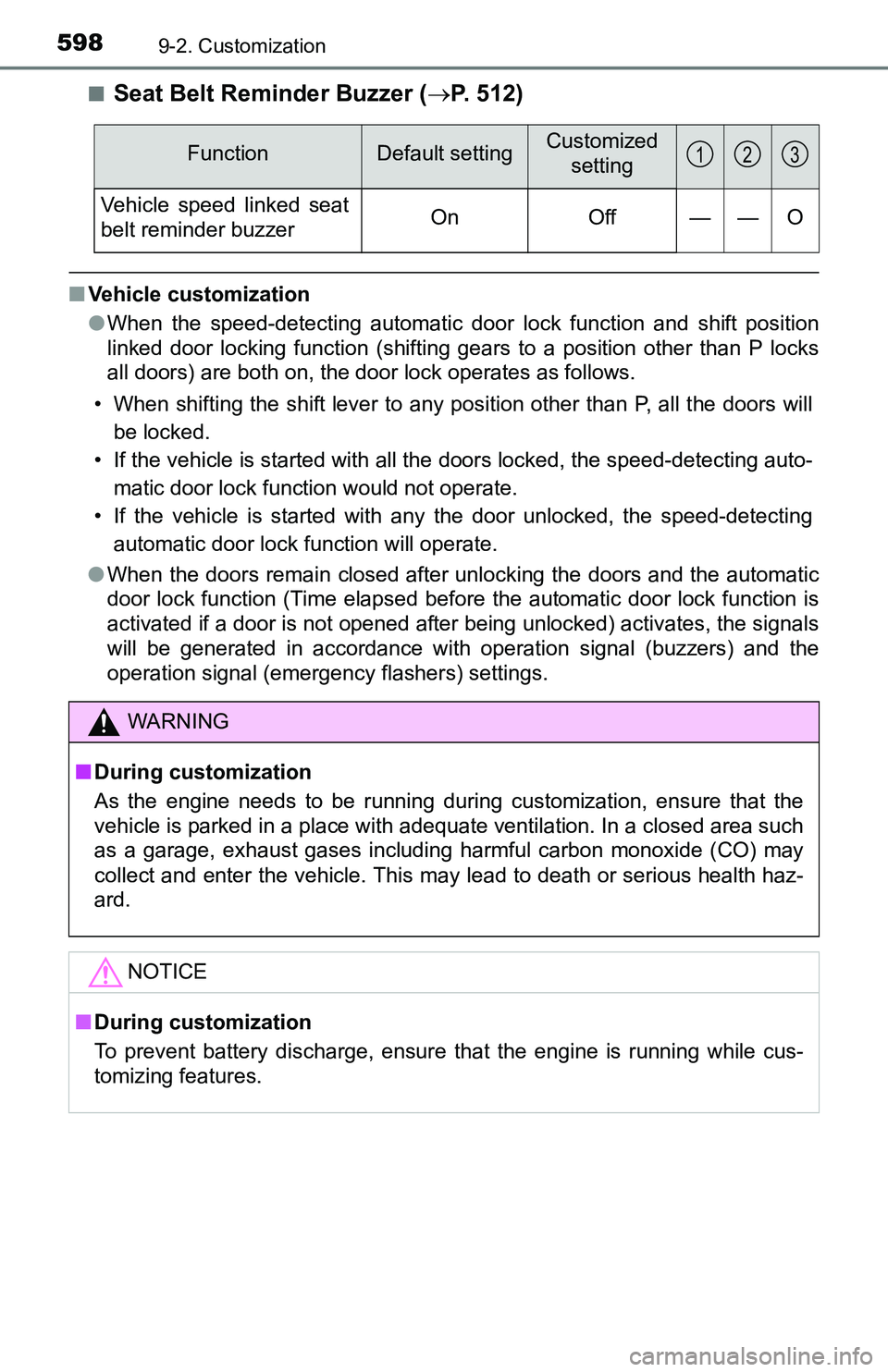

■Seat Belt Reminder Buzzer (P. 512)
■Vehicle customization
●When the speed-detecting automatic door lock function and shift position
linked door locking function (shifting gears to a position other than P locks
all doors) are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
• If the vehicle is started with all the doors locked, the speed-detecting auto-
matic door lock function would not operate.
• If the vehicle is started with any the door unlocked, the speed-detecting
automatic door lock function will operate.
●When the doors remain closed after unlocking the doors and the automatic
door lock function (Time elapsed before the automatic door lock function is
activated if a door is not opened after being unlocked) activates, the signals
will be generated in accordance with operation signal (buzzers) and the
operation signal (emergency flashers) settings.
FunctionDefault settingCustomized
setting
Vehicle speed linked seat
belt reminder buzzerOnOff — — O
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or serious health haz-
ard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
123

5999-3. Items to initialize
9
Vehicle specifications
Items to initialize
*1: If equipped
*2: For U.S.A. only
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Moon roof*1• After reconnecting or chang-
ing the battery
• After changing a fuse
P. 152
Maintenance required
reminder light (vehicles
without a multi-information
display) or message indicat-
ing maintenance is required
(vehicles with a multi-infor-
mation display)
*2
• After the maintenance is per-
formedP. 441
Tire pressure warning sys-
tem
*1• When rotating the tires.
• When changing the tire size.P. 464

6009-3. Items to initialize
