4116-4. Other interior features
6
Interior features
The clock is displayed on the
screen.
■Setting the clock
Vehicles with Entune Audio (Audio system types: →P. 284)
→ P. 2 9 4
Vehicles with Entune Audio Plus or Entune Premium Audio
(Audio system types: →P. 284)
Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
■ The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
Clock

4126-4. Other interior features
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make su re that the power consumption
of all the connected power outlets are less than 120 W.
Type A (instrument panel)
Open the lid.
Type B (inside of the console box)
Lift the lid while pulling up the
knob to release the lock and
open the lid.
Power outlets (12 V DC)

4136-4. Other interior features
6
Interior features
■The power outlets can be used when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
The power outlet can be used for electrical appliances.
● Main switch
To use the power outlet, turn on
the main switch.
The power supply starts a few
seconds after the main switch is
pressed.
●Power outlet socket (deck)
Open the lid.
NOTICE
●Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● Do not use the power outlets longer than necessary when the engine is
not running.
Power outlet (120 V AC) (if equipped)

4146-4. Other interior features
■Maximum available capacity of the power outlet
●While the vehicle is being driven
The maximum capacity of the power outlet is always 120 V AC/
100 W.
● When the vehicle is stationary
The maximum capacity of the power outlet varies depending on
the following conditions:
• The maximum capacity is 120 V AC/100 W when the following conditions applies:
Vehicles with an automatic transmission
The shift lever is moved to any positions other than P and N.
Vehicles with a manual transmission
The clutch pedal is depressed.
• The maximum capacity is 120 V AC/400 W when the followingconditions applies:
Vehicles with an automatic transmission
The shift lever is in P or N.
Vehicles with a manual transmission
The shift lever is in N and the clutch pedal is not depressed.
The maximum capacity of 400 W can only be restored by turning the
power outlet main switch off and then on again under condition
described above.
■ The power outlet can be used when
The engine is running.
■ The indicator light changes according to the maximum available capac-
ity as follows:
■ When the power outlet is in operation
The sound of the cooling fan may be heard from the front console box. This is
normal and does not indicate a malfunction. 120 V AC/400 W
120 V AC/100 W
1
2

4156-4. Other interior features
6
Interior features
■If the engine is started with th e power outlet main switch on
The maximum capacity of the power supply may decrease to below the stan-
dard, or may be cut off completely, even when the vehicle is stationary.
■ The protection circuit may be activated to cut the power supply if any of
the following conditions apply:
● The engine is started with the power outlet main switch on.
● Use of electrical appliances exceeding the maximum capacity is attempted.
A sound may be heard when the protection circuit is activated. This is nor-
mal and does not indicate a malfunction.
● Electrical appliances, which consume power exceeding 100 W, have been
used continuously for a long time period.
● The total power usage by all electrical features (headlights, air conditioning,
etc.) has exceeded the total vehicle maximum for an extended period of
time.
■ If the protection circuit is activated and the power supply is cut, conduct
the following procedure:
Park the vehicle in a safe place, and then securely apply the parking
brake.
Check and ensure the following conditions:
Vehicles with an automatic transmission
The shift lever is in P or N.
Vehicles with a manual transmission
The shift lever is in N and the clutch pedal is not depressed.
Make sure that the power consumption of the electric appliance is within
the maximum capacity of the power outlet and the appliance is not bro-
ken.
Press the power outlet main switch again.
When the cabin temperature is high, open the windows to cool the tempera-
ture down. Once it reaches the normal temperature, turn the power outlet
main switch on again.
If the power supply does not resume even after the above procedure has
been performed, have the vehicle inspected by your Toyota dealer.
1
2
3
4

4166-4. Other interior features
WARNING
■Using a power outlet
Observe the following precautions to reduce the risk of injury.
● Use of the power outlet when it is wet with water or snow may result in
electrical shocks and is extremely dangerous. The power outlet must be
thoroughly dried before use.
● Do not allow children to use or play with the power outlet.
● Be careful not to get any part of your body caught in the power outlet lid.
● When using electrical appliances, strictly follow any cautions and notices
written on their labels and in the manufacturers’ instruction manuals.
● Do not modify, disassemble or repair the power outlet or its inverter in any
way. Doing so may result in unexpected malfunctions or accidents, which
could cause serious damage or injuries. Contact your Toyota dealer for
any necessary repairs.
■ To prevent injuries and accidents, secure all electric appliances before
use and do not use any appliances th at may do any of the following:
● Distract the driver while driving, or hamper safe driving.
● Result in a fire or burn injuries due to the appliance rolling, falling or over-
heating while driving.
● Emit steam while the windows of the cabin are closed.
■ To prevent unexpected accidents, su ch as electric shocks, do not per-
form any of the following actions:
● Using the power outlet for electric heaters while sleeping.
● Contaminating the power outlet with liquid substances or mud.
● Handling electrical appliance plugs at the power outlet with wet hands or
feet.
● Inserting foreign objects into the power outlet.
● Using malfunctioning electric appliances.
● Inserting inappropriate or badly fitting plugs into the power outlet.

4176-4. Other interior features
6
Interior features
NOTICE
■To avoid damaging the power outlet and the plug
● Close the power outlet lid when not in use.
● Do not allow foreign objects or liquids to enter the power outlet, as this
may cause a short circuit.
● Do not use plug adaptors to connect too many plugs to the power outlet.
● After removing a plug, gently close the power outlet lid.
■ To prevent the fuse from being blown
Do not use a 120 V AC appliance that requires more than the maximum
capacity of the power outlet. If a 120 V AC appliance that consumes more
than the maximum capacity is used, the protection circuit will cut the power
supply.
■ Appliances that may not op erate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power con-
sumption is under maximum capacity.
● Appliances with high initial peak wattage
● Measuring devices that process precise data.
● Other appliances that require an extremely stable power supply
■ To prevent battery discharge
Turn off all the vehicle’s electronic equipment and accessories, such as the
headlights and air conditioning, when elec trical appliances that consume in
excess of 100 W are used continuously for long periods of time.
■ To prevent any damage caused by heat
● Do not use any electrical appliances that give off intense heat, such as
toasters, in any locations including t he internal or external trim, seats and
deck.
● Do not use any electrical appliances that are easily affected by vibration or
heat inside the vehicle. Vibration while driving, or the heat of the sun while
parking, may result in damage to those electrical appliances.
■ If any electrical appliances are to be used while driving
Securely fasten both the appliances and their cables to prevent them from
falling or getting caught in any of the power train components.
■ If the power outlet is loose when an electrical appliance plug is con-
nected
Replace the outlet. Contact your Toyota dealer for any necessary replace-
ments.
■ If the power outlet gets dirty
Turn the main switch off and use a soft, clean cloth to wipe it gently. Do not
use any cleansing materials, such as organic solvents, wax, or compound
cleaners, as these may damage the power outlet or cause it to malfunction.

4186-4. Other interior features
A mobile device can be charged wirelessly on the tray.
Vehicles without a smart key system
Charging can only be performed with the engine switch in the
“ACC” or “ON” position and only on mobile devices with the “ ”
logo.
Vehicles with a smart key system
Charging can only be performed with the engine switch in ACCES-
SORY or IGNITION ON mode and only on mobile devices with the
“ ” logo.
Press the wireless charger switch.
Place a mobile device on the
tray as shown in the illustration.
An amber indicator is illuminated
while charging is in progress.
When charging is complete, a
green indicator will also be illumi-
nated. Some phones, cases or
cover type wireless chargers may
not cause the green indicator to
illuminate even though it is fully
charged.
When placing the mobile device on the wireless charging surface of
the tray, make sure that there ar e no objects in-between the mobile
device and the tray. They may interfere with charging.
Wireless charger (if equipped)
1
Ty p e AType B
2

4196-4. Other interior features
6
Interior features
■If the wireless charger LED indicators flash
If the wireless charging surface of the tray becomes too hot, the LED indica-
tors will flash and charging is canceled. The LED indicators will be illuminated
if the surface of the tray cools down.
If the LED indicators flash even though the surface of the tray is not hot, the
wireless charger may be malfunctioning. Consult your Toyota dealer.
■ When charging of the wireless charger stops temporarily
If any of the following operations are performed with the wireless key or elec-
tronic key present, charging may stop temporarily. Charging will start again
after a while.
• Locking/unlocking the doors by touching the door handle (vehicles with a smart key system)
• Opening/closing the doors
• Starting the engine
• Locking the doors by pressing the lock button on the wireless key or elec- tronic key
• When the electronic key is out of the detection area (vehicles with a smart key system)

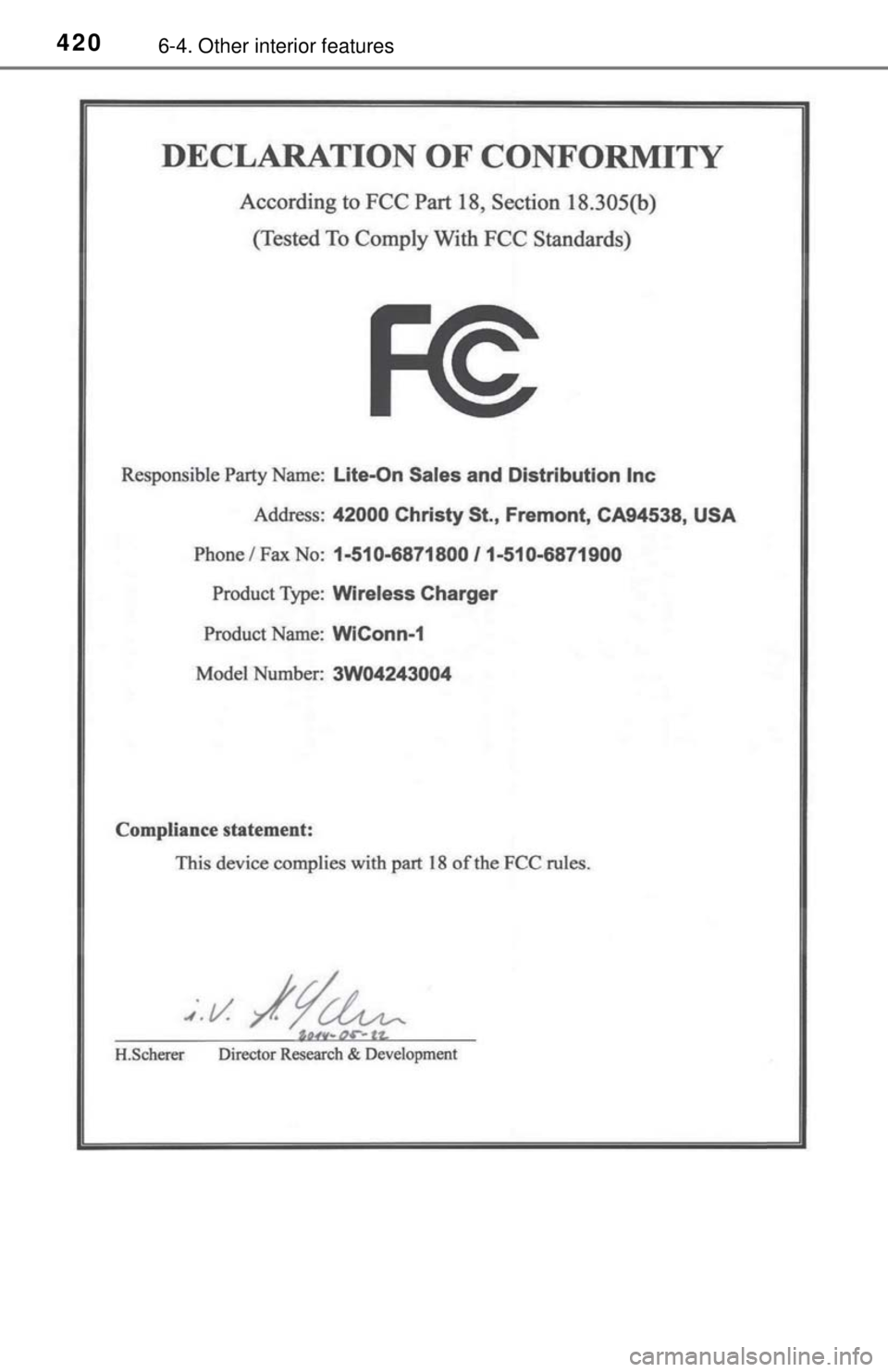

■ Certification for the wireless charger
For vehicles sold in the U.S.A.
This device complies with Part 18 of the FCC Rules.
Toyota Motor Sales, U.S.A., Inc.
19001 S. Western Avenue
Torrance, CA 90501
For vehicles sold in Canada
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
