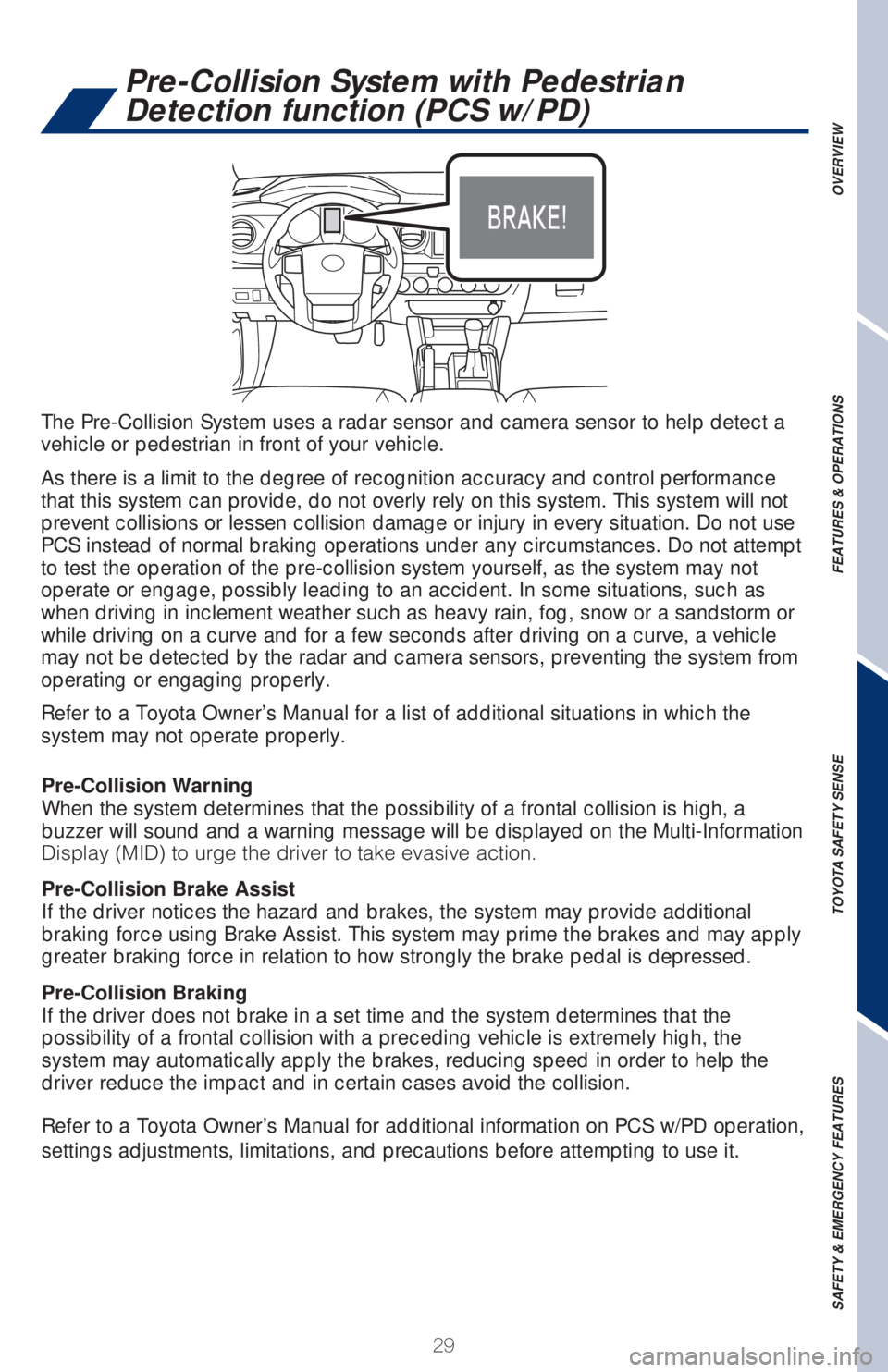

The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
% J T Q M B Z . * %
U P V S H F U I F E S J W F S U P U B L F F W B T J W F B D U J P O
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
Page 32 of 56
30
TOYOTA SAFETY SENSE™
CHANGING THE PCS SENSITIVITY
FarMiddle
(default)
Near
1 S F T T i” switches and select G S P N U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
1 S F T T i
” switches and select “PCS” and then press “”.
1 S F T T i
” switches and select “Sensitivity” and then press “” to select the
desired setting.
1 S F T T i
” to go back to the menu. Also, use “” to switch menus or display
top screen.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.In certain conditions, the PCS system included with the TSS-P package may also
help to detect a pedestrian in front of your vehicle. With Toyota Safety Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave radar to
help detect a pedestrian in front of your vehicle in certain conditions. The in-vehicle
camera of PCS detects a potential pedestrian based on size, profile, and motion of
the detected pedestrian. However, a pedestrian may not be detected depending
on the conditions, including the surrounding brightness and the motion, posture,
size, and angle of the potential detected pedestrian, preventing the system from
operating or engaging.
Refer to a Toyota Owner’s Manual for additional information.

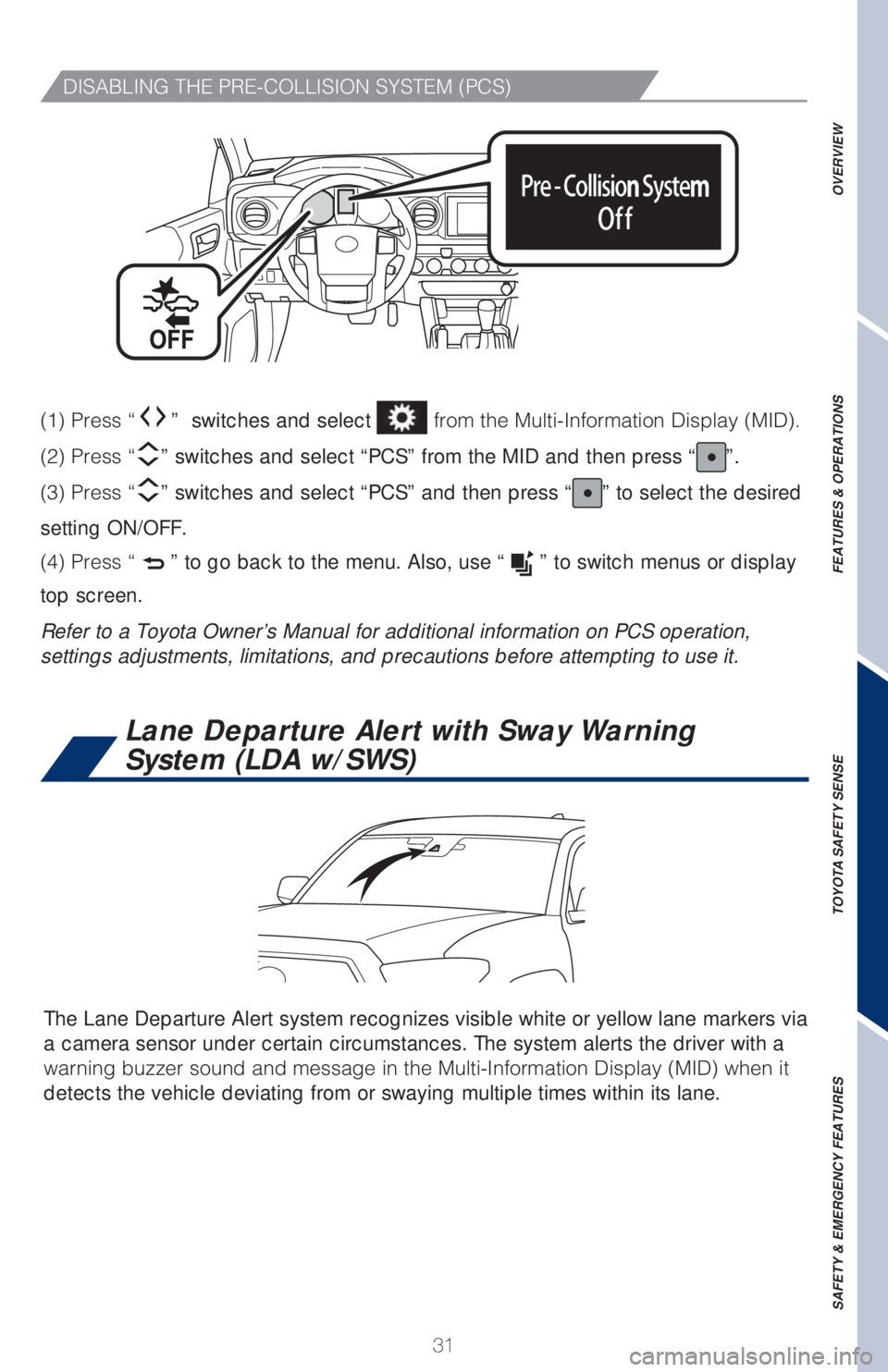

PEDESTRIAN DETECTION FUNCTION
Page 33 of 56
31
% * 4 " # - * / ( 5 ) & 1 3 & $ 0 - - * 4 * 0 / 4 : 4 5 & . 1 $ 4
1 S F T T i” switches and select G S P N U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
1 S F T T i
” switches and select “PCS” from the MID and then press “”.
1 S F T T i
” switches and select “PCS” and then press “” to select the desired
setting ON/OFF.
1 S F T T i
” to go back to the menu. Also, use “” to switch menus or display
top screen.
Refer to a Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it.
The Lane Departure Alert system recognizes visible white or yellow lane markers via
a camera sensor under certain circumstances. The system alerts the driver with a
X B S O J O H C V [ [ F S T P V O E B O E N F T T B H F J O U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
X I F O J U
detects the vehicle deviating from or swaying multiple times within its lane.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Lane Departure Alert with Sway Warning
System (LDA w/SWS)
Page 34 of 56
32
TOYOTA SAFETY SENSE™

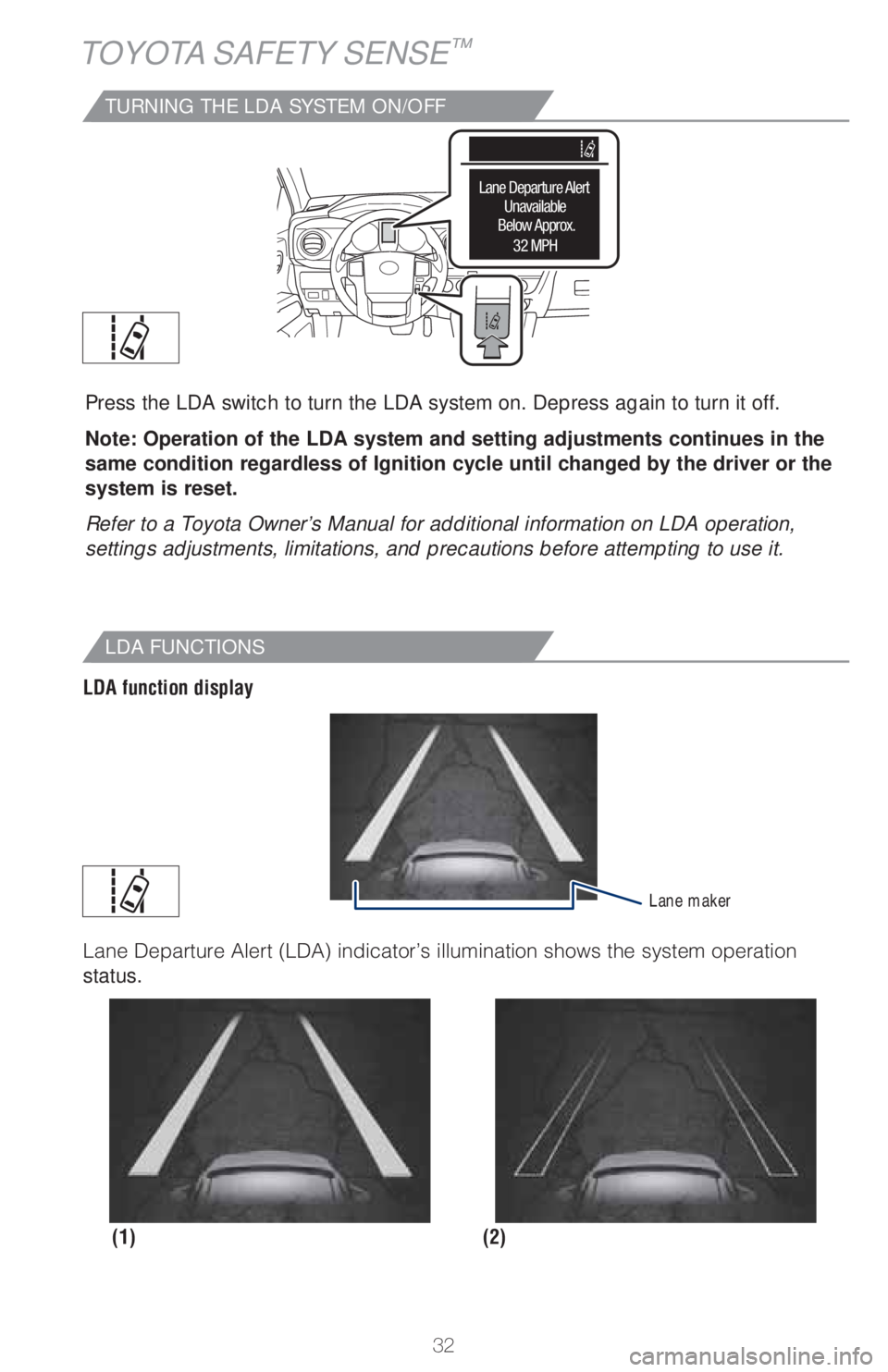

TURNING THE LDA SYSTEM ON/OFF
Lane Departure Alert
Below Approx.
32 MPH Unavailable
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Refer to a Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
LDA FUNCTIONS
LDA function display
Lane maker
(2) (1) - B O F % F Q B S U V S F " M F S U - % "
J O E J D B U P S T J M M V N J O B U J P O T I P X T U I F T Z T U F N P Q F S B U J P O
status.
Page 35 of 56
33
" % + 6 4 5 * / ( 5 ) & - % " " - & 3 5 4 & / 4 * 5 * 7 * 5 :
5 I F E S J W F S D B O B E K V T U U I F T F O T J U J W J U Z P G U I F - % " X B S O J O H
G V O D U J P O G S P N U I F
. V M U J * O G P S N B U J P O % J T Q M B Z . * %
D V T U P N J [ B U J P O T D S F F O

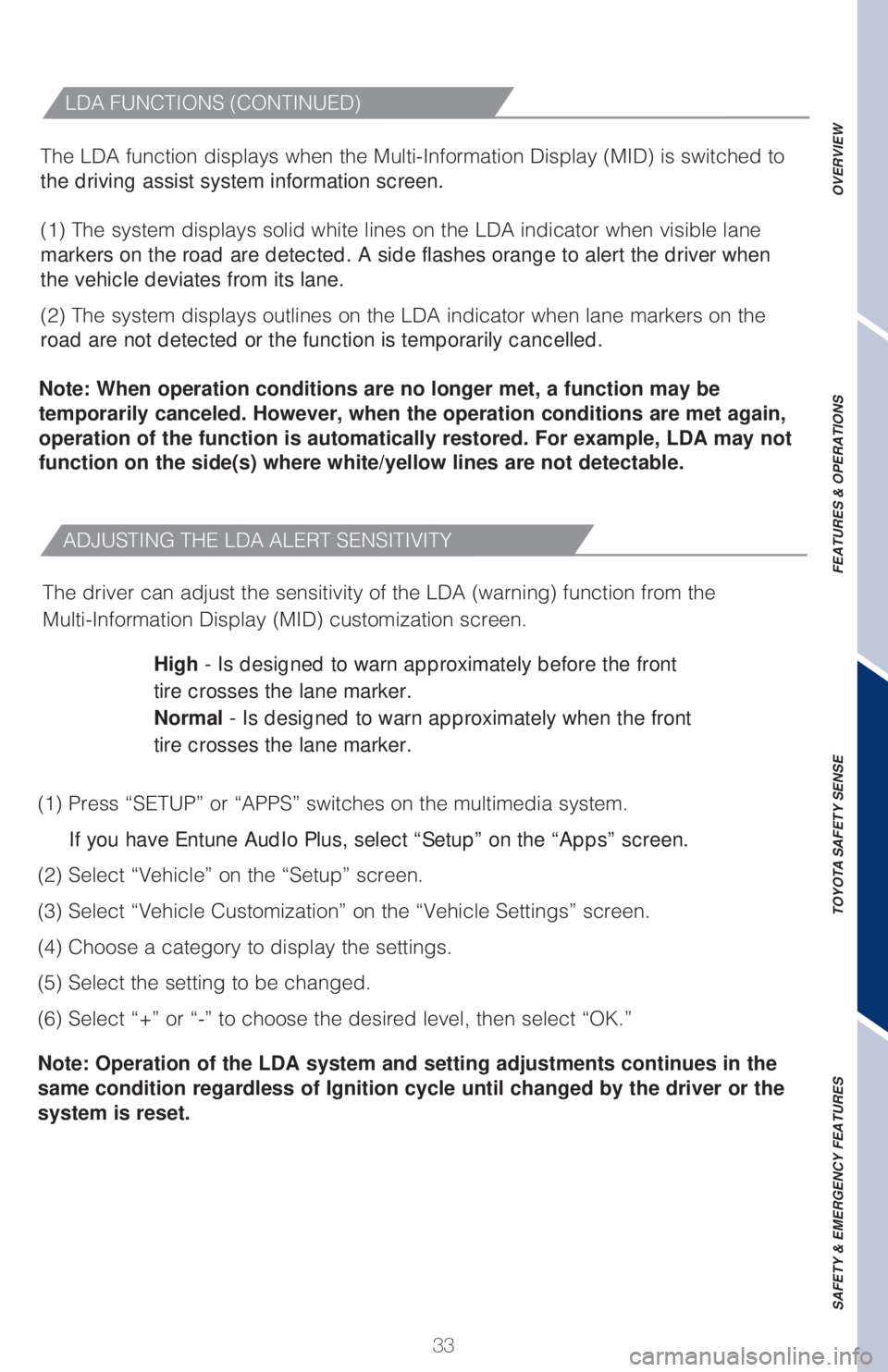

High - Is designed to warn approximately before the front
tire crosses the lane marker.
Normal - Is designed to warn approximately when the front
tire crosses the lane marker.
1 S F T T i 4 & 5 6 1 w P S i " 1 1 4 w T X J U D I F T P O U I F N V M U J N F E J B T Z T U F N
If you have Entune AudIo Plus, select “Setup” on the “Apps” screen.
4 F M F D U i 7 F I J D M F w P O U I F i 4 F U V Q w T D S F F O
4 F M F D U i 7 F I J D M F $ V T U P N J [ B U J P O w P O U I F i 7 F I J D M F 4 F U U J O H T w T D S F F O
$ I P P T F B D B U F H P S Z U P E J T Q M B Z U I F T F U U J O H T
4 F M F D U U I F T F U U J O H U P C F D I B O H F E
4 F M F D U i w P S i w U P D I P P T F U I F E F T J S F E M F W F M
U I F O T F M F D U i 0 , w
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
- % " ' 6 / $ 5 * 0 / 4 $ 0 / 5 * / 6 & %
5 I F - % " G V O D U J P O E J T Q M B Z T X I F O U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
J T T X J U D I F E U P
the driving assist system information screen.
5 I F T Z T U F N E J T Q M B Z T T P M J E X I J U F M J O F T P O U I F - % " J O E J D B U P S X I F O W J T J C M F M B O F
markers on the road are detected. A side flashes orange to alert the driver when
the vehicle deviates from its lane.
5 I F T Z T U F N E J T Q M B Z T P V U M J O F T P O U I F - % " J O E J D B U P S X I F O M B O F N B S L F S T P O U I F
road are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 36 of 56
34
TOYOTA SAFETY SENSE™
7 & ) * $ - & 4 8 " : 8 " 3 / * / ( 4 : 4 5 & . 4 8 4
' 6 / $ 5 * 0 /

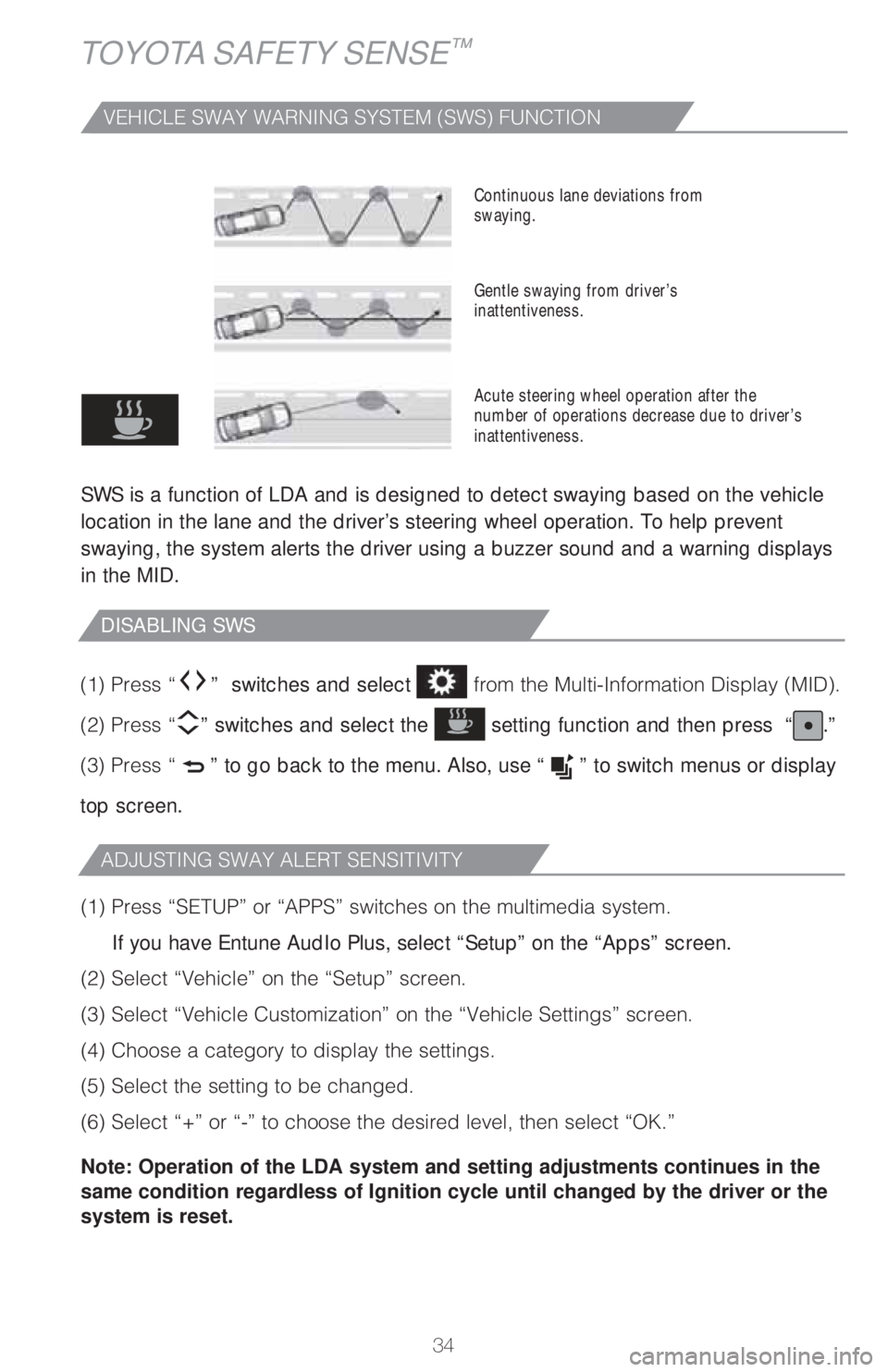

SWS is a function of LDA and is designed to detect swaying based on the vehicle
location in the lane and the driver’s steering wheel operation. To help prevent
swaying, the system alerts the driver using a buzzer sound and a warning displays
in the MID.
Continuous lane deviations from
swaying.
Gentle swaying from driver’s
inattentiveness.
Acute steering wheel operation after the
number of operations decrease due to driver’s
inattentiveness.
DISABLING SWS
" % + 6 4 5 * / ( 4 8 " : " - & 3 5 4 & / 4 * 5 * 7 * 5 :
1 S F T T i” switches and select G S P N U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
1 S F T T i
” switches and select the setting function and then press “.”
1 S F T T i
” to go back to the menu. Also, use “” to switch menus or display
top screen.
1 S F T T i 4 & 5 6 1 w P S i " 1 1 4 w T X J U D I F T P O U I F N V M U J N F E J B T Z T U F N
If you have Entune AudIo Plus, select “Setup” on the “Apps” screen.
4 F M F D U i 7 F I J D M F w P O U I F i 4 F U V Q w T D S F F O
4 F M F D U i 7 F I J D M F $ V T U P N J [ B U J P O w P O U I F i 7 F I J D M F 4 F U U J O H T w T D S F F O
$ I P P T F B D B U F H P S Z U P E J T Q M B Z U I F T F U U J O H T
4 F M F D U U I F T F U U J O H U P C F D I B O H F E
4 F M F D U i w P S i w U P D I P P T F U I F E F T J S F E M F W F M
U I F O T F M F D U i 0 , w
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Page 37 of 56
35
TURNING SYSTEM ON/OFF
" % + 6 4 5 * / ( 4 & 5 4 1 & & %
(1)
(2) (3)
DRCC helps maintain a pre-set distance to a preceding vehicle when the preceding
vehicle is traveling at a lower speed. This mode is always selected first when the
cruise control button is depressed. Constant speed cruise control mode is also
available.
Increase speed
Descrease speed
Cruise control switch
Dynamic Radar Cruise Control (DRCC)
Vehicle will cruise at a set speed, decelerate to maintain selected distance from a
slower vehicle traveling in front and accelerate back up to the selected speed if the
vehicle in front changes lanes or speeds up.
1 V T I U I F 0 / 0 ' ' C V U U P O 5 I F i 3 " % " 3 3 & " % : w P S i
” indicator will come on.
1 V T I U I F M F W F S E P X O U P 4 & 5 T Q F F E
Q V T I J U V Q U P 3 F T V N F B O E Q V M M J U P S E F Q S F T T
brake to Cancel.
1 V T I V Q U P J O D S F B T F U I F T F U T Q F F E
Q V T I E P X O U P E F D S F B T F N Q I J O D S F N F O U T
Cancel1
Set
Resume2
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

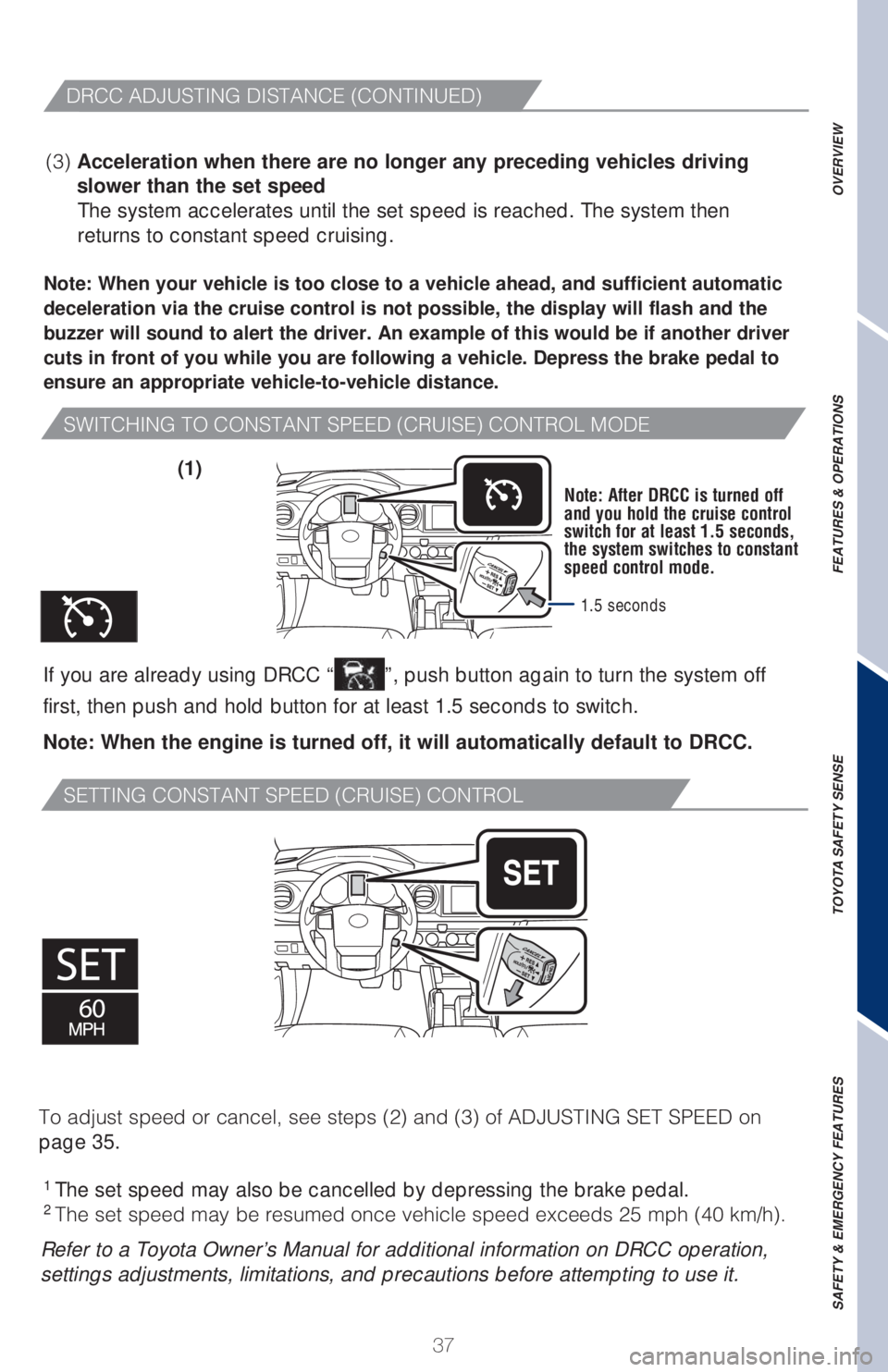

Refer to page 37 for switching to Constant Speed (Cruise) Control Mode.
Push once: On
Push again: Off
Display Set speed
Dynamic Radar Cruise Control
vehicle-to-vehicle distance button
Indicators
Page 38 of 56
36
TOYOTA SAFETY SENSE™
" % + 6 4 5 * / ( % * 4 5 " / $ &
To change the vehicle-to-
vehicle distance
Push the “
” button
to cycle through the
settings, which will change
progressively.
This mode employs a radar sensor to detect the presence of a preceding vehicle
V Q U P B Q Q S P Y J N B U F M Z G U N
B I F B E
E F U F S N J O F T U I F D V S S F O U W F I J D M F U P W F I J D M F
following distance and operates to maintain a suitable following distance from the
vehicle ahead. These distances vary based on vehicle speed.
(1) (2) (3)
Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
O F D F T T B S Z
U I F T Z T U F N B Q Q M J F T U I F C S B L F T U I F C S B L F M J H I U T X J M M D P N F P O B U U I J T
U J N F
5 I F T Z T U F N X J M M S F T Q P O E U P D I B O H F T J O U I F T Q F F E P G U I F W F I J D M F B I F B E
in order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead. Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Preceding
vehicle mark
LONG
(default setting)MIDDLESHORT
Page 39 of 56
37
4 8 * 5 $ ) * / ( 5 0 $ 0 / 4 5 " / 5 4 1 & & % $ 3 6 * 4 &
$ 0 / 5 3 0 - . 0 % &
4 & 5 5 * / ( $ 0 / 4 5 " / 5 4 1 & & % $ 3 6 * 4 &
$ 0 / 5 3 0 -
Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic
deceleration via the cruise control is not possible, the display will flash and the
buzzer will sound to alert the driver. An example of this would be if another driver
cuts in front of you while you are following a vehicle. Depress the brake pedal to
ensure an appropriate vehicle-to-vehicle distance.
If you are already using DRCC “”, push button again to turn the system off
first, then push and hold button for at least 1.5 seconds to switch.
Note: When the engine is turned off, it will automatically default to DRCC.
Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
1.5 seconds
% 3 $ $ " % + 6 4 5 * / ( % * 4 5 " / $ & $ 0 / 5 * / 6 & %
Refer to a Toyota Owner’s Manual for additional information on DRCC operation,
settings adjustments, limitations, and precautions before attempting to use it.
1 The set speed may also be cancelled by depressing the brake pedal.2 5 I F T F U T Q F F E N B Z C F S F T V N F E P O D F W F I J D M F T Q F F E F Y D F F E T N Q I L N I
5 P B E K V T U T Q F F E P S D B O D F M
T F F T U F Q T
B O E
P G " % + 6 4 5 * / ( 4 & 5 4 1 & & % P O
page 35.
Note: After DRCC is turned off
and you hold the cruise control
switch for at least 1.5 seconds,
the system switches to constant
speed control mode.
(1)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 40 of 56

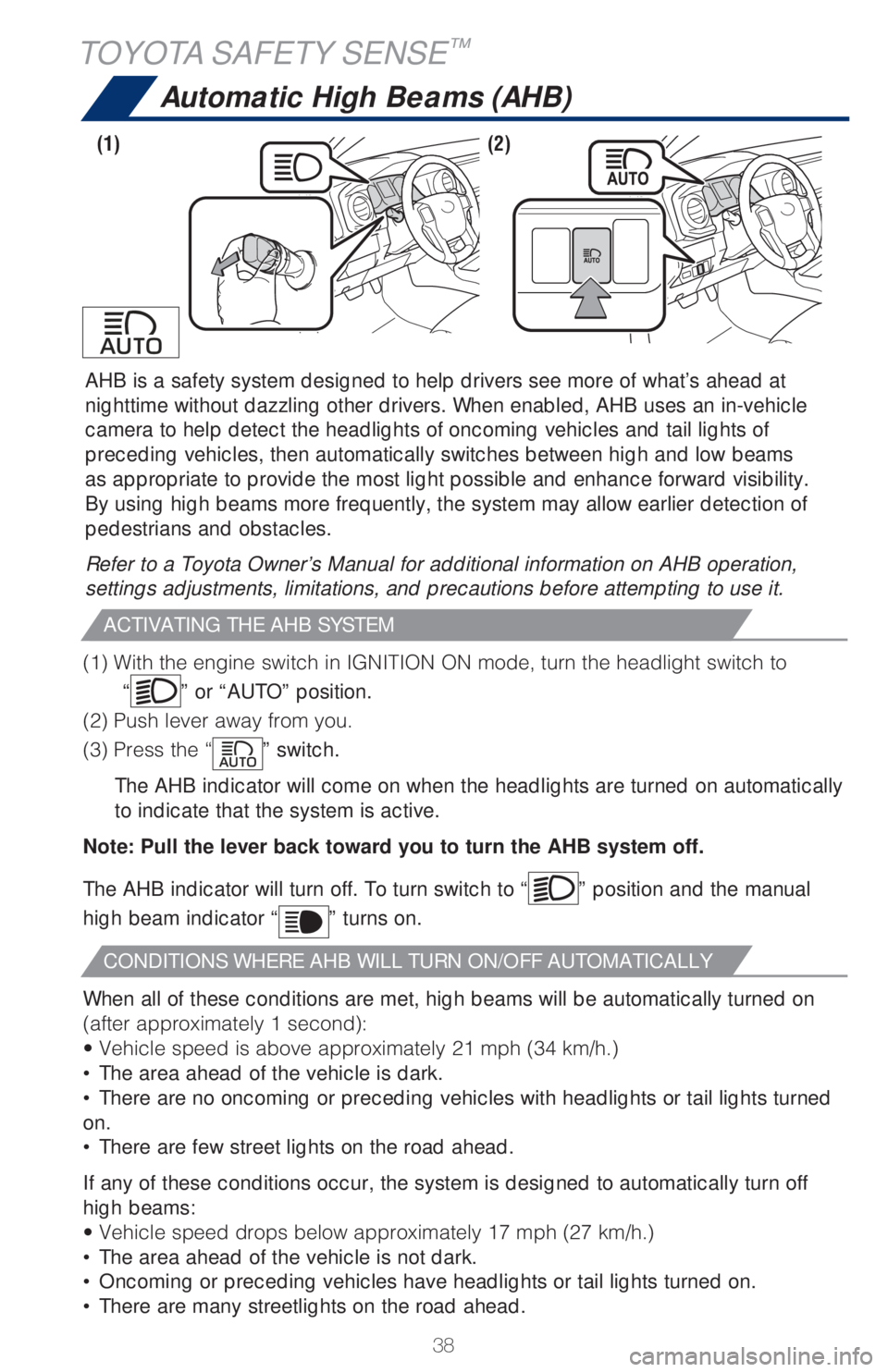

38 AHB is a safety system designed to help drivers see more of what’s ahead at
nighttime without dazzling other drivers. When enabled, AHB uses an in-vehicle
camera to help detect the headlights of oncoming vehicles and tail lights of
preceding vehicles, then automatically switches between high and low beams
as appropriate to provide the most light possible and enhance forward visibility.
By using high beams more frequently, the system may allow earlier detection of
pedestrians and obstacles.
Refer to a Toyota Owner’s Manual for additional information on AHB operation,
settings adjustments, limitations, and precautions before attempting to use it.
Automatic High Beams (AHB)
8 J U I U I F F O H J O F T X J U D I J O * ( / * 5 * 0 / 0 / N P E F
U V S O U I F I F B E M J H I U T X J U D I U P
“
” or “AUTO” position.
1 V T I M F W F S B X B Z G S P N Z P V
1 S F T T U I F i
” switch.
The AHB indicator will come on when the headlights are turned on automatically
to indicate that the system is active.
Note: Pull the lever back toward you to turn the AHB system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.
When all of these conditions are met, high beams will be automatically turned on
B G U F S B Q Q S P Y J N B U F M Z T F D P O E
t 7 F I J D M F T Q F F E J T B C P W F B Q Q S P Y J N B U F M Z N Q I L N I
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lights turned
on.
• There are few street lights on the road ahead.
If any of these conditions occur, the system is designed to automatically turn off
high beams:
t 7 F I J D M F T Q F F E E S P Q T C F M P X B Q Q S P Y J N B U F M Z N Q I L N I
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
(1) (2)
TOYOTA SAFETY SENSE™
