TOYOTA TACOMA 2018 (in English) Service Manual

39
Seat belts
Seat belts-Shoulder belt anchor
SAFETY & EMERGENCY FEATURES
127(,IDSDVVHQJHU

40
SAFETY & EMERGENCY FEATURES

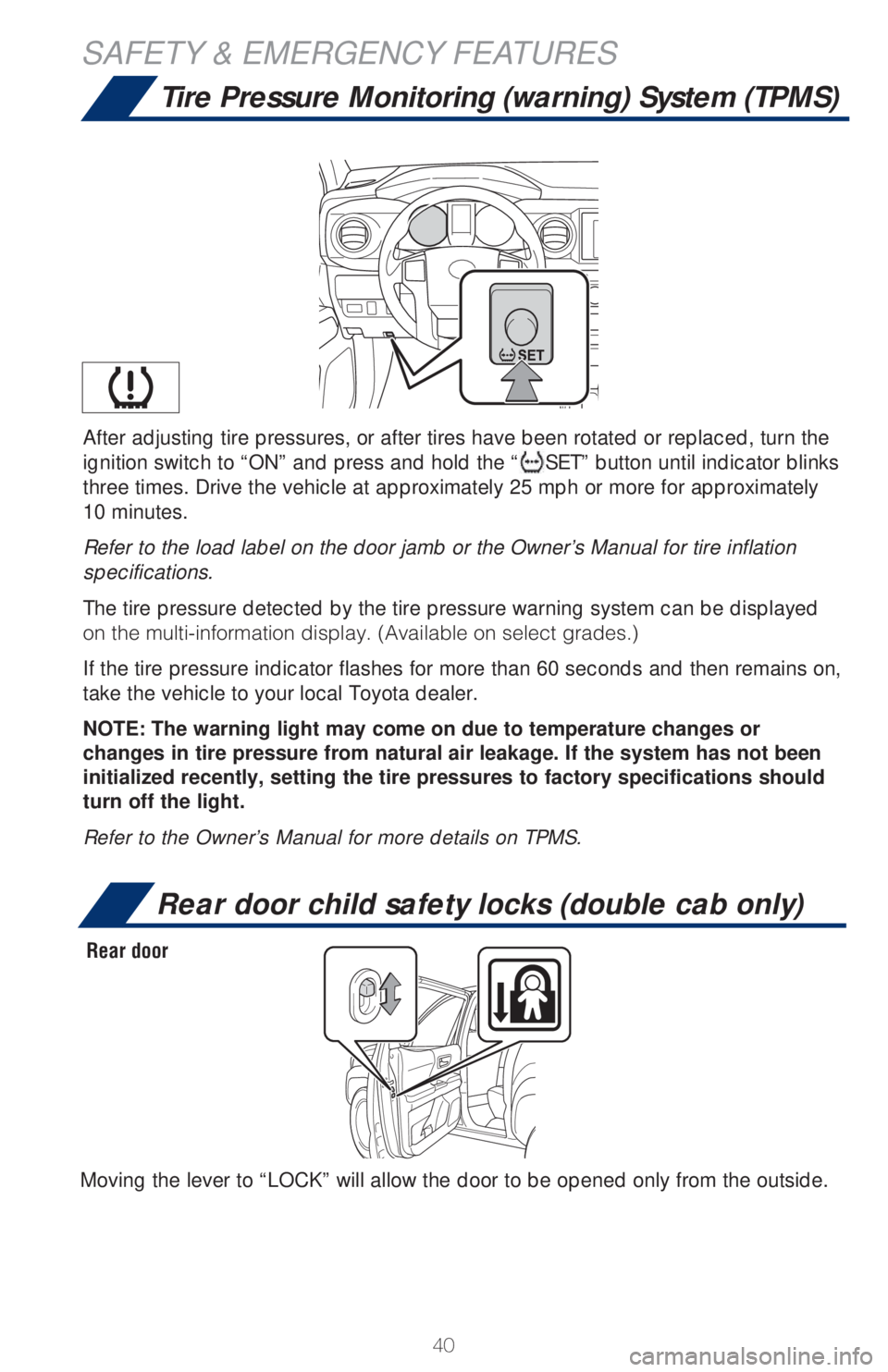

After adjusting tire pressures, or after tires have been rotated or replaced, turn the
ignition switch to “ON” and press and hold the “
SET” button until indicator blinks
three times. Drive the vehicle at approximately 25 mph or more for approximately
10 minutes.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
The tire pressure detected by the tire pressure warning system can be displayed
POUIFNVMUJJOGPSNBUJPOEJTQMBZ "WBJMBCMFPOTFMFDUHSBEFT

If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
Refer to the Owner’s Manual for more details on TPMS.
Rear door child safety locks (double cab only)
Moving the lever to “LOCK” will allow the door to be opened only from the outside.
Rear door
Tire Pressure Monitoring (warning) System (TPMS)

41

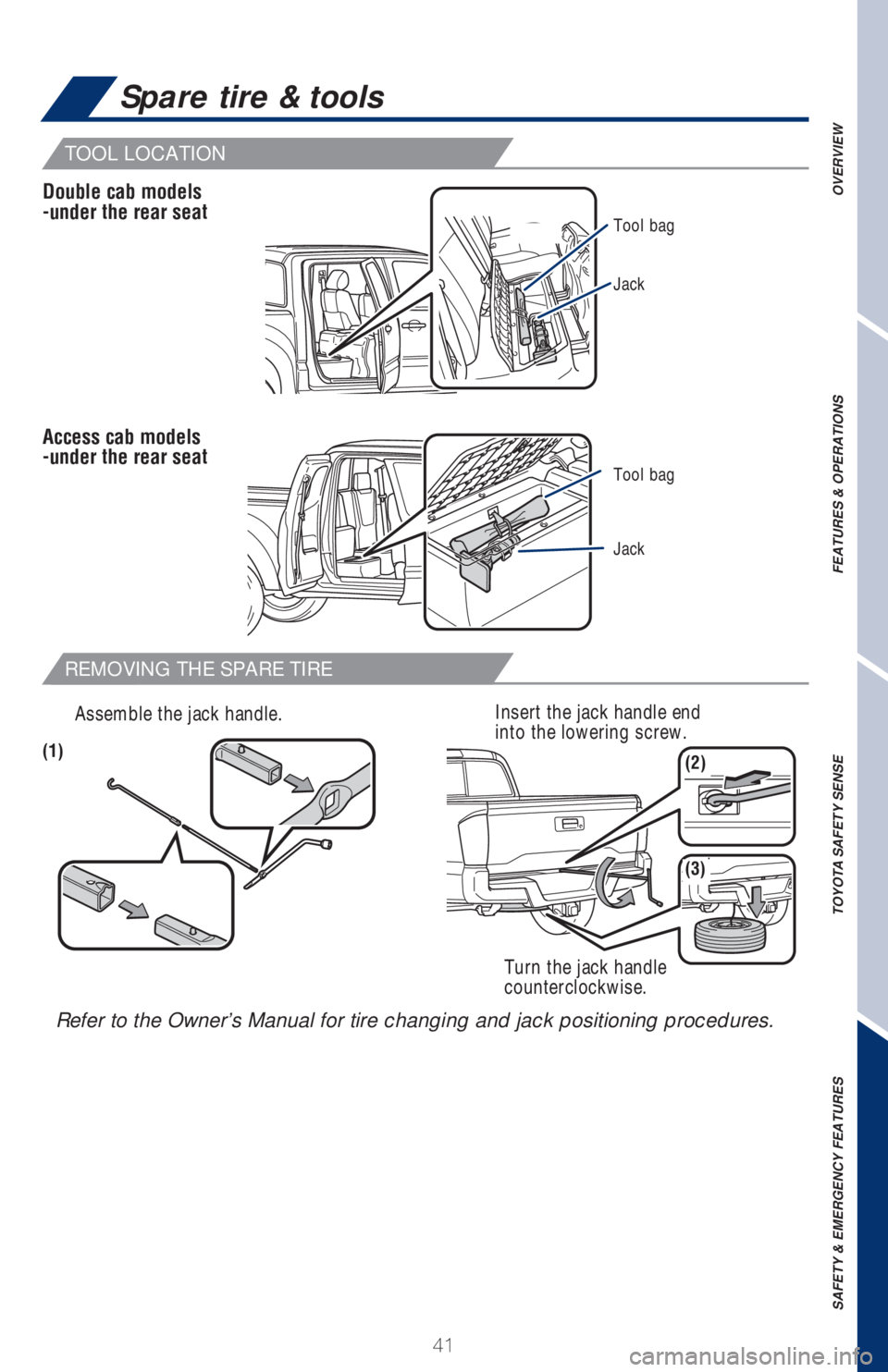

Spare tire & tools
Assemble the jack handle.
Turn the jack handle
counterclockwise.
Insert the jack handle end
into the lowering screw.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Access cab models
-under the rear seat
Tool bag
Jack
Double cab models
-under the rear seat
Tool bag
Jack
(1)
(3)
(2)
TOOL LOCATION
REMOVING THE SPARE TIRE
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

42

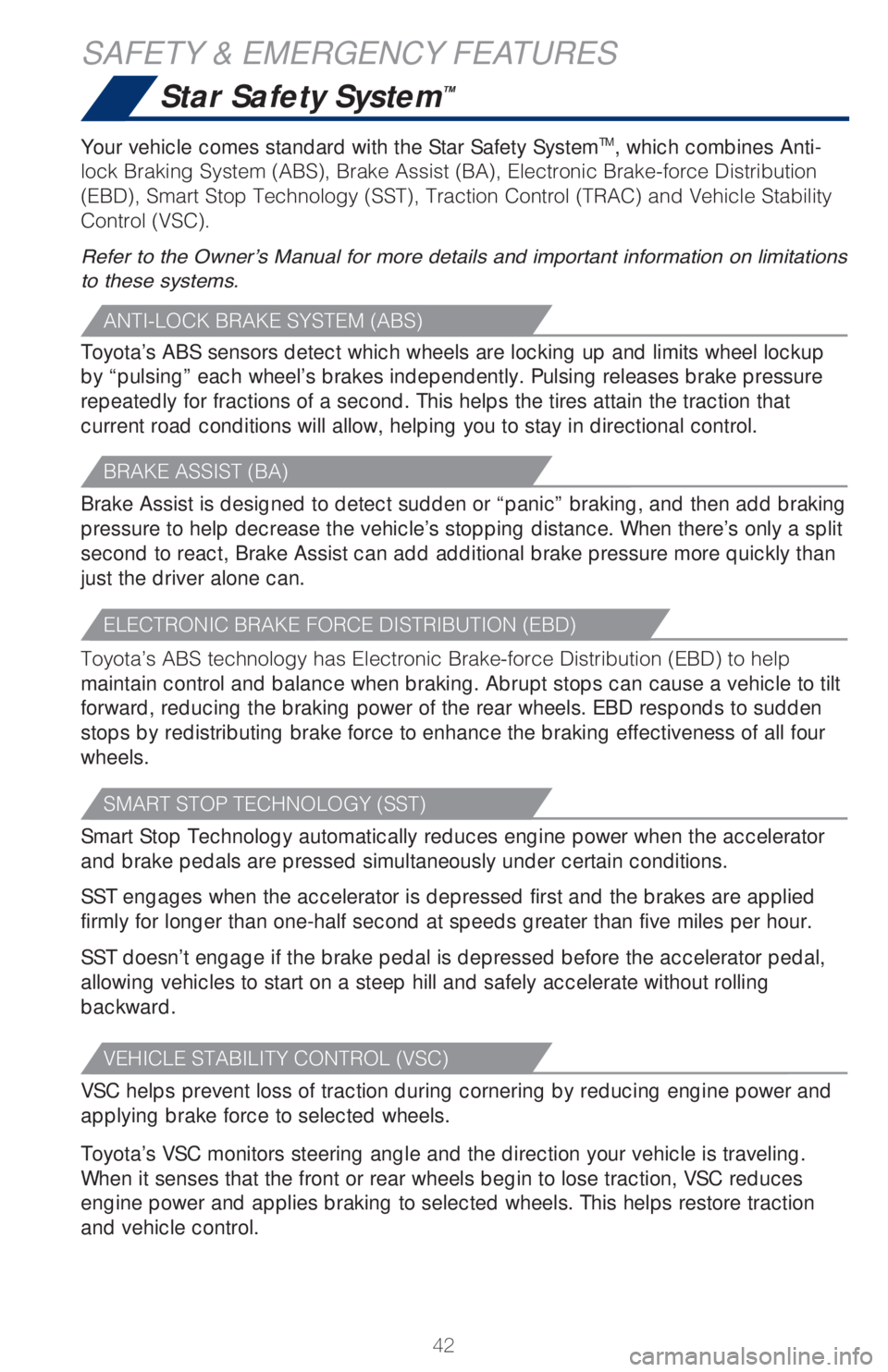

Star Safety System™
SAFETY & EMERGENCY FEATURES
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-
MPDL#SBLJOH4ZTUFN "#4

#SBLF"TTJTU #"

&MFDUSPOJD#SBLFGPSDF%JTUSJCVUJPO
&#%

4NBSU4UPQ5FDIOPMPHZ 445

5SBDUJPO$POUSPM 53"$
BOE7FIJDMF4UBCJMJUZ
$POUSPM 74$

5HIHUWRWKH2ZQHU

43

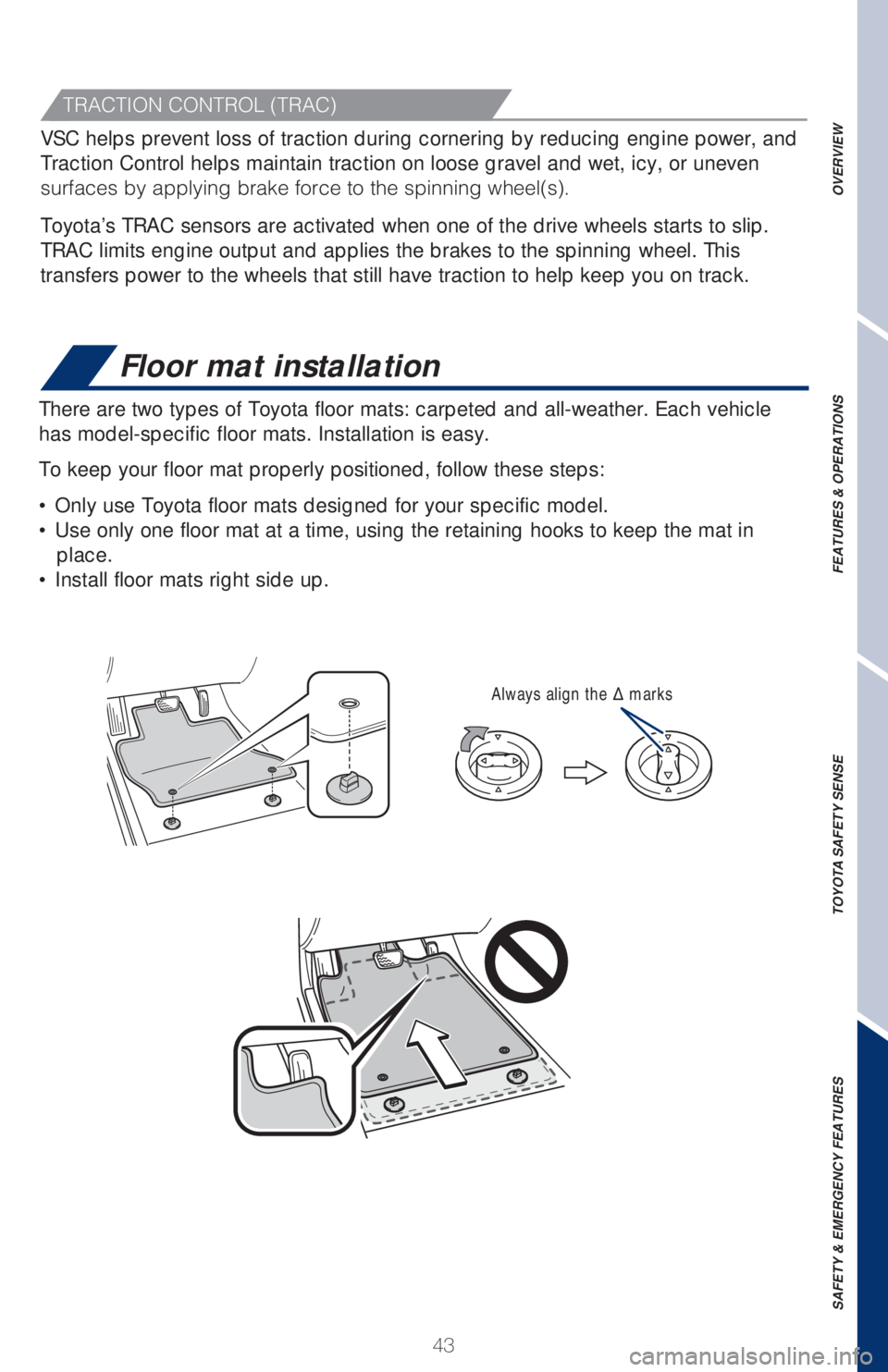

Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Always align the ¨ marks
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
53"$5*0/$0/530- 53"$

VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
TVSGBDFTCZBQQMZJOHCSBLFGPSDFUPUIFTQJOOJOHXIFFM T

Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.

44
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.

45

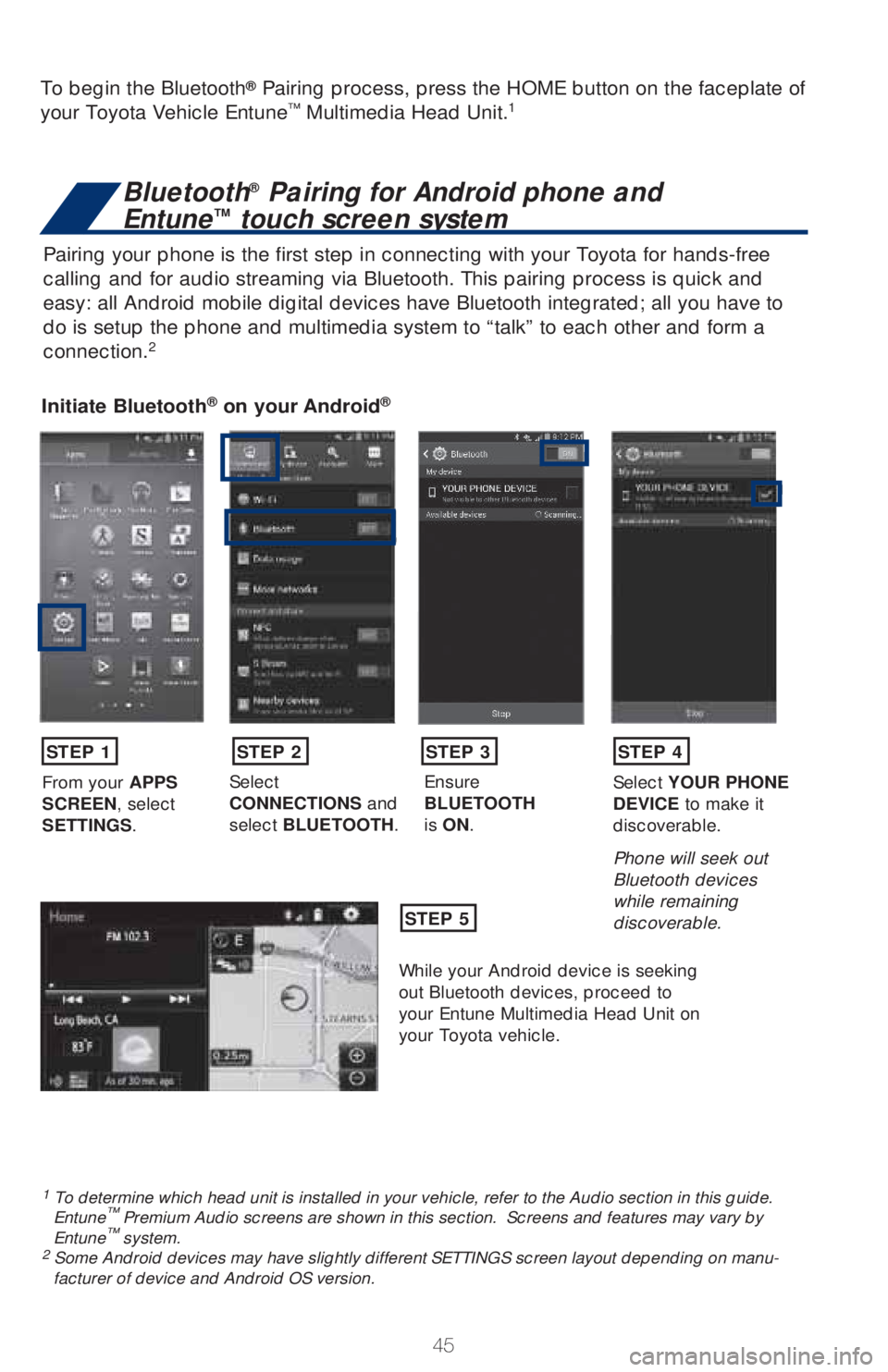

Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
2
Initiate Bluetooth® on your Android®
STEP 1
STEP 5
STEP 2STEP 3STEP 4
From your APPS
SCREEN, select
SETTINGS.Select
CONNECTIONS and
select BLUETOOTH.Ensure
BLUETOOTH
is ON.Select YOUR PHONE
DEVICE to make it
discoverable.
Phone will seek out
Bluetooth devices
while remaining
discoverable.
While your Android device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
1 To determine which head unit is installed in your vehicle, refer to the Audio section in this guide.
Entune™ Premium Audio screens are shown in this section. Screens and features may vary by
Entune™ system. 2 Some Android devices may have slightly different SETTINGS screen layout depending on manu-
facturer of device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your Toyota Vehicle Entune™ Multimedia Head Unit.1
Bluetooth® Pairing for Android phone and
Entune™ touch screen system

46

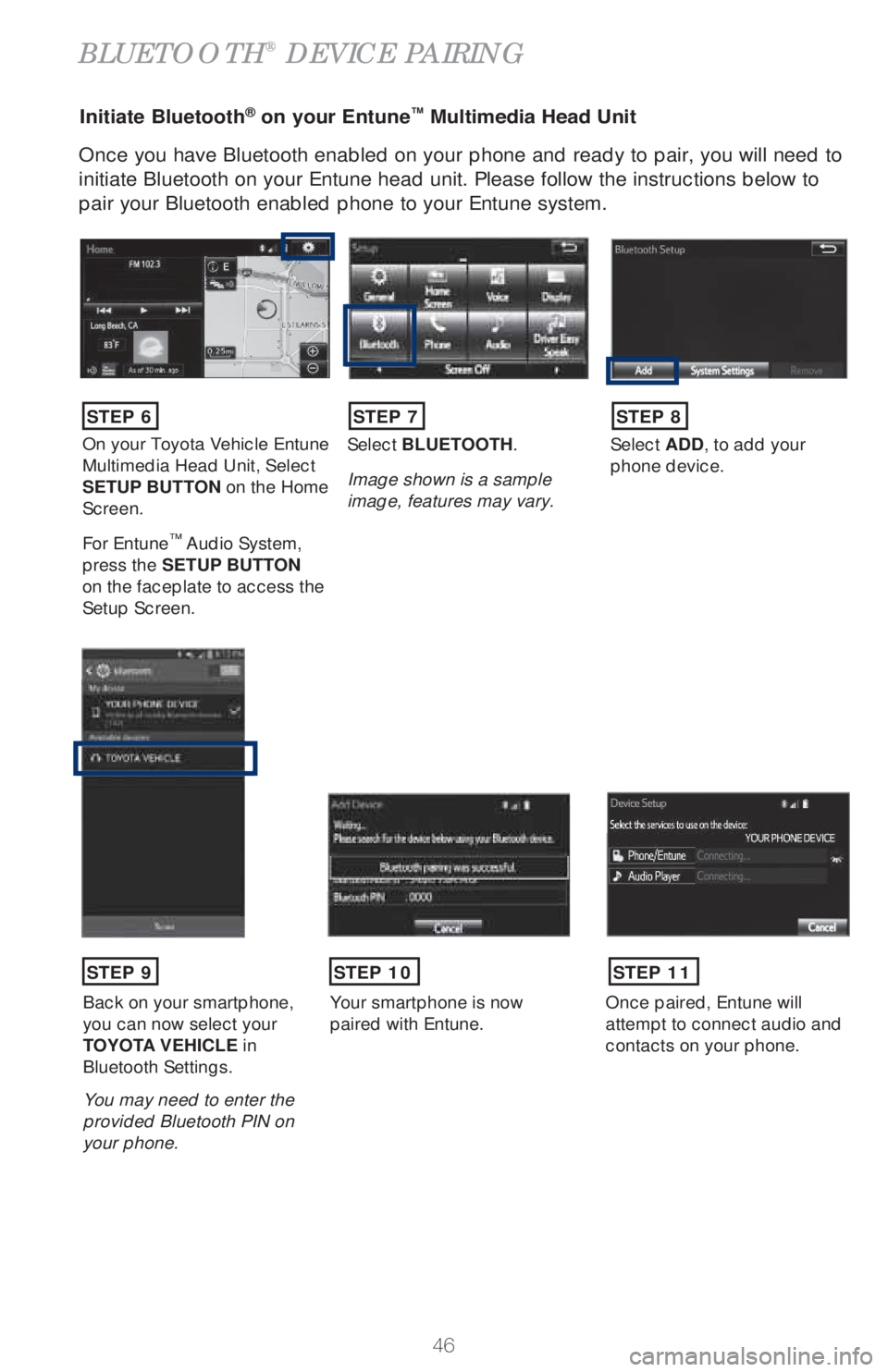

Initiate Bluetooth® on your Entune™0XOWLPHGLD+HDG8QLW
Once you have Bluetooth enabled on your phone and ready to pair, you will need to
initiate Bluetooth on your Entune head unit. Please follow the instructions below to
pair your Bluetooth enabled phone to your Entune system.
BLUETOOTH® DEVICE PAIRING
On your Toyota Vehicle Entune
Multimedia Head Unit, Select
SETUP BUTTON on the Home
Screen.
For Entune
™ Audio System,
press the SETUP BUTTON
on the faceplate to access the
Setup Screen.Select BLUETOOTH.
Image shown is a sample
image, features may vary.
Select ADD, to add your
phone device.
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the
provided Bluetooth PIN on
your phone.Your smartphone is now
paired with Entune.Once paired, Entune will
attempt to connect audio and
contacts on your phone.
STEP 6STEP 7STEP 8
STEP 9STEP 11STEP 10

47

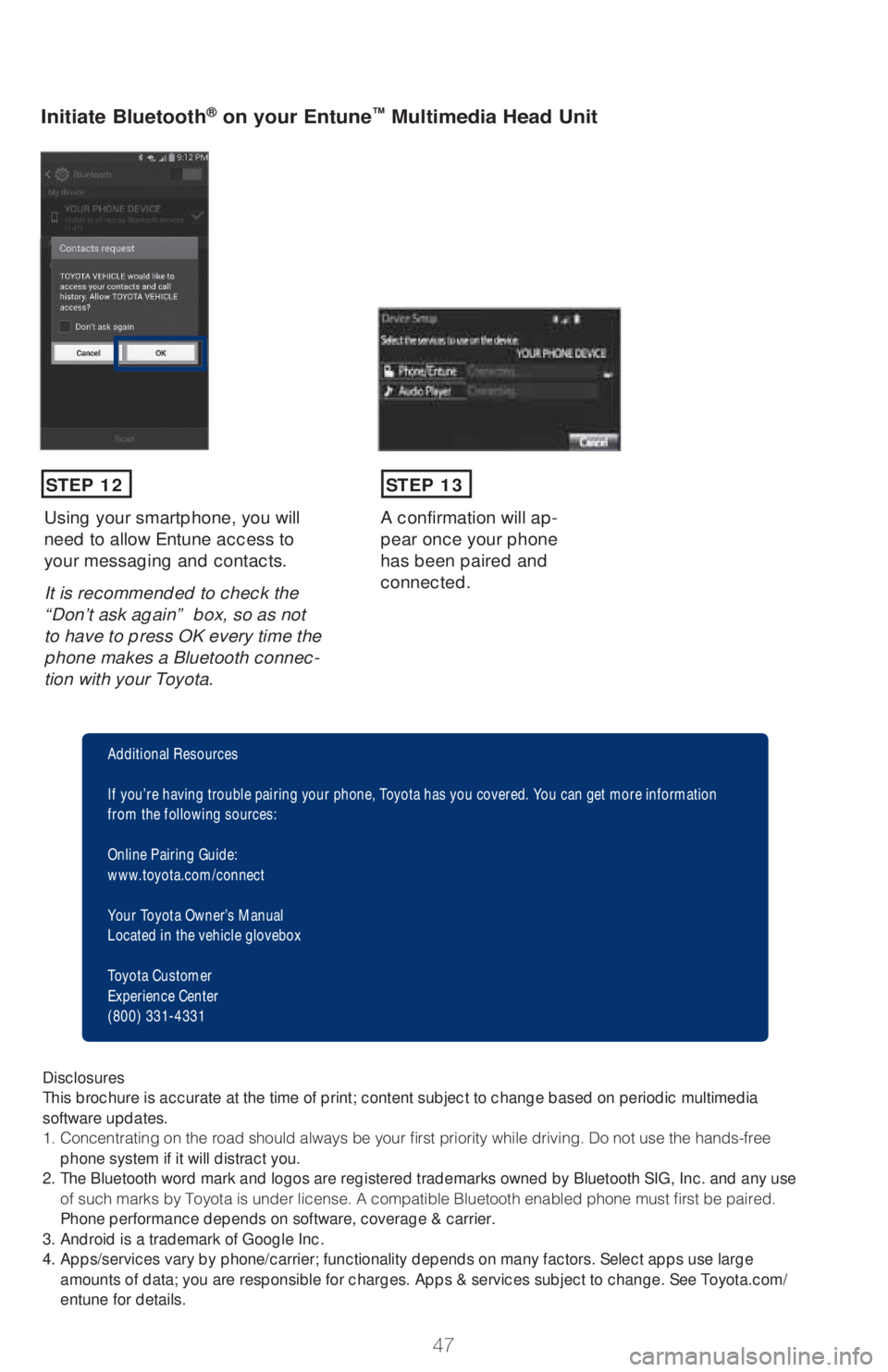

Initiate Bluetooth® on your Entune™0XOWLPHGLD+HDG8QLW
A confirmation will ap-
pear once your phone
has been paired and
connected.Using your smartphone, you will
need to allow Entune access to
your messaging and contacts.
It is recommended to check the
“Don’t ask again” box, so as not
to have to press OK every time the
phone makes a Bluetooth connec
-
tion with your Toyota.
STEP 12STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more information
from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia
software updates.
<0012000f000300240050004f00440046004f0055005300420055004a004f004800030050004f00030055004900460003005300500042004500030054004900500056004d004500030042004d00580042005a00540003004300460003005a00500056005300
03006d005300540055000300510053004a00500053004a0055>ZXIJMFESJWJOH%POPUVTFUIFIBOETGSFF
phone system if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
<00500047000300540056004400490003004e00420053004c005400030043005a000300350050005a0050005500420003004a005400030056004f0045004600530003004d004a00440046004f00540046000f00030022000300440050004e00510042005500
4a0043004d004600030023004d005600460055005000500055>IFOBCMFEQIPOFNVTUmSTUCFQBJSFE
Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large
amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/
entune for details.

48

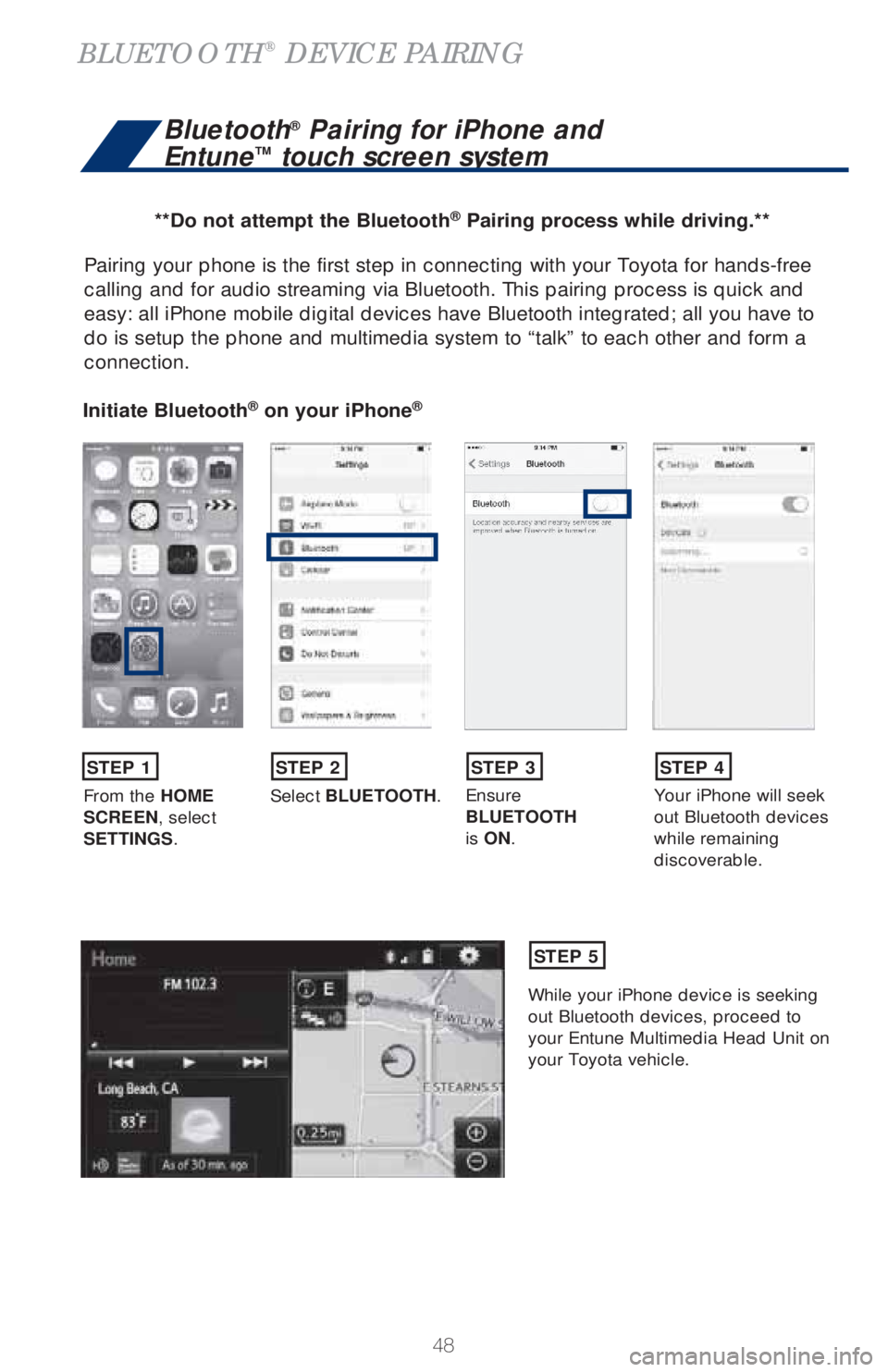

Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
Initiate Bluetooth® on your iPhone®
From the +20(
SCREEN, select
SETTINGS.Select BLUETOOTH.Ensure
BLUETOOTH
is ON.Your iPhone will seek
out Bluetooth devices
while remaining
discoverable.
While your iPhone device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
STEP 1STEP 2STEP 3STEP 4
STEP 5
Bluetooth® Pairing for iPhone and
Entune™ touch screen system
BLUETOOTH® DEVICE PAIRING
**Do not attempt the Bluetooth® Pairing process while driving.**
