spare wheel TOYOTA TACOMA 2018 Owners Manual (in English)

2514-5. Using the driving support systems
4
Driving
WARNING
■Before using LDA system
Do not rely solely upon the LDA system. The LDA system does not auto-
matically drive the vehicle or reduce the amount of attention t hat must be
paid to the area in front of the vehicle. The driver must alway s assume full
responsibility for driving safely by always paying careful atte ntion to the sur-
rounding conditions and operating the steering wheel to correct the path of
the vehicle. Also, the driver must take adequate breaks when fa tigued, such
as from driving for a long period of time.
Failure to perform appropriate driving operations and pay caref ul attention
may lead to an accident, resulting in death or serious injury.
■ To avoid operating LDA system by mistake
When not using the LDA system, use the LDA switch to turn the s ystem off.
■ Situations unsuitable for LDA system
Do not use the LDA system in the following situations.
The system may not operate properly and lead to an accident, re sulting in
death or serious injury.
● A spare tire, tire chains, etc., are equipped.
● Objects or patterns that could be mistaken for white (yellow) l ines are
present on the side of the road (guardrails, curbs, reflective poles, etc.).
● Vehicle is driven on a snow-covered road.
● White (yellow) lines are diffi cult to see due to rain, snow, fo g, dust, etc.
● Asphalt repair marks, white (yellow) line marks, etc., are pres ent due to
road repair.
● Vehicle is driven in a temporary lane or restricted lane due to construction
work.
● Vehicle is driven in a construction zone.

5718-2. Steps to take in an emergency
8
When trouble arises
WARNING
■If both the ABS and the brake s ystem warning lights remain on
Stop your vehicle in a safe place immediately and contact your To y o t a
dealer. The vehicle will become extremely unstable during braki ng, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ If the tire pressure warning light comes on (if equipped)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inf lation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest Toyota dealer.
● Avoid abrupt maneuvering and braking. If the vehicle tires dete riorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakag e should occur (vehicles with the tire
pressure warning system)
The tire pressure warning system may not activate immediately.
■
Maintenance of the tires (vehicles with the tire pressure warni ng
system)
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation p ressure
label (tire and load information label). (If your vehicle has t ires of a dif-
ferent size than the size indica ted on the vehicle placard or tire inflation
pressure label [tire and load information label], you should de termine
the proper tire inflation p ressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS -tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Acco rdingly,
when the low tire pressure telltale (tire pressure warning ligh t) illumi-
nates, you should stop and check your tires as soon as possible , and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread lif e, and may
affect the vehicle’s handl ing and stopping ability.

5948-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manua l
transmission).
● Stop the engine.
● Turn on the emergency flashers. ( P. 556)
Your vehicle is equipped with a spare tire. The flat tire can b e
replaced with the spare tire.
For details about tires: P. 5 1 9
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle

6028-2. Steps to take in an emergency
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it
from under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoi d unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes imm edi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extreme ly hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc., ma y
result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the t ire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 83 ft·lb f
(113 N·m, 11.5 kgf·m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been spe cifi-
cally designed for that wheel.
• If there are any cracks or defo rmations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing the wheel nuts, b e sure to install them with the
tapered ends facing inward. ( P. 532)
Installing the spare tire
1

6038-2. Steps to take in an emergency
8
When trouble arises
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a spare steel wheel
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Replacing an aluminum wheel with a spare steel wheel
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Replacing an aluminum wheel with a spare aluminum wheel
Tighten the nuts until the washer
of the nut comes into loose con-
tact with the disc wheel.
2
Tapered portion
Disc
wheel
sheet
Disc
wheel
sheet
Tapered portion
Disc
wheel
Washer

6068-2. Steps to take in an emergency
■The temporary spare tire
●The temporary spare tire is identified by the label “TEMPORARY USE
ONLY” on the disc wheel.
Use the temporary spare tire temp orarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the temporary spare
tire. ( P. 6 3 3 )
■After completing the tire change (vehicles with the tire pressu re
warning system)
The tire pressure warni ng system must be reset. ( P. 521)
■When using the temporary spare tire (vehicles with the tire pre ssure
warning system)
As the temporary spare tire is no t equipped with the tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you rep lace the
temporary spare tire after the tire pressure warning light come s on, the
light remains on.
■If you have a flat rear tire on a road covered with snow or ice
Install the temporary spare tire on one of the front wheels of the vehicle.
Perform the following steps and f it tire chains to the rear tires:
Replace a front tire with the temporary spare tire.
Replace the flat rear tire with the tire removed from the front of the
vehicle.
Fit tire chains to the rear tires.
1
2
3

6088-2. Steps to take in an emergency
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Driving with tire chains a nd the temporary spare tire
Do not fit tire chains to t he temporary spare tire.
Tire chains may damage the vehicle body and adversely affect dr iving
performance.
■When replacing the tires (vehicles with the tire pressure warni ng
system)
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire p ressure
warning valve and transmitter may be damaged if not handled cor rectly.
■To avoid damage to the tire pressure warning valves and transmi t-
ters (if equipped)
When a tire is repaired with liqui d sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sea lant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replac e the tire pressure warning valve and
transmitter when replacing the tire. ( P. 5 2 0 )

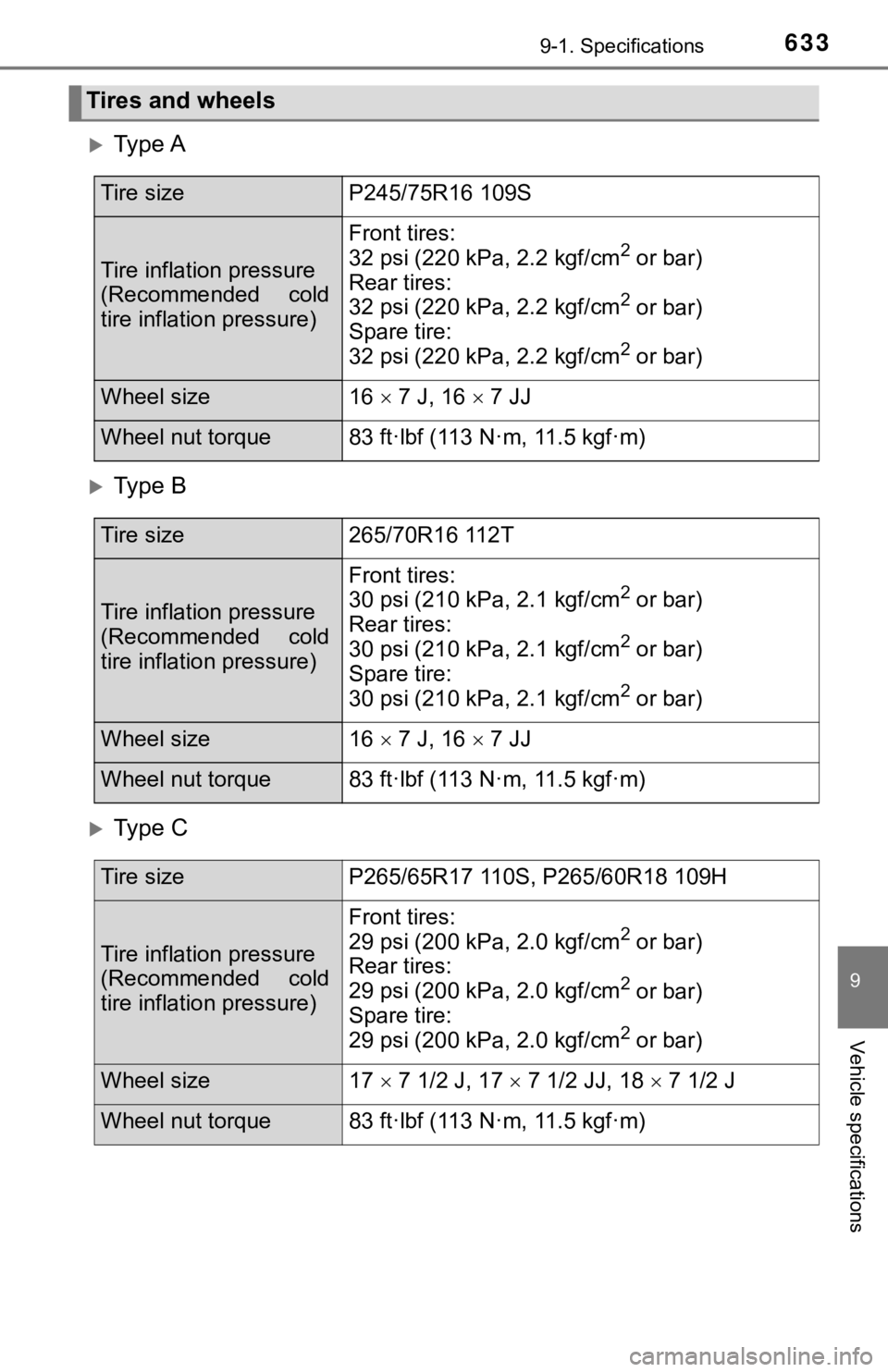

6339-1. Specifications
9
Vehicle specifications
Ty p e A
Ty p e B
Ty p e C
Tires and wheels
Tire sizeP245/75R16 109S
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front tires:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare tire:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size16  7 J, 16  7 JJ
Wheel nut torque83 ft·lbf (113 N·m, 11.5 kgf·m)
Tire size265/70R16 112T
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front tires:
30 psi (210 kPa, 2.1 kgf/cm2 or bar)
Rear tires:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare tire:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Wheel size16  7 J, 16  7 JJ
Wheel nut torque83 ft·lbf (113 N·m, 11.5 kgf·m)
Tire sizeP265/65R17 110S, P265/60R18 109H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front tires:
29 psi (200 kPa, 2.0 kgf/cm2 or bar)
Rear tires:
29 psi (200 kPa, 2.0 kgf/cm
2 or bar)
Spare tire:
29 psi (200 kPa, 2.0 kgf/cm
2 or bar)
Wheel size17  7 1/2 J, 17  7 1/2 JJ, 18  7 1/2 J
Wheel nut torque83 ft·lbf (113 N·m, 11.5 kgf·m)

692Alphabetical index
Side marker lights ................... 211Light switch ........................... 211
Replacing light bulbs..... 547, 551
Wattage ................................ 634
Side mirrors ............................. 145 Adjusting and folding ............ 145
BSM (Blind spot monitor) ...... 291
Side turn signal lights ............. 209 Replacing light bulbs............. 553
Turn signal lever ................... 209
Smart key system .................... 123 Antenna location ................... 123
Entry functions ...................... 112
Starting the engine................ 196
Warning message ................. 588
Snow tires ................................ 327
Spare tire .................................. 594
Inflation pressure .................. 633
Replacing .............................. 594
Storage location .................... 595
Spark plug ................................ 629
Specifications .......................... 622
Speech command system
*.... 420
Speedometer .............................. 90
Steering Column lock release ..... 194, 199
Warning message ................. 591
Steering wheel
Adjustment .................... 140, 140
Audio remote control switches
*........................... 340
Meter control switches ............ 95 Steering wheel audio
switches
*............................... 340
Stop lights
Replacing light bulbs ............ 551
Wattage ................................ 634
Storage box.............................. 449
Storage feature ........................ 444
Stuck If the vehicle becomes stuck ................................... 619
Sun visors ................................ 462
Switches Active traction control
switch ................................. 308
Audio remote control switches
*........................... 340
Automatic High Beam ........... 215
BSM (Blind spot monitor) main switch ........................ 291
Cargo lamp main switch ....... 443
“CLUTCH START CANCEL” switch ................ 318
Crawl Control switch ............. 314
Cruise control switch ............ 271
Door lock switches................ 113
Dynamic radar cruise control switch ..................... 257
Emergency flashers switch ... 556
Engine switch ............... 193, 196
Fog light switch ..................... 220
Front-wheel drive control
switch ................................. 299
Garage door opener switches ............................. 478

694Alphabetical index
Tires .......................................... 519Chains................................... 326
Checking ............................... 519
If you have a flat tire ............. 594
Inflation pressure .................. 633
Information ............................ 638
Replacing .............................. 594
Rotating tires......................... 519
Size ....................................... 633
Snow tires ............................. 327
Spare tire .............................. 595
Tire pressure warning system ......... ....................... 520
Warning light ......................... 568
Warning message ......... 575, 577
Tonneau cover ......................... 456
Tools ......................................... 595
Top tether strap ................... 63, 65
Total load capacity .......... 174, 623
Towing
Bumper towing ...................... 182
Dinghy towing ....................... 192
Emergency towing ................ 561
Trailer towing ........................ 175
Toyota Safety Sense P ............ 228
Automatic High Beam ........... 215
Dynamic radar cruise control................................. 257
LDA (Lane Departure Alert)........ 249
PCS
(Pre-Collision System)........ 235
TRAC (Traction Control) ......... 319
Transmission ........................... 201 Automatic transmission......... 201
If the shift lever cannot be shifted from P ..................... 205
Manual transmission ............. 207
Power mode switch............... 203
S mode ................................. 204 Trip meters ................................. 90
Turn signal lights .................... 209
Replacing light
bulbs................... 548, 551, 553
Turn signal lever ................... 209
Wattage ................................ 634
USB port
*................................. 341
Vanity lights Vanity lights .......................... 462
Wattage ................................ 634
Vanity mirrors .......................... 462
Vehicle data recordings .............. 9
Vehicle identification number ................................... 625
Vehicle Stability Control
(VSC) ...................................... 319
Voice command system
*....... 420
VSC
(Vehicle Stability Control) .... 319
Warning buzzers Brake Override System ............................... 576
Brake system ....... ......... 566, 573
BSM (Blind Spot Monitor) ..... 291
Crawl Control ........................ 316
Downshifting ......................... 206
Four-wheel drive control ....... 299
Intuitive parking assist .......... 276
Key reminder ........................ 194
Light reminder....................... 214
Open door............................. 579
Open moon roof............ 155, 581
Parking brake ............... 567, 580
PCS (Pre-Collision System) ....... 235
U
V
W
