TOYOTA TACOMA 2019 Accessories, Audio & Navigation (in English)

21
1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.58
Select to customize the “Home” screen.35
Select to set the voice settings.63
Select to adjust the contrast a nd brightness of the screens.40
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
242, 251
Select to turn the screen off.
Select to set radio and external media settings.11 9
Select to set the phone sound, cont acts, message settings, etc.178
Select to set Bluetooth® phones and Bluetooth® audio devices.51
*Select to set Entune App Suite settings.278
*Select to set data services settings.146
Select to link the driver’s cellular phone settings (audio pres ets, lan-
guage, etc.).65
Select to set vehicle information.“Owner’s Manual”
*Select to set traffic information.255
*Select to change the phone data plan pop-up message timing. (Co n-
nected navigation is downloadabl e application via smartphones.)—
*: Available in the 48 st ates, D.C. and Alaska

22
2. NAVIGATION OPERATION
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
Choose a search method.

There are different kinds of methods to
search for your home. ( P.215)
*: Entune Premium Audio only
1
2
3
4
5
6
2. NAVIGATION OPERATION

23
2. NAVIGATION OPERATION
QUICK GUIDE
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.243
 Editing the name, location, phone num-
ber and icon
P.243
 Setting home as the destination
P.218
7
8

24
2. NAVIGATION OPERATION
2. REGISTERING PRESET DESTINATIONS*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select one of the preset destina-
tion buttons.
Select “Yes”.
Choose a search method.

There are different kinds of methods to
search for a destination. ( P.215)
Select “Enter ”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
P.244
 Editing the name, location, phone num-
ber and icon
P.245
 Setting preset destinations as the desti-
nation
P.218
*: Entune Premium Audio only
1
2
3
4
5
6
7
8
9

25
2. NAVIGATION OPERATION
QUICK GUIDE
1
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Choose a search method.
There are different kinds of methods to
search for a destination. ( P.215)
Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended (P.228)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5
6

26
2. NAVIGATION OPERATION
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”. Select “OK”.
Selecting routes other than the one recom-
mended ( P.228)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5

27
QUICK GUIDE
1
3. FUNCTION INDEX
1. FUNCTION INDEX
Map*
 Route guidance*
Displaying mapsPage
Viewing the map screen200
Displaying the current position203
Viewing the current position vicinity map206
Changing the scale203
Changing the map orientation204
Displaying Points of Interest208
Displaying the estimated travel/arrival time to the destination232
Selecting the map mode204
Displaying traffic information212
Searching for destinationsPage
Searching for the destination217
Changing the selected search area218
Before starting or during route guidancePage
Starting route guide228
Editing the route238
Viewing the entire route map233
Address bookPage
Registering address book entries246
Marking icons on the map247
Pausing guidance231
Adjusting route guidance volume63
Deleting the destination239
*: Entune Premium Audio only

28
3. FUNCTION INDEX
Useful functions
InformationPage
Displaying vehicle maintenance*66
Hands-free system (for cellular phone)Page
Registering/connecting Bluetooth® phone43
Making a call on a Bluetooth® phone162
Receiving a call on the Bluetooth® phone169
Voice command systemPage
Operating the system with your voice132
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle148
*: Entune Premium Audio only

2
29
1
2
3
4
5
6
7
8
9

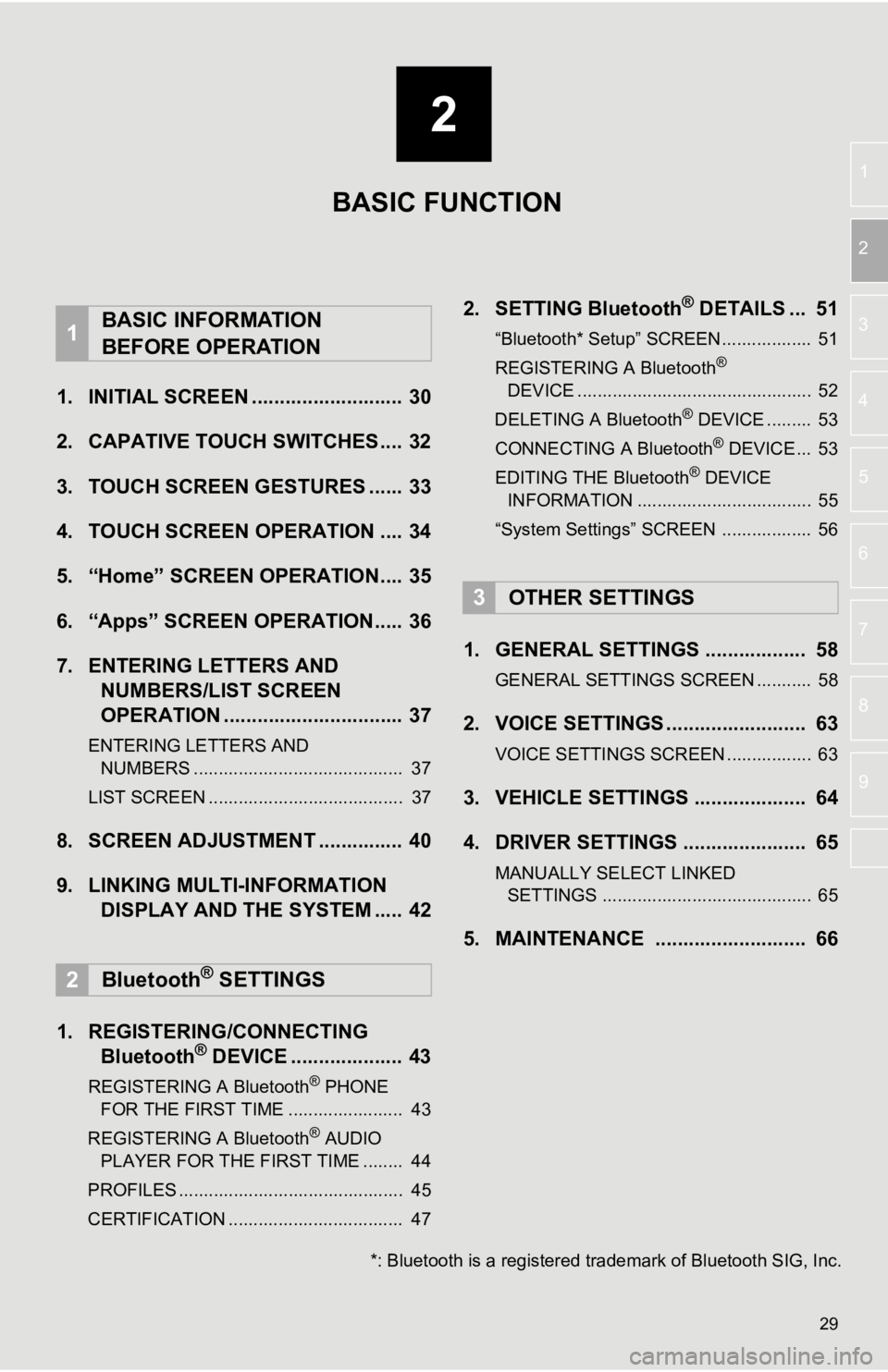

1. INITIAL SCREEN ........................... 30
2. CAPATIVE TOUCH SWITCHES.... 32
3. TOUCH SCREEN G ESTURES ...... 33
4. TOUCH SCREEN OPERATION .... 34
5. “Home” SCREEN OPERATION.... 35
6. “Apps” SCREEN OPERATION..... 36
7. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION ................................ 37
ENTERING LETTERS AND
NUMBERS .......................................... 37
LIST SCREEN ....................................... 37
8. SCREEN ADJUSTMENT ............... 40
9. LINKING MULTI-INFORMATION DISPLAY AND THE SYSTEM ..... 42
1. REGISTERING/CONNECTING Bluetooth
® DEVICE .................... 43
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME ....................... 43
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ........ 44
PROFILES ............................................. 45
CERTIFICATION ................................... 47
2. SETTING Bluetooth® DETAILS ... 51
“Bluetooth* Setup” SCREEN.................. 51
REGISTERING A Bluetooth®
DE V
ICE ............................................... 52
DELETING A Bluetooth
® DEVICE ......... 53
CONNECTING A Bluetooth® DEVICE ... 53
EDITING THE Bluetooth® DEVICE
INFORMATION ................................... 55
“System Settings” SCREEN .................. 56
1. GENERAL SETTINGS .................. 58
GENERAL SETTINGS SCREEN ........... 58
2. VOICE SETTINGS ......................... 63
VOICE SETTINGS SCREEN ................. 63
3. VEHICLE SETTINGS .................... 64
4. DRIVER SETTINGS ...................... 65
MANUALLY SELECT LINKED SETTINGS .......................................... 65
5. MAINTENANCE ........................... 66
1BASIC INFORMATION
BEFORE OPERATION
2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.

30
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
Vehicles without a smart key system
1When the engine switch is turned to the
“ACC” or “ON” position, the initial
screen will be displayed and the sys-
tem will begin operating.
 Vehicles with a smart key system
1When the engine switch is turned to the
ACCESSORY or IGNITION ON mode,
the initial screen will be displayed and
the system will begin operating.
After a few seconds, the “Caution” screen
will be displayed.
 After about 5 seconds, the “Caution”
screen automatically switches to the next
screen. (Select “Continue” or press the
“HOME” button to display the “Home”
screen.)
 Images shown on the initial screen can
be changed to suit individual prefer-
ences. ( P.61)
WA R N I N G
● When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
MAINTENANCE INFORMATION
(ENTUNE PREMIUM AUDIO)
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the navigation
system is turned on.
 To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again” .
 To register maintenance information:
P. 6 6
 If is selected, the registered
phone number can be called.
