811-2. Theft deterrent system
1
For safety and security
■Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle locks the door and the alarm is acti-
vated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

821-2. Theft deterrent system

83
Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 84
Gauges and meters ............ 90
Multi-information display ..... 94
Fuel consumption information ...................... 101

842. Instrument cluster

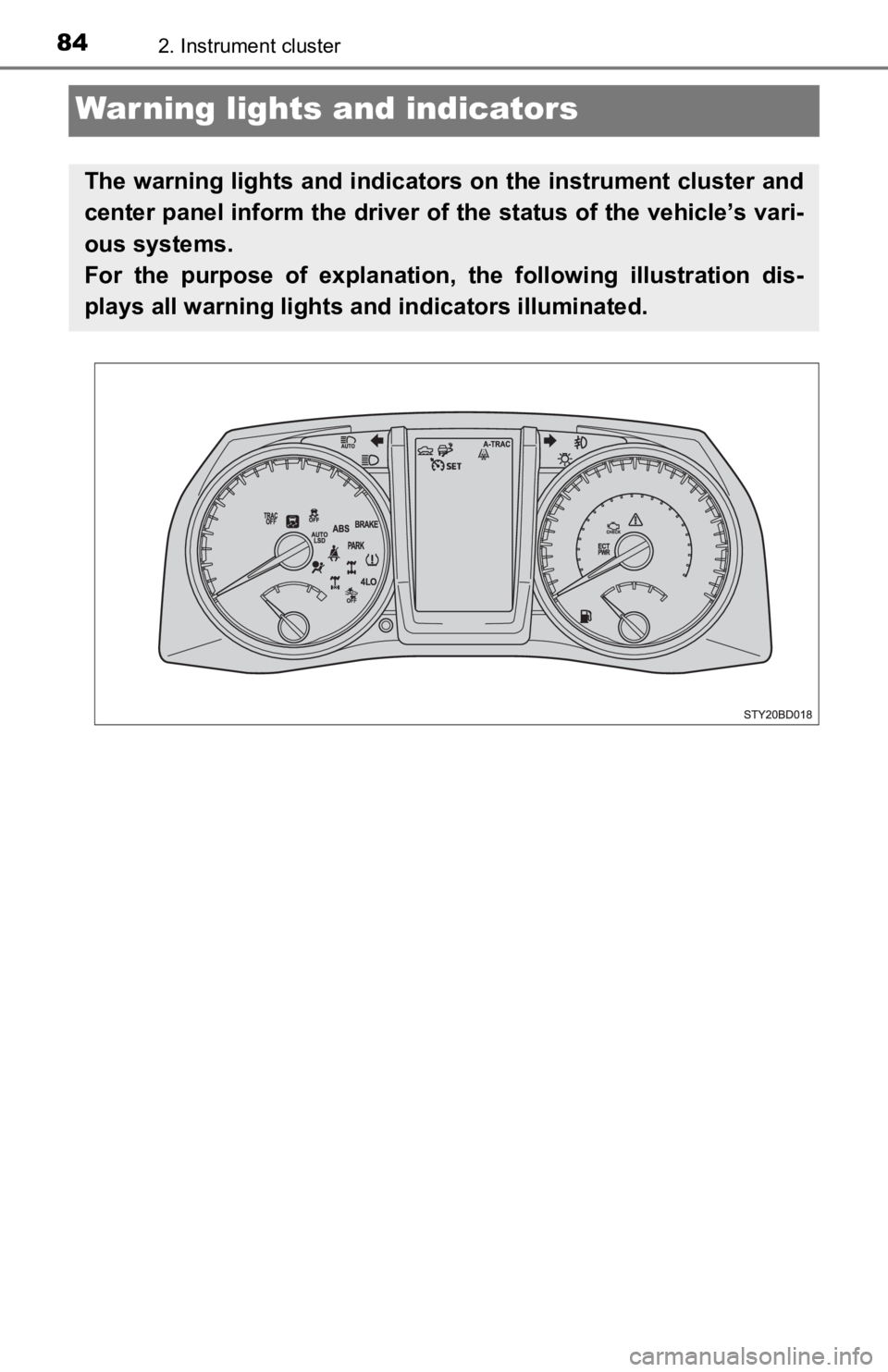

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

852. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 568)
*5
(Flashes
rapidly)
Rear differential lock
indicator ( P. 569)
*1
(Canada)
Brake system warning
light ( P. 568)
(Flashes)
(4WD models)
Low speed four-wheel
drive indicator ( P. 569)
*1
(U.S.A.)
Malfunction indicator
lamp (P. 568)Low fuel level warning
light (P. 569, 579)
*1
(Canada)
Malfunction indicator
lamp ( P. 568)Seat belt reminder light
(P. 569)
*1SRS warning light
(P. 568)
(U.S.A.)
Parking brake indicator
(P. 569)
*1
(U.S.A.)
ABS warning light
(P. 568)
(Canada)
Parking brake indicator
(P. 569)
*1
(Canada)
ABS warning light
(P. 568)
*1
Master warning light
(P. 569)
*1, 2
Slip indicator ( P. 569)
*1, 5Tire pressure warning
light (P. 570)

862. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if the lights do not com e on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer
for details.
*1, 3, 5PCS warning light
( P. 570)*4
(U.S.A.)
ABS warning light
(P. 577)
*2, 4, 5
(Yellow)
LDA indicator ( P. 570)
*4
(Canada)
ABS warning light
(P. 577)
*4
(U.S.A.)
Brake system warning
light ( P. 575)
*2, 4
Slip indicator ( P. 577)
*4
(Canada)
Brake system warning
light (P. 575)
*4, 5Tire pressure warning
light (P. 577)
*4Automatic transmission
fluid temperature warn-
ing light ( P. 576)*4Brake Override System/
Drive-Start Control warn-
ing light
(P. 578, 579, 589)
*4High engine coolant tem-
perature warning light
(P. 576)*4Low engine oil level
warning light ( P. 578)
*4Low engine oil pressure
warning light ( P. 576)*4
(Canada
only)
Low windshield washer
fluid warning light
(P. 579)
*4
Charging system warn-
ing light ( P. 576)

872. Instrument cluster
2
Instrument cluster
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
*4: This light illuminates on the multi-information display.
*5: If equipped
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 209)*2VSC off indicator
(P. 303, 320, 321)
(U.S.A.)
Headlight indicator
(P. 211)
*2
“TRAC OFF” indicator
(P. 320, 321)
(Canada)
Tail light indicator
(P. 211)
*4, 9
Active traction control
system indicator
(P. 308)
Headlight high beam
indicator ( P. 213)
(4WD models)
Four-wheel drive indica-
tor (P. 299)
*9Automatic high beam
indicator ( P. 215)*2, 9
Rear differential lock
indicator (P. 305)
*9Fog light indicator
(P. 220)*4Cruise control indicator
(P. 266, 271)
*1
Power mode indicator
(P. 203)
*4, 9Dynamic radar cruise
control indicator
(P. 262)
*4Cruise control “SET”
indicator ( P. 266, 271)*2“AUTO LSD” indicator
(P. 303)
*2, 3Slip indicator
(P. 303, 308, 314, 320)*2, 9, 10PCS warning light
(P. 239)

882. Instrument cluster
*1: Vehicles with an automatic transmission.
*2: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if the lights do not com e on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer
for details.
*3: The light flashes to indicate that the system is operating.
*4: This light illuminates on the multi-information display.
*5: When the outside temperature is approximately 37°F (3°C) or lo wer, the
indicator will flash for 10 times, then comes on.
*4, 9
(Green)
LDA indicator ( P. 252)
*4, 9
Crawl Control indicator
(P. 314)
(4WD models)
Low speed four-wheel
drive indicator ( P. 299)
*4, 5
Low outside tempera-
ture indicator (P. 90)
(U.S.A.)
Parking brake indicator
(P. 210)
*6, 7, 9BSM outside rear view
mirror indicator
(P. 291)
(Canada)
Parking brake indicator
(P. 210)
*8, 9
Security indicator
(P. 69, 79)
*4, 9
Multi-terrain Select indi-
cator (P. 310)
“AIR BAG ON/OFF” indicators
(P. 45)*2, 8

892. Instrument cluster
2
Instrument cluster
*6: In order to confirm operation, the BSM outside rear view mirror indicatorsilluminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key
system) while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in the
“ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
*7: This light illuminates on the outside rear view mirrors.
*8: This light illuminates on the center panel.
*9: If equipped
*10: The light comes on when the system is turned off.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

902. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperat ure indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Multi-information display
Presents the driver with a variety of vehicle data. ( P. 95)
Displays warning messages in case of a malfunction. ( P. 575)
Odometer/trip meter
P. 91
Shift position and shift range (vehicles with an automatic transmis-
sion)
Displays the selected shift position or selected shift range. ( P. 201)
“ODO/TRIP” and instrument panel light control button
P. 91
Engine coolant temperature gauge
Displays the engine coolant temperature.
1
2
3
4
5
6
7
8
9
