oil capacity TOYOTA TACOMA 2019 Owners Manual (in English)

15Pictorial index
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 630
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 637
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 325
Checking/rotation/tire pressure warning system
*2 . . . . . . . . . P. 521
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 597
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 631
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 620
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Fog lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Parking lights (bulb type)
*2/
daytime running lig hts (bulb type)
*2. . . . . . . . . . . . . . . . . . P. 211
Parking lights (LED type)
*2/
daytime running lights (LED type)
*2 . . . . . . . . . . . . . . . . . . P. 211
Rear turn signal/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Hill-start assist control
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 3 20
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . P. 201, 207
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
6
7
8
9
Light bulbs of the exter ior lights for driving
(Replacing method: P. 545, Watts: P. 639)
*1: Vehicles with a smart key system
*2: If equipped
10
11
12
13
14
15
16
17
18

6319-1. Specifications
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is us ed in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Lubrication system
Oil capacity
(Drain and refill—reference
*)With filterWithout filter
2TR-FE engine6.2 qt.
(5.9 L, 5.2 Imp.qt.)5.8 qt.
(5.5 L, 4.8 Imp.qt.)
2GR-FKS
engine
without towing
package6.1 qt.
(5.8 L, 5.1 Imp.qt.)
5.9 qt.
(5.6 L, 4.9 Imp.qt.)
with towing
package6.2 qt.
(5.9 L, 5.2 Imp.qt.)
Outside temperature

6349-1. Specifications
*1: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.
*2: Except for GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA and GRN310L-PRTLHA models
*6 without rear differential lock system
*3: For GRN330L-PRTSHA, GRN330L -PRTLHA, GRN310L-PRTSHA and
GRN310L-PRTLHA models
*6 without rear differential lock system
*4: Except for GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA and GRN310L-PRTLHA models
*6 with rear differential lock system
*5: For GRN330L-PRTSHA and GRN310L-PRTSHA models*6 with rear differ-
ential lock system
*6: The model code is indicated on the Certification Label. ( P. 629)
Electrical system
Battery
Open voltage at 68F
(20 C):
12.3V or higher
(Voltage is checked 20 minutes after the engine
and all lights are turned off.
After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch
to the “LOCK” position [vehicles without a smart
key system] or off [vehicles with a smart key sys-
tem], and turn the headlights off.)
Charging rates5 A max.
Differential
Oil capacity
(Reference)
Front (4WD models) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Rear
Vehicles with an automatic trans-
mission
3.1 qt. (2.9 L, 2.6 Imp.qt.)
*2
3.22 qt. (3.05 L, 2.68 Imp.qt.)*3
4.0 qt. (3.8 L, 3.3 Imp.qt.)*4
4.2 qt. (4.0 L, 3.5 Imp.qt.)*5
Vehicles with a manual transmis-
sion
4.0 qt. (3.8 L, 3.3 Imp.qt.)
Oil type and viscosity*1Toyota Genuine Differential Gear Oil
LT 75W-85 GL-5 or equivalent

6359-1. Specifications
9
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Toyota dealer.
Automatic transmission
Fluid
capacity
*
2TR-FE engine 9.2 qt. (8.7 L, 7.7 Imp.qt.)
2GR-FKS engine
Vehicles without towing package:
10.6 qt. (10.0 L, 8.8 Imp.qt.)
Vehicles with towing package:
10.8 qt. (10.2 L, 9.0 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
Manual transmission
Gear oil capacity (Reference) 2.6 qt. (2.5 L, 2.2 Imp.qt.)
Gear oil type Toyota Genuine Manual Transmis-
sion Gear Oil GL-3 (GL-4) or equiva-
lent
Recommended gear oil viscosity SAE 75W-90
NOTICE
■
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “ T O Y O TA
Genuine Manual Transmission Gear Oil” to achieve optimal perfor mance.
Cluch
Clutch free play0.2 — 0.6 in. (5 — 15 mm)
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703

6369-1. Specifications
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at
the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent of matching quality to satisfy the above specific ation. Please
contact your Toyota dealer for further details.
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking brake lever travel when pulled up with a force of 44.9 lbf (200 N,
20.4 kgf).
Transfer (4WD models)
Oil capacity 1.1 qt. (1.0 L, 0.9 Imp.qt.)
Oil type*Toyota Genuine Transfer gear oil LF or
equivalent
Recommended oil viscosity SAE 75W
Brakes
Pedal clearance*1
Vehicles without off-road package:
4.4 in. (111 mm) Min.
Vehicles with off-road package:
3.6 in. (91 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Brake lining wear limit0.04 in. (1.0 mm)
Parking brake lever travel*25 — 7 clicks
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Chassis lubrication
Propeller shaft SpiderLithium base chassis grease, NLGI No.2
Steering
Free playLess than 1.2 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III

6499-1. Specifications
9
Vehicle specifications

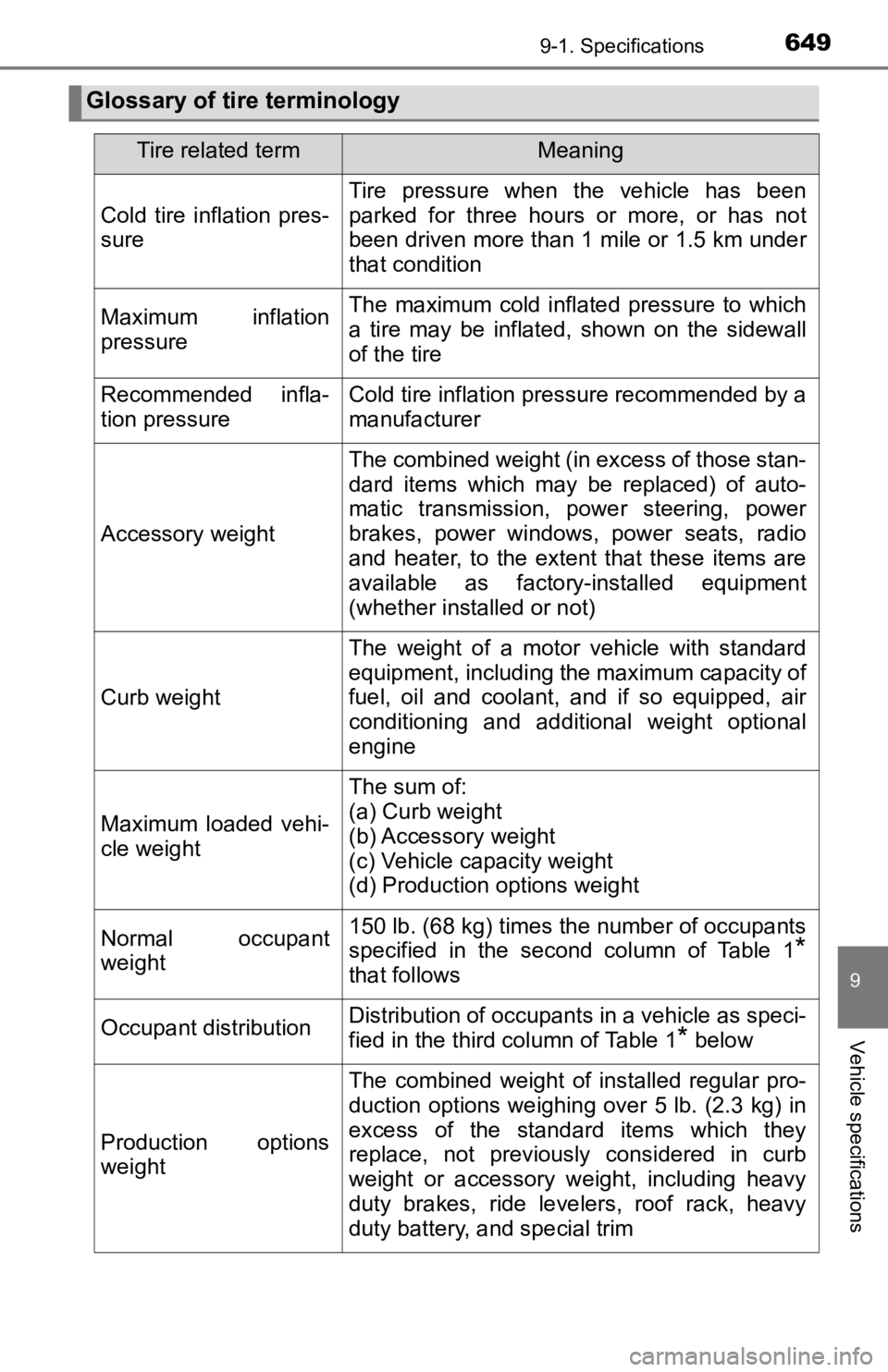

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim

689Alphabetical index
Driving ...................................... 160Break-in tips .......................... 163
Correct driving posture ........... 26
Driving assist system ............ 319
Procedures ........................... 160
Winter drive tips .................... 325
Dynamic radar cruise
control .................................... 257 Constant speed control mode .................................. 266
Vehicle-to-vehicle distance control mode....................... 264
EDR (Event data recorder) ........ 10
Electronic key .......................... 104 Battery-saving function ......... 125
If the electronic key does not operate properly ........... 614
Replacing the battery ............ 539
Emergency, in case of If the electronic key does
not operate properly ........... 614
If the engine will not start ...... 612
If the vehicle battery is discharged .......................... 616
If the warning buzzer sounds ................................ 568
If the warning light turns on ....................................... 568
If the warning message
is displayed......................... 575
If you have a flat tire ............. 597
If you think something is wrong .............................. 566
If your vehicle becomes stuck ................................... 622 If your vehicle has to be
stopped in an emergency ... 559
If your vehicle needs
to be towed......................... 561
If your vehicle overheats....... 620
Emergency flashers ................ 558
Engine Compartment ........................ 509
Engine switch ............... 193, 196
Hood ..................................... 507
How to start the engine ........................ 193, 196
Identification number ............ 629
If the engine will not start ...... 612
Ignition switch (engine switch) ........... 193, 196
Immobilizer system .. ............... 69
Overheating .......................... 620
Engine coolant......................... 513
Capacity................................ 633
Checking............................... 513
Preparing and checking before winter ...................... 325
Engine coolant temperature gauge ....................................... 90
Engine immobilizer system ...... 69
Engine oil ................................. 511 Capacity................................ 631
Checking............................... 511
Oil level warning message.... 578
Oil pressure warning
message............................. 576
Preparing and checking before winter ...................... 325
E
*: For vehicles with Entune Audio Plus or Entune Premium Audio, refer to
the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”

693Alphabetical index
Personal lights ...................... 442
Replacing light bulbs............. 545
Turn signal lever ................... 209
Vanity lights .......................... 462
Wattage ................................ 639
Load capacity........................... 174
Lock steering column ............. 140
Luggage compartment features .................................. 452
Luggage storage box .............. 449
Maintenance
Do-it-yourself maintenance ... 505
General maintenance ........... 501
Maintenance data ................. 626
Maintenance requirements ... 499
Resetting the maintenance required remainder light
or message........................ 500
Malfunction indicator lamp ..... 568
Manual air conditioning system .................................... 426
Manual transmission ............... 207
Master warning light........ 569, 575
Meter Indicators ................................ 87
Instrument panel light control................................... 91
Meters ..................................... 90
Multi-information display ......... 94
Warning lights ......................... 85
Warning message ................. 575
Meter control switches.............. 95 Mirrors
Inside rear view mirror .......... 142
Outside rear view mirror defoggers ......... 428, 435
Outside rear view mirrors ..... 145
Vanity mirrors ....................... 462
Moon roof ................................. 153
Jam protection function ........ 154
Operation .............................. 153
MP3 disc
*................................. 357
Multi-information display.......... 94 Customizing vehicle features ................................ 97
Driving information.................. 95
Dynamic radar cruise control ................................ 257
LDA (Lane Departure Alert) ....... 249
Navigation system-linked........ 94
Settings display ...................... 97
Switching the display .............. 95
Warning message................. 575
Multi Terrain ABS .................... 319
Multi-terrain Select .................. 310
Navigation system
*
Noise from under vehicle ........... 8
Odometer ................................... 90
Off-road precaution s ............... 329
Oil Engine oil .............................. 631
Differential oil ........................ 634
Manual transmission oil ........ 635
Transfer oil............................ 636
M
N
O
*: For vehicles with Entune Audio Plus or Entune Premium Audio, refer to
the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”

700
GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 507 P. 226
Hood lock release
leverTire inflation pressure
P. 507
P. 637
Fuel tank capacity
(Reference) 21.1 gal. (80.0 L, 17.6 Imp.gal.)
Fuel type
P. 630, 640
Cold tire inflation pressure P. 637
Engine oil capacity
(Drain and refill — reference) P. 6 3 1
Engine oil type
P. 631
