TOYOTA TACOMA 2020 Owners Manual (in English)

531
8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 532
Fuel information ................ 546
Tire information ................. 549
8-2. Customization Customizable features ...... 560
8-3. Items to initialize Items to initialize ............... 567

5328-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: P265/60R18 tires
*3: Vehicles with a over fender
■
TWR (Trailer Weight Rating)
 P. 1 8 7
Dimensions
Cab type Access Cab
Overall length212.3 in. (5392.3 mm)
Overall width 74.4 in. (1890.5 mm)
Overall height*170.6 in. (1792.2 mm)
Wheelbase127.8 in. (3247 mm)
Front tread63.0 in. (1599 mm)
63.3 in. (1609 mm)*2
Rear tread63.2 in. (1606 mm)
63.6 in. (1616 mm)*2
Cab typeDouble Cab
With short deck With long deck
Overall length
212.3 in. (5392.3 mm) 225.5 in. (5727.3 mm)
Overall width74.4 in. (1890.5 mm)
75.2 in. (1910.3 mm)*3
Overall height*170.6 in. (1792.2 mm)
Wheelbase
127.8 in. (3247 mm) 141.0 in. (3582 mm)
Front tread63.0 in. (1599 mm)
63.3 in. (1609 mm)*2
Rear tread63.2 in. (1606 mm)
63.6 in. (1616 mm)*2

5338-1. Specifications
8
Vehicle specifications
Access Cab models
*1: The model code is indicated on the Certification Label. (P. 5 3 5 )
*2: Installing accessories in addition to those installed at the f actory
increases vehicle weight, thereby reducing vehicle capacity wei ght.
Contact your Toyota dealer about the weight of accessory parts.
Vehicle capacity weight
Model code*1EngineDriving
systemDeck type
Vehicle capac- ity weight
(Occupants + luggage)
*2
TRN265L-CRTSKA 2TR-FE
engine 2WD
Long deck1500 lb.
(680 kg)
TRN245L-CRTSKA 4WD
1300 lb.
(590 kg)
GRN325L-CRTSHA 2GR-FKS engine 2WD
1400 lb.
(635 kg)
GRN305L-CRFSHA 4WD
1100 lb.
(500 kg)
GRN305L-CRTSHA
1150 lb.
(520 kg)

5348-1. Specifications
Double Cab models
*1: The model code is indicated on the Certification Label. (P. 5 3 5 )
*2: Installing accessories in addition to those installed at the f actory
increases vehicle weight, thereby reducing vehicle capacity wei ght.
Contact your Toyota dealer about the weight of accessory parts.
Model code*1EngineDriving
systemDeck type
Vehicle capac- ity weight
(Occupants + luggage)
*2
TRN265L-PRTSKA 2TR-FE
engine
2WDShort
deck1400 lb.
(635 kg)
GRN325L-PRTSHA
2GR-FKS engine
1200 lb.
(545 kg)
GRN325L-PRTLHA
1250 lb.
(565 kg)
GRN330L-PRTSHA Long
deck
1195 lb.
(540 kg)
GRN330L-PRTLHA
1200 lb.
(545 kg)
GRN305L-PRFSHA
4WDShort
deck
945 lb.
(430 kg)
GRN305L-PRTSHA
990 lb.
(450 kg)
GRN305L-PRTLHA
990lb.
(450 kg)
GRN310L-PRTSHA Long
deck
940 lb.
(425 kg)
GRN310L-PRTLHA
945 lb.
(430 kg)

5358-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registering the ownership of your vehicle .
This number is stamped on the
top left of the instrument panel.
This number is also on t he Certification Label.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification
Access Cab modelsDouble Cab models
2TR-FE engine2GR-FKS engine

5368-1. Specifications
2TR-FE engine
2GR-FKS engine

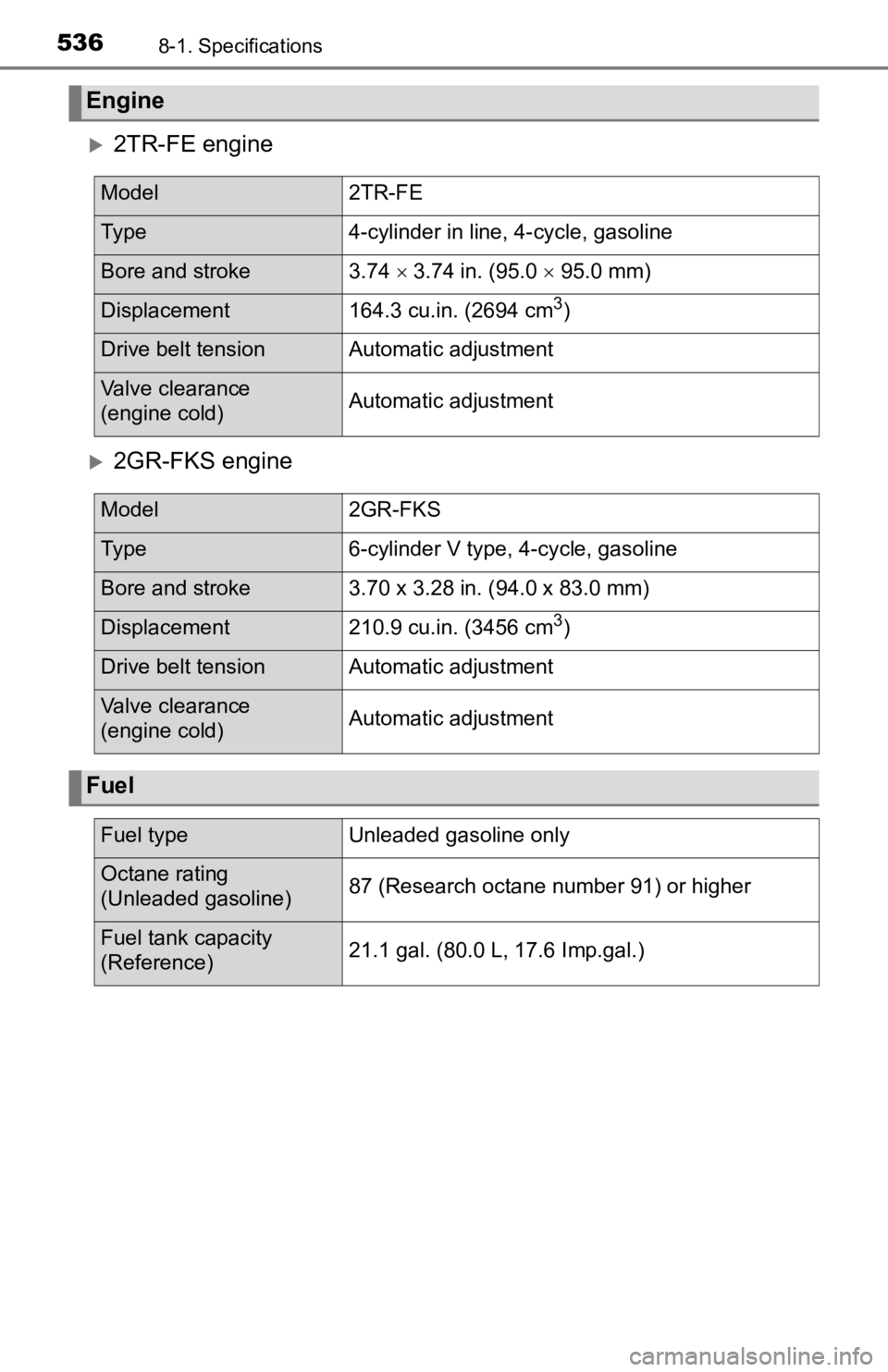

Engine
Model2TR-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.74 3.74 in. (95.0  95.0 mm)
Displacement164.3 cu.in. (2694 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Model2GR-FKS
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 x 3.28 in. (94.0 x 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating
(Unleaded gasoline)87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)21.1 gal. (80.0 L, 17.6 Imp.gal.)

5378-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is us ed in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Lubrication system
Oil capacity
(Drain and refill—reference
*)With filterWithout filter
2TR-FE engine6.2 qt.
(5.9 L, 5.2 Imp.qt.)5.8 qt.
(5.5 L, 4.8 Imp.qt.)
2GR-FKS
engine
without towing
package6.1 qt.
(5.8 L, 5.1 Imp.qt.)
5.9 qt.
(5.6 L, 4.9 Imp.qt.)
with towing
package6.2 qt.
(5.9 L, 5.2 Imp.qt.)
Outside temperature

5388-1. Specifications
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for ea sier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated a t high
speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.

5398-1. Specifications
8
Vehicle specifications
Cooling system
Capacity
2TR-FE
engine
Vehicles with an automatic transmission
9.1 qt. (8.6 L, 7.6 Imp.qt.)
Vehicles with a manual transmission
9.2 qt. (8.7 L, 7.7 Imp.qt.)
2GR-FKS
engine
Vehicles with an automatic transmission
Without towing package:
10.5 qt. (9.9 L, 8.7 Imp.qt.)
With towing package:
11.1 qt. (10.5 L, 9.2 Imp.qt.)
Vehicles with a manual transmission
Without towing package:
10.1 qt. (9.6 L, 8.4 Imp.qt.)
With towing package:
10.8 qt. (10.2 L, 9.0 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make2TR-FE engine
DENSO FK20HR-A8
2GR-FKS engine
DENSO FK20HBR8
Gap0.031 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.

5408-1. Specifications
*1: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.
*2: Except for GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA and GRN310L-PRTLHA models
*6 without rear differential lock system
*3: For GRN330L-PRTSHA, GRN330L -PRTLHA, GRN310L-PRTSHA and
GRN310L-PRTLHA models
*6 without rear differential lock system
*4: Except for GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA and GRN310L-PRTLHA models
*6 with rear differential lock system
*5: For GRN330L-PRTSHA and GRN310L-PRTSHA models*6 with rear differ-
ential lock system
*6: The model code is indicated on the Certification Label. ( P. 535)
Electrical system
Battery
Open voltage at 68F
(20 C):
12.3V or higher
(Voltage is checked 20 minutes after the engine
and all lights are turned off.
After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch
to the “LOCK” position [vehicles without a smart
key system] or off [vehicles with a smart key sys-
tem], and turn the headlights off.)
Charging rates5 A max.
Differential
Oil capacity
(Reference)
Front (4WD models) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Rear
Vehicles with an automatic trans-
mission
3.1 qt. (2.9 L, 2.6 Imp.qt.)
*2
3.22 qt. (3.05 L, 2.68 Imp.qt.)*3
4.0 qt. (3.8 L, 3.3 Imp.qt.)*4
4.2 qt. (4.0 L, 3.5 Imp.qt.)*5
Vehicles with a manual transmis-
sion
4.0 qt. (3.8 L, 3.3 Imp.qt.)
Oil type and viscosity*1Toyota Genuine Differential Gear Oil
LT 75W-85 GL-5 or equivalent
