TOYOTA TACOMA 2020 Owners Manual (in English)

QUICK
REFERENCE
GUIDE
2020
19-MKG-13591 MY20 Toyota Tacoma QRG_Cover.indd 1598/16/19 7:41 AM

1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9

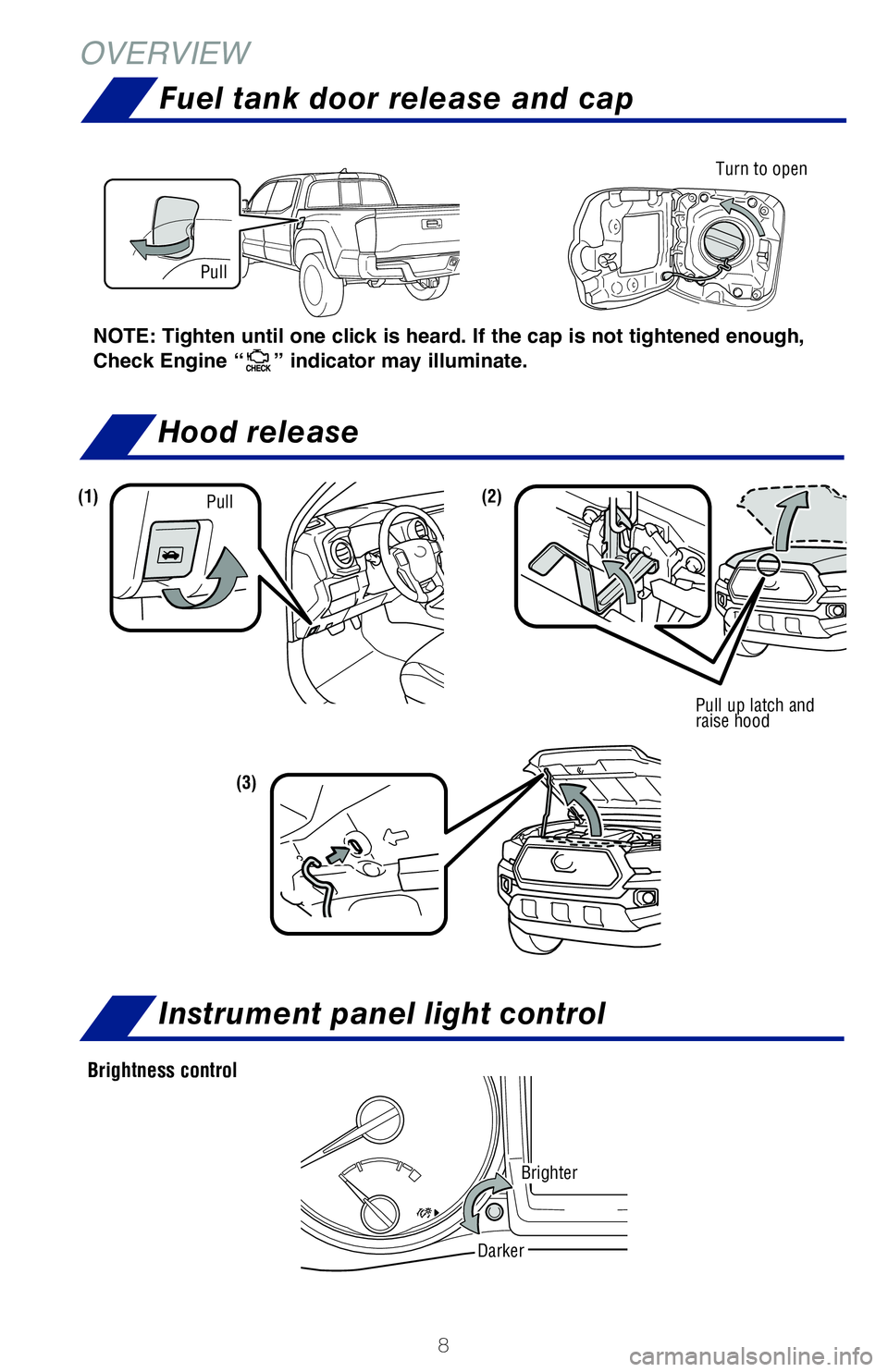

Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Active traction control 26
Air conditioning/heating 23
Audio 18
Auto lock/unlock
1 20
Automatic transmission 10
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 27
Clock 24
Clutch start cancel 13
Crawl Control 12
Door locks 24
Four-wheel drive 11
Garage door opener (HomeLink
®)3 27
Intuitive parking assist 28
Lights
1 & turn signals 16
Manual transmission 11
Moonroof 22
Multi-Information Display (MID) 22
Multi-terrain select 12
Odometer and trip meter 13
Parking brake 28
Power outlet-12V DC 25
Power outlet-120V AC 25
Qi Wireless charger 21
Rear differential lock 26
Rear seats-Folding 15
Rear view monitor system 29
Seat adjustments-Front 14
TACOMA 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Tacoma.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Tacoma operation\
s.
Every Tacoma owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 62438/16/19 7:56 AM

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.

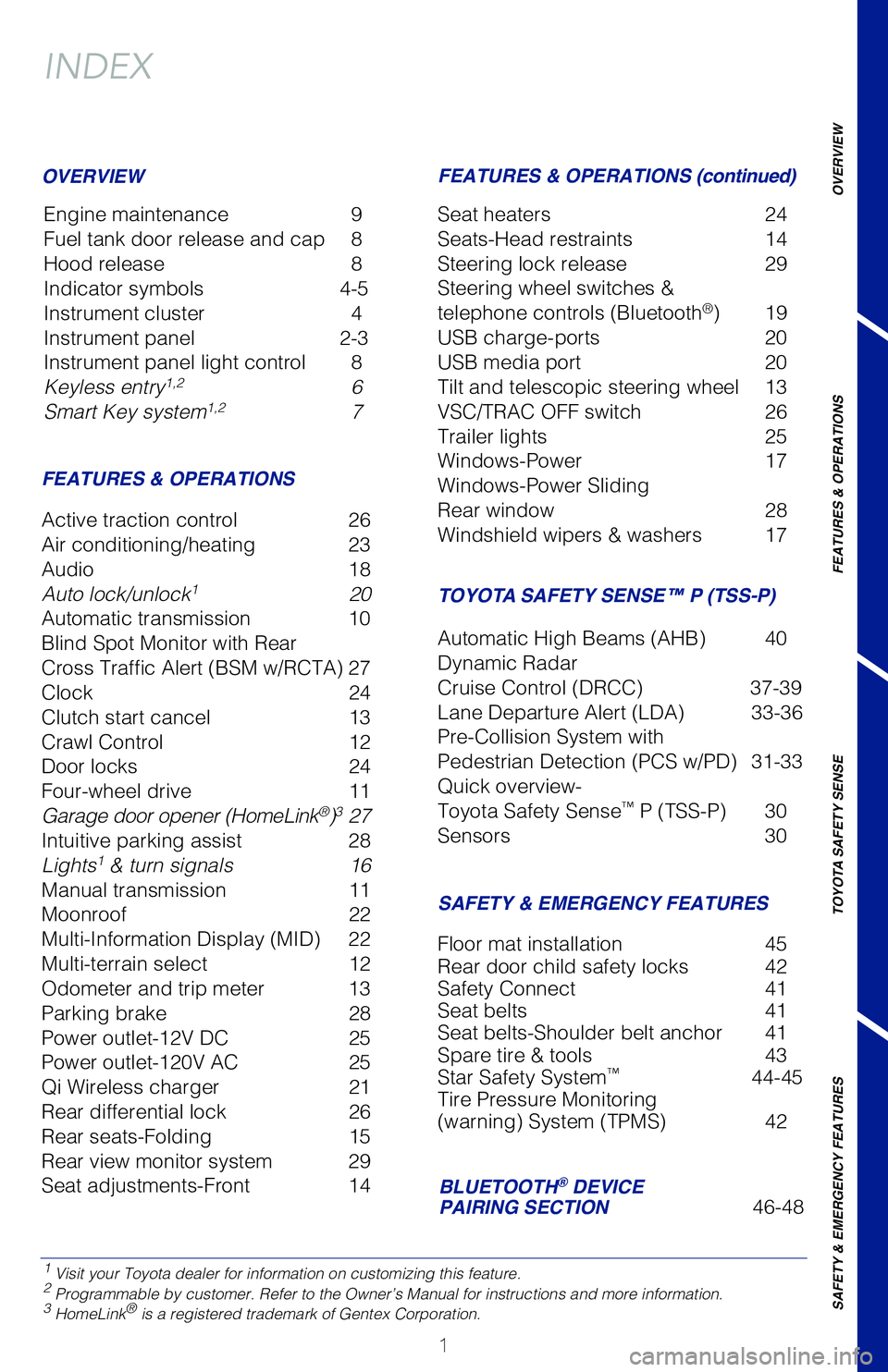

INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Active traction control
26
Air conditioning/heating 23
Audio 18
Auto lock/unlock
1 20
Automatic transmission 10
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 27
Clock 24
Clutch start cancel 13
Crawl Control 12
Door locks 24
Four-wheel drive 11
Garage door opener (HomeLink
®)3 27
Intuitive parking assist 28
Lights
1 & turn signals 16
Manual transmission 11
Moonroof 22
Multi-Information Display (MID) 22
Multi-terrain select 12
Odometer and trip meter 13
Parking brake 28
Power outlet-12V DC 25
Power outlet-120V AC 25
Qi Wireless charger 21
Rear differential lock 26
Rear seats-Folding 15
Rear view monitor system 29
Seat adjustments-Front 14 Seat heaters
24
Seats-Head restraints 14
Steering lock release 29
Steering wheel switches &
telephone controls (Bluetooth
®) 19
USB charge-ports 20
USB media port 20
Tilt and telescopic steering wheel 13
VSC/TRAC OFF switch 26
Trailer lights 25
Windows-Power 17
Windows-Power Sliding
Rear window 28
Windshield wipers & washers 17
Floor mat installation 45
Rear door child safety locks 42
Safety Connect 41
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 43
Star Safety System
™ 44-45
Tire Pressure Monitoring
(warning) System (TPMS) 42

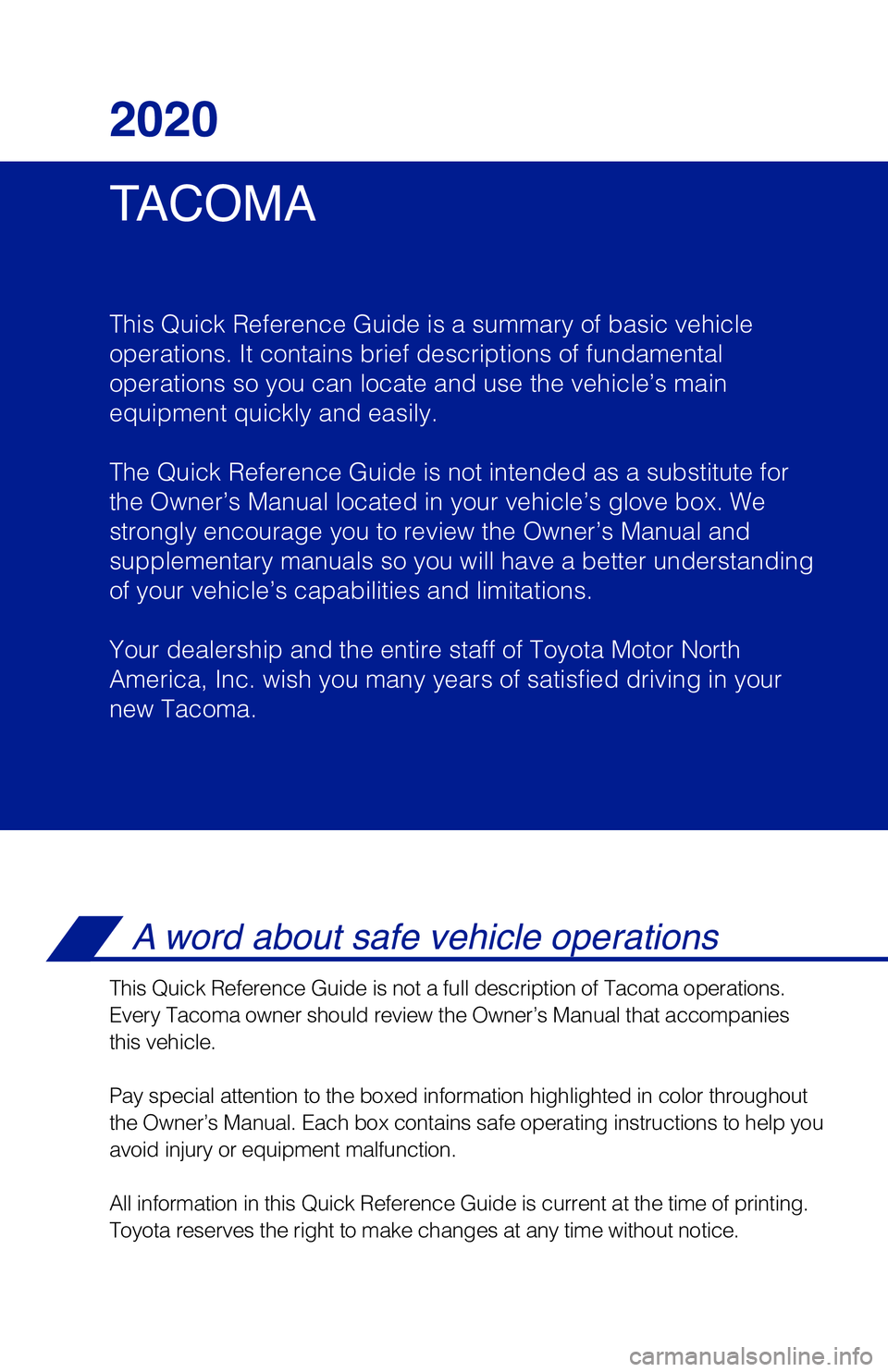

TACOMA 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Tacoma.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Tacoma operation\
s.
Every Tacoma owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
BLUETOOTH® DEVICE
PAIRING SECTION 46-48
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 40
Dynamic Radar
Cruise Control (DRCC) 37-39
Lane Departure Alert (LDA) 33-36
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 31-33
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 30
Sensors 30
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 18/16/19 5:34 AM

2

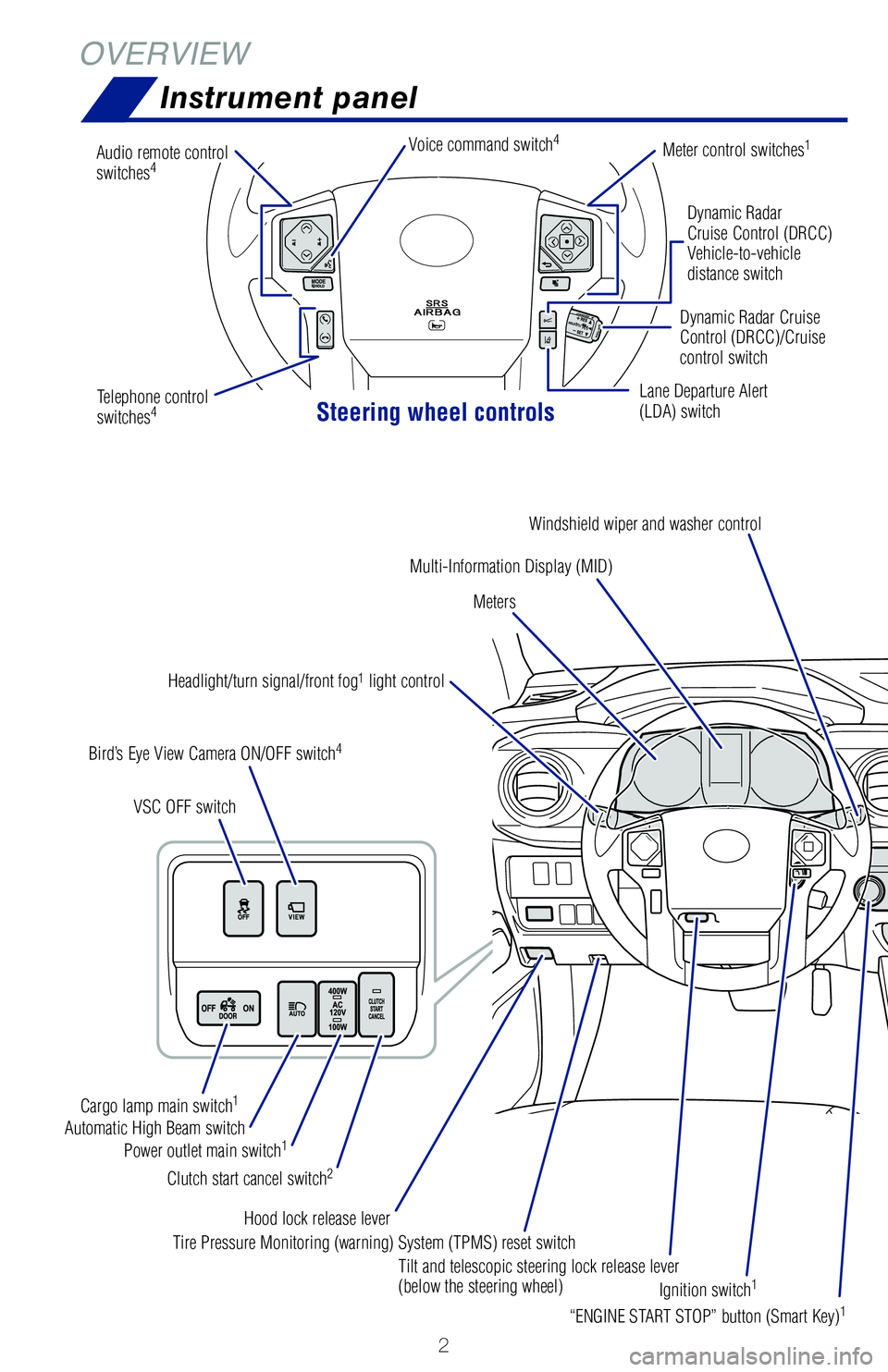

OVERVIEWInstrument panel
Steering wheel controls
Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch
Lane Departure Alert
(LDA) switch Dynamic Radar Cruise
Control (DRCC)/Cruise
control switch
Multi-Information Display (MID)
Meters
Bird’s Eye View Camera ON/OFF switch
4
VSC OFF switch
Meter control switches1
Headlight/turn signal/front fog1 light control
Audio remote control
switches
4Voice command switch4
Windshield wiper and washer control
“ENGINE START STOP” button (Smart Key)
1
Tilt and telescopic steering lock release lever
(below the steering wheel)
Hood lock release lever
Clutch start cancel switch
2
Automatic High Beam switch
Power outlet main switch1
Cargo lamp main switch1
Tire Pressure Monitoring (warning) System (TPMS) reset switch
Ignition switch
1
Parking brake
Telephone control
switches4 1
If equipped.2 Manual transmission only.3 Automatic transmission only.4 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 28/16/19 5:52 AM

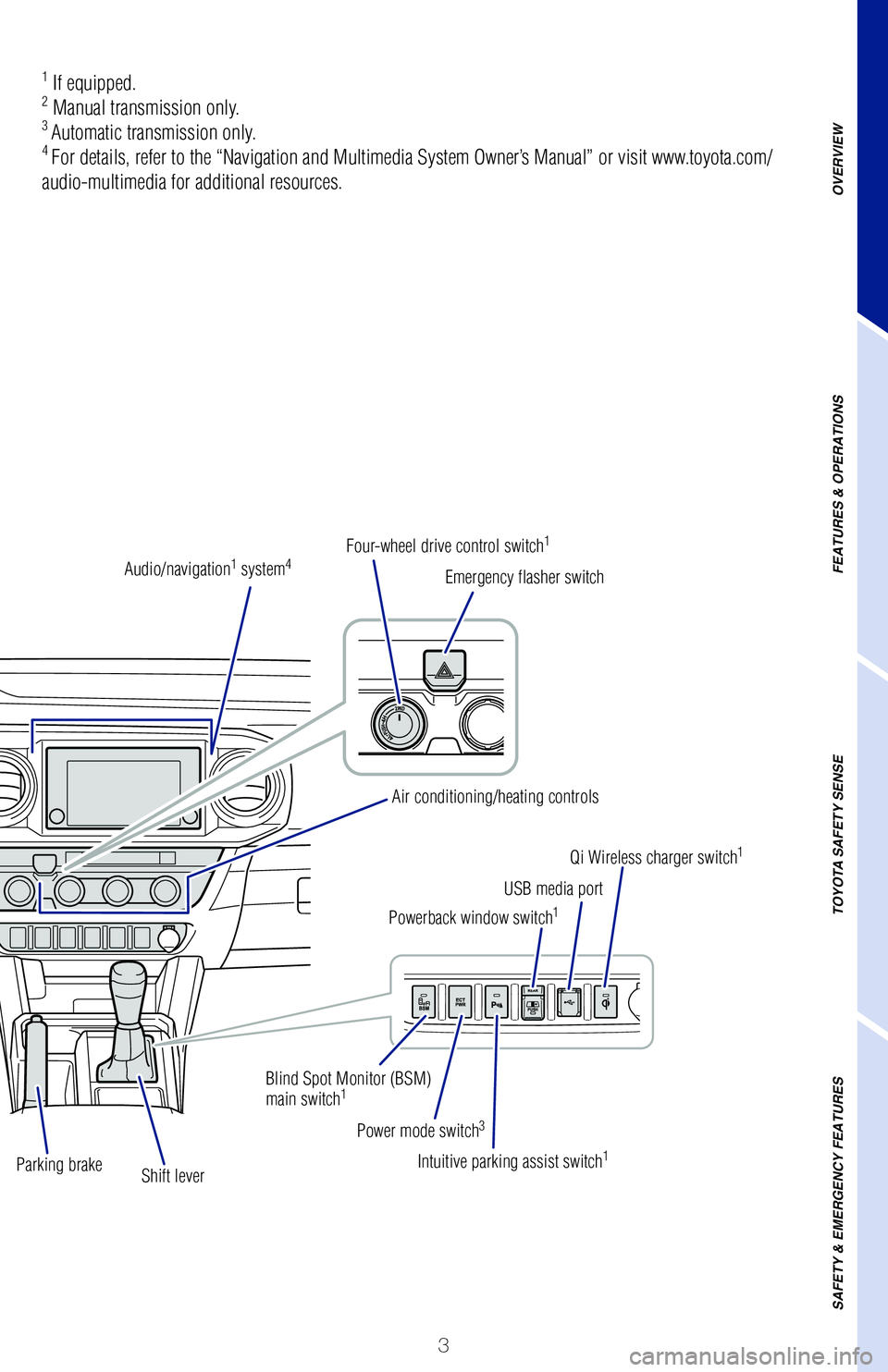

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch
Dynamic Radar Cruise
Control (DRCC)/Cruise
control switch
Meter control switches1
Audio/navigation1 system4
Qi Wireless charger switch1
Power mode switch3
Blind Spot Monitor (BSM)
main switch1
“ENGINE START STOP” button (Smart Key)1
Intuitive parking assist switch1
Powerback window switch1USB media port
Parking brake Shift lever Four-wheel drive control switch
1
Air conditioning/heating controls
Emergency flasher switch
1 If equipped.2 Manual transmission only.3 Automatic transmission only.4 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 38/16/19 5:52 AM

4

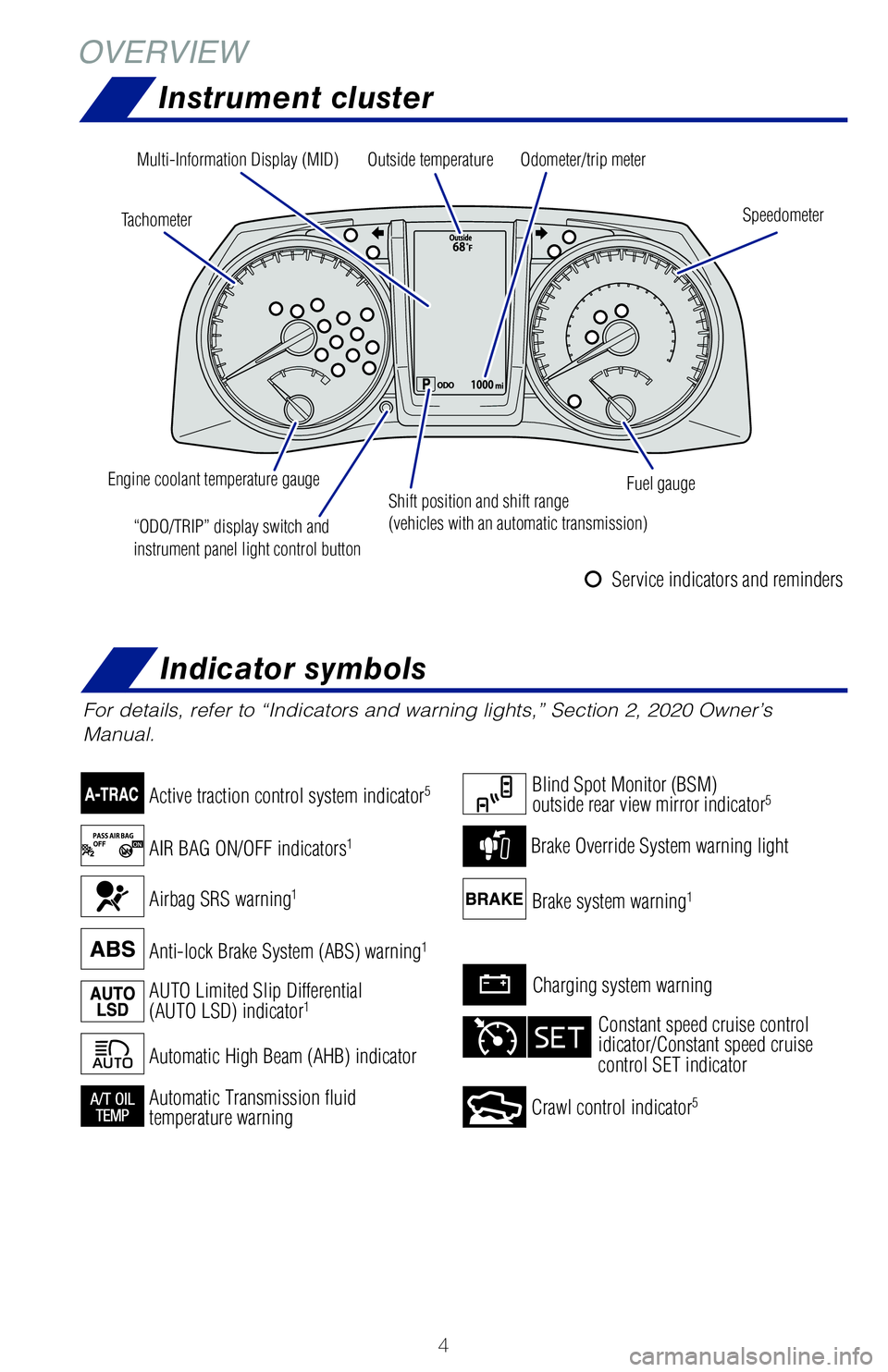

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
2020 Owner’s
Manual.
Speedometer
Fuel gauge
Odometer/trip meter
“ODO/TRIP” display switch and
instrument panel light control button
Engine coolant temperature gauge Outside temperature
Multi-Information Display (MID)
Shift position and shift range
(vehicles with an automatic transmission)
Tachometer
Blind Spot Monitor (BSM)
outside rear view mirror indicator5
Brake system warning1
Automatic Transmission fluid
temperature warning
Airbag SRS warning1
Anti-lock Brake System (ABS) warning1
Crawl control indicator5
Brake Override System warning lightAIR BAG ON/OFF indicators1
Charging system warningAUTO Limited Slip Differential
(AUTO LSD) indicator1
Active traction control system indicator5
Automatic High Beam (AHB) indicator
Constant speed cruise control
idicator/Constant speed cruise
control SET indicator
1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes rapidly, there may be a malfunction. Refer to t\
he Owner’s Manual.4 If the indicator flashes, it indicates that the system is operating.5 If equipped.
Indicator symbols
Service indicators and reminders
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 48/16/19 5:36 AM

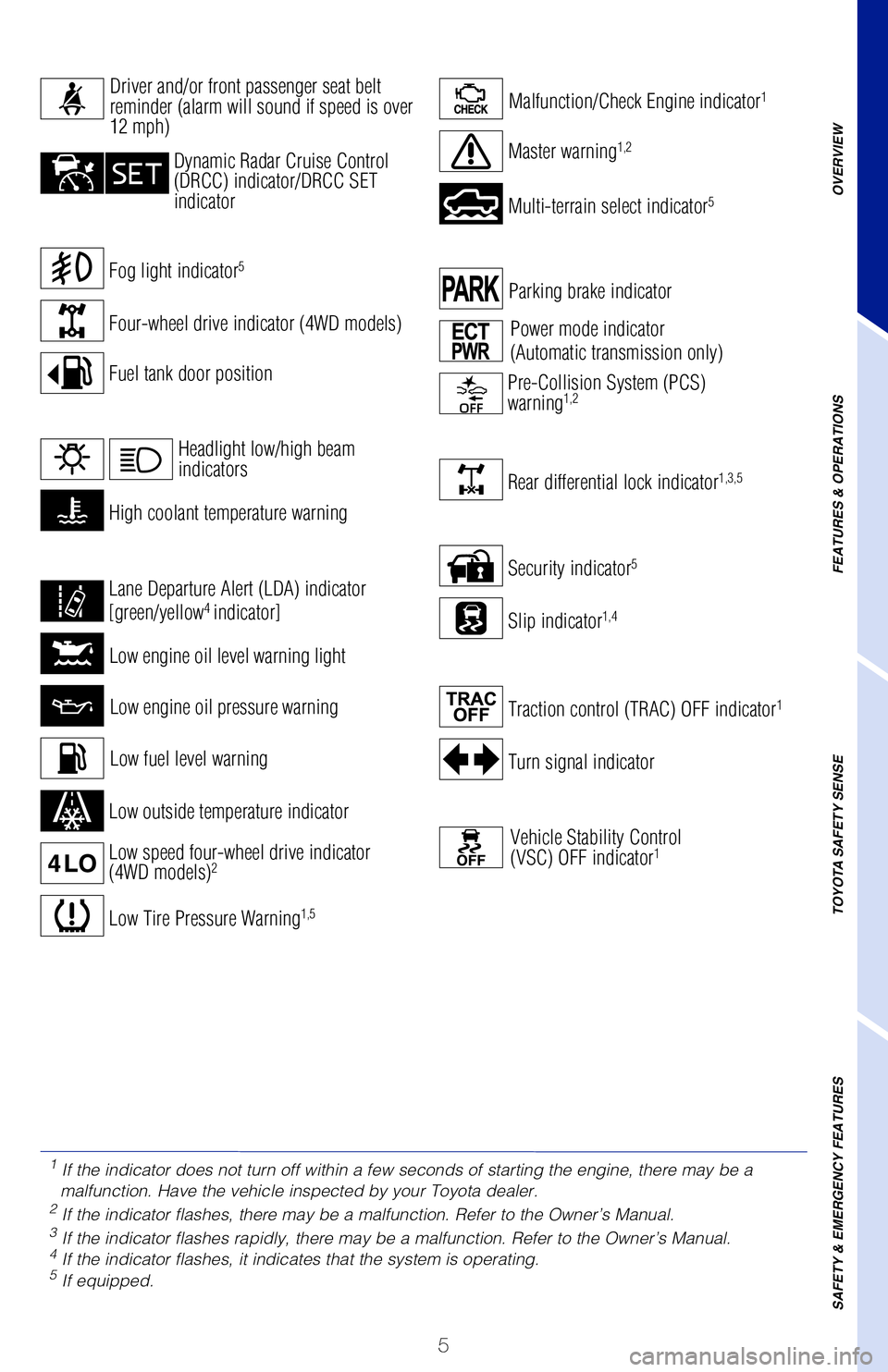

5
Turn signal indicator
Security indicator5
Parking brake indicator
Slip indicator1,4
Rear differential lock indicator1,3,5
Traction control (TRAC) OFF indicator1
Vehicle Stability Control
(VSC) OFF indicator1
Power mode indicator
(Automatic transmission only)
Pre-Collision System (PCS)
warning1,2
Fog light indicator5
For details, refer to “Indicators and warning lights,” Section 2, \
2020 Owner’s
Manual.
Speedometer
Low engine oil pressure warning
Low engine oil level warning light
Malfunction/Check Engine indicator1
Low Tire Pressure Warning1,5
Low outside temperature indicator
Multi-terrain select indicator5
Crawl control indicator5
Master warning1,2
Low fuel level warning
Four-wheel drive indicator (4WD models)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Fuel tank door position
Constant speed cruise control
idicator/Constant speed cruise
control SET indicator
Driver and/or front passenger seat belt
reminder (alarm will sound if speed is over
12 mph)
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
High coolant temperature warning
Low speed four-wheel drive indicator
(4WD models)2
Lane Departure Alert (LDA) indicator
[green/yellow4 indicator]
Headlight low/high beam
indicators
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes rapidly, there may be a malfunction. Refer to t\
he Owner’s Manual.4 If the indicator flashes, it indicates that the system is operating.5 If equipped.
Service indicators and reminders
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 58/16/19 5:36 AM

6

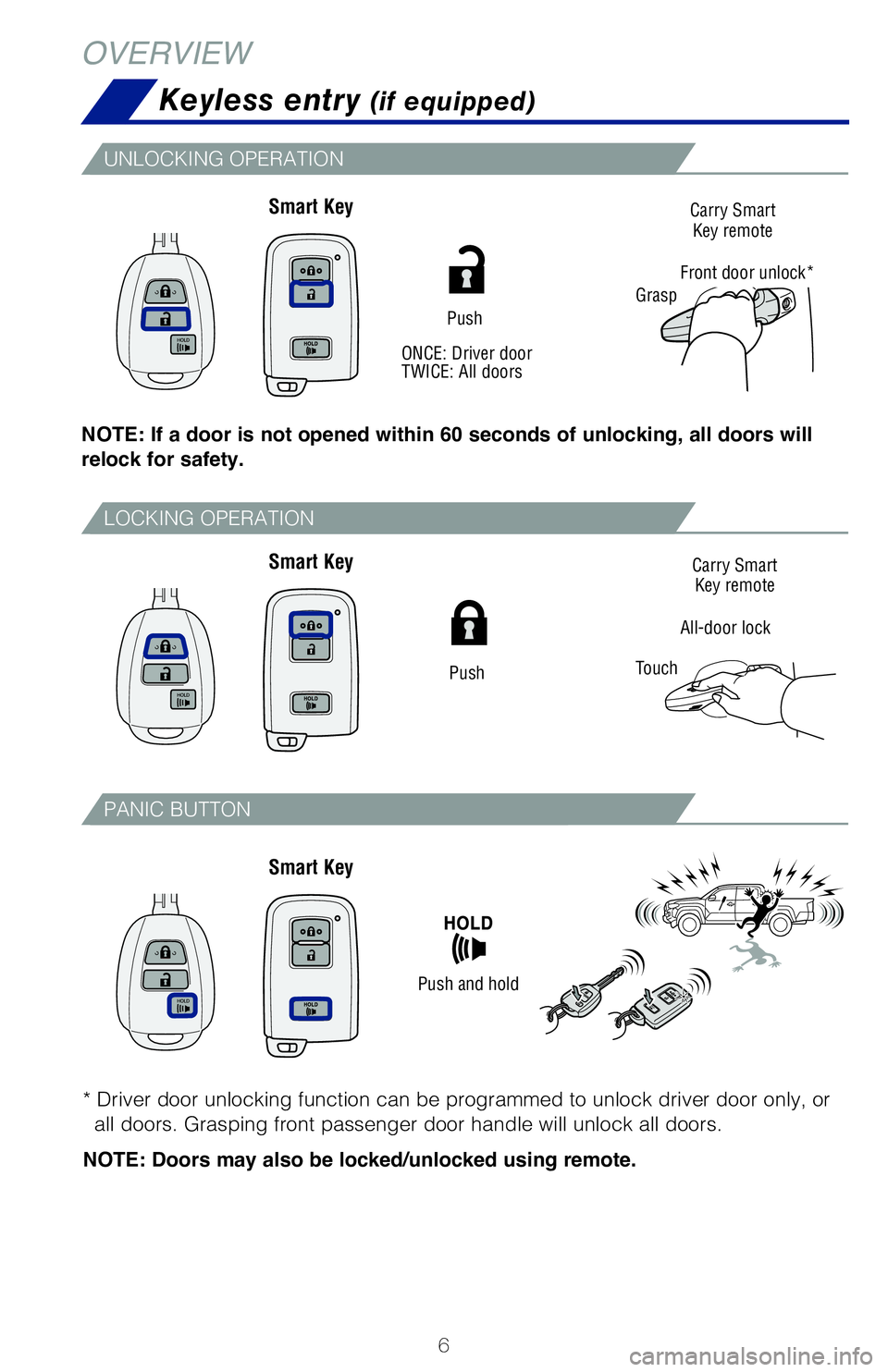

Smart Key Smart Key
OVERVIEW
Keyless entry
(if equipped)
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Smart Key
Push
Push
Carry Smart Key remote
All-door lock Carry Smart
Key remote
Grasp
Front door unlock*
ONCE: Driver door
TWICE: All doors
Touch
Push and hold
UNLOCKING OPERATION
LOCKING OPERATION
PANIC BUTTON
* Driver door unlocking function can be programmed to unlock driver door \
only, or all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
POWER (WITHOUT STARTING ENGINE)
START FUNCTION
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
Turn to open
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 68/16/19 5:36 AM

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Front door unlock*
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Without depressing the brake pedal, pressing the engine switch will chan\
ge the
operation mode in succession from:
POWER (WITHOUT STARTING ENGINE)
START FUNCTION
Smart Key system (if equipped)
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 78/16/19 5:36 AM

8
OVERVIEW
Windshield washer fluid tank
Windshield washer fluid tank
Hood release
Instrument panel light control
Fuel tank door release and cap
Pull up latch and
raise hood
(2)
(3)
(1)Pull
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Turn to open
Pull
Brightness control
Brighter
Darker
4 CYLINDER (2TR-FE) ENGINE
6 CYLINDER (2GR-FKS) ENGINE
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
MY20_Tacoma_QRG_V3_ML_0812_Guts.indd 88/16/19 5:36 AM
