TOYOTA TACOMA 2021 Accessories, Audio & Navigation (in English)

11
11
Quick guide
Quick guide
1-1. Basic function
Buttons overview............12
“Menu” screen ................14
Status icon .....................16
“Setup” screen ...............18
“Information” screen .......19
1-2. Navigation operation
Operating the map screen
.....................................21
Guiding the route ...........22
Registering home ...........23

121-1. Basic function
1-1.Basic function
Premium Audio
Audio
By touching the screen with your finger, you can control the
selected functions. (P.27, 28)
Press to seek up or down for a radio station or to access a
desired track/file. (P.125, 134, 136, 140)
Press to access the Bluetooth
® hands-free system. (P.244)
When an Apple CarPlay connection is established, press to dis-
Buttons over view
Operations of each part
A
B
C

131-1. Basic function
1
Quick guide
play the phone application screen.*1
Press to display the Toyota apps screen.*1, 2 (P.285)
Turn to change the radio station or skip to the next or previous
track/file. (P.125, 134, 136, 140)
Press to turn the audio/visual system on and off, and turn it to
adjust the volume. Press and hold to restart the system. (P. 2 6 ,
121)
Press to display the map screen and repeat a voice guidance.
*3
(P. 7 2 )
If a turn-by-turn navigation application has been downloaded to a
connected smartphone, the application will be displayed and can
be used.
*1, 4, 5
When an Apple CarPlay/Android Auto connection is established,
press to display the Maps application screen.
*4
Press to display the audio/visual system screen. (P.120, 121)
Press to display the “Menu” screen. (P. 1 4 )
Press to display the home screen. (P. 2 9 )
*1: This function is not made available in some countries or areas.
*2: When an Apple CarPlay/Android Auto connection is established, this
function will be unavailable.
*3: Premium Audio only
*4:Audio only
*5: For details about a turn-by-turn navigation application, refer to
https://www.toyota.com/audio-multimedia
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/audio-multimedia
in Puerto Rico.
D
E
F
G
H
I
J

141-1. Basic function
Press the “MENU” button to display the “Menu” screen.
Displays the clock. Select to display the clock settings screen.
(P. 6 1 )
Select to display the destination screen.
*1 (P. 8 4 )
Select to display the audio control screen. (P.120)
Select to display the hands-free operation screen. (P.244)
• When an Apple CarPlay connection is established, select to display the
Phone application screen.
*2 (P. 5 3 )
Select to display the Toyota apps screen.*2, 3 (P.285)
When an Apple CarPlay/Android Auto connection is established
and this button displays “Apple CarPlay”/“Android Auto”, select to
display the home screen of Apple CarPlay/Android Auto.
*2
(P. 5 3 )
Select to display the information screen.
*4 (P. 1 9 )
Select to display the fuel consumption screen.
*5, 6
Select to display the “Setup” screen. (P.18)
Select to adjust the contrast, brightness, etc. of the display.
(P. 3 3 )
*1: Premium Audio only
*2: This function is not made available in some countries or areas.
*3: When an Apple CarPlay/Android Auto connection is established, this
function will be unavailable.
“Menu” screen
“Menu” screen operation
A
B
C
D
E
F
G
H
I

151-1. Basic function
1
Quick guide
*4: Vehicles equipped with DCM
*5: Vehicles equipped without DCM
*6: Refer to the “OWNER’S MANUAL”

161-1. Basic function
Weather alert display*1, 2
(P.166)
• Select to display important
weather information for the cur-
rent location or along the route.
Indicate during data commu-
nication performed via Data
Communication Module
(DCM)
*2
The reception level of Data
Communication Module
(DCM) display
*2 (P. 1 6 )
The reception level of the
connected phone display
(P. 1 6 )
Remaining battery charge
display (P. 1 7 )Bluetooth
® phone connection
condition display (P. 1 7 )
Wi-Fi
® connection condition
display
*2 (P. 4 8 )
*1: Premium Audio only
*2: This function is not made avail-
able in some countries or areas.
●The number of status icons that
can be displayed differs depend-
ing on the displayed screen.
The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,
/ is displayed.
“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth
® phone you have.
Status icon
Status icons are displayed
at the top of the screen.
Status icon explanation
A
B
C
D
E
5HFHSWLRQOHYHOGLVSOD\
F
G

171-1. Basic function
1
Quick guide
While connected with cellular
phone
While using Data Communi-
cation Module (DCM)
While using Wi-Fi® hotspot
●When Wi-Fi® hotspot is off, no
item is displayed.
The amount displayed does not
always correspond with the
amount displayed on the Blue-
tooth
® device.
The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth
® device connected.
This system does not have a
charging function.An antenna for the Bluetooth
®
connection is built into the
instrument panel.
The condition of the Bluetooth
®
connection may deteriorate and
the system may not function
when a Bluetooth
® phone is
used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.
Leave the Bluetooth
® phone in a
place where the condition of the
Bluetooth
® connection is good.
Reception LevelIndicators
Poor
Excellent
Reception LevelIndicators
Poor
Excellent
Reception LevelIndicators
No connection
Connected
Remaining battery charge
display
Remaining
chargeIndicators
Empty
Full
Bluetooth® connection
condition display
IndicatorsConditions
(Blue)
Indicates that the con-
dition of the Blue-
tooth
® connection is
good.

181-1. Basic function

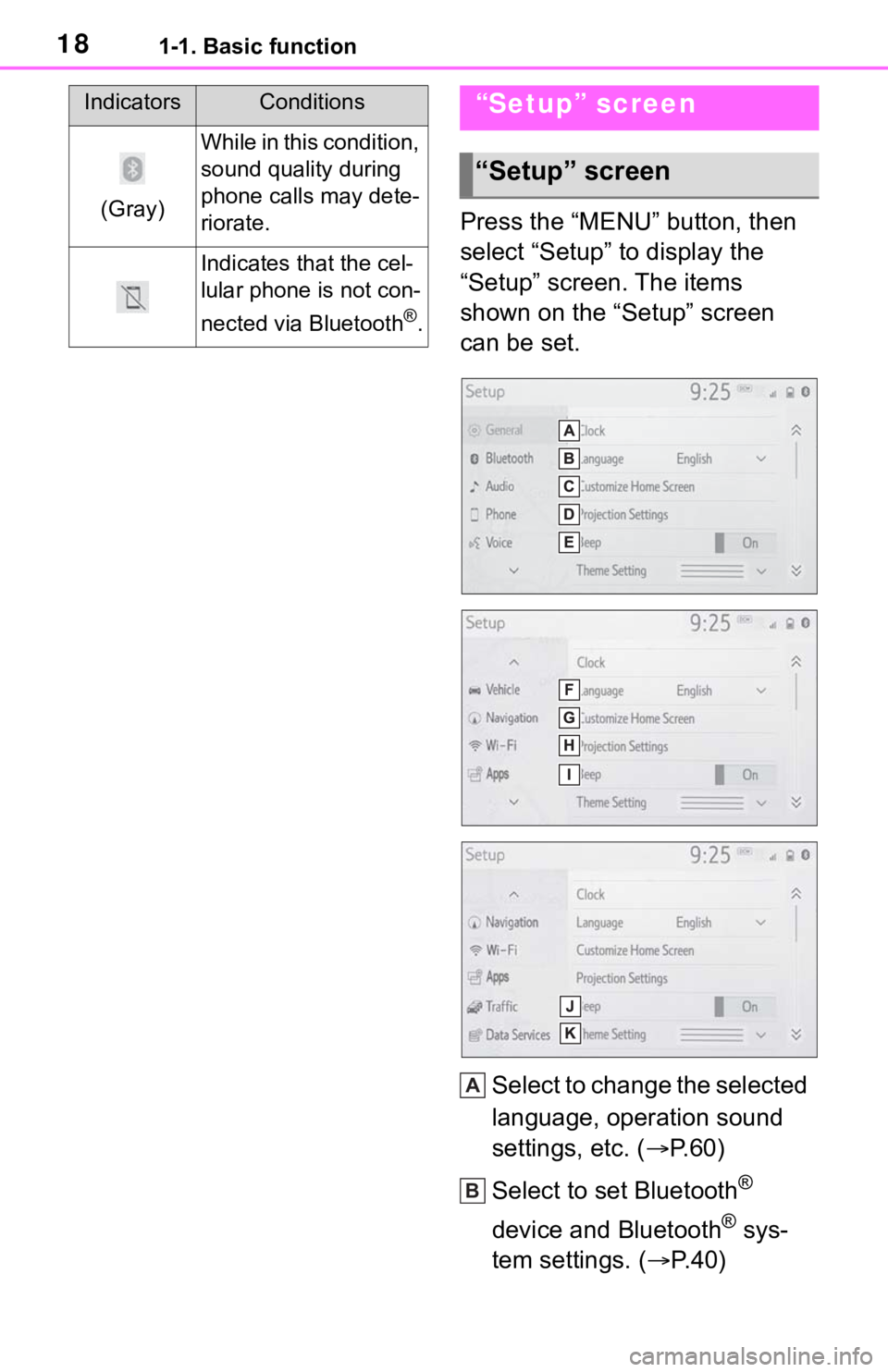

Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.
Select to change the selected
language, operation sound
settings, etc. (P.60)
Select to set Bluetooth
®
device and Bluetooth
® sys-
tem settings. (P.40)
(Gray)
While in this condition,
sound quality during
phone calls may dete-
riorate.
Indicates that the cel-
lular phone is not con-
nected via Bluetooth
®.
IndicatorsConditions“Setup” screen
“Setup” screen
A
B

191-1. Basic function
1
Quick guide
Select to set audio settings.
(P.144)
Select to set the phone
sound, contacts, message
settings, etc. (P.261)
Select to set the voice set-
tings. (P.64)
Select to set vehicle informa-
tion such as maintenance
information. (P.66)
Select to set memory points
(home, favorites entries,
areas to avoid), or naviga-
tion details.
*1 (P.102)
Select to set Wi-Fi
® connec-
tion settings.
*2, 3 (P.49)
Select to set Toyota apps set-
tings.
*3 (P.290)
Select to set traffic informa-
tion settings.
*1, 3 (P.109)
Select to set data services
settings.
*1, 3 (P.168)
*1: Premium Audio only
*2: Vehicles equipped with DCM
*3: This function is not made avail-
able in some countries or areas.
*: Vehicles equipped with DCM
Useful information, such as the
fuel consumption, weather, etc.,
is available on the information
screen.
The information screen can be
reached by the following meth-
ods:
1Press the “MENU” button.
2Select “Info”.
3Select the desired item.
Select to display the fuel con-
sumption screen.
*1
Select to display traffic infor-
mation.
*2, 3 (P.81)
Select to display weather
information.
*2, 3 (P.166)
Select to display the vehicle
alert history.
*3
*1: Refer to the “OWNER’S MAN-
UAL”
*2: Premium Audio only
*3: This function is not made avail-
C
D
E
F
G
H
I
J
K
“Information” screen*
“Information” screen
A
B
C
D

201-1. Basic function
able in some countries or areas.
