611-1. For safe use
1
For safety and security
With flexible lower attachments
Latch the hooks of the lower
attachments onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether
strap should be latched onto the
top tether strap anchor.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a lower
connector system.
With rigid lower attachments
Latch the buckles onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether
strap should be latched onto the
top tether strap anchor.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a lower
connector system.
When installing in the rear outboard seats (Access Cab models
[vehicles with rear seats])
Canada
only
Canada
only

621-1. For safe use
With flexible lower attachments
Widen the gap between the seat cushion and seatback slightly.
Latch the hooks of the lower
attachments onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.
With rigid lower attachments
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.
When installing in the rear ou tboard seats (Double Cab models)
1
Canada
only
O
N
Canada onlyCanada
only
O

631-1. For safe use
1
For safety and security
■Rear-facing (vehicles without rear seats)  Infant seat/con-
vertible seat
Never install a rear-facing child restrain. Your vehicle is not
designed to carry and infant.
■Rear-facing (vehicles with rear seats)  Infant seat/convertible
seat
Place the child restraint sys-
tem on the seat facing the
rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2
3

641-1. For safe use
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
■
Forward-facing Convertible seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
4
1
2
3

651-1. For safe use
1
For safety and security
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 66, 68)
■Booster seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the c hild’s
shoulder and that the lap belt is as low as possible. ( P. 30)
4
5
1
2

661-1. For safe use
Push the buckle release button
and fully retract the seat belt.
Vehicles without rear seats
Remove the head restraint.
Remove the anchor bracket
cover.
Store the removed cover in a safe
place such as the glove box.
Secure the child restraint system using a seat belt.
Latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.

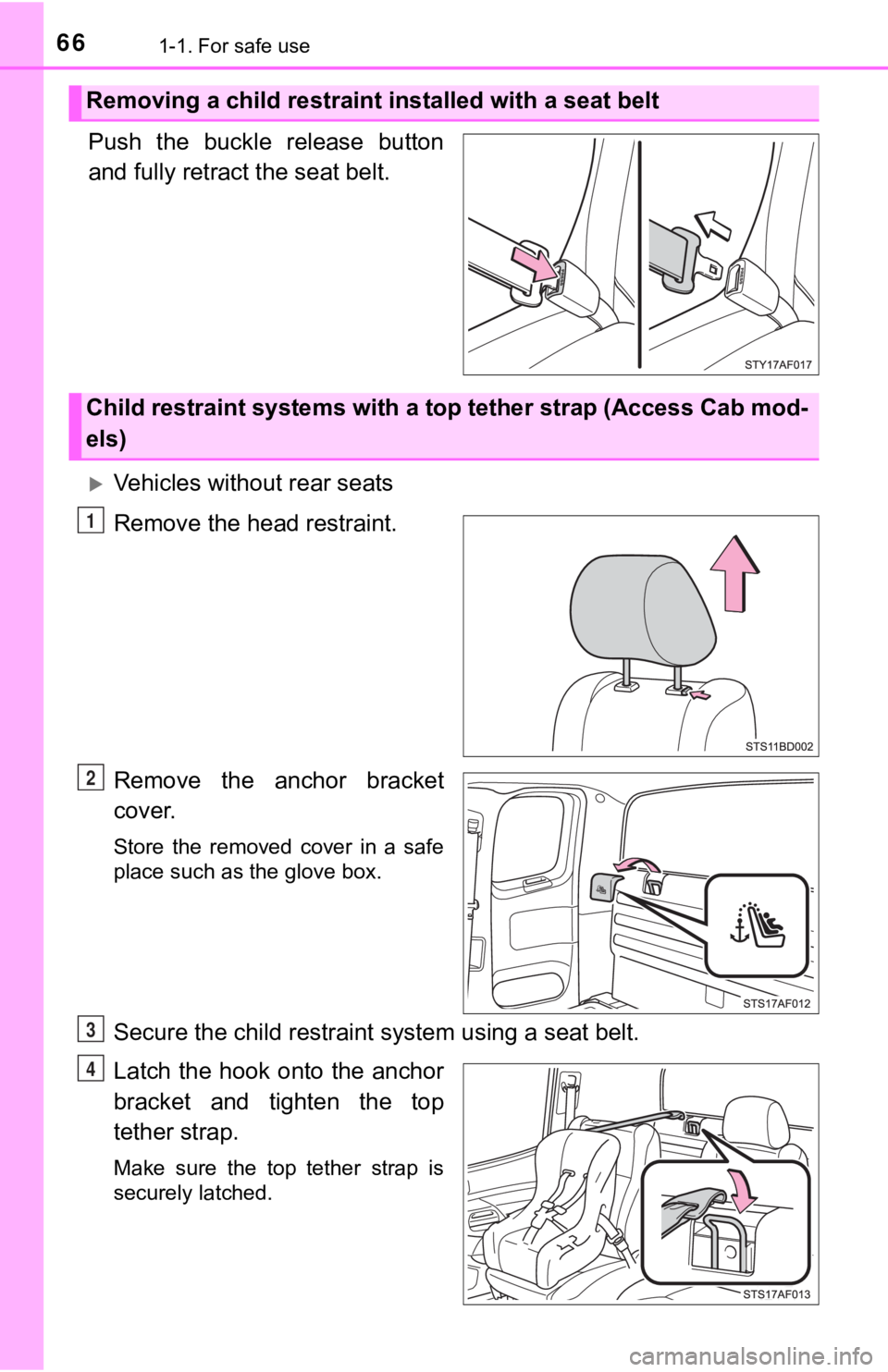

Removing a child restraint installed with a seat belt
Child restraint systems with a top tether strap (Access Cab mod -
els)
1
2
3
4

671-1. For safe use
1
For safety and security

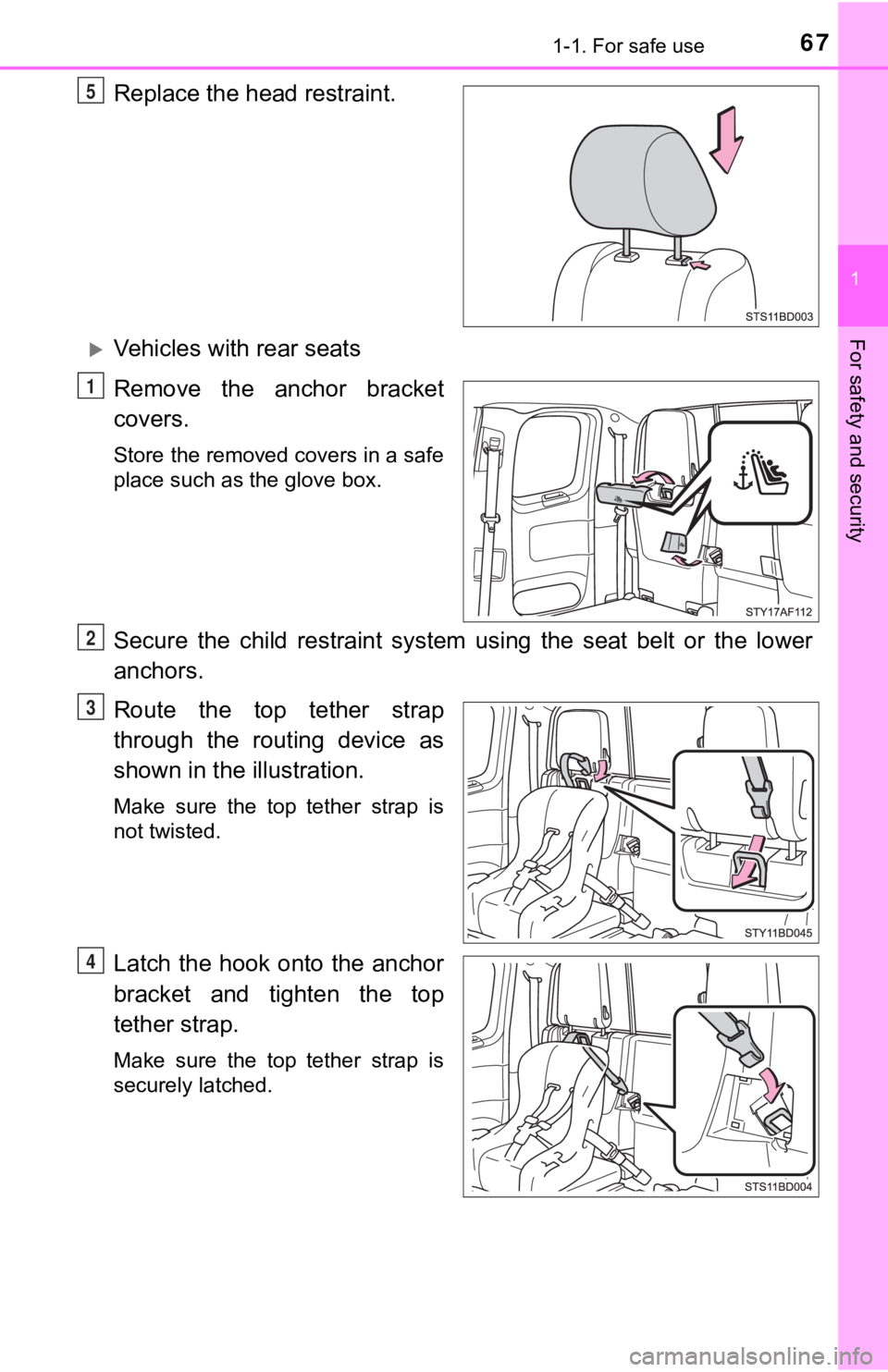

Replace the head restraint.
Vehicles with rear seats
Remove the anchor bracket
covers.
Store the removed covers in a safe
place such as the glove box.
Secure the child restraint system using the seat belt or the lower
anchors.
Route the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
5
1
2
3
4

681-1. For safe use
Remove the head restraint.
Installing position:Outer rear seat
Center rear seat
Latch the hook onto the anchor bracket.
Swing the seatback forward slightly. ( P. 142)
Latch the hook onto the anchor bracket.
Return the seatback.
Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
Secure the child restraint system using the seat belt or the lo wer
anchors, ant tighten the top tether strap.
Make sure the top tether strap is securely latched.
Replace the head restraint.
Installing position:
Outer rear seat
Center rear seat
If the head restraint interferes with
the top tether strap installation and
the head restraint can be removed
and stored the storage box.
(P. 355, 367)

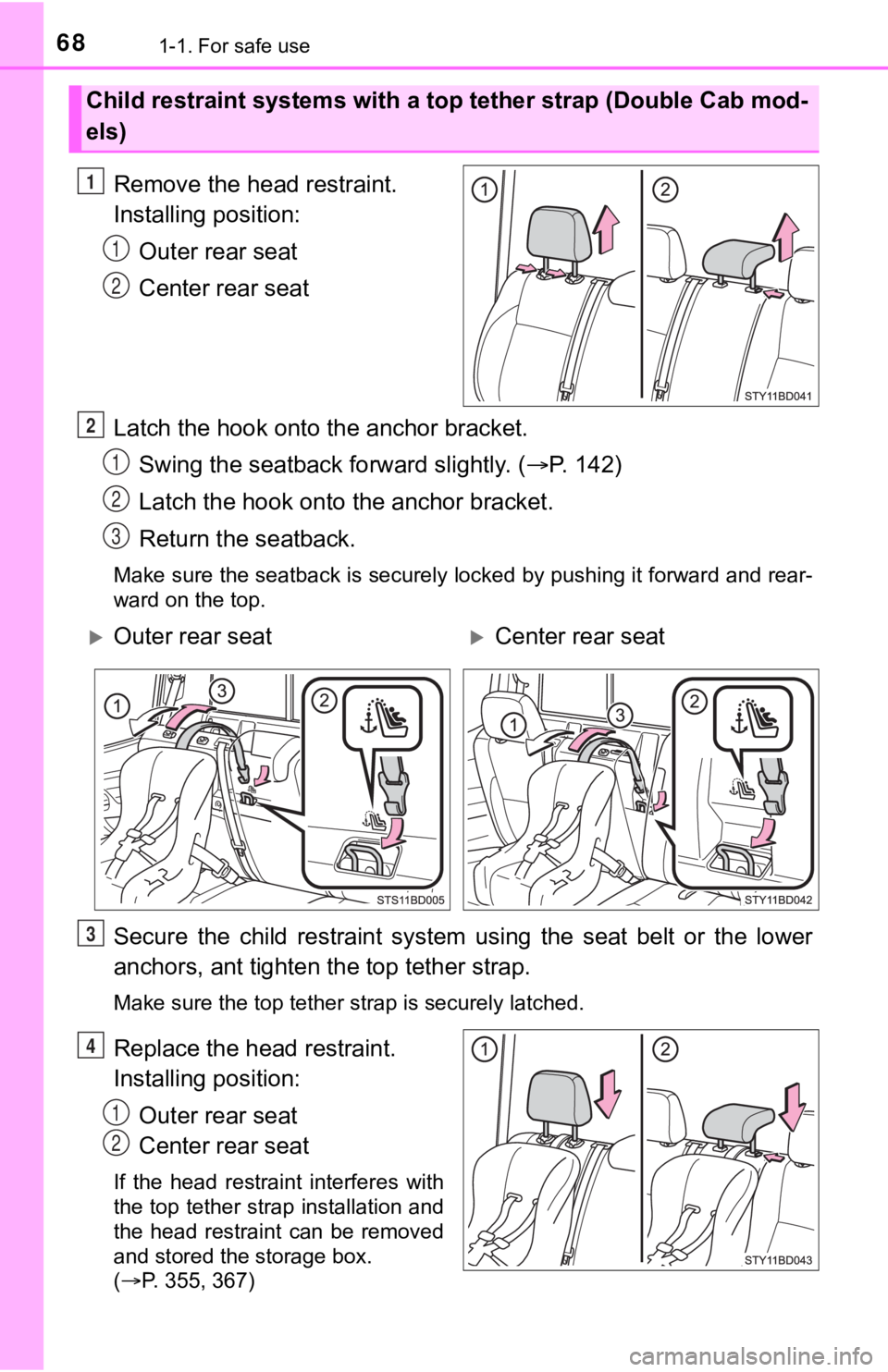

Child restraint system s with a top tether strap (Double Cab mod -
els)
1
1
2
2
1
2
3
Outer rear seatCenter rear seat
3
4
1
2

691-1. For safe use
1
For safety and security
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 spec ifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
WARNING
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. ( P. 32)
■ When installing a child restraint system
Follow the directions given in the child restraint system insta llation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
● Vehicles with rear seats: If the driver’s
seat interferes with the child restraint
system and prevents it from being
attached correctly, attach the child
restraint system to the right-hand rear
seat.
● Vehicles with rear seats: Adjust the front
passenger seat so that it does not inter-
fere with the child restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).

701-1. For safe use
WARNING
■When installing a child restraint system
● When a booster seat is installed, always ensure that the should er belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injur y in the event
of an accident or a sudden braking.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● Follow all installation instructions provided by the child rest raint system
manufacturer.
● Double Cab models only: When securing some types of child restr aint sys-
tems in rear seats, it may not be possible to properly use the seat belts in
positions next to the child restraint without interfering with it or affecting
seat belt effectiveness. Be sure your seat belt fits snugly across your
shoulder and low on your hips. If it does not, or if it interfe res with the child
restraint, move to a different position. Failure to do so may result in death
or serious injury.
● Double Cab models only: When installing the child restraint system with
the head restraint being lowered, be sure to have the top tethe r strap pass
over the top of the head restraint. If the belt passes below the head
restraint, it is possible that the child restraint system may n ot be securely
fixed.
If the seat is adjusted, reconfirm the security of the child re straint system.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child restr aint system to the anchors (vehicles
with rear seats)
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is secur ely attached,
or it may cause death or serious injury to the child or other p assengers in
the event of a sudden braking or an accident.
