TOYOTA tC 2005 Warranties & Maintenance Guides (in English)

7

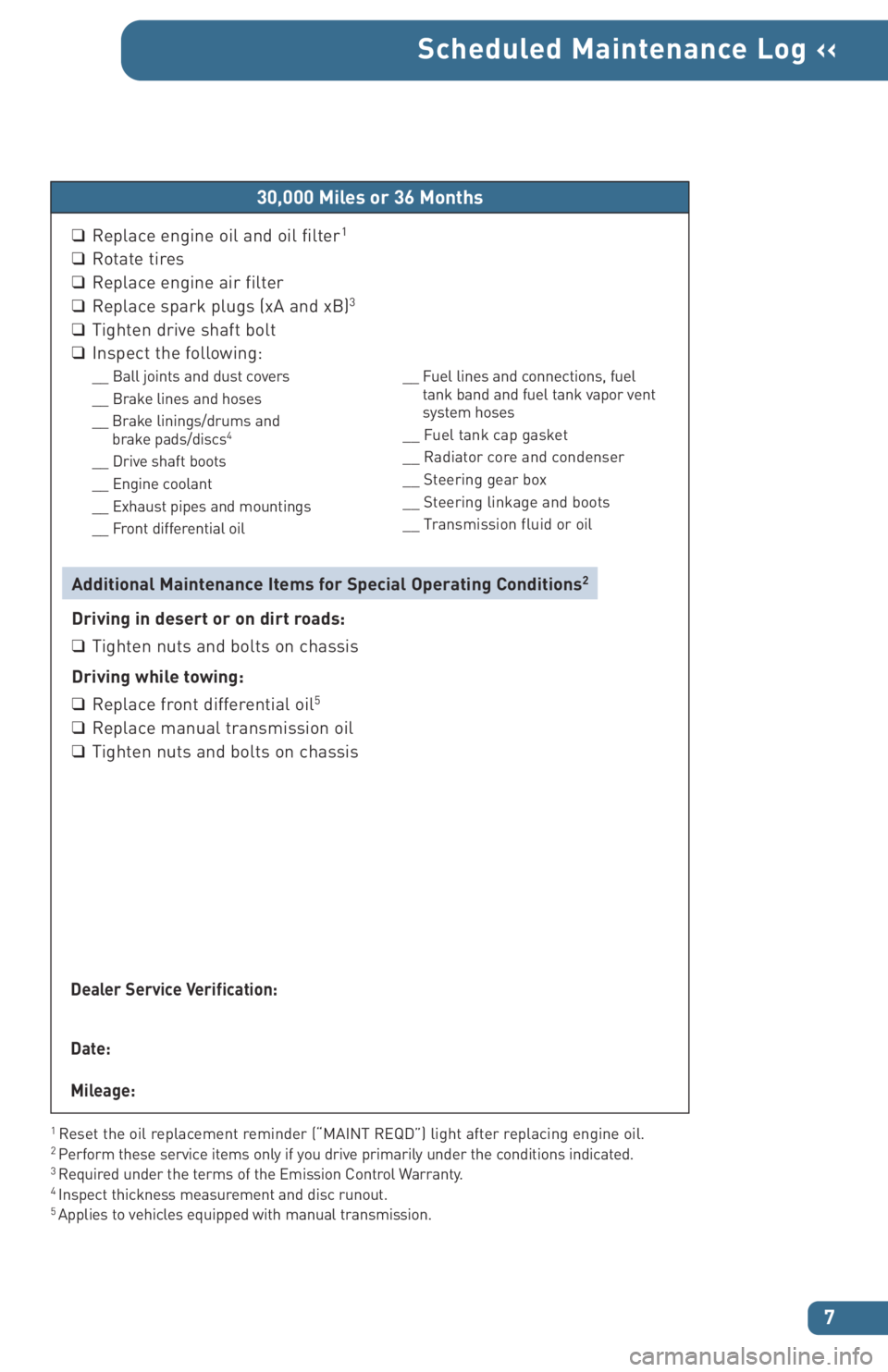

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Applies to vehicles equipped with manual transmission.
30,000 Miles or 36 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Replace engine air filter
❑ Replace spark plugs (xA and xB)
3
❑Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
5
❑Replace manual transmission oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel lines and connections, fuel
tank band and fuel tank vapor vent
system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

8

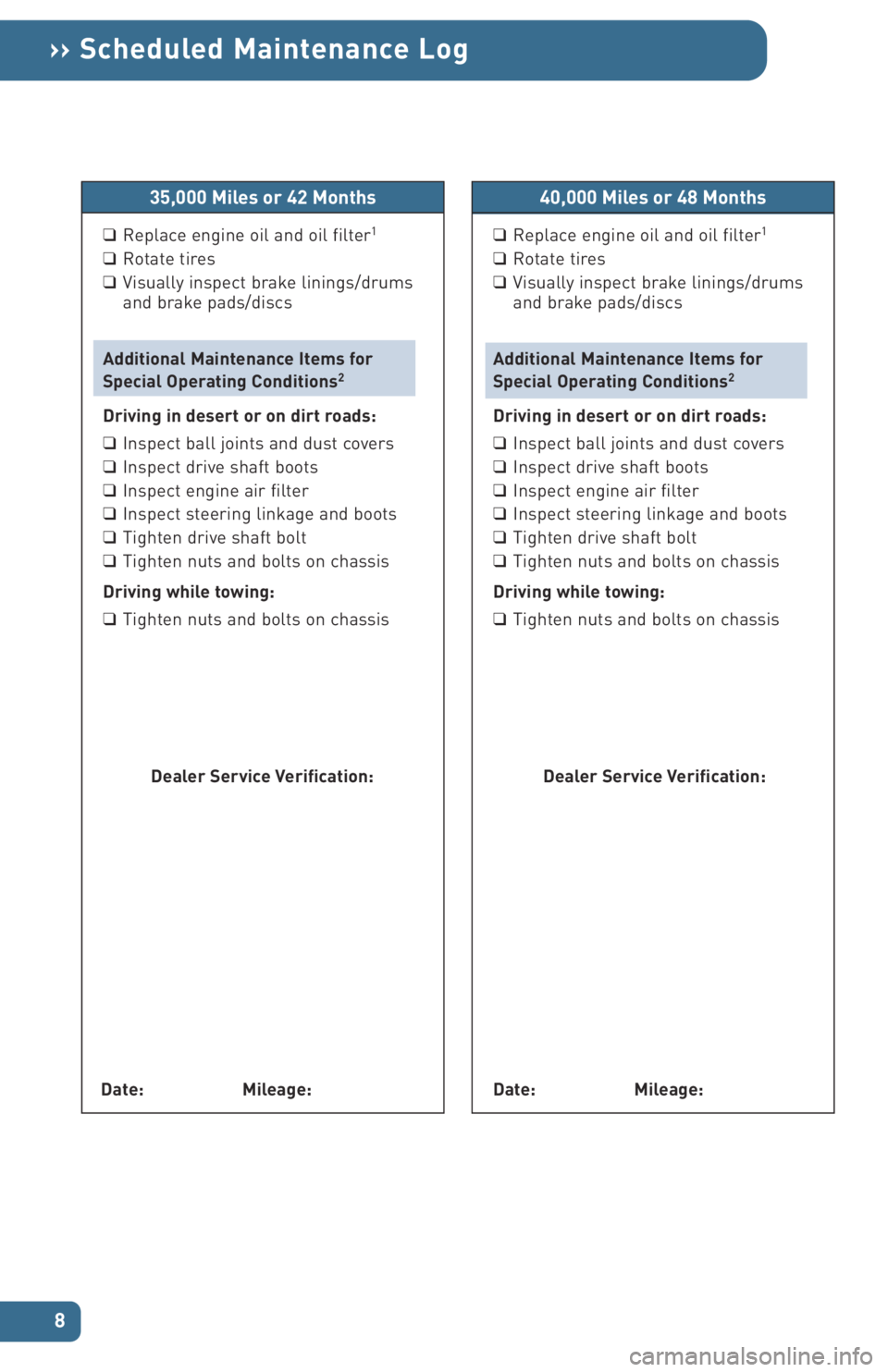

›› Scheduled Maintenance Log
35,000 Miles or 42 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
40,000 Miles or 48 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:

9

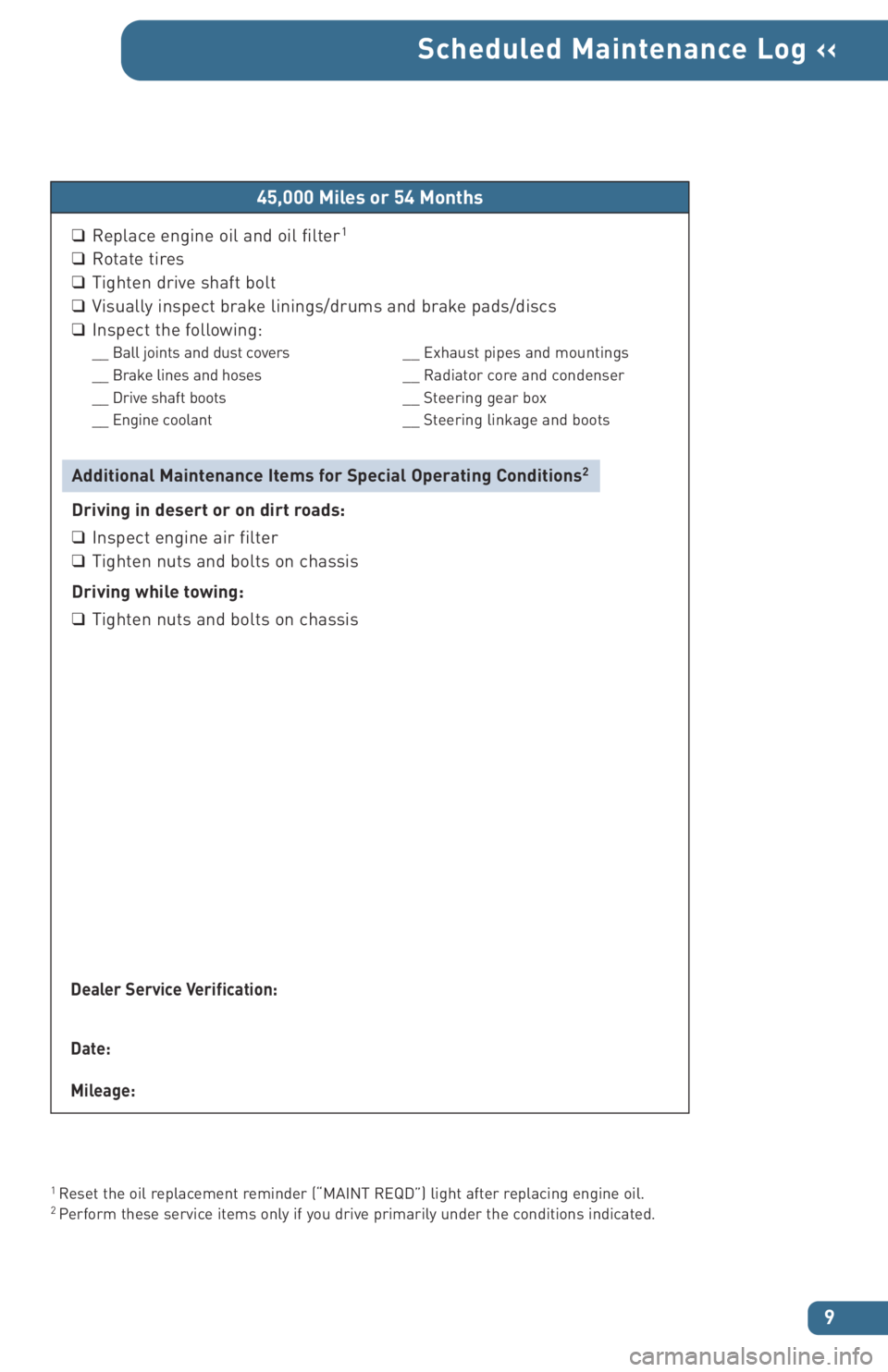

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.
45,000 Miles or 54 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Tighten drive shaft bolt
❑ Visually inspect brake linings/drums and brake pads/discs
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots

10
›› Scheduled Maintenance Log
50,000 Miles or 60 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
55,000 Miles or 66 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:

11
Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.
60,000 Miles or 72 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Replace spark plugs (xA and xB)3
❑Replace engine air filter
❑ Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive belts5
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
❑ Replace transmission fluid or oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Front differential oil
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
v ent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

12

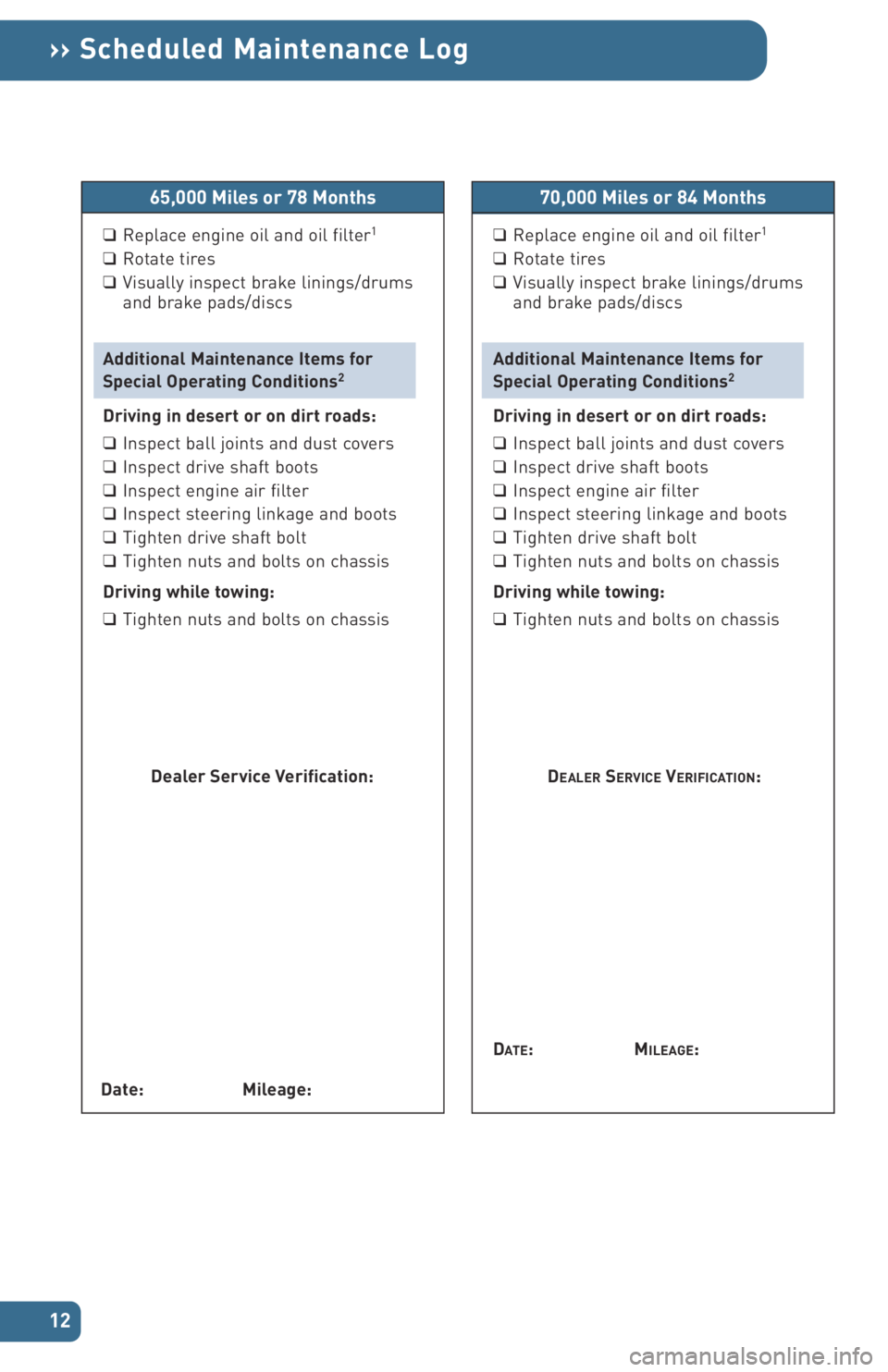

›› Scheduled Maintenance Log
65,000 Miles or 78 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
70,000 Miles or 84 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Dealer Service Verification:
Date: Mileage:

13

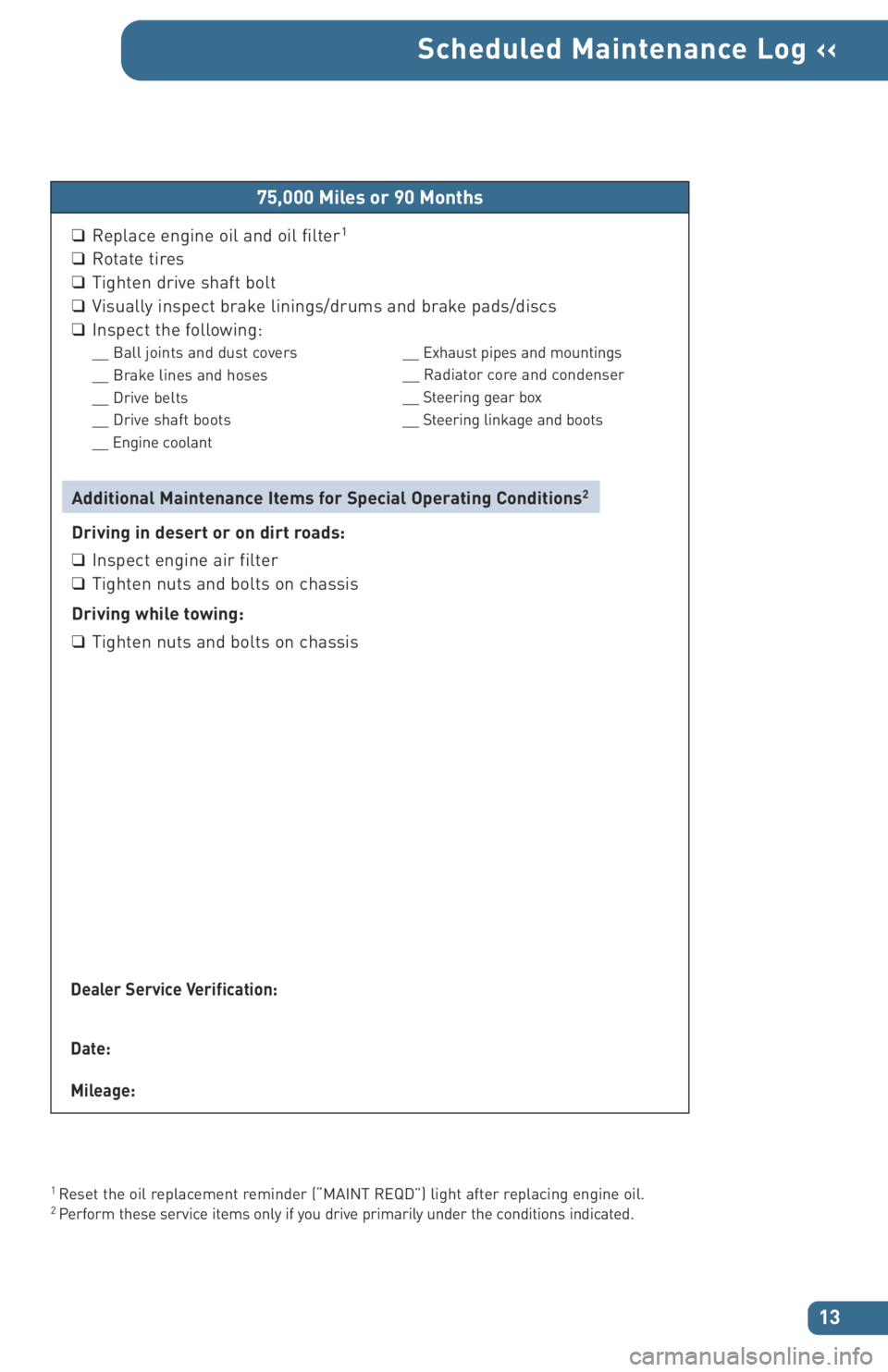

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.
75,000 Miles or 90 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Tighten drive shaft bolt
❑ Visually inspect brake linings/drums and brake pads/discs
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots

14
›› Scheduled Maintenance Log
80,000 Miles or 96 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
85,000 Miles or 102 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:

15

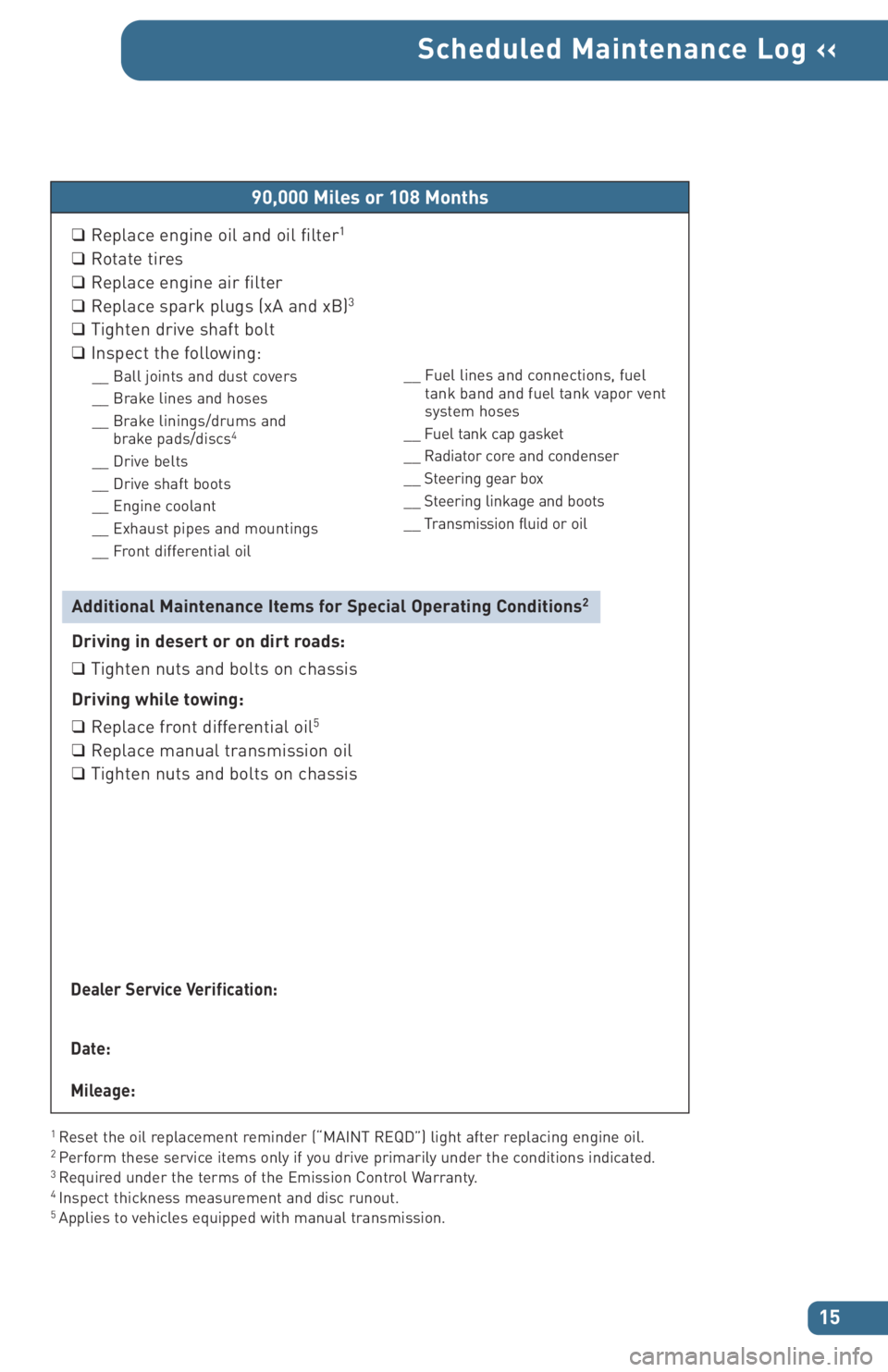

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Applies to vehicles equipped with manual transmission.
90,000 Miles or 108 Months
❑ Replace engine oil and oil filter1
❑ Rotate tires
❑ Replace engine air filter
❑ Replace spark plugs (xA and xB)
3
❑ Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
5
❑ Replace manual transmission oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel lines and connections, fuel
tank band and fuel tank vapor vent
system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

16

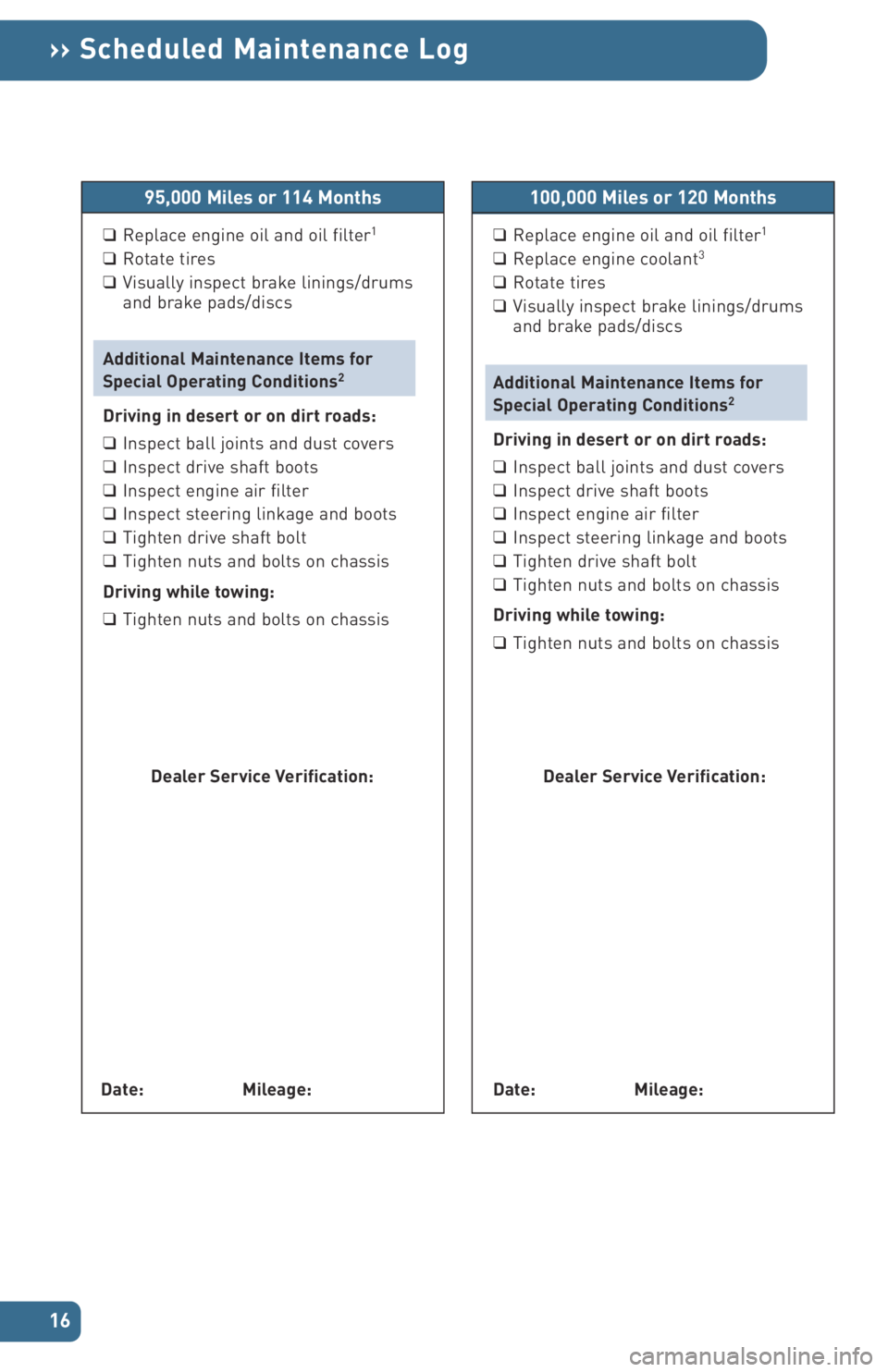

›› Scheduled Maintenance Log
95,000 Miles or 114 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
100,000 Miles or 120 Months
❑Replace engine oil and oil filter1
❑Replace engine coolant3
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:
