TOYOTA tC 2005 Warranties & Maintenance Guides (in English)

17

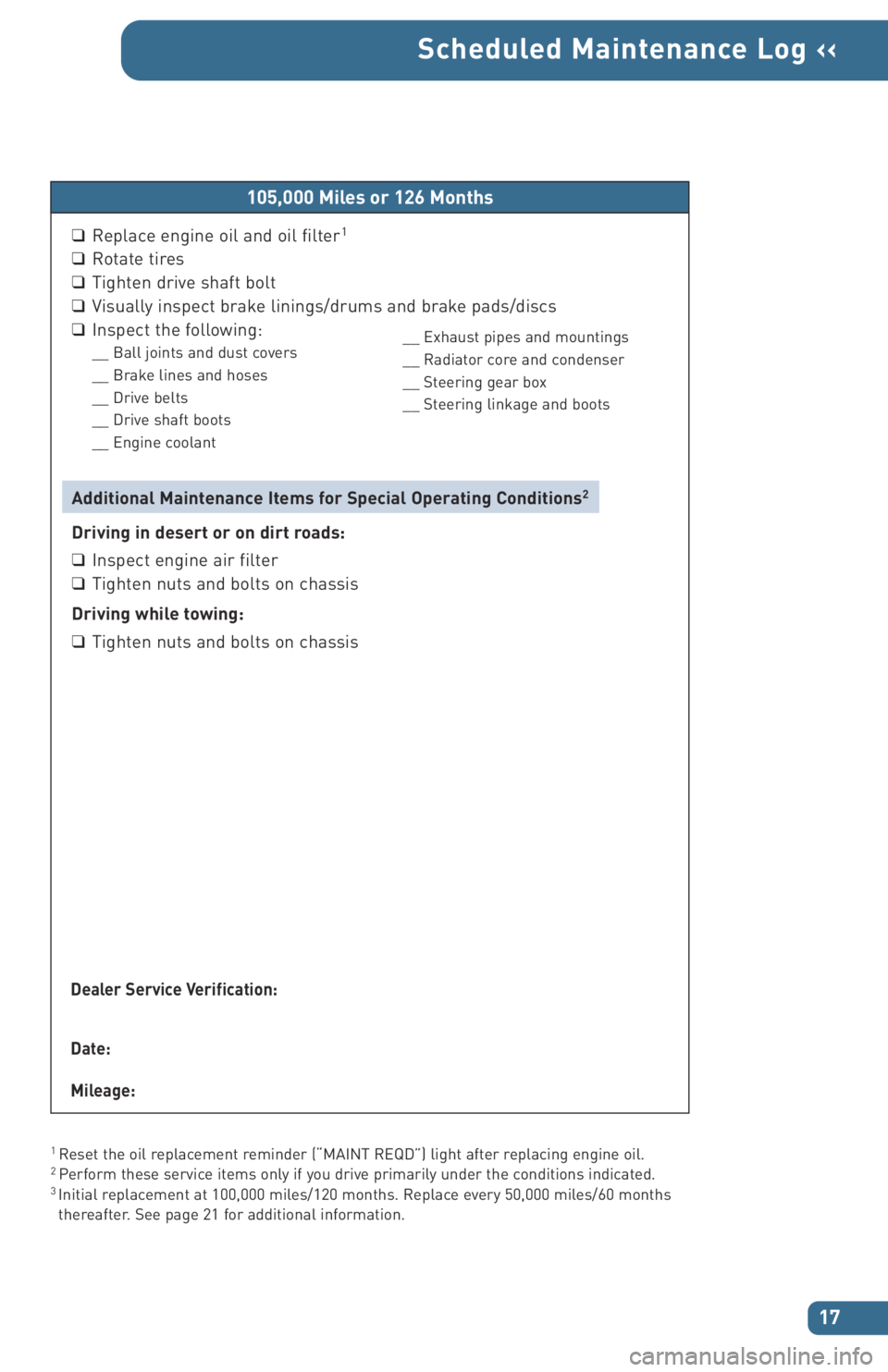

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months
thereafter. See page 21 for additional information.
105,000 Miles or 126 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Tighten drive shaft bolt
❑ Visually inspect brake linings/drums and brake pads/discs
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots

18

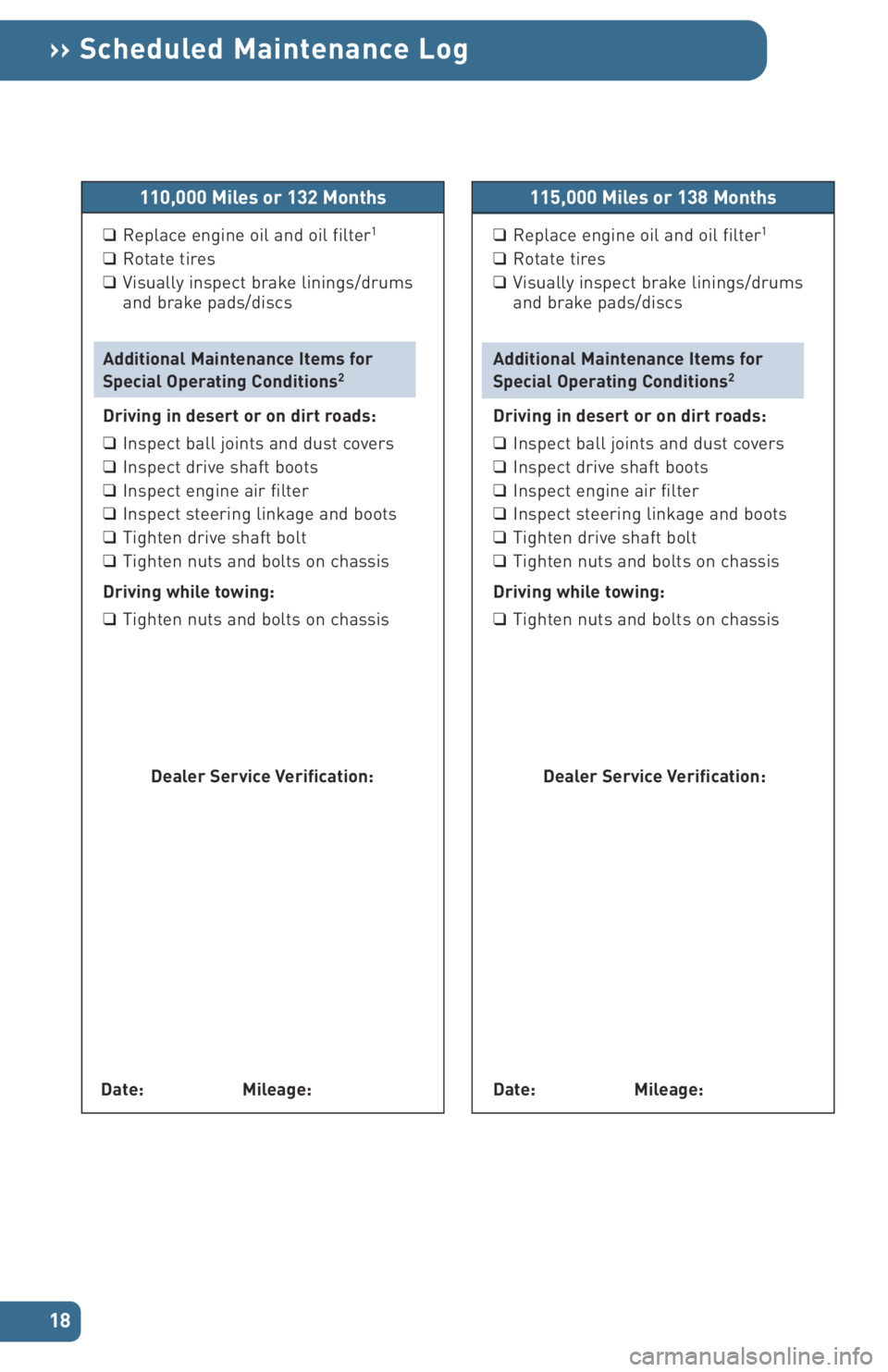

›› Scheduled Maintenance Log
110,000 Miles or 132 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
115,000 Miles or 138 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:

19

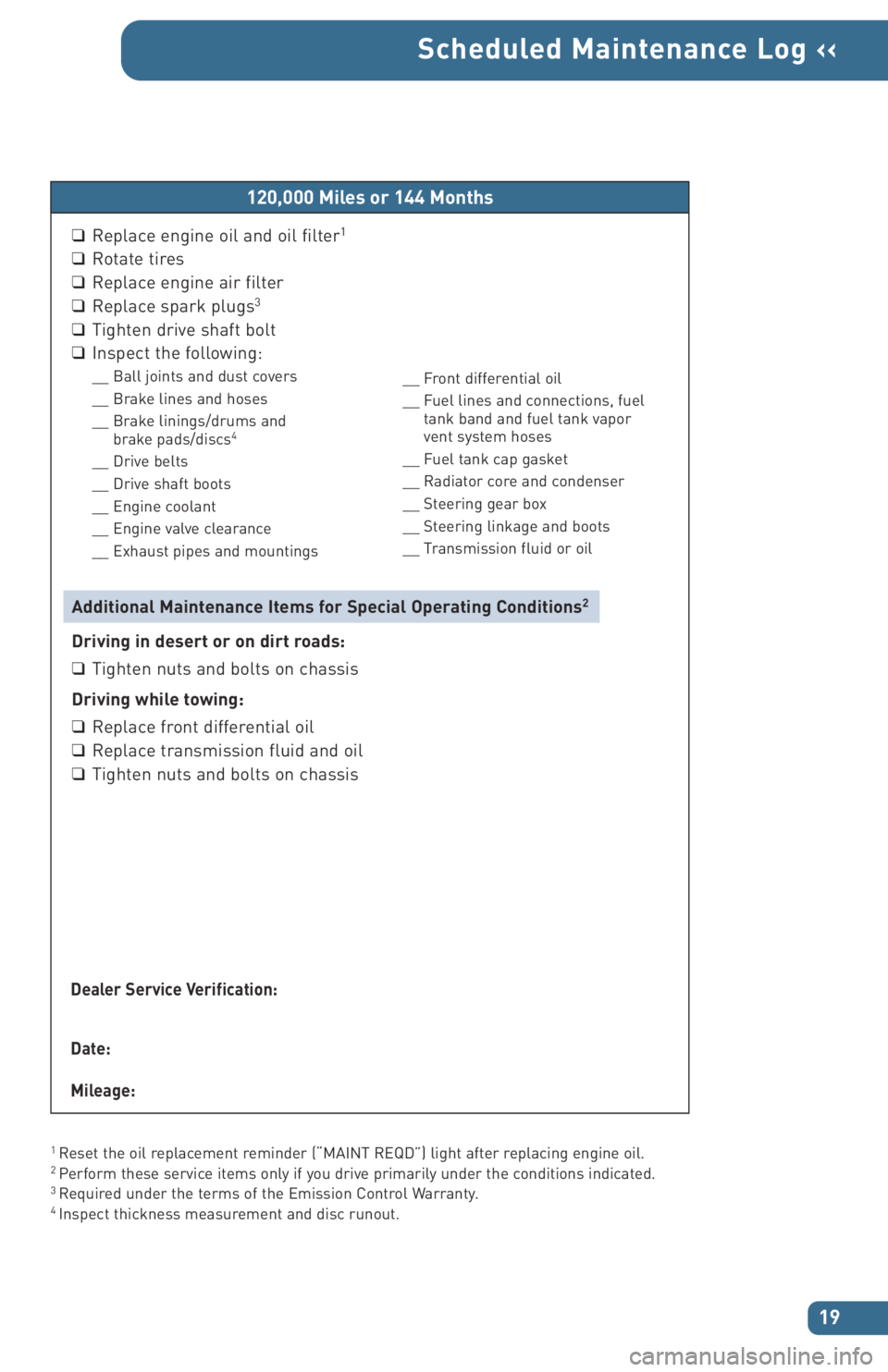

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.
120,000 Miles or 144 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Replace engine air filter
❑ Replace spark plugs
3
❑Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
❑ Replace transmission fluid and oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Front differential oil
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
v ent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

20

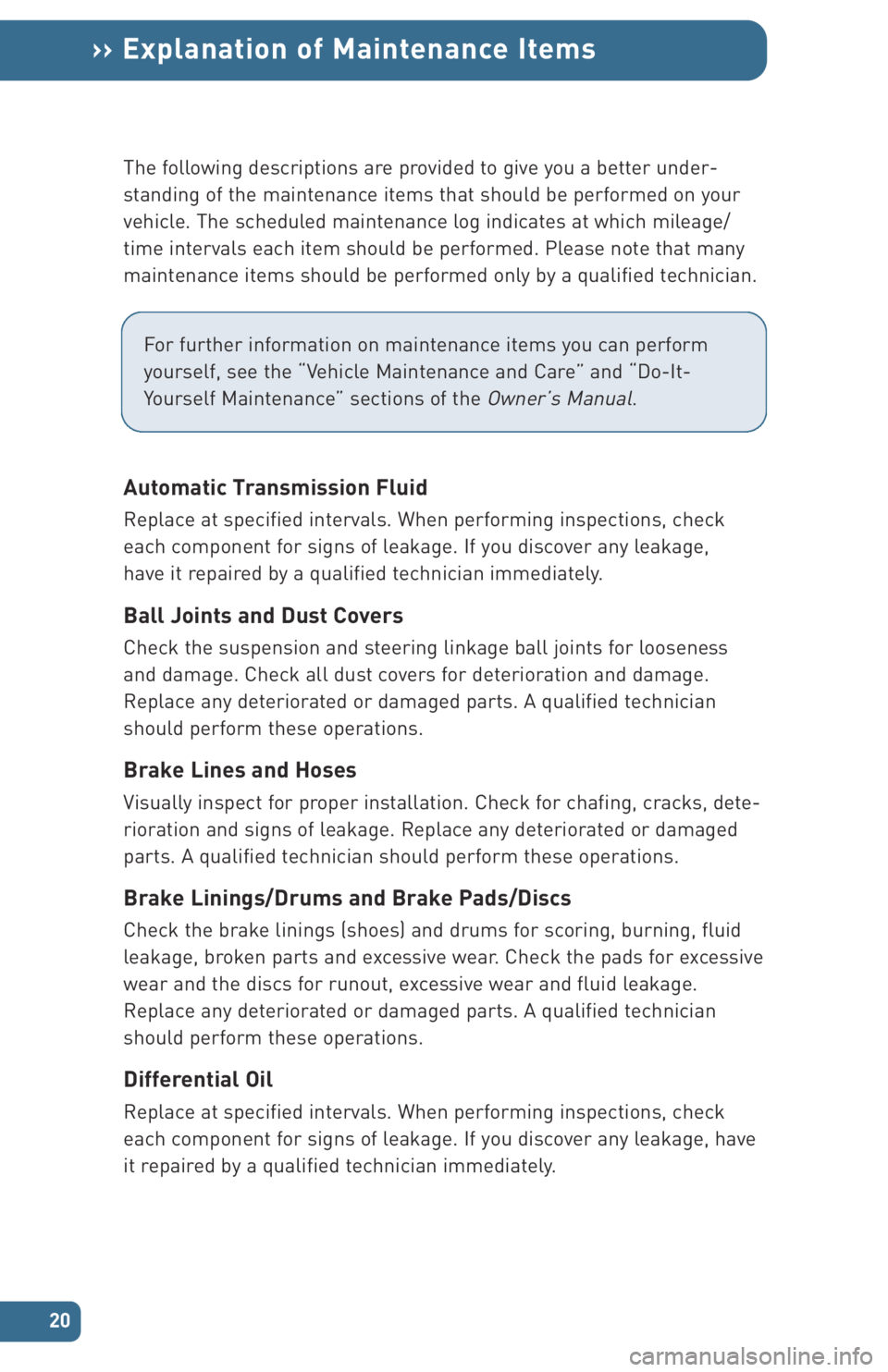

›› Explanation of Maintenance Items
The following descriptions are provided to give you a better under-
standing of the maintenance items that should be performed on your
v ehicle. The scheduled maintenance log indicates at which mileage/
time intervals each item should be performed. Please note that many
maintenance items should be performed only by a qualified technician.
For further information on maintenance items you can perform
y ourself, see the “Vehicle Maintenance and Care” and “Do-It-
Y ourself Maintenance” sections of the
Owner’s Manual.
Automatic Transmission Fluid
Replace at specified intervals. When performing inspections, check
each component for signs of leakage. If you discover any leakage,
have it repaired by a qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering linkage ball joints for looseness
and damage. Check all dust covers for deterioration and damage.
Replace any deteriorated or damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Check for chafing, cracks, dete-
rioration and signs of leakage. Replace any deteriorated or damaged
parts. A qualified technician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid
leakage, broken parts and excessive wear. Check the pads for excessive
wear and the discs for runout, excessive wear and fluid leakage.
Replace any deteriorated or damaged parts. A qualified technician
should perform these operations.
Differential Oil
Replace at specified intervals. When performing inspections, check
each component for signs of leakage. If you discover any leakage, have
it repaired by a qualified technician immediately.

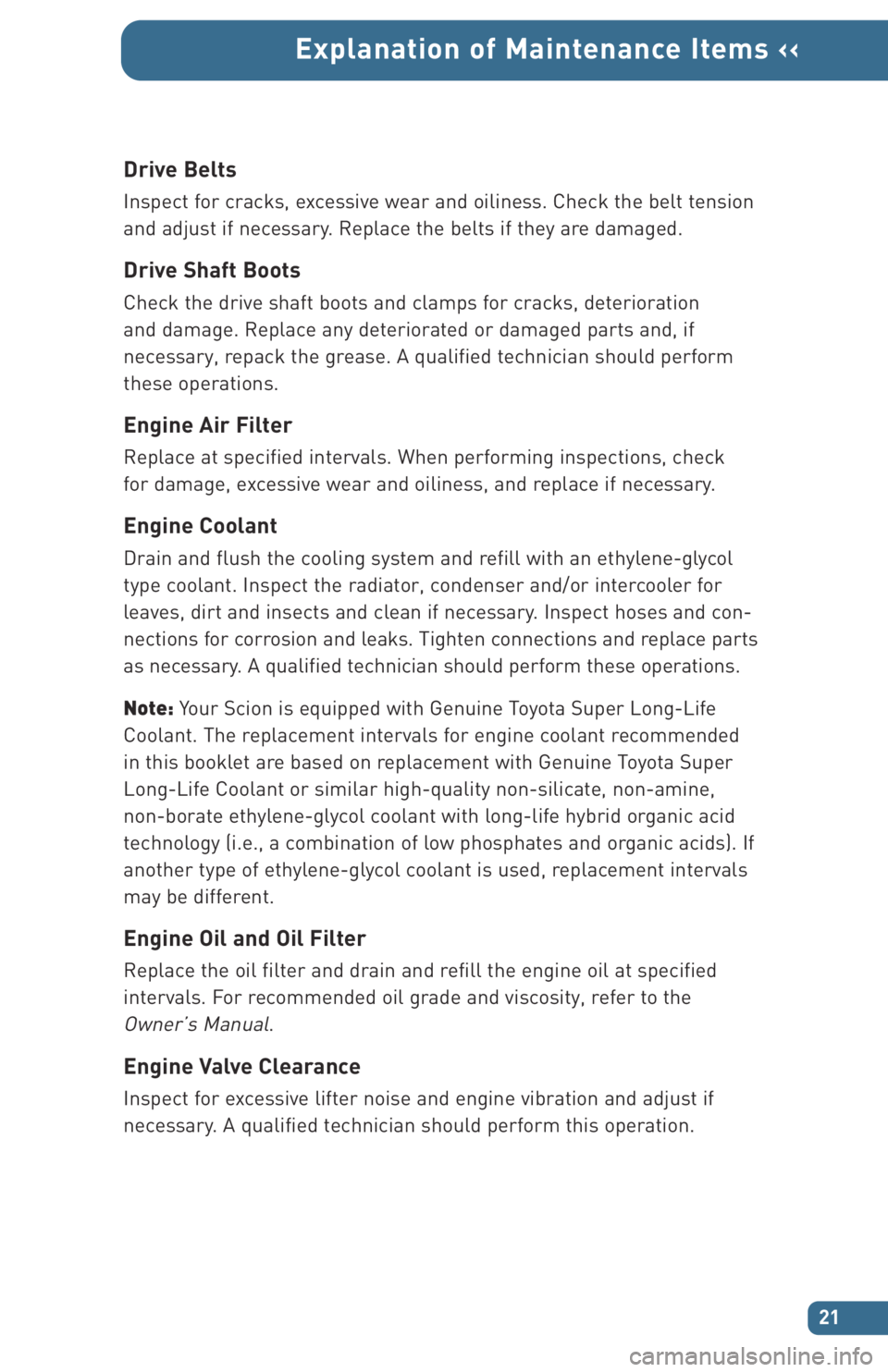

Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension
and adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration
and damage. Replace any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified technician should perform
these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check
for damage, excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethylene-glycol
type coolant. Inspect the radiator, condenser and/or intercooler for
leaves, dirt and insects and clean if necessary. Inspect hoses and con-
nections for corrosion and leaks. Tighten connections and replace parts
as necessary. A qualified technician should perform these operations.
Note: Your Scion is equipped with Genuine Toyota Super Long-Life
Coolant. The replacement intervals for engine coolant recommended
in this booklet are based on replacement with Genuine Toyota Super
Long-Life Coolant or similar high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with long-life hybrid organic acid
t echnology (i.e., a combination of low phosphates and organic acids). If
another type of ethylene-glycol coolant is used, replacement intervals
may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified
intervals. For recommended oil grade and viscosity, refer to the
Owner’s Manual.
Engine Valve Clearance
Inspect for excessive lifter noise and engine vibration and adjust if
necessary. A qualified technician should perform this operation.
21
Explanation of Maintenance Items ‹‹

22
›› Explanation of Maintenance Items
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks,
deterioration and damage. Start the engine and listen carefully for
any exhaust gas leakage. Tighten connections or replace parts as
necessary.
Fuel Lines and Connections, Fuel Tank Band and
F uel Tank Vapor Vent System Hoses
Visually inspect for corrosion, damage, cracks and loose or leaking
connections. Tighten connections or replace parts as necessary.
F uel Tank Cap Gasket
Visually inspect for cracks, deterioration and damage and replace
if necessary.
Nuts and Bolts on Chassis and Body
Re-tighten the seat-mounting bolts and front/rear suspension member
re taining bolts to specified torque.
Radiator Core and Condenser
Inspect for damage, debris, dirt, insects and signs of leakage. Have any
problem repaired by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new plugs of the same type
as originally equipped. A qualified technician should perform this
operation.
Steering Gear Box
Inspect for signs of leakage. If you discover any leakage, have it
r epaired immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering
wheel. Inspect the linkage for bending and damage and the dust boots
for deterioration, cracks and damage. Replace any damaged parts. A
qualified technician should perform these operations.
Tire Rotation
Tires should be rotated according to the instructions in the Owner’s
Manual
. When rotating tires, check for damage and uneven wear.
Replace if necessary.

23

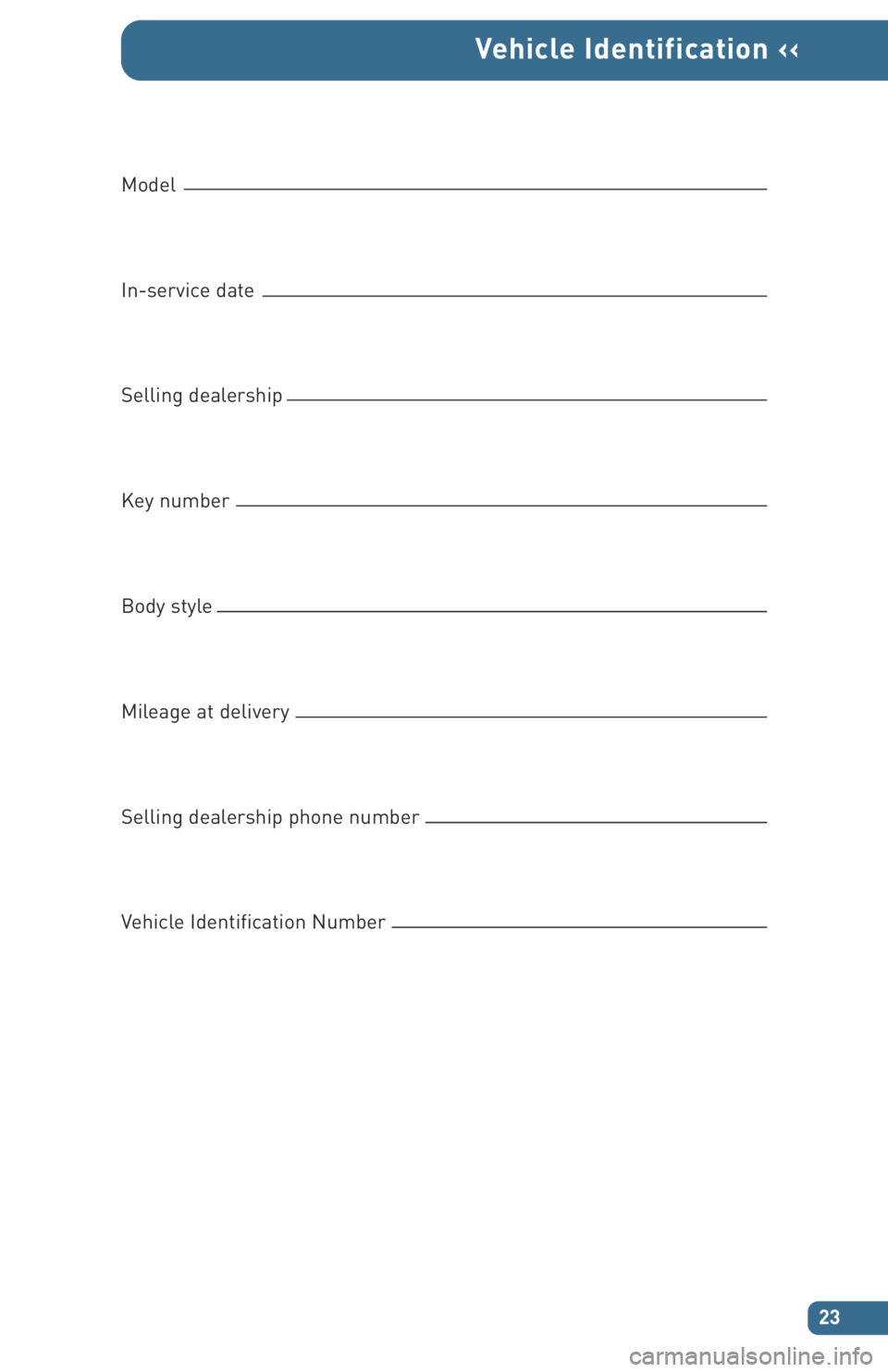

Vehicle Identification ‹‹
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number

24

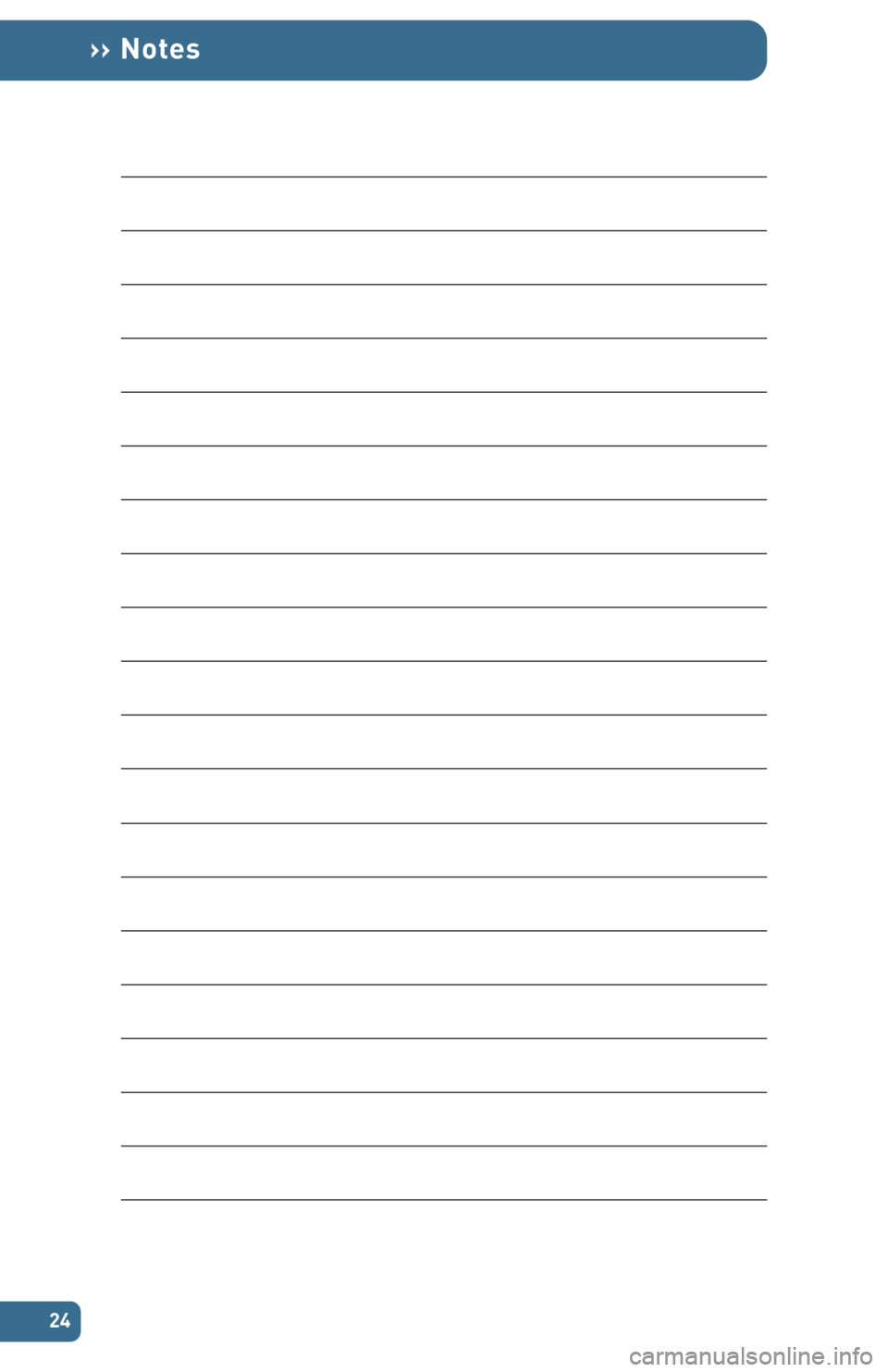

›› Notes

25

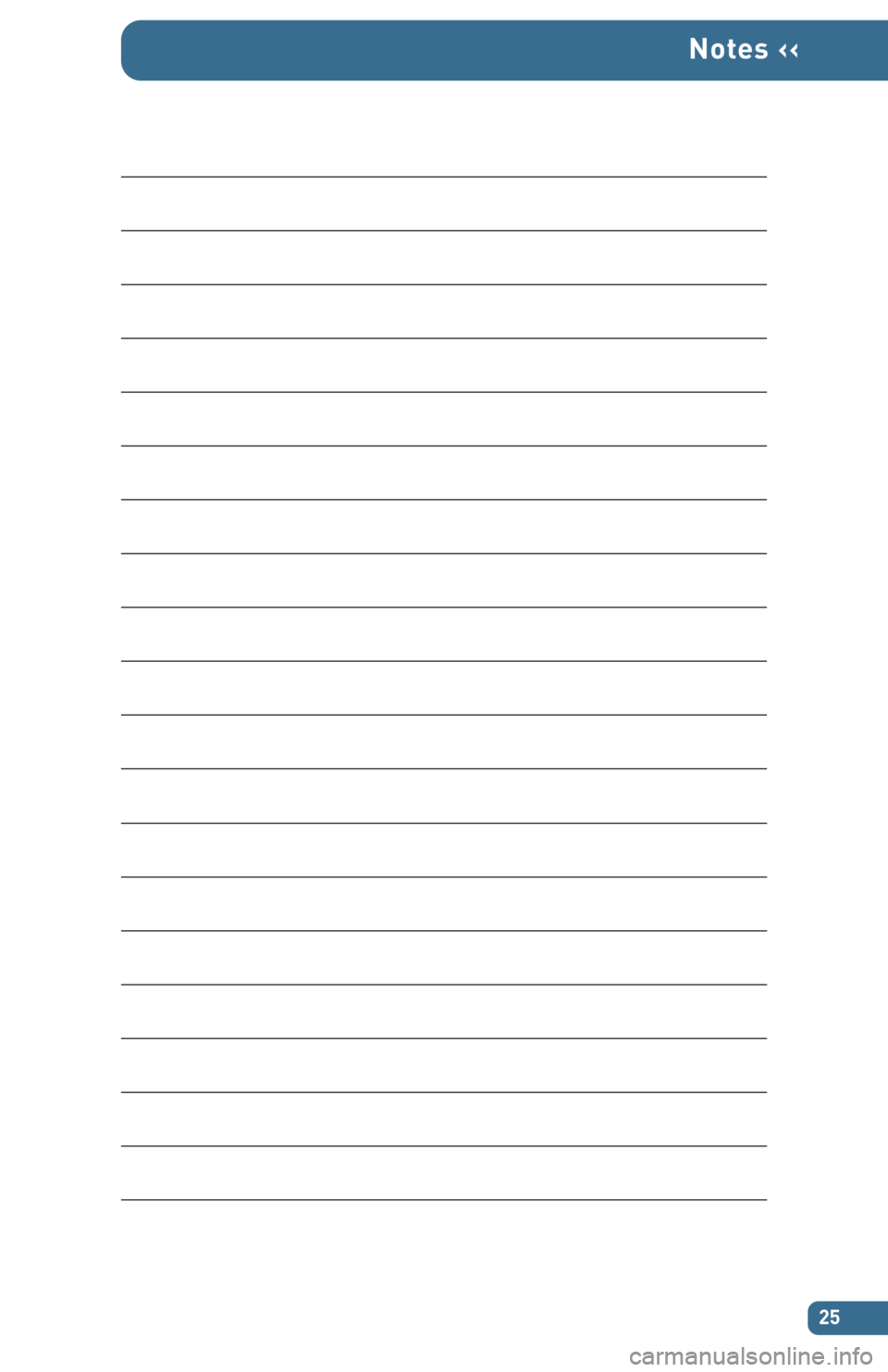

Notes ‹‹

26
›› Notes
