TOYOTA tC 2006 Owners Manual (in English)

2006
Pocket Reference Guide
©
© 2
200005
5 T
To
oy
yo
o t
ta
a M
Mo ot
to
o r
r S
S a
al
le
e s
s,
, U
U .
.S
S. .AA .
.,, I
In n c
c.
.
0
0 0
04
45 52
2
P
P R
R G
G0
06
6 T
T C
C
Scion tC
EE
MM
AA
II
LL
UU
SS

www.scion.com/contact/contact_main.html
CC
HH
AA
TT
On weekdays you can chat with a Scion Customer Advocate.
www.scion.com/contact/contact_main.html
CC
AA
LL
LL
UU
SS
For the Scion Customer Experience dial 1.866.70.SCION.
MM
AA
II
LL
II
NN
GG
AA
DD
DD
RR
EE
SS
SS
Scion
19001 S. Western Ave.
D102, P.O. Box 2742
Torrance, CA 905092742
USA
OO
UU
RR
WW
EE
BB
SS
II
TT
EE
www.scion.com

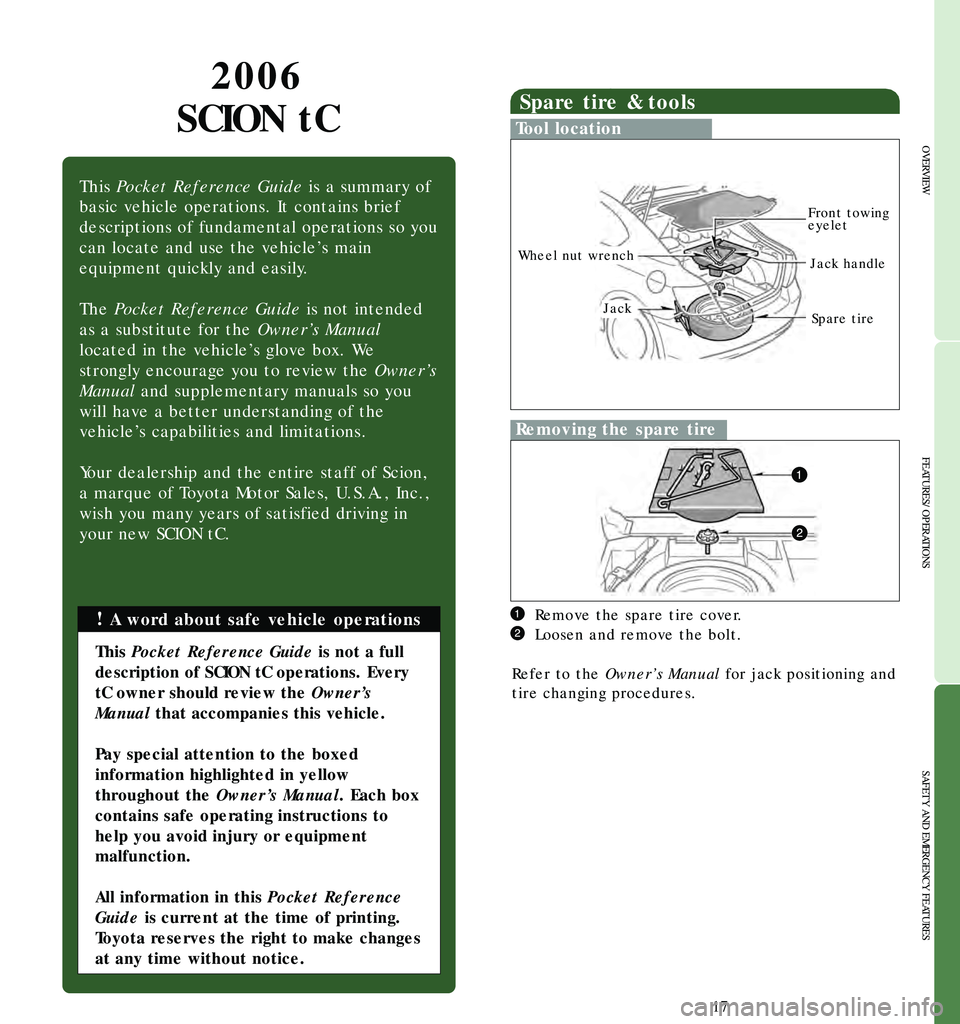

2006
SCION tC
!A word about safe vehicle operations
This
Pocket Reference Guide is a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily

.
The Pocket Reference Guide is not intended
as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We
strongly encourage you to review the Owner’s
Manual and supplementary manuals so you
will have a better understanding of the
vehicle’

s capabilities and limitations.
Your dealership and the entire staff of Scion,
a marque of Toyota Motor Sales, U.S.A., Inc.,
wish you many years of satisfied driving in
your new SCION tC.
This Pocket Reference Guide is not a full
description of SCION tC oper
ations. Every
tC owner should review the Owner’s
Manual that accompanies this vehicle.
P ay special attention to the boxed
information highlighted in yellow
throughout the Owner’s Manual . Each box
contains safe oper

ating instructions to
help you avoid injury or equipment
malfunction.
All information in this Pocket Reference
Guide is current at the time of printing.
T oyota reserves the right to make changes
at any time without notice.
Spare tire & tools
Tool location
Removing the spare tire
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
R emove the spare tire cover.
Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and
tire changing procedures.
Wheel nut wrench
Front towing
eyelet
Jack handle
Spare tireJack

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

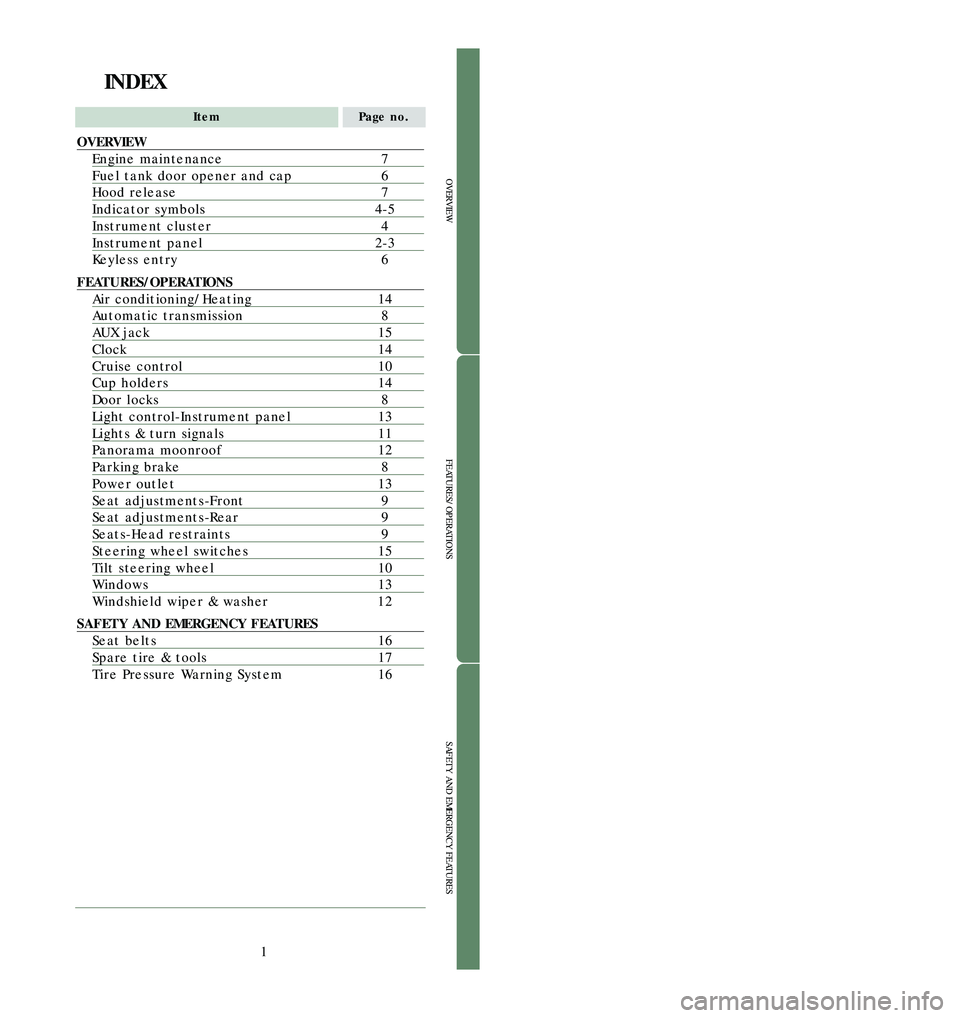

INDEX
ItemPage no.
OVERVIEW
Engine maintenance7
Fuel tank door opener and cap6
Hood release7
Indicator symbols45
Instrument cluster 4
Instrument panel23
Keyless entry 6
FEATURES/OPERATIONS
Air conditioning/Heating 14
Automatic transmission 8
AUX jack15
Clock14
Cruise control10
Cup holders14
Door locks 8
Light controlInstrument panel13
Lights & turn signals11
Panorama moonroof12
Parking brake 8
Power outlet13
Seat adjustmentsFront 9
Seat adjustmentsRear 9
SeatsHead restraints 9
Steering wheel switches15
Tilt steering wheel10
Windows13
Windshield wiper & washer 12
SAFETY AND EMERGENCY FEATURES
Seat belts 16
Spare tire & tools17
Tire Pressure Warning System 16
06 Scion Tc Ins 5/25/05 7:23 PM Page 1

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2
OVERVIEW

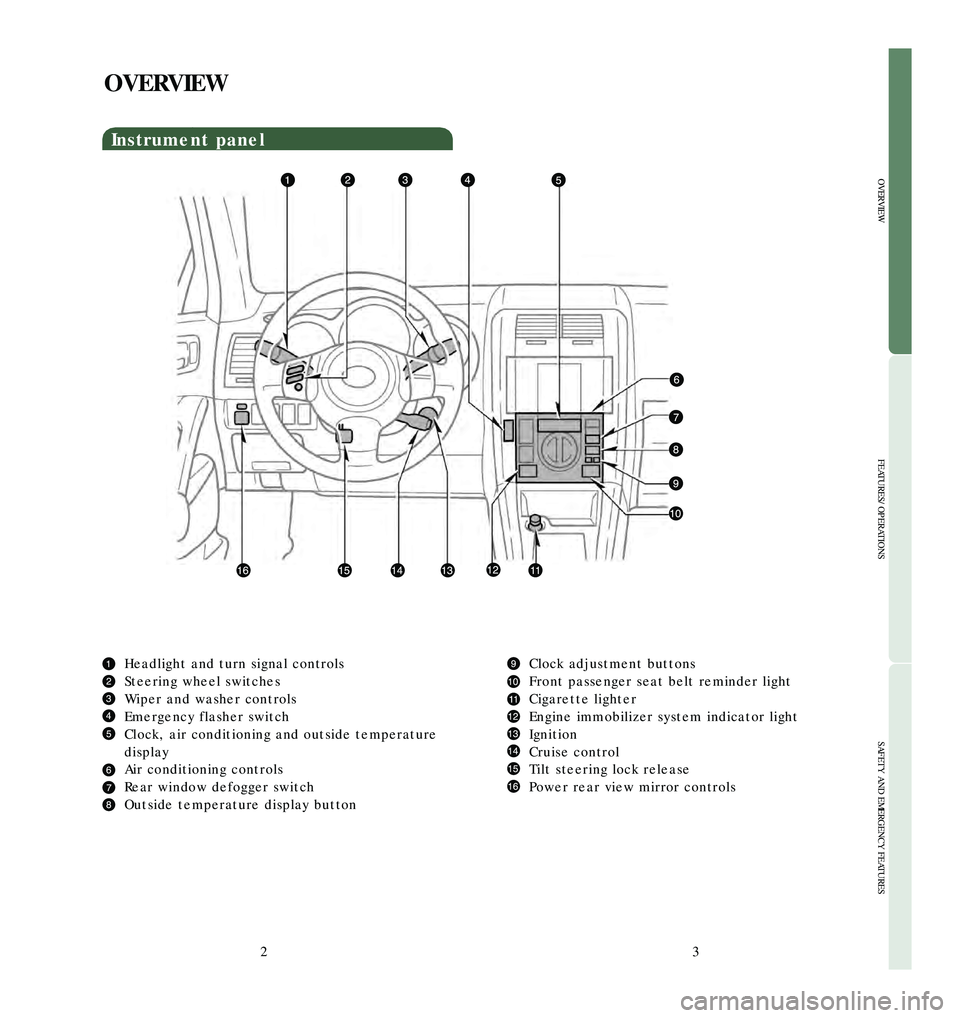

Headlight and turn signal controls
Steering wheel switches
Wiper and washer controls
Emergency flasher switch
Clock, air conditioning and outside temperature
display
Air conditioning controls
Rear window defogger switch
Outside temperature display buttonClock adjustment buttons
Front passenger seat belt reminder light
Cigarette lighter
Engine immobilizer system indicator light
Ignition
Cruise control
Tilt steering lock release
Power rear view mirror controls
Instrument panel
06 Scion Tc Ins 5/25/05 7:23 PM Page 2

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
4
OVERVIEW

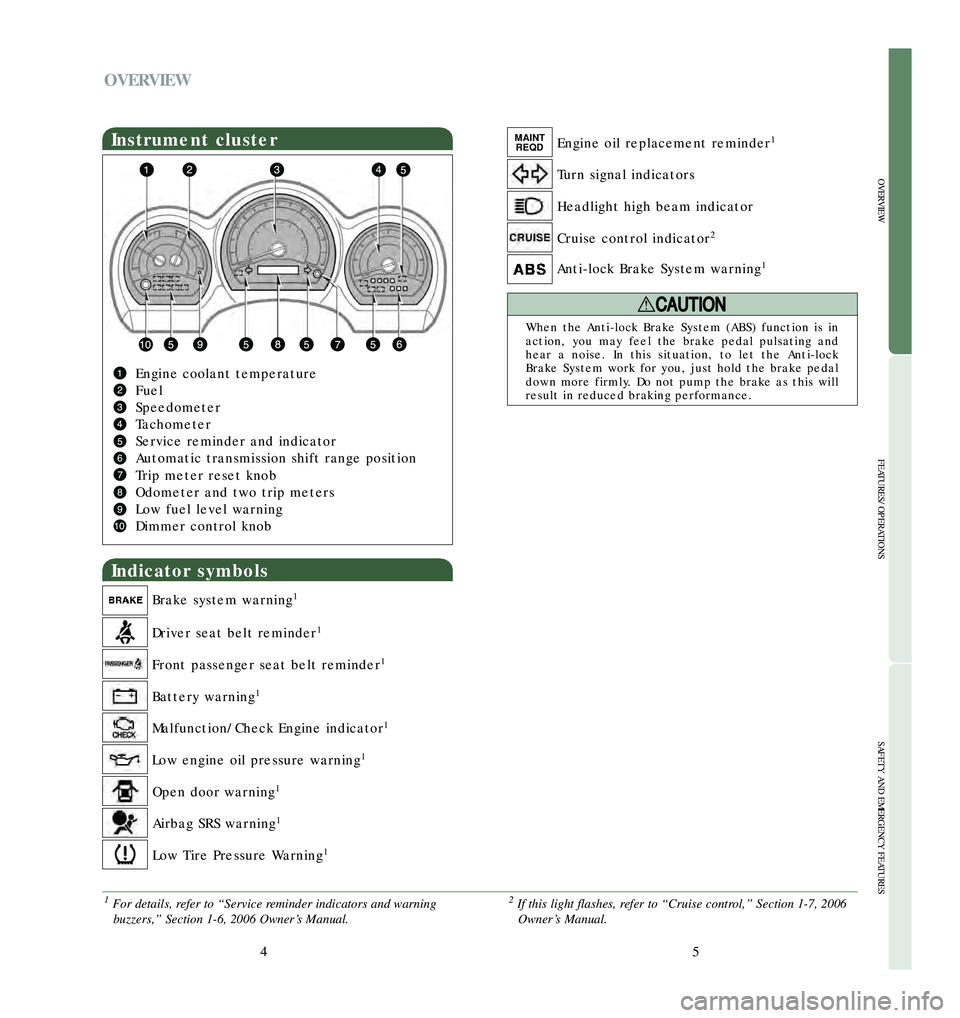

Driver seat belt reminder1
Front passenger seat belt reminder1
Brake system warning1
Battery warning1
Low engine oil pressure warning1
Antilock Brake System warning1
Malfunction/Check Engine indicator1
1
For details, refer to “Service reminder indicators and warning buzzers,” Section 16, 2006 Owner’s Manual.2If this light flashes, refer to “Cruise control,” Section 17, 2006Owner’ sManual.
When the Antilock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Antilock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking performance.
Indicator symbols
Open door warning1
Engine oil replacement reminder1
Turn signal indicators
Headlight high beam indicator
Cruise control indicator
2
Airbag SRS warning1
Low Tire Pressure W arning1
Engine coolant temperature
Fuel
Speedometer
Tachometer
Service reminder and indicator
Automatic transmission shift range position
Trip meter reset knob
Odometer and two trip meters
Low fuel level warning
Dimmer control knob
Instrument clusterMAINT
REQD
06 Scion Tc Ins 5/25/05 7:23 PM Page 4

Alarm operation
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6
OVERVIEW

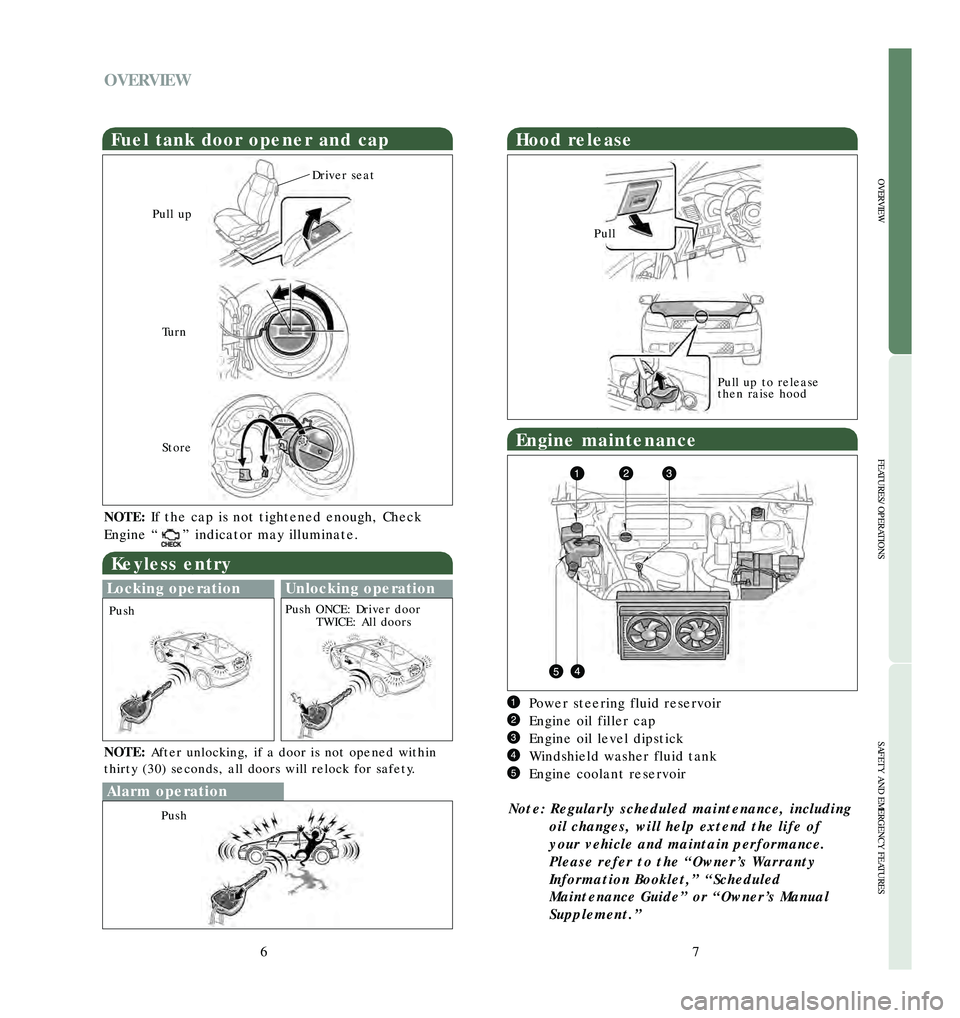

Hood release
Pull
Pull up to release
then raise hood
Keyless entry
NOTE:After unlocking, if a door is not opened within
thirty (30) seconds, all doors will relock for safety.
Locking operationUnlocking operation
Push Push ONCE: Driver door
TWICE: All doors
Push
Fuel tank door opener and cap
Turn Store
Pull up
Driver seat
NOTE:
If the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.
Engine maintenance
Power steering fluid reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’

s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
06 Scion Tc Ins 5/25/05 7:23 PM Page 6

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8
FEATURES/OPERATIONS

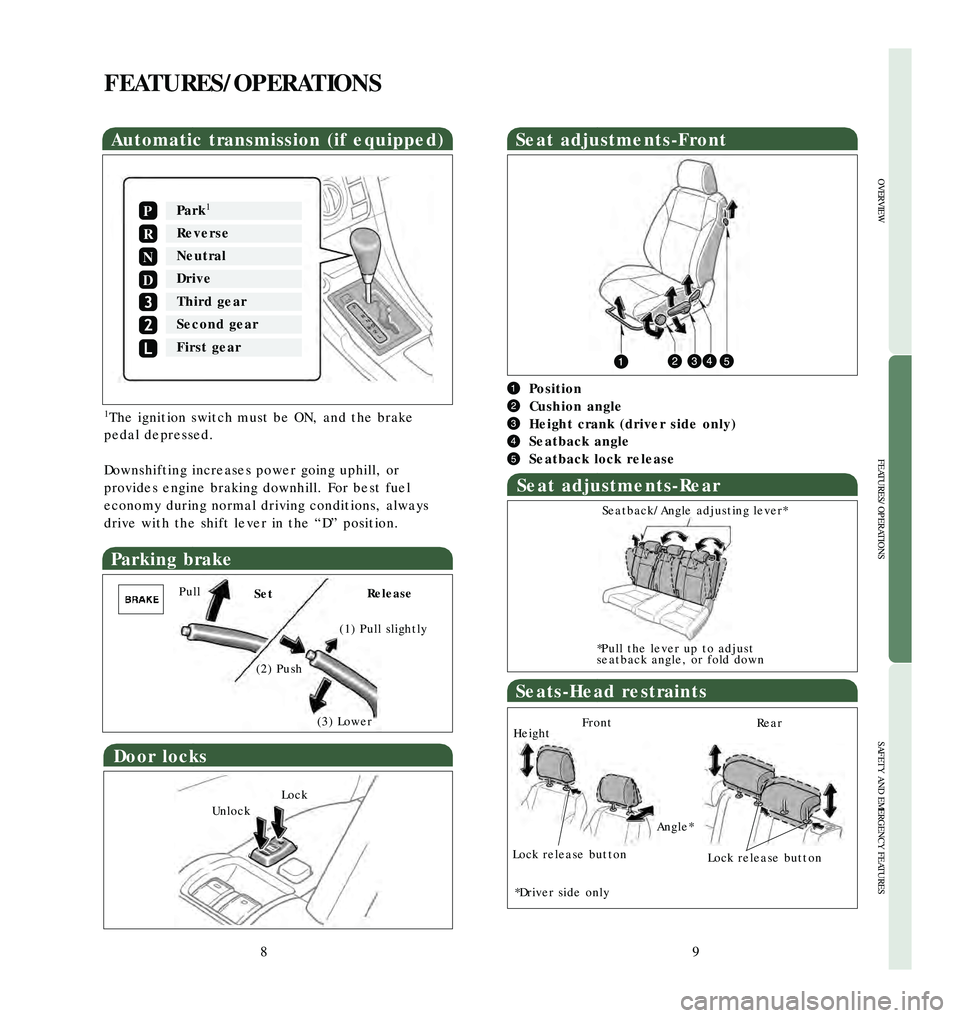

Automatic transmission (if equipped)
Park1
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
1The ignition switch must be ON, and the brake
pedal depressed.
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Parking brake
Pull
(2) Push (1) Pull slightly
(3) Lower
Set
Release
Seat adjustmentsFront
Position
Cushion angle
Height crank (driver side only)
Seatback angle
Seatback lock release
Seat adjustmentsRear
Seatback/Angle adjusting lever*
SeatsHead restr
aints
Height
Angle*
Lock release button
Lock release button
Front Rear
Lock
Unlock
Door locks
*Driver side only *Pull the lever up to adjust
seatback angle, or fold down
06 Scion Tc Ins 5/25/05 7:23 PM Page 8

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS

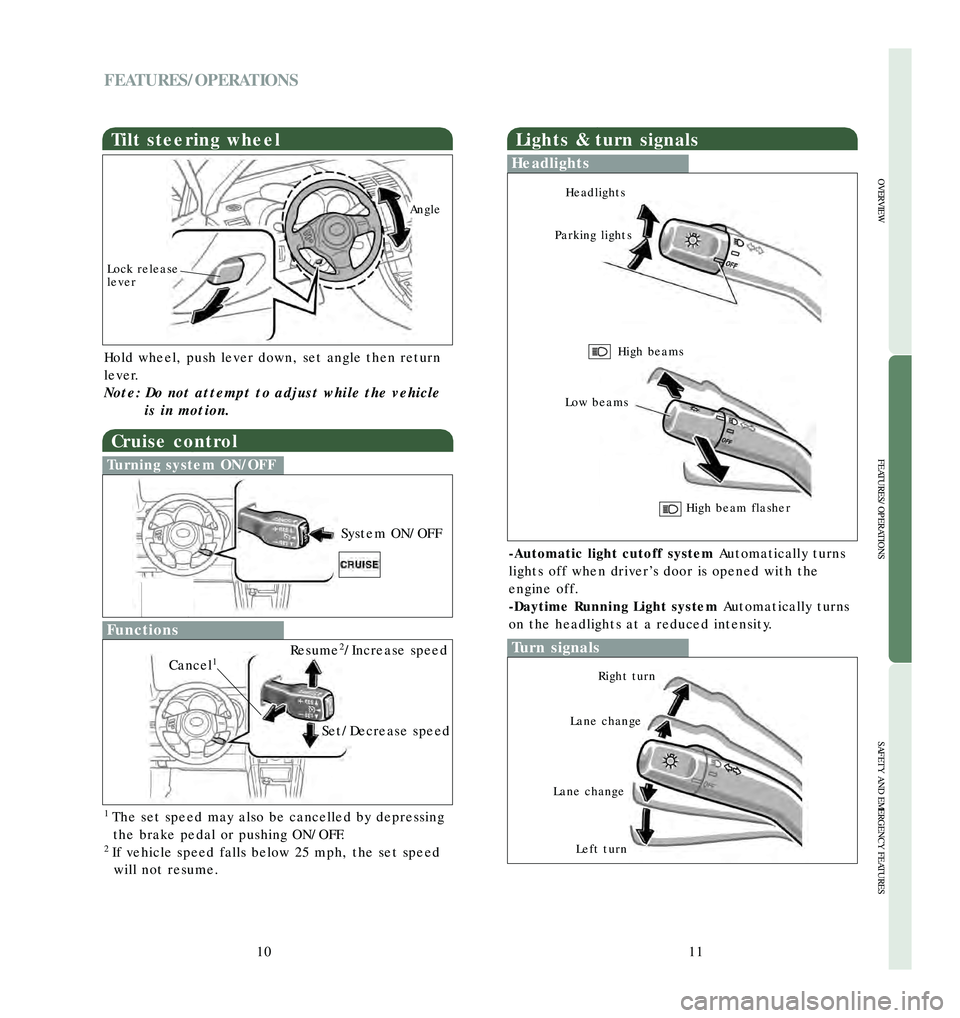

Tilt steering wheel
Lock release
lever
Angle
Hold wheel, push lever down, set angle then return
lever.
Note: Do not attempt to adjust while the vehicleis in motion.
Lights & turn signals
Headlights
Turn signals
Parking lights
High beams
Low beams Headlights
Automatic light cutoff system
Automatically turns
lights off when driver’s door is opened with the
engine off.
Daytime Running Light system Automatically turns
on the headlights at a reduced intensity.
Right turn
Left turn
Lane change
Lane change
High beam flasher
Cruise control
1The set speed may also be cancelled by depressing the brake pedal or pushing ON/OFF.
2If vehicle speed falls below 25 mph, the set speed will not resume.
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speedCancel1
06 Scion Tc Ins 5/25/05 7:23 PM Page 10

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12
FEATURES/OPERATIONS

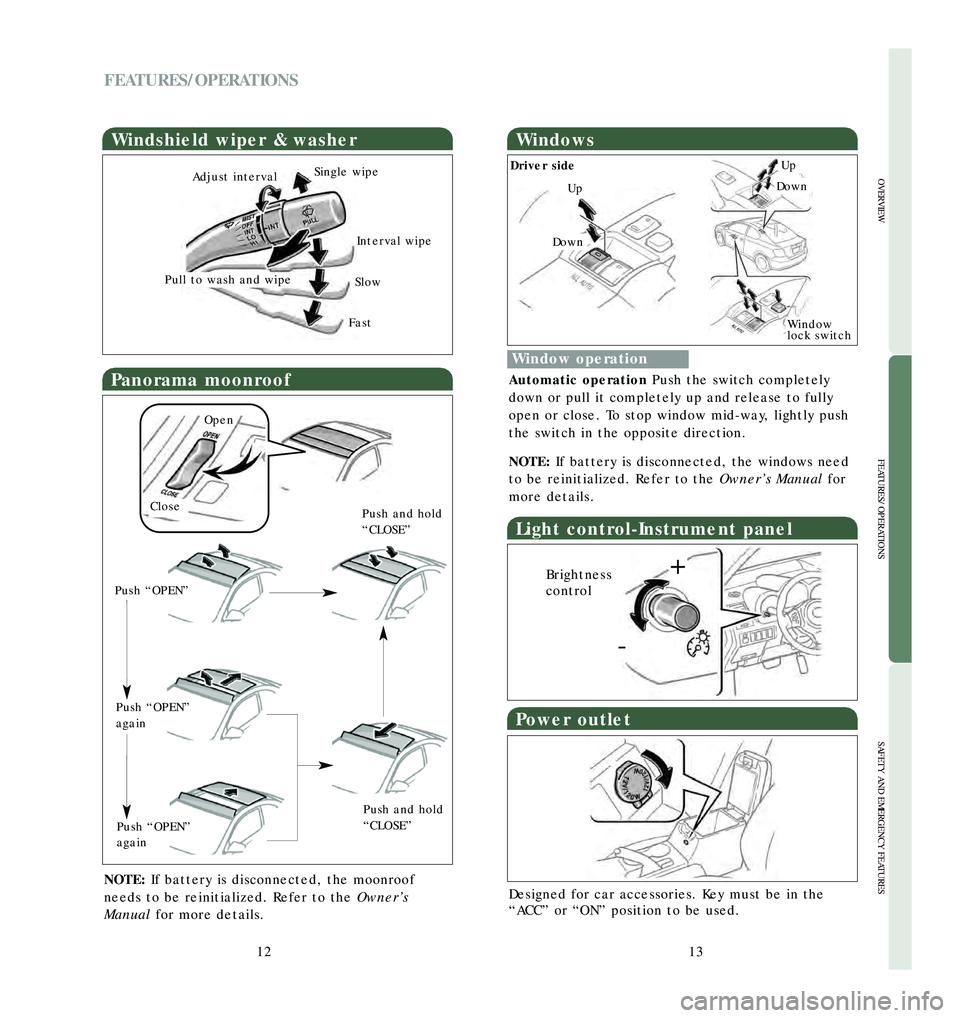

Windshield wiper & washer
Interval wipe
Slow
Fast
Pull to wash and wipeAdjust interval
Single wipe
Windows
Window operation
Window
lock switch
Driver side
Automatic operation
Push the switch completely
down or pull it completely up and release to fully
open or close. T
o stop window midway, lightly push
the switch in the opposite direction.
NOTE: If battery is disconnected, the windows need
to be reinitialized. Refer to the Owner’s Manualfor
more details.
Up
Down
Up
Down
Panorama moonroof
NOTE: If battery is disconnected, the moonroof
needs to be reinitialized. Refer to the Owner’s
Manual for more details.
Open
Close
Push and hold
“CLOSE”
Power outlet
Designed for car accessories. Key must be in the
“ACC” or “ON” position to be used.
Light controlInstrument panel
+

Push and hold
“CLOSE”
Brightness
controlPush “OPEN”
Push “OPEN”
again
Push “OPEN”
again
06 Scion Tc Ins 5/25/05 7:23 PM Page 12

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14
FEATURES/OPERATIONS

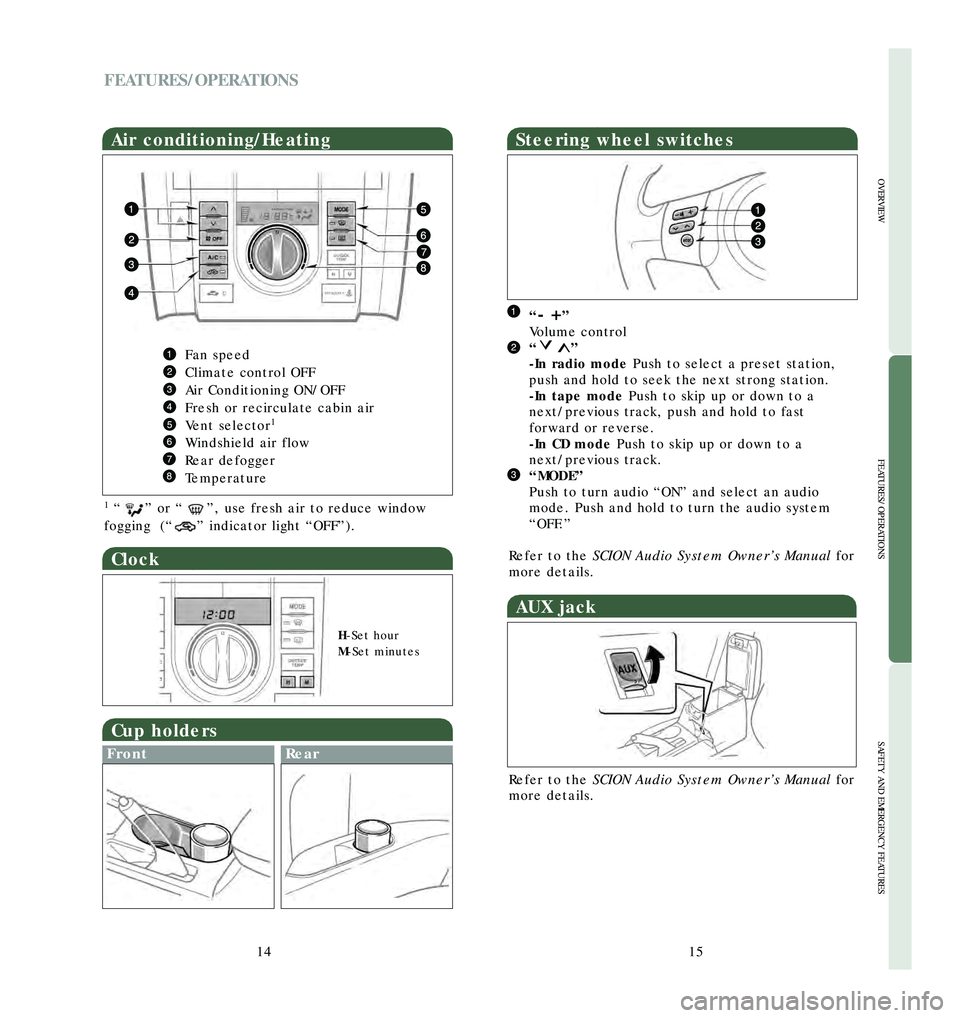

Clock
HSet hour
MSet minutes
Cup holders
FrontRear
Air conditioning/Heating
Fan speed
Climate control OFF
Air Conditioning ON/OFF
Fresh or recirculate cabin air
Vent selector
1
Windshield air flow
Rear defogger
Temperature
1“ ” or “ ”, use fresh air to reduce window
fogging (“ ” indicator light “OFF”).
Steering wheel switches
“ +”
V olume control
“ ”
In r
adio mode Push to select a preset station,
push and hold to seek the next strong station.
In tape mode Push to skip up or down to a
next/previous track, push and hold to fast
forward or reverse.
In CD mode Push to skip up or down to a
next/previous track.
“MODE”
Push to turn audio “ON” and select an audio
mode. Push and hold to turn the audio system
“OFF

.”
Refer to the SCION Audio System Owner’s Manual for
more details.
>>
AUX jack
R efer to the SCION Audio System Owner’ s Manual for
more details.
06 Scion Tc Ins 5/25/05 7:24 PM Page 14
