233

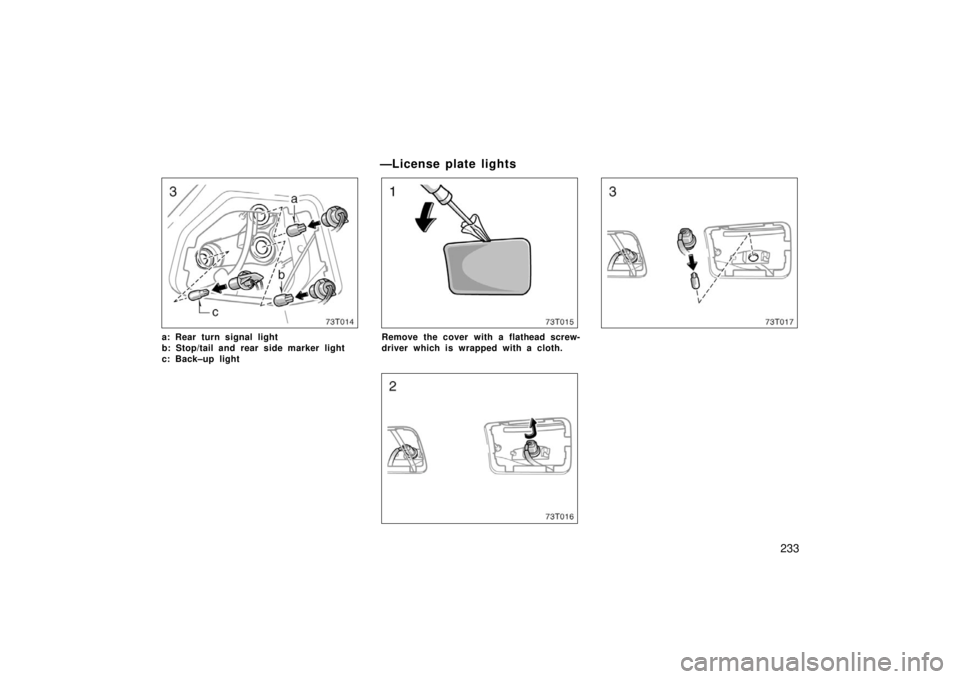

73T014
a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Back–up light
—License plate lights
73T015
Remove the cover with a flathead screw-
driver which is wrapped with a cloth.
73T016
73T017

234

235
SPECIFICATIONS
Dimensions and weightss236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

236
Dimensions and weights
Overall length mm (in.):4420 (174.0)
Overall width mm (in.): 1755 (69.1)
Overall height mm (in.): 1415 (55.7)
Wheelbase mm (in.): 2700 (106.3)
Front tread mm (in.): 1505 (59.3)
Rear tread mm (in.):
1505 (59.3)
Vehicle capacity weight
(occupants+cargo) kg (lb.): 392 (865)
Engine
Model:2.4L 4 −cylinder (2AZ −FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 88.5  96.0 (3.48  3.78)
Displacement, cm
3 (cu. in.):
2362 (144.1)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87 (Re-search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp.gal.): 55 (14.5, 12.1)

237
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.19–0.29 (0.007–0.012)
Exhaust 0.30–0.40 (0.012–0.016)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.): With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
“Genuine Motor Oil” is used in your Scion
vehicle. Use Scion approved “Genuine Mo-
tor Oil” or equivalent to satisfy the follow-
ing grade and viscosity. Oil grade:
ILSAC multigrade engine oil
Please contact your Scion dealer for fur-
ther details.

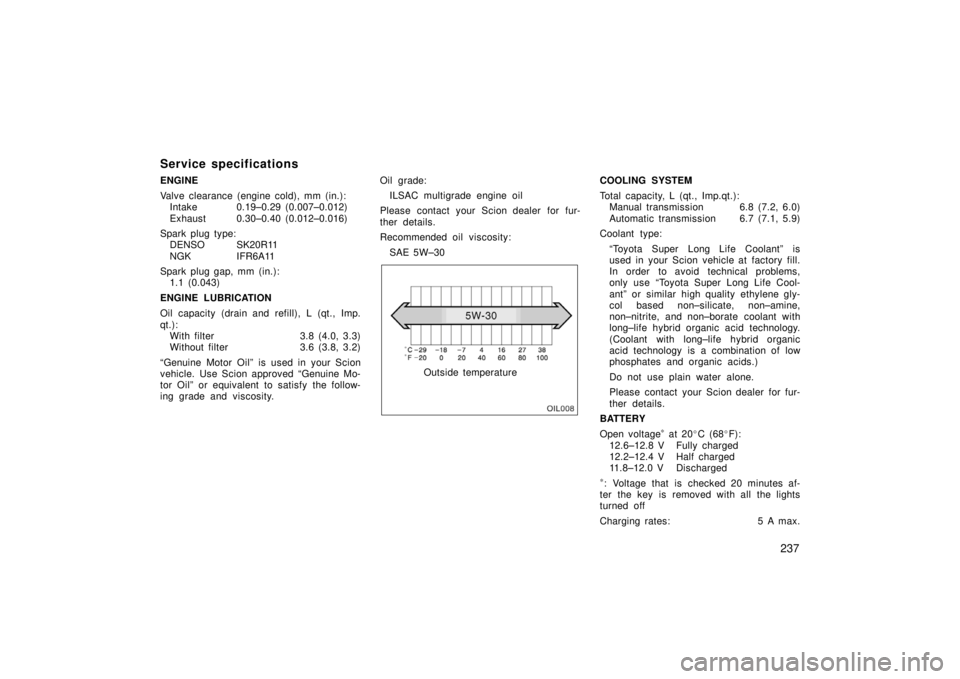

Recommended oil viscosity:
SAE 5W–30
OIL008
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp.qt.):Manual transmission 6.8 (7.2, 6.0)
Automatic transmission 6.7 (7.1, 5.9)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Scion vehicle at factory fill.
In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non–silicate, non–amine,
non–nitrite, and non–borate coolant with
long–life hybrid organic acid technology.
(Coolant with long–life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Scion dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6–12.8 V Fully charged
12.2–12.4 V Half charged
11.8–12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

238
CLUTCH
Pedal free play, mm (in.):5–15 (0.2–0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp.qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL–4 or GL–5
Recommended oil viscosity: SAE 75W–90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt., Imp.qt.): 3.5 (3.7, 3.1)
Fluid type: Genuine ATF Type T–IV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Genuine ATF Type T–IV” (ATF
JWS3309 or NWS6500) to aid in assuring
optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Genuine ATF Type
T–IV” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
90 (3.5)
Pedal free play, mm (in.): 1–6 (0.04–0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6–9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

239
Tires
Tire size and cold tire inflation pressure:
Front and rearTi r e siz e
Ti re inf lat ion pres s ure
kPa (kgf/cm2 or bar, psi)Wheel size
FrontRear
215/45ZR17220 (2.2, 32)200 (2.0, 29)17 x 7 JJ
When driving under the above vehicle conditions at sustai ned high speeds above 160 km/h (100 mph), in countries
where such speeds are permitted by–law, infl ate the front tires to 260 kPa (2.7 kgf/cm2 or 2.6 bar, 38 psi), rear tires
to 210 kPa (2.2 kgf/cm2 or 2.1 bar, 31 psi) provided that it does no t exceed the maximum cold tire inflation pressure
molded on the tire sidewall.
Spare
Ti r e siz e
Ti re inf lat ion pres s ure
kPa (kgf/cm2 or bar, psi)Wheel size
T125/70D17 98M420 (4.2, 60)17 x 4T
Wheel nut torque, N·m (kgf·m, ft·Ibf): 103 (10.5, 76)
NOTE:For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Replacing wheels”, on pages 217 through 224.

240
Fuses
81T001
Engine compartment
Fuses1. ST 7.5 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
2. H–LP RH LO 10 A: Right hand head-
light (low beam)
3. H–LP LH LO 10 A: Left hand headlight
(low beam)
4. H–LP RH HI 10 A: Right hand head-
light (high beam)
5. H–LP LH HI 10 A: Left hand headlight
(high beam)
81T002
Instrument panel
6. ECU–B 10 A: Multiplex communication
system (power door lock system, illumi-
nated entry system, wireless remote
control system, back door opener, pan-
orama moonroof), air conditioning sys-
tem, gauges and meters
7. DOME 7.5 A: Interior lights, personal
lights, ignition switch light, luggage
compartment light
8. RAD NO.1 20 A: Audio system
9. HTR 40 A: Air conditioning system
10. ABS NO.2 40 A: Anti–lock brake sys-
tem 11. ABS NO.1 50 A:
Anti–lock brake sys-
tem
12. CDS 30 A: Electric cooling fan
13. RDI 30 A: Electric cooling fan
14. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
15. OBD2 10 A: On–board diagnosis sys-
tem
16. TURN–HAZ 10 A: Turn signal lights,
emergency flashers
17. HORN 10 A: Horn
18. IGN 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
19. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
20. AM2 30 A: Starting system, “IG2” and
“MET IG2” fuses
21. ALT–S 7.5 A: Charging system
22. DCC 30 A: “ECU–B”, “RAD1” and
“DOME” fuse
23. MAIN 40 A: “H–LP RH LO”, “H–LP LH
LO”, “H–LP RH HI” and “H–LP LH HI”
fuses

241
24. ALT 120 A: “HTR”, “ABS NO.1”, “ABS
NO.2”, “RDI”, “CDS”, “DEF”, “TAIL”,
“PANEL”, “DOOR”, “STOP”, “ACC
SOCKET”, “GAUGE”, “ECU–IG”, “FR
WIP”, “WSH”, “AM1”, “FR DOOR”, “FL
DOOR”, “S/ROOF”, “A/C” and “FR
FOG” fuses
25. SPARE 30 A: Spare fuse
26. SPARE 20 A: Spare fuse
27. SPARE 10 A: Spare fuse
28. DEF 30 A: Rear window defogger
29. TAIL 10 A: Tail lights, parking lights,
license plate lights, front side maker
lights
30. PANEL 7.5 A: Instrument cluster lights,
instrument panel lights, gauges and
meters, audio system, console box illu-
mination
31. A/C 10 A: Air conditioning system
32. FR DOOR 20 A: Power windows
33. S/ROOF 20 A: Panorama moonroof
34. CIG 15 A: Cigarette lighter
35. ACC 7.5 A: Shift lock control system,
power outlet, audio system, power rear
view mirrors
36. RR DEF I/UP 7.5 A: Rear window de-
fogger 37. ACC SOCKET 15 A:
Power outlet
38. FL DOOR 20 A: Power windows
39. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, security
system
40. MET IG2 10 A: Gauges and meters
41. FR WIP 30 A: Windshield wipers
42. FR WSH 15 A: Windshield washer
43. ECU–IG 7.5 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, shift lock control system,
electric cooling fan, panorama mooroof,
anti–lock brake system
44. GAUGE 10 A: Back–up lights, electric
cooling fan, air conditioning system,
emergency flasher, power windows,
power door lock system, gauges and
meters
45. STOP 10 A: Stop lights, high mounted
stoplight, shift lock control system,
multiport fuel injection system/sequen-
tial multiport fuel injection system, anti–
lock brake system
46. DOOR 20 A: Power door lock system
47. FR FOG 15 A: Fog lights
48. AM1 25 A: Starting system, “CIG” and
“ACC” fuses
