TOYOTA tC 2007 Owners Manual (in English)

i
Foreword
Welcome to the growing group of value–conscious people who drive Scions. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner ’s Manual explains the operation of your new Scion. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble–free motoring. For
important information about this manual and your Scion, read the following pages carefully.
When it comes to service, remember that your Scion dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Scion dealer will provide quality maintenance and any other assistance you may require.
If there is not a Scion dealer near you, please call the following number:
U.S. OWNERS
When traveling in the U.S. mainland:
Scion Customer ExperienceTollfree:186670SCION or 18667072466
Hawaii:
Servco Automotive Customer ServicesTollfree:18882725515
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Scion’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
Please access our websites for further information.
The U.S. mainlandwww.scion.com
Hawaiiwww.scionhawaii.com
©2006 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

ii
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.

iii
Important information about your Scion
Occupant restraint systems
Scion encourages you and your family to take the time
to read Section 1–3 of this Owner ’s Manual carefully. In
terms of helping you understand how you can receive
the maximum benefit of the occupant restraint systems
this vehicle provides, Section 1–3 of this Owner’s Manu-
al is the most important section for you and your family
to read.
Section 1–3 describes the function and operation con-
cerning seats, seat belts, SRS airbags and child re-
straint systems of this vehicle and some potential haz-
ards you should be aware of. These systems work to-
gether along with the overall structure of this vehicle in
order to provide occupant restraint in the event of a
crash. The effect of each system is enhanced when it is
used properly and together with other systems. No
single occupant restraint system can, by itself, provide
you or your family with the equal level of restraint which
these systems can provide when used together. That is
why it is important for you and your family to under-
stand the purpose and proper use of each of these
systems and how they relate to each other.
The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either indi-
vidually or together, can ensure that there is no injury in
the event of collision. However, the more you know
about these systems and how to use them properly, the
greater your chances become of surviving an accident
without death or serious injury.
Seat belts provide the primary restraint to all occupants
of the vehicle, and every occupant of the vehicle should
wear seat belts properly at all times. Children should
always be secured in child restraint systems that are
appropriate for their age and size. SRS (Supplemental
Restraint System) airbags are, as their names imply,
designed to work with, and be supplemental to, seat
belts and are not substitutes for them. SRS airbags can
be very effective in reducing the risk of head and chest
injuries by preventing contact of the head and chest with
interior portions of the vehicle.

iv
In order to be effective, the SRS airbags must deploy
with tremendous speed. The rapid deployment of the
SRS airbags makes the SRS airbags themselves poten-
tial sources of serious injury if an occupant is too close
to an airbag, or if an object or some part of his or her
body has been placed between the occupant and the
airbag at the time of deployment. This is just one exam-
ple of how the instructions in Section 1–3 of this Own-
er ’s Manual will help ensure proper use of the occupant
restraint systems, and increase the safety they can pro-
vide to you and your family in the event of an accident.
Scion recommends you to read the provisions in Section
1–3 carefully and refer to them as needed during your
time of ownership of this vehicle.Event data recorder
Your vehicle has computers that monitor and control
certain aspects of your vehicle. These computers assist
in driving and maintaining optimal vehicle performance.
Besides storing data useful for troubleshooting, there is
a system to record data in a crash or a near car crash
event. This is called an Event Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In
a crash or a near car crash event, this device may
record some or all of the following information:
Engine speed
Whether the brake pedal was applied or not
Vehicle speed
To what extent the accelerator pedal was depressed
Position of the transmission selector lever
Whether the driver and front passenger wore the
seat belts or not
Driver ’s seat position
Front passenger ’s occupant classification

v
SRS airbag deployment data
SRS airbag system diagnostic data
The information above is intended to be used for the
purpose of improving vehicle safety performance. Unlike
general data recorders, the EDR does not record sound
data such as conversation between passengers.
Scion will not disclose the data recorded in an EDR to
a third party except when:
An agreement from the vehicle’s owner (or the leas-
ing company for a leased vehicle) is obtained
Officially requested by the police or other authorities
Used as a defence for Scion in a law suit
Ordered by the court
However, if necessary Scion will:
Use the data for research on Scion vehicle safety
performance
Disclose the data to a third party for research pur-
poses without disclosing details of the vehicle own-
er, and only when it is deemed necessary
Disclose summarized data cleared of vehicle identifi-
cation information to a non−Scion organization for
research purposesNew vehicle warranty
Your new vehicle is covered by the following Scion lim-
ited warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner ’s Manual
Supplement”.
Your responsibility for
maintenance
It is the owner ’s responsibility to make sure the speci-
fied maintenance is performed. Section 6 gives details
of these maintenance requirements. Also included in
Section 6 is general maintenance. For scheduled mainte-
nance information, please refer to the “Scheduled Main-
tenance Guide” or “Owner ’s Manual Supplement”.

vi
Important health and safety
information about your Scion

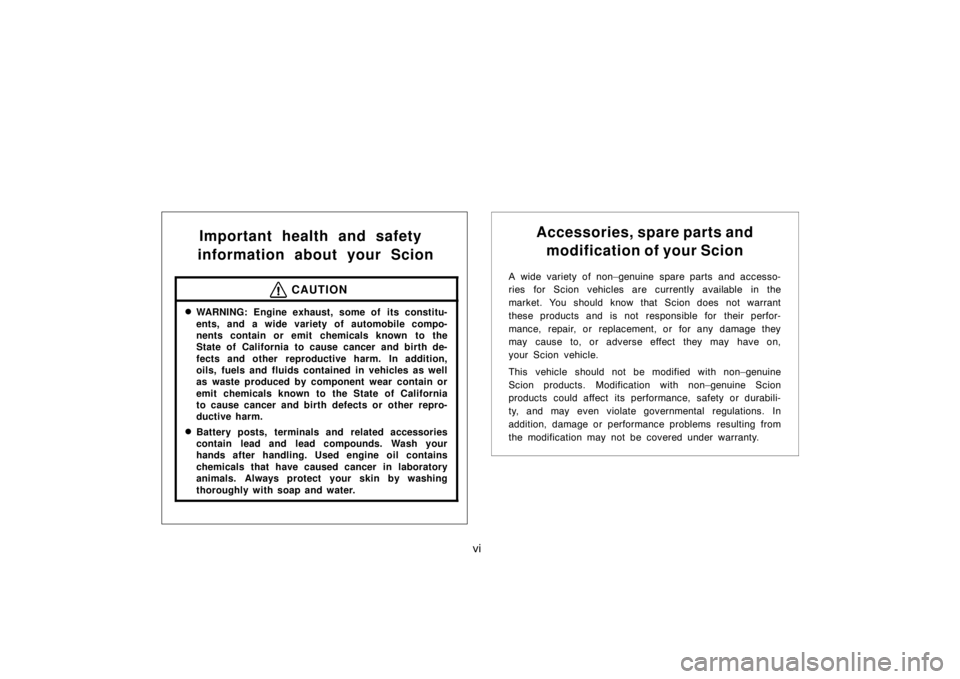

CAUTION
WARNING: Engine exhaust, some of its constitu-
ents, and a wide variety of automobile compo-
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as well
as waste produced by component wear contain or
emit chemicals known to the State of California
to cause cancer and birth defects or other repro-
ductive harm.
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.
Accessories, spare parts and
modification of your Scion
A wide variety of non–genuine spare parts and accesso-
ries for Scion vehicles are currently available in the
market. You should know that Scion does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Scion vehicle.
This vehicle should not be modified with non–genuine
Scion products. Modification with non–genuine Scion
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.

vii
Installation of a mobile
two–way radio system
As the installation of a mobile two–way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti–lock brake
system, SRS airbag system and seat belt pretensioner
system, be sure to check with your Scion dealer for
precautionary measures or special instructions regarding
installation.
Tires and loading on your Scion
Underinflated or overinflated tire inflation pressure
and the excess load may result in the deterioration
of steering ability and braking ability, leading to
an accident. Check the tire inflation pressure peri-
odically and be sure to keep the load limits given
in this Owner ’s Manual. For details about tire infla-
tion pressure and load limits, see page 231 and
page 170.

viii
Scrapping of your Scion
The SRS airbag and seat belt pretensioner devices in
your Scion contain explosive chemicals. If the vehicle is
scrapped with the airbags and seat belt pretensioners
left as they are, this may cause an accident such as a
fire. Be sure to have the systems of the SRS airbag
and seat belt pretensioner removed and disposed of by
a qualified service shop or by your Scion dealer before
you scrap your vehicle.
Leak detection pump
This pump performs fuel evaporation leakage check.
This check is done approximately five hours after the
engine is turned off. So you may hear a sound coming
from underneath the luggage compartment for several
minutes. It does not indicate a malfunction.

1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument cluster5 . . . . . . . . . . . . . . . . . . . . . .
SECTION 1– 1

2

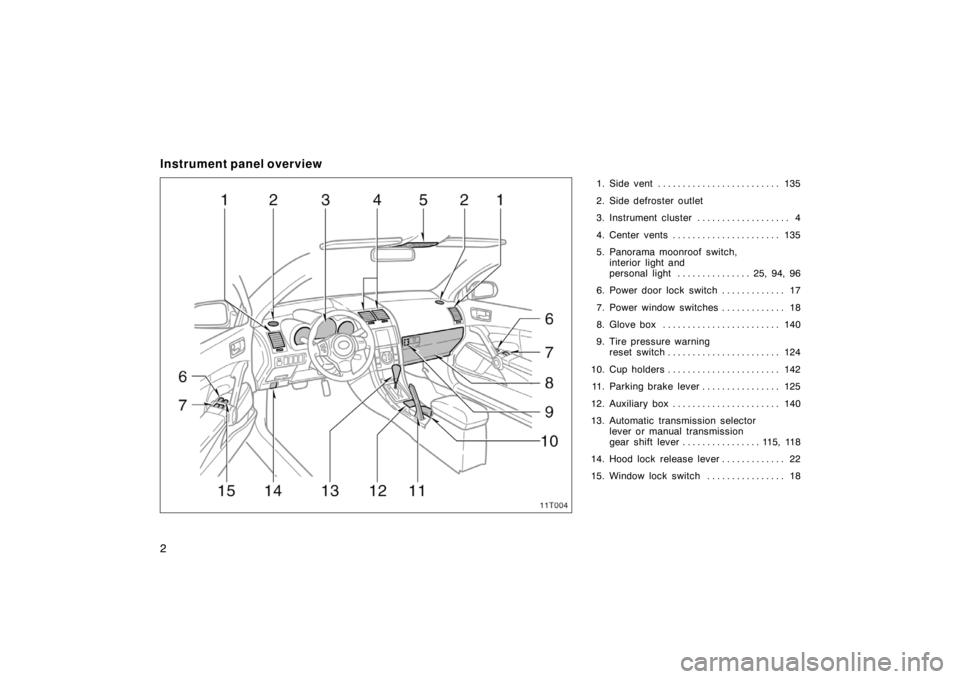

Instrument panel overview
1. Side vent 135. . . . . . . . . . . . . . . . . . . . . . . . .
2. Side defroster outlet
3. Instrument cluster 4. . . . . . . . . . . . . . . . . . .
4. Center vents 135. . . . . . . . . . . . . . . . . . . . . .
5. Panorama moonroof switch,
interior light and
personal light 25, 94, 96. . . . . . . . . . . . . . .
6. Power door lock switch 17. . . . . . . . . . . . .
7. Power window switches 18. . . . . . . . . . . . .
8. Glove box 140. . . . . . . . . . . . . . . . . . . . . . . .
9. Tire pressure warning
reset switch 124. . . . . . . . . . . . . . . . . . . . . . .
10. Cup holders 142. . . . . . . . . . . . . . . . . . . . . . .
11. Parking brake lever 125. . . . . . . . . . . . . . . .
12. Auxiliary box 140. . . . . . . . . . . . . . . . . . . . . .
13. Automatic transmission selector
lever or manual transmission
gear shift lever 115, 118. . . . . . . . . . . . . . . .
14. Hood lock release lever 22. . . . . . . . . . . . .
15. Window lock switch 18. . . . . . . . . . . . . . . .
11T004
