TOYOTA tC 2008 Accessories, Audio & Navigation (in English)

41

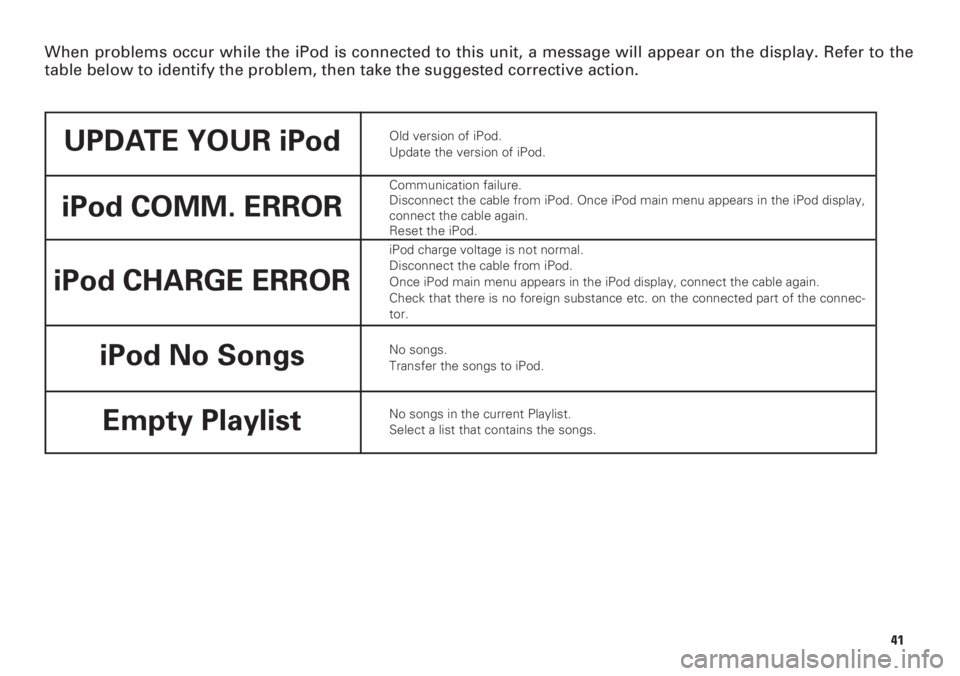

When problems occur while the iPod is connected to this unit, a message will appear on the display. Refer to the
table below to identify the problem, then take the suggested corrective action.
No songs.
Transfer the songs to iPod. Communication failure.
Disconnect the cable from iPod. Once iPod main menu appears in the iPod display,
connect the cable again.
Reset the iPod. Old version of iPod.
Update the version of iPod.
No songs in the current Playlist.
Select a list that contains the songs.iPod No Songs iPod COMM. ERRORUPDATE YOUR iPod
Empty Playlist
iPod charge voltage is not normal.
Disconnect the cable from iPod.
Once iPod main menu appears in the iPod display, connect the cable again.
Check that there is no foreign substance etc. on the connected part of the connec-
tor.
iPod CHARGE ERROR

42
CHECK ANTENNA
UPDATING
NO SIGNAL
LOADING
OFF AIR
When problems occur with the XM tuner, a message will appear on the display. Refer to the table below to identi-
fy the problem, then take the suggested corrective action.
The XM Listener Care Center is also available on the phone, please call (800)-852-9696 during the following hours:
Mon - Sat: 7 AM - 1 AM EST Sun: 12 PM - 12 AM EST
The XM antenna is not connected.
Check whether the XM antenna cable is attached securely.
A short-circuit occurring in the antenna or the surrounding antenna cable.
Make sure that there is nothing unusual with the antenna or antenna cable.
You have not subscribed to XM. Radio is being updated with latest encryption code.
Contact XM Satellite Radio for subscription information. When a contract is canceled
you can choose CH000 and all free-to-air channels.
Premium channel you selected is not authorized.
Wait approximately 2 seconds until the radio returns to the previous channel or CH001.
If it doesn't change automatically, select another channel.
If you want to listen to the premium channel, please contact XM.
XM signal is too weak at the current location.
Wait until your vehicle reaches a location with a stronger signal.
Unit is acquiring audio or program information.
Wait until the unit has received the information.
The channel you selected is not broadcasting any programming.
Select another channel.

43

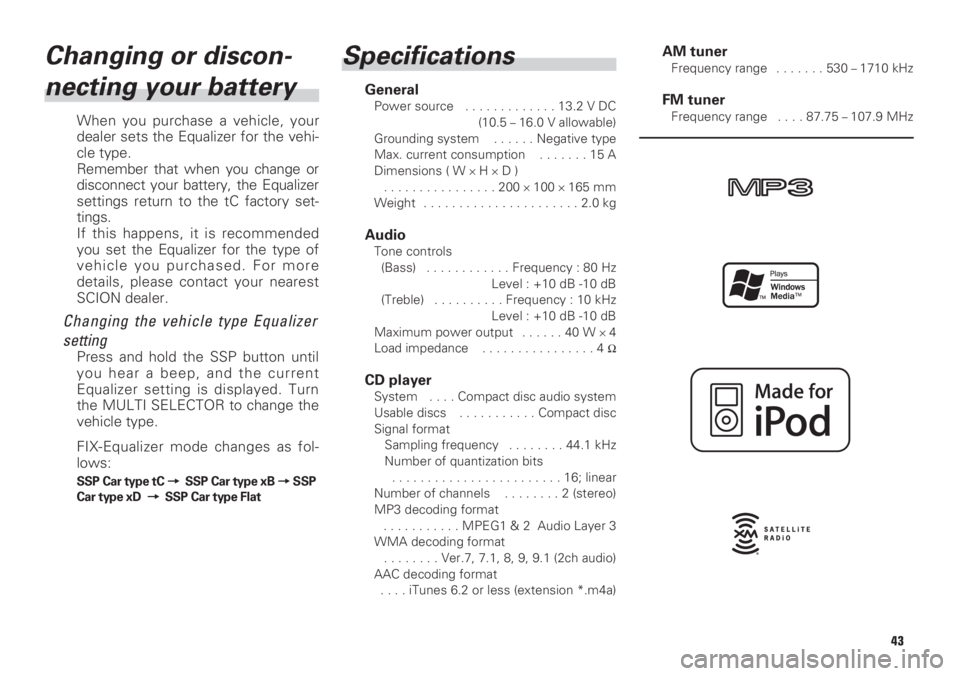

Changing or discon-
necting your battery
When you purchase a vehicle, your
dealer sets the Equalizer for the vehi-
cle type.
Remember that when you change or
disconnect your battery, the Equalizer
settings return to the tC factory set-
tings.
If this happens, it is recommended
you set the Equalizer for the type of
vehicle you purchased. For more
details, please contact your nearest
SCION dealer.
Changing the vehicle type Equalizer
setting
Press and hold the SSP button until
you hear a beep, and the current
Equalizer setting is displayed. Turn
the MULTI SELECTOR to change the
vehicle type.
FIX-Equalizer mode changes as fol-
lows:
SSP Car type tC =SSP Car type xB =SSP
Car type xD =SSP Car type Flat
Specifications
GeneralPower source . . . . . . . . . . . . . 13.2 V DC
(10.5– 16.0 V allowable)
Grounding system . . . . . . Negative type
Max. current consumption . . . . . . . 15 A
Dimensions ( W
×H ×D )
. . . . . . . . . . . . . . . . 200 ×100 ×165 mm
Weight . . . . . . . . . . . . . . . . . . . . . . 2.0 kg
AudioTone controls
(Bass) . . . . . . . . . . . . Frequency : 80 Hz
Level : +10 dB -10 dB
(Treble) . . . . . . . . . . Frequency : 10 kHz
Level : +10 dB -10 dB
Maximum power output . . . . . . 40 W
×4
Load impedance . . . . . . . . . . . . . . . . 4 Ω
CD playerSystem . . . . Compact disc audio system
Usable discs . . . . . . . . . . . Compact disc
Signal format
Sampling frequency . . . . . . . . 44.1 kHz
Number of quantization bits
. . . . . . . . . . . . . . . . . . . . . . . . 16; linear
Number of channels . . . . . . . . 2 (stereo)
MP3 decoding format
. . . . . . . . . . . MPEG1 & 2 Audio Layer 3
WMA decoding format
. . . . . . . . Ver.7, 7.1, 8, 9, 9.1 (2ch audio)
AAC decoding format
. . . . iTunes 6.2 or less (extension *.m4a)
AM tunerFrequency range . . . . . . . 530– 1710 kHz
FM tunerFrequency range . . . . 87.75– 107.9 MHz

44
