CD player TOYOTA tC 2008 Accessories, Audio & Navigation (in English)

Owner’s Manual
for AM/FM/CD Player with iPod Control
Audio System

WMA is short for Windows Media
Audio and refers to an audio com-
pression technology that is devel-
oped by Microsoft Corporation.
WMA data can be encoded by
using Windows Media Player ver-
sion 7 or later.
Windows Media and the Windows
logo are trademarks or registered
trademarks of Microsoft Corporation
in the United States and/or other
countries.
About iPod
• Reproducing and playing back
non-copyrighted material and
material that can legally be repro-
duced and played back for private
use is permitted with the iPod.Infringement of copyright is legal-
ly prohibited.
Important information
about this manual
For safety reasons, this manual
indicates items requiring particular
attention with the following marks.
To ensure the correct
audio system operation
• Be careful not to spill beverages
over the audio system.
• Do not put anything other than a
Compact Disc into the slot.
• The use of cellular phones inside
or near the vehicle may cause
noise from the audio system
speakers you are listening to.
However, this does not indicate a
malfunction.
3
NOTES
• With some applications
used to encode WMA files,
this unit may not operate
correctly.
• With some applications
used to encode WMA files,
album names and other text
information may not be cor-
rectly displayed.
NOTICE
This is a warning against any-
thing which may cause dam-
age to the vehicle or its
equipment if the warning is
ignored. You are informed
about what you must or must
not do in order to avoid or
reduce the risk of damage to
your vehicle and its equipment.
CAUTION
This is a warning against any-
thing which may cause injury to
people if the warning is ignored.
You are informed about what
you must or must not do in
order to reduce the risk of injury
to yourself and others.
USE OF CONTROL OR ADJUST-
MENT OR PERFORMANCE OF PRO-
CEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPO-
SURE. THE USE OF OPTICAL
INSTRUMENTS WITH THIS PROD-
UCT WILL INCREASE EYE HAZARD.

Contents
Display and Multi Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Listening to the RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Listening to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Listening to MP3/WMA/AAC DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
About handling the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
Disconnecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Listening to songs on iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22
How to Subscribe to XM Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Listening to a XM Satellite Radio broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Display the RADIO ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Using the AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
Changing the Opening Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31
Rewriting the entertainment displays function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Initial Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Connecting the external amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Using the Steering Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MP3, WMA and AAC files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
MP3 additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
WMA additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
AAC additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
About folders and MP3/WMA/AAC files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-37
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
CD player and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CD-R and CD-RW discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Error indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-42
Changing or disconnecting your battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4

4SSP (Scion Sound Processing)SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
You can select from the modes
below.
Neutral: A subdued sound that
does not interfere with
conversations.
Hear: A powerful, energetic,
“live” sound.
Feel: Player’s sound —> repro-
duces the sound on the
stage that musicians hear.
For more details, please visit the SCION
Web site at http://www.scion.com/.
Each time you press it, the SSP
changes in the following order:
Neutral =Hear =Feel =Neutral
5MUTE
To reduce the volume instantaneous-
ly, press the MUTE button.
MUTEwill flash on and off.
To cancel this mode, press the
MUTE button again.
NOTICE
•The SRT function can only
be selected when playing
MP3/WMA/AAC from CD.
•The SRT function does not
support external com-
pressed audio media.
•BASS function and TREBLE
function values can be set
for each of the modes (AM,
FM, CD/MP3/WMA/AAC,
iPod, XM Satellite Radio,
AUX).When you switch
modes, the settings change
to the BASS and TREBLE
values set for the selected
mode.
•The ASL function is only
effective when the vehicle is
moving. Some vehicles may
not be wired for the vehicle
speed pulse signal. In this
case, you cannot use the
ASL function (the ASL item
is not displayed in the
AUDIO CONTROL menu).
8

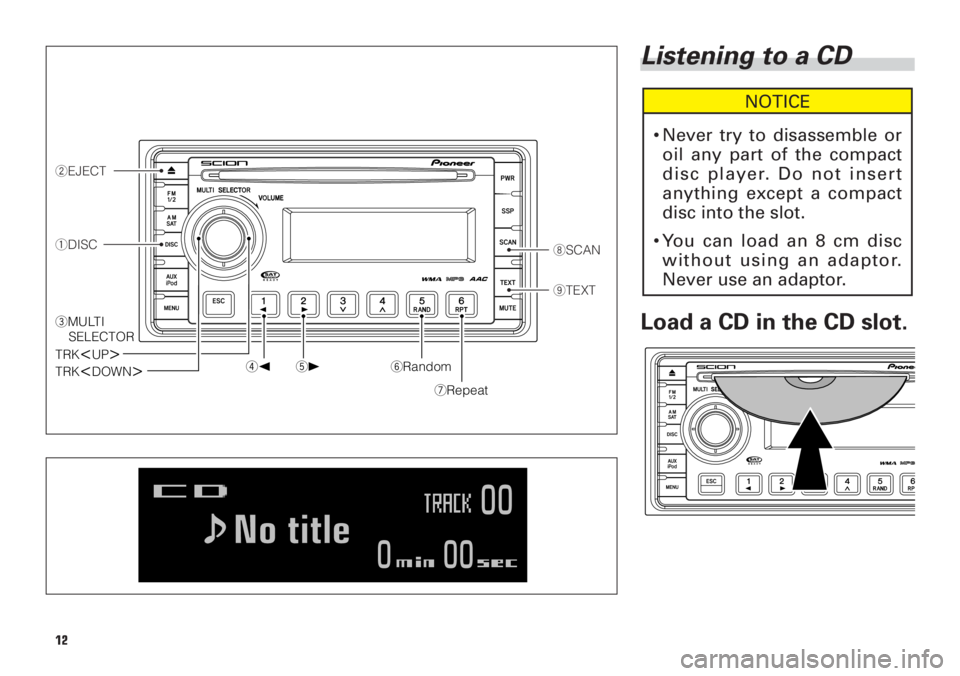

Listening to a CD
Load a CD in the CD slot.
NOTICE
•Never try to disassemble or
oil any part of the compact
disc player. Do not insert
anything except a compact
disc into the slot.
•You can load an 8 cm disc
without using an adaptor.
Never use an adaptor.
8SCAN
9TEXT
2EJECT
1DISC
4
[5
]6Random
7Repeat
TRK
3MULTI
SELECTOR
TRK

12

1DISC

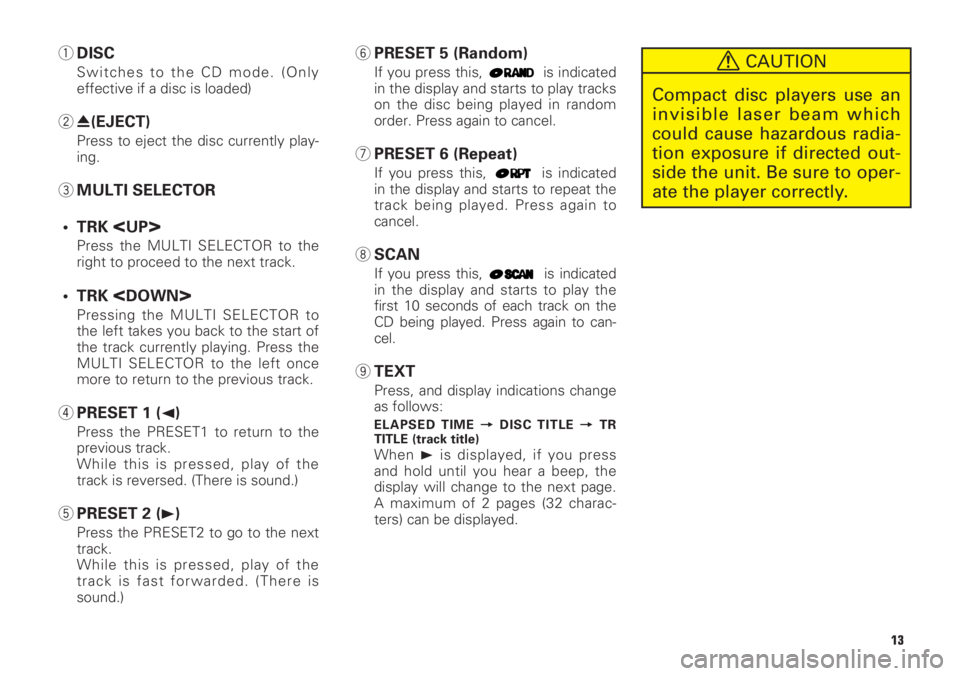

Switches to the CD mode. (Only
effective if a disc is loaded)
20(EJECT)
Press to eject the disc currently play-
ing.
3MULTI SELECTOR
• TRK

Press the MULTI SELECTOR to the
right to proceed to the next track.
• TRK
Pressing the MULTI SELECTOR to
the left takes you back to the start of
the track currently playing. Press the
MULTI SELECTOR to the left once
more to return to the previous track.
4PRESET 1 (2)
Press the PRESET1 to return to the
previous track.
While this is pressed, play of the
track is reversed. (There is sound.)
5PRESET 2 (3)
Press the PRESET2 to go to the next
track.
While this is pressed, play of the
track is fast forwarded. (There is
sound.)
6PRESET 5 (Random)
If you press this, is indicated
in the display and starts to play tracks
on the disc being played in random
order. Press again to cancel.
7PRESET 6 (Repeat)
If you press this, is indicated
in the display and starts to repeat the
track being played. Press again to
cancel.
8SCAN
If you press this, is indicated
in the display and starts to play the
first 10 seconds of each track on the
CD being played. Press again to can-
cel.
9TEXT
Press, and display indications change
as follows:
ELAPSED TIME =DISC TITLE =TR
TITLE (track title)
When 3is displayed, if you press
and hold until you hear a beep, the
display will change to the next page.
A maximum of 2 pages (32 charac-
ters) can be displayed.
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radia-
tion exposure if directed out-
side the unit. Be sure to oper-
ate the player correctly.
13

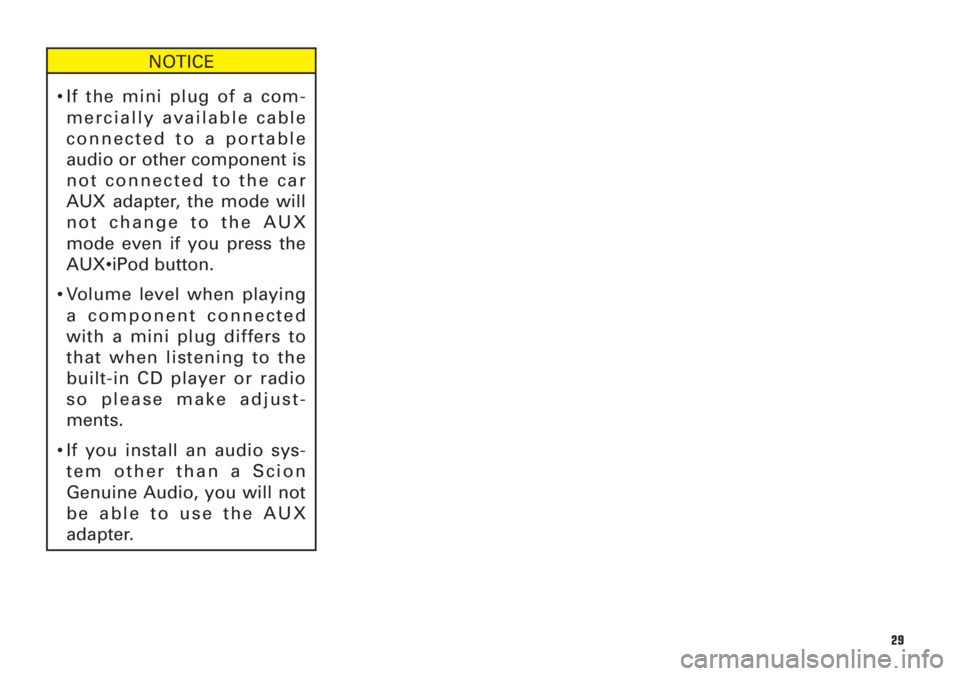

NOTICE
•If the mini plug of a com-
mercially available cable
connected to a portable
audio or other component is
not connected to the car
AUX adapter, the mode will
not change to the AUX
mode even if you press the
AUX•iPod button.
•Volume level when playing
a component connected
with a mini plug differs to
that when listening to the
built-in CD player or radio
so please make adjust-
ments.
•If you install an audio sys-
tem other than a Scion
Genuine Audio, you will not
be able to use the AUX
adapter.
29

35

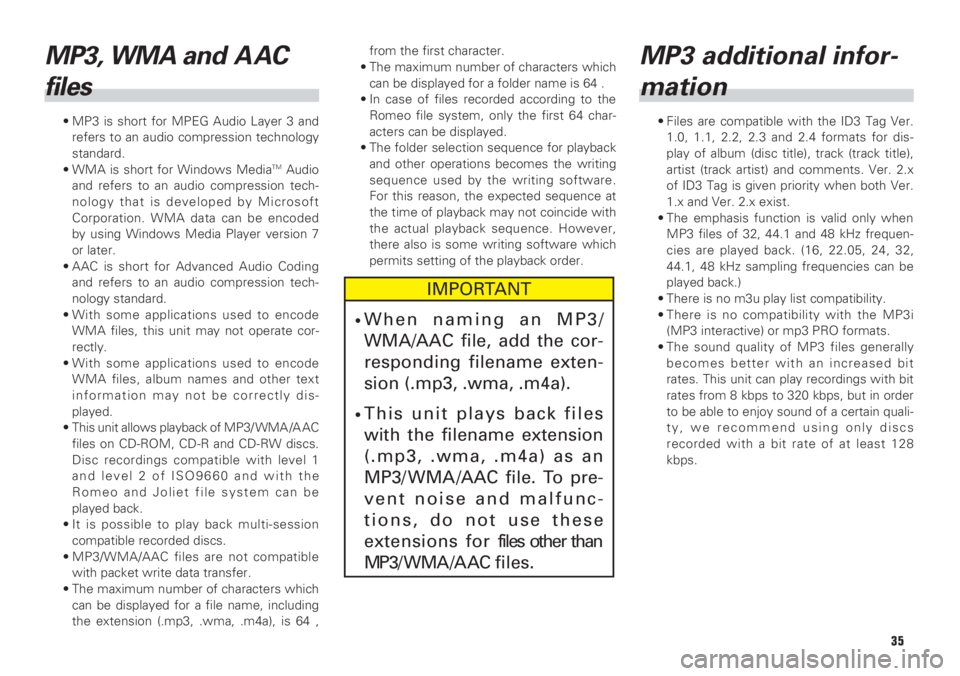

MP3, WMA and A AC
files
• MP3 is short for MPEG Audio Layer 3 and
refers to an audio compression technology
standard.
• WMA is short for Windows Media
TMAudio
and refers to an audio compression tech-
nology that is developed by Microsoft
Corporation. WMA data can be encoded
by using Windows Media Player version 7
or later.
• AAC is short for Advanced Audio Coding
and refers to an audio compression tech-
nology standard.
• With some applications used to encode
WMA files, this unit may not operate cor-
rectly.
• With some applications used to encode
WMA files, album names and other text
information may not be correctly dis-
played.
• This unit allows playback of MP3/ WMA /A AC
files on CD-ROM, CD-R and CD-RW discs.
Disc recordings compatible with level 1
and level 2 of ISO9660 and with the
Romeo and Joliet file system can be
played back.
• It is possible to play back multi-session
compatible recorded discs.
• MP3/WMA/AAC files are not compatible
with packet write data transfer.
• The maximum number of characters which
can be displayed for a file name, including
the extension (.mp3, .wma, .m4a), is 64 ,from the first character.
• The maximum number of characters which
can be displayed for a folder name is 64 .
• In case of files recorded according to the
Romeo file system, only the first 64 char-
acters can be displayed.
• The folder selection sequence for playback
and other operations becomes the writing
sequence used by the writing software.
For this reason, the expected sequence at
the time of playback may not coincide with
the actual playback sequence. However,
there also is some writing software which
permits setting of the playback order.
MP3 additional infor-
mation
• Files are compatible with the ID3 Tag Ver.
1.0, 1.1, 2.2, 2.3 and 2.4 formats for dis-
play of album (disc title), track (track title),
artist (track artist) and comments. Ver. 2.x
of ID3 Tag is given priority when both Ver.
1.x and Ver. 2.x exist.
• The emphasis function is valid only when
MP3 files of 32, 44.1 and 48 kHz frequen-
cies are played back. (16, 22.05, 24, 32,
44.1, 48 kHz sampling frequencies can be
played back.)
• There is no m3u play list compatibility.
• There is no compatibility with the MP3i
(MP3 interactive) or mp3 PRO formats.
• The sound quality of MP3 files generally
becomes better with an increased bit
rates. This unit can play recordings with bit
rates from 8 kbps to 320 kbps, but in order
to be able to enjoy sound of a certain quali-
ty, we recommend using only discs
recorded with a bit rate of at least 128
kbps.
IMPORTANT
•When naming an MP3/
WMA/AAC file, add the cor-
responding filename exten-
sion (.mp3, .wma, .m4a).
•This unit plays back files
with the filename extension
(.mp3, .wma, .m4a) as an
MP3/ WMA /AAC file. To pre-
vent noise and malfunc-
tions, do not use these
extensions for files other than
MP3/WMA/AAC files.

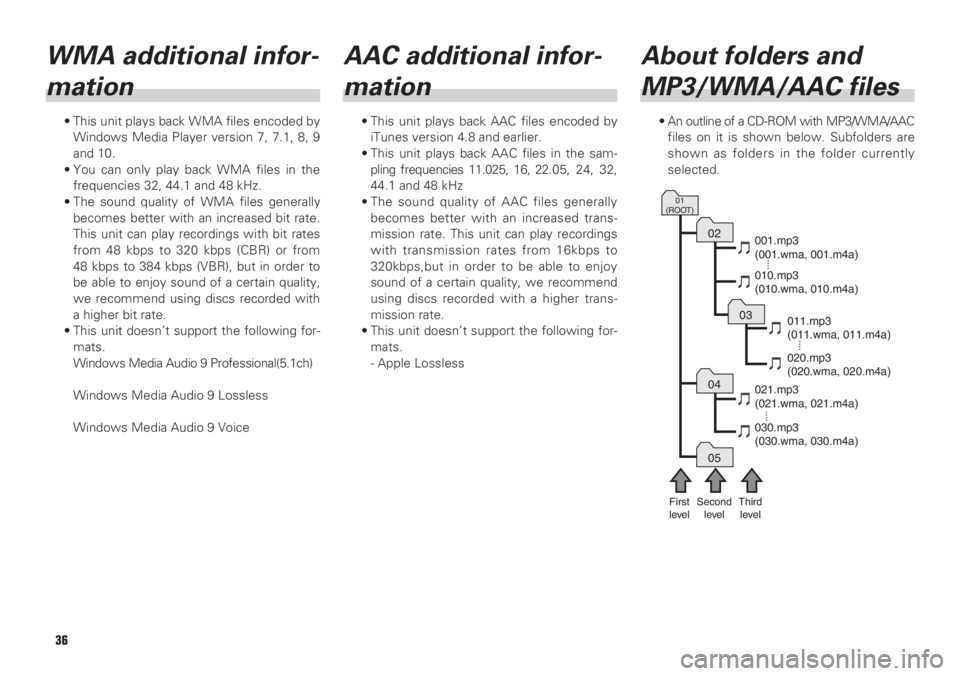

WMA additional infor-
mation
• This unit plays back WMA files encoded by
Windows Media Player version 7, 7.1, 8, 9
and 10.
• You can only play back WMA files in the
frequencies 32, 44.1 and 48 kHz.
• The sound quality of WMA files generally
becomes better with an increased bit rate.
This unit can play recordings with bit rates
from 48 kbps to 320 kbps (CBR) or from
48 kbps to 384 kbps (VBR), but in order to
be able to enjoy sound of a certain quality,
we recommend using discs recorded with
a higher bit rate.
• This unit doesn’t support the following for-
mats.
Windows Media Audio 9 Professional(5.1ch)
Windows Media Audio 9 Lossless
Windows Media Audio 9 Voice
AAC additional infor-
mation
• This unit plays back AAC files encoded by
iTunes version 4.8 and earlier.
• This unit plays back AAC files in the sam-
pling frequencies 11.025, 16, 22.05, 24, 32,
44.1 and 48 kHz
• The sound quality of AAC files generally
becomes better with an increased trans-
mission rate. This unit can play recordings
with transmission rates from 16kbps to
320kbps,but in order to be able to enjoy
sound of a certain quality, we recommend
using discs recorded with a higher trans-
mission rate.
• This unit doesn’t support the following for-
mats.
- Apple Lossless
About folders and
MP3/WMA/AAC files
• An outline of a CD-ROM with MP3/WMA/AAC
files on it is shown below. Subfolders are
shown as folders in the folder currently
selected.
001.mp3
(001.wma, 001.m4a)
010.mp3
(010.wma, 010.m4a)
021.mp3
(021.wma, 021.m4a)
030.mp3
(030.wma, 030.m4a)
011.mp3
(011.wma, 011.m4a)
020.mp3
(020.wma, 020.m4a)
First
levelSecond
levelThird
level
01
(ROOT)
02
04
05
03
36

38

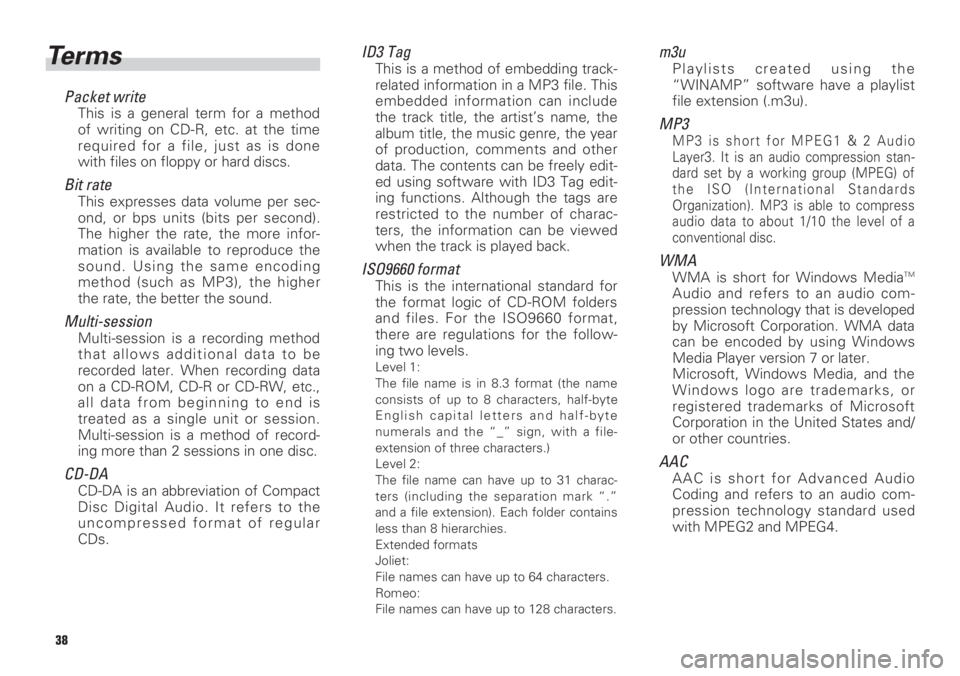

Terms
Packet writeThis is a general term for a method
of writing on CD-R, etc. at the time
required for a file, just as is done
with files on floppy or hard discs.
Bit rateThis expresses data volume per sec-
ond, or bps units (bits per second).
The higher the rate, the more infor-
mation is available to reproduce the
sound. Using the same encoding
method (such as MP3), the higher
the rate, the better the sound.
Multi-sessionMulti-session is a recording method
that allows additional data to be
recorded later. When recording data
on a CD-ROM, CD-R or CD-RW, etc.,
all data from beginning to end is
treated as a single unit or session.
Multi-session is a method of record-
ing more than 2 sessions in one disc.
CD-DACD-DA is an abbreviation of Compact
Disc Digital Audio. It refers to the
uncompressed format of regular
CDs.
ID3 TagThis is a method of embedding track-
related information in a MP3 file. This
embedded information can include
the track title, the artist’s name, the
album title, the music genre, the year
of production, comments and other
data. The contents can be freely edit-
ed using software with ID3 Tag edit-
ing functions. Although the tags are
restricted to the number of charac-
ters, the information can be viewed
when the track is played back.
ISO9660 formatThis is the international standard for
the format logic of CD-ROM folders
and files. For the ISO9660 format,
there are regulations for the follow-
ing two levels.
Level 1:
The file name is in 8.3 format (the name
consists of up to 8 characters, half-byte
English capital letters and half-byte
numerals and the “_” sign, with a file-
extension of three characters.)
Level 2:
The file name can have up to 31 charac-
ters (including the separation mark “.”
and a file extension). Each folder contains
less than 8 hierarchies.
Extended formats
Joliet:
File names can have up to 64 characters.
Romeo:
File names can have up to 128 characters.
m3uPlaylists created using the
“WINAMP” software have a playlist
file extension (.m3u).
MP3MP3 is short for MPEG1 & 2 Audio
Layer3. It is an audio compression stan-
dard set by a working group (MPEG) of
the ISO (International Standards
Organization). MP3 is able to compress
audio data to about 1/10 the level of a
conventional disc.
WMAWMA is short for Windows MediaTM
Audio and refers to an audio com-
pression technology that is developed
by Microsoft Corporation. WMA data
can be encoded by using Windows
Media Player version 7 or later.
Microsoft, Windows Media, and the
Windows logo are trademarks, or
registered trademarks of Microsoft
Corporation in the United States and/
or other countries.
AACAAC is short for Advanced Audio
Coding and refers to an audio com-
pression technology standard used
with MPEG2 and MPEG4.
