Page 80 of 204

70ROUTE GUIDANCE
SCION V398
DTo display the local POI list
Points of Interest that are within 20 miles
(32 km) of the current position will be listed
from among the selected categories.
1. Touch “Local POI List” on the “Dis-
play POI icons” screen.
2. Touch the button of the desired
Point of Interest.
The selected Points of Interest are dis-
played on the map screen.
“On Route”:When the indicator is illumi-
nated by touching this button, the list of the
items searched along the route is dis-
played.
DTo set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination
and use it for route guidance.
1. Directly touch the Point of Interest
icon that you want to set as a destina-
tion.
The map will shift so that the icon is cen-
tered on the screen and overlaps with the
cursor
. At this time, the distance from
the current position is displayed on the
screen. The distance shown is measured
as a straight line from the current vehicle
position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and
route preference. (See “Starting route
guidance” on page 50.)
Page 81 of 204

71ROUTE GUIDANCE
SCION V398
1. Touch “Map View”.
2. Touch “Route Overview”.
The entire route from the current position
to the destination is displayed.
“Guide”:To start guidance.
“Route”:To change the route. (See
pages 62 and 64.)
“Turn List”:The following screen displays
the list of the roads up to the destination.
You can scroll through the list of roads by
touching
or. However, not all road
names in the route may appear on the list.
If a road changes its name without requir-
ing a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The
street names will be displayed in order
from the starting point, along with the dis-
tance to the next turn.
These marks indicate the
direction in which you should
turn at an intersection.
Touch “Map” on the “Turn List” screen.
The point which you choose is displayed
on the map screen.
— Route overview
Page 83 of 204

73ROUTE GUIDANCE
SCION V398
It is possible to store the traveled route up
to 124 miles (200 km) and retrace the route
on the display.
INFORMATION
This feature is available on the map
with more detailed map scale than 30
mile (50 km).
Touch “Map View”.
“Record”:To start recording the route
trace.
“Stop”:To stop recording the route trace.
If you touch“Stop”to display the following
screen.
Touching“Yes”stops recording and the
route trace remains displayed on the
screen.
Touching“No”stops recording and the
route trace is erased.
— Route trace
Page 86 of 204

76ADVANCED FUNCTIONS
SCION V398

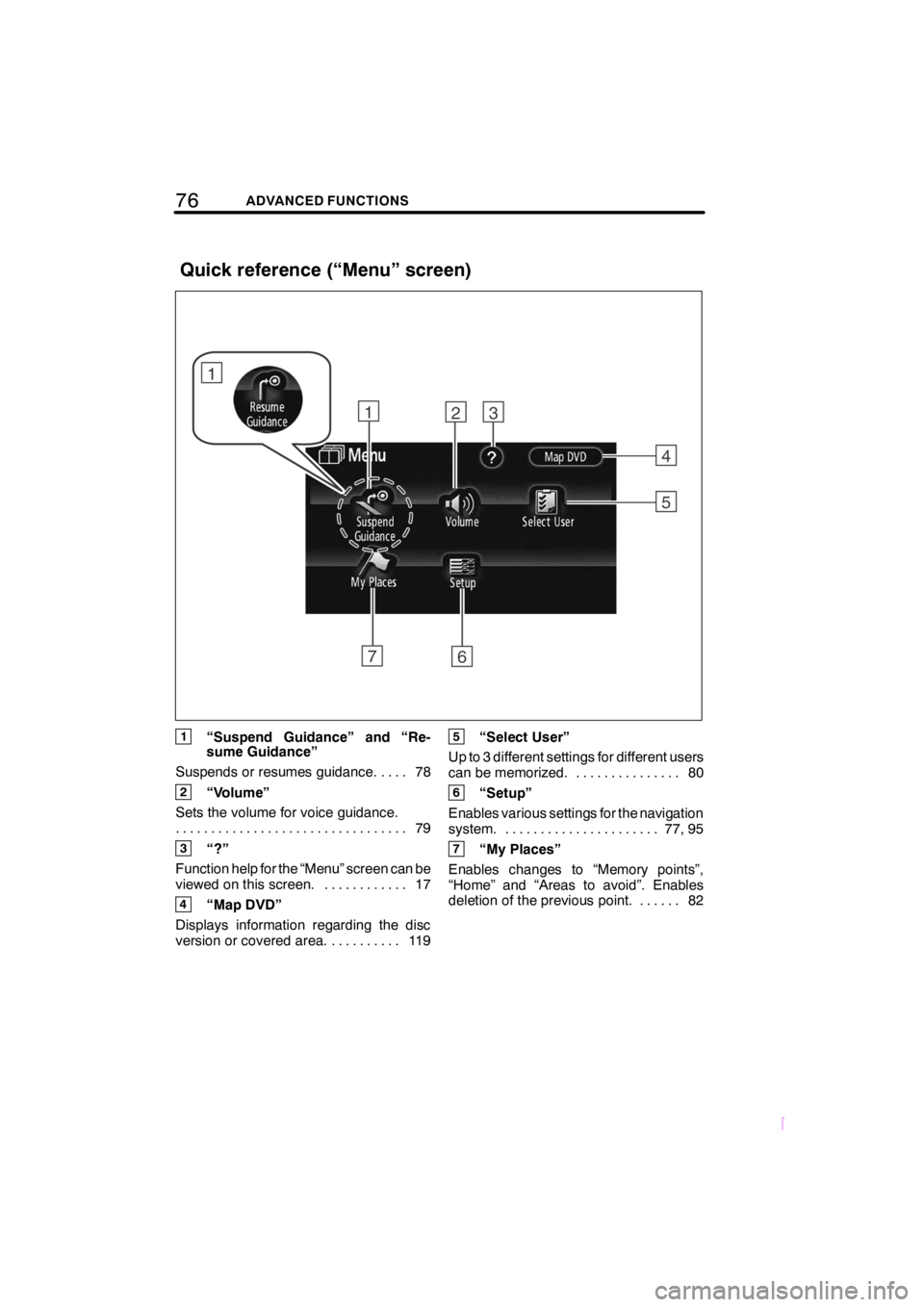

1“Suspend Guidance” and “Re-
sume Guidance”
Suspends or resumes guidance. 78....
2“Volume”
Sets the volume for voice guidance.
79 .................................
3“?”
Function help for the “Menu” screen can be
viewed on this screen. 17............
4“Map DVD”
Displays information regarding the disc
version or covered area. 119..........
5“Select User”
Up to 3 different settings for different users
can be memorized. 80...............
6“Setup”
Enables various settings for the navigation
system. 77, 95......................
7“My Places”
Enables changes to “Memory points”,
“Home” and “Areas to avoid”. Enables
deletion of the previous point. 82......
Quick reference (“Menu” screen)
Page 87 of 204

77ADVANCED FUNCTIONS
SCION V398

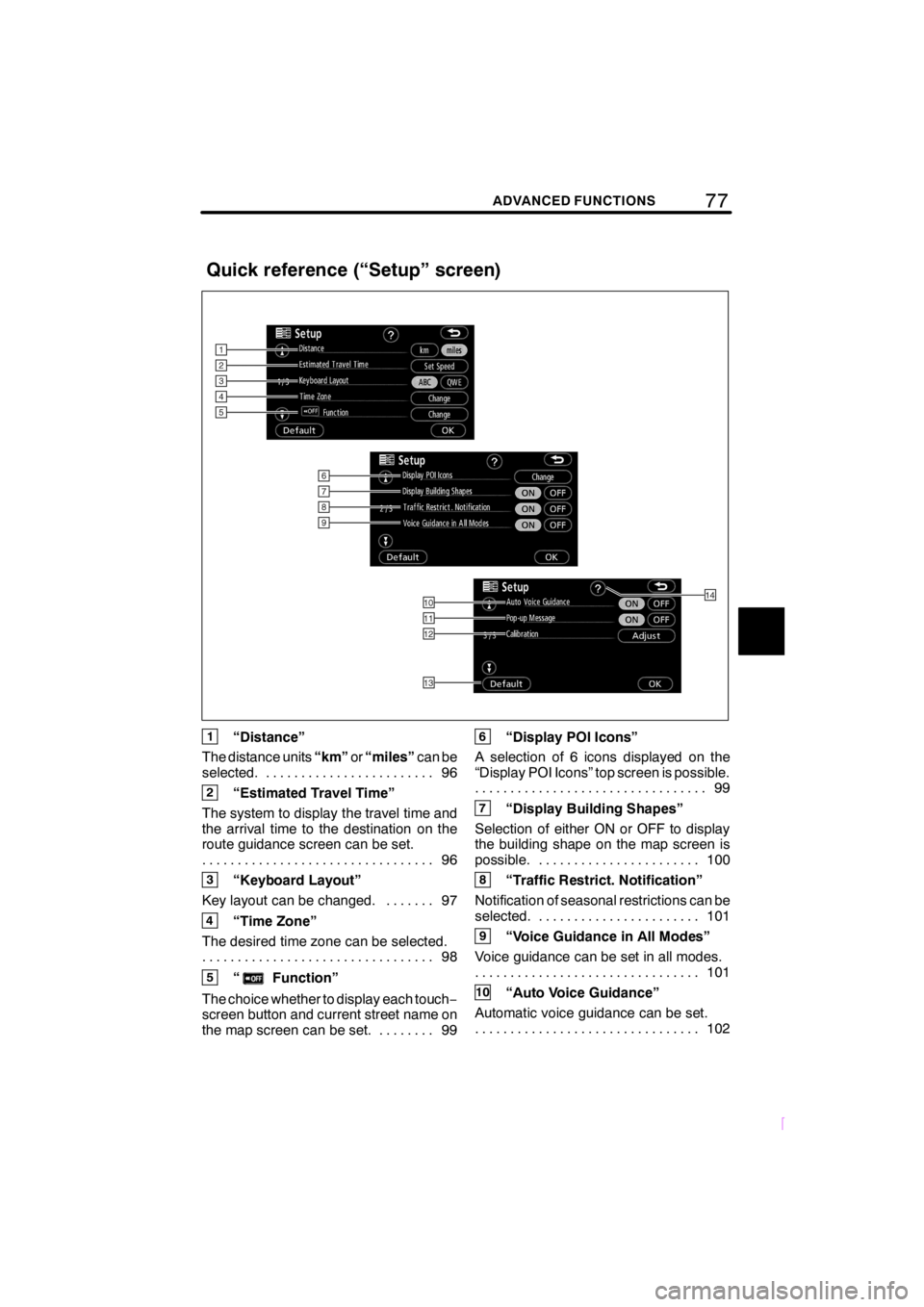

1“Distance”
The distance units“km”or“miles”can be
selected. 96........................
2“Estimated Travel Time”
The system to display the travel time and
the arrival time to the destination on the
route guidance screen can be set.
96 .................................
3“Keyboard Layout”
Key layout can be changed. 97.......
4“Time Zone”
The desired time zone can be selected.
98 .................................
5“Function”
The choice whether to display each touch−
screen button and current street name on
the map screen can be set. 99........
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
99 .................................
7“Display Building Shapes”
Selection of either ON or OFF to display
the building shape on the map screen is
possible. 100.......................
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 101.......................
9“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
101 ................................
10“Auto Voice Guidance”
Automatic voice guidance can be set.
102 ................................
Quick reference (“Setup” screen)
Page 88 of 204

78ADVANCED FUNCTIONS
SCION V398
11“Pop−up Message”
Selection of either ON or OFF to display
the pop−up message is possible. 102..
12“Calibration”
Adjustment of the current vehicle position
mark can be done manually. 103......
13“Default”
This touch−screen button initializes all of
the settings. 95.....................
14“?”
Function help for the “Setup” screen can
be viewed. 17......................

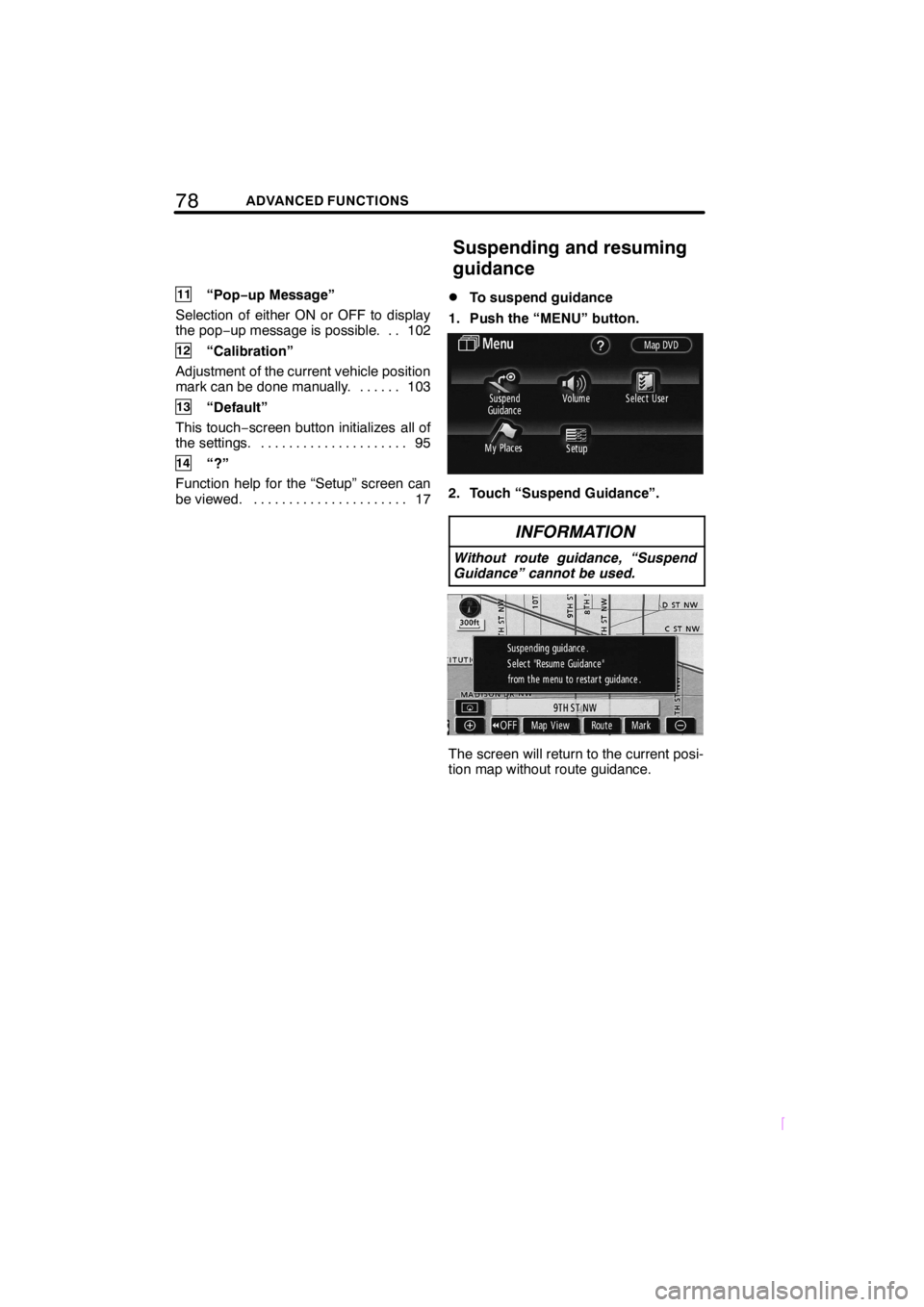

DTo suspend guidance
1. Push the “MENU” button.
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
The screen will return to the current posi-
tion map without route guidance.
Suspending and resuming
guidance
Page 91 of 204

81ADVANCED FUNCTIONS
SCION V398
DTo register
1. Touch “Memorize”.
The confirmation screen will be displayed.
2. To register, touch “Yes”. To return to
the previous screen, touch “No” or
.
When a button that is already registered is
touched, the following screen appears.
To replace, touch“Yes”. To cancel the re-
placement, touch“No”or
.
DTo change user
Touch “User number”.
The above message appears, then the
map screen will be displayed.
Page 92 of 204

82ADVANCED FUNCTIONS
SCION V398
DTo delete user
1. Touch “Delete”.
The confirmation screen will be displayed.
2. To delete, touch “Yes”. To return to
the previous screen, touch “No” or
.Points or areas on the map can be regis-
tered.
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Home” on page 34, “ — Destina-
tion search by Quick access” on page 34
and “ — Destination search by Memory” on
page 46.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
2. Touch “My Places”.
My places —
Page 93 of 204

83ADVANCED FUNCTIONS
SCION V398
On this screen, the following operations
can be performed.
1Registers memory points
(See “ — Registering memory points”
on page 83.)
2Edits memory points
(See “ — Editing memory points” on
page 84.)
3Deletes memory points
(See “ — Deleting memory points” on
page 89.)
4Registers or deletes home
(See “ — Registering home” on page
89 or “ — Deleting home” on page 90.)
5Registers areas to avoid
(See “ — Registering area to avoid”
on page 90.)
6Edits areas to avoid
(See “ — Editing area to avoid” on
page 91.)
7Deletes areas to avoid
(See “ — Deleting area to avoid” on
page 94.)
8Deletes previous points
(See “ — Deleting previous points” on
page 95.)
9Number of remaining memory
points
10Number of remaining areas to
avoid
1. Touch “Register”.
2. Enter the location in the same way
as for a destination search.(See “Des-
tination search” on page 31.)
After memory point registration is com-
pleted, the “Memory Point” screen will be
displayed.
3. Touch “OK”.
To edit registered information, see “ —
Editing memory Points” on page 84.
INFORMATION
Up to 106 memory points can be reg-
istered.
— Registering memory
points
Page 94 of 204

84ADVANCED FUNCTIONS
SCION V398
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Touch “Edit”.
2. Touch the desired memory point
button.
3. Touch the button to be edited.
“Icon”:To select icons to be displayed on
the map. (See page 85.)
“Quick Access”:To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” but-
ton. (See page 86.)
“Name”:To edit memory point names.
The names can be displayed on the map.
(See page 87.)
“Location”:To edit location information.
(See page 88.)
“Phone #”:To edit telephone numbers.
(See page 88.)
4. Touch “OK”.
— Editing memory points
