21BASIC FUNCTIONS
SCION V398
POI INFORMATION
When the cursor is set on a POI icon, the
name and“Info.”are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
”is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace”are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To register this POI as a memory point,
touch “Mark” . (See page 83.)
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See
“ — Display POI icons” on page 68.)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.”are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
”is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace”are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To edit a memory point, touch “Edit”. (See
“ — Editing memory points” on page 84.)
To delete a memory point, touch “Delete”.

22BASIC FUNCTIONS
SCION V398
DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and“Info.”are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
To delete a destination, touch “Delete”.Any one of the screen configurations can
be selected .
1. Touch this button to display the fol-
lowing screen.
2. To select the desired screen config-
uration, touch one of the following but-
tons.
— Switching the screens

23BASIC FUNCTIONS
SCION V398
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
:To display the single map screen.
(See page 23.)
: To display the dual map screen.
(See page 24.)
: To display the compass mode
screen. (See page 24.)
: To display the turn list screen.
(See page 58.)
: To display the arrow screen. (See
page 58.)
: To display the freeway information
screen. (See page 56.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
57.)
DScreen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.

24BASIC FUNCTIONS
SCION V398
DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map
on the left is the main map.
The right side map can be edited by touch-
ing any specific point on the right side map.
This screen can perform the following pro-
cedures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete edi-
ting.
The screen returns to the dual map screen.COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information about the destination and cur-
rent position, as well as a compass, is dis-
played on the screen.
The destination mark is displayed in the di-
rection of the destination. When driving re-
fer to the longitude and latitude coordi-
nates, and the compass, to make sure that
your vehicle is headed in the direction of
the destination.
INFORMATION
When the vehicle travels out of the
coverage area, the guidance screen
changes to the compass mode
screen.

25BASIC FUNCTIONS
SCION V398
Touchorto change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
oruntil the scale bar
changes normally. By continuing to touch
the button, the scale bar changes smooth-
ly.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north− up symbol or heading −up symbol at
the top left of the screen.
INFORMATION
When the map scale is at the maxi-
mum range of 250 miles (400 km),
is dimmed. When the map scale
is at the minimum range of 150 feet
(50 m), is dimmed. In areas
where the foot print map is available
the map scale changes from to when at the minimum range.
For the area which is covered by the foot
print map (Some areas in the following cit-
ies: Detroit, Chicago, N.Y., L.A.), you can
switch to the foot print map on a scale of 75
feet (25 m).
DTo switch to the foot print map
changes intowhen the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
D If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
D On the foot print map, a one way
street is displayed by .
D It is not possible to perform scroll-
ing on the foot print map (one −
touch scroll) while driving.
— Map scale— Foot print map

26BASIC FUNCTIONS
SCION V398
DTo display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map will change into a single map dis-
play.
2. Using the eight −direction arrow,
move the cursor to the position of the
building to display building informa-
tion.
3. Touch “Building Info.”.
Details of POIs in some buildings may be
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.

30DESTINATION SEARCH
SCION V398
1“Address”
A house number and the street address
can be input by using the input keys. 35
.................................
2“POI Name”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 39 ...............
3“POI Category”
A destination can be selected from the POI
category. 42 ........................
4“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point. 46
.................................
5“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 83.) 46 .......
6“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected. 45
.................................
7“Map”
A destination can be selected simply by
touching the location on the displayed
map. 47 ............................
Quick reference (“Destination” screen)

32DESTINATION SEARCH
SCION V398

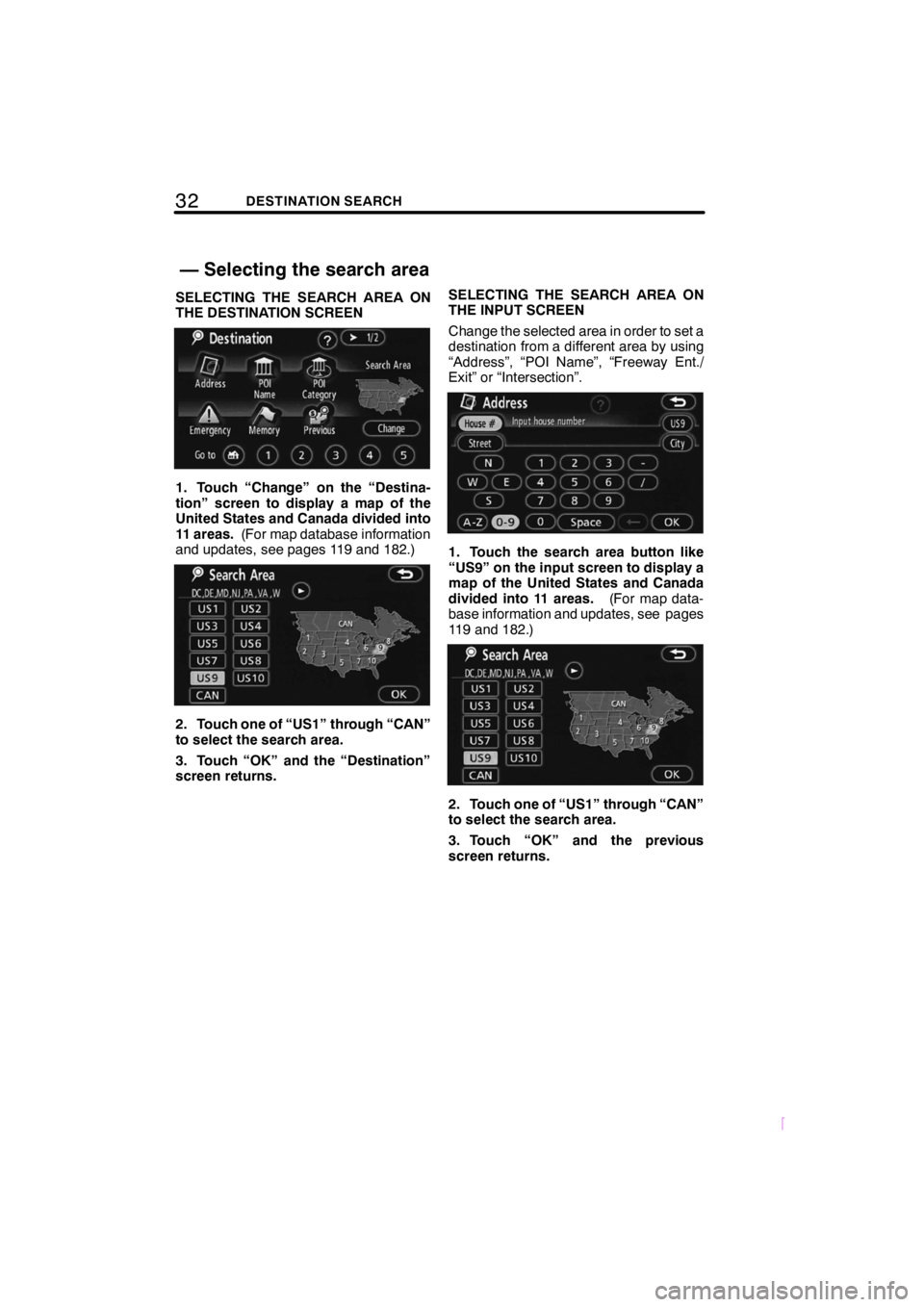

SELECTING THE SEARCH AREA ON
THE DESTINATION SCREEN
1. Touch “Change” on the “Destina-
tion” screen to display a map of the
United States and Canada divided into
11 areas.(For map database information
and updates, see pages 119 and 182.)
2. Touch one of “US1” through “CAN”
to select the search area.
3. Touch “OK” and the “Destination”
screen returns. SELECTING THE SEARCH AREA ON
THE INPUT SCREEN
Change the selected area in order to set a
destination from a different area by using
“Address”, “POI Name”, “Freeway Ent./
Exit” or “Intersection”.
1. Touch the search area button like
“US9” on the input screen to display a
map of the United States and Canada
divided into 11 areas.
(For map data-
base information and updates, see pages
119 and 182.)
2. Touch one of “US1” through “CAN”
to select the search area.
3. Touch “OK” and the previous
screen returns.
— Selecting the search area

34DESTINATION SEARCH
SCION V398
Touch the home touch−screen button
on the “Destination” screen.
The screen changes and displays the map
location for home and the route prefer-
ence. (See “Starting route guidance” on
page 50.)
To use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see page 89.)
INFORMATION
Guidance starts from the current ve-
hicle position to your home if “Enter”
is touched even while driving.
Touch any of the quick access touch−
screen buttons on the “Destination”
screen.
The screen changes and displays the map
location of the quick access point and the
route preference. (See “Starting route
guidance” on page 50.)
To use this function, it is necessary to set
“Quick Access” for each memory point.
(To register “Quick Access”, see page 86.)
INFORMATION
Guidance starts from the current ve-
hicle position to the quick access
point if “Enter” is touched even while
driving.
— Destination search by
Home — Destination search by
Quick access

35DESTINATION SEARCH
SCION V398
There are 2 ways to input a destination by
address.
Touch “Address” on the “Destination”
screen.(a) Inputting a house number and a
street name
1. Touch numbers directly on the
screen to input a house number.
After inputting a house number, touch
“OK”to display the screen for inputting a
street name.
It is possible to input a street name first.
Touch “Street” to display the screen for in-
putting a street name.
2. Input the street name.
— Destination search by
“Address”
