—Reinstalling wheel nuts
40T020
7. Reinstall all the wheel nuts fin-ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire and see if you can tighten them
more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loosen and the wheels may
fall off, which could cause seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
—Lowering your vehicle
40T021
8. Lower the vehicle completely and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench to
tighten the nuts. Do not use other
tools or any additional leverage other
than your hands, such as a hammer,
pipe or your foot. Make sure the
wrench is securely engaged over the
nut.
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.

202

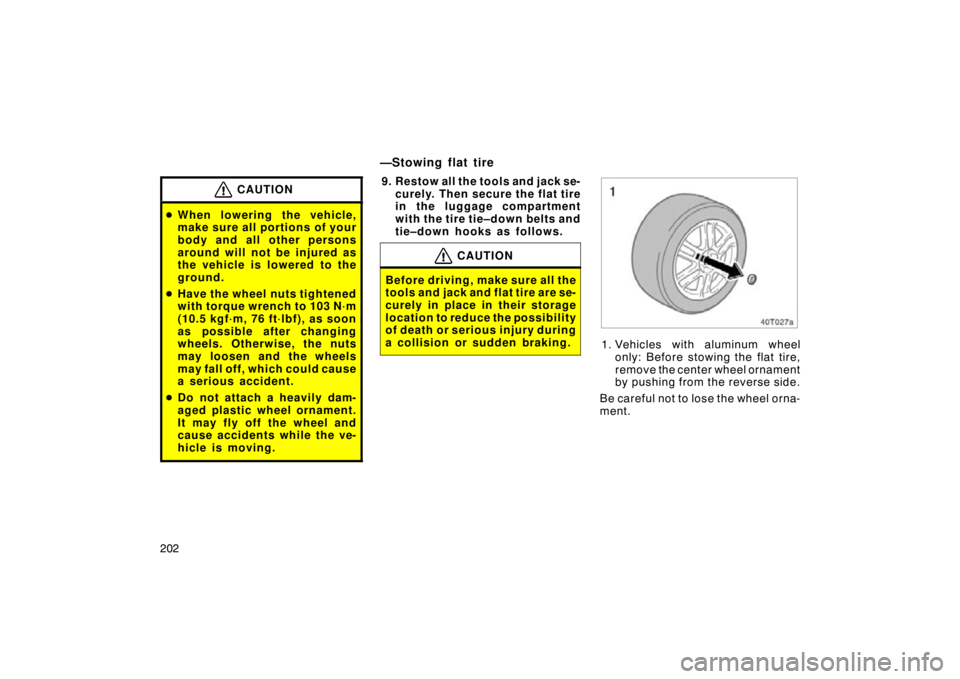

CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
 Do not attach a heavily dam-
aged plastic wheel ornament.
It may fly off the wheel and
cause accidents while the ve-
hicle is moving.
9. Restow all the tools and jack se-
curely. Then secure the flat tire
in the luggage compartment
with the tire tie–down belts and
tie–down hooks as follows.
CAUTION
Before driving, make sure all the
tools and jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of death or serious injury during
a collision or sudden braking.
1. Vehicles with aluminum wheelonly: Before stowing the flat tire,
remove the center wheel ornament
by pushing from the reverse side.
Be careful not to lose the wheel orna-
ment.
—Stowing flat tire

203
Ivory
Dark
gray
2. Put the flat tire on the center of the luggage storage box lid with
the outer side of the wheel facing
up. Hook one end of the belt (dark
gray portion) which is not forked
to either front tie–down hook.
3. Pass the belts from between thewheel spokes through the center
hole of the wheel as shown above.
To loosen To tighten
4. Hook another end of the belt (ivory portion) coming through the center
hole to the other front tie–down
hook, and the other end (dark gray
portion) to the rear tie–down hook
located diagonally to the secondly
used front hook. Finally, make sure
the flat tire is stowed securely by
tightening the belt firmly using the
adjuster.

204

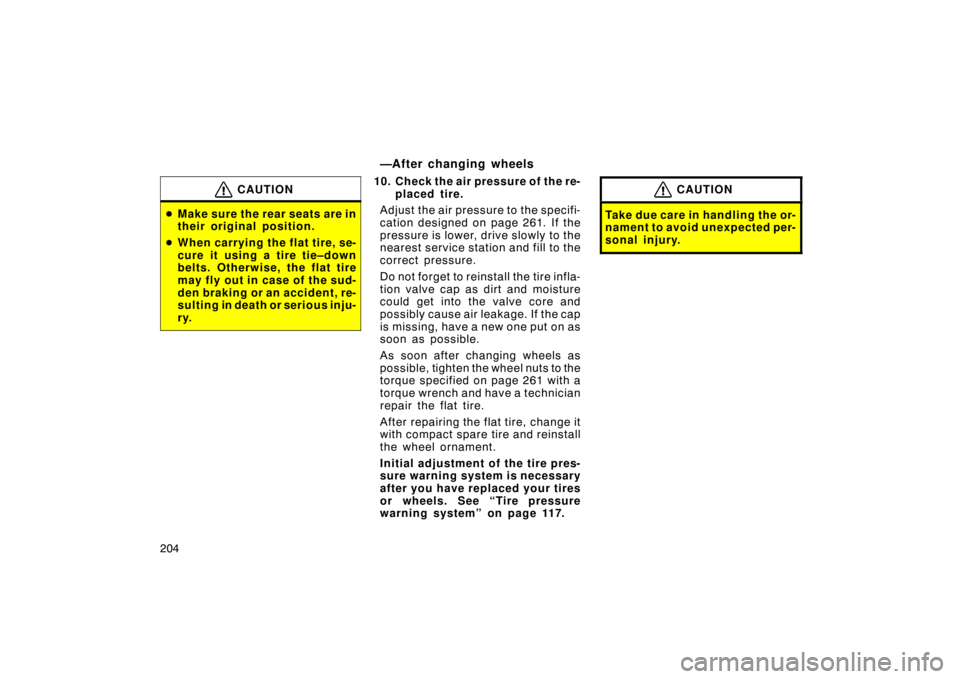

CAUTION
Make sure the rear seats are in
their original position.
 When carrying the flat tire, se-
cure it using a tire tie–down
belts. Otherwise, the flat tire
may fly out in case of the sud-
den braking or an accident, re-
sulting in death or serious inju-
ry.
—After changing wheels
10. Check the air pressure of the re-
placed tire.
Adjust the air pressu re to the specifi-
cation designed on page 261. If the
pressure is lower, dr ive slowly to the
nearest service station and fill to the
correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 261 with a
torque wrench and have a technician
repair the flat tire.
After repairing the flat tire, change it
with compact spare tire and reinstall
the wheel ornament.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have replaced your tires
or wheels. See “Tire pressure
warning system” on page 117.CAUTION
Take due care in handling the or-
nament to avoid unexpected per-
sonal injury.

205
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
to nearby people or damage to ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the shift lever or
before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.

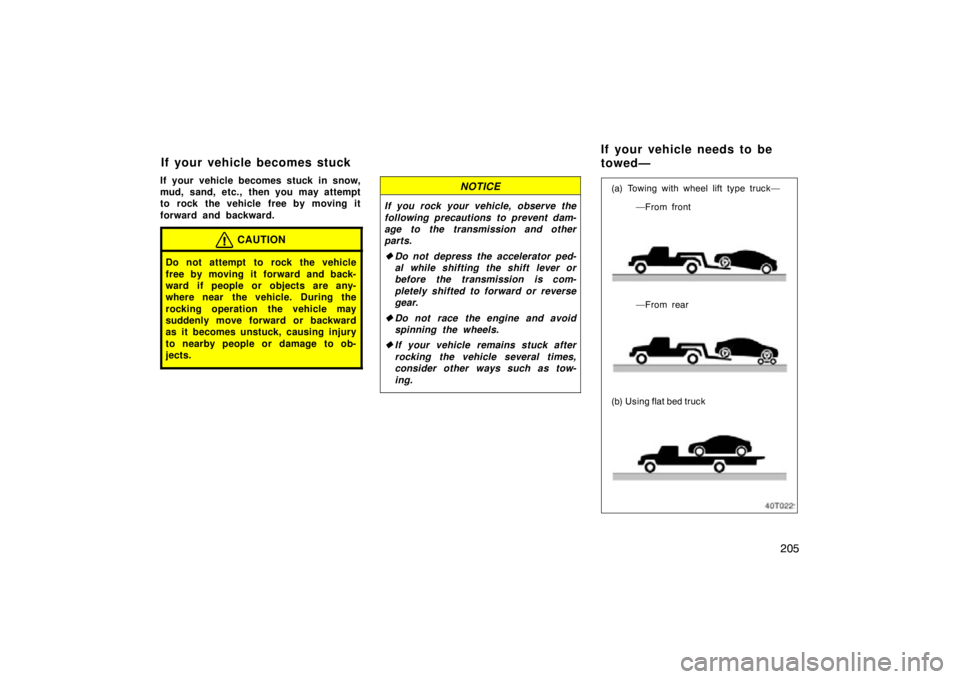

(a) Towing with wheel lift type truck—
—From rear
(b) Using flat bed truck —From front
If your vehicle becomes stuck If your vehicle needs to be
towed—

206
If towing is necessary, we recommend
you to have it done by your Scion deal-
er or a commercial tow truck service.
In consultation with them, have your
vehicle towed using either (a) or (b).
Only when you cannot receive a towing
service from a Scion dealer or commer-
cial tow truck service, tow your vehicle
carefully in accordance with the instruc-
tions given in “—Emergency towing” on
page 207.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.(a) Towing with wheel lift type truck
From front—
Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Manual transmission:
We recommend using a towing dolly
under the front wheels. If you do not
use a towing dolly, place the engine
switch in the “ACC” position and put
the transmission in neutral.
NOTICE
Do not tow with the key removed or
in the “LOCK” position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.
(b) Using flat bed truck

207

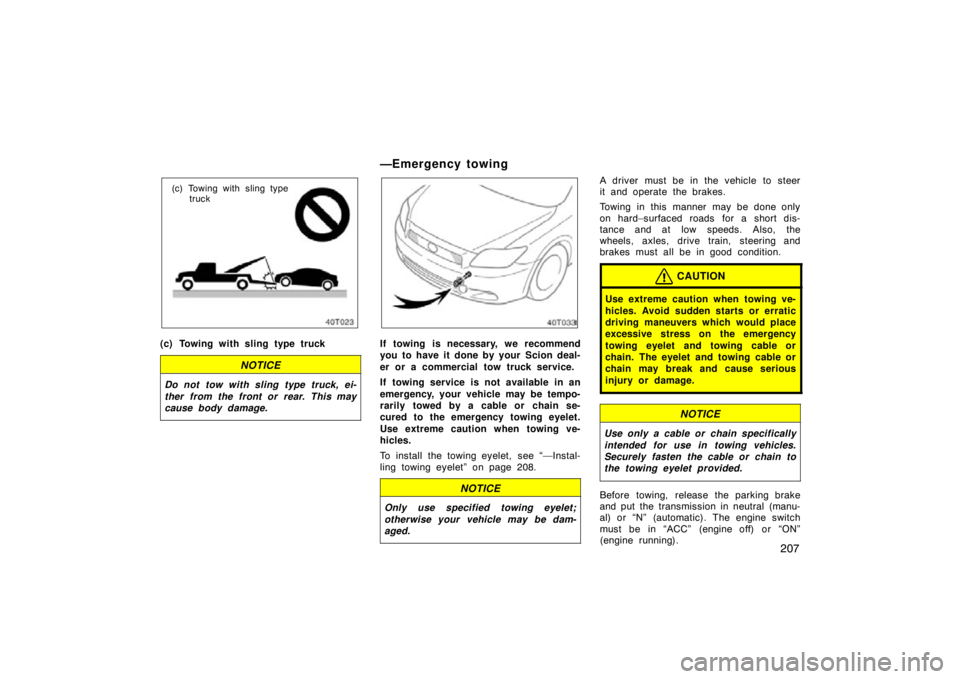

(c) Towing with sling typetruck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
—Emergency towing
If towing is necessary, we recommend
you to have it done by your Scion deal-
er or a commercial tow truck service.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to the emergency towing eyelet.
Use extreme caution when towing ve-
hicles.
To install the towing eyelet, see “—Instal-
ling towing eyelet” on page 208.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard–surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The engine switch
must be in “ACC” (engine off) or “ON”
(engine running).

208
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.

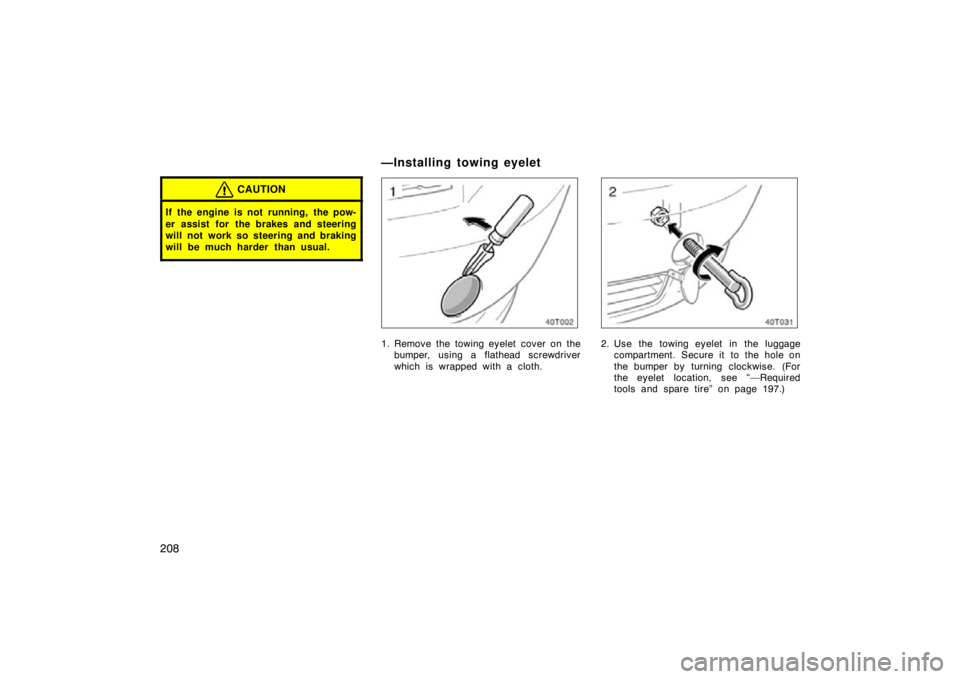

1. Remove the towing eyelet cover on thebumper, using a flathead screwdriver
which is wrapped with a cloth.2. Use the towing eyelet in the luggagecompartment. Secure it to the hole on
the bumper by turning clockwise. (For
the eyelet location, see “—Required
tools and spare tire” on page 197.)
—Installing towing eyelet

209

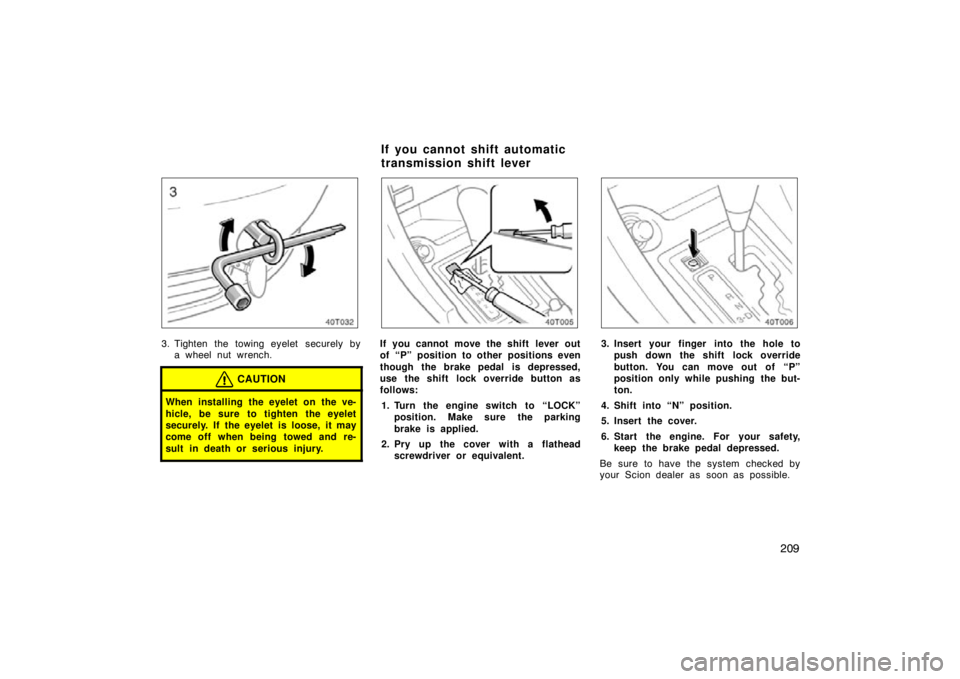

3. Tighten the towing eyelet securely bya wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the eyelet
securely. If the eyelet is loose, it may
come off when being towed and re-
sult in death or serious injury.
If you cannot move the shift lever out
of “P” position to other positions even
though the brake pedal is depressed,
use the shift lock override button as
follows:
1. Turn the engine switch to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flathead screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can move out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Scion dealer as soon as possible.
If you cannot shift automatic
transmission shift lever

210
If you lose your keys
You can purchase a new key at your
Scion dealer if you can give them the
key number and master key.
Even if you lose only one key, contact
your Scion dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole engine immobi-
lizer system must be replaced.
See the suggestion given in “Keys” on
page 8.
You can use the wireless remote control
system with the new key. Contact your
Scion dealer for detailed information.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Scion
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
40T007a
If the back door opener does not oper-
ate, you can open the back door from
the inside.
To open the back door from inside, per-
form the following procedure.1. Remove the cover on the back door trim.
40T008a
2. Push the lever with the back door mo-tor, open the back door.
Be sure to have the back door opener
checked/repaired by your Scion dealer.
If you cannot operate back
door opener
