Inserting the registered key in the engine
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
The system is maintenance−free.
For your Scion dealer to make you a new
key with a built–in transponder chip, your
dealer will need your key number and
master key. However, there is a limit to
the number of additional keys your Scion
dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
FCC ID: MOZRI–20BTY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
12T055
1. Indicator light
2. Unlock switch
3. Lock switch
4. Panic switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.
Wireless remote control—

12
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 14. If you lose your wireless remote control
key, contact your Scion dealer as soon as
possible to avoid the possibility of theft,
or an accident. (See “If you lose your
keys” on page 210.)
FCC ID: MOZB41TG
FCC ID: MOZB21RG
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
12T053
Locking operation
12T054
Unlocking operation
—Locking and unlocking the
doors and back door

13
To lock and unlock all the doors, push
the switches of the wireless remote
control key slowly and securely.
To lock: Push the lock switch. The side
doors and back door are locked simulta-
neously. At this time, the turn signal lights
will flash once.
Check to see that the side doors and
back door are securely locked.
If any of the doors is not securely closed,
or if the key is in the engine switch,
locking cannot be performed by the lock
switch.
To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the doors simultaneously. Each time
the unlock switch is pushed, the turn sig-
nal lights will flash twice.
When the unlock switch is pressed, the
interior lights and engine switch light come
on. The lights remain on for about 15
seconds unless any of the doors is
opened and then closed. (For further infor-
mation, see “Interior lights” on page 92
and “Engine (ignition) switch light” on
page 93.)You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push it again.
12T013
Pushing the panic switch for 1 second
blows the horn intermittently and
flashes the headlights, tail lights and
emergency flashers and turns on the
interior light.
The panic switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The panic mode will last for one minute.
To stop the panic mode midway, do the
following:
Push any switch on the key.
Turn the engine switch from the
“LOCK” to “ON” position.
The panic mode does not work when the
engine switch is in the “ON” position.
—Activating panic mode

14
For replacement, use a CR2016 lithium
battery or equivalent and a flathead
screwdriver or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Scion dealer.
 Dispose of used batteries according
to the local laws.
Replace the battery by following these
procedures:
12T014
1. Open the cover using a flathead screw-
driver wrapped with plastic tape.
12H059
2. Remove the module from the keyframe.
—Replacing battery

15
12T017a
3. Remove the battery cover of the mod-ule.
NOTICE
Do not bend the terminals.
4. Remove the discharged battery and put in a new battery with positive (+) side
up.
NOTICE
Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
frame.
5. Install the battery cover of the module.
6. Install the module into the key frame
and secure the cover.
After replacing the battery, check that the
key operates properly. If the key still does
not operate properly, contact your Scion
dealer.
Side doors
12T007
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
The side doors and back door lock and
unlock simultaneously with driver ’s door.
In the driver’s door lock, turning the key
once will unlock the driver’s door and
twice in succession will unlock the side
doors and back door simultaneously.

16
When the side doors and back door are
unlocked simultaneously using either the
key or the wireless remote control func-
tion, the interior lights and engine switch
light will come on and remain on for about
15 seconds before fading out. (For further
information, see “Interior lights” on page
92 and “Engine (ignition) switch light” on
page 93.)

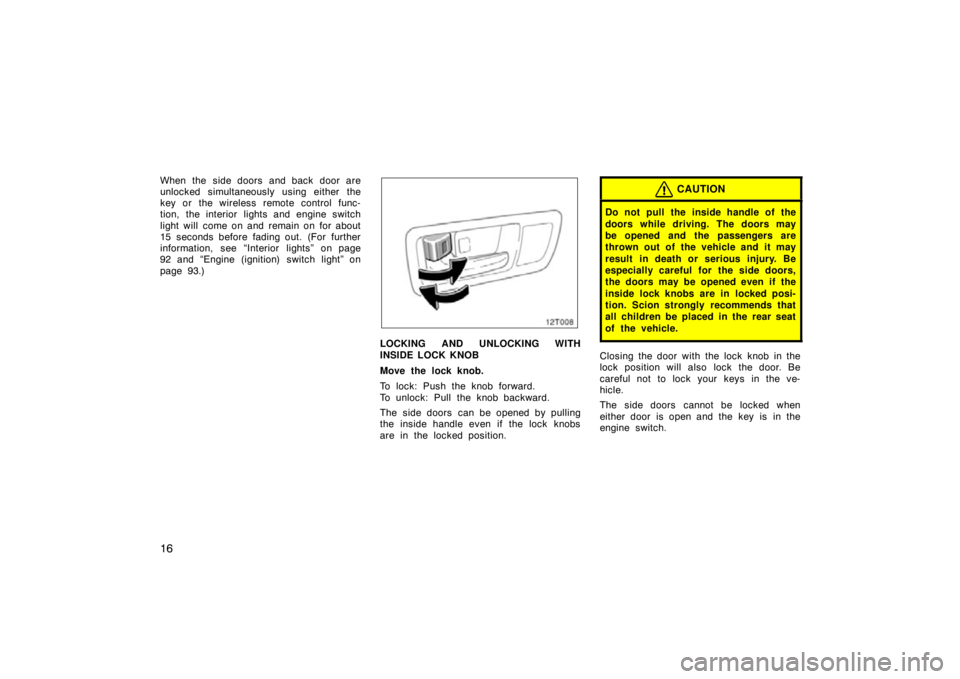

12T008
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The side doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
doors while driving. The doors may
be opened and the passengers are
thrown out of the vehicle and it may
result in death or serious injury. Be
especially careful for the side doors,
the doors may be opened even if the
inside lock knobs are in locked posi-
tion. Scion strongly recommends that
all children be placed in the rear seat
of the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The side doors cannot be locked when
either door is open and the key is in the
engine switch.

17
12T043
Driver’s side
12T044
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch locks or unlocks the
side doors and back door simultaneously.
If you do any of the following, no door
can be unlocked with the power door lock
switch.
Lock the side doors and back door
with the key or wireless remote control
function when the side doors and back
door are closed.
Open the driver’s door and move the
inside lock knob of the side to the lock
position, then close the door.
The power door lock switch can be reset
in the following ways.
Turn the engine switch to “ON” posi-
tion.
Unlock the side doors and back door
with the key or wireless remote control
function.
Unlock the driver’s door with the inside
lock knob, and then unlock the side
doors and back door with the power
door lock switch.

18
Power windows

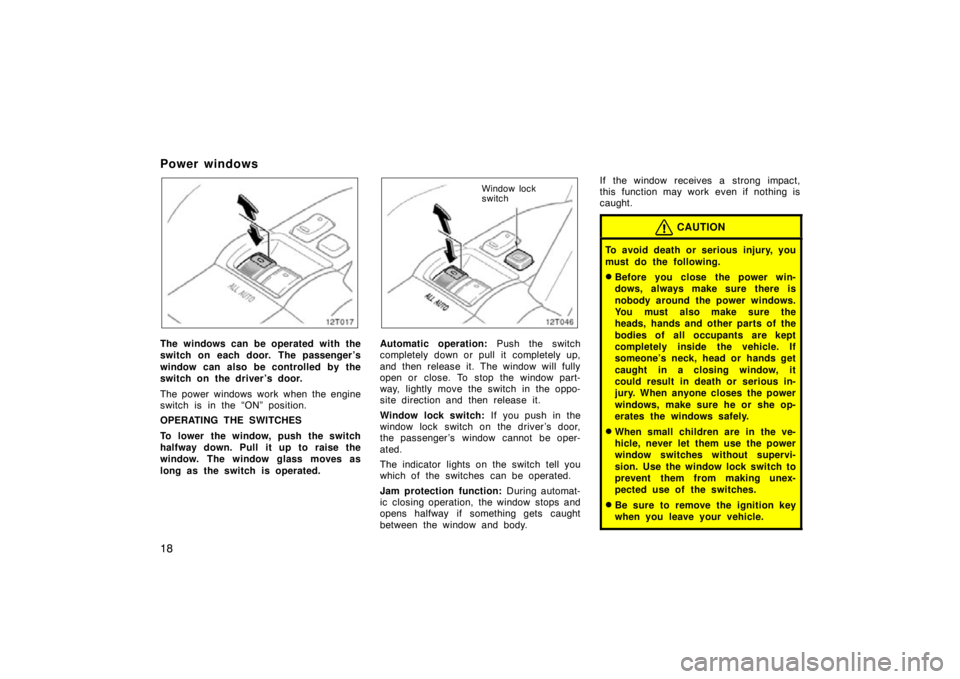

12T017
The windows can be operated with the
switch on each door. The passenger ’s
window can also be controlled by the
switch on the driver ’s door.
The power windows work when the engine
switch is in the “ON” position.
OPERATING THE SWITCHES
To lower the window, push the switch
halfway down. Pull it up to raise the
window. The window glass moves as
long as the switch is operated.
12T046
Window lock
switch
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Window lock switch: If you push in the
window lock switch on the driver ’s door,
the passenger ’s window cannot be oper-
ated.
The indicator lights on the switch tell you
which of the switches can be operated.
Jam protection function: During automat-
ic closing operation, the window stops and
opens halfway if something gets caught
between the window and body. If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
To avoid death or serious injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.

19
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
If the battery is disconnected or run
down
The power window may not operate auto-
matically and the jam protection function
will not function correctly after you recon-
nect, replace or recharge the battery. At
this time, the indicator lights of the
switches will flash. In any of these cases,
you should normalize the power window
on each door.To normalize the power windows:
1. Push down the power window switch of each door and lower the windows half-
way.
2. Pull up the switch until the windows close and hold the switch for at least
one second.
Make sure that the windows open and
close automatically. If the power windows
cannot be operated properly, have them
checked by your Scion dealer.
Back door
12T030
To open the back door, push the back
door opener and raise the door.
The back door can be opened when the
vehicle is stopped.
The back door is locked and unlocked
simultaneously with side doors (see
“—Locking and unlocking doors and back
door” on page 12 and “Side doors” on
page 15).

20
When the side doors and back door are
unlocked simultaneously with a key, the
interior lights and engine switch light will
come on and remain on for about 15 sec-
onds before fading out. (For details, see
“Interior lights” on page 92 and “Engine
(ignition) switch light” on page 93.)
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 210.
If the battery is disconnected or run
down, the back door will be automatically
locked and the back door system may not
work after you reconnect, replace or re-
charge the battery. In any of these cases,
normalize the back door system by follow-
ing procedure.
1. Unlock the back door with the remote control key or power door lock switch.
2. Close the back door completely by hand.
If the back door system does not operate
properly after the above procedure, there
may be a problem in the system. Contact
your Scion dealer.

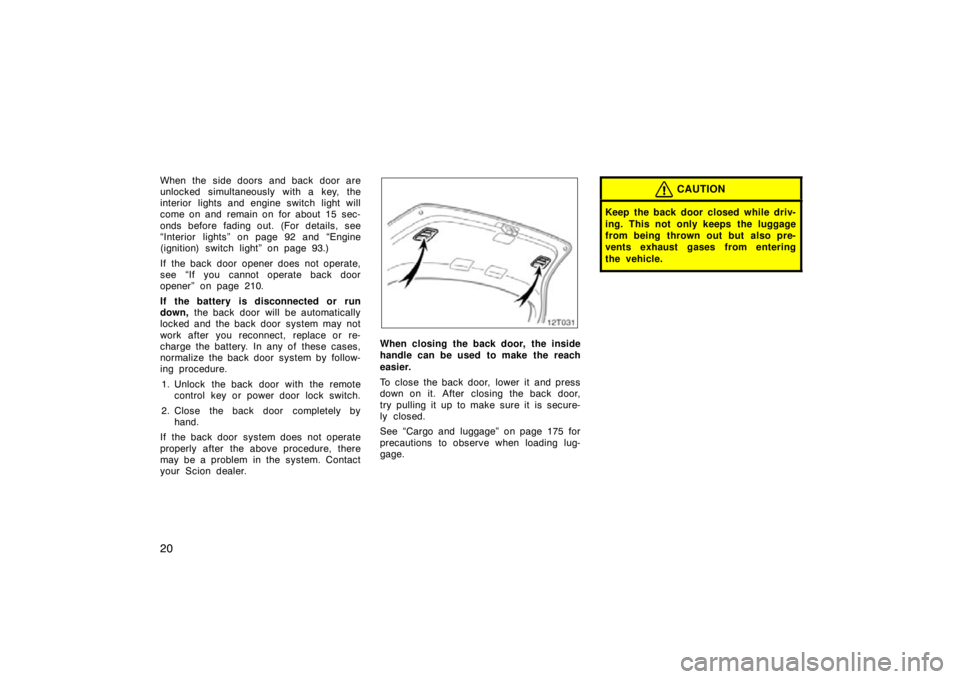

12T031
When closing the back door, the inside
handle can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Cargo and luggage” on page 175 for
precautions to observe when loading lug-
gage.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
