TOYOTA tC 2009 (in English) User Guide

1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument cluster 5
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1– 1

2
Instrument panel overview
1. Side vent133
. . . . . . . . . . . . . . . . . . . . . . . . .
2. Instrument cluster 4
. . . . . . . . . . . . . . . . . . .
3. Center vents 133
. . . . . . . . . . . . . . . . . . . . . .
4. Panorama moonroof switch, interior light and
personal light 24, 92, 94
. . . . . . . . . . . . . . .
5. Power door lock switch 17
. . . . . . . . . . . . .
6. Power window switches 18
. . . . . . . . . . . . .
7. Glove box 141
. . . . . . . . . . . . . . . . . . . . . . . .
8. Tire pressure warning reset switch 121
. . . . . . . . . . . . . . . . . . . . . . .
9. Cup holders 143
. . . . . . . . . . . . . . . . . . . . . . .
10. Parking brake lever 123
. . . . . . . . . . . . . . . .
11. Auxiliary box 142
. . . . . . . . . . . . . . . . . . . . . .
12. Automatic transmission shift lever or manual transmission
gear shift lever 113, 116
. . . . . . . . . . . . . . . .
13. Hood lock release lever 21
. . . . . . . . . . . . .
14. Window lock switch 18
. . . . . . . . . . . . . . . .
11T004

3
1. Headlight and turn signal switches 90 . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Audio remote controls (steering switches) 139 . . . . . . . . . . . . . . . .
3. Wiper and washer switches 94 . . . . . . . . .
4. Emergency flasher switch 91 . . . . . . . . . . .
5. Clock, air conditioning and outside temperature display 128, 138 . . . . . . . . . . .
6. Air conditioning controls 128 . . . . . . . . . . .
7. Rear window defogger switch 97 . . . . . . .
8. Outside temperature switch 138 . . . . . . . .
9. Clock adjustment switch 138 . . . . . . . . . . .
10. Front passenger ’s seat belt reminder light 103 . . . . . . . . . . . . . . . . . . . . .
11. “AIR BAG ON” and “AIR BAG OFF” indicator lights 61
. . . . . . . . . . . . . . . . . . . . .
12. Cigarette lighter 140
. . . . . . . . . . . . . . . . . . .
13. Engine immobilizer system indicator light 10
. . . . . . . . . . . . . . . . . . . . . .
14. Engine (ignition) switch 112
. . . . . . . . . . . .
15. Cruise control switch 123
. . . . . . . . . . . . . .
16. Tilt steering lock release lever 84 . . . . . .
17. Power rear view mirror control switches 85
. . . . . . . . . . . . . . . . . . . . . . . . . . .
11T005

4
1. Engine coolant temperature gauge 100 . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Fuel gauge 100 . . . . . . . . . . . . . . . . . . . . . .
3. Speedometer
4. Tachometer 101 . . . . . . . . . . . . . . . . . . . . . . 5. Service reminder indicators and
indicator lights 103 . . . . . . . . . . . . . . . . . . .
6. Automatic transmission shift range position display 113 . . . . . . . . . . . .
7. Trip meter reset knob 101 . . . . . . . . . . . . 8. Odometer and two trip meters 101
. . . .
9. Low fuel level warning light 100 . . . . . .
10. Instrument panel light control knob 92 . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview

5
Indicator symbols on the instrument cluster
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti–lock brake system warning light∗1
SRS warning light∗1
Tire pressure warning light∗1
Turn signal indicator lights Headlight high beam indicator light
Cruise control indicator light
∗2
Front passenger ’s seat belt reminder light∗1
Open door warning light∗1 ∗
1
: For details, see “Service reminder indicators and warning
buzzers” on page 103.
∗2: If this light flashes, see “Cruise control” on page 123.
Engine oil replacement reminder light∗1Automatic transmission indicator lights

6

7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Engine immobilizer system 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Panorama moonroof 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 1– 2

8
12T052
Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock. Your Scion dealer will need
one of them to make a new key with
a built–in transponder chip.
2. Sub key—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 11.
When bringing a wireless remote control
key onto an aircraft, make sure you do
not press any buttons on the wireless re-
mote control key while inside the aircraft
cabin. If you are carrying a wireless re-
mote control key in your bag etc., ensure
that the buttons are not likely to be
pressed accidentally. Pressing a button
may cause the wireless remote control
key to emit radio waves that could inter-
fere with the operation of the aircraft.
12T002
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys

9
12T003
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
12T004
Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.

10
12T005

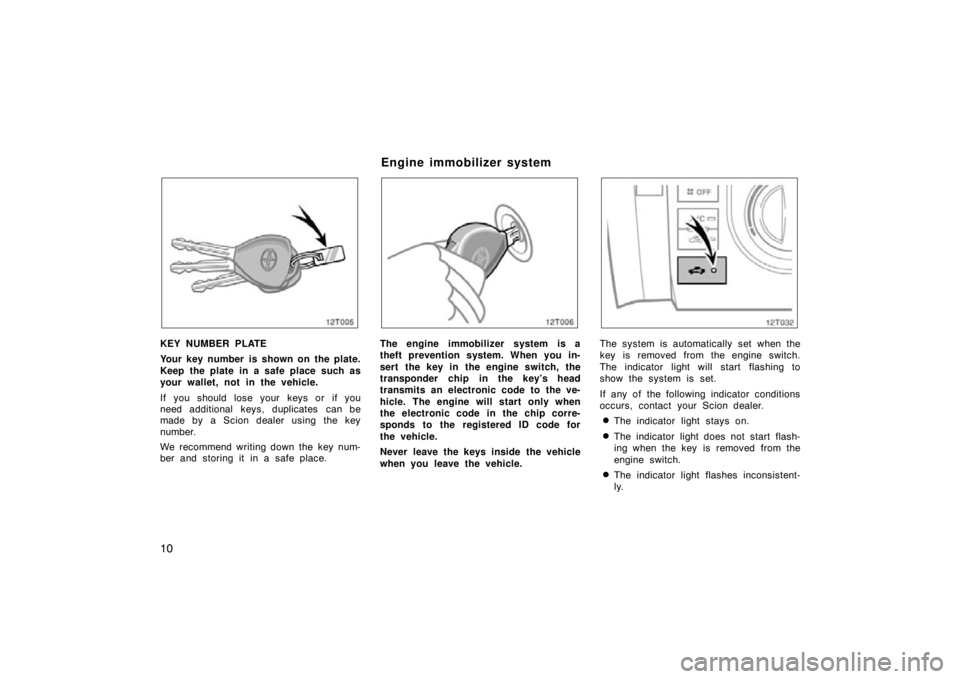

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
12T006
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the engine switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.The system is automatically set when the
key is removed from the engine switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Scion dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
engine switch.
The indicator light flashes inconsistent-
ly.
Engine immobilizer system
