radio TOYOTA tC 2010 Owners Manual (in English)

vii
Installation of a mobiletwo–way radio system
As the installation of a mobile two–way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti–lock brake
system, SRS airbag system and seat belt pretensioner
system, be sure to check with your Scion dealer for
precautionary measures or special instructions regarding
installation.
Tires and loading on your Scion
Underinflated or overinflated tire inflation pressure
and the excess load may result in the deterioration
of steering ability and braking ability, leading to
an accident. Check the tire inflation pressure peri-
odically and be sure to keep the load limits given
in this Owner ’s Manual. For details about tire infla-
tion pressure and load limits, see page 241 and
page 178.

8
12T052
Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock. Your Scion dealer will need
one of them to make a new key with
a built–in transponder chip.
2. Sub key—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 11.
When bringing a wireless remote control
key onto an aircraft, make sure you do
not press any buttons on the wireless re-
mote control key while inside the aircraft
cabin. If you are carrying a wireless re-
mote control key in your bag etc., ensure
that the buttons are not likely to be
pressed accidentally. Pressing a button
may cause the wireless remote control
key to emit radio waves that could inter-
fere with the operation of the aircraft.
12T002
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys

12
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 14. If you lose your wireless remote control
key, contact your Scion dealer as soon as
possible to avoid the possibility of theft,
or an accident. (See “If you lose your
keys” on page 214.)
FCC ID: MOZB41TG
FCC ID: MOZB21RG
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
12T053
Locking operation
12T054
Unlocking operation
—Locking and unlocking the
doors and back door

47
CAUTION
Observe the following precautions to
reduce the risk of injury in the event
of sudden braking or an accident.
Failure to do so may cause death or
serious injury.
If the pretensioner has activated,
the seat belt becomes locked: it
cannot be further extended, nor will
it return to the stowed position.
The seat belt cannot be used again
and must be replaced at your Scion
dealer.
Do not modify, remove, strike or
open the seat belt pretensioner as-
semblies, airbag sensor or sur-
rounding area or wiring. Consult
your Scion dealer about any repair
and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Scion dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
13T080
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the seat belt pretensioners
are operating properly.

55
13T077
Do not attach any heavy, sharp or
hard objects such as keys or acces-
sories to the ignition key. The ob-
jects may restrict the SRS knee air-
bag inflation or be thrust into the
driver’s seat area by the force of
the deploying airbag, thus causing
a danger.
NOTICE
Do not perform any of the following
changes without consulting your
Scion dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel, lower portion of instrument
panel or dashboard near the front
passenger airbag
13T080
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS front airbags are
operating properly.

63
Do not disassemble or repair the
front and rear pillars and roof side
rail containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Scion dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Scion dealer. It may dan-
gerously interfere with the SRS side
airbags and curtain shield airbags op-
eration.NOTICE
Do not perform any of the following
changes without consulting your
Scion dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
13T080
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS side airbags and
curtain shield airbags are operating
properly.

11 6
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 184.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the
engine switch from “ACC” to the “LOCK”
position. On vehicles with an automatic
transmission, the shift lever must be put
in the “P” position before pushing the key.
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
Approximately five hours after the engine
is turned off, you may hear a sound com-
ing from underneath the luggage compart-
ment for several minutes. This is normal
operation and does not indicate a malfunc-
tion. (See “Leak detection pump” on page
viii.)
CAUTION
For vehicles with manual transmis-
sion:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Engine (ignition) switch

124
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Scion dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
17T013
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered on the tire pressure warning
computer.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi) or higher.
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Scion wheels are used.
If tire chains are used.
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the engine switch is turned to the
“ON” position, have the system checked
by your Scion dealer.

143

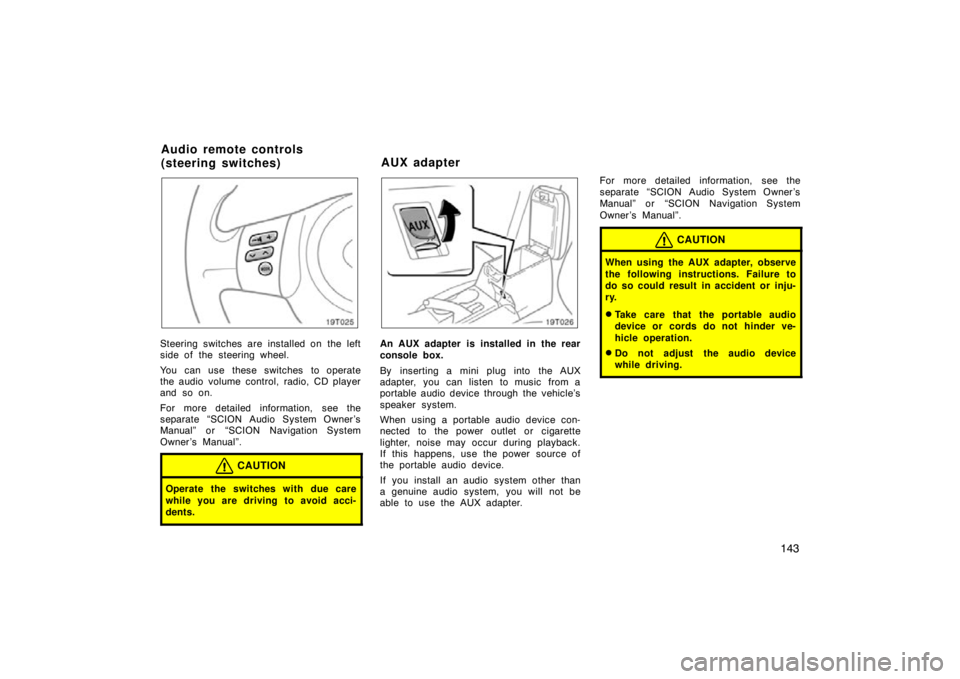

19T025
Steering switches are installed on the left
side of the steering wheel.
You can use these switches to operate
the audio volume control, radio, CD player
and so on.
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.
19T026
An AUX adapter is installed in the rear
console box.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
When using a portable audio device con-
nected to the power outlet or cigarette
lighter, noise may occur during playback.
If this happens, use the power source of
the portable audio device.
If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
When using the AUX adapter, observe
the following instructions. Failure to
do so could result in accident or inju-
ry.
Take care that the portable audio
device or cords do not hinder ve-
hicle operation.
Do not adjust the audio device
while driving.
Audio remote controls
(steering switches)
AUX adapter

171
Ti r e relat ed ter m
Meaning
Cold tire inflation pressure
tire inflation pressure when the vehicl
e has been parked for at leas t 3 hour s
or more, or it has not been driven more than 1.5 km or 1 mile under that
condition
Maximum inflation pressurethe maximum cold inflation pressure to which a tire may be inflated and it is
shown on the sidewall of the tire
Recommended inflation pressurecold tire inflation pressure recommended by a manufacturer
Accessory weight
the combined weight (in excess of those standard items which may be replaced)
of automatic transmission, power steering, power brakes, power windows, pow-
er seats, radio, and heater, to the extent that these items are available as
factory −installed equipment (whether installed or not)
Curb weight
the weight of a motor vehicle with standard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so equipped, air conditioning and addi-
tional weight optional engine
Maximum loaded vehicle weight
t he sum of —
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second column
of Table 1 that follows
—Glossary of tire terminology
