NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Scion dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
17T013
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered on the tire pressure warning
computer.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi) or higher.
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Scion wheels are used.
If tire chains are used.
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the engine switch is turned to the
“ON” position, have the system checked
by your Scion dealer.

160

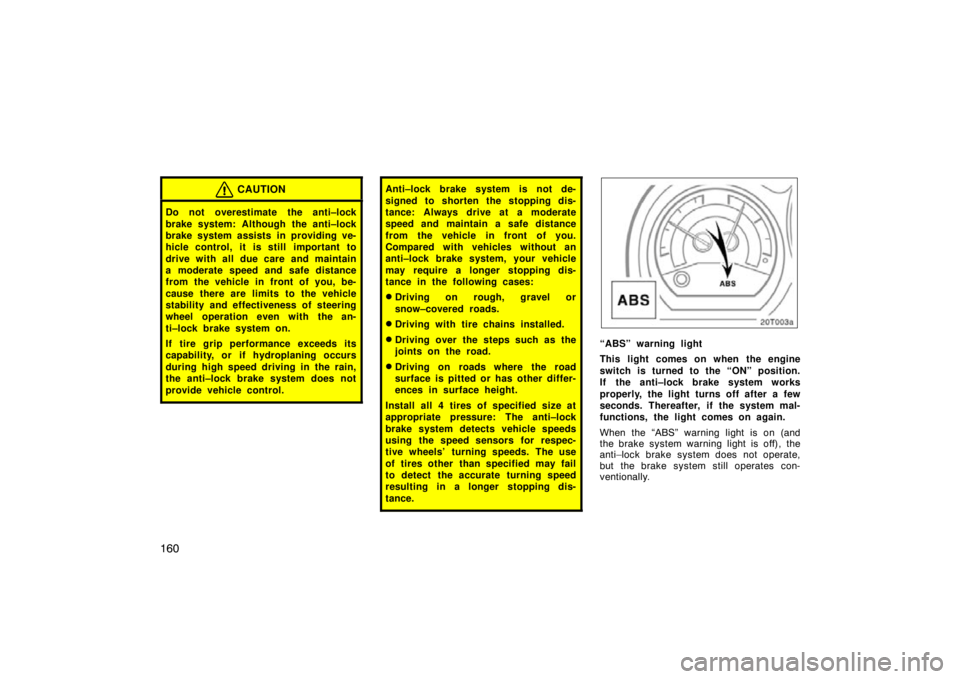

CAUTION
Do not overestimate the anti–lock
brake system: Although the anti–lock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the an-
ti–lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the anti–lock brake system does not
provide vehicle control.
Anti–lock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
anti–lock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or
snow–covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The anti–lock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
“ABS” warning light
This light comes on when the engine
switch is turned to the “ON” position.
If the anti–lock brake system works
properly, the light turns off after a few
seconds. Thereafter, if the system mal-
functions, the light comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti–lock brake system does not operate,
but the brake system still operates con-
ventionally.

188
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Scion
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” (automatic) or into first or reverse
(manual) and block the rear wheels. Do
not use the parking brake, or snow or
water accumulated in and around the
parking brake mechanism may freeze,
making it hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing
(with automatic transmission)

235
DO–IT–YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 239
. . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking power steering fluid 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7– 2

243
High tire pressure (overinfla-
tion)—
Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire
damage from road hazardstreadwear indicator
CHECKING YOUR TIRES
Check the tire’s tread for treadwear
indicators. If the indicators show,
replace the tires. The location of
treadwear indicators is shown by
the “TWI” or “
Δ” marks, etc.,
molded on the sidewall of each
tire. The tires on your Scion have built–in
treadwear indicators to help you know
when the tires need replacement.
When the tread depth wears to 1.6
mm (0.06 in.) or less, the indicators
will appear. If you can see the indica-
tors in two or more adjacent grooves,
the tire should be replaced. The lower
the tread, the higher the risk of skid-
ding.
Your Scion has been fitted with spe-
cially developed tires which provide
exceptional dynamic performance un-
der general road conditions. However
your riding comfort may worsen a little
and road noise may increase during
driving. You may also notice that your
tires will wear more rapidly and tire
grip performance will be reduced on
the snowy and/or icy roads when
compared to standard tires. Be sure
to have snow tires or tire chains on
the snowy and/or icy roads and drive
carefully with the speed appropriate
for road conditions.
Checking and replacing tires

244NOTICE
Low profile tire like 215/45ZR17
may have greater damage than
usual tires to its tire wheel
when receiving impact from the
road surface. Therefore, pay
attention to the followings.

Be sure to use with proper
tire pressure. If the tire pres-
sure is low, the tire may
have a greater damage. For
detailed information about
tire pressure, see page 265.
 Avoid driving onto high,
sharp–edged objects and oth-
er road hazards. Failure to
do so can lead to severe tire
damage.
The effectiveness of snow tires is
lost if the treadwears down below
4 mm (0.16 in.). If you have tire damage such as
cuts, splits, cracks deep e
nough to
expose the fabric, or bulges indi-
cating internal damage, the tire
should be repl aced.
If a tire often goes flat or cannot be
properly repaired due to the size or
location of a cut or other damage, it
should be replaced. If you are not
sure, consult with your Scion dealer.
If air loss occurs while driving, do not
continue driving. Driving even a short
distance can damage a tire beyond
repair.
An y ti res wh i ch are over 6 years
old must be checked by a qualified
technician even if damage is not
obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use. REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater maximum
load as the originally installed
tires.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.
Check that the maximum load of the
replacement tire is greater than 1/2
of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the
rear axle, whichever is greater.

246
Rotating tires
To equalize the wear and help ex-
tend tire life, Scion recommends
that you rotate your tires accord-
ing to the maintenance schedule.
(For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.)
However, the most appropriate tim-
ing for tire rotation may vary ac-
cording to your driving habits and
road surface conditions.
See “If you have a flat tire” on page
198 for tire change procedure.When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire infla-
tion pressure, improper wheel align-
ment, out–of–balance wheels, or se-
vere braking.
CAUTION
Do not include a compact spare
tire when rotating the tires. It is
designed for temporary use only.
The tire pressure warning system
must be initialized when rotating tires,
in case that specified tire inflation
pressure is different between front
and rear.
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Do not use snow tires other than the
manufacturer ’s recommended size, as
this may cause dangerous handling
characteristics resulting in loss of
control. Otherwise, an accident may
occur resulting in death or serious
injuries.
Installing snow tires and
chains

247
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
72c005
Side chain
Cross chain
TIRE CHAIN SELECTION
Use the tire chains of correct size.
For 215/45ZR17 tires, use the following
type chains. mm (in.)
A Diameter of side chain: 3.5 (0.14)
B Diameter of cross chain: 4.0 (0.16) Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
NOTICE
If the wrong combination of tire and
chain is used, the chains could dam-
age the vehicle body.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5–1.0 km (1/4–1/2
mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.

248
CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or locked–wheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
NOTICE
Do not attempt to use a tire chain on
the compact spare tire, as it may re-
sult in damage to the vehicle as well
as the tire.
Replacing wheels
As you might have difficulty in identify-
ing a flat or deflated tire, a tire pres-
sure warning system is provided on
this vehicle.
When replacing the wheels, be sure to
install tire pressure warning valves and
transmitters on the wheels. Consult your
Scion dealer about how to set up the tire
pressure warning valves and transmitters.
CAUTION
Have the tires, wheels or tire pres-
sure warning valves and transmit-
ters replaced and ID codes regis-
tered by Scion dealer. If you need
tire pressure warning valves and
transmitters, purchase from Scion
dealer.
The tire pressure warning valve and
transmitter nuts should always be
tightened to a torque of 4 N·m (0.4
kgf·m, 2.9 ft·lbf).
The use of nongenuine wheels may
result in the tire pressure warning
system failure or airleak.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace damaged wheels, the
tire may slip off the wheel or cause loss
of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
This must be observed on compact spare
tires, too.
Correct replacement wheels are available
at your Scion dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
