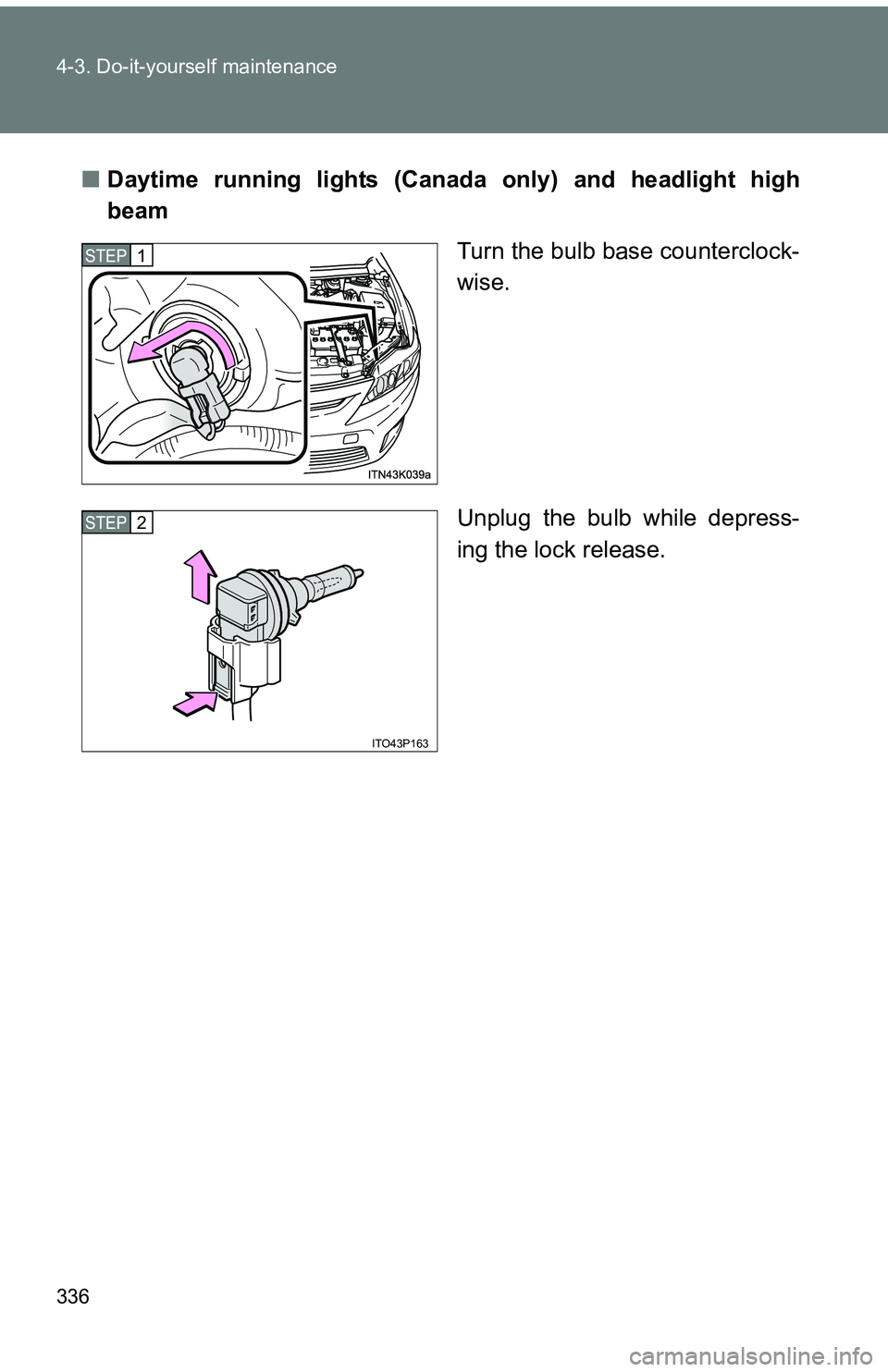

336 4-3. Do-it-yourself maintenance
■Daytime running lights (Canada only) and headlight high
beam
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
ITO43P163
STEP 2

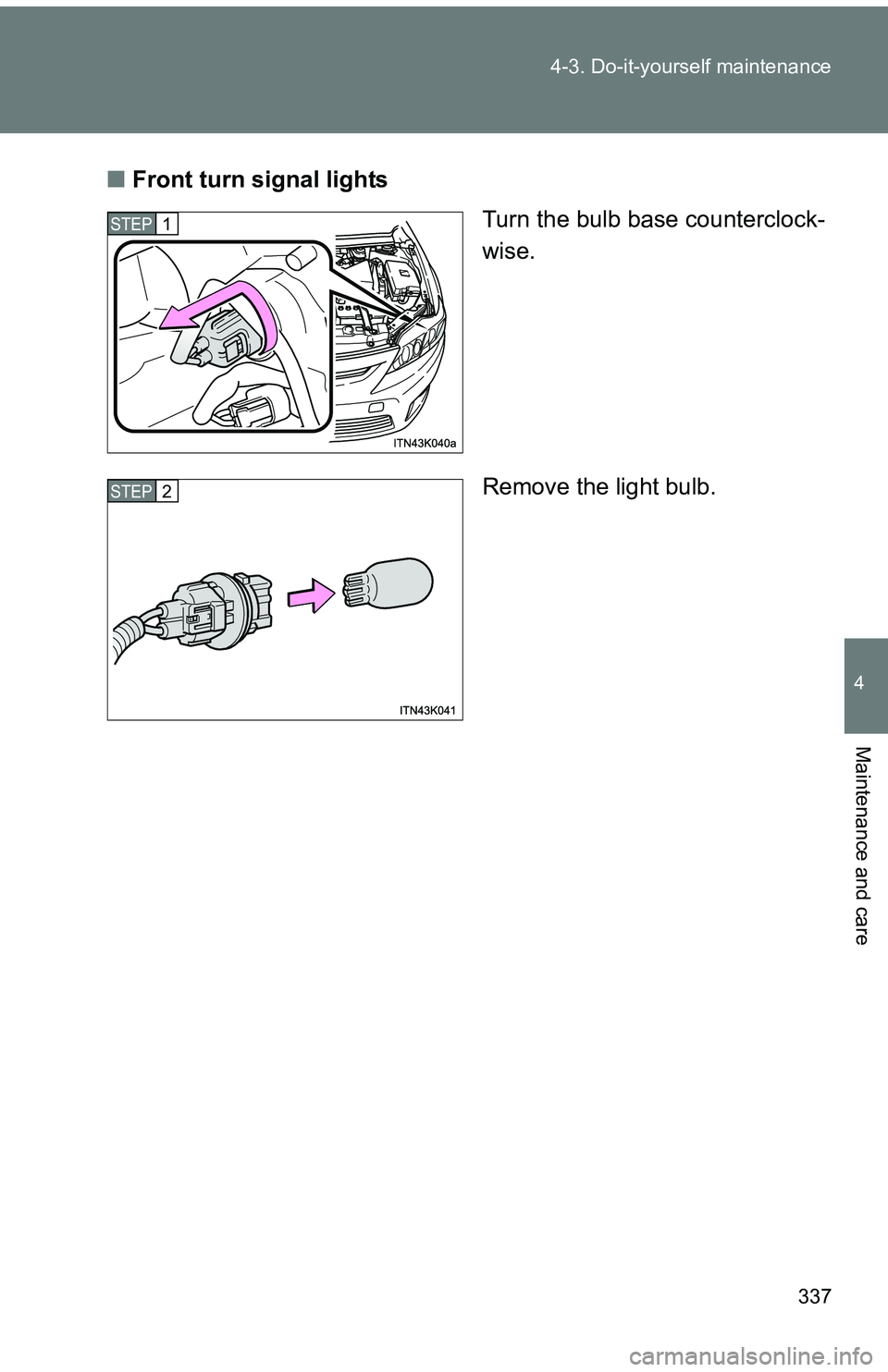

337
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

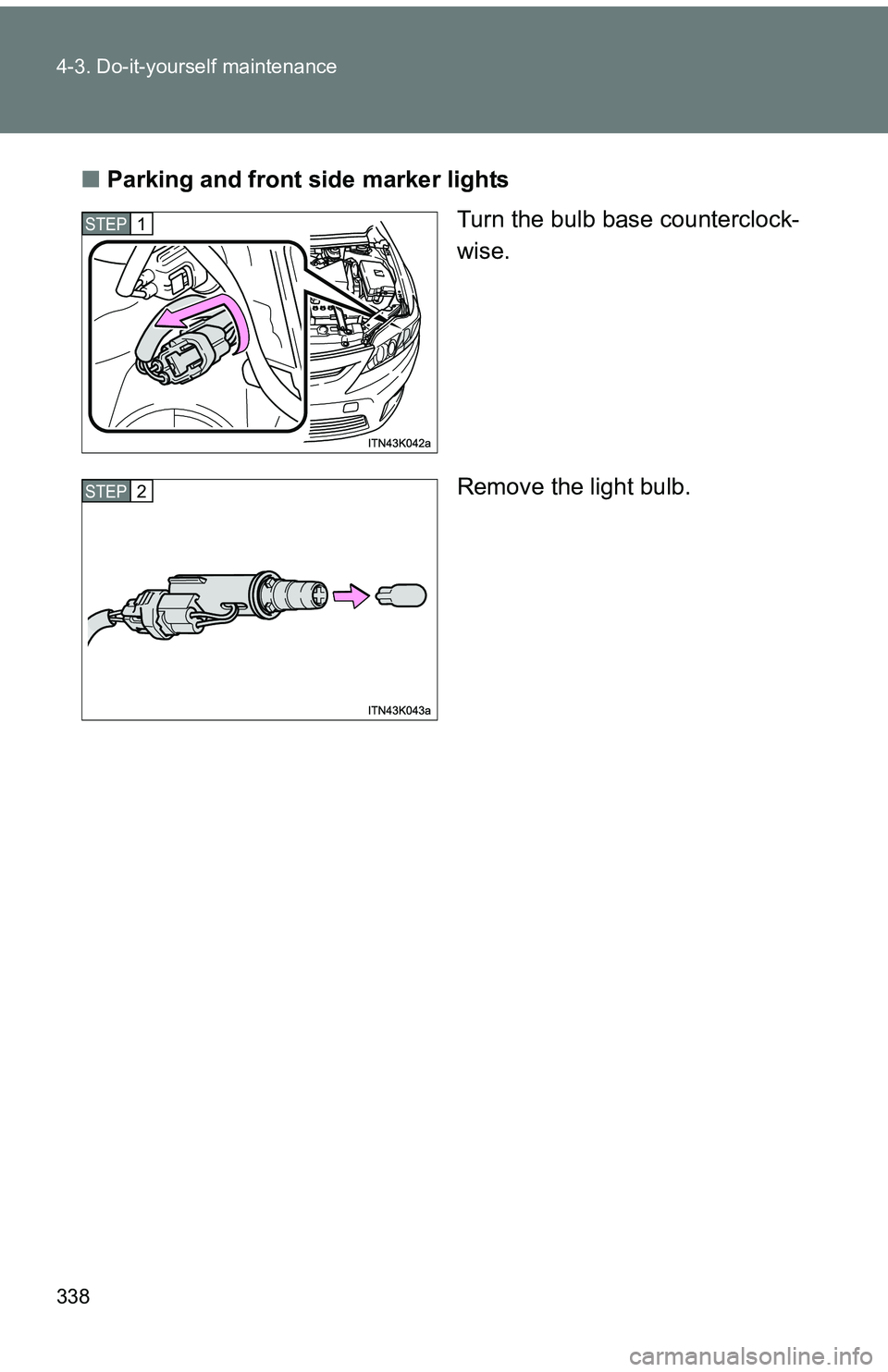

338 4-3. Do-it-yourself maintenance
■Parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

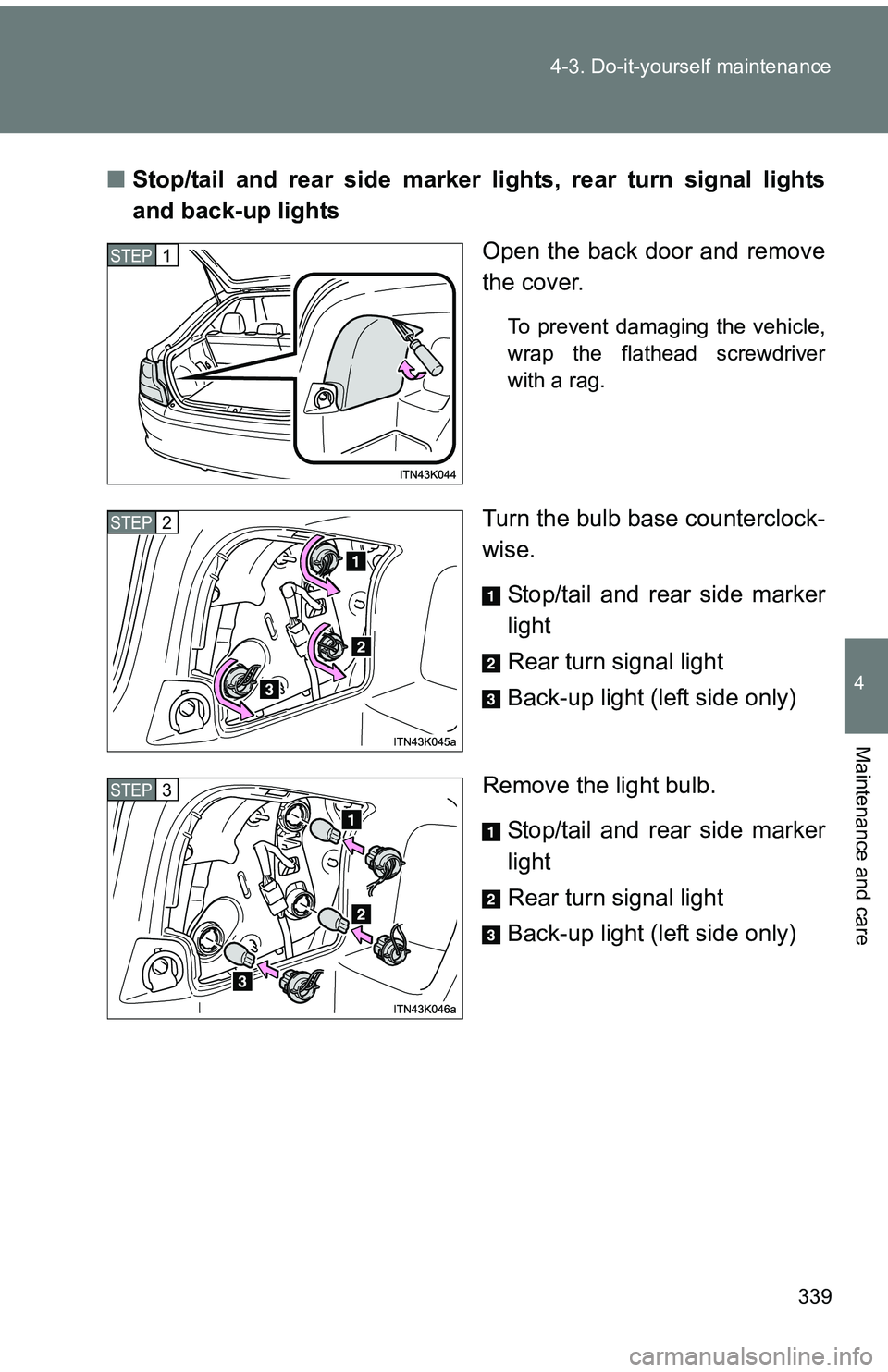

339
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light (left side only)
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
Back-up light (left side only)
STEP 1
STEP 2
STEP 3

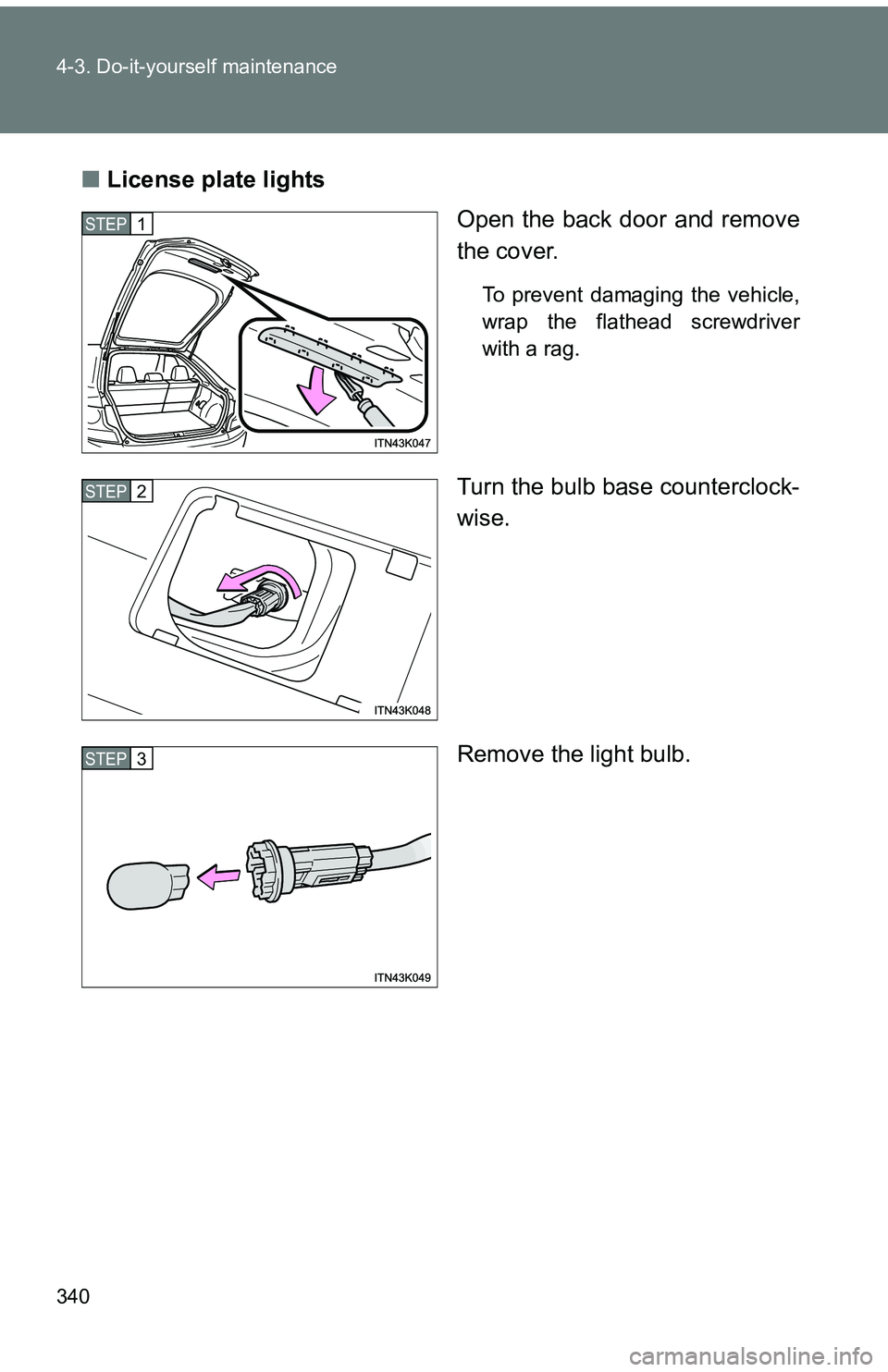

340 4-3. Do-it-yourself maintenance
■License plate lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

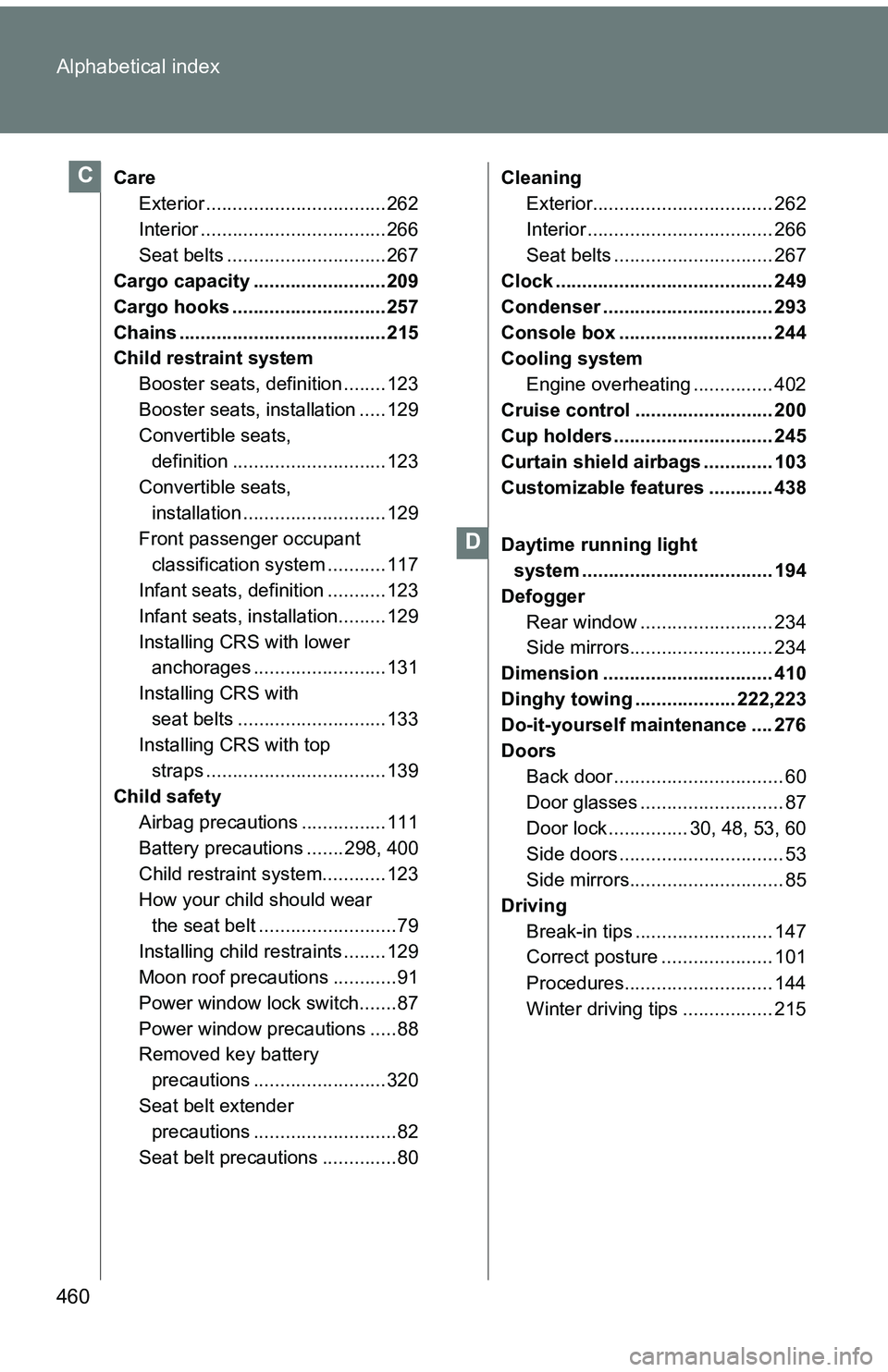

460 Alphabetical index
CareExterior .................................. 262
Interior ................................... 266
Seat belts .............................. 267
Cargo capacity ......................... 209
Cargo hooks ............................. 257
Chains ....................................... 215
Child restraint system
Booster seats, definition ........ 123
Booster seats, installation ..... 129
Convertible seats, definition ............................. 123
Convertible seats, installation ........................... 129
Front passenger occupant classification system ........... 117
Infant seats, definition ........... 123
Infant seats, installation......... 129
Installing CRS with lower anchorages ......................... 131
Installing CRS with seat belts ............................ 133
Installing CRS with top
straps .................................. 139
Child safety Airbag precautions ................111
Battery precautions ....... 298, 400
Child restraint system............ 123
How your child should wear
the seat belt ..........................79
Installing child restraints ........ 129
Moon roof precautions ............91
Power window lock switch.......87
Power window precautions .....88
Removed key battery precautions ......................... 320
Seat belt extender precautions ...........................82
Seat belt precautions ..............80 Cleaning
Exterior.................................. 262
Interior ................................... 266
Seat belts .............................. 267
Clock ......................................... 249
Condenser ................................ 293
Console box ............................. 244
Cooling system
Engine overheating ............... 402
Cruise control .......................... 200
Cup holders .............................. 245
Curtain shield airbags ............. 103
Customizable features ............ 438
Daytime running light system .................................... 194
Defogger Rear window ......................... 234
Side mirrors........................... 234
Dimension ................................ 410
Dinghy towing ................... 222,223
Do-it-yourself maintenance .... 276
Doors Back door ................................ 60
Door glasses ........................... 87
Door lock ............... 30, 48, 53, 60
Side doors ............................... 53
Side mirrors............................. 85
Driving Break-in tips .......................... 147
Correct posture ..................... 101
Procedures............................ 144
Winter driving tips ................. 215C
D
