fuel tank capacity TOYOTA tC 2011 Owners Manual (in English)

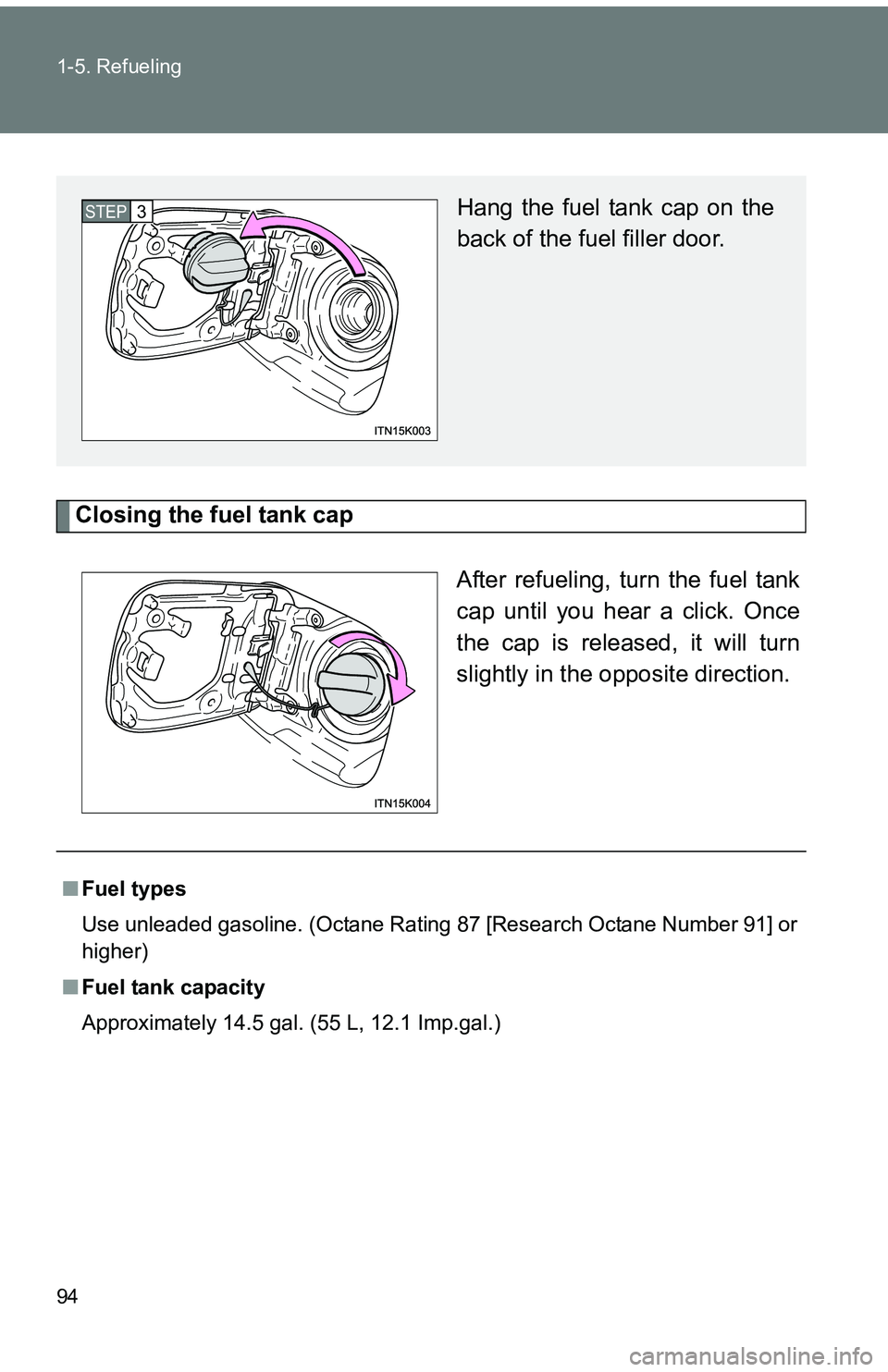

94 1-5. Refueling
Closing the fuel tank capAfter refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Hang the fuel tank cap on the
back of the fuel filler door.STEP 3
■Fuel types
Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or
higher)
■ Fuel tank capacity
Approximately 14.5 gal. (55 L, 12.1 Imp.gal.)

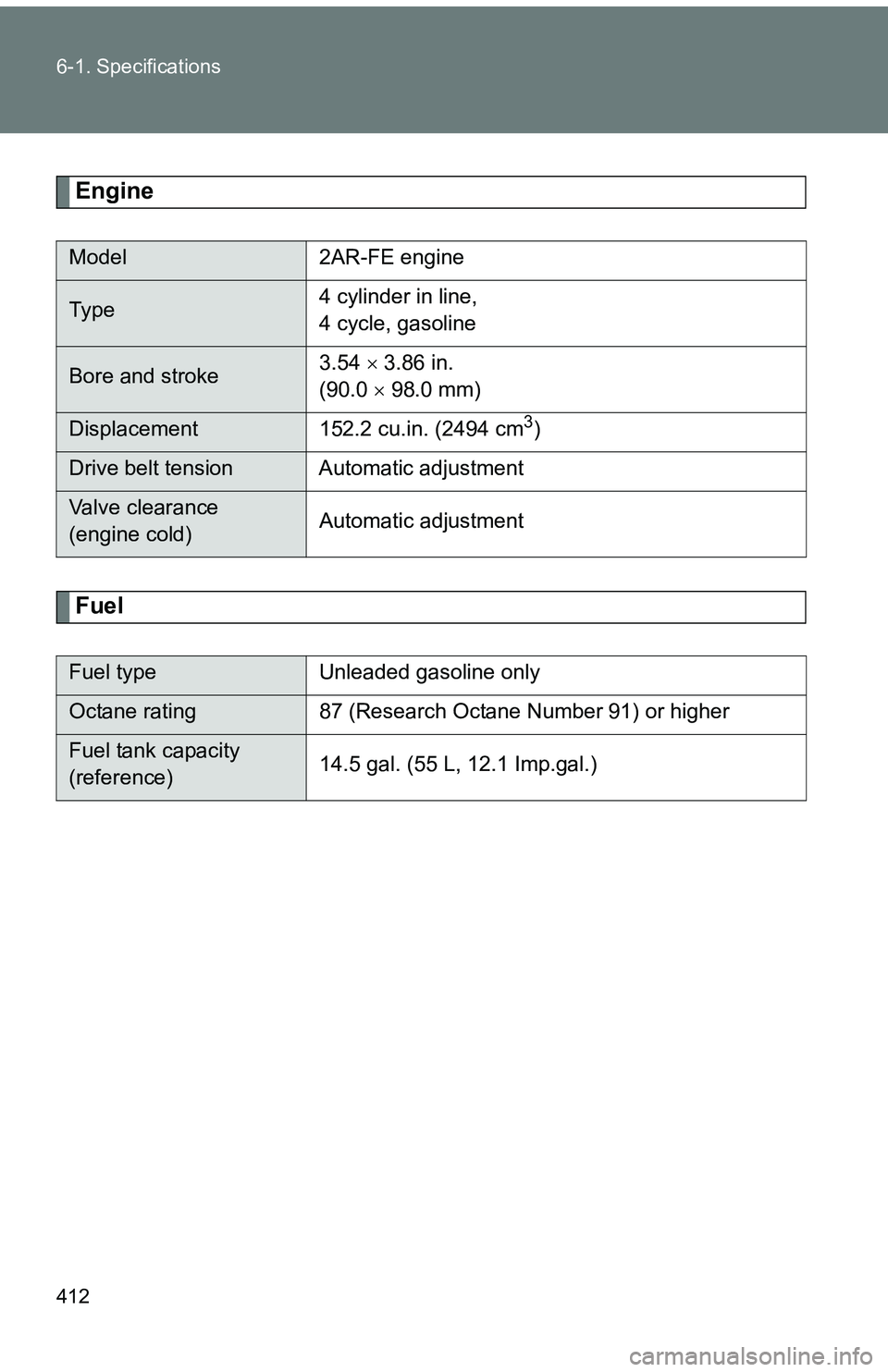

412 6-1. Specifications
Engine
Fuel
Model2AR-FE engine
Ty pe 4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.54 
3.86 in.
(90.0  98.0 mm)
Displacement 152.2 cu.in. (2494 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold) Automatic adjustment
Fuel type
Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

472

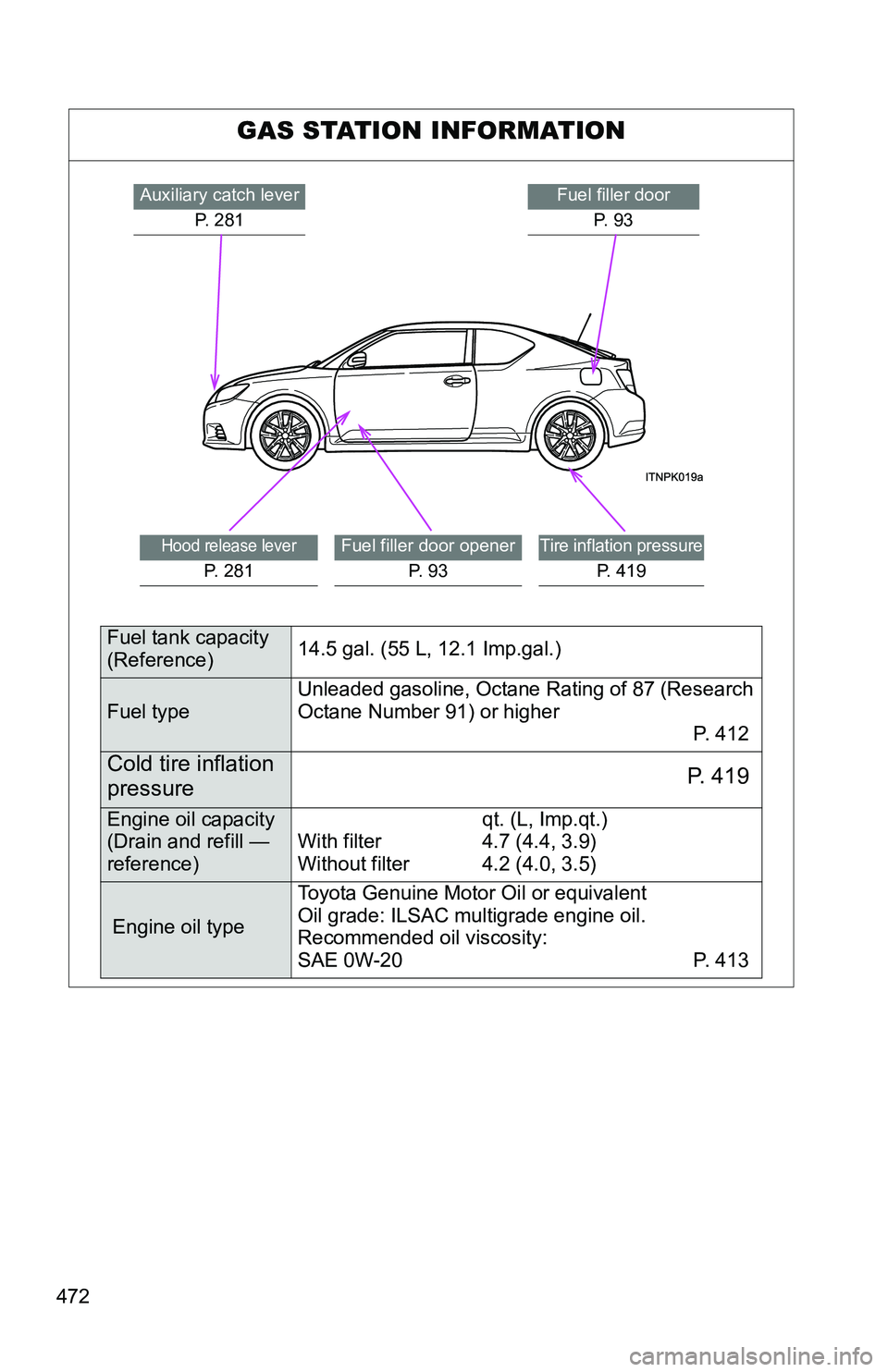

GAS STATION INFORMATION
Auxiliary catch leverP. 281Fuel filler doorP. 9 3
Hood release lever
P. 2 8 1
Fuel filler door opener P. 9 3Tire inflation pressure
P. 419
Fuel tank capacity
(Reference) 14.5 gal. (55 L,
12.1 Imp.gal.)
Fuel type Unleaded gasoline, Octane Rating of 87 (Research
Octane Number 91) or higher
P. 4 1 2
Cold tire inflation
pressure P. 419
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 4.7 (4.4, 3.9)
Without filter 4.2 (4.0, 3.5)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil.
Recommended oil viscosity:
SAE 0W-20 P. 413
