oil viscosity TOYOTA tC 2011 Owners Manual (in English)

288 4-3. Do-it-yourself maintenance
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
● More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
● A new engine consumes more oil.
● When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
● Oil consumption: Max. 1.1 qt./600 miles (0.9 Imp.qt./600 miles,1.0 L per
1000 km)
● If your vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp.qt.) every
600 miles (1000 km), contact your Scion dealer.

413

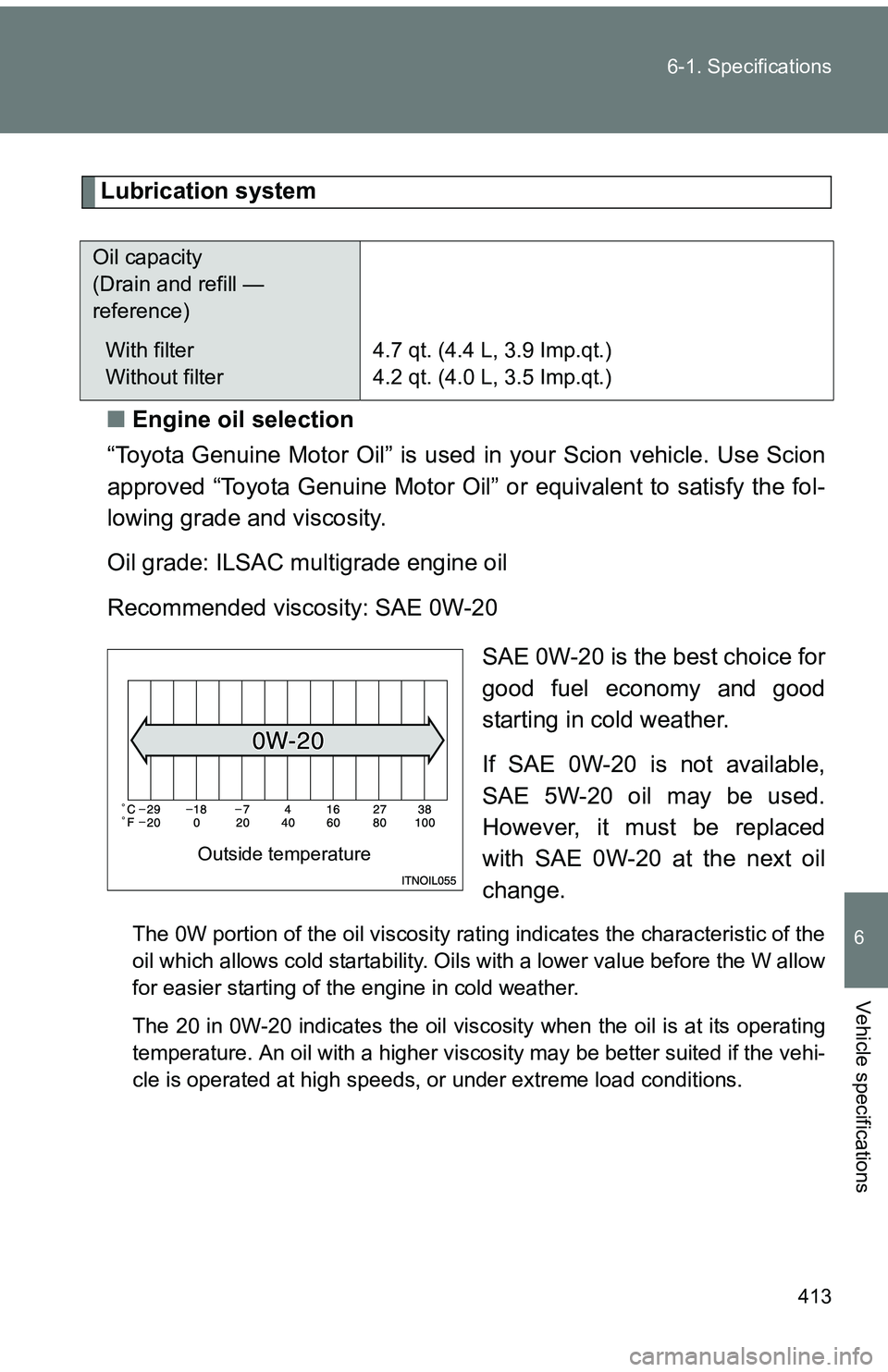

6-1. Specifications
6
Vehicle specifications
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill —
reference)
With filter
Without filter4.7 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)
Outside temperature

417

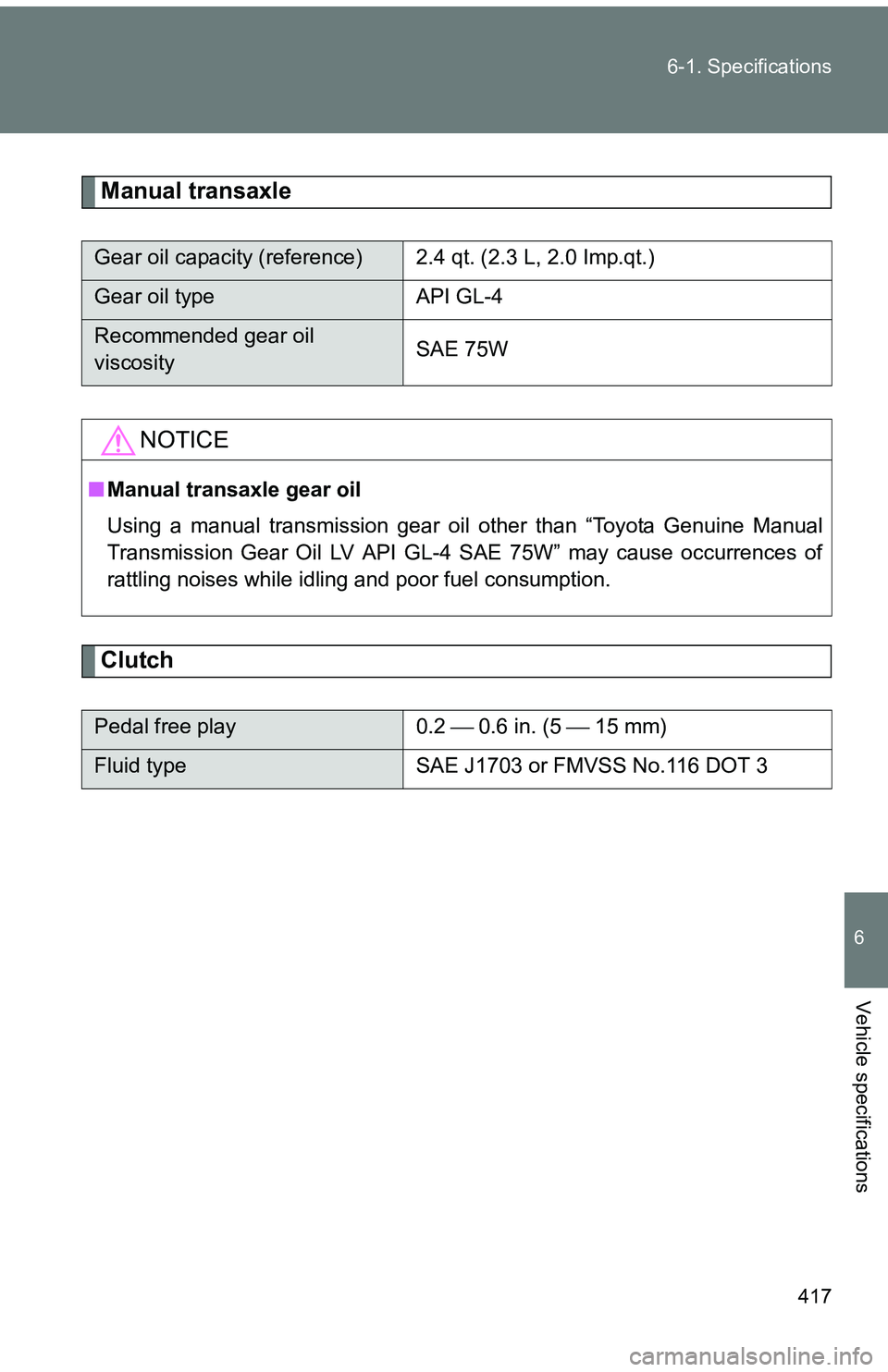

6-1. Specifications
6
Vehicle specifications
Manual transaxle
Clutch
Gear oil capacity (reference) 2.4 qt. (2.3 L, 2.0 Imp.qt.)
Gear oil type
API GL-4
Recommended gear oil
viscosity SAE 75W
NOTICE
■
Manual transaxle gear oil
Using a manual transmission gear oil other than “Toyota Genuine Manual
Transmission Gear Oil LV API GL-4 SAE 75W” may cause occurrences of
rattling noises while idling and poor fuel consumption.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

472
GAS STATION INFORMATION
Auxiliary catch leverP. 281Fuel filler doorP. 9 3
Hood release lever
P. 2 8 1
Fuel filler door opener P. 9 3Tire inflation pressure
P. 419
Fuel tank capacity
(Reference) 14.5 gal. (55 L,
12.1 Imp.gal.)
Fuel type Unleaded gasoline, Octane Rating of 87 (Research
Octane Number 91) or higher
P. 4 1 2
Cold tire inflation
pressure P. 419
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 4.7 (4.4, 3.9)
Without filter 4.2 (4.0, 3.5)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil.
Recommended oil viscosity:
SAE 0W-20 P. 413
