language TOYOTA tC 2013 Accessories, Audio & Navigation (in English)

ADVANCED FUNCTIONS
88
V573_E
The system can memorize the following
settings for up to three users.
z Map direction
z Map scale
z Map configuration
z Guidance mode
z Setup
z Volume
z Language
z Route trace
z Travel time/arrival time
z Right screen of dual map
z Route preference
z Maintenance notification
z XM
® NavTraffic
1. Push the “NAVI” button.

2. Touch “Select User”. z
To register

1. Touch “Memorize”.
The confirmation screen will be dis-
played.

2. To register, touch “Yes”. To re-
turn to the previous screen, touch
“No” or

.
When a touch screen button that is al-
ready registered is touched, the following
screen appears.

To replace, touch “Yes”. To cancel the
replacement, touch “No” or

.


User selection

ADVANCED FUNCTIONS
109
V573_E

Setting the items shown on the “Setup”
screen can be done.
1. Push the “NAVI” button.

2. Touch “Setup”.

3. Touch the items to be set.
4. Touch “OK” on the screen.
The previous screen will be displayed.

INFORMATION
To reset all setup items, touch “De-
fault”.

z Distance unit
Distance unit can be changed.
1. Push the “NAVI” button.
2. Touch “Setup” on the “Menu”
screen.

3. Touch “km” or “miles” of “Dis-
tance” to choose the distance unit.
The selected button is highlighted.
4. Touch “OK”.
INFORMATION
This function is available only in
English or Spanish. To switch lan-
guage, see “Select language” on
page 176.



Setu
p

OTHER FUNCTIONS
119
V573_E

SECTION 5
OTHER FUNCTIONS
z Maintenance information ··················\
··················\
··················\
········· 120
Maintenance inform ation setting ··················\
··················\
················ 120
Dealer setting ··················\
··················\
··················\
··················\
········· 122
z Calendar with memo ··················\
··················\
··················\
················ 124
Adding a memo ··················\
··················\
··················\
··················\
······ 126
Editing a memo ··················\
··················\
··················\
··················\
······ 127
Memo list··················\
··················\
··················\
··················\
················ 127
z Hands-free system (for cellular phone) ··················\
··················\
···· 129
Register a Bluetooth
® phone··················\
··················\
··················\
···· 133
Call on the Bluetooth® phone ··················\
··················\
··················\
··· 137
Receive on the Bluetooth® phone ··················\
··················\
·············· 141
Talk on the Bluetooth® phone ··················\
··················\
··················\
·· 141
Change the settings of the Bluetooth® phone ··················\
·············· 143
Set a Bluetooth® phone··················\
··················\
··················\
············ 167
z Screen adjus tment··················\
··················\
··················\
··················\
···· 173
z Settings ··················\
··················\
··················\
··················\
··················\
··· 174
z Select language ··················\
··················\
··················\
··················\
········ 176
z Rear view camera system ··················\
··················\
··················\
·········· 176

OTHER FUNCTIONS

176
V573_E
The language of the touch screen
buttons, pop −up messages and the
voice guidance can be changed.
1. Push the “INFO” button.

2. Touch “Language”.

3. Touch “English”, “Français” or
“Español” to select a language.
The language is changed and the screen
returns to the map display.
A commercially available rear view
camera can be used by connecting it
to the RCA Relay Cable's RCA termi-
nals.
For further information and operation
procedures, refer to the device's
manual.

NOTICE
When connecting a rear view cam-
era, always use the vehicle wire
harness's ACC connector as the
power source. The rear view camera
may not work properly if any other
power source is used.




Select lan
guage


Rear view camera system

AUDIO/VIDEO SYSTEM
215
V573_E

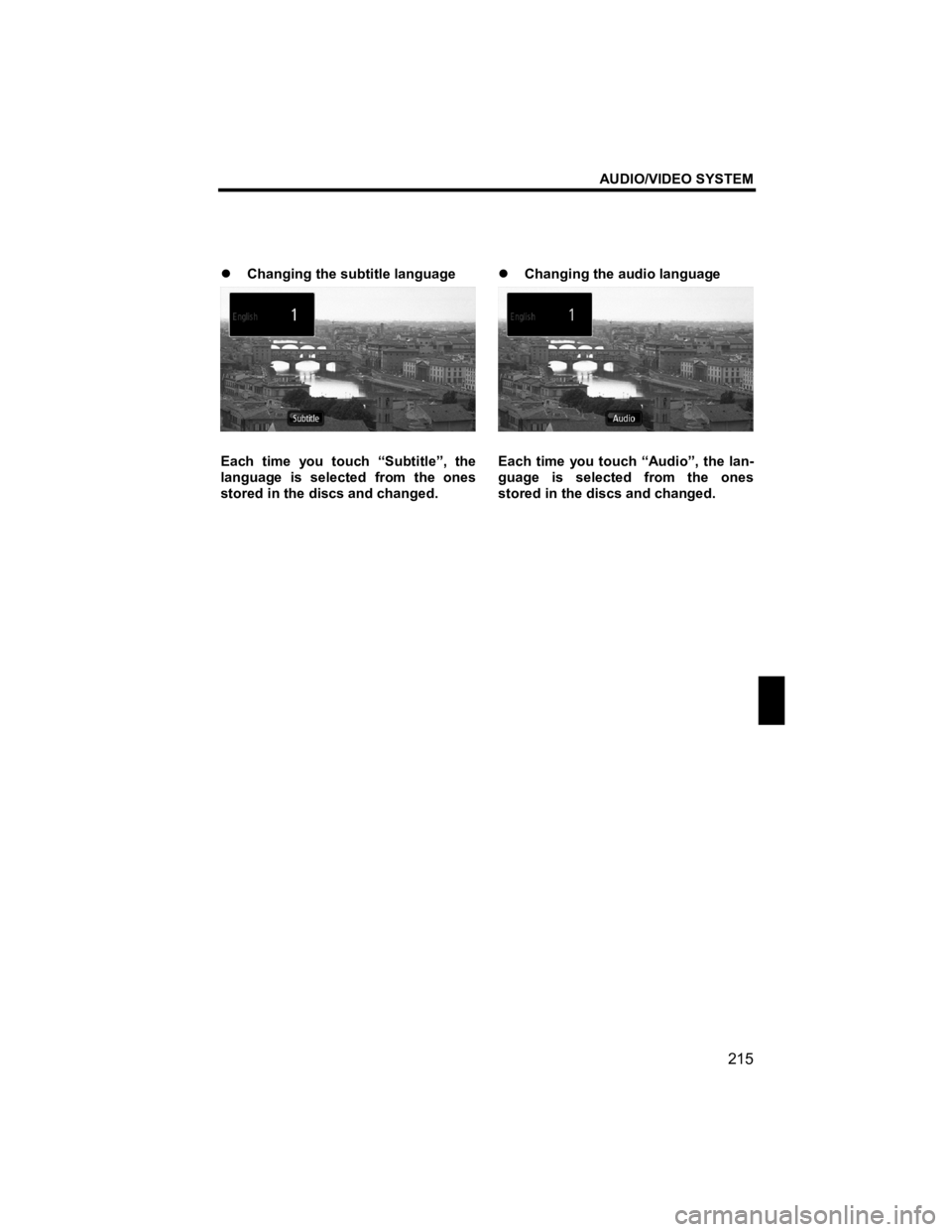

z Changing the subtitle language

Each time you touch “Subtitle”, the
language is selected from the ones
stored in the discs and changed.
z
Changing the audio language

Each time you touch “Audio”, the lan-
guage is selected from the ones
stored in the discs and changed.

AUDIO/VIDEO SYSTEM
218
V573_E
AUDIO LANGUAGE
You can change the audio language.
1. Touch “Audio Lang.”.
2. Touch the language you want to
hear on the “Select audio language”
screen.
If you cannot find the language you want
to hear on this screen, touch “Other”
and enter a language code. For the entry
of language code, see page 219.
SUBTITLE LANGUAGE
You can change the subtitle language.
1. Touch “Subtitle Lang.”.
2. Touch a language you want to
read on the “Select subtitle language”
screen.
If you cannot find the language you want
to read on this screen, touch “Other”
and enter a language code. For the entry
of language code, see page 219.
DVD LANGUAGE
You can change the language on the
DVD video menu.
1. Touch “Menu Lang.”.
2. Touch the language you want to
read on the “Select menu language”
screen.
If you cannot find the language you want
to read on this screen, touch “Other”
and enter a language code. For the entry
of language code, see page 219.
ANGLE ICON
The multi
−angle mark can be turned on
or off on the screen while the disc which
is multi −angle compatible is being
played.
Each time you touch “Angle Icon”, the
angle mark on the screen turns on or off
alternately.
PARENTAL LOCK
The level of viewer restrictions can be
changed.
1. Touch “Parental Lock”.
2. Enter the 4 −digit personal code
on the “Enter Personal Code” screen
and then touch “Enter”.
If you enter the wrong numbers, touch
to delete the numbers.
10 touches of
will initialized the per-
sonal code.
3. Touch a parental level (1—8) on
the “Select restriction level”.
4. Touch “Enter”.

AUDIO/VIDEO SYSTEM
219
V573_E

CHANGING THE VIDEO OUTPUT
The screen size changes each time
“Screen Aspect” is touched.
“16:9”: The screen displays in the nor-
mal wide size.
In the case of DVD software recorded
with a screen size of 4:3, both the left
and right edges display in black, or the
screen is stretched to the left and right.
“4:3 Letter Box”: The upper and lower
edges of the screen display in black.
In the case of DVD software recorded
with a screen size of 4:3, the video fits
the screen size perfectly (4:3).
“4:3 Pan Scan”: Both the left and right
edges of the screen are cut.
In the case of DVD software recorded
with a screen size of 4:3, the video fits
the screen size perfectly (4:3).

NOTICE
There are no issues regarding the
viewing of visual material in wide −
screen format provided that it is for
personal use. However, compress-
ing or enlarging the screen for
commercial purposes, or to make
material available for public viewing,
may infringe upon the rights of the
author as protected by copyright
laws, and therefore care should be
exercised.
z

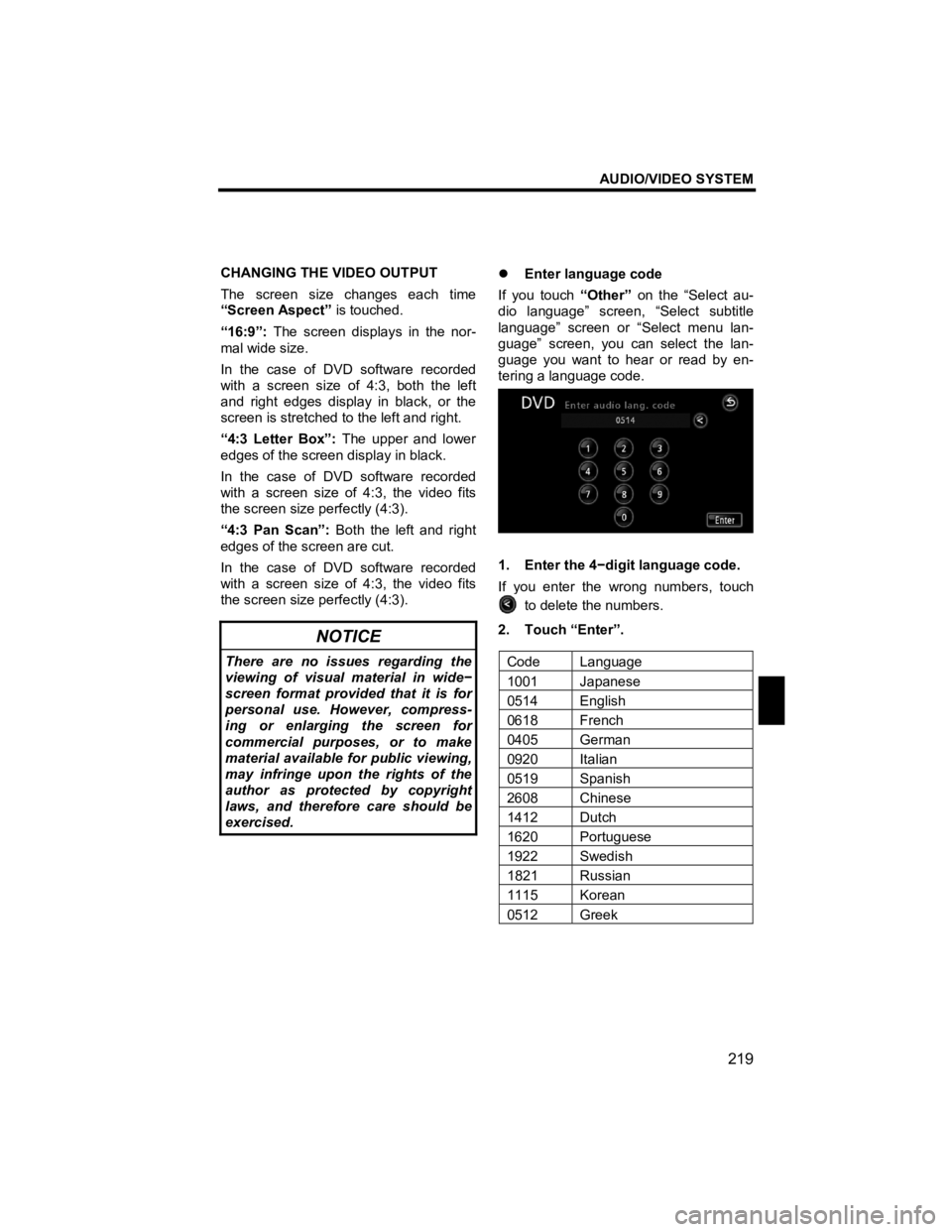

Enter language code
If you touch “Other” on the “Select au-
dio language” screen, “Select subtitle
language” screen or “Select menu lan-
guage” screen, you can select the lan-
guage you want to hear or read by en-
tering a language code.

1. Enter the 4 −digit language code.
If you enter the wrong numbers, touch
to delete the numbers.
2. Touch “Enter”.

Code Language
1001 Japanese
0514 English
0618 French
0405 German
0920 Italian
0519 Spanish
2608 Chinese
1412 Dutch
1620 Portuguese
1922 Swedish
1821 Russian
1115 Korean
0512 Greek

AUDIO/VIDEO SYSTEM
223
V573_E

Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.

Indicates the number
of language subtitles.

Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region
code by which this
video disc can be
played.
ALL: in all countries
Number: region code
z
DVD video disc glossary
DVD video discs: Digital versatile Disc
that holds video. DVD video discs have
adopted “MPEG2”, one of the world
standards of digital compression tech-
nologies. The picture data is com-
pressed by 1/40 on average and stored.
Variable rate encoded technology in
which the volume of data assigned to the
picture is changed depending on the
picture format has also been adopted.
Audio data is stored using PCM and
Dolby digital, which enables higher qual-
ity of sound. Furthermore, multi −angle
and multi −language features will also
help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with a
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with
other scenes.
Level 1: DVD video discs for children
can be played.
Level 2 − 7: DVD video discs for chil-
dren and G −rated movie can be played.
Level 8: All types of the DVD video discs
can be played.
Multi −angle feature: You can enjoy the
same scene at different angles.
Multi −language feature: You can select
a language of the subtitle and audio.
Region codes: The region codes are
provided on DVD players and DVD discs.
If the DVD video disc does not have the
same region code as the DVD player,
you cannot play the disc on the DVD
player. For region codes, see page
222.

INDEX
278
V573_E
Numbers/Symbols
? button ........................................ 14,16,17
2.5D map ........................................... 12,35
2.5D map symbol............................... 12,35
3 Routes selection .................................. 63
3D landmark.................................... 17,114
A
Adaptive volume control .................. 87,149
Adding a memo .................................... 126
Adding destinations ................................ 72
Adding the data to the phone book ....... 156
Address button ....................................... 14
Alphabet keys ......................................... 24
Area to avoid .......................... 104,105,108
Arrow screen ..................................... 32,68
Audio/video remote controls ................. 257
Auto answer ......................................... 151
Auto avoid traffic..................................... 92
Auto voice guidance ........................ 17,115
Auto volume adjustment (Auto Volume) ................................... 188
Automatic volume settings for high speed ........................................ 149
AUX operation ...................................... 245
AUX port ............................................... 246
AV button.............................................. 178
B
Beep type............................................. 175
Bluetooth®..................................... 129,231
Bluetooth® audio system....................... 231
Bluetooth® information .......................... 169
Brightness ..................................... 173,191
C
Calendar with memo............................. 124
Calibration ....................................... 17,117
Call by dialed numbers ......................... 138
Call by key pad ..................................... 137
Call by phone book ............................... 137
Call by POI ........................................... 140
Call by received calls ............................ 139
Call by speed dial ................................. 140
Call on the Bluetooth
® phone ................ 137
Categories ............................... 52,54,79,80
CAUTION screen.................................... 21
CD player operation.............................. 202
Cellular phone ...................................... 129 Change “Area Size” ..............................
107
Change “Icon” ........................................ 99
Change “Location”......................... 101,107
Change “Name”............................. 101,106
Change “Phone #” ................................ 102
Change “Quick Access”........................ 100
Change button................................... 14,42
Change the route .............................. 62,76
Change the settings of the Bluetooth
® phone .............................. 143
Changing a device name............... 170,241
Changing map orientation and
configuration ....................................... 35
Changing the angle .............................. 216
Changing the audio language............... 215
Changing the Bluetooth
®
settings ............................................. 170
Changing the map SD memory card .... 273
Changing the security code .................. 165
Changing the subtitle language ............215
Chapter ................................... 214,223,257
City center .............................................. 53
City name .......................................... 47,50
City to search .................................... 47,50
Color .................................................... 192
Compass mode ...................................... 34
Compass mode screen .......................... 32
Connecting a Bluetooth
® phone ........... 135
Connecting a portable player ............... 236
Connecting or disconnecting your iPod .......................................... 248
Connecting (disconnecting) portable
audio devices .................................... 246
Contrast ............................................... 191
Coordinates button ................................. 14
Current position as the search point ....... 53
Current position display .......................... 27
Current position/tire change
calibration ......................................... 117
Cursor position as a destination ............. 28
Cursor position as a memory point ......... 29
D
Database version ................................. 273
Dealer setting ....................................... 122
Default .... 17,109, 110,112,150,152,167,172,244
Deleting “Quick Access” ....................... 100
Deleting a Bluetooth
® phone ................ 172
Deleting a group name ......................... 162
Deleting a portable player .................... 244
Deleting all of the speed dial ................145
Deleting all the group name .................163
Deleting all the phone data................... 159
Deleting all the speed tone ...................148

INDEX
279
V573_E

Deleting area to avoid ...........................108
Deleting destinations .............................. 74
Deleting home ...................................... 104
Deleting memory points ........................ 102
Deleting previous points ....................... 108
Deleting the data .................................. 158
Deleting the log data ............................. 163
Deleting the speed dial individually ....... 145
Deleting the speed tone
individually ........................................ 148
DEST button ................................. 12,14,42
Destination information ........................... 32
Destination screen .................................. 14
Destination search .................................. 42
Destination search by “Address” ............. 45
Destination search by “Coordinates”....... 60
Destination search by “Intersection”........ 58
Destination search by “Map” ................... 57
Destination search by “Memory” ............. 56
Destination search by “Phone #” ............. 60
Destination search by “POI Category” .................................... 52
Destination search by “POI Name” ......... 49
Destination search by “Previous” ............ 57
Destination search by home ................... 44
Destination search by quick access ........ 45
Detour setting ......................................... 76
Display operation .................................... 20
Display POI icons ....................... 17,78,113
Displaying DVD controls ....................... 211
Distance and time to destination ........ 12,71
Distance unit .................................... 17,109
Dual map ................................................ 34
Dual map screen .................................... 32
DVD controls ........................................ 212
DVD player and DVD video disc information ........................................ 222
DVD player operation ...........................210
DVD video disc ..................................... 222
DVD video disc glossary ....................... 223
E
Edit “Dealer” or “Contact”......................123
Edit “Location” ...................................... 123
Edit “Phone #” ....................................... 124
Editing a group name ............................162
Editing a memo..................................... 127
Editing area to avoid ............................. 105
Editing memory points ............................ 98
Editing the data..................................... 157
Editing the name................................... 155
Editing the phone number .....................155 Editing the speed tone
..........................147
Eject OPEN button .............20,178, 180,273
Emergency button .................................. 14
Enter a Bluetooth
® audio player............ 234
Enter language code ............................219
Equalizer system .................................. 185
Estimated arrival time ............................. 71
Estimated travel time .................. 17,71,110
F
Folder list button............................ 205,227
Freeway Ent./Exit button ........................ 14
Freeway information screen .............. 32,66
Function button display screen ............. 178
Function help........................... 14,16,17,27
G
GPS ..................................................... 270
GPS mark............................................... 12
Guidance screen on the freeway ....... 32,66
Guiding the route .................................... 36
H
Hands-free system ............................... 129
HD Radio.............................................. 194
Heading-up ........................................ 12,35
Heading-up symbol ........................... 12,35
HFP (Hands Free Profile) .....................129
Home ....................................... 38,103, 104
Home touch screen button ..................... 14
House number................................... 38,46
I
If the player malfunctions........ 209,222,231
INFO button............................................ 12
Information about the icon ...................... 30
Information items.................................. 121
Information screen.................................. 12
Initial screen ........................................... 21
Initializing the Bluetooth
®
settings ............................................. 172
Initializing the security code.................. 167
Inputting a street name........................... 46
Inputting letters and numbers ................. 23
Inserting or ejecting disc....................... 180
Intersection button .................................. 14
