Quick
RefeRence
Gui De
tC2 013
Get info Rme D.
Roll.
©2012 Scion, a marque of t oyota m otor Sales, u .S.A., i nc.
Printed in u.S.A. 5/12
12-tc S-05914
em Ail
w w w.scion.com
 Contact
-
c h At
w w w.scion.com
 Have a Question?
 Contact
-
P hone
1.866.70.s Cion
-
m Ail
s C ion
19001 s . Western Ave.
D102, P. o. Box 2742
Torrance, CA 90509-2742
Us A
-
web
w w w.scion.com
-
00505-QRG13-tc
126471_12-TCS-05914_QRG_MY13Scion_tC_1_0F_lm.indd 15/8/12 9:41 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
NOTES
126471_2013Scion-tC.indd 61395/8/12 9:46 PM

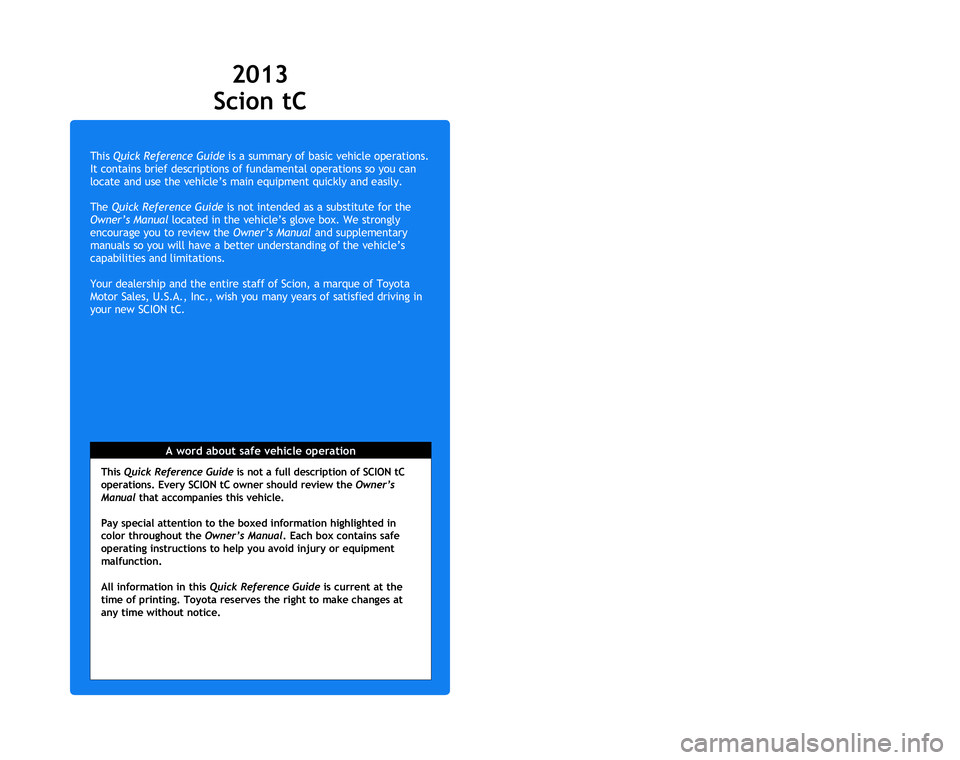

This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Scion, a marque of Toyota
Motor Sales, U.S.A., Inc., wish you many years of satisfied driving in
your new SCION tC.
A word about safe vehicle operation
This Quick Reference Guide is not a full description of SCION tC
operations. Every SCION tC owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Scion tC
126471_2013Scion-tC.indd 62435/8/12 9:45 PM126471_12-TCS-05914_QRG_MY13Scion_tC_1_0F_lm.indd 25/8/12 9:57 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Scion tCOVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES

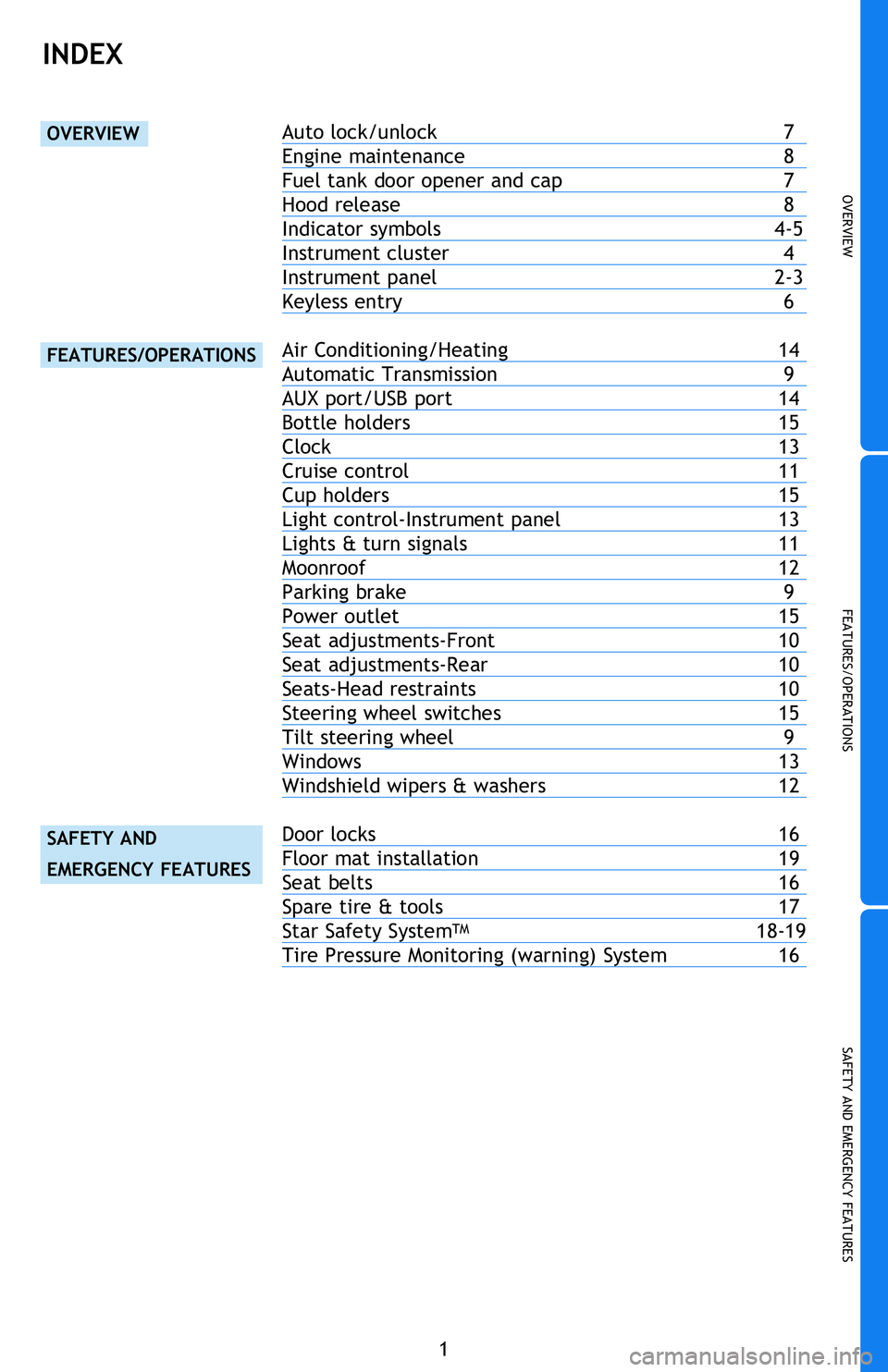

INDEX
Auto lock/unlock 7
Engine maintenance 8
Fuel tank door opener and cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6

Air Conditioning/Heating 14
Automatic Transmission 9
AUX port/USB port 14
Bottle holders 15
Clock 13
Cruise control 11
Cup holders 15
Light control-Instrument panel 13
Lights & turn signals 11
Moonroof 12
Parking brake 9
Power outlet 15
Seat adjustments-Front 10
Seat adjustments-Rear 10
Seats-Head restraints 10
Steering wheel switches 15
Tilt steering wheel 9
Windows 13
Windshield wipers & washers 12

Door locks 16
Floor mat installation 19
Seat belts 16
Spare tire & tools 17
Star Safety SystemTM 18-19
Tire Pressure Monitoring (warning) System 16
126471_2013Scion-tC.indd 15/8/12 9:58 PM

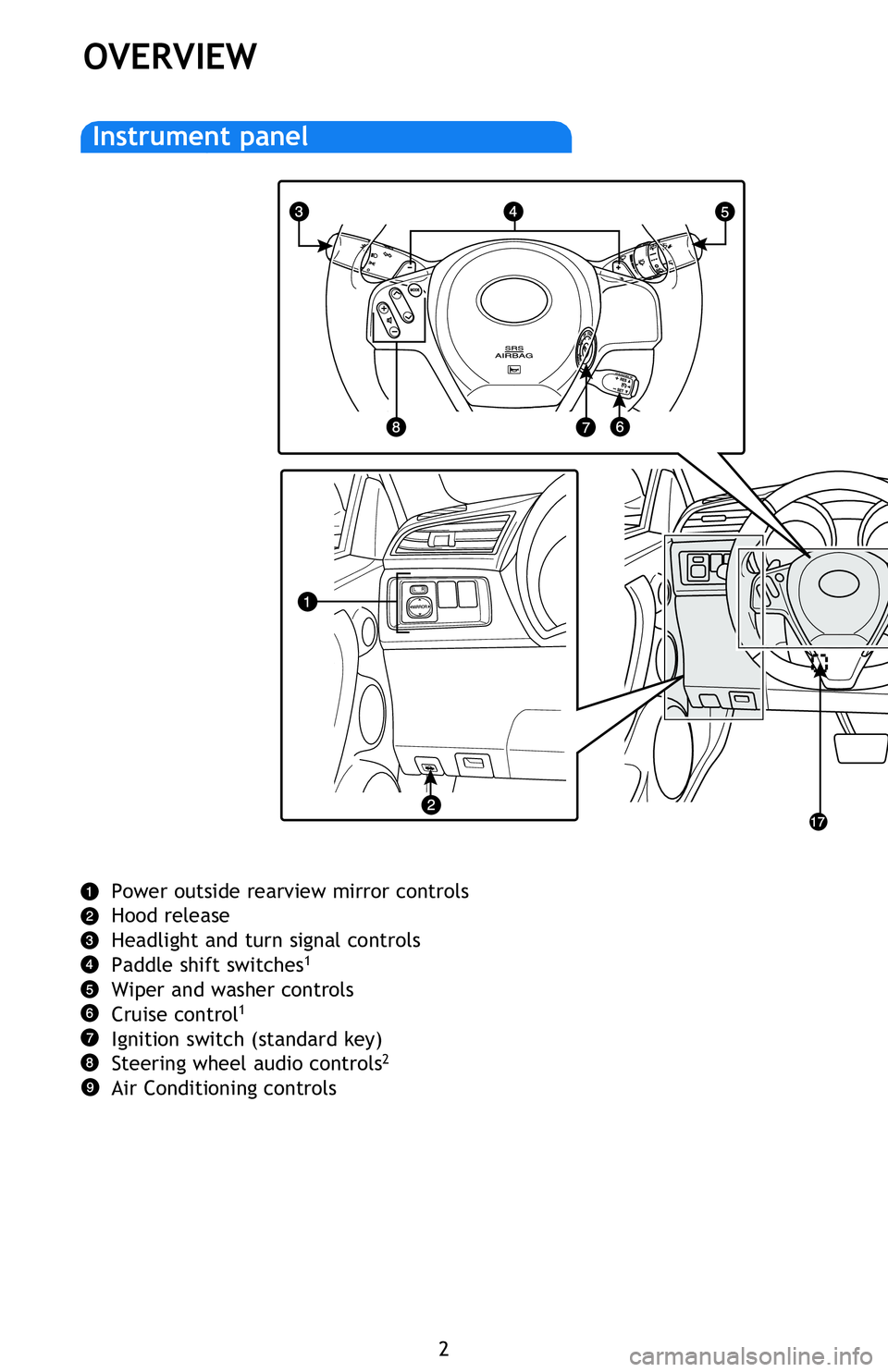

2
OVERVIEW
Power outside rearview mirror controls
Hood release
Headlight and turn signal controls
Paddle shift switches
1
Wiper and washer controls
Cruise control1
Ignition switch (standard key)
Steering wheel audio controls2
Air Conditioning controls
Rear window defogger switch
Emergency flasher switch
Clock
Clock adjustment buttons
Front passenger occupant classification indicator
Engine immobilizer system indicator
1
Power outlet
Tilt and telescopic steering lock release
1 If equipped2 For details, refer to the “SCION Audio System Owner’s Manual” or
“SCION Navigation System Owner’s Manual.”
Instrument panel
126471_2013Scion-tC.indd 25/8/12 9:58 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
OVERVIEW
Power outside rearview mirror controls
Hood release
Headlight and turn signal controls
Paddle shift switches
1
Wiper and washer controls
Cruise control1
Ignition switch (standard key)
Steering wheel audio controls2
Air Conditioning controls
Rear window defogger switch
Emergency flasher switch
Clock
Clock adjustment buttons
Front passenger occupant classification indicator
Engine immobilizer system indicator
1
Power outlet
Tilt and telescopic steering lock release
1 If equipped2 For details, refer to the “SCION Audio System Owner’s Manual” or
“SCION Navigation System Owner’s Manual.”
126471_2013Scion-tC.indd 35/8/12 9:58 PM

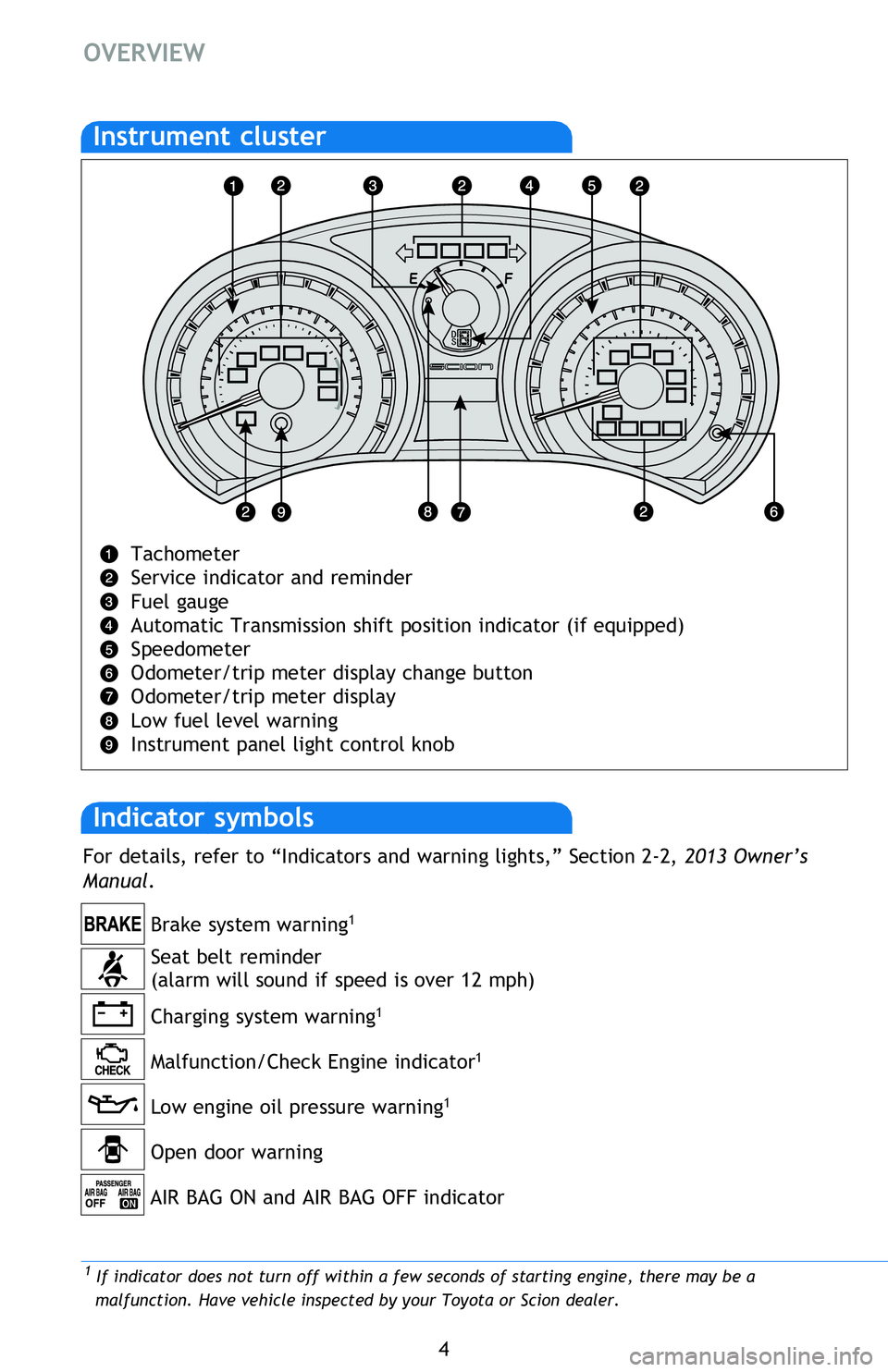

4
OVERVIEW
Tachometer
Service indicator and reminder
Fuel gauge
Automatic Transmission shift position indicator (if equipped)
Speedometer
Odometer/trip meter display change button
Odometer/trip meter display
Low fuel level warning
Instrument panel light control knob
Instrument cluster
Seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning1
Charging system warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning
AIR BAG ON and AIR BAG OFF indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota or Scion dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.
126471_2013Scion-tC.indd 45/8/12 9:58 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

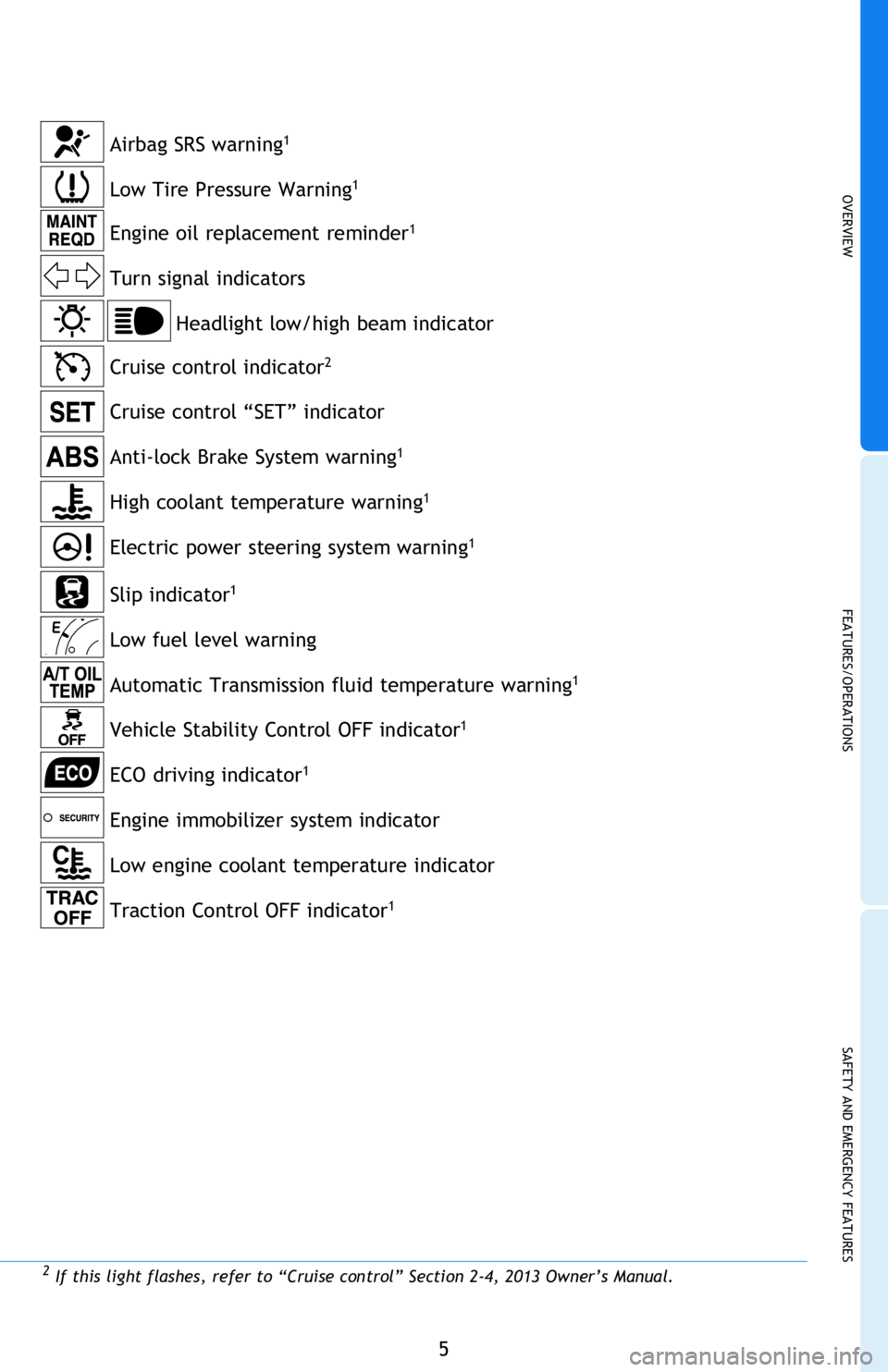

5
2 If this light flashes, refer to “Cruise control” Section 2-4, 2013 Owner’s Manual.
Anti-lock Brake System warning1
Engine oil replacement reminder1
Turn signal indicators
Headlight low/high beam indicator
Airbag SRS warning1
Low Tire Pressure Warning1
Cruise control indicator2
High coolant temperature warning1
Slip indicator1
Low fuel level warning
Automatic Transmission fluid temperature warning1
Engine immobilizer system indicator
Vehicle Stability Control OFF indicator1
ECO driving indicator1
Low engine coolant temperature indicator
Traction Control OFF indicator1
Electric power steering system warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota or Scion dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.
Cruise control “SET” indicator
126471_2013Scion-tC.indd 55/8/12 9:58 PM

6
OVERVIEW

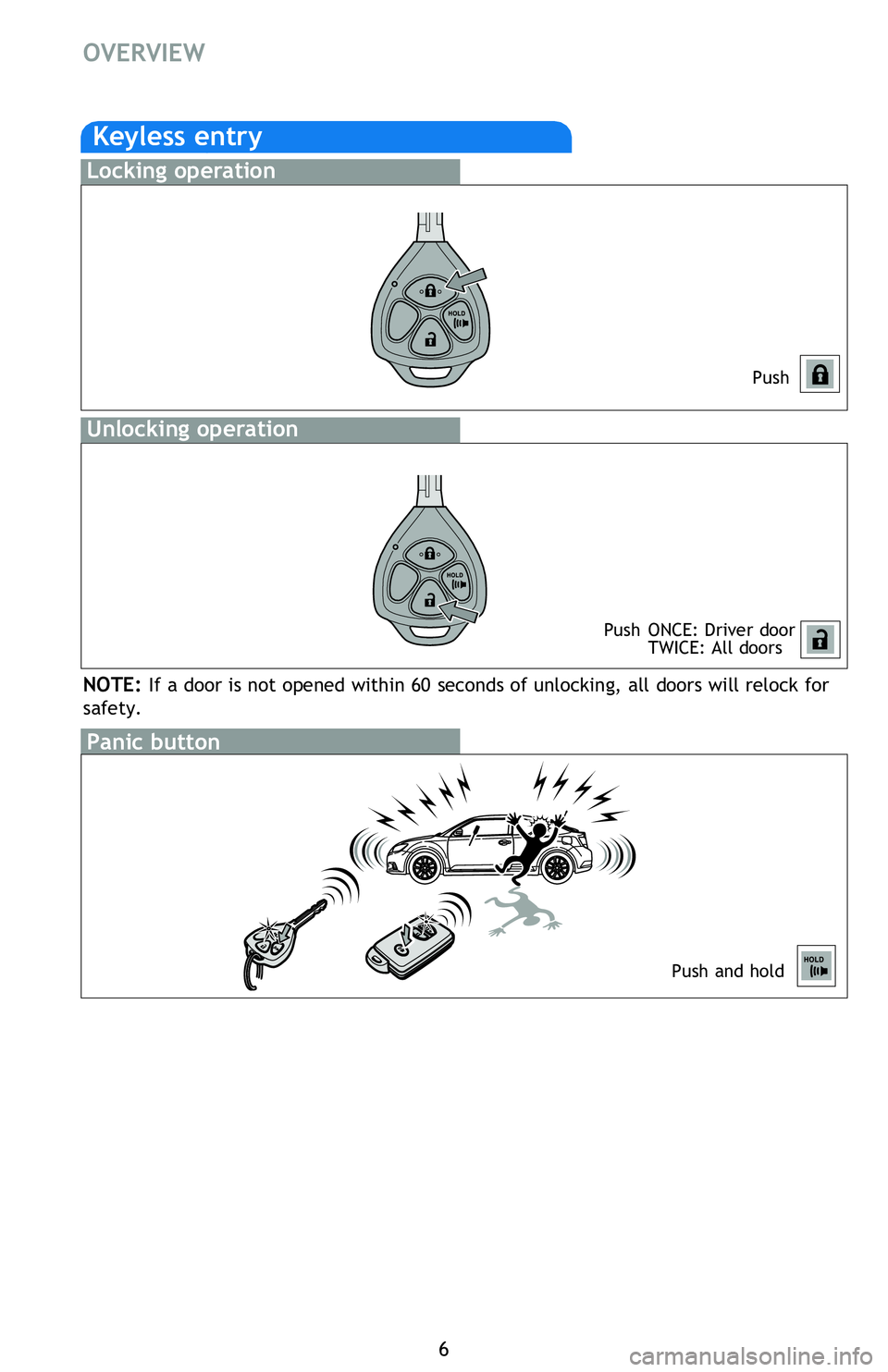

Keyless entry
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.” indicator may illuminate.
for more details.
126471_2013Scion-tC.indd 65/8/12 9:58 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Push
NOTE:
safety.

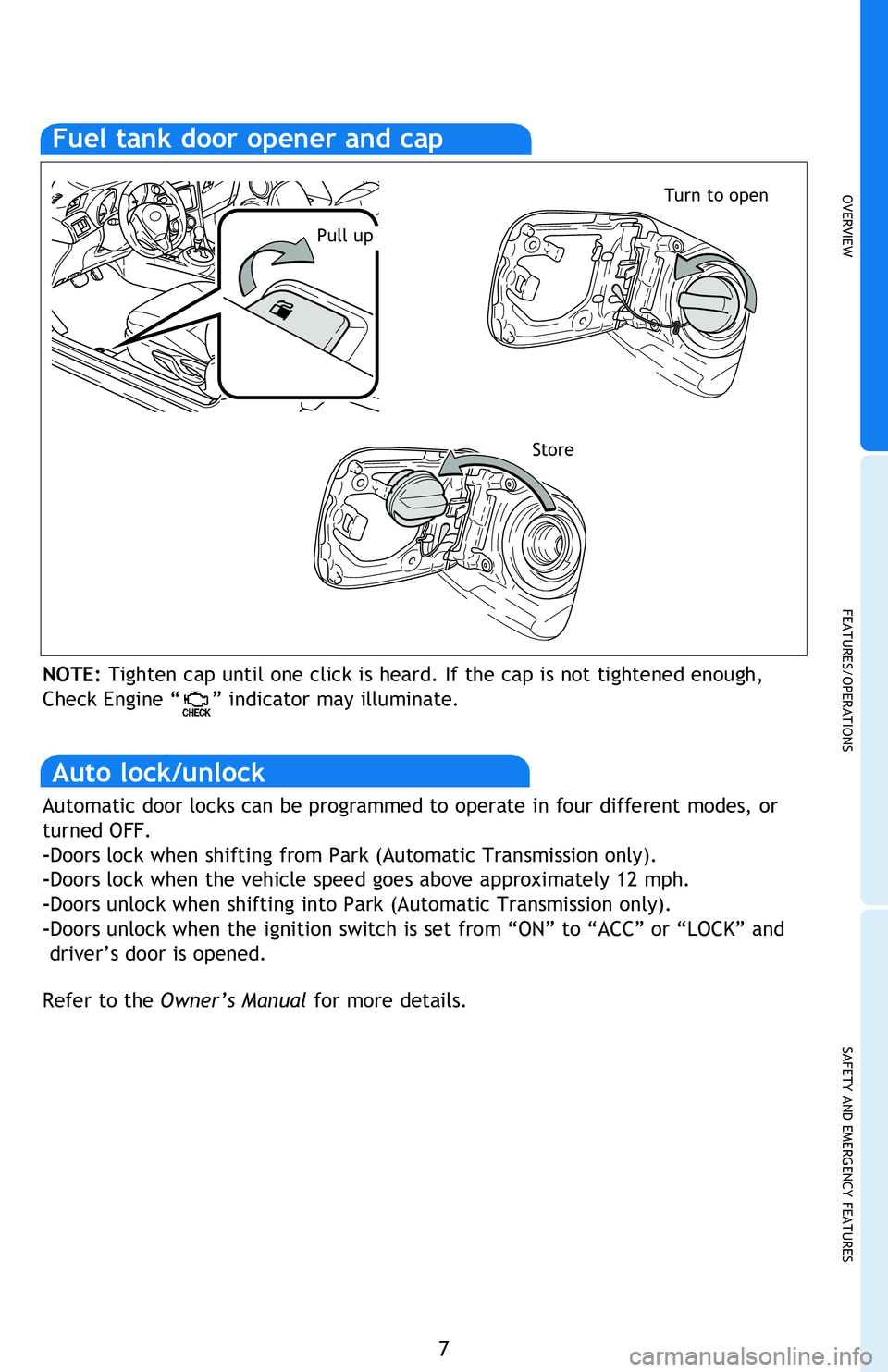

Fuel tank door opener and cap
Turn to open
Store
Pull up
NOTE: Tighten cap until one click is heard. If the cap is not tightened enough,
Check Engine “” indicator may illuminate.
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park (Automatic Transmission only).
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park (Automatic Transmission only).
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Refer to the Owner’s Manual for more details.
126471_2013Scion-tC.indd 75/8/12 9:58 PM

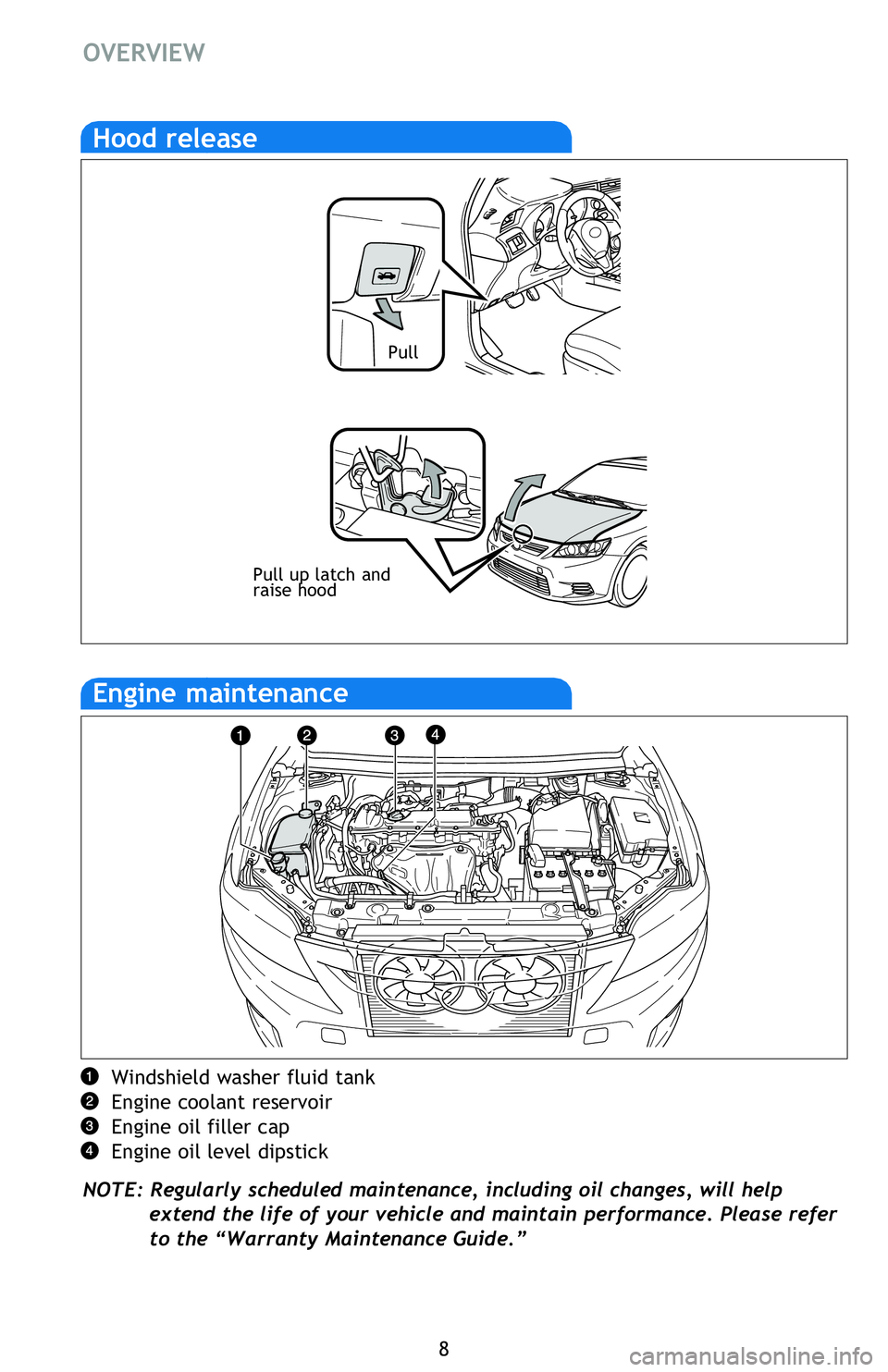

8
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Hood release
Pull
Pull up latch and raise hood
OVERVIEW
