TOYOTA tC 2013 Owners Manual (in English)

5
When trouble arises
391
5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP 4
STEP 5

392 5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
Stowing the flat tireBefore stowing the flat tire,
remove the center wheel orna-
ment by pushing from the
reverse side.
Put the flat tire on the center of
the luggage mat with the outer
side of the wheel facing up. Hook
the end of the belt to either rear
cargo hook.
Pass the belts from between the
wheel spokes through the cen-
ter hole of the wheel.
STEP 1
STEP 2
STEP 3

5
When trouble arises
393
5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
Hook the other end of the belt to
the front cargo hook located
diagonally to the used rear hook.STEP 4
■Jack point guide
■When storing the luggage mat
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare
tire. ( P. 431)
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Hold the luggage mat as shown.

394 5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
■After completing the tire change (U.S.A. only)
The tire pressure warning system must be reset. ( P. 313)
■When using the compact spare tire (U.S.A. only)
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warn ing system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with th e tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
STEP 1
STEP 2
STEP 3

5
When trouble arises
395
5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
CAUTION
■When using the compact spare tire
●Remember that the compact spare
tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
●Cruise control (if equipped)
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure
to observe this precaution may lead to an accident causing death or seri-
ous injury.

396 5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire. 
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a heigh t greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

5
When trouble arises
397
5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
CAUTION
■Replacing a flat tire
Observe the following precautions to
reduce the risk of death or serious
injury:
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven. 
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. T ouching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N
•m, 10.5 kgf•m) as soon as possible after changing wheels.
●When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
●If there are any cracks or deformatio ns in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by your Scion
dealer.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, result ing in death or serious injury.
■When installing the wheel nuts
Be sure to install the wheel nuts with the tapered end facing inward. 
(  P. 329)

398 5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
CAUTION
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.
■When stowing the flat tire
●Make sure the rear seats are in their original position.
●Secure it using a tire tie-down belt. Otherwise, the flat tire may fly out
in case of the sudden braking or an accident, resulting in death or seri-
ous injury.

5
When trouble arises
399
5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.

Driving even a short distance with a fl at tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin g with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire. 
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires (U.S.A. only)
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters (U.S.A. only)
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 313)

400
5-2. Steps to take in an emergency
tC_OM_OM21042U_(U)

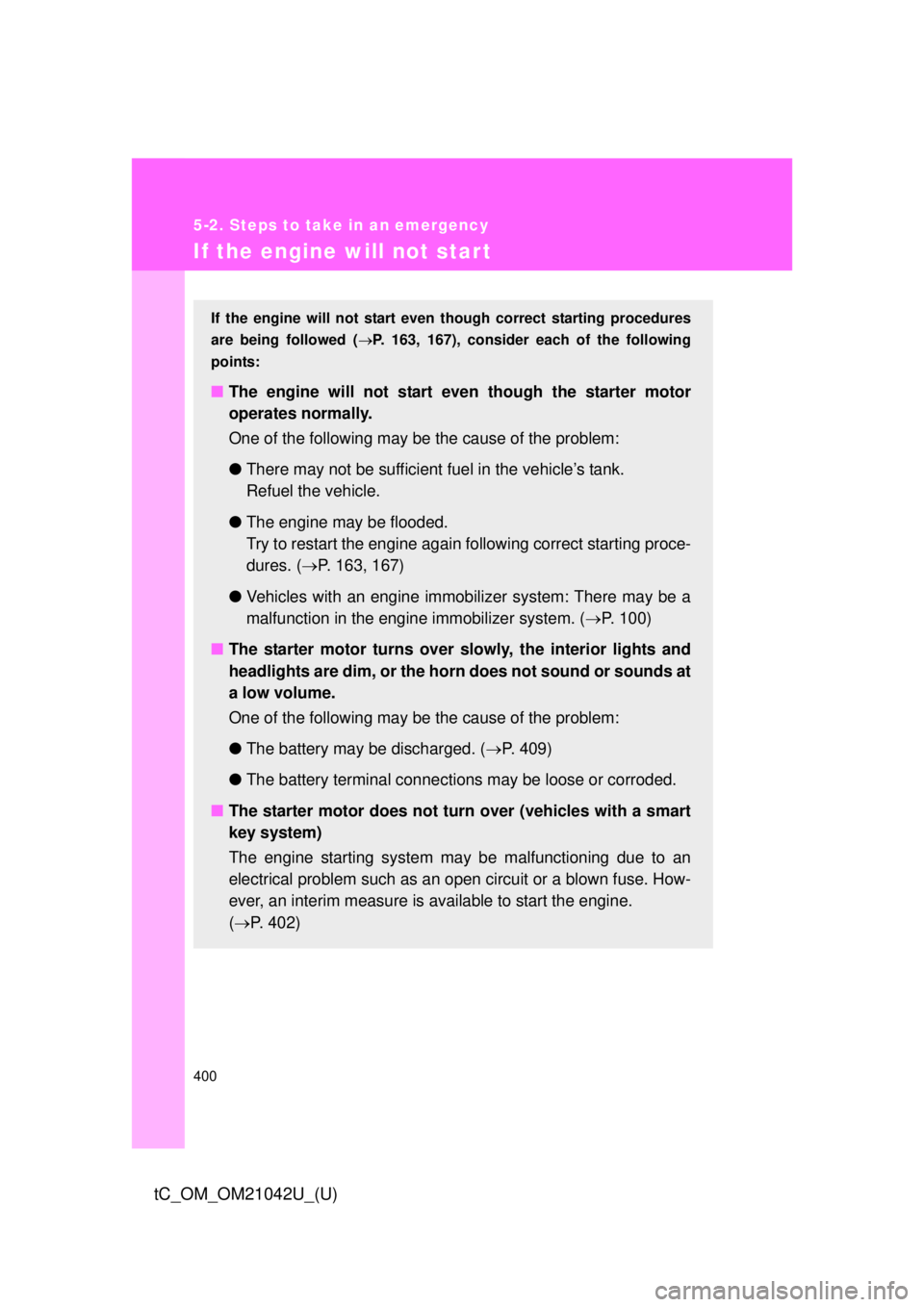

If the engine will not star t
If the engine will not start even though correct starting procedures
are being followed ( P. 163, 167), consider each of the following
points:
■ The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank. 
Refuel the vehicle.
● The engine may be flooded. 
Try to restart the engine again following correct starting proce-
dures. ( P. 163, 167)
● Vehicles with an engine immobilizer system: There may be a
malfunction in the engine immobilizer system. (P. 100)
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 409)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over (vehicles with a smart
key system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine. 
(  P. 402)
