TOYOTA tC 2014 Owners Manual (in English)

141 1-7. Safety information
1
Before driving
tC_OM_OM21053U_(U)
■Forward facing Convertible seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP 1
STEP 2
STEP 3

142 1-7. Safety information
tC_OM_OM21053U_(U)
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 145)
STEP 4
STEP 5
STEP 6

143 1-7. Safety information
1
Before driving
tC_OM_OM21053U_(U)
■Booster seat
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 77)
STEP 1
STEP 2
STEP 3

144 1-7. Safety information
tC_OM_OM21053U_(U)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.

145 1-7. Safety information
1
Before driving
tC_OM_OM21053U_(U)
Child restraint systems with a top tether strap
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position.
Secure the child restraint system
using the seat belt or the LATCH
anchors, and adjust the head
restraint to the uppermost posi-
tion.
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
STEP 1
STEP 2
STEP 3
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

146 1-7. Safety information
tC_OM_OM21053U_(U)
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 79)
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
●Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

147 1-7. Safety information
1
Before driving
tC_OM_OM21053U_(U)
CAUTION
■When installing a child restraint system
●When installing a child restraint system on the rear center seat, adjust both
seatbacks as upright as possible. The seatbacks must be adjusted to the
same angle. Otherwise, the child restraint system cannot be securely
restrained and this may cause death or serious injuries in the event of sud-
den braking, sudden swerving or an accident.
●When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
●Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
●Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system
manufacturer.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible even if the “AIR BAG OFF” indica-
tor light is illuminated. Failure to do so
may result in death or serious injury if
the airbags deploy (inflate).

148 1-7. Safety information
tC_OM_OM21053U_(U)
CAUTION
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of a sudden braking, sudden swerving or an accident.

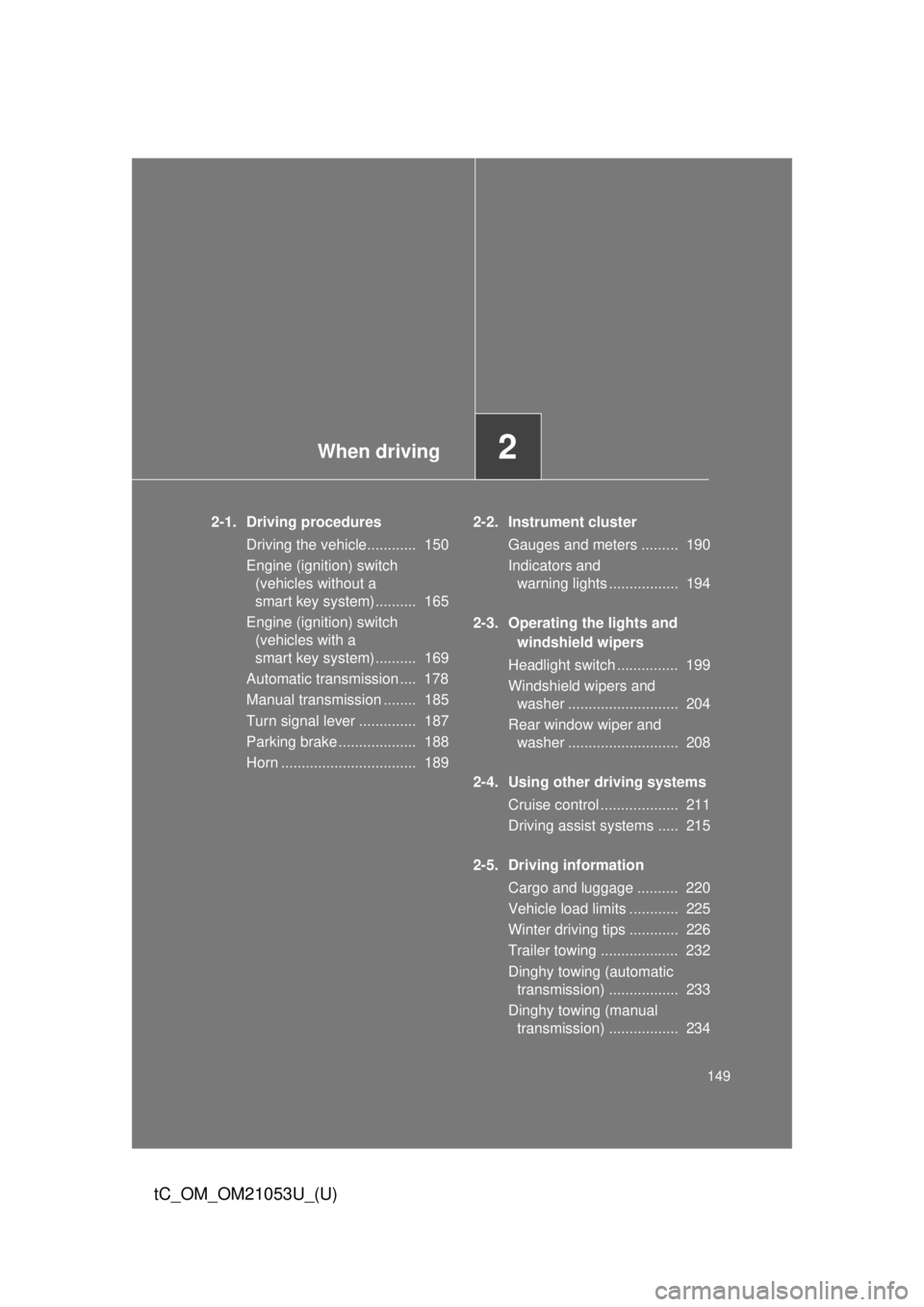

When driving2
149
tC_OM_OM21053U_(U)
2-1. Driving procedures
Driving the vehicle............ 150
Engine (ignition) switch
(vehicles without a
smart key system).......... 165
Engine (ignition) switch
(vehicles with a
smart key system).......... 169
Automatic transmission .... 178
Manual transmission ........ 185
Turn signal lever .............. 187
Parking brake ................... 188
Horn ................................. 1892-2. Instrument cluster
Gauges and meters ......... 190
Indicators and
warning lights ................. 194
2-3. Operating the lights and
windshield wipers
Headlight switch ............... 199
Windshield wipers and
washer ........................... 204
Rear window wiper and
washer ........................... 208
2-4. Using other driving systems
Cruise control ................... 211
Driving assist systems ..... 215
2-5. Driving information
Cargo and luggage .......... 220
Vehicle load limits ............ 225
Winter driving tips ............ 226
Trailer towing ................... 232
Dinghy towing (automatic
transmission) ................. 233
Dinghy towing (manual
transmission) ................. 234

150
tC_OM_OM21053U_(U)

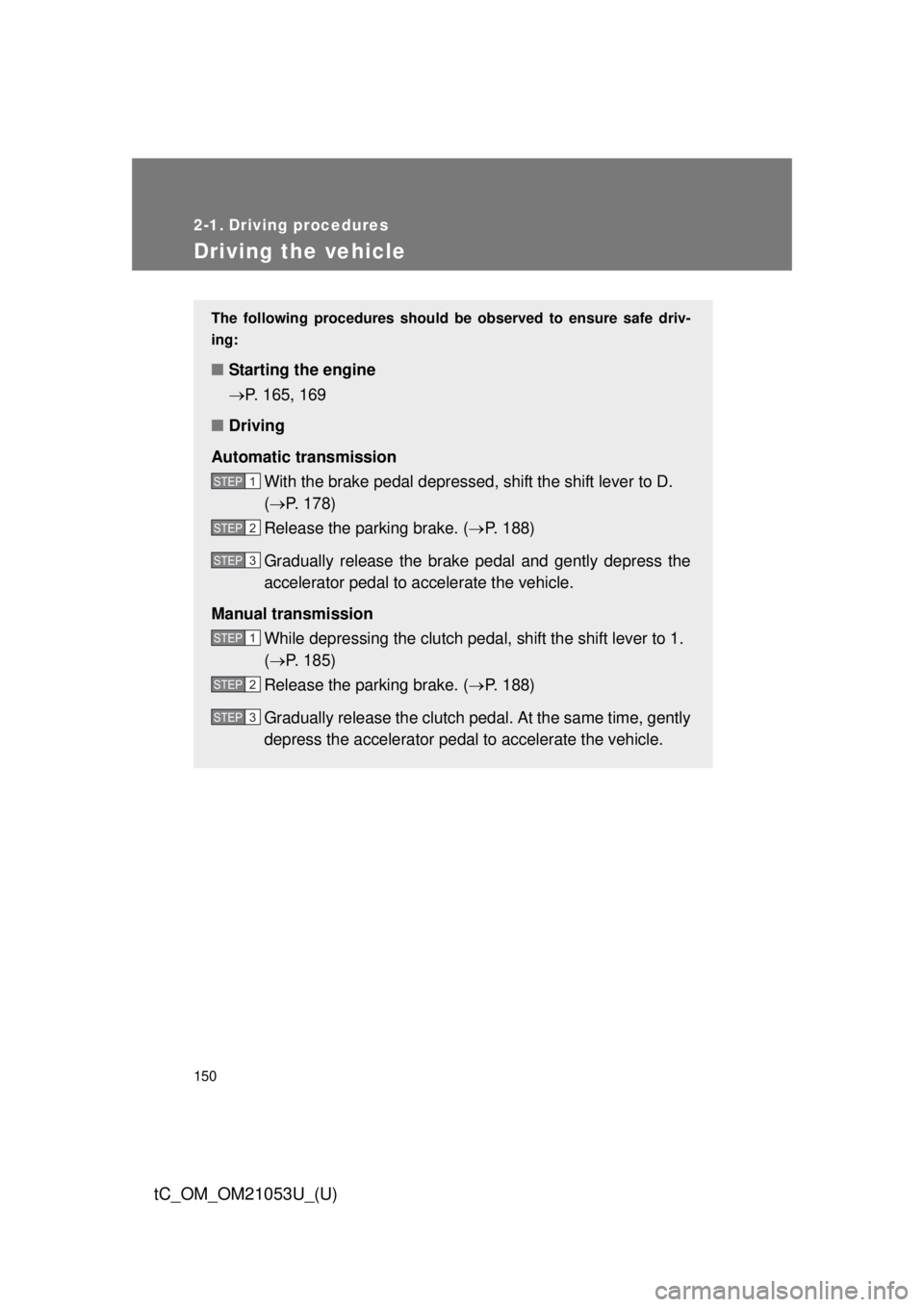

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
■Starting the engine
P. 165, 169
■Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D.
(P. 178)
Release the parking brake. (P. 188)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 185)
Release the parking brake. (P. 188)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3
