191 2-2. Instrument cluster
2
When driving
tC_OM_OM21053U_(U)

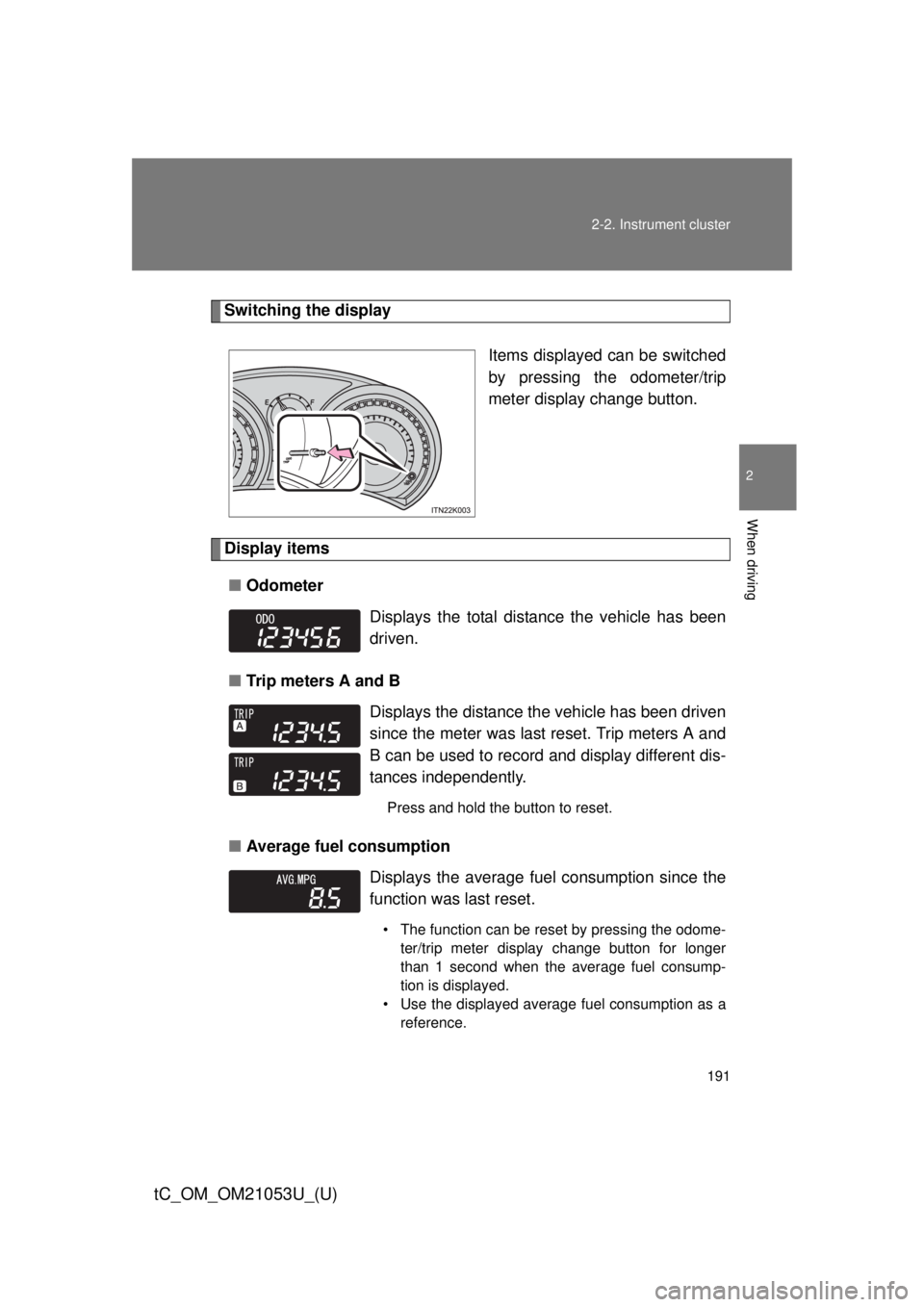

Switching the display
Items displayed can be switched
by pressing the odometer/trip
meter display change button.
Display items
■Odometer
■Trip meters A and B
■Average fuel consumption
Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Press and hold the button to reset.
Displays the average fuel consumption since the
function was last reset.
• The function can be reset by pressing the odome-
ter/trip meter display change button for longer
than 1 second when the average fuel consump-
tion is displayed.
• Use the displayed average fuel consumption as a
reference.

192 2-2. Instrument cluster
tC_OM_OM21053U_(U)

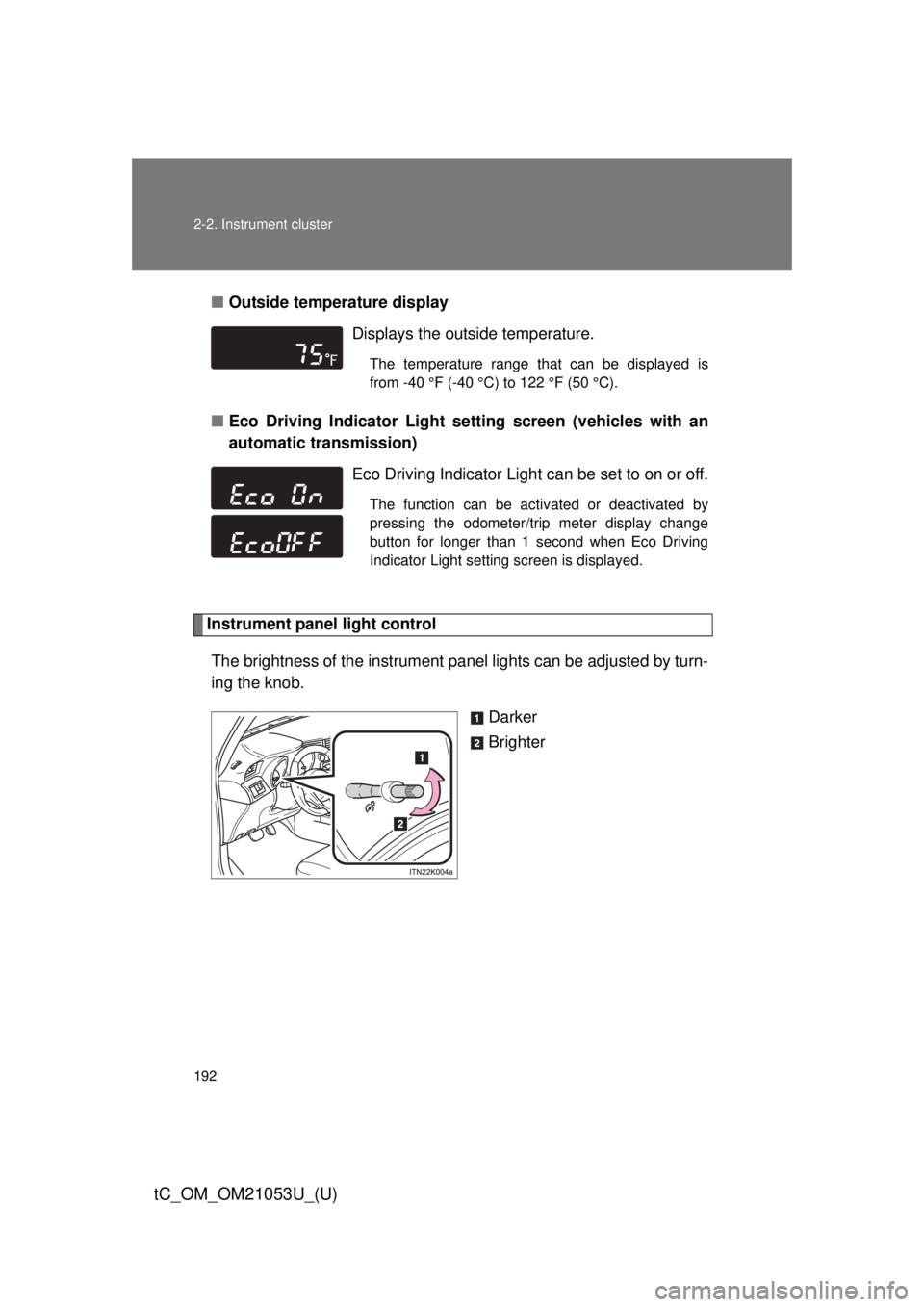

■Outside temperature display
■Eco Driving Indicator Light setting screen (vehicles with an
automatic transmission)
Instrument panel light control
The brightness of the instrument panel lights can be adjusted by turn-
ing the knob.
Darker
Brighter Displays the outside temperature.
The temperature range that can be displayed is
from -40 °F (-40 °C) to 122 °F (50 °C).
Eco Driving Indicator Light can be set to on or off.
The function can be activated or deactivated by
pressing the odometer/trip meter display change
button for longer than 1 second when Eco Driving
Indicator Light setting screen is displayed.

193 2-2. Instrument cluster
2
When driving
tC_OM_OM21053U_(U)
■The brightness of the instrument panel lights
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control knob is turned fully clockwise.
■Outside temperature display
●In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
●When “--” is displayed, the system may be malfunctioning.
Take your vehicle to your Scion dealer.
NOTICE
■To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
■The odometer/trip meter display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

194
2-2. Instrument cluster
tC_OM_OM21053U_(U)
Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Center panel

195 2-2. Instrument cluster
2
When driving
tC_OM_OM21053U_(U)

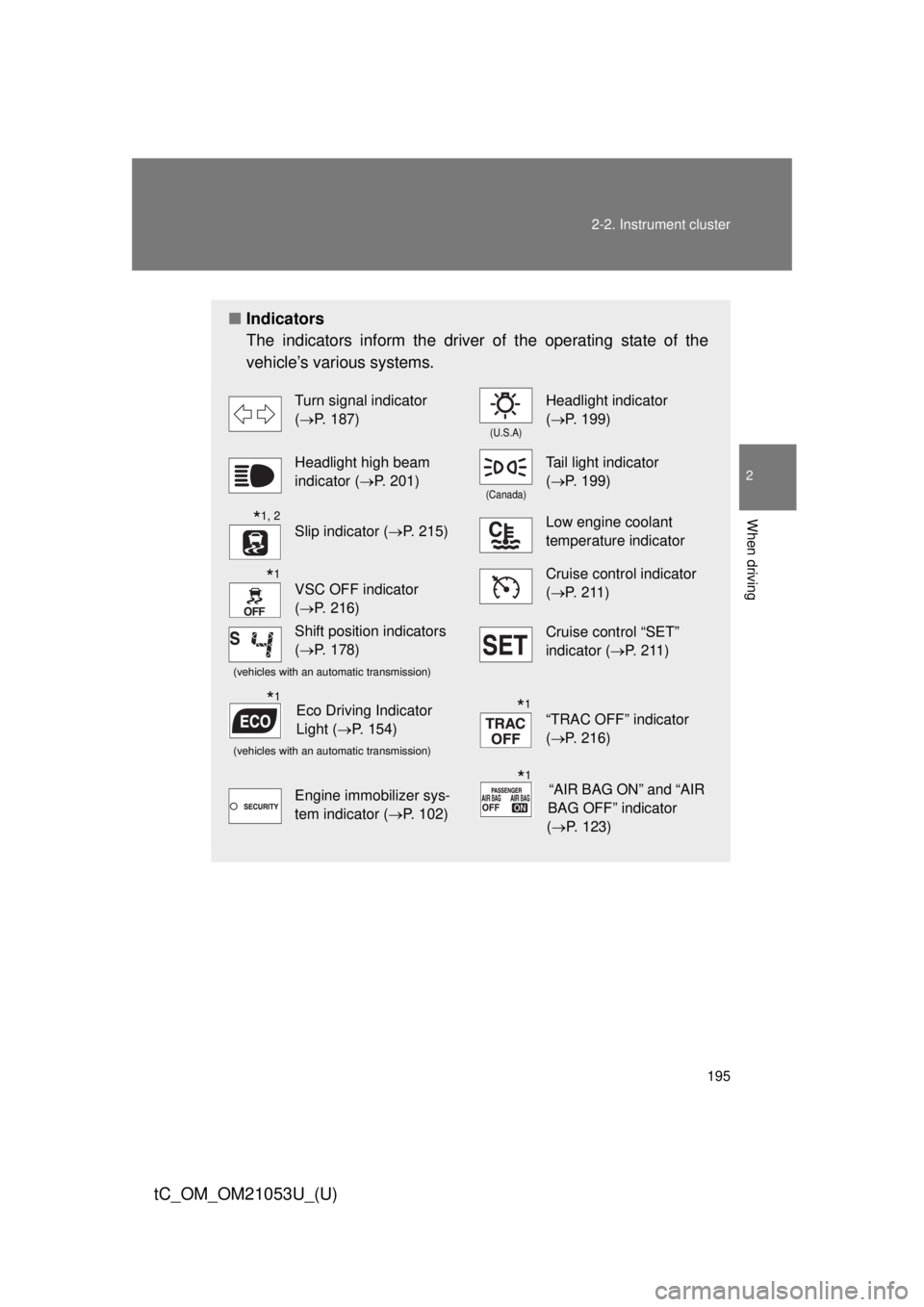

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 187)
(U.S.A)
Headlight indicator
(P. 199)
Headlight high beam
indicator (P. 201)
(Canada)
Tail light indicator
(P. 199)
Slip indicator (P. 215)Low engine coolant
temperature indicator
VSC OFF indicator
(P. 216)
Cruise control indicator
(P. 2 1 1 )
Shift position indicators
(P. 178)Cruise control “SET”
indicator (P. 211)
(vehicles with an automatic transmission)
(vehicles with an automatic transmission)
“TRAC OFF” indicator
(P. 216)
Engine immobilizer sys-
tem indicator (P. 102)
*1, 2
*1
Eco Driving Indicator
Light (P. 154)*1*1
“AIR BAG ON” and “AIR
BAG OFF” indicator
(P. 123)*1

196 2-2. Instrument cluster
tC_OM_OM21053U_(U)

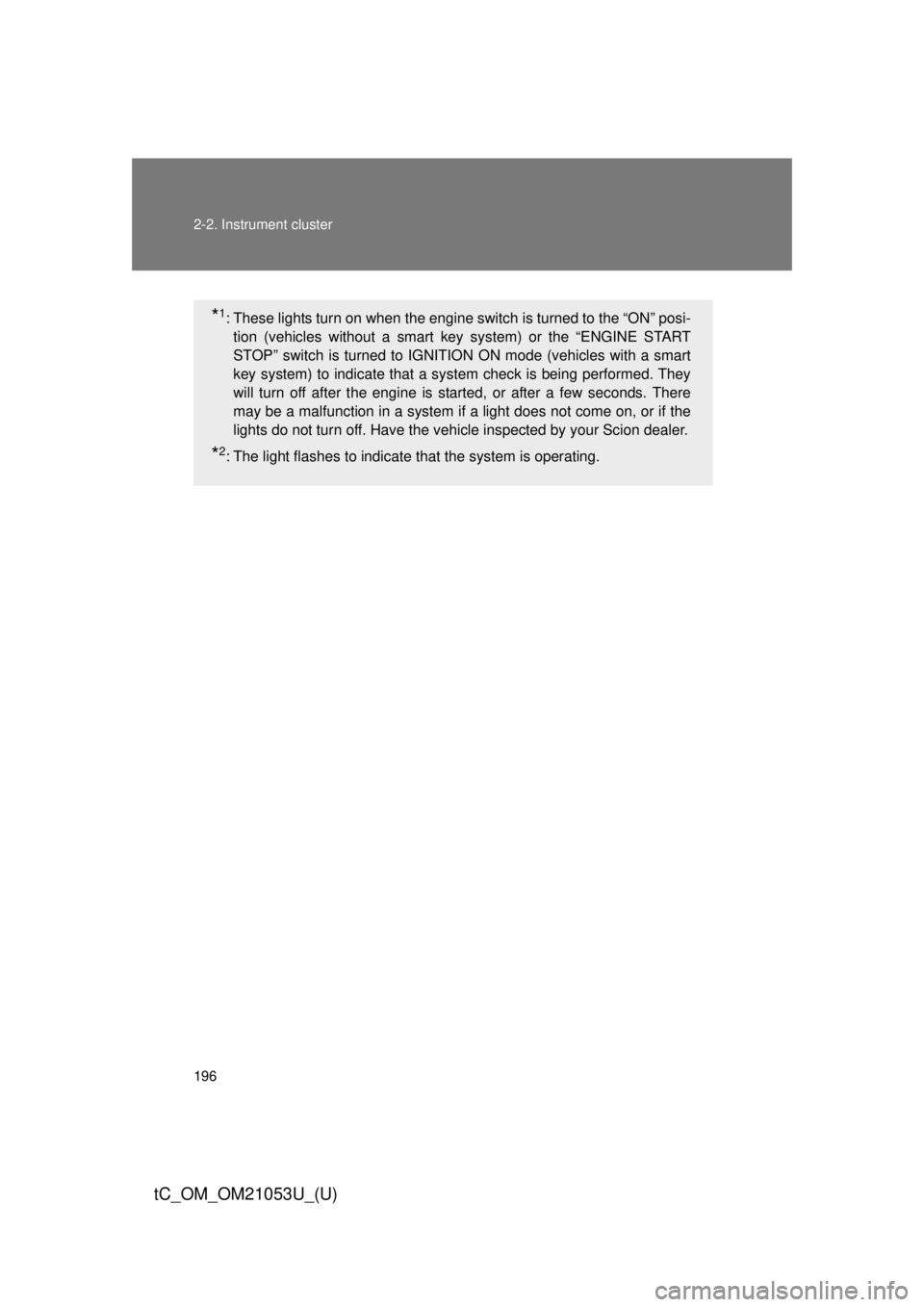

*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without a smart key system) or the “ENGINE START
STOP” switch is turned to IGNITION ON mode (vehicles with a smart
key system) to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if the
lights do not turn off. Have the vehicle inspected by your Scion dealer.
*2: The light flashes to indicate that the system is operating.

197 2-2. Instrument cluster
2
When driving
tC_OM_OM21053U_(U)

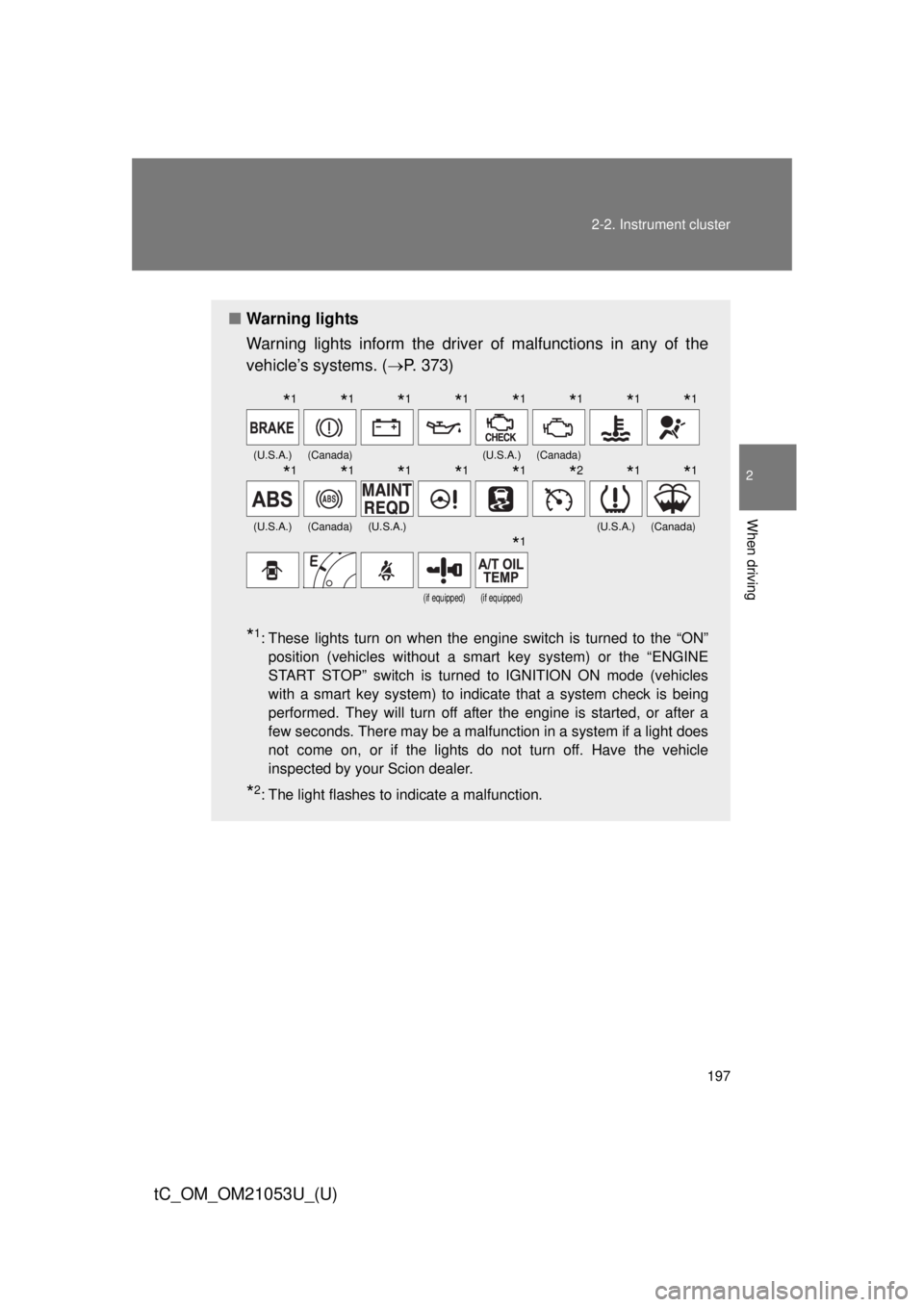

■Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 373)
*1: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart key system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does
not come on, or if the lights do not turn off. Have the vehicle
inspected by your Scion dealer.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(U.S.A.)(U.S.A.)(Canada)
(if equipped)(if equipped)
*1*1*1*1*1*1*1*1
*1*1*1*1*1*2*1*1
*1

198 2-2. Instrument cluster
tC_OM_OM21053U_(U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS warning light not come
on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or
serious injury. Have the vehicle inspected by your Scion dealer immediately
if this occurs.

199
2
When driving
tC_OM_OM21053U_(U)
2-3. Operating the lights and windshield wipers

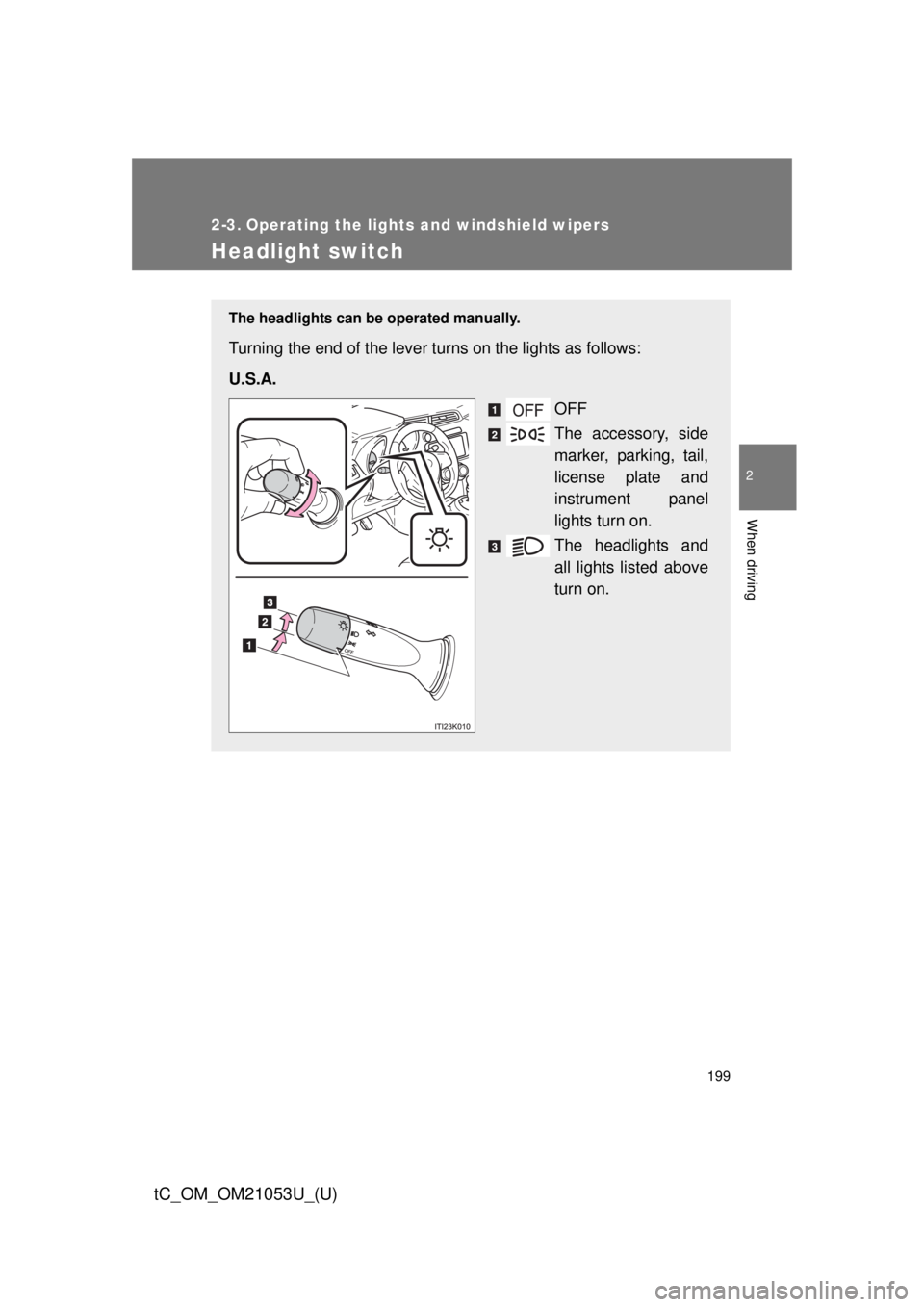

Headlight switch
The headlights can be operated manually.
Turning the end of the lever turns on the lights as follows:
U.S.A.
OFF
The accessory, side
marker, parking, tail,
license plate and
instrument panel
lights turn on.
The headlights and
all lights listed above
turn on.

200 2-3. Operating the lights and windshield wipers
tC_OM_OM21053U_(U)

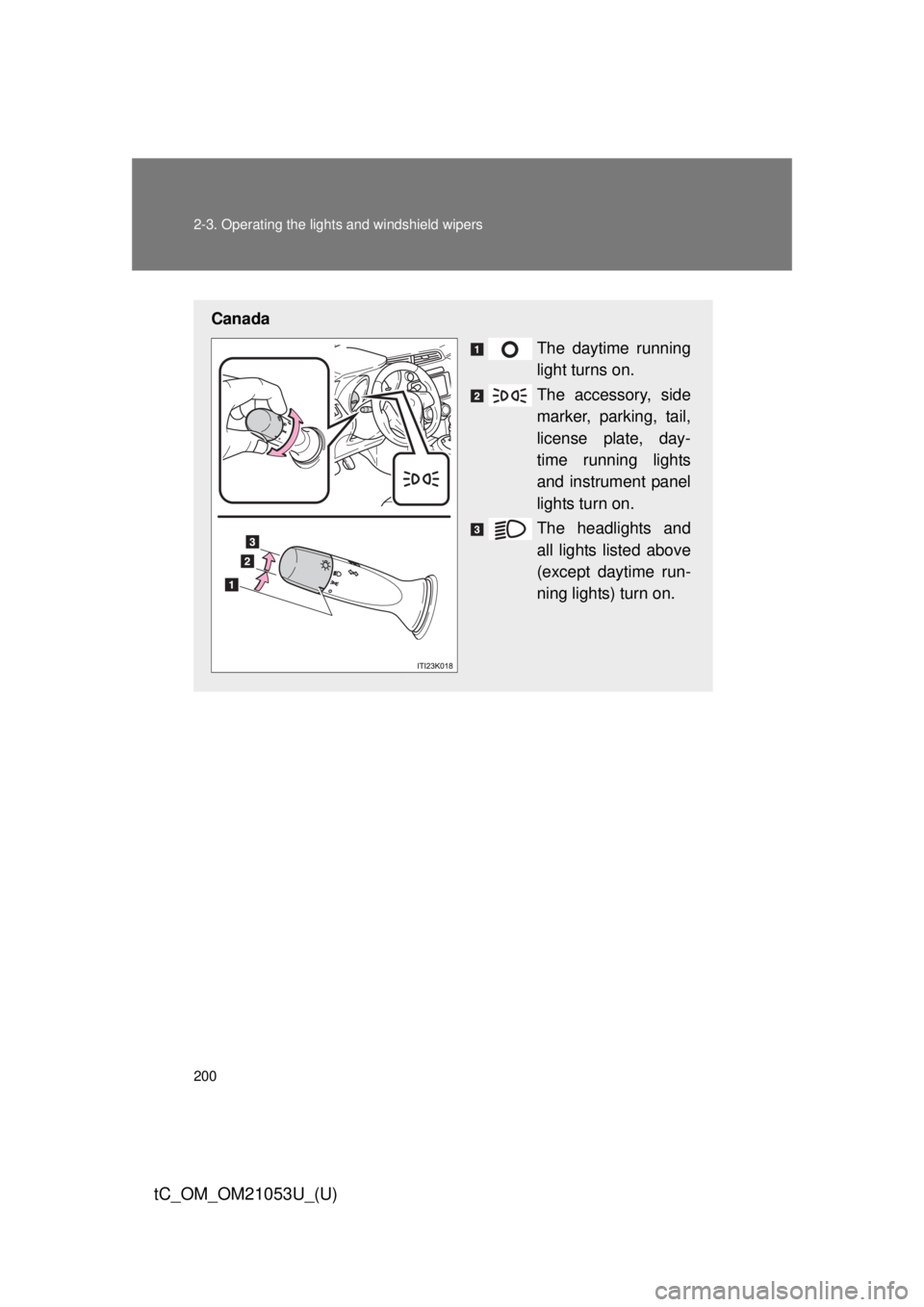

Canada
The daytime running
light turns on.
The accessory, side
marker, parking, tail,
license plate, day-
time running lights
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
