bluetooth TOYOTA tC 2015 Accessories, Audio & Navigation (in English)

78
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
6. TALK ON THE Bluetooth® PHONE
To adjust the volume of the other par-
ty’s voice: Touch “-” or “+”, turn the
“PWR/VOL” knob, or use the volume
switch on the steering wheel.
To hang up the phone: Touch .
To mute your voice: Touch “Mute”.
To input a Key: Touch “0-9”.
To transfer the call: Touch “Handsfree
Mode” or “Handset Mode”.
1Enter a number by touching the num-
ber keys.
To hang up the phone: Touch .
zIf the continuous tone signal is registered
in a phonebook, this screen appears. (If
not registered, “Send” and “Exit” are not
displayed.)
zConfirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
zWhen you touch “Exit”, this function will
be finished and normal tone screen
appears.
To hang up the phone: Touch .
While you are talking on the phone,
this screen is displayed. You can do
the operation below on the screen.
INFORMATION
●When you change from cellular phone
call to Hands-free call, the Hands-free
screen will be displayed and you can
operate it on the screen.
WHEN YOU TOUCH “0-9”
INFORMATION
●The continuous tone signal is the
marked sign (p or w) and the number fol-
lowing phone number. (ex.
056133w0123p#1∗)
●You can do this operation when you
want to operate an answering machine
or use a telephone service in bank for
example. You can register the phone
number and the code number in the
phonebook.

79
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
3
Bluetooth
® HANDS-FREE SYSTEM
To answer the phone:
Touch .
To refuse to receive the call:
Touch .
zEverytime you touch while interrupt
call, the other party will be switched.
INTERRUPT CALL
When the call is interrupted by the third
party while talking, this screen is
displayed.
INFORMATION
●Interrupt call operation may differ
depending on your phone company and
cellular phone.
●Interrupt call is unavailable depending
on the contract detail with the phone
company.

80
1. Bluetooth® HANDS-FREE SYSTEM OPERATION

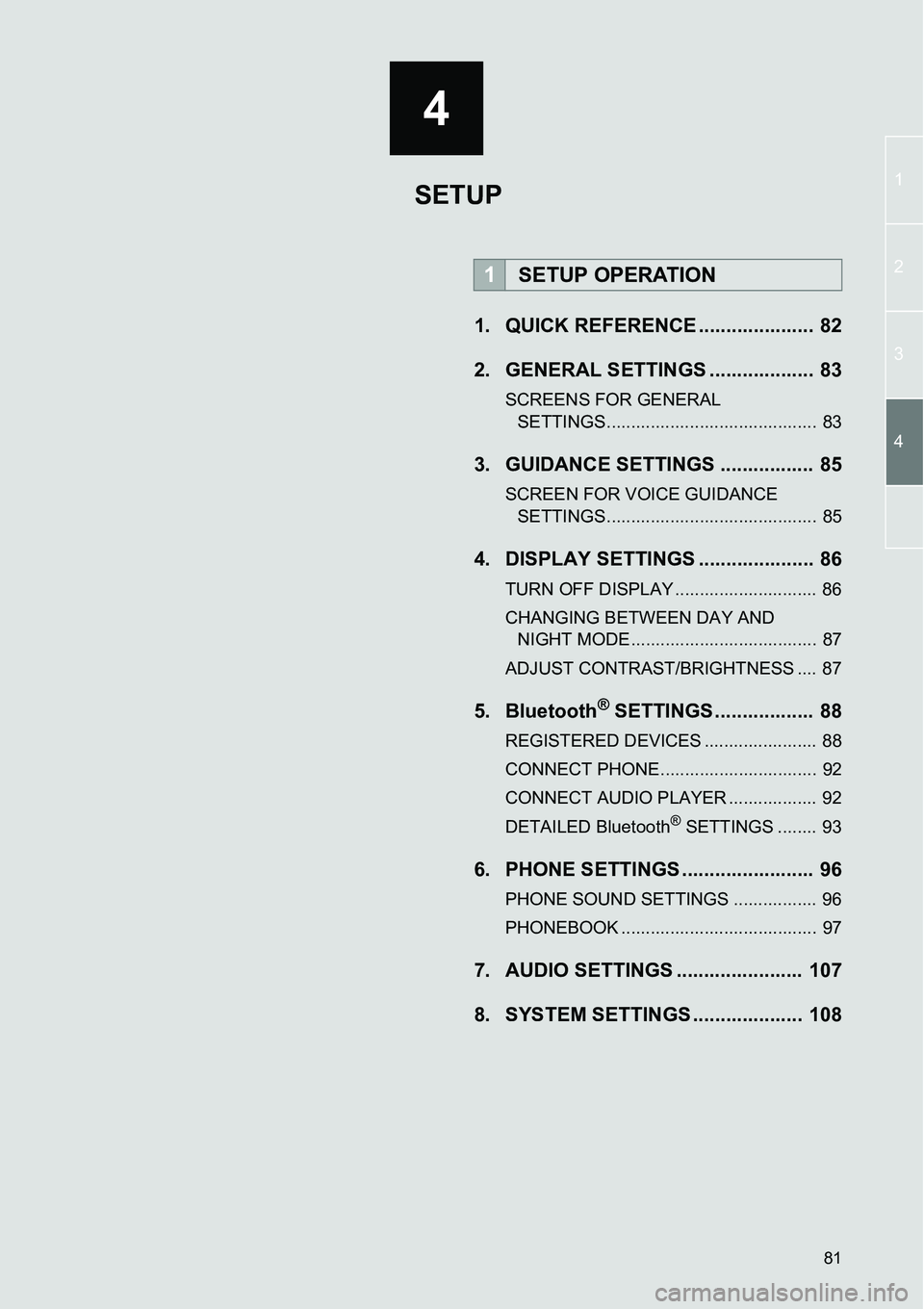

81
4
1
2
3
4
1. QUICK REFERENCE ..................... 82
2. GENERAL SETTINGS ................... 83
SCREENS FOR GENERAL
SETTINGS........................................... 83
3. GUIDANCE SETTINGS ................. 85
SCREEN FOR VOICE GUIDANCE
SETTINGS........................................... 85
4. DISPLAY SETTINGS ..................... 86
TURN OFF DISPLAY ............................. 86
CHANGING BETWEEN DAY AND
NIGHT MODE...................................... 87
ADJUST CONTRAST/BRIGHTNESS .... 87
5. Bluetooth® SETTINGS .................. 88
REGISTERED DEVICES ....................... 88
CONNECT PHONE................................ 92
CONNECT AUDIO PLAYER .................. 92
DETAILED Bluetooth
® SETTINGS ........ 93
6. PHONE SETTINGS ........................ 96
PHONE SOUND SETTINGS ................. 96
PHONEBOOK ........................................ 97
7. AUDIO SETTINGS ....................... 107
8. SYSTEM SETTINGS .................... 108
1SETUP OPERATION
SETUP

82

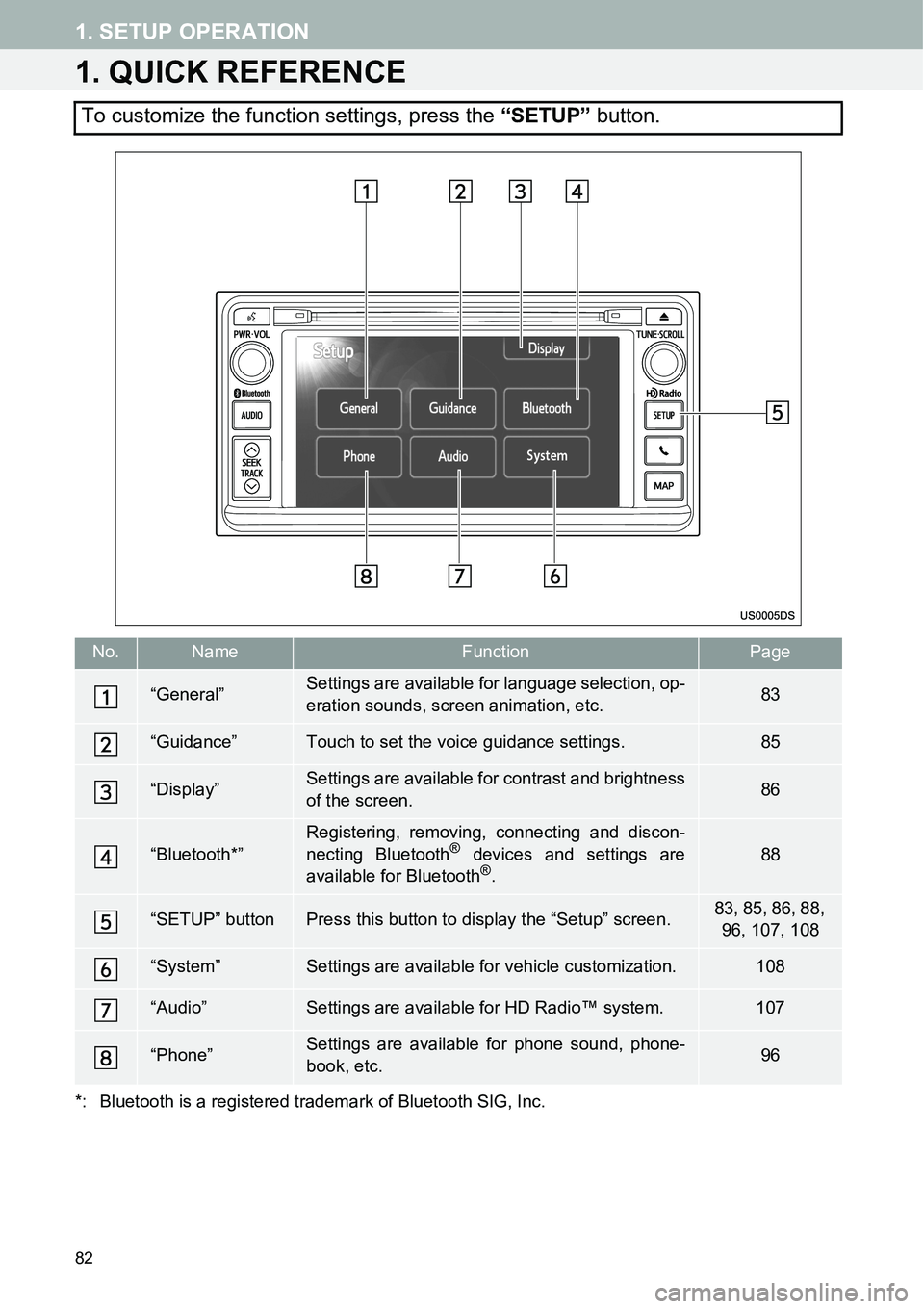

1. SETUP OPERATION
1. QUICK REFERENCE
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
To customize the function settings, press the “SETUP” button.
No.NameFunctionPage
“General”Settings are available for language selection, op-
eration sounds, screen animation, etc.83
“Guidance”Touch to set the voice guidance settings.85
“Display”Settings are available for contrast and brightness
of the screen.86
“Bluetooth*”
Registering, removing, connecting and discon-
necting Bluetooth® devices and settings are
available for Bluetooth®.
88
“SETUP” buttonPress this button to display the “Setup” screen.83, 85, 86, 88,
96, 107, 108
“System”Settings are available for vehicle customization.108
“Audio”Settings are available for HD Radio™ system.107
“Phone”Settings are available for phone sound, phone-
book, etc.96

84

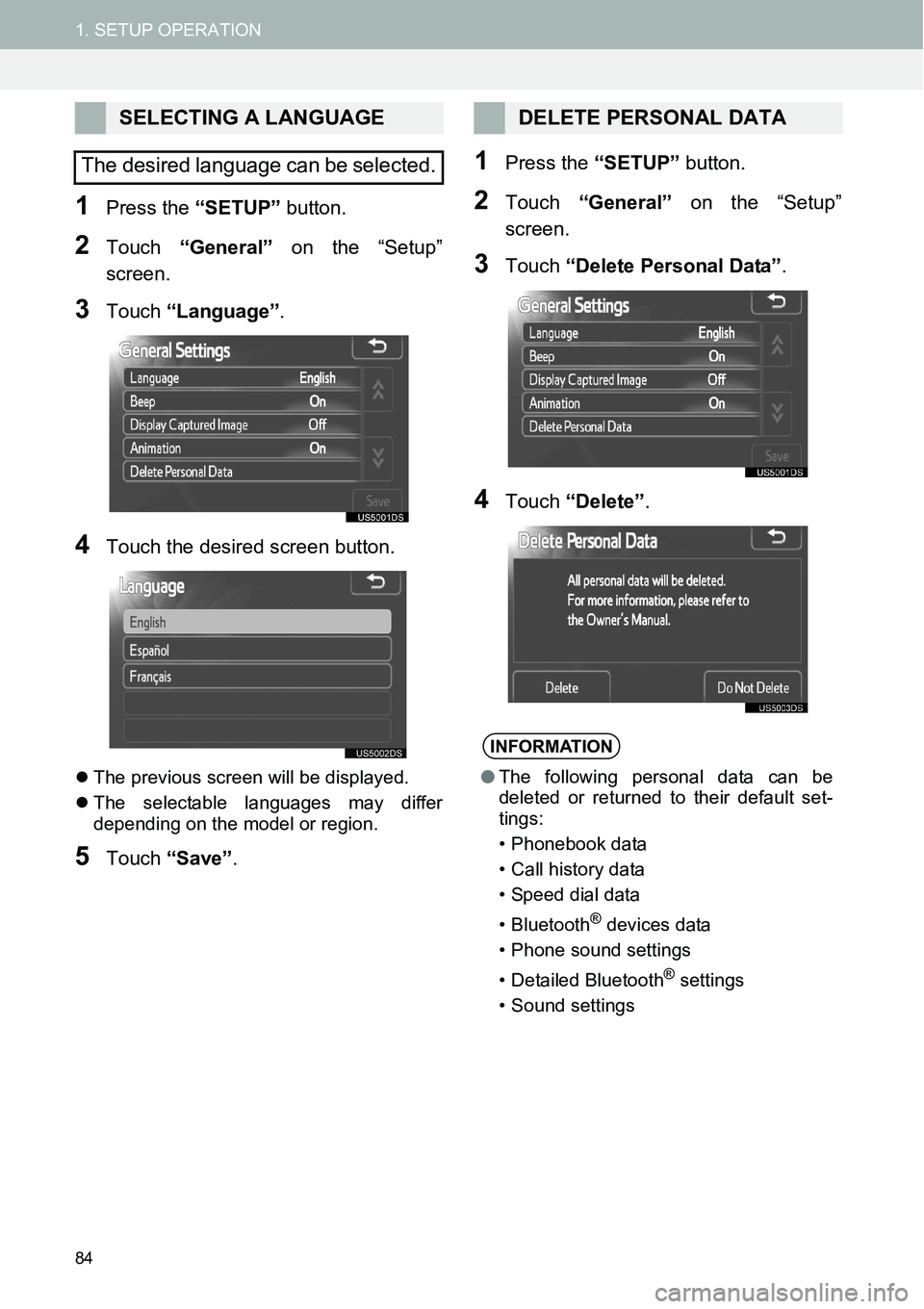

1. SETUP OPERATION
1Press the “SETUP” button.
2Touch “General” on the “Setup”
screen.
3Touch “Language”.
4Touch the desired screen button.
zThe previous screen will be displayed.
zThe selectable languages may differ
depending on the model or region.
5Touch “Save”.
1Press the “SETUP” button.
2Touch “General” on the “Setup”
screen.
3Touch “Delete Personal Data”.
4Touch “Delete”.
SELECTING A LANGUAGE
The desired language can be selected.DELETE PERSONAL DATA
INFORMATION
●The following personal data can be
deleted or returned to their default set-
tings:
• Phonebook data
• Call history data
• Speed dial data
•Bluetooth
® devices data
• Phone sound settings
• Detailed Bluetooth
® settings
• Sound settings

85

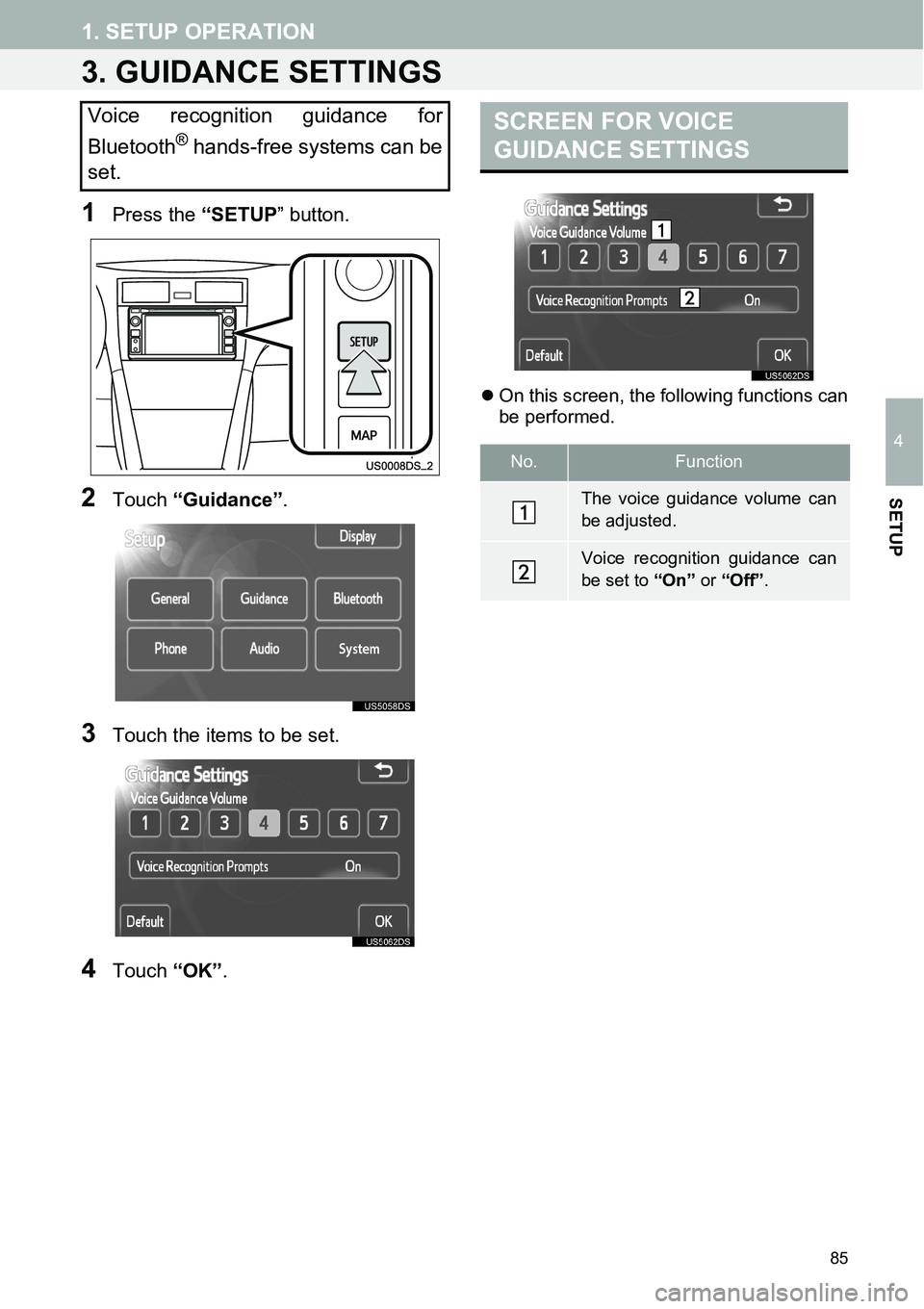

1. SETUP OPERATION
4
SETUP
3. GUIDANCE SETTINGS
1Press the “SETUP” button.
2Touch “Guidance”.
3Touch the items to be set.
4Touch “OK”.
zOn this screen, the following functions can
be performed.
Voice recognition guidance for
Bluetooth
® hands-free systems can be
set.
SCREEN FOR VOICE
GUIDANCE SETTINGS
No.Function
The voice guidance volume can
be adjusted.
Voice recognition guidance can
be set to “On” or “Off”.

88

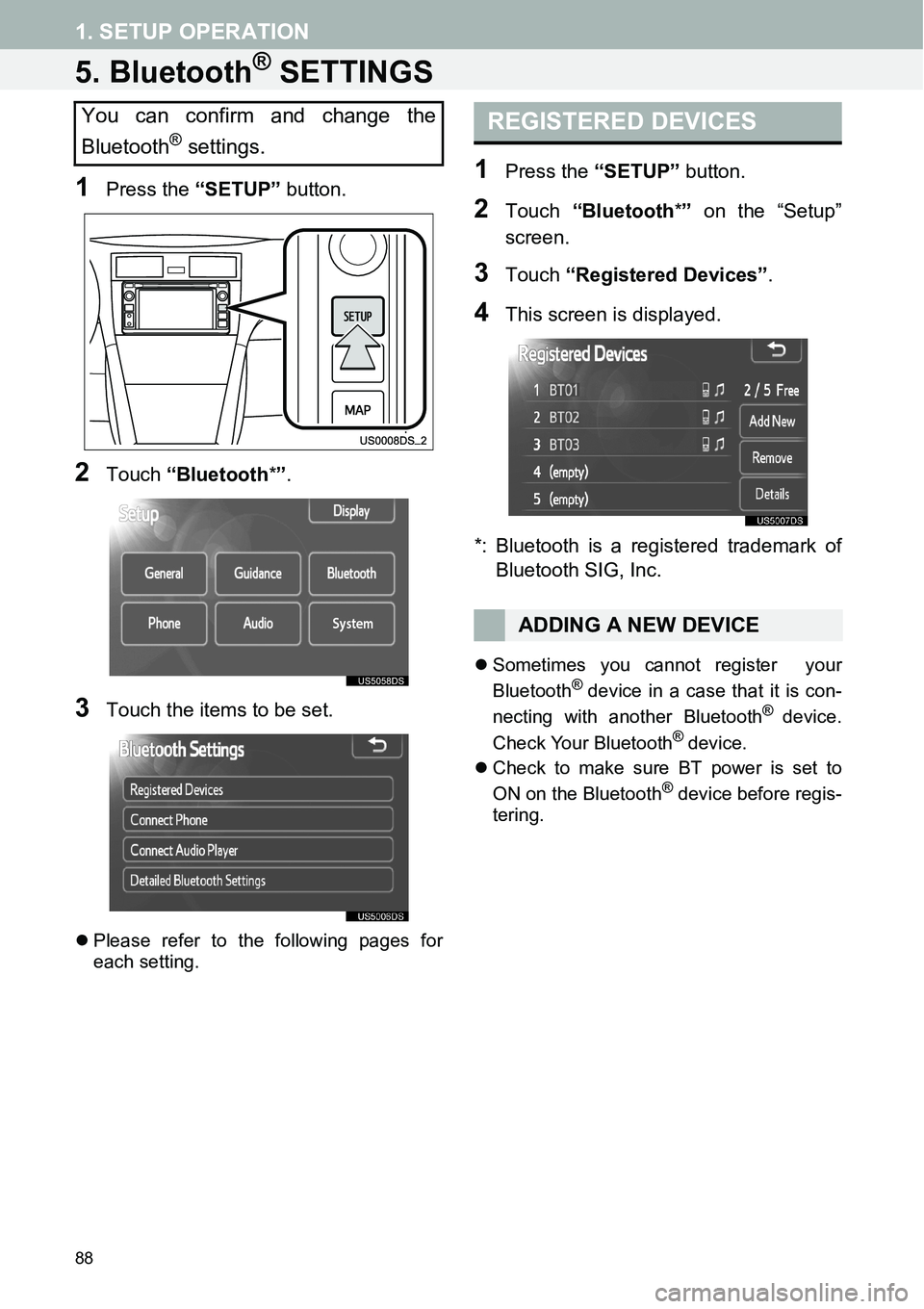

1. SETUP OPERATION
5. Bluetooth® SETTINGS
1Press the “SETUP” button.
2Touch “Bluetooth*”.
3Touch the items to be set.
zPlease refer to the following pages for
each setting.
1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
3Touch “Registered Devices”.
4This screen is displayed.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
zSometimes you cannot register your
Bluetooth® device in a case that it is con-
necting with another Bluetooth® device.
Check Your Bluetooth® device.
zCheck to make sure BT power is set to
ON on the Bluetooth
® device before regis-
tering.
You can confirm and change the
Bluetooth
® settings.
REGISTERED DEVICES
ADDING A NEW DEVICE

89
1. SETUP OPERATION
4
SETUP
1Touch “Add New” to register your
Bluetooth
® device to the system.
2When this screen is displayed, perform
a device discovery from your
Bluetooth
® device.
3Input the passcode displayed on the
screen into your Bluetooth
® device.
zA passcode is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® phones. Depending on the
type of Bluetooth® phone being
connected, a message confirming
registration may be displayed on the
Bluetooth
® phone’s screen. Respond and
operate the Bluetooth® phone according
to the confirmation message.
zIf you want to cancel it, touch “Cancel”.
zIf the Bluetooth
® phone to be registered
has a Bluetooth® audio function, this can
be registered at the same time.
4When the connection is completed,
this screen is displayed.
zOnce you have registered it, the system
automatically connects to your Bluetooth®
device every time you start your vehicle.
Note:
1) The system cannot automatically con-
nect to your Bluetooth
® device if the Blue-
tooth® device is connecting with another
Bluetooth® device. (For automatic connec-
tion, see "CHANGING THE Bluetooth®
POWER" on page 94.)2) The system will not automatically con-
nect if the Bluetooth® device is disconnect-
ed on purpose, such as when you turn off
your Bluetooth
® phone. Reconnect the
Bluetooth® phone manually.
INFORMATION
●For details on device discovery for your
Bluetooth® phone, refer to the
Bluetooth® phone’s user’s guide.
●When you register your phone,
Bluetooth
® audio will disconnect.
●If the Bluetooth
® device has Bluetooth®
phone and Bluetooth® audio functions, it
will register phone and audio simulta-
neously. If an on-screen message
appears, follow the message and regis-
ter either or both Bluetooth
® phone and/
or Bluetooth® audio functions.

90

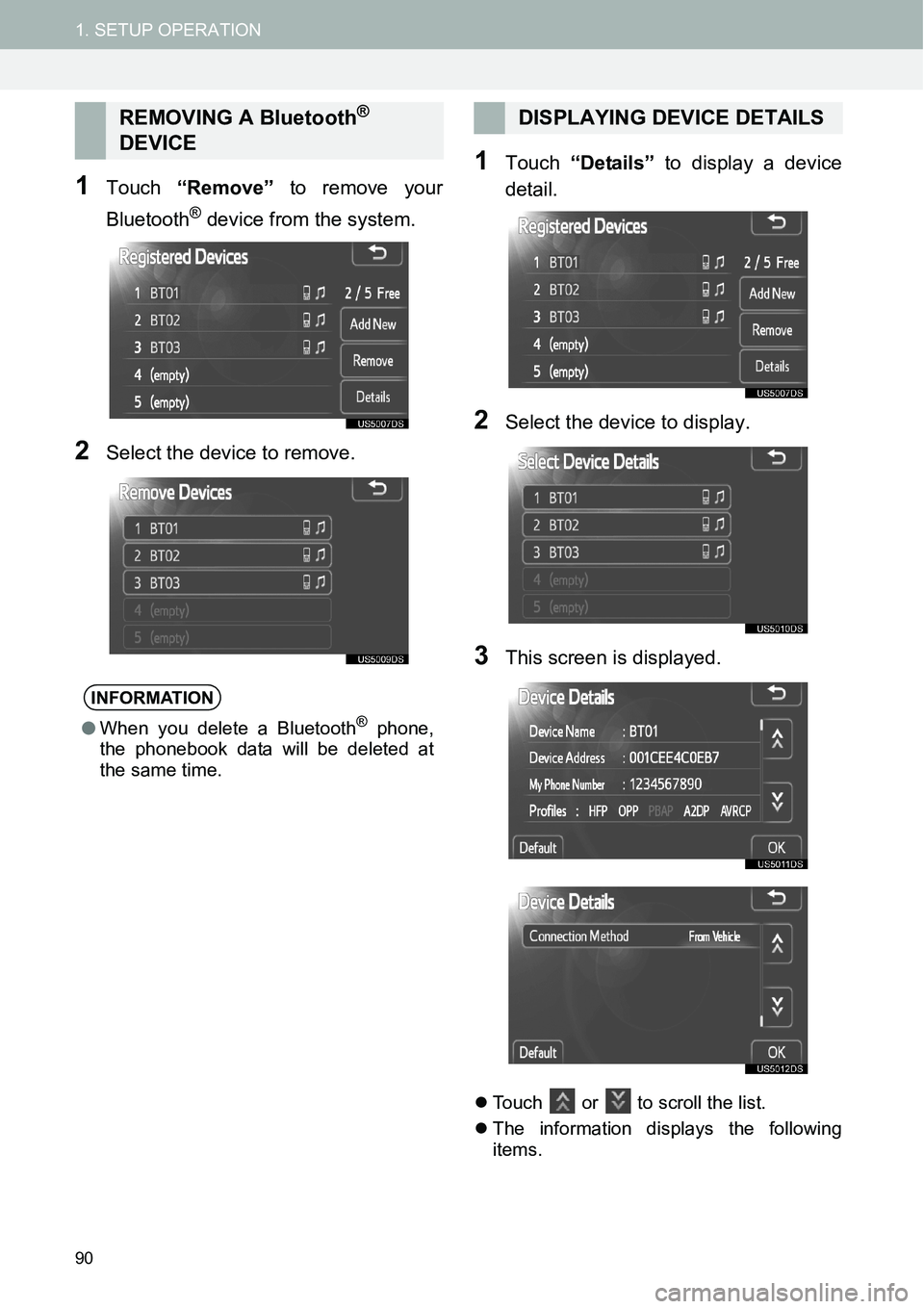

1. SETUP OPERATION
1Touch “Remove” to remove your
Bluetooth
® device from the system.
2Select the device to remove.
1Touch “Details” to display a device
detail.
2Select the device to display.
3This screen is displayed.
zTouch or to scroll the list.
zThe information displays the following
items.
REMOVING A Bluetooth®
DEVICE
INFORMATION
●When you delete a Bluetooth® phone,
the phonebook data will be deleted at
the same time.
DISPLAYING DEVICE DETAILS
