TOYOTA tC 2016 Owners Manual (in English)

201
2-3. Operating the lights and windshield wipers
2
When driving
tC_OM_OM21056U_(U)
Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (Canada only)
● To make your vehicle more visible to other drivers during daytime driving,
the daytime running lights turn on automatically whenever the engine is
started with the headlight switch off and the parking brake is released.
Daytime running lights are not designed for use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.

202 2-3. Operating the lights and windshield wipers
tC_OM_OM21056U_(U)
■Automatic light off system
Vehicles without a smart key system
● When the headlights come on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the engine switch is turned
to the “ACC” or “LOCK” position. (The lights turn off immediately if
on the key is pressed after all the doors are locked.)
● When only the tail lights come on: The tail lights turn off automatically if
the engine switch is turned to the “ACC” or “LOCK” position and the
driver’s door is opened.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the lights off and then back to or .
If any of the doors is kept open, the lights automatically turn off after 20 min-
utes.
Vehicles with a smart key system
● When the headlights come on: The headlights and tail lights turn off 30
seconds after a door is opened and closed if the “ENGINE START
STOP” switch is turned to ACCESSORY mode or turned off. (The lights
turn off immediately if on the key is pressed after all the doors are
locked.)
● When only the tail lights come on: The tail lights turn off automatically if
the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off and the driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off and then back to or .
If any of the doors is kept open, the lights automatically turn off after 20 min-
utes.

203
2-3. Operating the lights and windshield wipers
2
When driving
tC_OM_OM21056U_(U)
■
Light reminder buzzer
Vehicles without a smart key system
A buzzer sounds when the engine switch is turned to “LOCK” or “ACC” posi-
tion and the driver’s door is opened while the lights are turned on.
Vehicles with a smart key system
A buzzer sounds when the “ENGINE START STOP” switch is turned off or
turned to ACCESSORY mode and the driver’s door is opened while the
lights are turned on.
■ Customization
Settings (Time elapsed before the headlights automatically turn off after the
doors are closed) can be changed. (Customizable features:  P. 461)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

204
2-3. Operating the lights and windshield wipers
tC_OM_OM21056U_(U)

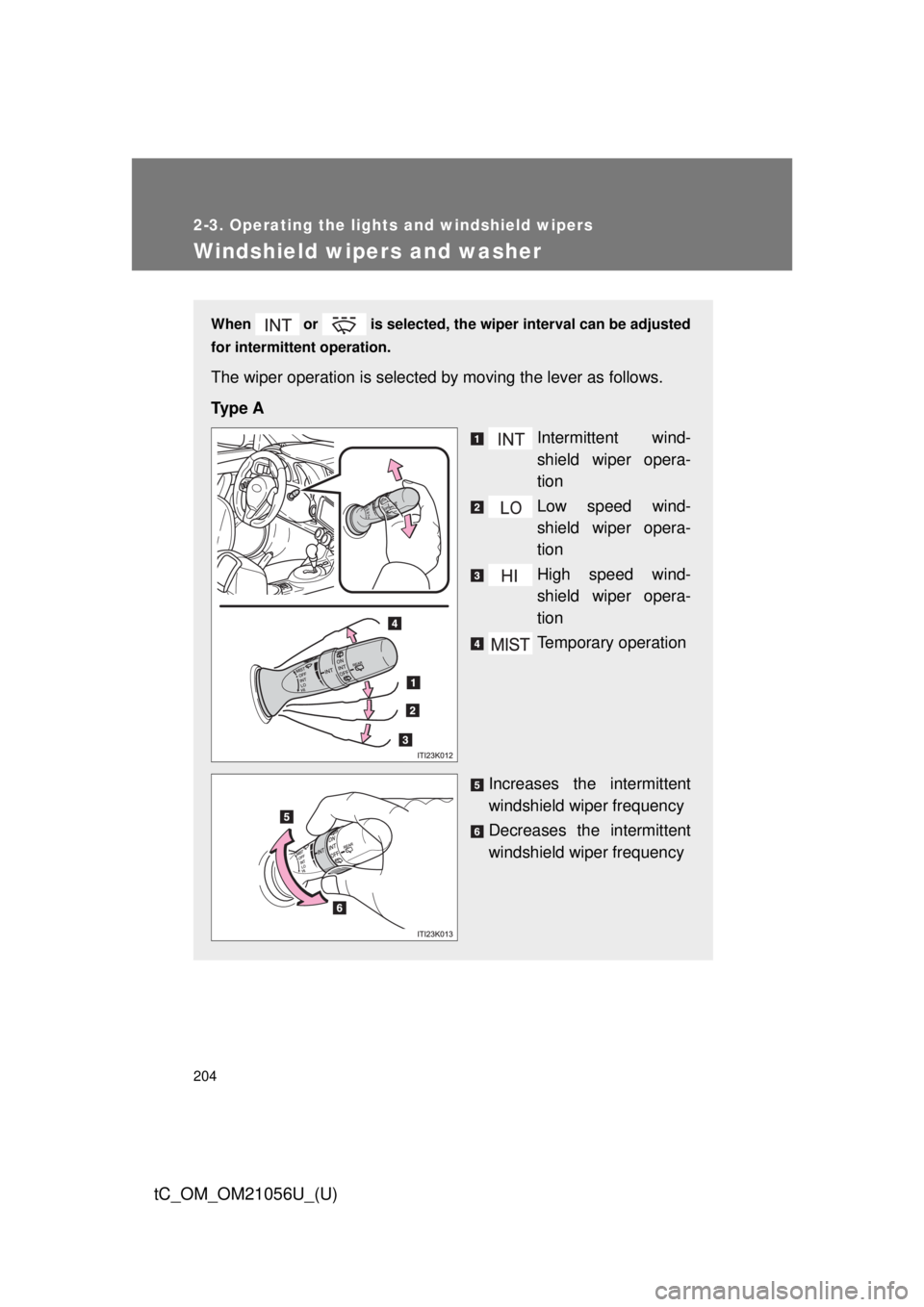

Windshield wipers and washer
When or is selected, the wiper interval can be adjusted
for intermittent operation.
The wiper operation is selected by moving the lever as follows.
Ty p e A Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

205
2-3. Operating the lights and windshield wipers
2
When driving
tC_OM_OM21056U_(U)

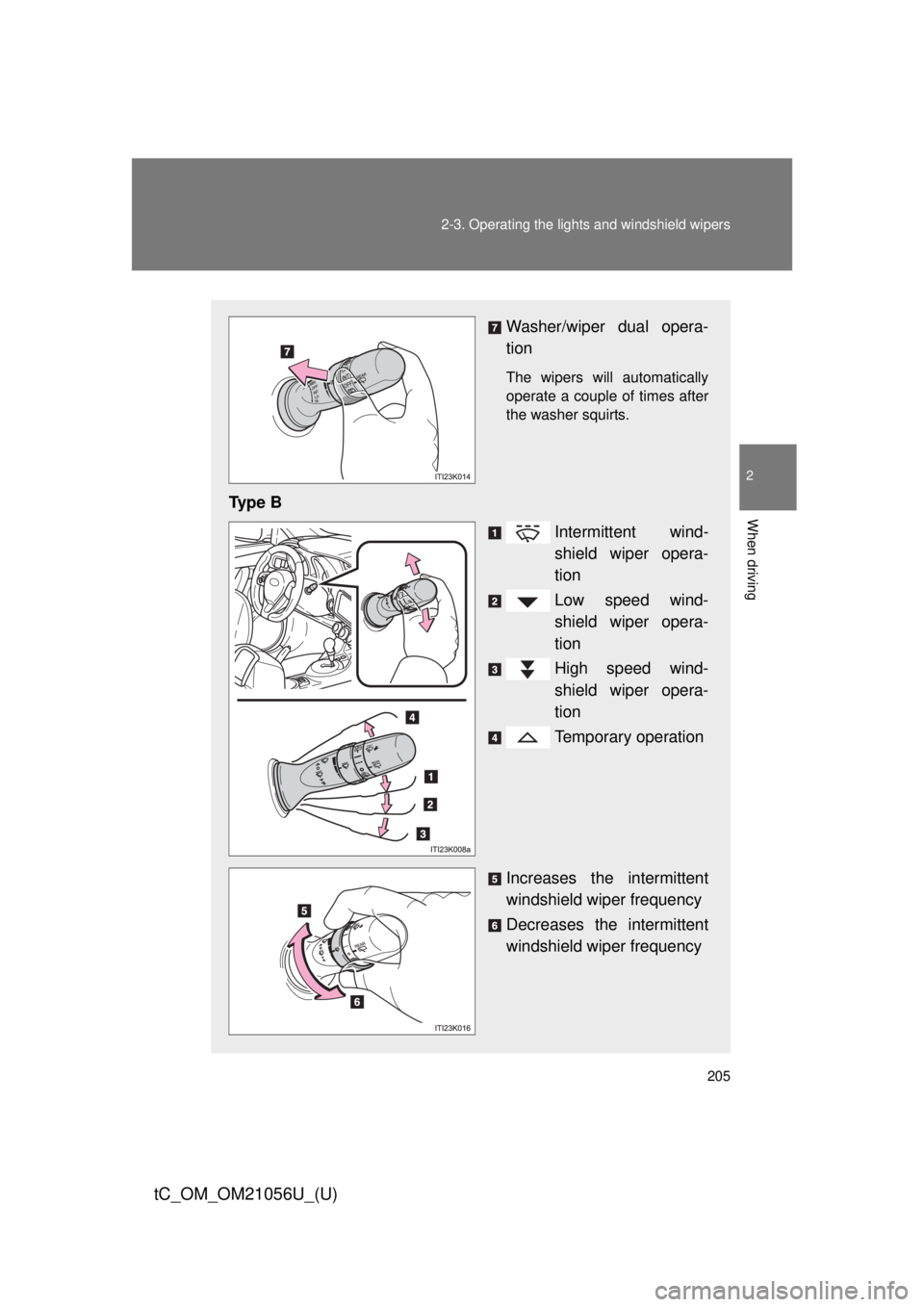

Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
Ty p e B
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

206 2-3. Operating the lights and windshield wipers
tC_OM_OM21056U_(U)
■The windshield wipers and washer can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
CAUTION
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

207
2-3. Operating the lights and windshield wipers
2
When driving
tC_OM_OM21056U_(U)
NOTICE
■
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Scion dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

208
2-3. Operating the lights and windshield wipers
tC_OM_OM21056U_(U)

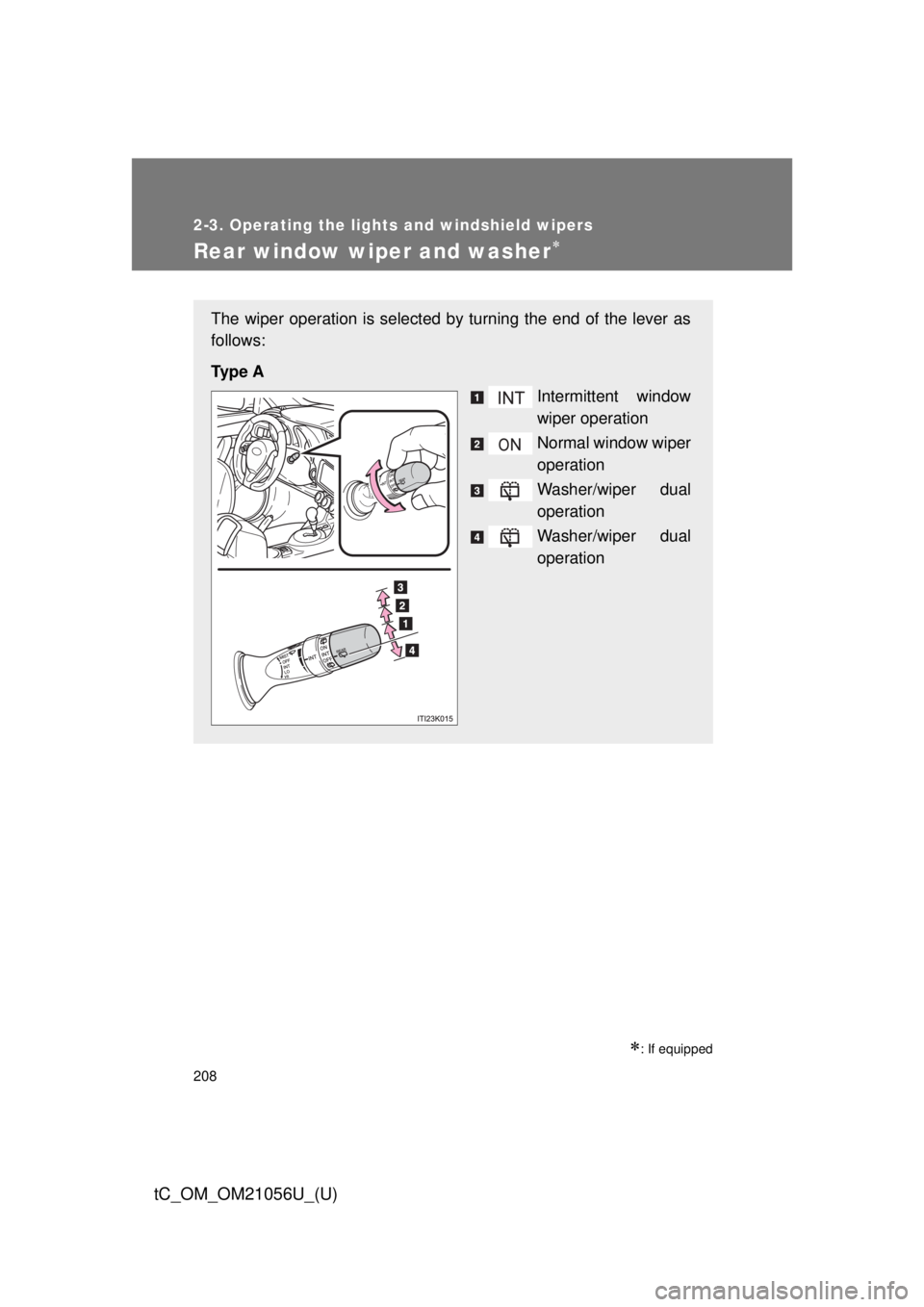

Rear window wiper and washer
: If equipped
The wiper operation is selected by turning the end of the lever as
follows:
Ty p e AIntermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation

209
2-3. Operating the lights and windshield wipers
2
When driving
tC_OM_OM21056U_(U)
■
The rear window wiper and w asher can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.

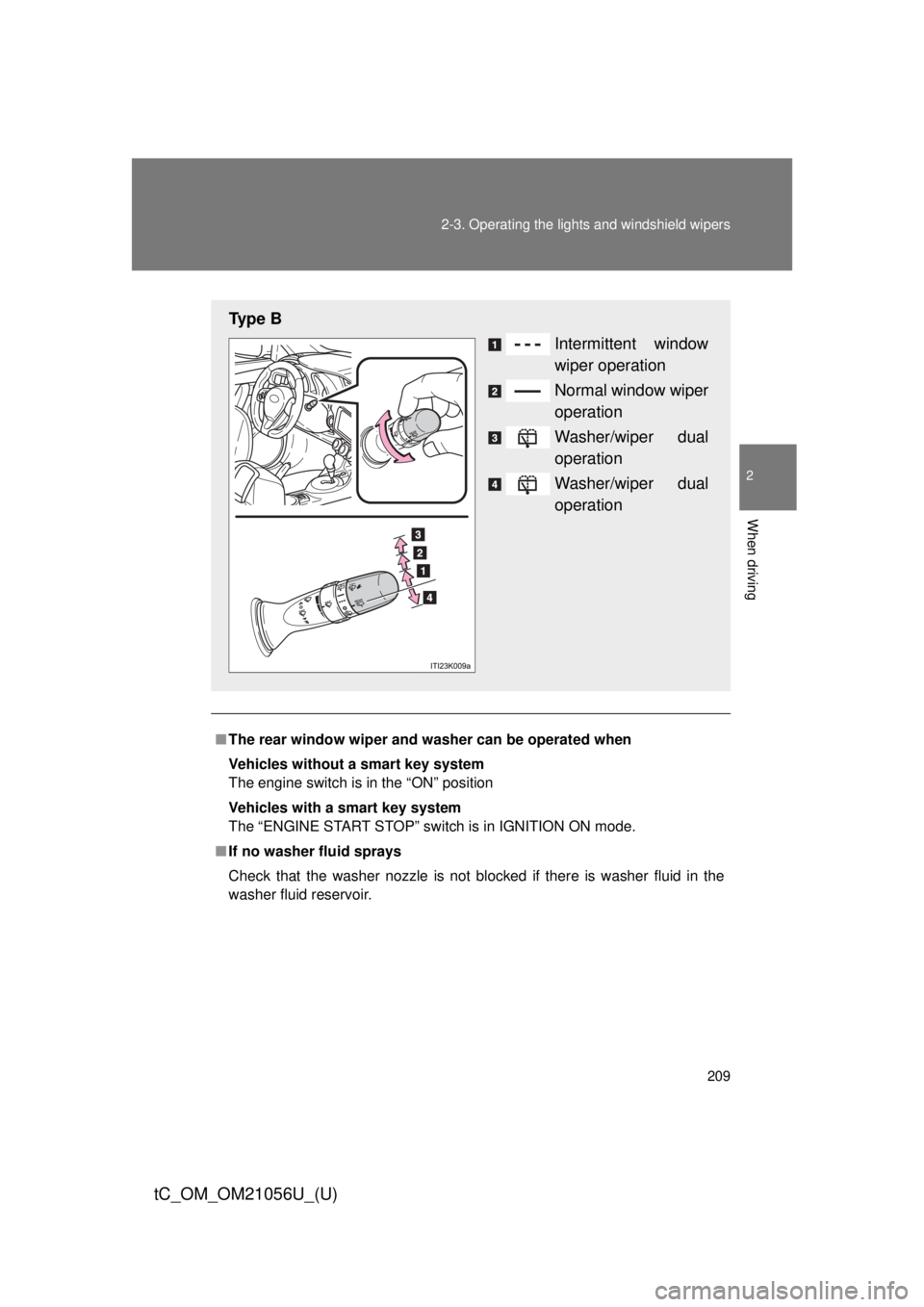

Ty p e B
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation

210 2-3. Operating the lights and windshield wipers
tC_OM_OM21056U_(U)
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
