TOYOTA tC 2016 Owners Manual (in English)

331
4-3. Do-it-yourself maintenance
4
Maintenance and care
tC_OM_OM21056U_(U)
CAUTION
■Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing
an accident.
NOTICE
■Replacing tire pressure warning valves and transmitters (U.S.A.
only)
●Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make su
re to have tires serviced by your
Scion dealer or other qualified servic e shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Scion dealer.
●Ensure that only genuine Scion wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.

332
4-3. Do-it-yourself maintenance
tC_OM_OM21056U_(U)

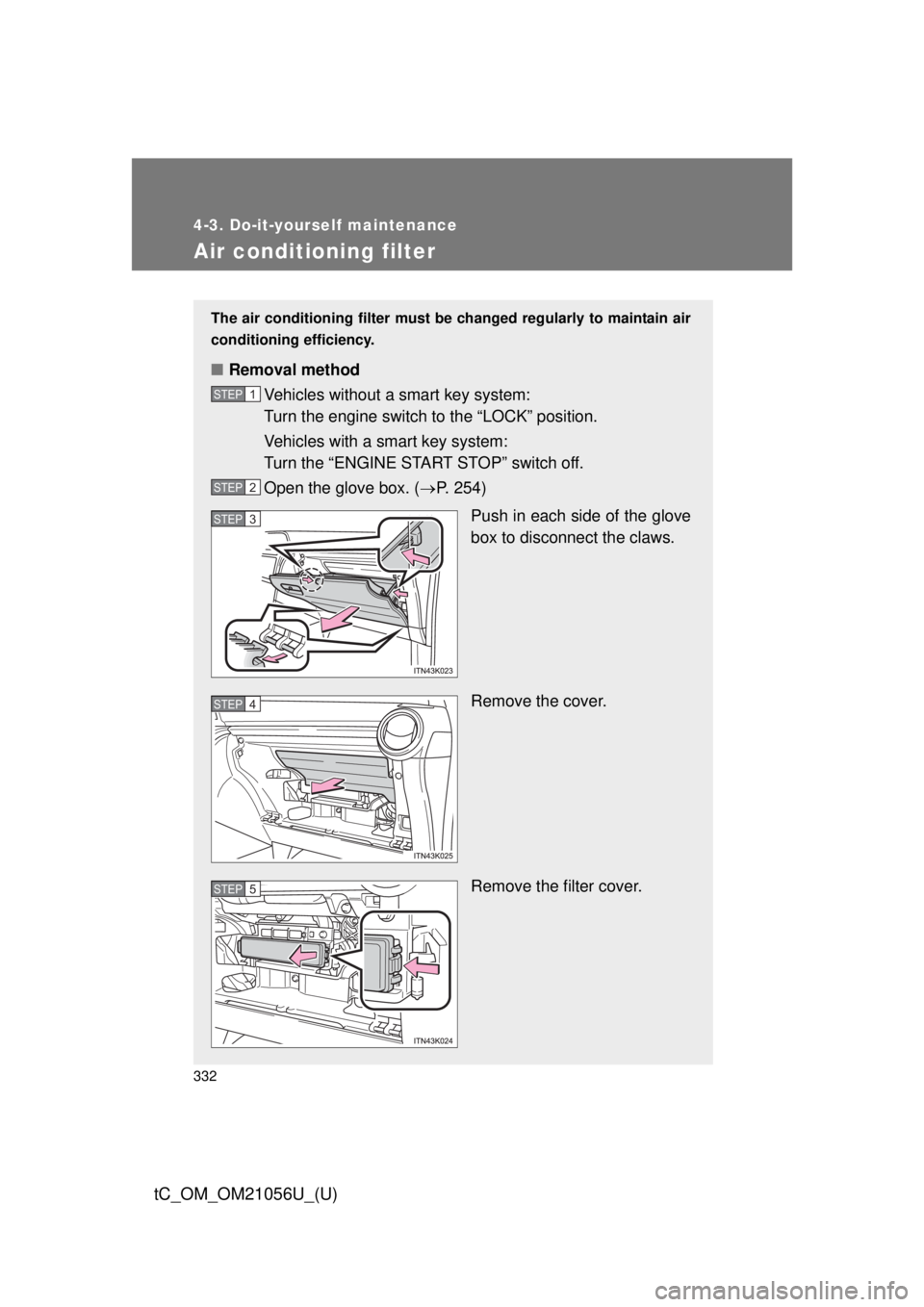

Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Vehicles without a smart key system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart key system:
Turn the “ENGINE START STOP” switch off.
Open the glove box. ( P. 254)
Push in each side of the glove
box to disconnect the claws.
Remove the cover.
Remove the filter cover.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

333
4-3. Do-it-yourself maintenance
4
Maintenance and care
tC_OM_OM21056U_(U)

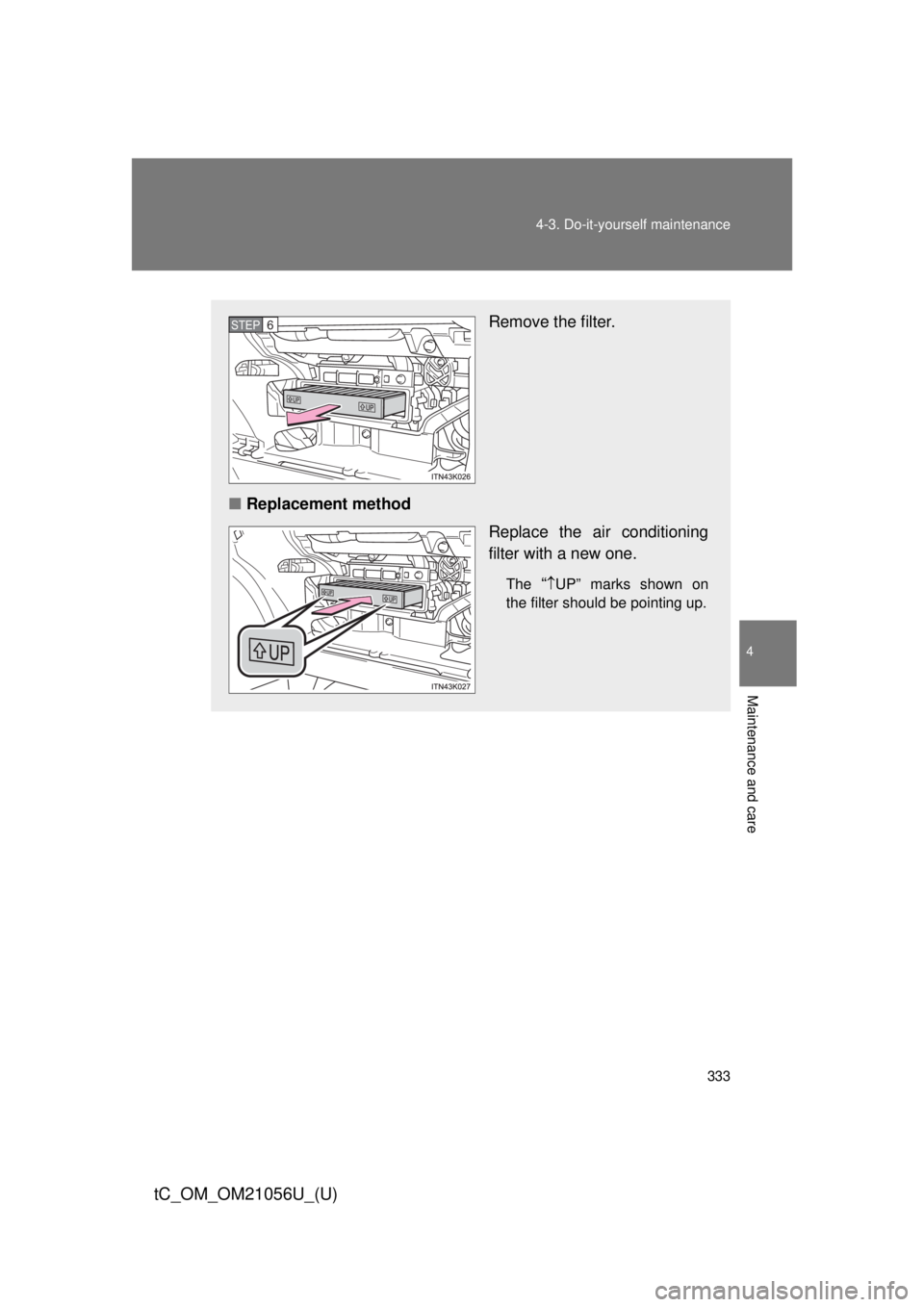

Remove the filter.
■ Replacement method
Replace the air conditioning
filter with a new one.
The “UP” marks shown on
the filter should be pointing up.
STEP 6

334 4-3. Do-it-yourself maintenance
tC_OM_OM21056U_(U)
■Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

335
4-3. Do-it-yourself maintenance
4
Maintenance and care
tC_OM_OM21056U_(U)

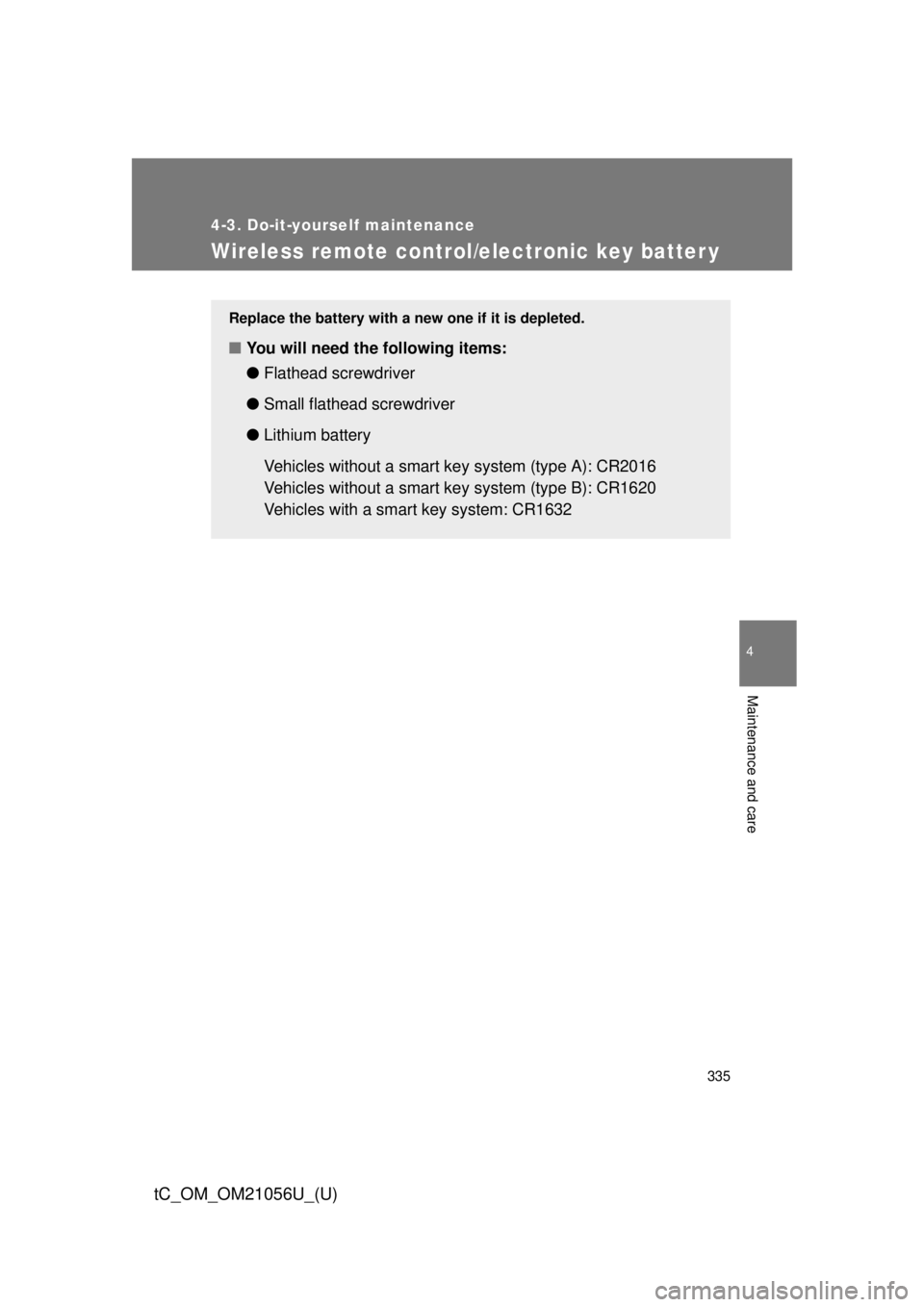

Wireless remote control/electronic key batter y
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
● Small flathead screwdriver
● Lithium battery
Vehicles without a smart ke y system (type A): CR2016
Vehicles without a smart ke y system (type B): CR1620
Vehicles with a smart key system: CR1632

336 4-3. Do-it-yourself maintenance
tC_OM_OM21056U_(U)

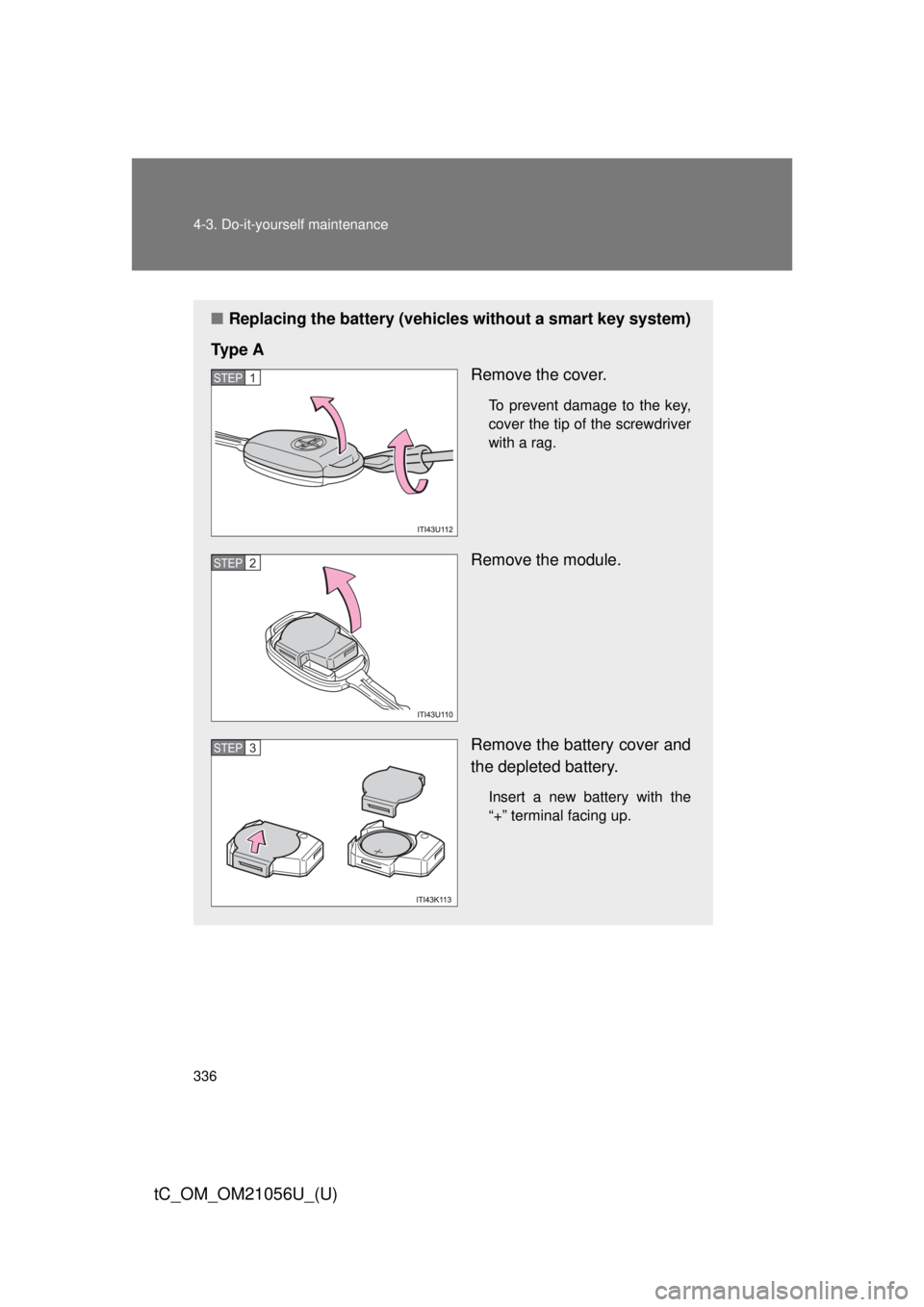

■Replacing the battery (vehicles without a smart key system)
Ty p e A Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the module.
Remove the battery cover and
the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

337
4-3. Do-it-yourself maintenance
4
Maintenance and care
tC_OM_OM21056U_(U)

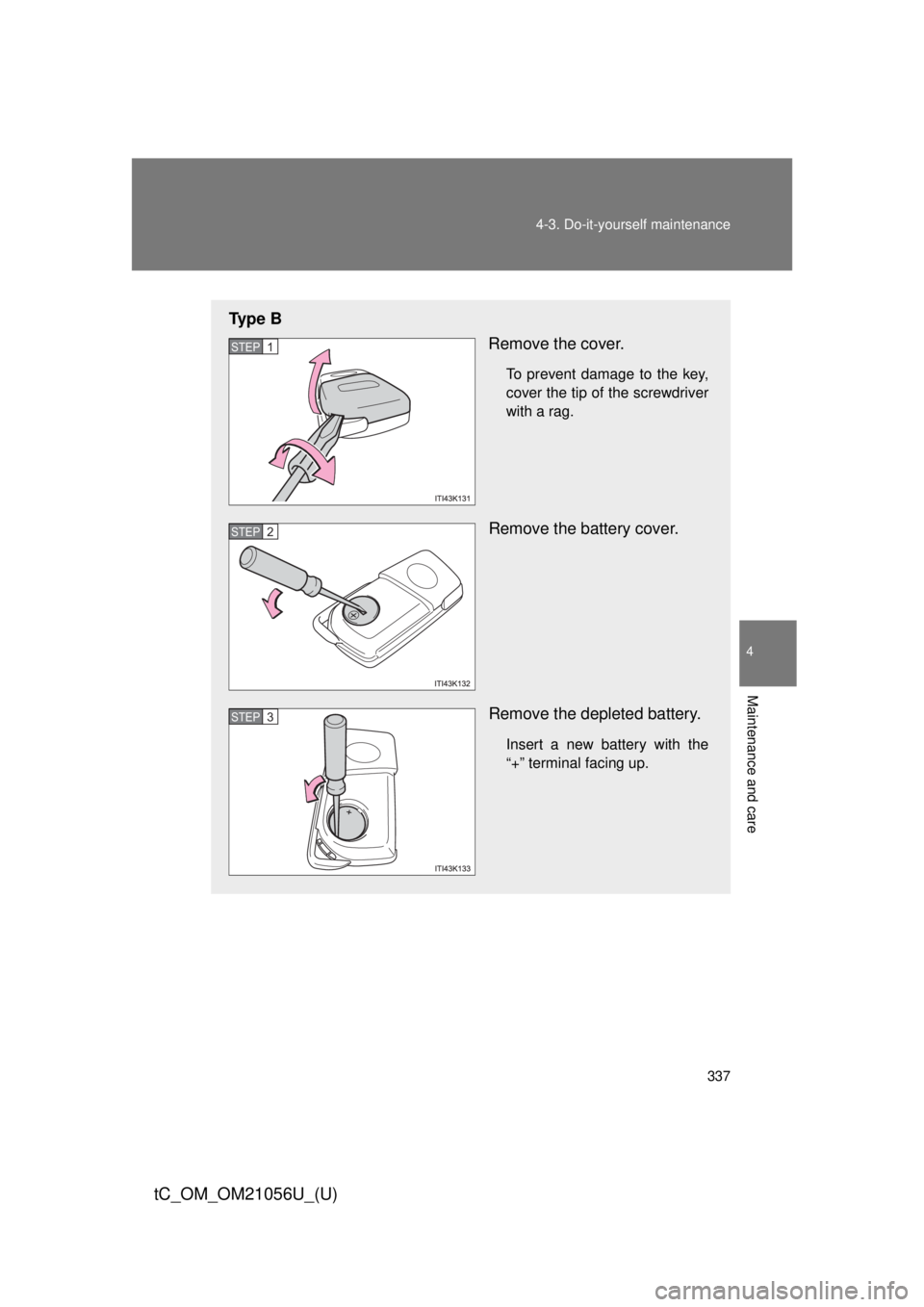

Ty p e B
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the battery cover.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

338 4-3. Do-it-yourself maintenance
tC_OM_OM21056U_(U)

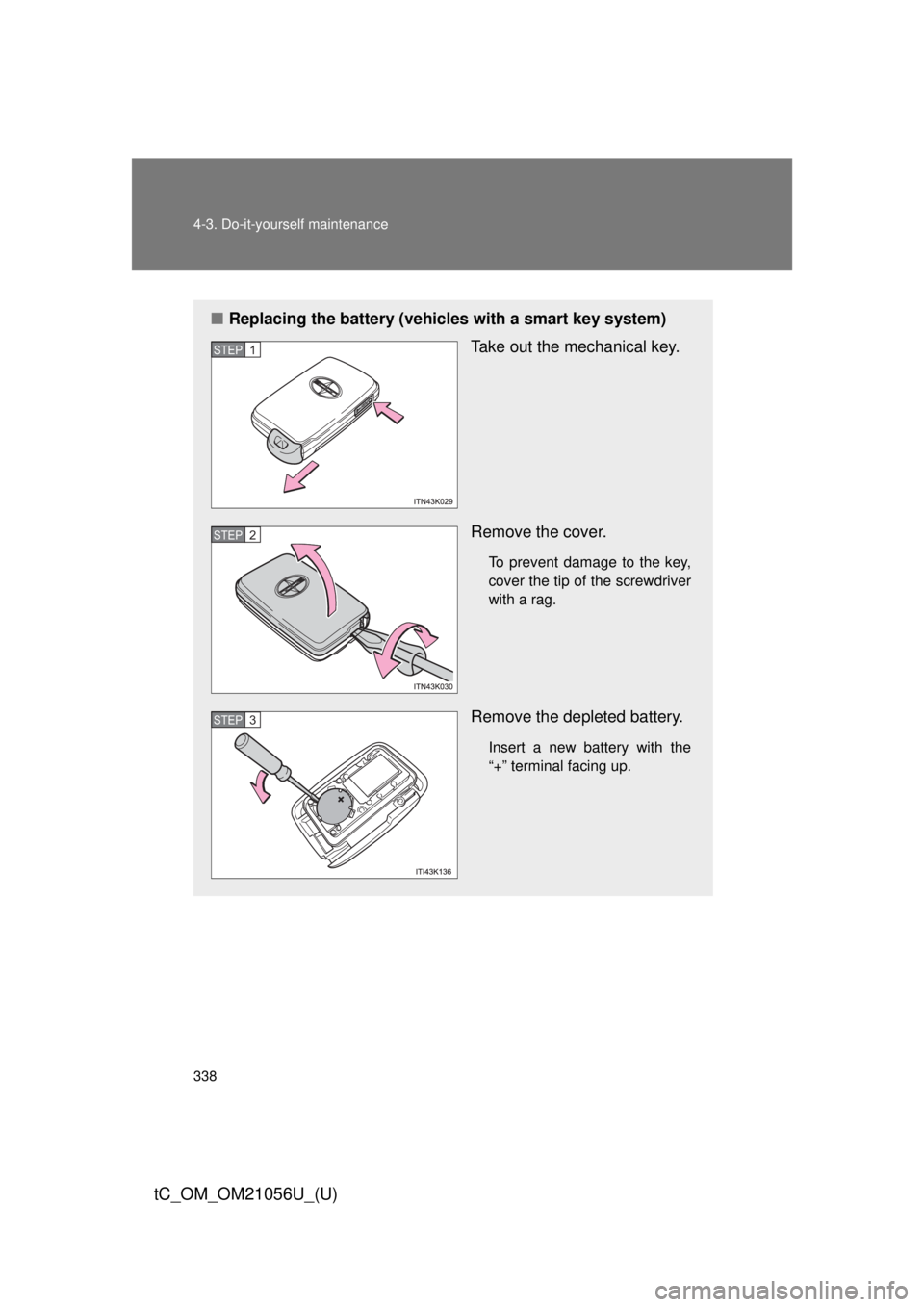

■Replacing the battery (vehicles with a smart key system)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

339
4-3. Do-it-yourself maintenance
4
Maintenance and care
tC_OM_OM21056U_(U)
■
Use the following types of lithium battery
Vehicles without a smart key system (type A): CR2016
Vehicles without a smart key system (type B): CR1620
Vehicles with a smart key system: CR1632
● Batteries can be purchased at your Scion dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to the local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.

340 4-3. Do-it-yourself maintenance
tC_OM_OM21056U_(U)
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
