TOYOTA tC 2016 Owners Manual (in English)

431
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21056U_(U)

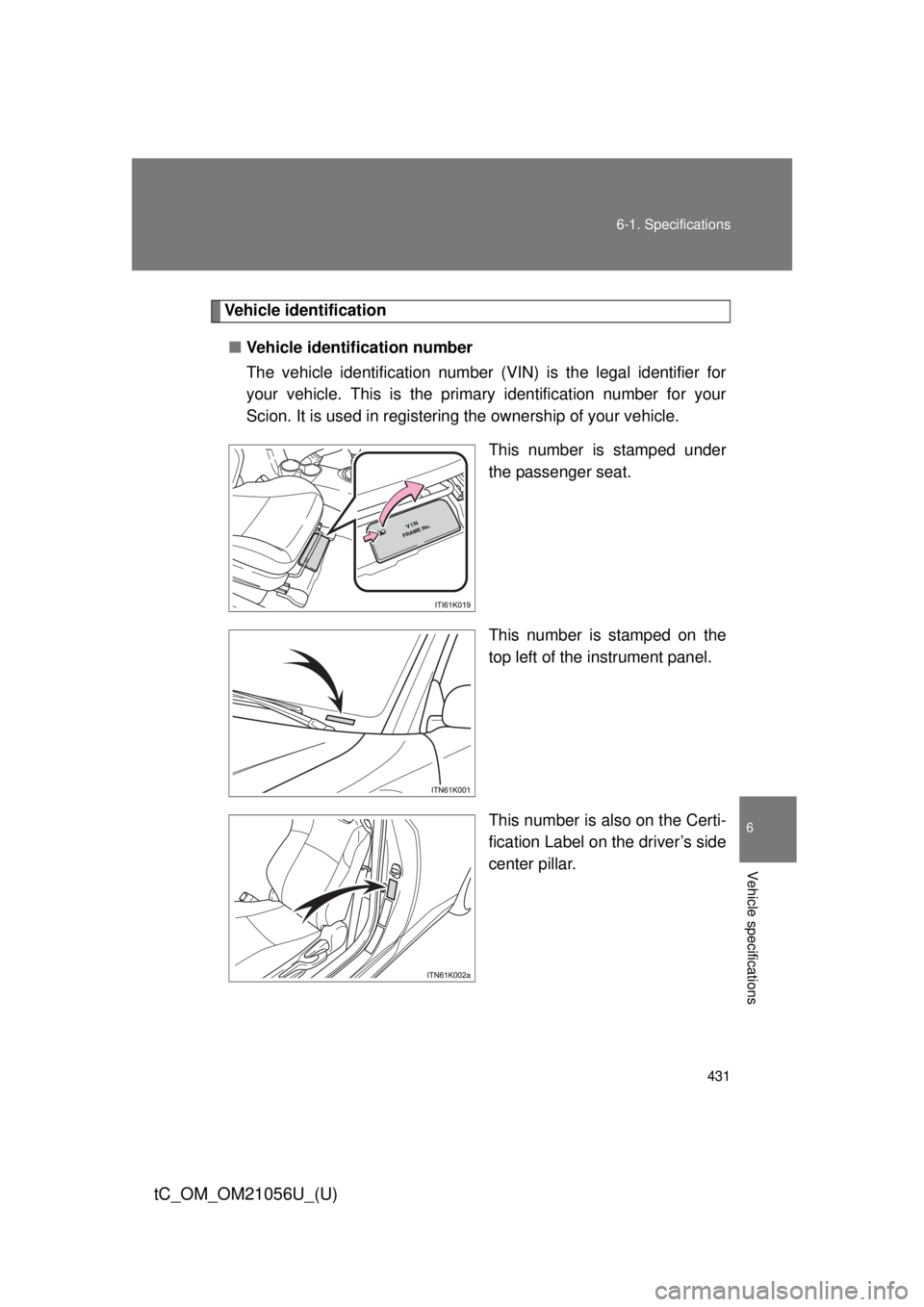

Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registering the owners hip of your vehicle.
This number is stamped under
the passenger seat.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.

432 6-1. Specifications
tC_OM_OM21056U_(U)

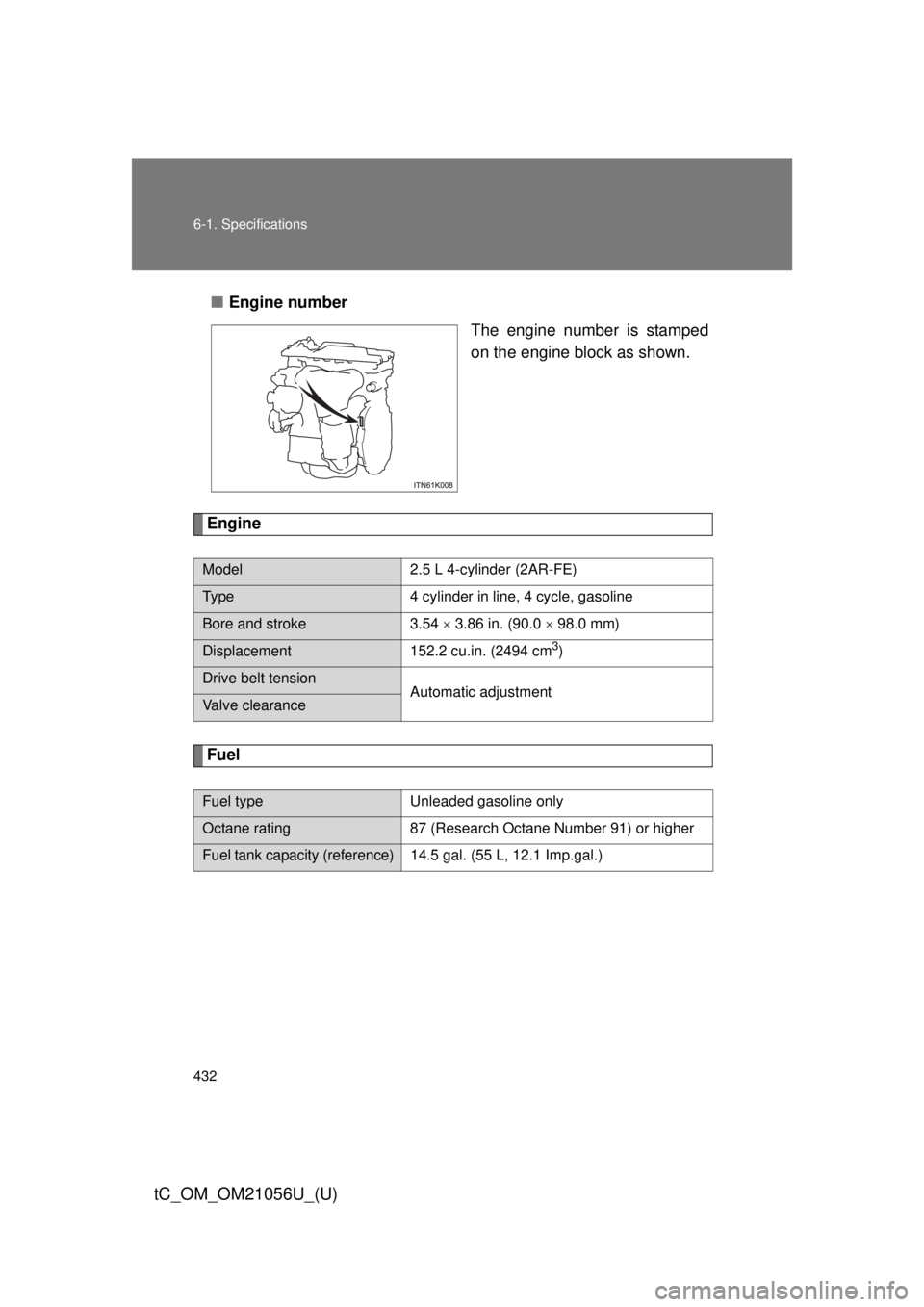

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model2.5 L 4-cylinder (2AR-FE)
Type 4 cylinder in line, 4 cycle, gasoline
Bore and stroke3.54  3.86 in. (90.0  98.0 mm)
Displacement 152.2 cu.in. (2494 cm3)
Drive belt tension
Automatic adjustment
Valve clearance
Fuel type Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity (reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

433
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21056U_(U)

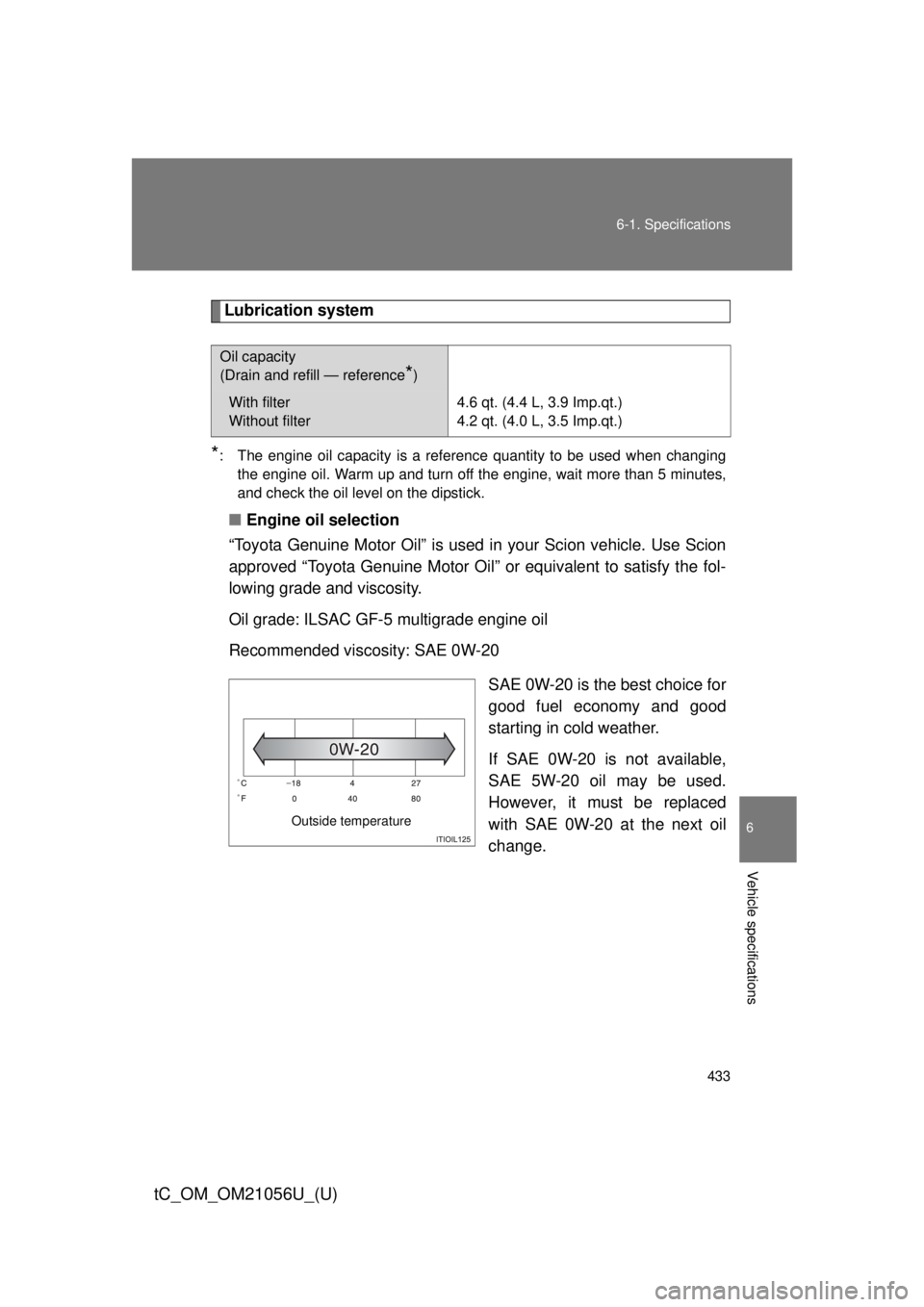

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)
Outside temperature

434 6-1. Specifications
tC_OM_OM21056U_(U)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

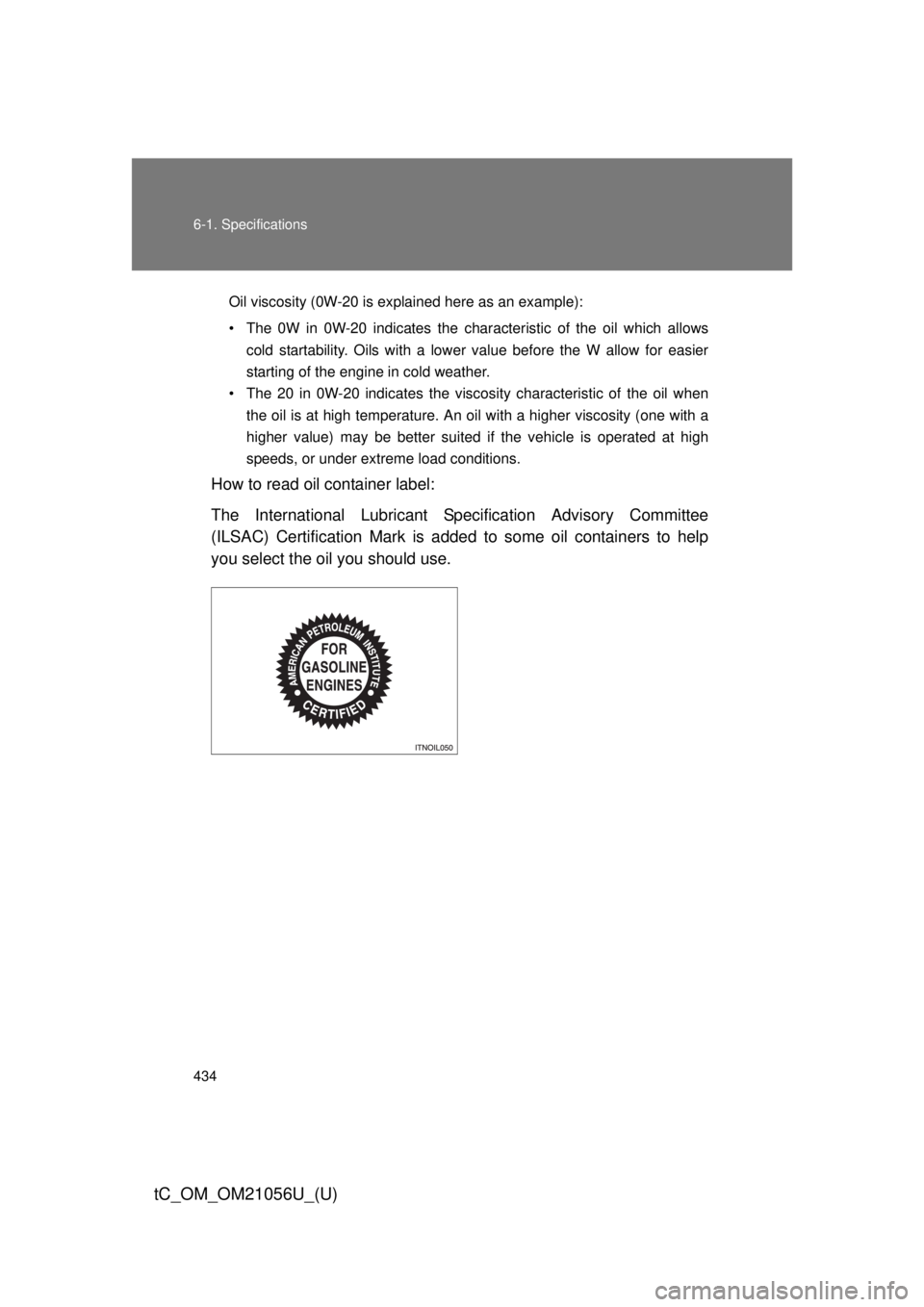

How to read oil container label:
The International Lubricant Spec ification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

435
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21056U_(U)
Cooling system
Ignition system
Capacity
Vehicles with an automatic transmission:
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Vehicles with a manual transmission: 6.1 qt. (5.8 L, 5.1 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
Gap DENSO SK16HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

436 6-1. Specifications
tC_OM_OM21056U_(U)
Electrical system
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Scion dealer.
Battery
Open voltage* at 68 F (20C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity*6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using a transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

437
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21056U_(U)
Manual transmission
Clutch
Gear oil capacity (reference) 2.4 qt. (2.3 L, 2.0 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

438 6-1. Specifications
tC_OM_OM21056U_(U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 67.5 lbf (300 N,30.6 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Pedal clearance*13.86 in. (98.0 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)

439
6-1. Specifications
6
Vehicle specifications
tC_OM_OM21056U_(U)
Tires and wheels
Full-size tire
Compact spare tire
Tire size P225/45R18 91W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front:
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Wheel size 18 x 7 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size T145/80D16 105M
Tire inflation pressure
(Recommended cold tire
inflation pressure)60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
16 x 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

440 6-1. Specifications
tC_OM_OM21056U_(U)
Light bulbs
A: HIR2 halogen bulbs
B: Single end bulbs (amber)
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs
*: Canada only
Light bulbsBulb No.WTy p e
ExteriorHeadlights
55 A
Front turn signal lights/
daytime running lights* 1156NA 27 B
Parking lights 5C
Front side marker lights 5C
Rear turn signal lights 21 D
Tail lights and rear side
marker lights 
5C
Back-up lights 921 16 C
License plate lights 5C
Interior Front interior lights
5C
Rear interior light 8E
Luggage compartment light 5C
