Page 171 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)175
c. Reinstall the filler cap.
d. Remove the filler cap again and look at
the fluid level. If the fluid is cold, the
level should be in the ºCOLDº  range on
the dipstick. Similar

Page 172 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)
176 �
Take special care when adding air to
the compact spare tire.  The smaller
tire size can gain pressure very quick-
ly. Add compressed air in small quanti-
ties and check  the pr

Page 173 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)177
CAUTION
�Do not mix radial, bias belted, or
bias- ply tires on your vehicle. It
can cause dangerous handling char-
acteristics, resulting in loss of con-
trol.
� Do not use tires

Page 174 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)
178
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tir

Page 175 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)179
Replacing wheels
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace damaged wh

Page 176 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)
180

Page 177 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)181

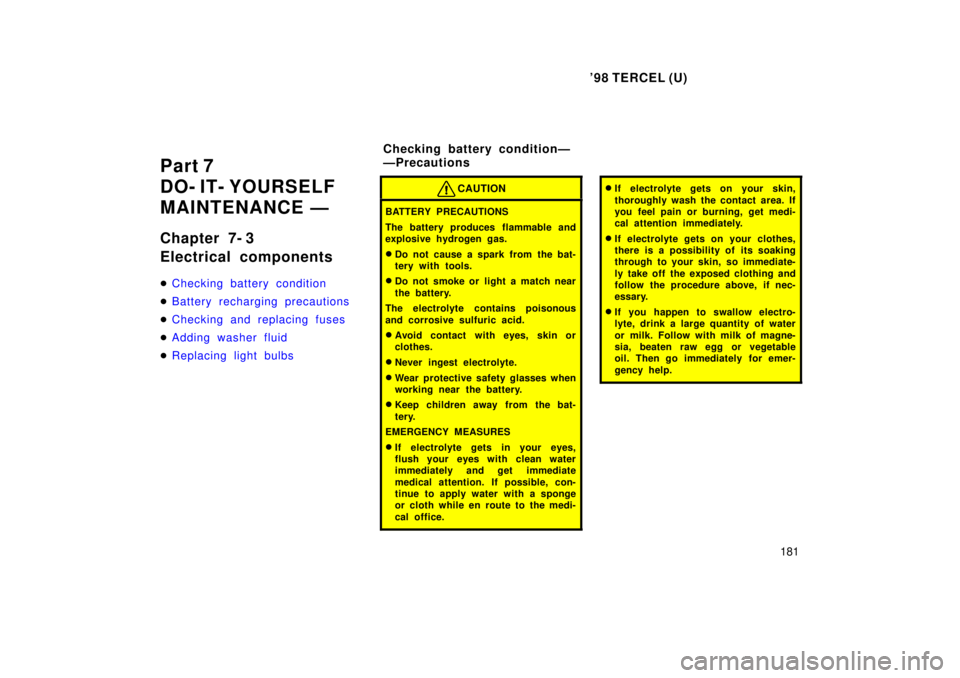

Part 7
DO- IT- YOURSELF
MAINTENANCE Ð
Chapter 7- 3
Electrical components �
Checking battery condition
�Battery recharging precautions
�Checking and replacing fuses
�Adding washer

Page 178 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)
182
ÐChecking battery exterior
Terminals
Hold- down
clamp
 Ground cable
Check the battery for corroded or loose
terminal connections, cracks, or loose
hold- down clamp.
a. If the

Page 179 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)183
Upper line
Lower line
CHECKING BY THE FLUID LEVEL LINES
(MAINTENANCE TYPE BATTERY ONLY)
The fluid (electrolyte) level must be be-
tween the upper and lower lines.
When checking

Page 180 of 194

TOYOTA TERCEL 1998  Owners Manual 98 TERCEL (U)
184
NOTICE
Do not overfill the cells. Excess elec- trolyte could squirt out of the batteryduring heavy charging,  causing corro-sion or damage.
Battery recharging precautions
During re
