TOYOTA TUNDRA 2000 Owner's Guide

TUNDRA (34413U)
31
To o h i g h
Adjust to a
snug fit
Keep as low on hips as possible
Remove excess length of the belt and
adjust the belt position.
To shorten the belt, pull the free end of
the belt.
Position the lap belt as low as possible
on your hipsÐnot on your waist, then ad-
just it to a snug fit.
CAUTION
High- positioned and loose- fitting lap
belts could cause serious injuries due
to sliding under the lap belt during a
collision or other unintended result.
Keep the lap belt positioned as low
on hips as possible.
To release the belt, press the buckle- re-
lease button.The rear seat belt and buckles can be
stowed when not in use.
Seat belt and buckles must be stowed
before you swing up the bottom cushion.
(See Swing- up rear seatsº in this chap-
ter.)
ÐStowing the rear seat belt
and buckles
(access cab models)
ProCarManuals.com

TUNDRA (34413U)
32
ÐSeat belt extender
If your seat belt cannot be fastened se-
curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper re-
quired length for the extender. Bring the
heaviest coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
CAUTION
When using the seat belt extender,
observe the following. Failure to fol-
low these instructions could result in
less effectiveness of the seat belt re-
straint system in case of vehicle acci-
dent, increasing the chance of per-
sonal injury.

Never use the seat belt extender if
you can fasten the seat belt without
it.

Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the PRESSº signs on
the buckle- release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle- release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
ProCarManuals.com

TUNDRA (34413U)
33
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
ÐFront seat belt pretensioners
The driver and front passenger 's seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belt is quickly drawn back in by the re-
tractor so that the belt snugly restrains
the front seat occupants.
The seat belt pretensioners are activated
even with no passenger in the front seat.This indicator comes on when the igni-
tion key is turned to the ACCº or
ONº position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
warning light, interconnecting wiring and
power sources. (For details, see Service
reminder indicators and warning buzzersº
in Chapter 1- 5.)
ProCarManuals.com

TUNDRA (34413U)
34
The seat belt pretensioner system mainly
consists of the following components and
their locations are shown in the illustra-
tion.1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioner is controlled by
the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor. When a seat belt pretensioner is acti-
vated, an operating noise may be heard
and a small amount of smoke- like gas
may be released. This gas is harmless
and does not indicate that a fire is occur-
ring.
Once the seat belt pretensioner has been
activated, the seat belt retractor remains
locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in death or serious personal inju-
ry.
Failure to follow these instructions
can result in death or serious inju-
ries.
NOTICE
Do not perform any of the following
changes without consulting yourToyota dealer. Such changes caninterfere with proper operation of theseat belt pretensioners in somecases.

Installation of electronic items suchas a mobile two- way radio, cassettetape player or compact disc player

Repairs on or near the front seatbelt pretensioner assemblies

Modification of the suspension sys-tem

Modification of the front end struc-ture

Attachment of a grille guard (bullbar, kangaroo bar, etc.), snowplow,winches or any other equipment tothe front end

Repairs made on or near the frontfenders, front end structure or con-sole
ProCarManuals.com

TUNDRA (34413U)
35
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.

The light does not come on when the
ignition key is turned to the ACCº or
ONº position, or remains on.

The light comes on or flashes while
driving.

If either front seat belt does not retract
or cannot be pulled out due to a mal-
function or activation of the pretension-
er.

The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.

The front part of the vehicle (shaded
in the illustration) was involved in an
accident that did not cause the seat
belt pretensioners to operate.

The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
front passenger when added to the pri-
mary protection provided by the seat
belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help prevent or reduce injury
by inflating, in order to decrease the likeli-
hood of the driver 's or front passenger 's
head or chest directly hitting the steering
wheel or dashboard. When the passenger
airbag manual on- off switch is in the ONº
position, the passenger airbag is activated
even with no passenger in the front seat.
Be sure to wear your seat belt.
SRS driver and front
passenger airbags
ProCarManuals.com

TUNDRA (34413U)
36
CAUTION
A driver or front passenger too close
to the steering wheel or dashboard
during airbag deployment can be
killed or seriously injured. Toyota
strongly recommends that:

The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.

The front passenger sit as far back
as possible from the dashboard.

All vehicle occupants be properly
restrained using the available seat
belts.
Indicator light
The passenger airbag system is
equipped with a manual on- off switch
and indicator light. Turning the passen-
ger airbag manual on- off switch clock-
wise to the ONº position makes the
passenger airbag system operational.
Turning the passenger airbag manual
on- off switch counterclockwise to the
OFFº position disables the passenger
airbag system. The indicator light on
the passenger airbag manual on- off
switch will come on when the passen-
ger airbag system has been disabled.
See Passenger airbag manual on- off
switchº in this chapter for detail.
CAUTION

Make sure that the indicator light is
off.

Do not turn off the passenger air-
bag manual on- off switch except
when a member of a passenger risk
group identified in TABLE 1 is oc-
cupying the right front passenger
seating position.

When the passenger airbag manual
on- off switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
ProCarManuals.com

TUNDRA (34413U)
37
This indicator comes on when the igni-
tion key is turned to the ACCº or
ONº position. It goes off after about
6 seconds. This means the SRS airbags
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, inflators, warning light, interconnect-
ing wiring and power sources. (For details,
see Service reminder indicators and
warning buzzersº in Chapter 1- 5.)
TABLE 1: A PASSENGER RISK GROUP
Infant. An infant (less than 1 year old) who must ride in the front seat because:

Vehicle has no rear seat;

Vehicle has a rear seat too small to accommodate a rear- facing infant seat;
or

The infant has a medical condition which, according to the infant's physician,
makes it necessary for the infant to ride in the front seat so that the driver
can constantly monitor the child's condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because:

Vehicle has no rear seat:

Although children ages 1 to 12 ride in the rear seat(s) whenever possible,
children ages 1 to 12 sometimes must ride in the front because no space is
available in the rear seat(s) of vehicle; or

The child has a medical condition which, according to the child's physician,
makes it necessary for the child to ride in the front seat so that the driver can
constantly monitor the child's condition.
Medical condition. A passenger has a medical condition which according to his
or her physician:

Causes the passenger airbag to pose a special risk for the passenger: and

Makes the potential harm from the passenger airbag in a crash greater than the
potential harm from turning off the airbag and allowing the passenger, even if
belted, to hit the dashboard, or windshield in a crash.
For more detailed information concerning about the passenger risk group, please
contact NHTSA at 1- 800- 424- 9393 or Transport Canada at 1- 800- 333- 0371.
ProCarManuals.com

TUNDRA (34413U)
38

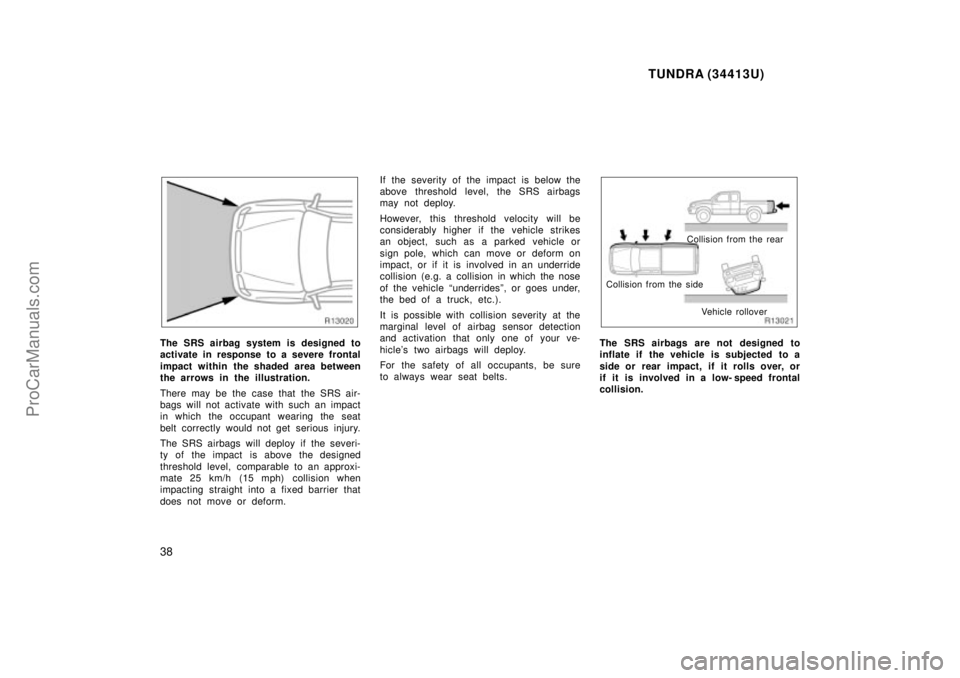

The SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area between
the arrows in the illustration.
There may be the case that the SRS air-
bags will not activate with such an impact
in which the occupant wearing the seat
belt correctly would not get serious injury.
The SRS airbags will deploy if the severi-
ty of the impact is above the designed
threshold level, comparable to an approxi-
mate 25 km/h (15 mph) collision when
impacting straight into a fixed barrier that
does not move or deform.If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle underridesº, or goes under,
the bed of a truck, etc.).
It is possible with collision severity at the
marginal level of airbag sensor detection
and activation that only one of your ve-
hicle's two airbags will deploy.
For the safety of all occupants, be sure
to always wear seat belts.
Collision from the rear
Collision from the side Vehicle rollover
The SRS airbags are not designed to
inflate if the vehicle is subjected to a
side or rear impact, if it rolls over, or
if it is involved in a low- speed frontal
collision.
ProCarManuals.com

TUNDRA (34413U)
39
Hitting a curb,
edge of pavement
or hard materialFalling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS airbags may deploy if a seri-
ous impact occurs to the underside of
your vehicle. Some examples are shown
in the illustration.The SRS airbag system mainly consists of
the following components and their loca-
tions are shown in the illustration. 1. Front airbag sensors
2. SRS warning light
3. Airbag module for passenger (airbag and inflator)
4. Passenger airbag manual on- off switch
5. Airbag sensor assembly
6. Airbag module for driver (airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor. In a severe frontal impact, sensors detect
deceleration and the system triggers the
airbag inflators. Then a chemical reaction
in the inflators momentarily fills the air-
bags with non- toxic gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non- toxic gas. This
does not indicate a fire. This gas is nor-
mally harmless, however, for those who
have delicate skin, it may cause minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
minor skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swellings.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
ProCarManuals.com

TUNDRA (34413U)
40
A crash severe enough to inflate the air-
bags may break the windshield as the
vehicle buckles. In vehicles with a pas-
senger airbag the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.CAUTION

The SRS airbag system is designed
only as a supplement to the prima-
ry protection of the driver side and
front passenger side seat belt sys-
tems. The front seat occupants can
be killed or seriously injured by an
inflating airbag if they do not wear
the available seat belts. During sud-
den braking just before a collision,
an unrestrained driver or front pas-
senger can move forward into direct
contact with or close proximity to
the airbag which may then deploy
during the collision. To obtain maxi-
mum protection in an accident, the
driver and all passengers in the ve-
hicle must wear their seat belts.
Wearing a seat belt during an acci-
dent reduces the chances of death
or serious injuries or being thrown
out of the vehicle. For instructions
and precautions concerning the seat
belt system, see Seat beltsº in this
chapter.

Improperly seated and/or restrained
infants and children can be killed
or seriously injured by a deploying
airbag. An infant or child who is
too small to use a seat belt should
be properly secured using a child
restraint system. As to access cab
models, Toyota recommends that all
infants and children be placed in
the rear seat of the vehicle and
properly restrained. The rear seat is
the safest for infants and children.
For instructions concerning the
installation of a child restraint sys-
tem, see Child restraintº in this
chapter.
ProCarManuals.com
