TOYOTA TUNDRA 2000 Owners Manual
Manufacturer: TOYOTA, Model Year: 2000, Model line: TUNDRA, Model: TOYOTA TUNDRA 2000Pages: 283, PDF Size: 2.95 MB
Page 1 of 283
TUNDRA (34413U)
1
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel
ProCarManuals.com
Page 2 of 283
TUNDRA (34413U)
2

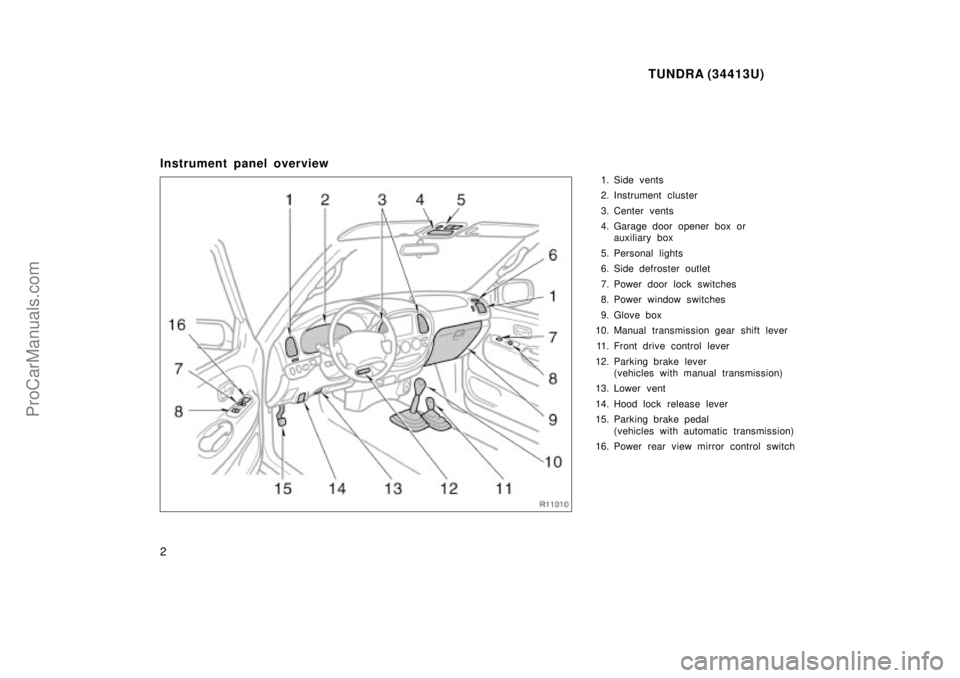

Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or auxiliary box
5. Personal lights
6. Side defroster outlet
7. Power door lock switches
8. Power window switches
9. Glove box
10. Manual transmission gear shift lever
11. Front drive control lever
12. Parking brake lever (vehicles with manual transmission)
13. Lower vent
14. Hood lock release lever
15. Parking brake pedal (vehicles with automatic transmission)
16. Power rear view mirror control switch
ProCarManuals.com
Page 3 of 283
TUNDRA (34413U)
3
1. Front fog light switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Automatic transmission selector lever
5. Cargo lamp switch
6. Emergency flasher switch
7. Car audio
8. Air conditioning controls
9. Passenger airbag manual on- off switch
10. Clock
11. Cup holder
12. Power outlets
13. 4LOº button
14. 2WD/4HIº button
15. Ashtray
16. Cigarette lighter
17. Cruise control switch
18. Ignition switch
19. Tilt steering lock release lever
20. Instrument panel light control knob
21. Clutch start cancel switch
ProCarManuals.com
Page 4 of 283
TUNDRA (34413U)
4

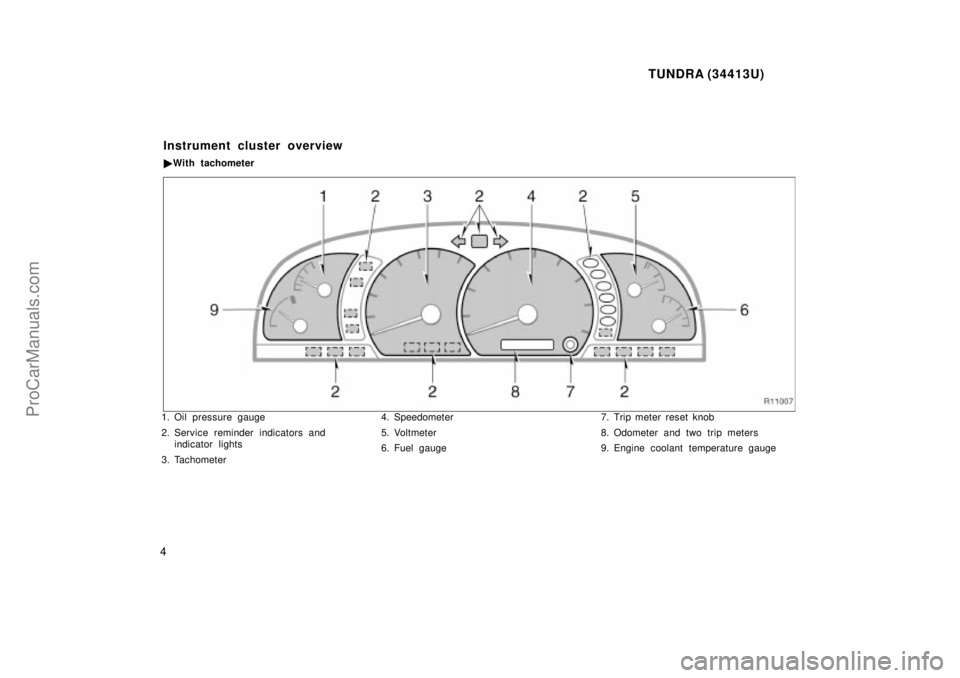

1. Oil pressure gauge
2. Service reminder indicators and indicator lights
3. Tachometer 4. Speedometer
5. Voltmeter
6. Fuel gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Engine coolant temperature gauge
Instrument cluster overview
With tachometer
ProCarManuals.com
Page 5 of 283
TUNDRA (34413U)
5

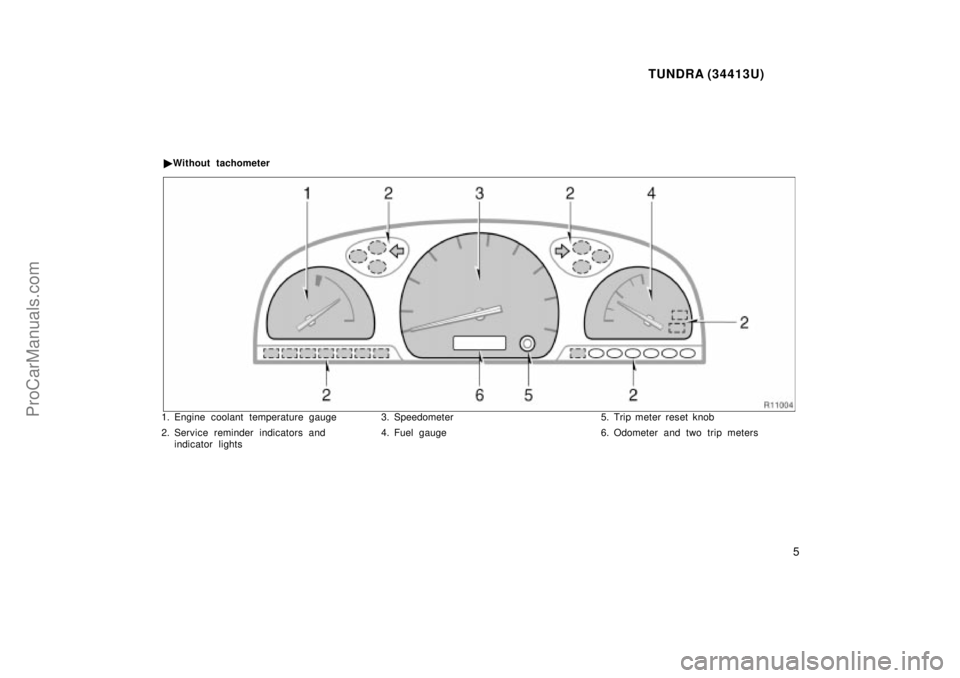

1. Engine coolant temperature gauge
2. Service reminder indicators and indicator lights 3. Speedometer
4. Fuel gauge
5. Trip meter reset knob
6. Odometer and two trip meters
Without tachometer
ProCarManuals.com
Page 6 of 283
TUNDRA (34413U)
6
Indicator symbols on the instrument panel
Seat belt reminder light*1
Low oil pressure warning light*1
Low fuel level warning light*1
Brake system warning light*1
Discharge warning light*1
Malfunction indicator lamp*1
Anti- lock brake system warning light*1
SRS warning light*1
(type A)
(type B)
Automatic transmission fluid temperature warning
light*1
Unengaged Parkº warning light*1
Low windshield washer fluid level warning
light*1
Headlight high beam indicator light
Overdrive- off indicator light Turn signal indicator lights
Open door warning light*1
Passenger airbag off indicator light
Automatic transmission indicator lights
ProCarManuals.com
Page 7 of 283
TUNDRA (34413U)
7
*1: For details, see Service reminder indicators and warning
buzzersº in Chapter 1- 5.
*2: If this light flashes, see Four- wheel drive systemº in
Chapter 1- 6.
*3: If this light flashes, see Cruise controlº in Chapter 1- 6. Cruise control indicator light
*
3
Low speed four- wheel drive indicator light*2
Four- wheel drive indicator light
High speed four- wheel drive indicator light
*2
ProCarManuals.com
Page 8 of 283
TUNDRA (34413U)
8
ProCarManuals.com
Page 9 of 283
TUNDRA (34413U)
9
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 2
Keys and Doors
Keys
Side doors
Power windows
Rear side windows
Rear window
Tailgate
Hood
Fuel tank cap
Keys
This key works in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
ProCarManuals.com
Page 10 of 283
TUNDRA (34413U)
10

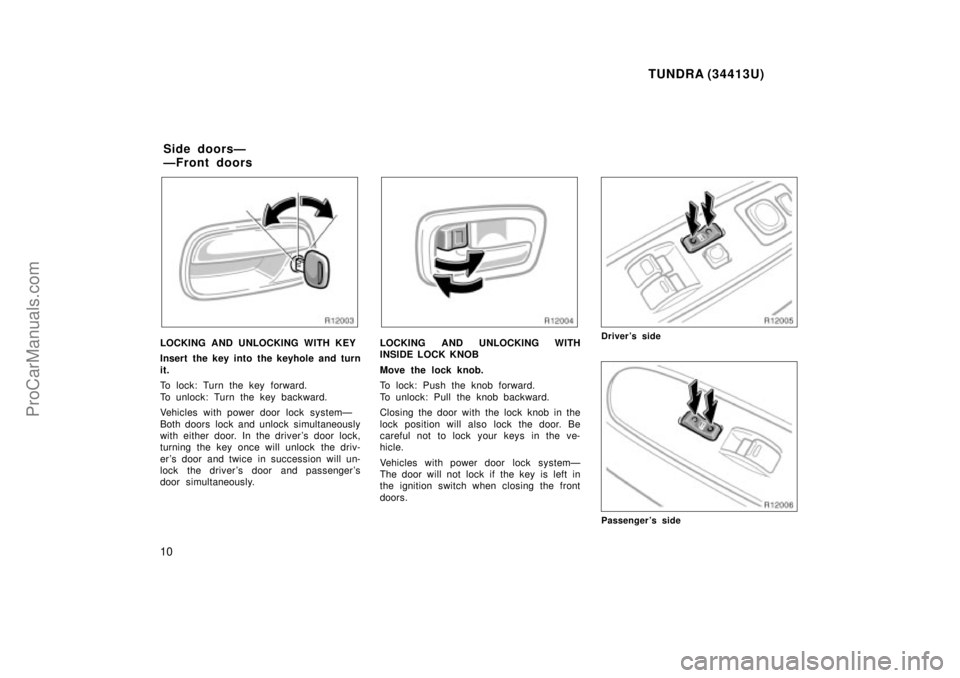

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock systemÐ
Both doors lock and unlock simultaneously
with either door. In the driver's door lock,
turning the key once will unlock the driv-
er's door and twice in succession will un-
lock the driver 's door and passenger 's
door simultaneously.LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock systemÐ
The door will not lock if the key is left in
the ignition switch when closing the front
doors.Driver's side
Passenger's side
Side doorsÐ
ÐFront doors
ProCarManuals.com
