TOYOTA TUNDRA 2002 1.G User Guide

’02 TUNDRA_U (L/O 0108)
42002 MY TUNDRA_U (OM 34417U)
22. Instrument panel light control knob
23. Clutch start cancel switch

’02 TUNDRA_U (L/O 0108)
52002 MY TUNDRA_U (OM 34417U)
1. Oil pressure gauge
2. Service reminder indicators and
indicator lights
3. Tachometer 4. Speedometer
5. Automatic transmission indicator lights
6. Voltmeter
7. Fuel gauge8. Trip meter reset knob
9. Odometer and two trip meters
10. Engine coolant temperature gauge
Instrument cluster overview
 With tachometer

’02 TUNDRA_U (L/O 0108)
62002 MY TUNDRA_U (OM 34417U)

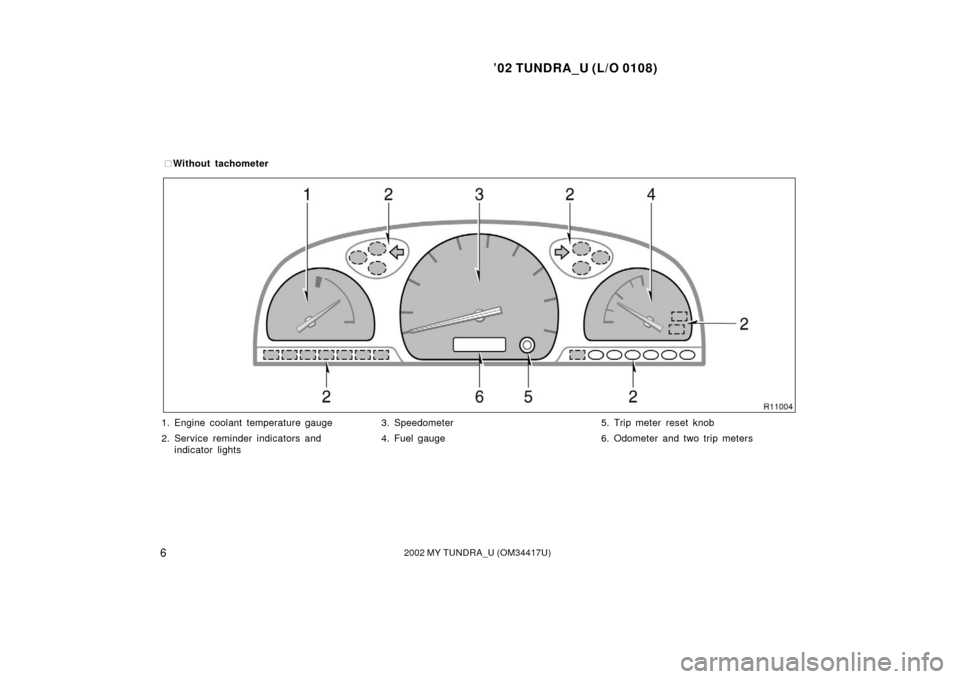

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights 3. Speedometer
4. Fuel gauge
5. Trip meter reset knob
6. Odometer and two trip meters

Without tachometer

’02 TUNDRA_U (L/O 0108)
72002 MY TUNDRA_U (OM 34417U)
Indicator symbols on the instrument panel
Driver ’s seat belt reminder light∗
1
Low engine oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Antilock brake system warning light∗1
SRS warning light∗1
or
Automatic transmission fluid temperature warning
light∗1
Unengaged “Park” warning light∗1
Low windshield washer fluid level warning
light∗1
Headlight high beam indicator light
Overdriveoff indicator light Turn signal indicator lights
Open door warning light∗1
Passenger airbag off indicator light
Front passenger ’s seat belt reminder light∗1

’02 TUNDRA_U (L/O 0108)
82002 MY TUNDRA_U (OM 34417U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 15.
∗2: If this light flashes, see “Fourwheel drive system” in Sec-
tion 16.
∗3: If this light flashes, see “Cruise control” in Section 16. Cruise control indicator light
∗
3
Low speed fourwheel drive indicator light∗2
Fourwheel drive indicator light
High speed fourwheel drive indicator light
∗2
Automatic transmission indicator lights

’02 TUNDRA_U (L/O 0108)
92002 MY TUNDRA_U (OM 34417U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Front doors s1 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Access doors 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Power windows 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Rear side windows 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Rear window 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tailgate 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Hood 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2

’02 TUNDRA_U (L/O 0108)
102002 MY TUNDRA_U (OM 34417U)
This key works in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
Both doors lock and unlock simultaneously
with either door. In the driver’s door lock,
turning the key once will unlock the driv-
er’s door and twice in succession will un-
lock the driver ’s door and passenger ’s
door simultaneously.
Keys Front doors

’02 TUNDRA_U (L/O 0108)
112002 MY TUNDRA_U (OM 34417U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
The door will not lock if the key is left in
the ignition switch when closing the front
doors.Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Both doors lock or unlock simultaneously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

’02 TUNDRA_U (L/O 0108)
122002 MY TUNDRA_U (OM 34417U)
For easy access to the rear seat, open
the access door (rear door).
To open: First, open the front door widely.
Then pull the outside handle or inside le-
ver of the access door.
If you try to open the front and rear doors
simultaneously, they will not open.
To close: First, close the access door
completely. Then close the front door.
You can open and close the access door
only when the front door is widely opened.
NOTICE
The front door and access door could
be damaged if they hit each other
when being opened or closed. Be
sure to follow the above instructions.The windows can be operated with the
switch on either front door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Access doors Power windows

’02 TUNDRA_U (L/O 0108)
132002 MY TUNDRA_U (OM 34417U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window
lock switch
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s door
or the switch on the driver’s door that
controls the passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
