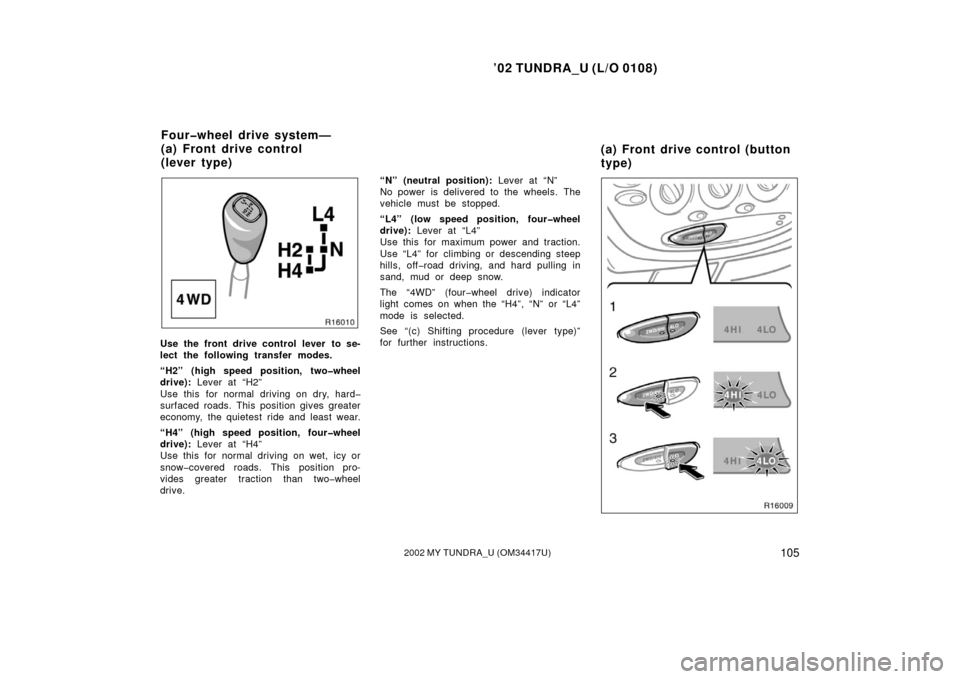

Use the front drive control lever to se-
lect the following transfer modes.
“H2” (high speed position, twowheel
drive): Lever at “H2”
Use this for normal driving on dry, hard
surfaced roads. This position gives greater
economy, the quietest ride and least wear.
“H4” (high speed position, fourwheel
drive): Lever at “H4”
Use this for normal driving on wet, icy or
snowcovered roads. This position pro-
vides greater traction than twowheel
drive. “N” (neutral position): Lever at “N”
No power is delivered to the wheels. The
vehicle must be stopped.
“L4” (low speed position, fourwheel
drive):
Lever at “L4”
Use this for maximum power and traction.
Use “L4” for climbing or descending steep
hills, offroad driving, and hard pulling in
sand, mud or deep snow.
The “4WD” (fourwheel drive) indicator
light comes on when the “H4”, “N” or “L4”
mode is selected.
See “(c) Shifting procedure (lever type)”
for further instructions.
Fourwheel drive system—
(a) Front drive control
(lever type) (a) Front drive control (button
type)

’02 TUNDRA_U (L/O 0108)
2572002 MY TUNDRA_U (OM 34417U)

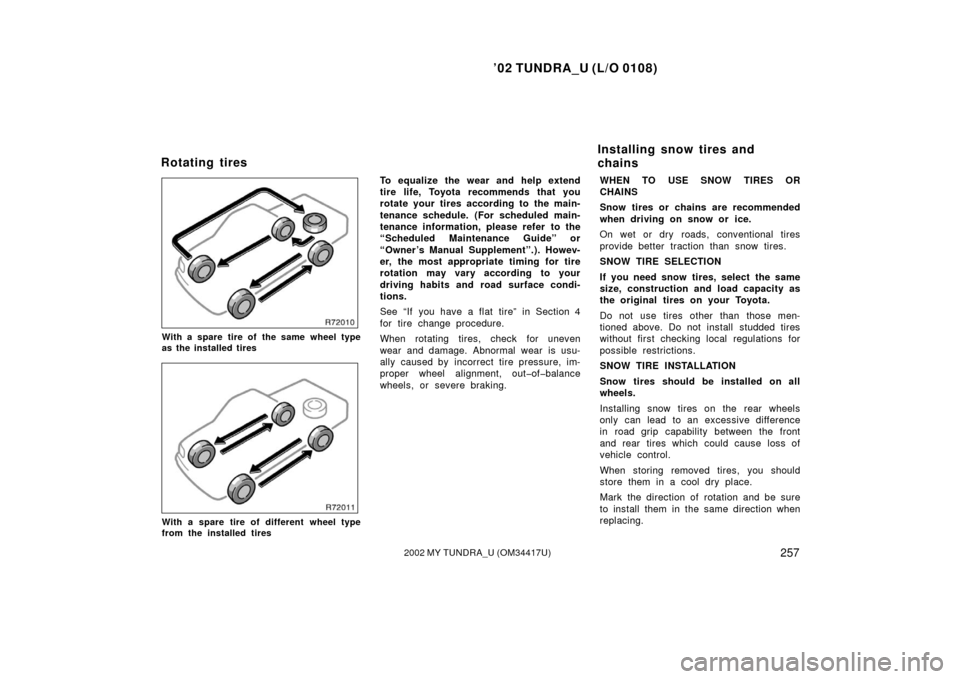

With a spare tire of the same wheel type
as the installed tires
With a spare tire of different wheel type
from the installed tires
To equalize the wear and help extend
tire life, Toyota recommends that you
rotate your tires according to the main-
tenance schedule. (For scheduled main-
tenance information, please refer to the
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.). Howev-
er, the most appropriate timing for tire
rotation may vary according to your
driving habits and road surface condi-
tions.
See “If you have a flat tire” in Section 4
for tire change procedure.
When rotating tires, check for uneven
wear and damage. Abnormal wear is usu-
ally caused by incorrect tire pressure, im-
proper wheel alignment, outofbalance
wheels, or severe braking. WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select the same
size, construction and load capacity as
the original tires on your Toyota.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the rear w
heels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
Rotating tires Installing snow tires and
chains

’02 TUNDRA_U (L/O 0108)
2852002 MY TUNDRA_U (OM 34417U)
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (11/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, C— The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction. Temperature A, B, C—
The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure. This information has been prepared in ac-
cordance with regulation issued by the Na-
tional Highway Traffic Safety Administra-
tion of the U.S. Department of
Transportation. It provides the purchasers
and/or prospective purchasers of Toyota
vehicles with information on truckcamper
loading. Your Toyota dealer will help an-
swer any questions you may have as you
read this information.
Camper information—
