TOYOTA TUNDRA 2002 1.G Owners Manual

’02 TUNDRA_U (L/O 0108)
2442002 MY TUNDRA_U (OM 34417U)
Spare fuses
With towing kit

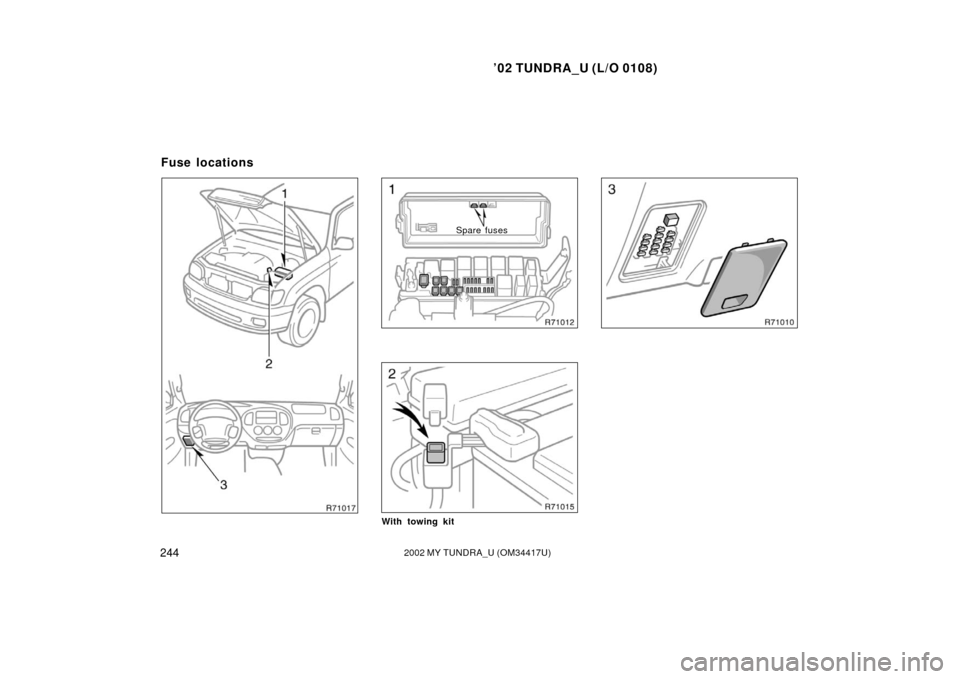

Fuse locations

’02 TUNDRA_U (L/O 0108)
2452002 MY TUNDRA_U (OM 34417U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing doityourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do
ityourself maintenance, see “Parts and
tools”.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-

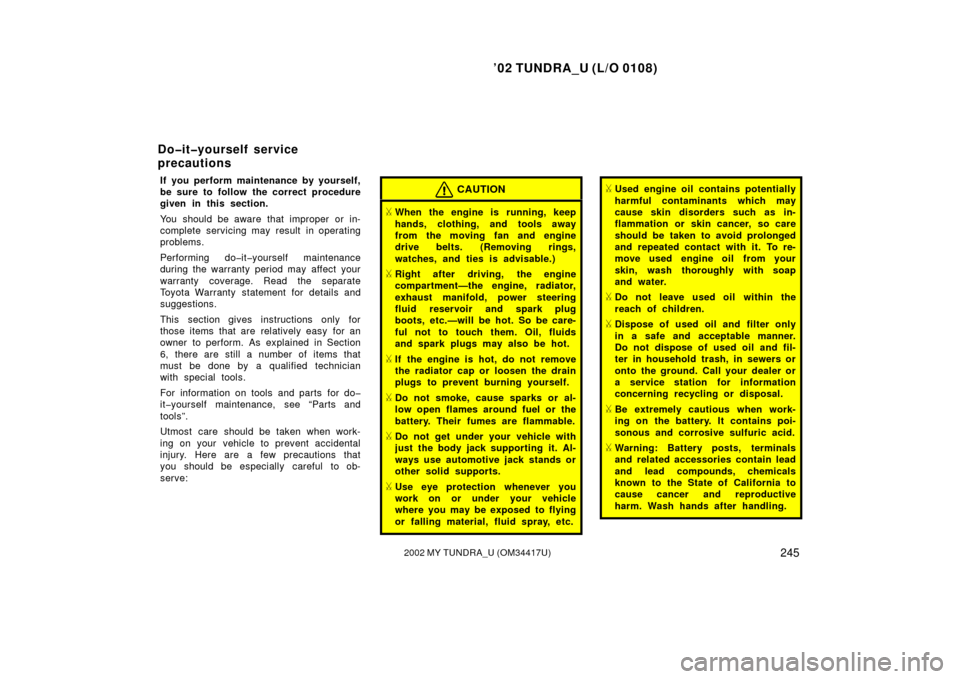

serve:CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold, power steering
fluid reservoir and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
Warning: Battery posts, terminals
and related accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Wash hands after handling.
Doityourself service
precautions

’02 TUNDRA_U (L/O 0108)
2462002 MY TUNDRA_U (OM 34417U)
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
 Add only demineralized or distilled
water to fill the radiator. And if you
spill some of the coolant, be sure
to wash it off with water to prevent
it from damaging the parts or paint.
 Do not allow dirt or anything else
to fall through the spark plug holes.
 Do not pry the outer electrode of a
spark plug against the center elec-
trode.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
 Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.Here is a list of parts and tools you will
need on performing doityourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
Engine oil API grade SJ
“EnergyConserving”, SL
“EnergyConserving” or ILSAC
multigrade having viscosity proper for
your climate
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
“TOYOTA Long Life Coolant” or equiva-
lent
See Section 72 for details about cool-
ant type selection.
Demineralized or distilled water
Tools:
Funnel (only for adding coolant)
Parts and tools

’02 TUNDRA_U (L/O 0108)
2472002 MY TUNDRA_U (OM 34417U)

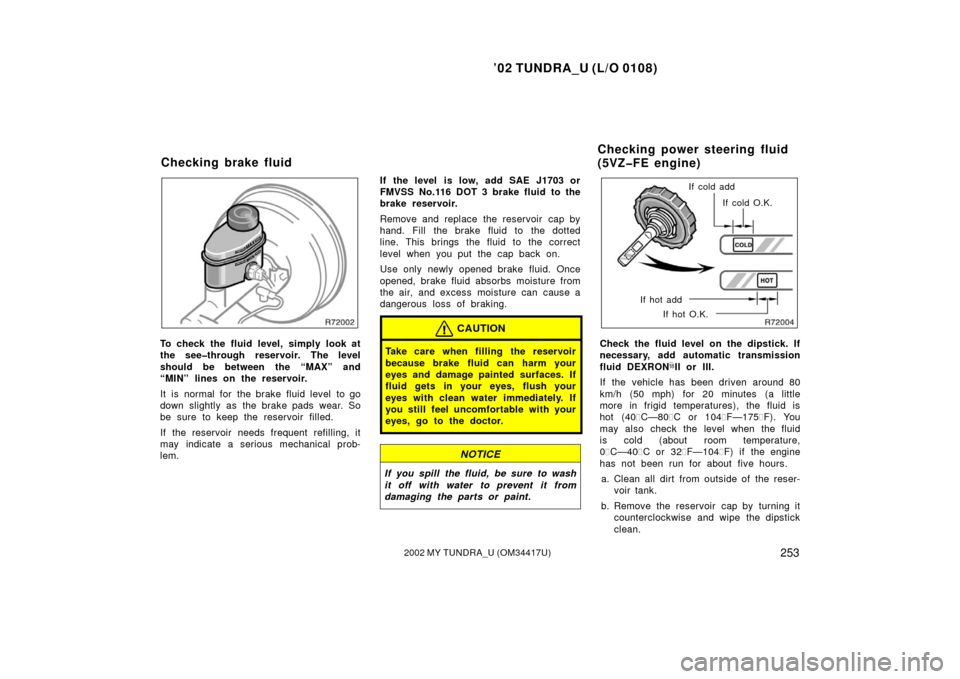

CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid DEXRON II
or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” in Section 73.)
Tools:
Screwdriver
Wrench

’02 TUNDRA_U (L/O 0108)
2482002 MY TUNDRA_U (OM 34417U)

’02 TUNDRA_U (L/O 0108)
2492002 MY TUNDRA_U (OM 34417U)
DOITYOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser r252
. . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking power steering fluid 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire pressure 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Checking and replacing tires 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 2

’02 TUNDRA_U (L/O 0108)
2502002 MY TUNDRA_U (OM 34417U)

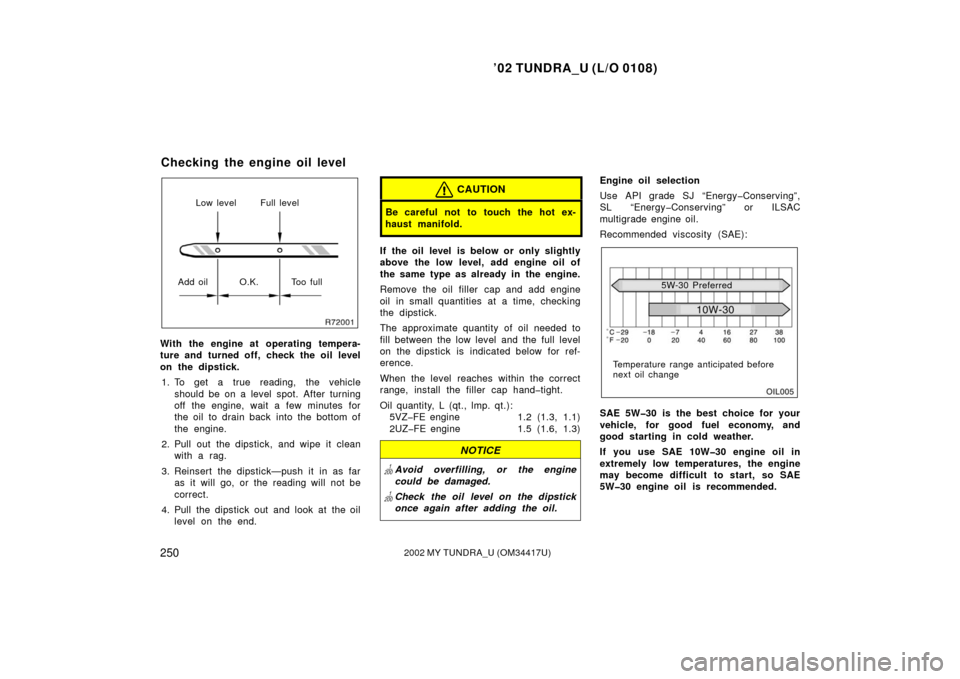

Low level Full level
Add oil O.K. Too full
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick. 1. To get a true reading, the vehicle should be on a level spot. After turning
off the engine, wait a few minutes for
the oil to drain back into the bottom of
the engine.
2. Pull out the dipstick, and wipe it clean with a rag.
3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level on the end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
If the oil level is below or only slightly
above the low level, add engine oil of
the same type as already in the engine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick.
The approximate quantity of oil needed to
fill between the low level and the full level
on the dipstick is indicated below for ref-
erence.
When the level reaches within the correct
range, install the f iller cap handtight.
Oil quantity, L (qt., lmp. qt.): 5VZFE engine 1.2 (1.3, 1.1)
2UZFE engine 1.5 (1.6, 1.3)
NOTICE
 Avoid overfilling, or the engine
could be damaged.
 Check the oil level on the dipstick
once again after adding the oil.
Engine oil selection
Use API grade SJ “EnergyConserving”,
SL “EnergyConserving” or ILSAC
multigrade engine oil.
Recommended viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
SAE 5W30 is the best choice for your
vehicle, for good fuel economy, and
good starting in cold weather.
If you use SAE 10W30 engine oil in
extremely low temperatures, the engine
may become difficult to start, so SAE
5W30 engine oil is recommended.
Checking the engine oil level

’02 TUNDRA_U (L/O 0108)
2512002 MY TUNDRA_U (OM 34417U)
API service symbol
ILSAC certification mark
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside of the container.
The top portion of the label shows the oil
quality by API (American Petroleum Insti-
tute) designations such as SL. The center
portion of the label shows the SAE viscos-
ity grade such as SAE 5W30. “Energy
Conserving” shown in the lower portion,
indicates that the oil has fuelsaving ca-
pabilities.
The ILSAC (International Lubricant Stan-
dardization and Approval Committee) Certi-
fication Mark is displayed on the front of
the container. Look at the seethrough coolant reser-
voir when the engine is cold. The cool-
ant level is satisfactory if it is between
the “F” and “L” lines on the reservoir.
If the level is low, add ethyleneglycol
type coolant for a proper corrosion
protection of aluminum components.
The coolant level in the reservoir will vary
with engine temperature. However, if the
level is on or below the “L” line, add
coolant. Bring the level up to the “F” line.
Always use ethyleneglycol type coolant
for a proper corrosion protection of alumi-
num components. See information in the
next column.
If the coolant level drops within a short
time after replenishing, there may be a
leak in the system. Visually check the
radiator, hoses, radiator cap and drain
cock and water pump.
If you can find no leak, have your Toyota
dealer test the cap pressure and check
for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not
remove the radiator cap when the en-
gine is hot.
Checking the engine coolant
level

’02 TUNDRA_U (L/O 0108)
2522002 MY TUNDRA_U (OM 34417U)
Coolant type selection
Use of improper coolants may damage
your engine cooling system. Your coolant
must contain ethyleneglycol type coolant
for a proper corrosion protection of your
engine that contains aluminum
components. Use “TOYOTA Long Life
Coolant” or equivalent.
In addition to preventing freezing and
subsequent damage to the engine, this
type of coolant will also prevent corrosion.
Further supplemental inhibitors or additives
are neither needed nor recommended.
Read the coolant container for information
on freeze protection. Follow the manufac-
turer’s directions for how much to mix
with plain water (preferably demineralized
water or distilled water). The total c apacity
of the cooling system is given in Section
8.
We recommend to use 50% solution for
your Toyota, to provide protection down to
about 35 C (31 F). When it is extreme-
ly cold, to provide protection down to
about 50 C (58 F), 60% solution is rec-
ommended. Do not use more than 70%
solution for better coolant performance.NOTICE
Do not use alcohol type antifreeze or
plain water alone.
If either of the above parts are extremely
dirty or you are not sure of their condi-
tion, take your vehicle to Toyota dealer.
CAUTION
To prevent yourself from burning, be
careful not to touch the radiator or
condenser when the engine is hot.
NOTICE
To prevent damage to the radiator
and condenser, do not perform the
work by yourself.
Checking the radiator and
condenser

’02 TUNDRA_U (L/O 0108)
2532002 MY TUNDRA_U (OM 34417U)
To check the fluid level, simply look at
the seethrough reservoir. The level
should be between the “MAX” and
“MIN” lines on the reservoir.
It is normal for the brake fluid level to go
down slightly as the brake pads wear. So
be sure to keep the reservoir filled.
If the reservoir needs frequent ref illing, it
may indicate a serious mechanical prob-
lem. If the level is low, add SAE J1703 or
FMVSS No.116 DOT 3 brake fluid to the
brake reservoir.
Remove and replace the reservoir cap by
hand. Fill the brake fluid to the dotted
line. This brings the fluid to the correct
level when you put the cap back on.
Use only newly opened brake fluid. Once
opened, brake fluid absorbs moisture from
the air, and excess moisture can cause a
dangerous loss of braking.
CAUTION
Take care when filling the r
eservoir
because brake fluid can harm your
eyes and damage painted surfaces. If
fluid gets in your eyes, flush your
eyes with clean water immediately. If
you still feel uncomfortable with your
eyes, go to the doctor.
NOTICE
If you spill the fluid, be sure to wash
it off with water to prevent it from
damaging the parts or paint.
If cold add
If cold O.K.
If hot add If hot O.K.
Check the fluid level on the dipstick. If
necessary, add automatic transmission
fluid DEXRON II or III.
If the vehicle has been driven around 80
km/h (50 mph) for 20 minutes (a little
more in frigid temperatures), the fluid is
hot (40 C—80 C or 104 F—175 F). You
may also check the level when the fluid
is cold (about room temperature,
0 C—40 C or 32 F—104 F) if the engine
has not been run for about five hours.
a. Clean all dirt from outside of the reser- voir tank.
b. Remove the reservoir cap by turning it counterclockwise and wipe the dipstick
clean.
Checking brake fluid Checking power steering fluid
(5VZFE engine)
