TOYOTA TUNDRA 2002 1.G Owners Manual

’02 TUNDRA_U (L/O 0108)
2642002 MY TUNDRA_U (OM 34417U)

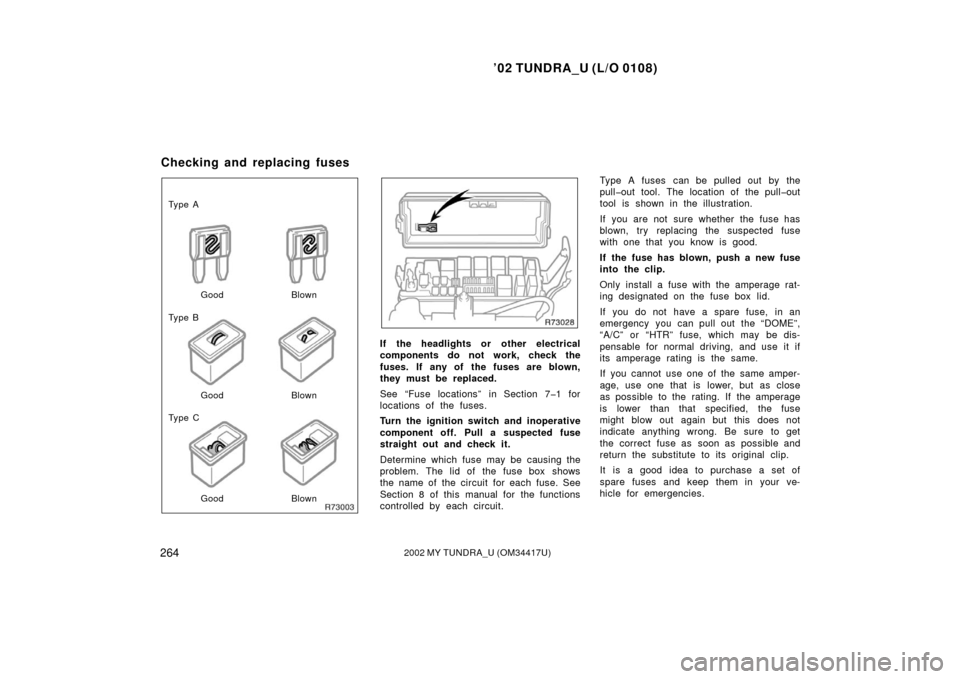

Ty p e A
Good Blown
Ty p e B
Ty p e C Good Blown
Good Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 71 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit. Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “DOME”,
“A/C” or “HTR” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’02 TUNDRA_U (L/O 0108)
2652002 MY TUNDRA_U (OM 34417U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.

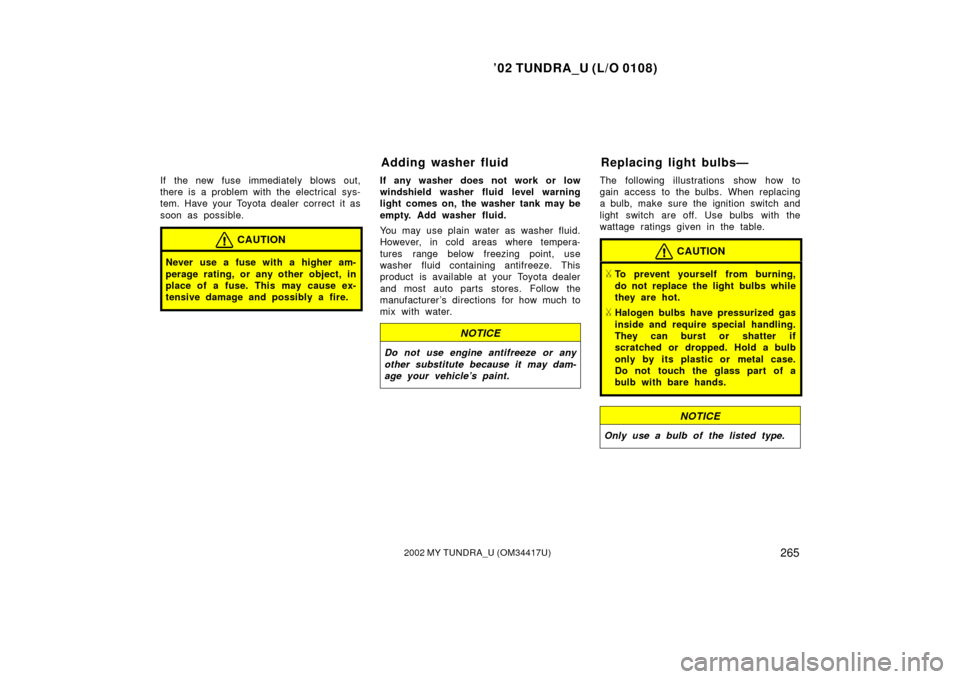

CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Adding washer fluid Replacing light bulbs—

’02 TUNDRA_U (L/O 0108)
2662002 MY TUNDRA_U (OM 34417U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer. Light bulbsBulb
No.WTy p e
Headlights—60/55A
Front fog lights900655B
Parking/front
turn signal/front
side marker
lights
3157NA27/8C
Rear turn signal
lights315627D
Stop/tail/rear
side marker
lights
315727/8D
Backup lights92118D
License plate
lights
Ty p e A
Ty p e B
168
1945
3.8D
D
High mounted
stoplight and
cargo lamps
92118D
Interior light—8E
Personal lights—8E
Vanity light—1.5E
Light bulbsBulb No.WTy p e
Door courtesy
lights1943.8D
Glove box light—1.2D
Step light—1.4D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs
E: Double end bulbs

’02 TUNDRA_U (L/O 0108)
2672002 MY TUNDRA_U (OM 34417U)

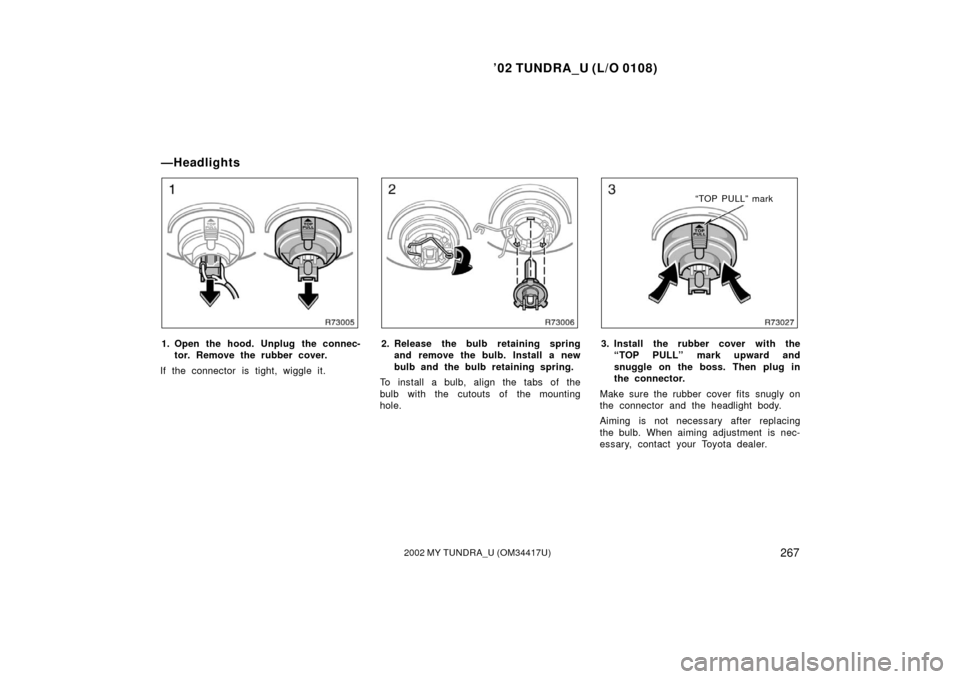

1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward and
snuggle on the boss. Then plug in
the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’02 TUNDRA_U (L/O 0108)
2682002 MY TUNDRA_U (OM 34417U)

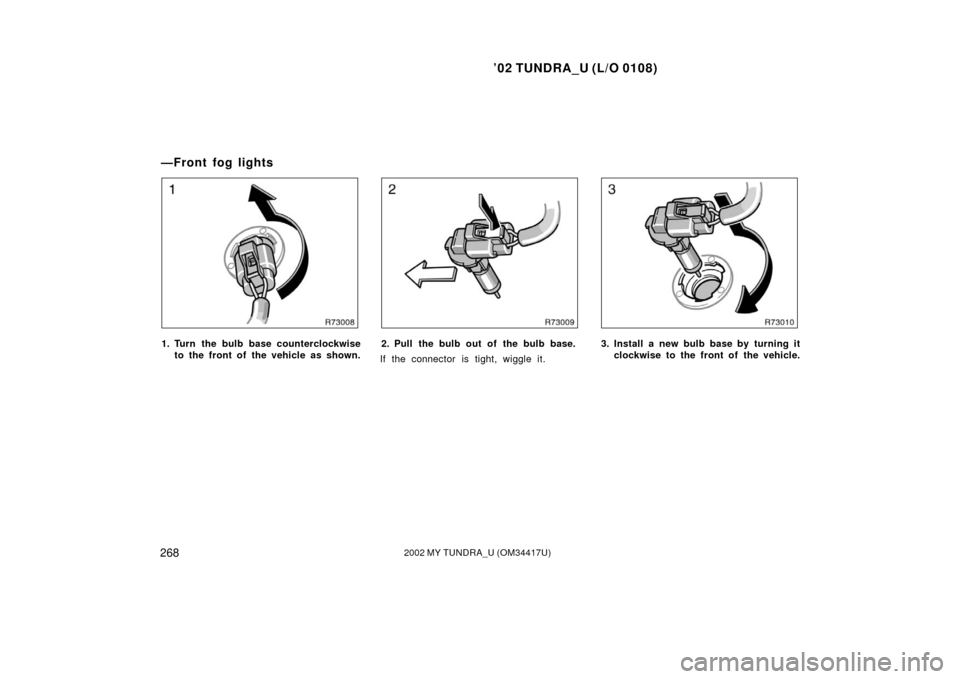

1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb base by turning it clockwise to the front of the vehicle.
—Front fog lights

’02 TUNDRA_U (L/O 0108)
2692002 MY TUNDRA_U (OM 34417U)

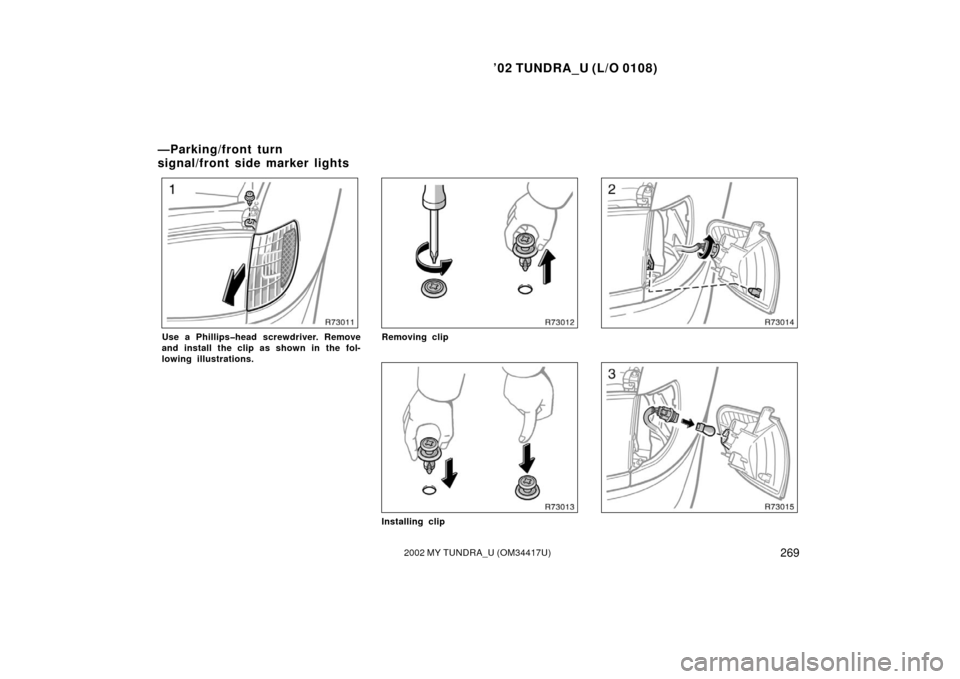

Use a Phillipshead screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.Removing clip
Installing clip
—Parking/front turn
signal/front side marker lights

’02 TUNDRA_U (L/O 0108)
2702002 MY TUNDRA_U (OM 34417U)

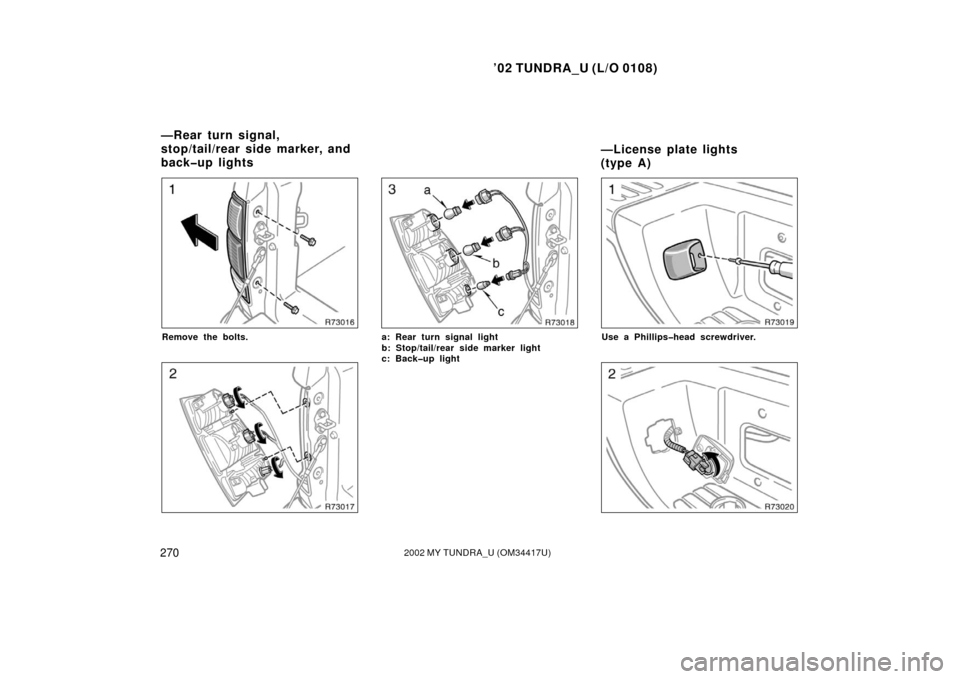

Remove the bolts.a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup lightUse a Phillipshead screwdriver.
—Rear turn signal,
stop/tail/rear side marker, and
backup lights —License plate lights
(type A)

’02 TUNDRA_U (L/O 0108)
2712002 MY TUNDRA_U (OM 34417U)

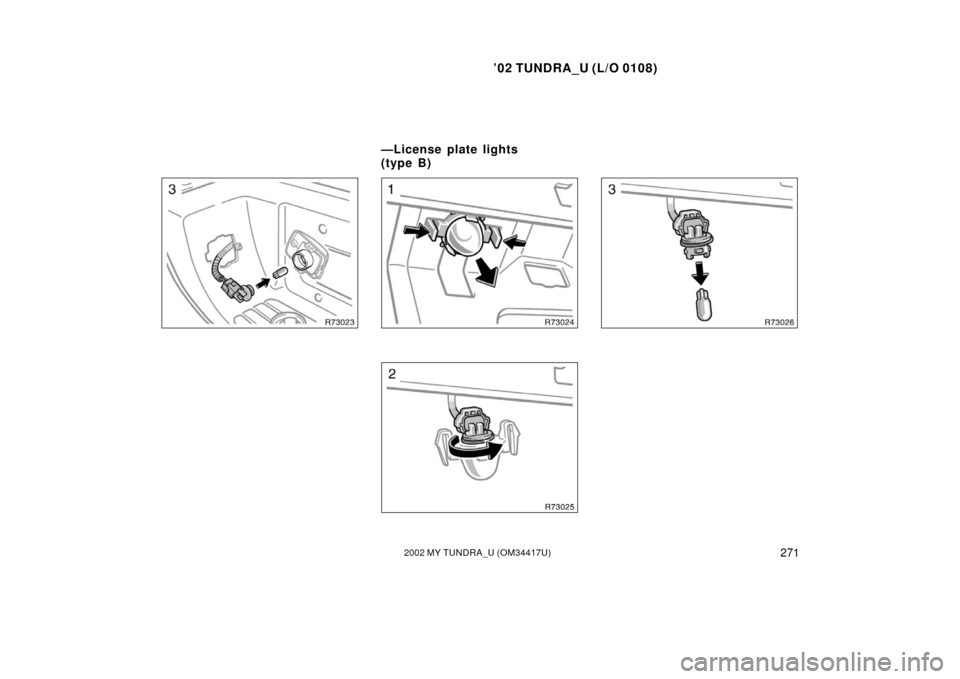

—License plate lights
(type B)

’02 TUNDRA_U (L/O 0108)
2722002 MY TUNDRA_U (OM 34417U)

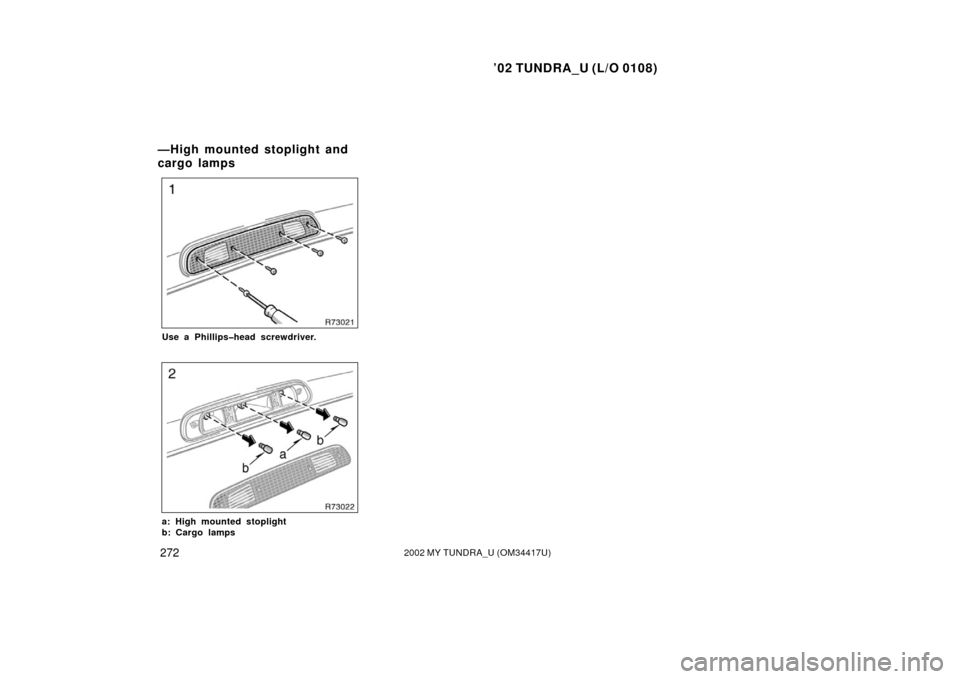

Use a Phillipshead screwdriver.
a: High mounted stoplight
b: Cargo lamps
—High mounted stoplight and
cargo lamps

’02 TUNDRA_U (L/O 0108)
2732002 MY TUNDRA_U (OM 34417U)
SPECIFICATIONS
Dimensions 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Payload 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Engine 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8
